How to Add an LED Remote Control Dimmer to LED Light Fixtures

Exactly What an LED Remote Control Dimmer Is

An LED Remote Control Dimmer is a lighting control system that allows you to adjust the brightness of your lights wirelessly. Unlike a physical switch, which has a fixed on/off setting, an LED remote control dimmer lets you fine-tune the intensity of the light emitted.

The dimmer switch acts as an intermediary, communicating with your light fixtures, and the remote control serves as the tool for adjusting brightness. Whether you prefer a cozy setting with dimmed light or need a well-lit environment for work or chores, these adjustments are easily made with a touch of your fingertips.

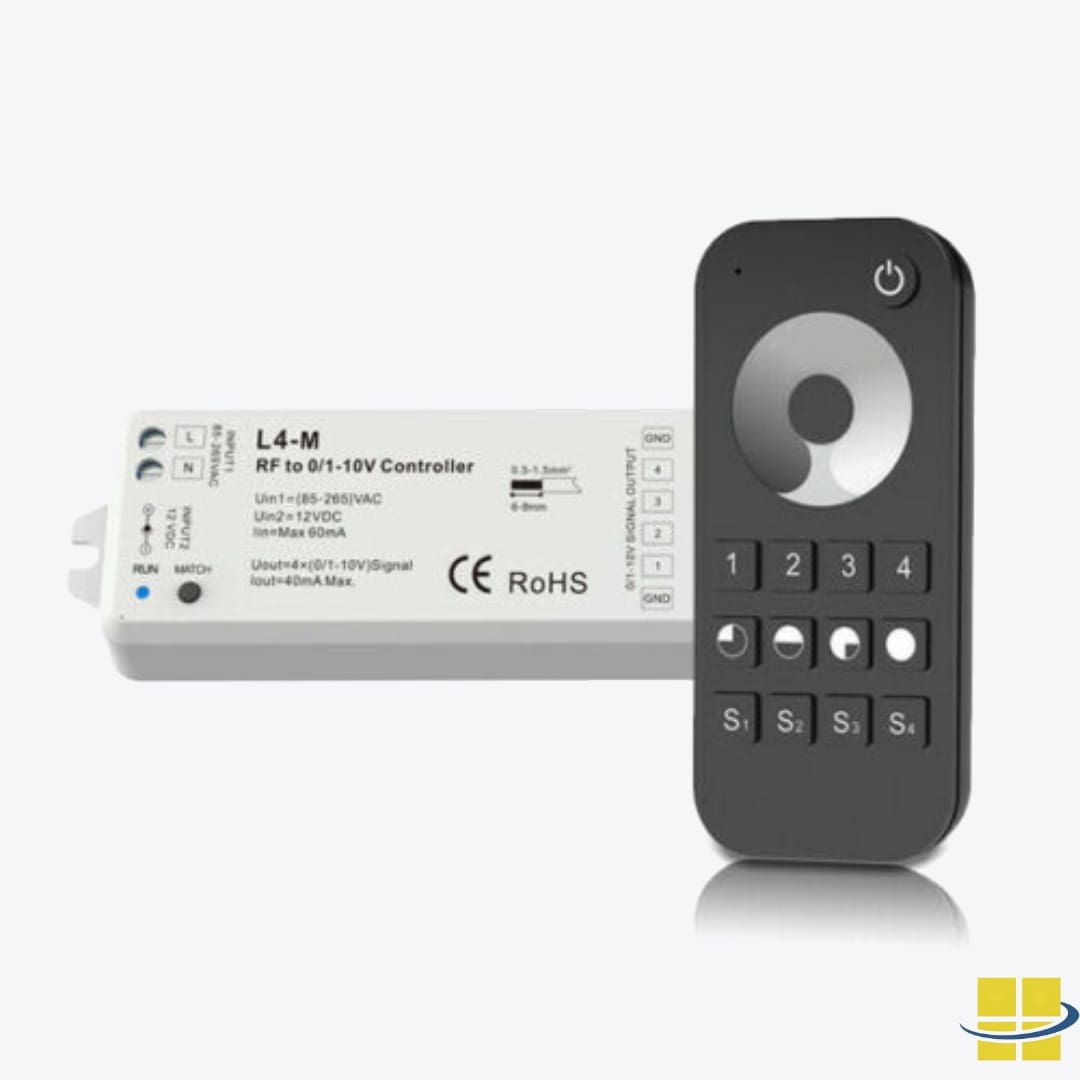

Traditional 0-10v dimming systems require a 5-wire setup (positive, negative, ground, dimmer control, and dimmer return wires). In a modern, simplified wireless setup, you use a 3-wire setup (positive, negative, and ground wires). An LED remote control dimmer eliminates the need for a 5-wire system, offering simplicity and cost-effectiveness. Contemporary remote-operated dimmers, particularly those utilizing wireless technologies like RF (Radio Frequency) or IR (Infrared), can operate without these additional wires. Instead, a receiver and a remote replace the added wires.

How to Add an LED Remote Control Dimmer to LED Light Fixtures

5 Benefits of Adding An LED Remote-Control Dimmer to LED Light Fixtures

Installing an LED remote control dimmer system that requires only 3 wires can offer several advantages, even if your existing LED fixtures have a 5-wire dimming system or a 3-wire system. Here are some reasons to consider adding an LED remote control dimmer to Access Fixtures LED light fixtures equipped with 0-10v dimming.



Features Benefits
Simplified Installation An LED remote control dimmer system with 3 wires typically simplifies the installation compared to traditional 5-wire setups. This can lead to cost savings and reduce the complexity of the installation.
Retrofitting and Upgrading If you are retrofitting or upgrading existing lighting fixtures, a 3-wire LED remote control dimmer system provides a more straightforward solution. It eliminates the need for extensive rewiring, making the upgrade more cost-effective and less disruptive.
Cost Efficiency The reduced number of wires in a 3-wire system can result in lower material costs. Choosing a remote control dimmer system with fewer wires is cost-efficient.
Integration with Smart Home Systems Many LED remote control dimmer systems with 3 wires are designed to integrate seamlessly with smart home ecosystems, providing additional features such as mobile app control, voice activation, and compatibility with other smart devices.
Convenience With a remote control, you can adjust the brightness of your LED fixtures from a distance, eliminating the need to adjust the dimming controls on the fixtures manually. In addition, convenience is beneficial to an installation in a large space, where fixtures may be mounted in hard-to-reach areas.

How to Add an LED Remote Control Dimmer to LED Lights Equipped with 0-10v Dimming In 10 Steps

  1. Turn Off Power: Turn off the power to the circuit at the breaker box to ensure safety during installation.
  2. Test Voltage: Use a voltage tester to verify the power is off before proceeding. Confirm that there is no voltage in the wiring.
  3. Identify Wires: Identify the wires in your existing setup. You will typically have a hot wire, a neutral wire, and a ground wire.
  4. Install Wireless Dimming Module: Follow the manufacturer’s instructions to install the wireless dimming module. This module is usually installed between the power source and the LED light fixture.
  5. Connect Dimming Wires: Connect the dimming wires from the module to the corresponding wires in the wall box using wire nuts.
  6. Connect Neutral and Ground: Connect the neutral wire from your fixture to the neutral wire on the module using a wire nut. Similarly, connect the ground wire.
  7. Connect Hot Wire: Connect the hot wire from your fixture to the “hot” wire on the module using a wire nut.
  8. Restore Power: Turn the power back on at the breaker box.
  9. Pair Remote Control: Follow the manufacturer’s instructions to pair the remote control with the wireless dimming module.
  10. Test Operation: Test the remote control to ensure the LED fixture responds appropriately to dimming commands.

Always follow the specific instructions provided by the manufacturer of your remote-controlled dimmer switch or wireless dimming module. If you are unsure about any step or if local electrical codes require a licensed electrician for such installations, it is recommended to seek professional assistance.



LED Remote Control Dimmer FAQs



Are LED remote control dimmers compatible with all types of LED light fixtures?

LED remote control dimmers are compatible with most LED light fixtures. However, it’s essential to check the compatibility of the dimmer with your specific fixtures, especially if they have unique dimming requirements or features.

How far is the range of the remote control for LED dimmers?

The range of the remote control can vary depending on the manufacturer and model of the LED dimmer system. Typically, remote controls have a range of up to 30 feet indoors, but this may vary based on environmental factors and obstructions.

Can LED remote control dimmers be installed in outdoor fixtures?

Yes, there are LED remote control dimmers specifically designed for outdoor use. However, it’s crucial to choose dimmers rated for outdoor applications to ensure durability and weather resistance.

Do LED remote control dimmers work with smart home systems like Alexa or Google Assistant?

Many LED remote control dimmers are compatible with popular smart home systems, allowing users to control their lights through voice commands or smartphone apps. Be sure to check the compatibility of the dimmer with your preferred smart home platform.

How can I troubleshoot issues with my LED remote control dimmer?

If you encounter problems with your LED remote control dimmer, first ensure that the dimmer is properly installed and powered. Check the batteries in the remote control and replace them if necessary. Refer to the user manual for troubleshooting tips specific to your dimmer model.

Can LED remote control dimmers be used in conjunction with traditional wall switches?

Yes, LED remote control dimmers can often be used alongside traditional wall switches. However, it’s essential to follow the manufacturer’s instructions for wiring and installation to avoid compatibility issues or electrical hazards.

Are there any maintenance requirements for LED remote control dimmers?

LED remote control dimmers typically require minimal maintenance. Occasionally, clean the remote control and dimmer module with a soft, dry cloth to remove dust or debris. Ensure that the batteries in the remote control are replaced when they run low to maintain optimal performance.

Can LED remote control dimmers be used in commercial or industrial settings?

Yes, LED remote control dimmers are suitable for a wide range of applications, including commercial and industrial settings. They offer convenient lighting control options and can help improve energy efficiency in large-scale installations.
