View-Full-Cutoff-50w-LED-Wall-PackNew HEZE Full Cutoff 50w LED Wall Pack Features Samsung LEDs, Cast Aluminum Housing, Commercial-Grade Powder Coat Finish, Photocell, and a Low Price – Emits 5,248 Lumens.



The new high-performance HEZE Full Cutoff 50w LED Wall Pack from Access Fixtures is energy-efficient and meets the latest requirements for full cutoff fixtures. Appropriate for use on the exteriors and perimeters of commercial, industrial, and hospitality facilities, the HEZE Full Cutoff 50w LED Wall Pack will provide high-CRI light for years with virtually no maintenance.

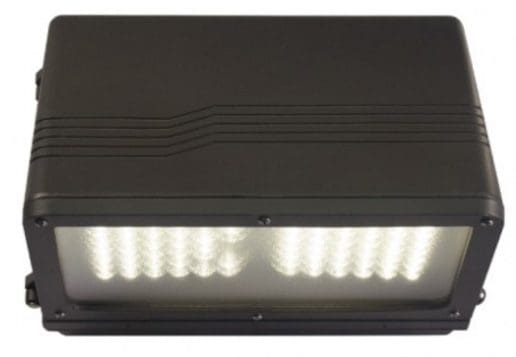

Full-Cutoff-50w-LED-Wall-Pack

LED array in a full cutoff wall pack.

The HEZE Full Cutoff 50w LED Wall Pack uses a 45w LED array and a driver for a total of 50 system watts. The array is built with premium 80+ CRI Samsung® 3030 SMD LED chips and uses forward throw optics to optimize its 5,248 emitted lumens. The LED driver works between 120v and 277v. The housing is made of die-cast aluminum and is finished with a commercial-grade DUPONT® powder coat finish. All of its hardware is stainless steel. The lens is made of impact-resistant borosilicate glass. If your lighting project requires full cutoff optics or if you just want value and performance, the new HEZE wall packs will perform today and for years to come.

HEZE Full Cutoff 50w LED Wall Pack Performance

From the exterior wall of a factory to the side of a hotel, this 50w LED wall pack offers effective, efficient light with a tried-and-true aesthetic. The luminaire is UL wet-location listed and designed to be dark sky compliant. It is DLC qualified and will meet or exceed efficiency standards for most rebate programs. Being a new LED wall pack, TM-21 testing results are able to determine a rated life greater than 64,000 hours, though the rated life of the LEDs is expected to exceed LM80 at 100,000 hours. The HEZE Full Cutoff 50w LED Wall Pack is warrantied for five years.

HEZE Full Cutoff 50w LED Wall Pack Applications

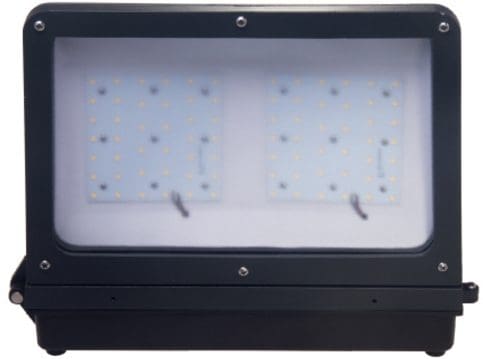

LED-Array-LED-Full-Cutoff-50w-Wall-Pack

LED array in a HEZE full cutoff wall pack.

The HEZE Full Cutoff 50w LED Wall Packs are designed to replace high-wattage HID wall packs including those with 175-watt high pressure sodium lamps or 175 metal halide lamps. Common applications for these wall packs include building facades, perimeter lighting, and areas adjacent to parking lots and areas of egress. IES files are available. Access Fixtures also provides photometric studies to simulate actual results for your location. Photometric studies come at a minimal charge that will be credited to future purchases.

Photocells Are Standard, Use Is Optional

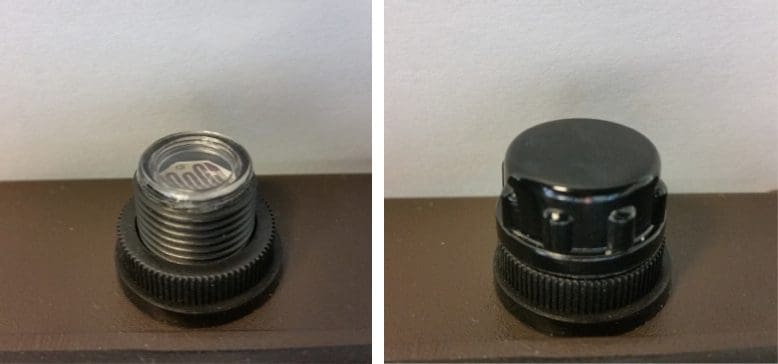

Photocell-on-Full-Cutoff-50w-LED-Wall-Pack

Left – Photocell without blackout cap. Right – Photocell with blackout cap.

Photocells save energy and extend the life of a wall pack, as they make sure the wall pack is not on when there is already enough ambient light. Photocells are a worthwhile option but typically add about $30.00 to the cost of a fixture. HEZE Full Cutoff 50w LED Wall Pack come standard with a photocell. The photocell comes with a blackout cap, too, making it easy to go without photocell capabilities, if you prefer.

Ordering HEZE Full Cutoff 50w LED Wall Packs

Ordering HEZE Full Cutoff 50w LED Wall Packs is easy. To place your order, go online or dial (800) 468-9925 to place your order with an Access Fixtures lighting specialist.
