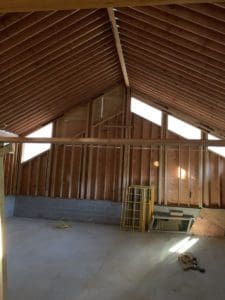

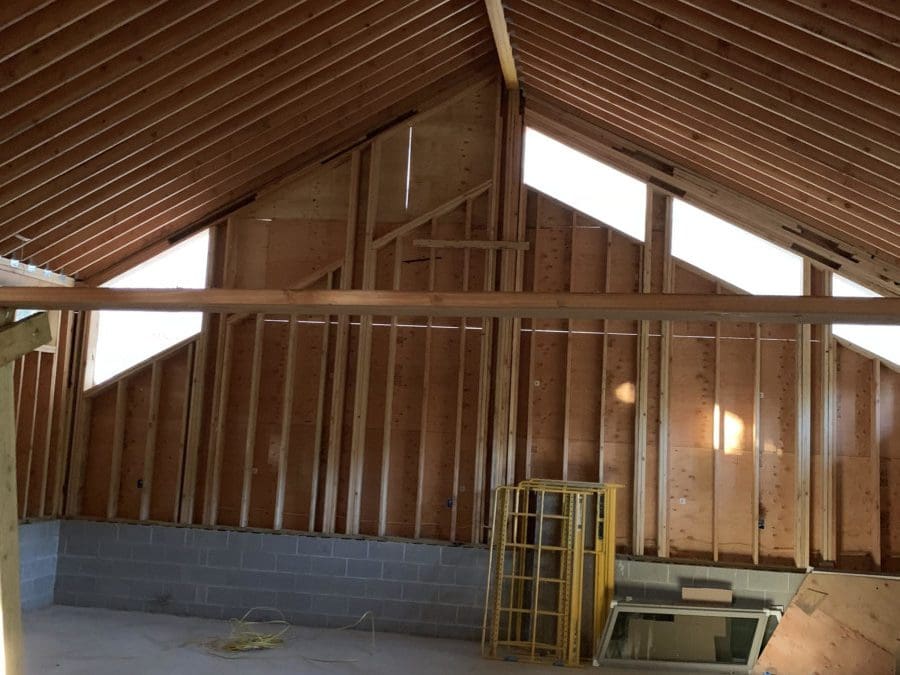

Recently, a customer in Philadelphia, PA contacted us to see if we could use LEDs to light an indoor residential basketball court. He described the location and what he was looking for to us so that we had an idea of where to begin. To start, we needed the dimensions of the area. The basketball court is still under construction, but the customer sent us a photo of what it currently looks like. See the photo below for reference.
- The basketball court ceiling has an A-frame shape– 12′ high at the edge and 22′ high at the beam. The mounting height of the fixtures, ranging from 12' to 22', was a key consideration in the lighting design.
- The court floor area is 30′ x 35′.
- As shown in the image, the window openings are located along the rear beam.
- The walls and ceilings will be white sheetrock when the project is finished.
- The ridge beam and rear beam will be exposed when the project is finished.
- The floor is currently concrete but will ultimately be wood flooring.
Lighting requirements for indoor courts differ from outdoor courts, and specialized basketball lighting is needed for optimal results.
Our customer spared no expense in building this beautiful indoor basketball court. He asked us if high bays would be appropriate for his lighting solution but wondered if we could provide an alternative basketball court light fixture that would be more flush with the ceiling. UFO fixtures are a popular choice for indoor basketball lighting due to their superior light distribution and impact resistance. We got to work finding an understated and effective lighting solution. We recommended LED basketball court lights for their energy efficiency and durability. Selecting the right beam angle is important to ensure even illumination and avoid dark corners on the court.
The customer also wanted a fixture that would be flush with the ceiling. Advanced LED fixtures with glare control features can enhance player comfort and visibility.
Choosing cost effective LED solutions can help facility owners save money in the long run.
A Four-Fixture Solution
Based on the appearance and dimensions of this indoor basketball court, we knew that we could provide several viable options with which to light the court using indoor sports lighting. We first suggested the EPTA, which is a linear LED fixture offered in multiple wattages and Kelvins. In this model, eight EPTA 150 fixtures would be used to light the court just below the angle where the wall would meet the ceiling. We would angle these fixtures up so that the light would reflect off the white ceiling, either pointed directly up or aimed at the diagonal ceiling to create a wash of light. EPTA fixtures can be wall-mounted and can pivot to aim the light to a desired area. They are IP67-rated and L70-rated at over 200,000 hours, ensuring years and years of maintenance-free lighting. Fixture quality is essential in achieving the required lighting level and ensuring long-term performance for basketball court applications.
We also offered the choice of the UPTA, which is a modular LED high bay fixture. The UPTA has a surface mount option and this would be used to place the fixtures once the ceiling was complete. We determined that the best lighting solution for this project would be to place four UPTA 200 LED high bays on the ceiling evenly spaced from each other. A 150-degree beam spread would be used on all four fixtures as well as a 0-10v dimmer. The LED basketball court lights provide flicker-free operation, energy efficiency, and durability, making them ideal for both indoor and outdoor settings. Proper light distribution and optimal uniformity ratios are achieved by carefully selecting fixture placement and type, ensuring even illumination across the court. See the photo below for the finished product!
Like the EPTA, UPTA fixtures are IP67-rated and L70-rated at over 200,000 hours of life. They require little maintenance and the UPTA 200 would provide more than enough illumination for this basketball court project. Using one fixture per designated ceiling location ensures even coverage and meets the required lighting level for the court. The housing is made of die-cast aluminum with a corrosion-resistant finish. Both the EPTA and the UPTA come with a five-year Access Fixtures warranty and are terrific LED light fixtures in their own right. However, our customer ended up choosing the UPTA solution because he felt that they would be better able to blend in with the ceiling. Selecting the right fixtures is crucial for both aesthetics and performance, ensuring the court is well-lit and visually appealing. We fitted the UPTAs that our customer ordered with diffusers which allows the light fixture to blend more subtly into the background by hiding the LEDs themselves. The UPTA fixtures come in several different standard colors, including white, which our customer chose to match his ceiling.
Ready to Order Indoor Basketball Court Lighting?
To request a photometric analysis for your project, feel free to contact us so that we can help determine the lighting needs for both full size courts and smaller installations, ensuring you get the lighting you need. If you require more information about basketball court lighting or want to discuss your options, call us at 800-468-9925. We specialize in lighting solutions for a professional indoor basketball court, where meeting professional level standards is essential for optimal performance and video quality for television broadcasting. Our team is available to answer any questions that you may have.
What is Basketball Court Lighting?
Basketball court lighting refers to the specialized illumination designed specifically for both indoor and outdoor basketball courts. The right lighting setup is crucial for players to clearly see the ball, court boundaries, the basket, and other players, thereby enhancing the overall gameplay experience. Proper lighting minimizes shadows and prevents glare, which is essential for making accurate shots and dribbling maneuvers. This is particularly important in competitive matches where visibility can significantly impact performance. In most sports venues and sports arenas, modern led basketball court lighting and high-performance led fixtures have replaced traditional HID lighting systems such as metal halide and metal halide fixtures, offering better efficiency, lighting quality, and durability. Whether for recreational or professional play, effective court lighting ensures that the game is played safely and enjoyably.
Benefits of LED Lights for Indoor Basketball Courts
LED lights have become the preferred choice for indoor basketball courts due to their numerous advantages. One of the primary benefits is their energy efficiency, which translates to lower electricity bills and a reduced carbon footprint. LED lights also boast a long lifespan, meaning they need to be replaced less frequently, which significantly reduces maintenance expenses and replacement costs. This leads to lower operating costs and substantial cost savings over time. The long term benefits of LED lighting include not only financial savings but also reduced maintenance and improved durability. The superior light quality of LEDs provides uniform, intense illumination that eliminates shadows and reduces glare, creating a more comfortable playing environment. Additionally, LED lights generate minimal heat, making them safer and more pleasant for indoor settings. LED lights are also environmentally friendly, contributing to a greener and more sustainable facility. Their environmental friendliness and ability to provide consistent, high-quality lighting make LEDs an excellent choice for any indoor basketball court.
Lighting Requirements for Basketball Courts
The Illuminating Engineering Society (IES) sets forth recommendations for sports lighting, including basketball, in its publication “IES RP-6-15: Sports and Recreational Area Lighting.” These guidelines help ensure that lighting systems meet the necessary standards for different levels of play. Lighting requirements vary depending on court size, whether it's a full size court or half court, and whether the installation is for an indoor or outdoor court. For indoor basketball courts, the recommended illuminance levels range from 300 lux (approximately 30 foot-candles) for recreational play to 750 lux (approximately 70 foot-candles) or more for professional play. Outdoor courts have slightly different requirements, with recommended illuminance levels ranging from 200 lux (approximately 20 foot-candles) for recreational play to 500 lux (approximately 50 foot-candles) or more for professional play. Outdoor basketball lighting must also meet specific standards, including an appropriate IP rating and surge protection, to ensure durability and safety in outdoor environments. Adhering to these standards is essential for providing optimal visibility and safety for players.
Lighting Design and Installation
Lighting design and installation play a crucial role in creating a high-performance environment for basketball courts, whether they are indoor basketball courts or outdoor basketball courts. A well-designed lighting solution ensures that players enjoy optimal visibility across the entire playing surface, while also promoting energy efficiency and safety.
For outdoor basketball courts, the lighting design must account for the court’s size, shape, and the surrounding environment. Proper fixture placement and selection help minimize light pollution and reduce glare, ensuring that the lighting does not disturb nearby properties or create visual discomfort for players. Using energy efficient LED lighting fixtures with the right beam angles can provide superior illumination while keeping energy costs low. Additionally, outdoor basketball court lighting should be robust enough to withstand weather conditions and deliver consistent performance throughout the year.
When it comes to indoor basketball courts, achieving uniform illumination is essential to eliminate dark spots and ensure that every part of the court is well-lit. This not only enhances the playing experience but also improves safety for athletes and spectators alike. Careful planning of fixture placement and selection of high-quality LED basketball court lights can help maintain consistent brightness levels and color rendering, which are vital for indoor basketball games. The use of advanced LED systems allows for precise control over lighting levels, further contributing to energy efficiency and reducing operational costs.
Ultimately, a thoughtful approach to lighting design and installation ensures that basketball courts—whether indoor or outdoor—meet the highest standards for visibility, safety, and energy savings. By focusing on uniform illumination and optimal fixture placement, facility owners can create a superior environment for both recreational and competition-level play.
Safety Considerations for Basketball Court Lighting
Safety is a paramount concern when it comes to basketball court lighting. The lighting system should be designed to minimize glare and prevent eye strain for both players and spectators. Reducing glare not only improves player comfort but also enhances the spectator experience by providing clear visibility of the action. Fixtures need to be impact-resistant to withstand occasional hits from basketballs, ensuring they remain functional and safe. Additionally, the lighting system should be designed to prevent overheating and electrical shock, which can pose serious risks. Proper installation and regular maintenance are crucial to prevent accidents and injuries, ensuring that the lighting system remains reliable and safe for all users. By prioritizing safety in the design and upkeep of basketball court lighting, we can create a secure and enjoyable environment for everyone involved.
Conclusion
Choosing the right indoor basketball court lighting is essential for creating a safe, enjoyable, and professional playing environment. LED basketball court lights offer superior illumination, energy efficiency, and long-term cost savings compared to traditional HID lighting systems. Proper fixture placement, glare control, and uniform illumination help eliminate dark spots and enhance visibility for players and spectators alike. Whether you are lighting a residential indoor basketball court or a professional sports arena, investing in high-quality LED lighting fixtures ensures optimal performance, reduced maintenance expenses, and an improved overall experience. By carefully considering lighting requirements, design, and safety factors, facility owners can confidently create basketball courts that meet the highest standards and stand the test of time.
Frequently Asked Questions (FAQs) About Indoor Basketball Court Lighting
1. What are the advantages of LED basketball court lights over traditional HID lighting systems?
LED basketball court lights offer superior energy efficiency, longer lifespan, reduced maintenance costs, and better light quality with uniform illumination and glare control compared to traditional HID lighting systems.
2. How many LED fixtures are needed to properly light an indoor basketball court?
The number of LED fixtures depends on the court size, ceiling height, and desired lighting levels. Typically, a full-size indoor basketball court requires multiple fixtures strategically placed to ensure uniform illumination and eliminate dark spots.
3. What is the recommended mounting height for indoor basketball court lighting fixtures?
Mounting height usually ranges between 20 to 30 feet for indoor basketball courts, but it can vary depending on ceiling design. Proper mounting height ensures optimal light distribution and reduces glare for players and spectators.
4. How do I ensure uniform illumination across the entire basketball court?
Uniform illumination is achieved by selecting the right type of LED fixtures, proper beam angles, and precise fixture placement. Photometric analysis can help design a lighting layout that meets uniformity standards.
5. Are LED basketball court lights flicker-free?
Yes, modern LED basketball court lights operate flicker-free thanks to high-frequency drivers, which enhances player comfort and reduces eye strain during gameplay.
6. What color temperature is best for indoor basketball court lighting?
Cooler tones, typically around 4000K to 5000K, are recommended for indoor basketball courts as they provide crisp, bright illumination that enhances visibility and color rendering.
7. Can LED basketball court lighting reduce energy costs?
Absolutely. LED lights consume significantly less electricity than traditional lighting, resulting in substantial energy savings and lower operating costs over time.
8. How durable are LED fixtures in indoor basketball courts?
LED fixtures designed for basketball courts are impact-resistant and built to withstand accidental ball strikes, ensuring long-term durability and safety.
9. Is glare control important in basketball court lighting?
Yes, glare control is essential to prevent discomfort and distraction for players and spectators. LED fixtures with advanced optics help minimize glare while providing optimal visibility.
10. Can I retrofit existing indoor basketball court lighting with LED fixtures?
Yes, many existing lighting systems can be retrofitted with LED fixtures, offering improved energy efficiency, better light quality, and reduced maintenance expenses without the need for a complete overhaul.
