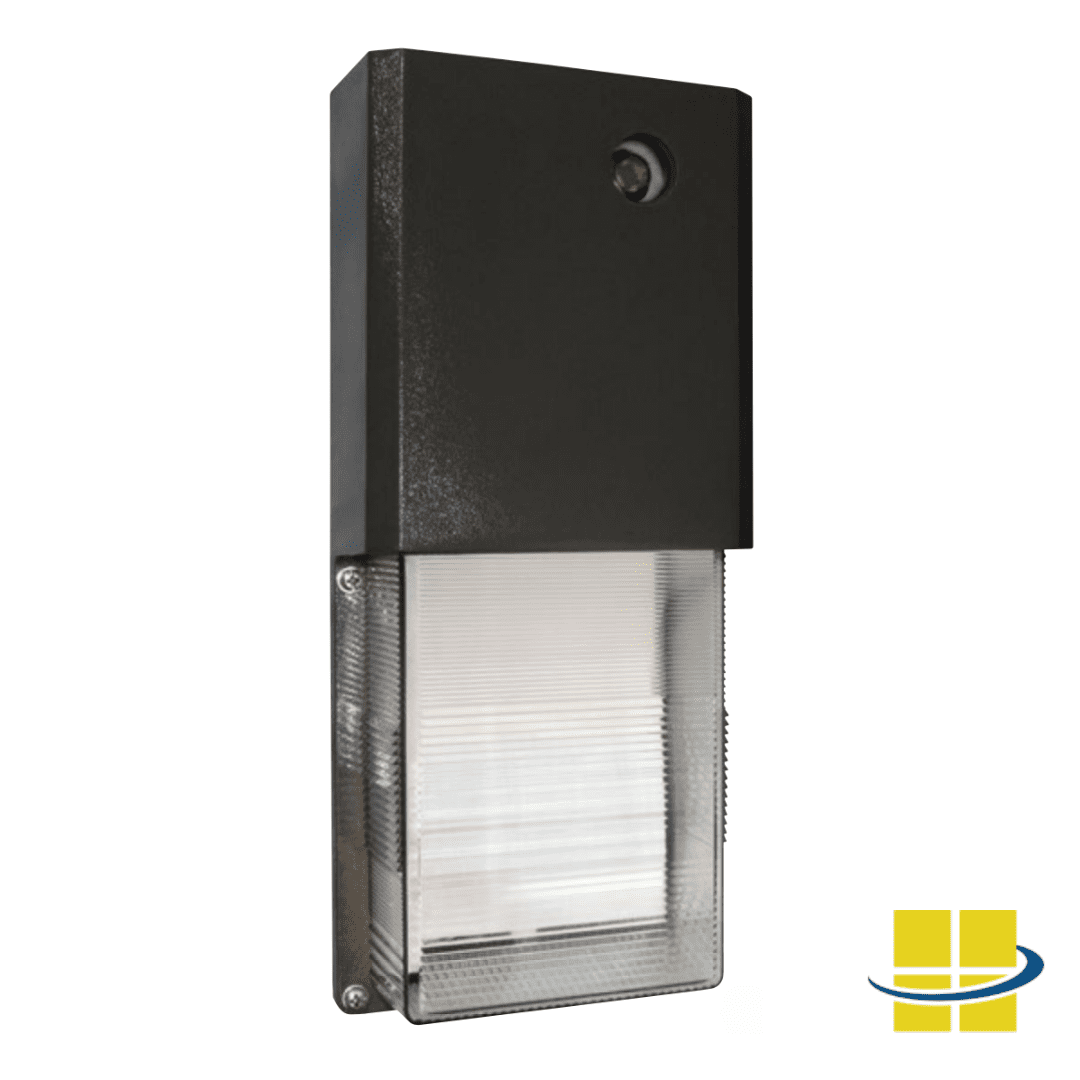

SHOO 10w LED Forward Throw Wall Pack with Photocell, 120-277v

$73.60

The SHOO 10w LED Forward Throw Wall Pack with Photocell, 120-277v lighting applications include retail centers, industrial parks, schools, universities, public transit, airports, office buildings, apartment complexes, and medical facilities. Mounting heights of 8 to 12 feet can be used based on light level and uniformity requirements.

Optics: This unit features clear polycarbonate prismatic lens that provides optically controlled wide spread light distribution designed to replace HID lighting systems up to 70w metal halide fixtures with high-performance LEDs.

Value: The cost-efficient LED wall pack features high-performance LEDs that deliver a total of 780 lumens, L70 rated life of 165,000 life hours, and IP65 rated for protection against dust and water.

Photocell: Built-in photocell automatically detects dusk and dawn and turns this wall pack on or off accordingly – adding extra savings in energy costs!

In Stock

SKU: AF33XWP8Q1X9UCT Category: Tag:


Product Description

The SHOO 10w LED Forward Throw Wall Pack with Photocell, 120-277v lighting applications include retail centers, industrial parks, schools, universities, public transit, airports, office buildings, apartment complexes, and medical facilities. Mounting heights of 8 to 12 feet can be used based on light level and uniformity requirements.

Optics: This unit features clear polycarbonate prismatic lens that provides optically controlled wide spread light distribution designed to replace HID lighting systems up to 70w metal halide fixtures with high-performance LEDs.

Value: The cost-efficient LED wall pack features high-performance LEDs that deliver a total of 780 lumens, L70 rated life of 165,000 life hours, and IP65 rated for protection against dust and water.

Photocell: Built-in photocell automatically detects dusk and dawn and turns this wall pack on or off accordingly – adding extra savings in energy costs!



Features:

  • Wall pack fixture with built-in photocell
  • 10w integrated LEDs
  • Polycarbonate front housing in bronze with white powdercoat finish back plate
  • Clear polycarbonate prismatic lens
  • 120-277v
  • Type 5 optics
  • (CRI) of 80+ color rendering index
  • CSA listed for wet locations
  • IP65 rated for protection against dust and water
  • L70 rated for 165,000 life hours
  • 780 lumens
  • 5000K
  • Mounts directly over a 4˝ recessed outlet box. Threaded stem and nut included.
  • 10  lbs.

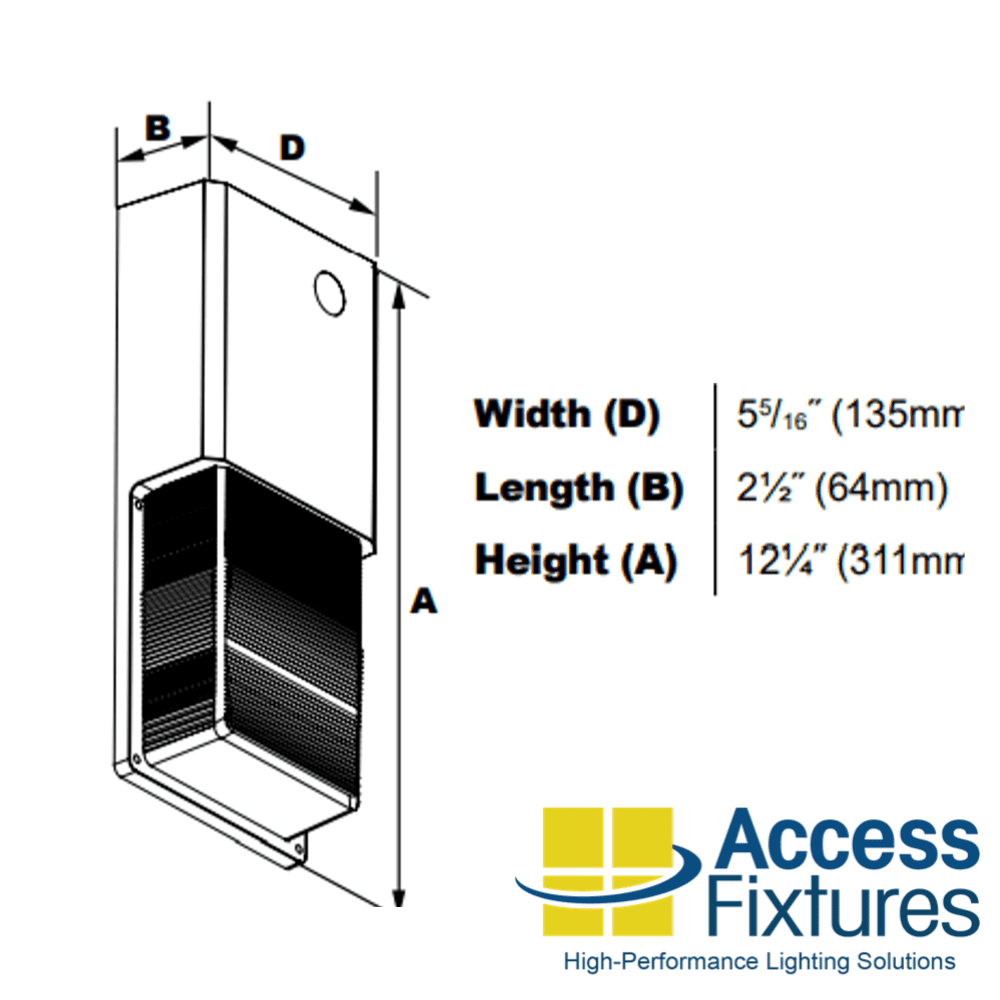

  • 12.25″ x 5.31″ x 2.5″
  • 5 year warranty

Options:

  • Choice of finish: Bronze or Custom RAL



Access Fixtures 5-Year Warranty

All Access Fixtures products come with a 5-year warranty. If your product is found to have a manufacturing defect, we will replace components, the entire product, or issue a refund. We stand behind the quality of our products. Our customer service team, located in Worcester, MA, is happy to address any questions, comments, or concerns you may have. Please give us a call at 800-468-9925. Please view Access Fixtures’ return policy.

Need a Photometric Analysis for SHOO 10w LED Forward Throw Wall Pack with Photocell, 120-277v Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometrics include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order SHOO 10w LED Forward Throw Wall Pack with Photocell, 120-277v or Speak to a Lighting Specialist?

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.

Specifications

Weight 12 lbs
Dimensions 14 × 7 × 4 in
Available Finishes

Bronze, Custom RAL

Color Rendering Index (CRI)

80+

Color Temperature (K)

5000K

Housing

Galvanized back plate, Polycarbonate front housing

LED Type

LED Array

Lens

Clear prismatic polycarbonate lens

Light Source

Light Source Included

Lamp is included.

Light Source Lumens

780

Listings

CSA: Listed for wet locations, IP65

Mounting

Mounts over 4-inch electrical box

Product Family

SHOO

Rated Life

165,000 Hours

Style

Forward Throw

System Watts

10.3

Voltage

120-277v

Warranty

5-Year Warranty
