CIRC 20w Round Wall Light 120-277v, 50w HID EQV Exterior Round Wall Light



The CIRC 20w Round Wall Light 120-277v, 50w HID EQV Exterior Round Wall Light is protected against dust and water, rated for wet locations by the CSA, and has been proven to last for well over 50,000 hours. These fixtures are ideal for recreational facilities, indoor pool rooms, locker rooms, outdoor pools and walkways, and elsewhere. Read more in the Description below.

Place your order online or call a lighting specialist for more information at 800-468-9925.

In Stock

WPR30Q Wall Pack

SKU: AF33XWPR30QF1X20U4KW Category: Tag:

Product Description

The CIRC 20w Open Frame LED Wall Pack 120-277v is an attractive fixture for any commercial application that requires a bright, efficient, and attractive fixture. Applications include: recreational facilities, indoor pool rooms, locker rooms, outdoor pools and walkways, and more. The LEDs in this fixture throw light forward and the low-profile housing makes it easy to mount these units on the floors, walls, or ceilings. These CIRC wall packs are available in bronze, white, and any custom RAL color of your choice. Read below for complete information on these units and then place your order online today or call an Access Fixtures lighting specialist at 800-468-9925.

LED Performance and Lumen Output – CIRC 20w Round Wall Light 120-277v20w Round Wall Light

This fixture’s LEDs are mounted on a sturdy aluminum board and produce a total lumen output of 1,869 lumens. Each CIRC 20w Round Wall Light 120-277v runs at only 20 watts and features an impressive L70 rated life of 187,000 hours. This means that after 50,000 hours, this fixture will still emit 70% or greater of its original lumens. That’s almost six years of sustained light with no need for maintenance. Being ballast- and lamp-free, you won’t have to replace, well, anything. The LEDs and safely enclosed driver are designed to run and run. We back these units with a 5-year factory warranty, too, so we’ll be here to help address any issues.

The light from these fixtures is at a Kelvin temperature of 4000K. The color rendering index (CRI) of these units is a strong 85, so objects in the light will appear vibrant and bright.

These CIRC 20w Round Wall Light 120-277v offer the same lumen output of a 50w metal halide fixture. At a fraction of wattage and more than twice the lifetime, this fixture will pay for itself.

Housing, Hardware, and Glass

This fixture is built with an ABS housing that is resistant to weather, impact, and corrosion. ABS stands for Acrylonitrile butadiene styrene, which is a plastic polymer designed to be extremely resistant against breakage, impacts, and heat. It is built with a frosted polycarbonate opal lens that allows the light to disperse while also keeping the fixture strong and durable. The open-faced lens of this fixture ensures that it loses as few lumens as possible.These units are built with a frosted polycarbonate opal lens that allows the light to disperse and shine as evenly as possible while maintaining their strength and durability.

The CIRC 20w Round Wall Light 120-277v comes standard in textured, architectural bronze or white. The powder coat is finished over a chromate conversion coating, which protects the fixture from corrosion and erosion. Its IP65 rating means it can endure the rain or water, the dust, and more. If bronze or white aren’t really your style, you can send us any custom RAL color you want and we’ll use that instead. Click here to learn more about custom-painted fixtures in RAL coloring.

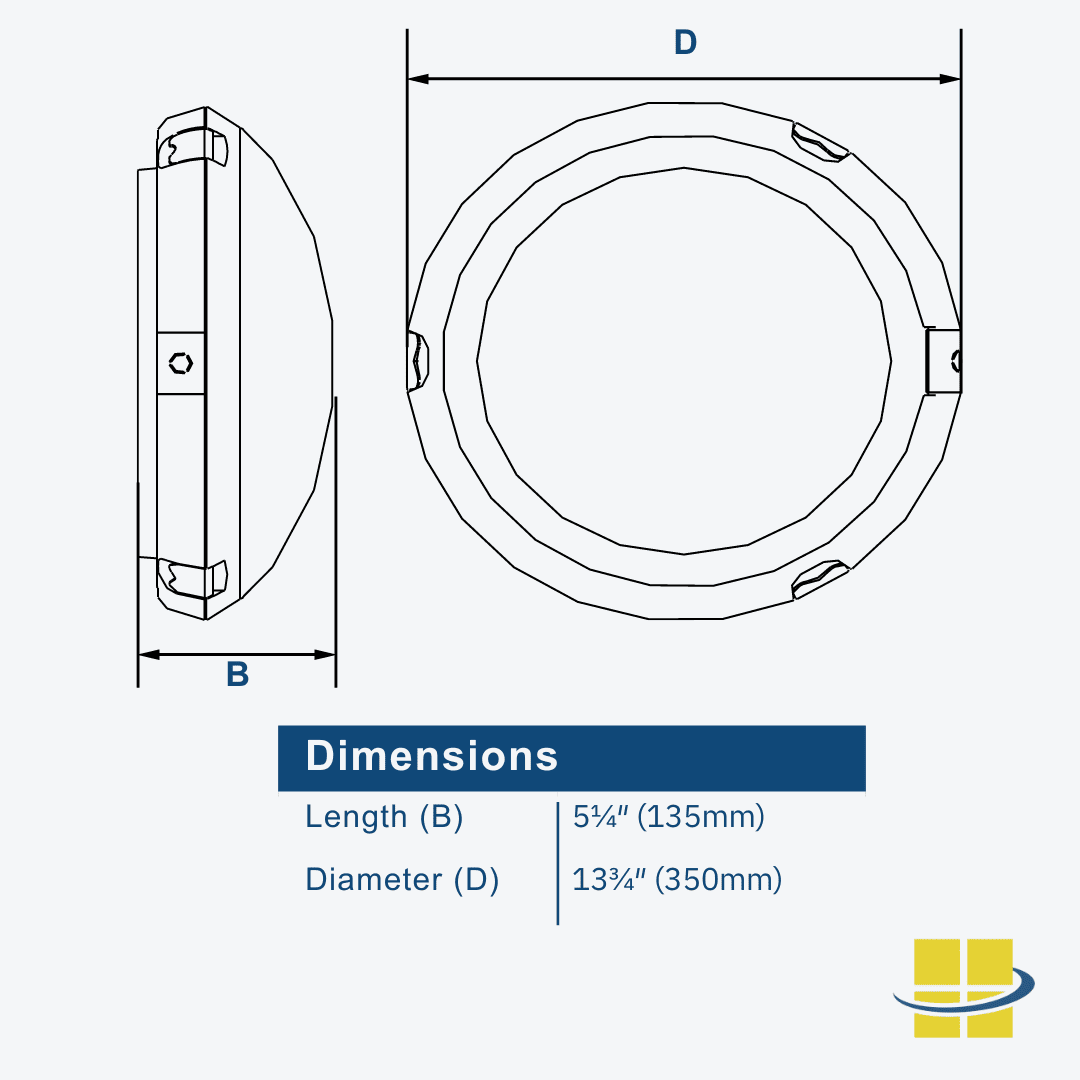

Dimensions and Mounting20w Round Wall Light Dimensions

This fixture makes it easy to revitalize your outdoor lighting. With a relatively small form factor of 13.75” (diameter) x 5.25″ (height), it is easy to pick up and install. Mounts directly onto a surface to further simplify the installation process.

Ratings and Listings

These wall packs are rated for a variety of environments and applications. As mentioned above, these fixtures are IP65 rated, meaning that it can be fully immersed in water for a period of time without any water ingress. It also means it is, in all scenarios, fully protected against. They have the additional certification of being rated for wet locations by the CSA and have been tested to operate -40°F and 104°F.120v-277v

Input Voltage

This fixture will automatically detect line voltages of 120v-277v. Click here for the lower voltage version of this same product.

Optional Battery Back-Up

A battery back-up is available for this fixture if you require one. Our AF33X3EBL1202774500 battery back-up provides power to a fixture for 90 minutes after an outage. Whether these units are installed in commercial, residential, or hospitality locations, visibility after a power outage can prevent injury (and may be required).

Optional Photocell

Battery Backup

Battery Back-Up

Whether installing these fixtures indoors or outdoors, you may want to use a photocell. When the ambient light drops down (due to the sun setting or to other fixtures being turned off), the photocell on each CIRC wall pack will trigger the fixtures to turn on. To receive photocells with your CIRC wall packs, simply select the option from the drop-down menu above.

Optional Microwave Sensor

A microwave occupancy sensor is also available for this product. The microwave occupancy sensor has a detection range of 8-30 feet when the fixture is mounted on the ceiling and 8-12 feet when the fixture is mounted on the wall. It has a number of adjustable options, including:

  • Time Delay (5-second, 30-second, 90-second, 3-minute, 20-minute, and 30-minute)
  • Detection Motion Speed (2- to 10-feet per second)
  • Daylight Sensor for Daylight Harvesting
  • Vacant to Dim Settings (10%, 20%, 30%, 50%)
  • Vacant Stand-By Delay (5 seconds, 5 minutes, 10 minutes, 30 minutes, and 60 minutes)

Call an Access Fixtures lighting specialist to find out if the microwave sensor will be appropriate and useful in your facility.

Optional Tamper-Resistance Kit

The tamper-resistant kit add an extra layer of protection in the form of four clips and star screws that prevent the fixture from being broken into.

Ready to Order the CIRC 20w Round Wall Light 120-277v or Talk to a Lighting Specialist?

Place your order online today. If you have any additional questions or if you feel more comfortable ordering over the phone, call us at 800-468-9925.


Weight 11 lbs
Dimensions 13.75 × 5.25 × 13.75 in
Available Finishes



Typically ships in 7-10 business days

Light Source Lumens



Electronic 50/60 Hz

Color Temperature (K)


Light Source Included

LED Array Included

LED Type

LED Array


Opalescent polycarbonate lens

Light Source

White Light Spectrum


Surface Mount

Rated Life

50,000 Hours


Bulkhead Wall Packs

LED System Watts





5-Year Warranty

Color Rendering Index (CRI)
