BAA VERS 80 LED Full Cutoff Wall Pack

$329.87

The VERS 80 LED Full Cutoff Wall Pack standouts with a full-cutoff design, loads of features, options, and integrated LEDs. The VERS is a great choice for wall-mount applications in retail centers, industrial parks, schools, universities, public transit, airports, office buildings, medical facilities, and more!

Full Cutoff: This wall pack’s full cutoff design helps meet local lighting ordinances by minimizing light trespass – making it neighbor-friendly.

Maximum Value: The simple and cost-effective integrated LEDs feature high-performance lighting, minimize energy, and provide low to no maintenance.

Durable Housing: Constructed of durable die-cast aluminum with built-in level, nickel-plated, stainless steel hardware, and a tempered clear flat glass lens. IP66 rated.

In Stock

- Wall Pack - VERS- 60w and 80w LED 230324

  • Recommended on islands or anyplace that has fluctuations in voltage. LED lights should never be on the same circuit as HID lights or machinery.
  • Photocell is only available with 120-277v LED Driver. Do NOT order with 347-480v LED Driver.
  • Total

Specifications

Weight 18 lbs
Dimensions 15 × 10 × 10 in
Availability

7 to 10 Day Production, plus Shipping

Light Source

Available Finishes

Bronze, Custom RAL

Color Rendering Index (CRI)

80+

Housing

Extruded aluminum with die-cast aluminum head

Lens

Clear flat tempered glass lens

Light Source Included

LED Array Included

Light Source Lumens

8212

Listings

CSA: Listed for wet locations, IP65

Mounting

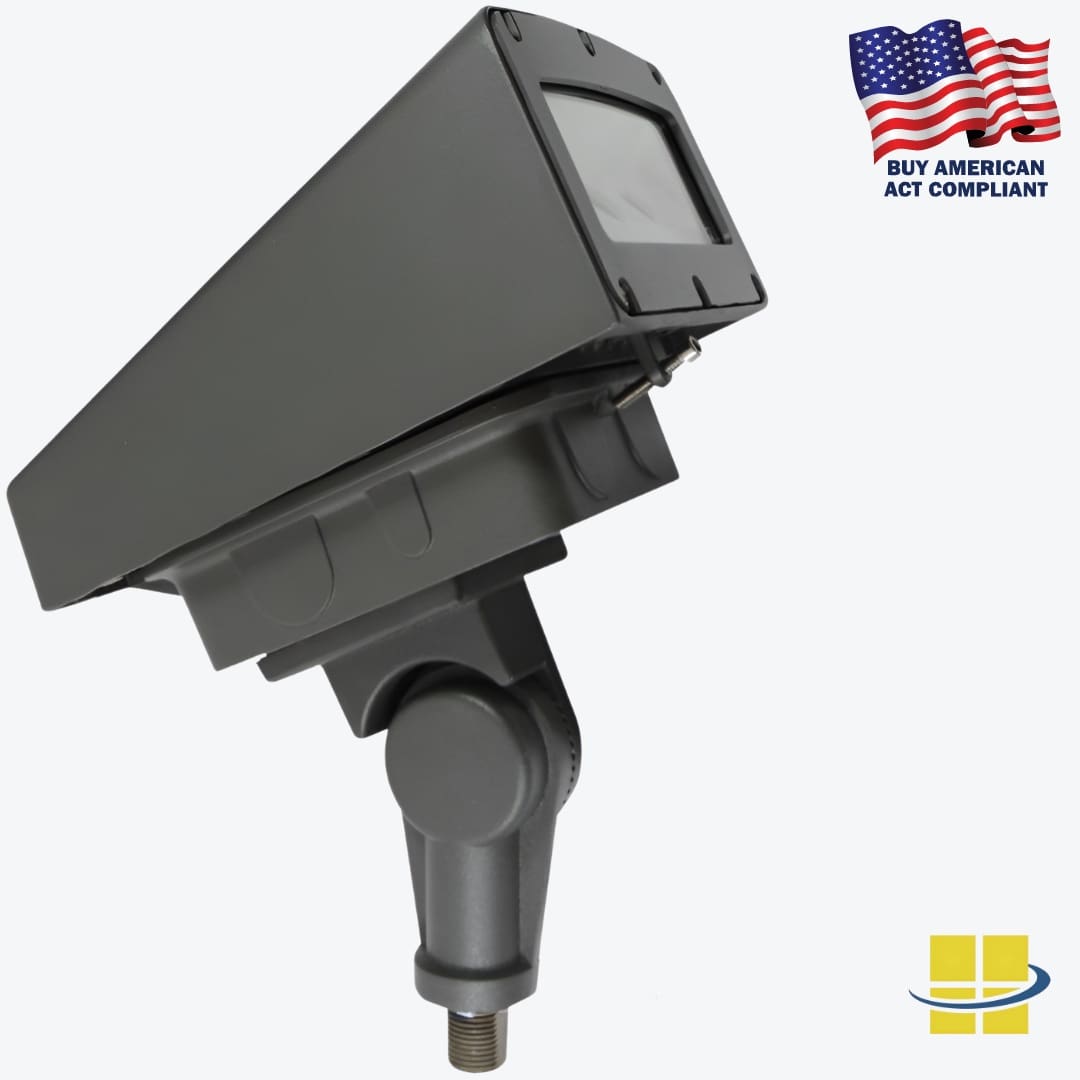

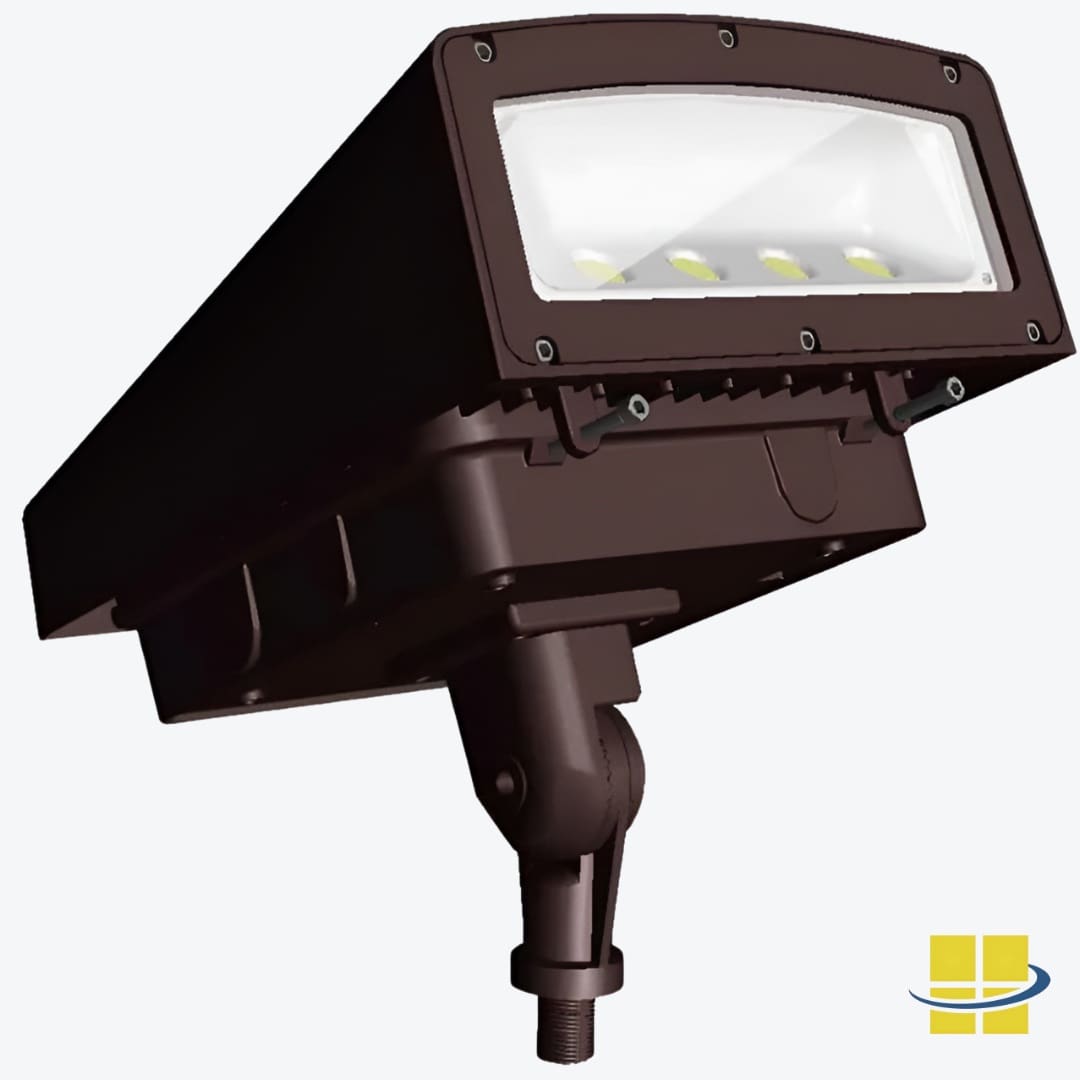

Mounts on adjustable wall brackets., Mounts over 4-inch electrical box, Optional ground stake mount or pole top fitter mount also available.

Product Family

VERS

Rated Life

86,000 Hours

Voltage

120v, 208v, 240v, 277v

Warranty

5-Year Limited Warranty

Style

Full Cutoff

Product Description

VERS 80 LED Full Cutoff Wall Pack Features:

  • Die-cast gasketed Aluminum Housing, Includes Cast-In Box Template and Built-in Level. White Reflector. Nickel-Plated Stainless Steel Hardware.
  • Mount Directly Over the Recessed Electrical Box or use ½˝ Surface Mount Conduit—adjustable Knuckle with ½˝ NPS Threads, Sold Separately and field Installed.
  • Tempered Clear Flat Glass Lens.
  • Bronze or Custom RAL Color.
  • 80w COB
  • 80w integrated LED System watts.
  • 120-277v.
  • 8,212 Lumens.
  • 110 Lumens Per Watts.
  • LEDs: Cool Copper COB or EasyLED Aluminum Board.
  • B: 0, U: 0, G: 1
  • L70 rate life of 77,000 hours
  • 4000K (learn more here)
  • 80+ CRI (learn more about Color Rendering Index here)
  • IP66 rated
  • Electronic Driver, 120-277V, 50/60Hz; Less Than 20% THD and PF>0.90
  • Die-cast aluminum housing

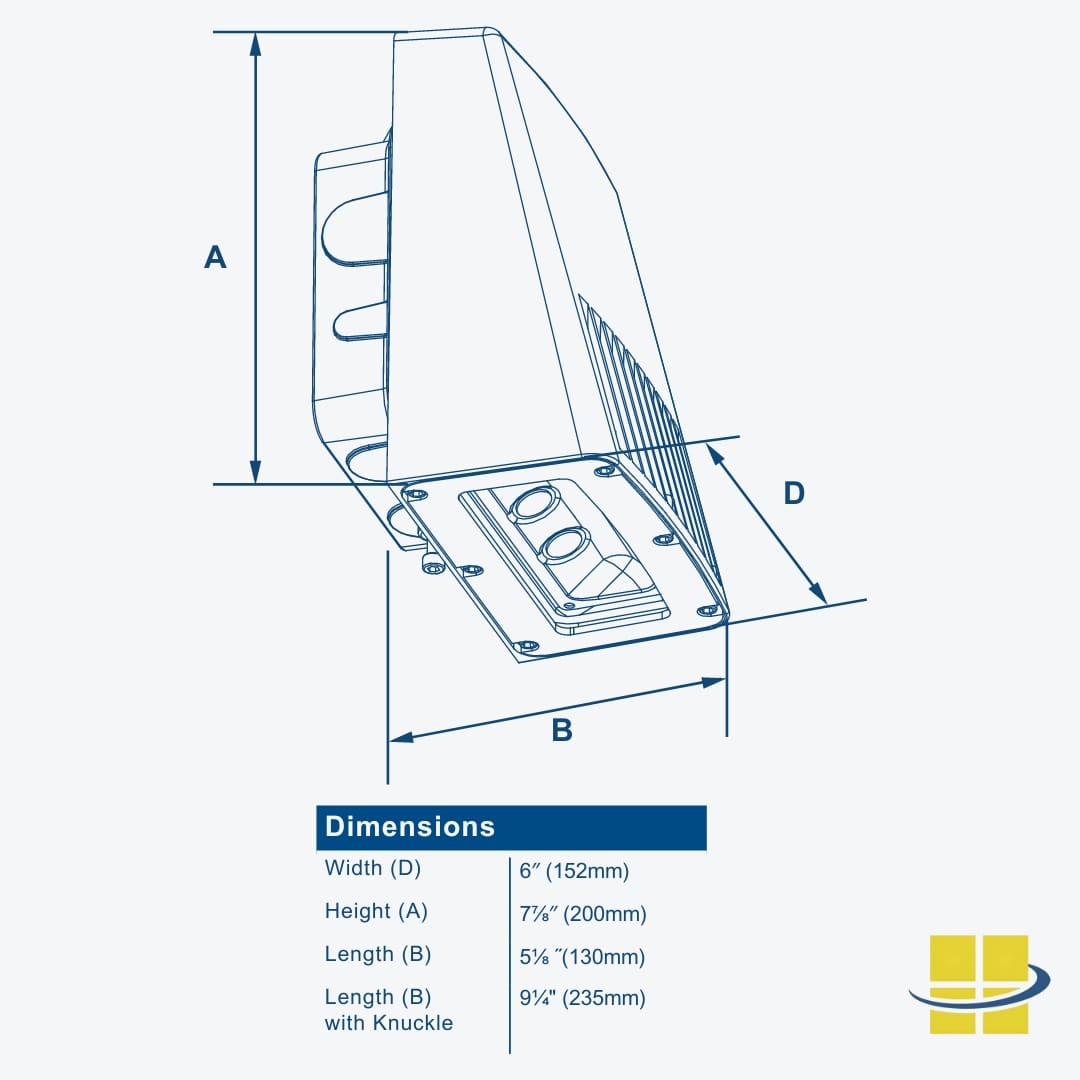

  • 11.25″ x 9.75″x 6.125″ in.
  • 13 lbs.
  • 5-year warranty included

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.

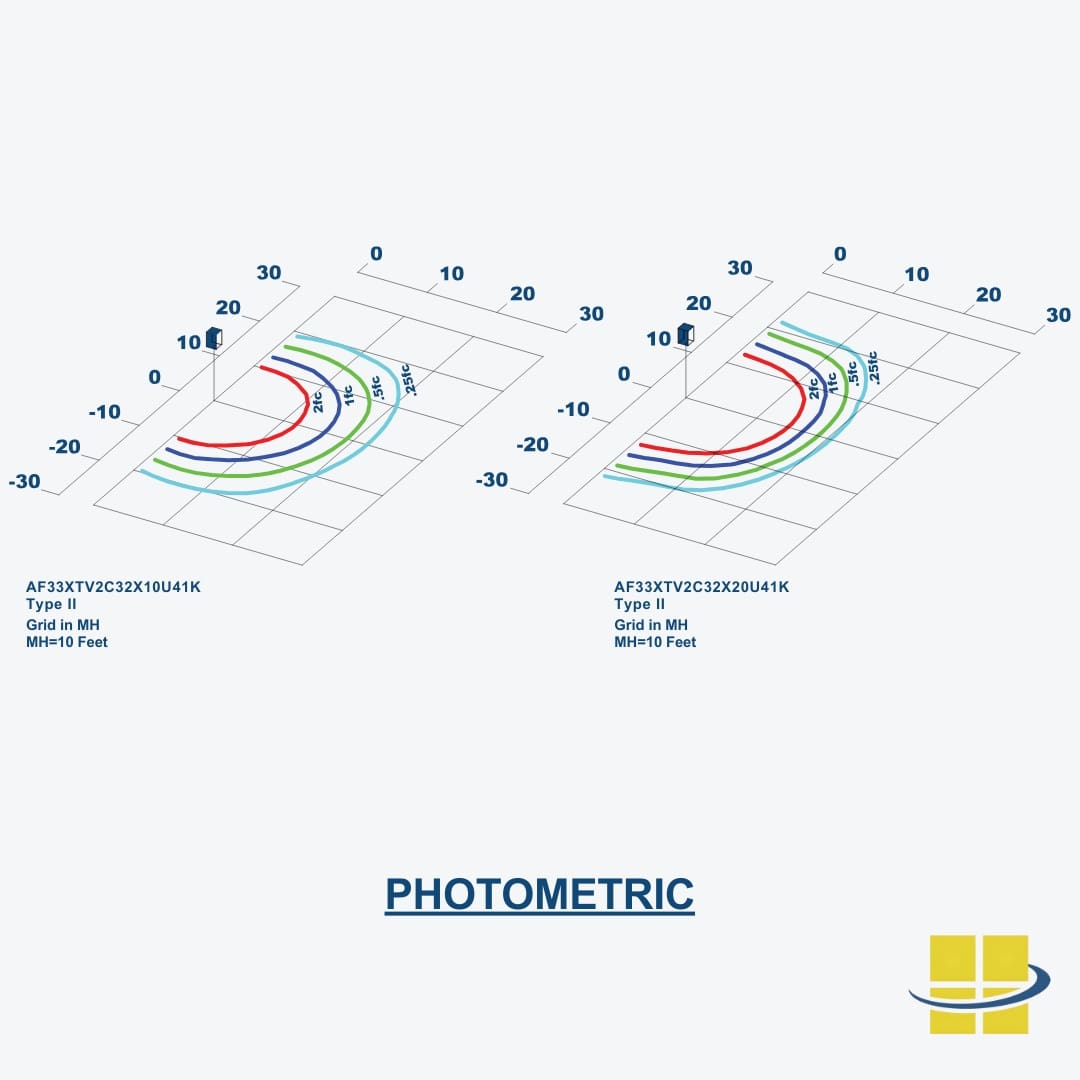

Need a Photometric Analysis for Your LED Full Cutoff Wall Pack Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometric studies include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order or Speak to a Lighting Specialist?

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
