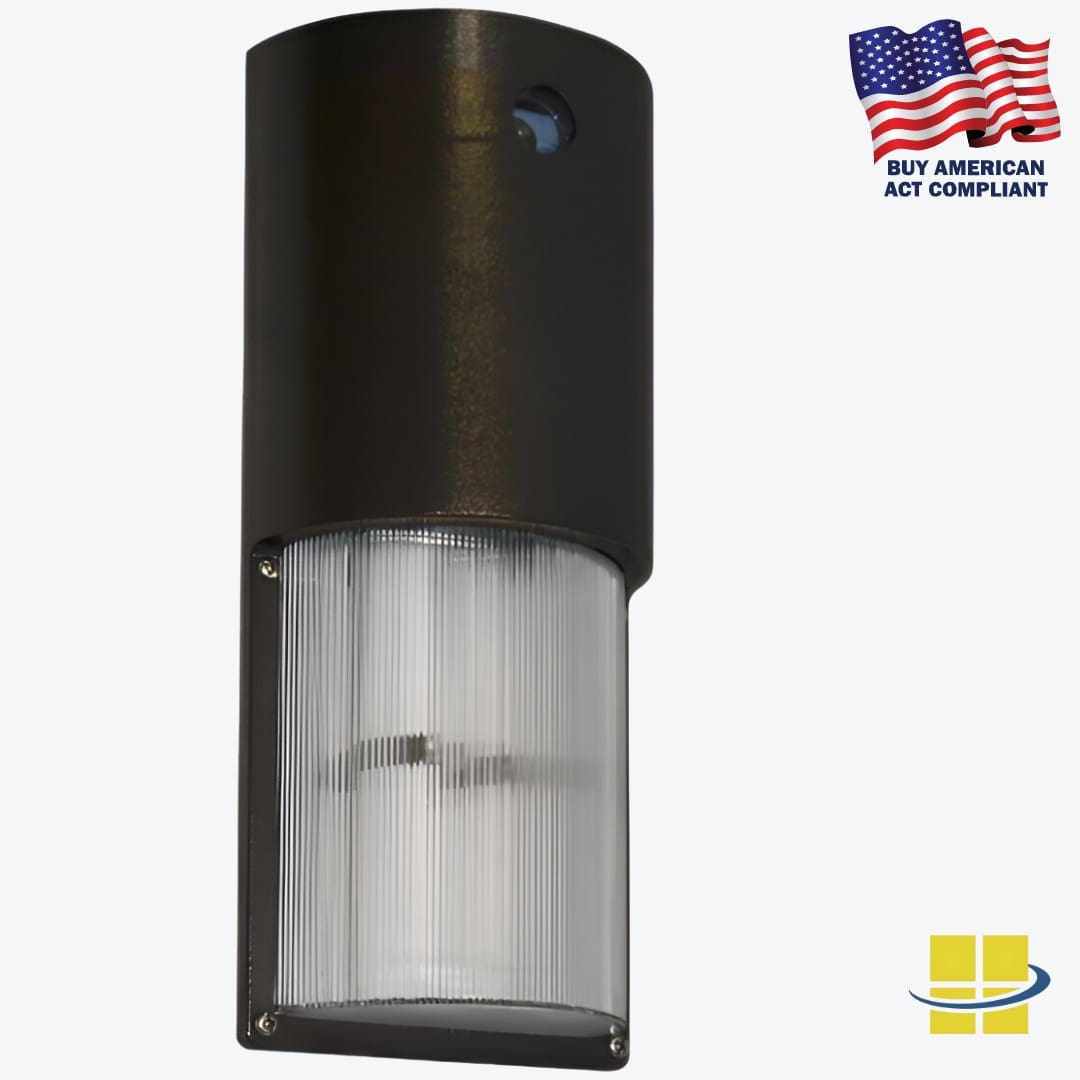

SHOO 9w LED Polycarbonate Forward Throw Entry Wall Pack, with Photocell, 120-277v

$110.40

The SHOO 9w LED Polycarbonate Forward Throw Entry Wall Pack with Photocell, 120-277v throws light in a wide forward arc, making it perfect for lighting large areas outside of buildings. Typical applications include retail centers, industrial parks, schools, universities, public transit, airports, office buildings, apartment complexes and medical facilities. Mounting heights of 8 to 12 feet can be used based on light level and uniformity requirements.

Type 5 Optics: This unit provides optically controlled wide spread light distribution designed to replace HID lighting systems up to 70w metal halide fixtures with high-performance LEDs.

Extreme Value: The cost-efficient LED wall pack features high performance LEDs that deliver a total of 679 lumens, L70 rated extreme life of 187,000 hours, and IP65 rated for protection against dust and water.

Photocell: Built-in photocell automatically detects dusk and dawn to turn the wall pack on or off accordingly – adding extra savings in energy costs!

In Stock

SKU: AF33XWP9Q1X7U5K Category: Tag:


Product Description

The SHOO 9w LED Polycarbonate Forward Throw Entry Wall Pack with Photocell, 120-277v throws light in a wide forward arc, making it perfect for lighting large areas outside of buildings. Typical applications include retail centers, industrial parks, schools, universities, public transit, airports, office buildings, apartment complexes and medical facilities. Mounting heights of 8 to 12 feet can be used based on light level and uniformity requirements.

Type 5 Optics: This unit provides optically controlled wide spread light distribution designed to replace HID lighting systems up to 70w metal halide fixtures with high-performance LEDs.

Extreme Value: The cost-efficient LED wall pack features high performance LEDs that deliver a total of 679 lumens, L70 rated extreme life of 187,000 hours, and IP65 rated for protection against dust and water.

Photocell: Built-in photocell automatically detects dusk and dawn to turn the wall pack on or off accordingly – adding extra savings in energy costs!



Features:

  • Wall pack fixture with built-in photocell
  • 9w integrated LEDs
  • Polycarbonate front housing in bronze with white powdercoat finish back plate
  • Clear prismatic polycarbonate lens
  • 120-277v
  • Type 5 optics
  • (CRI) of 80+ color rendering index
  • CSA listed for wet locations
  • IP65 rated
  • L70 rated for 187,000 life hours
  • 679 lumens
  • 5000K
  • Mounts directly over a 4˝ recessed outlet box. Threaded stem and nut included.
  • 10  lbs.

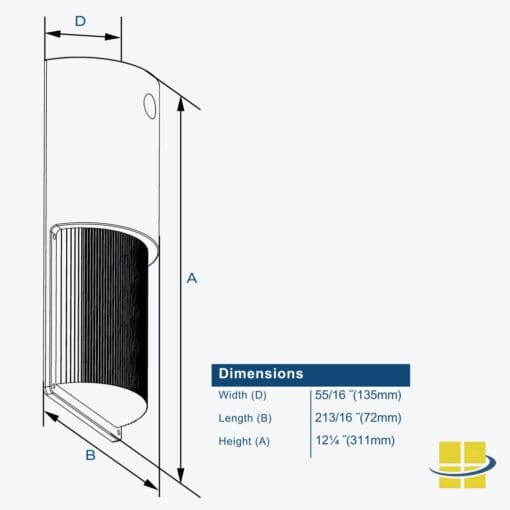

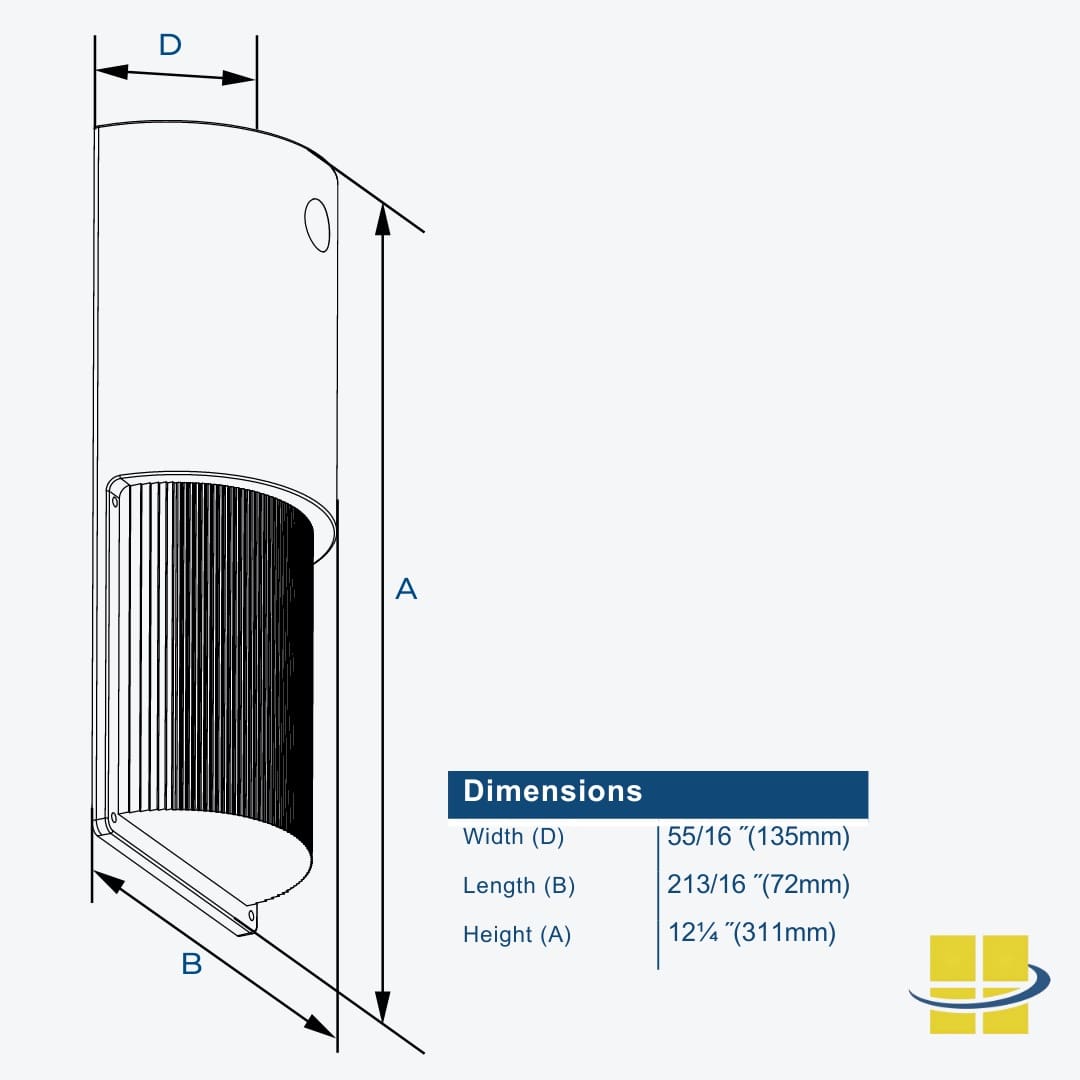

  • 12.23″ x 5.31″ x 2.81″
  • 5 year warranty

Options:

Access Fixtures 5-Year Warranty

All Access Fixtures products come with a 5-year warranty. If your product is found to have a manufacturing defect, we will replace components, the entire product, or issue a refund. We stand behind the quality of our products. Our customer service team, located in Worcester, MA, is happy to address any questions, comments, or concerns you may have. Please give us a call at 800-468-9925. Please view Access Fixtures’ return policy.

Need a Photometric Analysis for SHOO 9w LED Polycarbonate Forward Throw Entry Wall Pack, with Photocell, 120-277v Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometrics include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order SHOO 9w LED Polycarbonate Forward Throw Entry Wall Pack, with Photocell, 120-277v or Speak to a Lighting Specialist?

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.

Specifications

Weight 10 lbs
Dimensions 15 × 7 × 4 in
Available Finishes

Bronze, Custom RAL

Color Rendering Index (CRI)

80+

Color Temperature (K)

5000K

Housing

Galvanized back plate, Polycarbonate front housing

LED Type

LED Array

Lens

Clear prismatic polycarbonate lens

Light Source

Light Source Included

Lamp is included.

Light Source Lumens

679

Listings

CSA: Listed for wet locations, IP65

Mounting

Mounts over 4-inch electrical box

Product Family

SHOO

Rated Life

187,000 Hours

System Watts

9.2

Voltage

120-277v

Warranty

5-Year Warranty
