AAHL 100 Explosion-proof Flood Light

$489.87

Extreme Durability: In hazardous environments, durability is crucial for explosion-proof fixtures. Constructed from top-grade lightweight Die-cast aluminum housing material with a sleek design, this fixture withstands impacts, extreme temperatures, and exposure to hazardous substances. This ensures uninterrupted performance, enhancing safety.

Exceptional Performance: Explosion-proof fixtures deliver reliable illumination in challenging environments. Through engineering, they ensure consistent and uniform light output, to ensure safety in hazardous areas where interruptions pose risks.

Versatility: Explosion-proof fixtures are versatile, and used in various industries like petroleum and food production. Their adaptability ensures reliable lighting solutions for diverse needs, enhancing safety and efficiency in chemical plants, pumping stations, and more.

In Stock

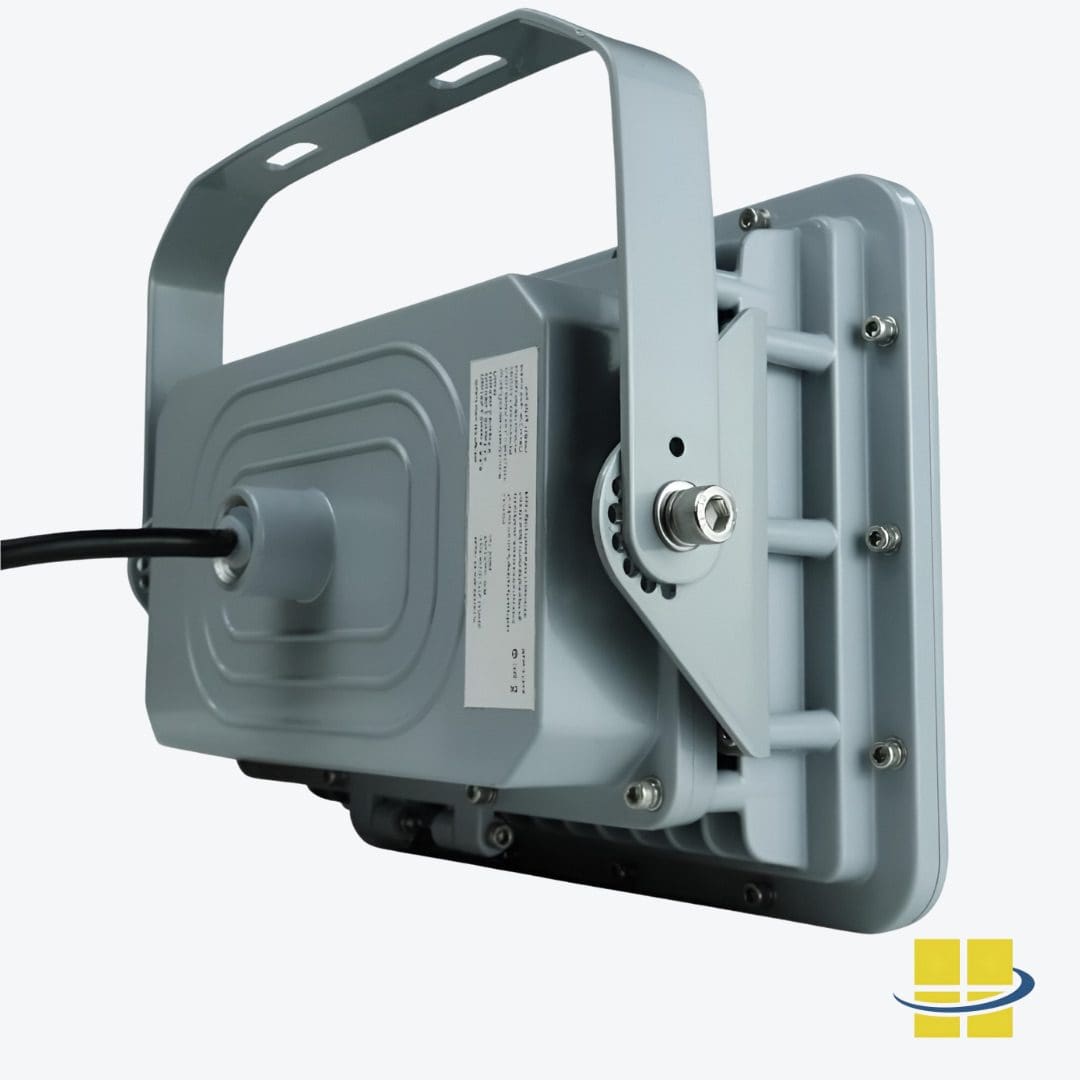

Featuring a variety of mounting options, offering versatility and functionality to suit your specific lighting needs.
Tempered glass provides superior strength and safety, up to 3 times stronger than heat-treated glass, with the added safety benefit of breaking into small pebbles. Perfect for areas needing durability and impact resistance. PC lens, a durable thermoplastic, thrives in harsh environments.
*Choose this option only if you prefer to install your Cable entries on the Side.
*Choose this option only if you prefer to install your Cable entries at the Top.
  • Total

Specifications

Weight 17.42 lbs
Dimensions 14.76 × 13.39 × 8.46 in
Light Source

Availability

7 to 10 Day Production, plus Shipping

Available Finishes

Gray

Color Rendering Index (CRI)

80+

Housing

Powdercoat finish

Lens

Clear polycarbonate lens, Clear tempered glass lens

Light Source Included

LED Array Included

Light Source Lumens

14,000

Listings

IP66, ANSI/UL 1598, 8750, IK08, UL 844

Product Family

AAHL

Rated Life

78,000

System Watts

100

System Watts Filter

100w – 199w

Voltage

120v, 208v, 240v, 277v

Warranty

5-Year Limited Warranty

Product Description

Extreme Durability: In hazardous environments, durability is crucial for explosion-proof fixtures. Constructed from top-grade lightweight Die-cast aluminum housing material with a sleek design, this fixture withstands impacts, extreme temperatures, and exposure to hazardous substances. This ensures uninterrupted performance, enhancing safety.

Exceptional Performance: Explosion-proof fixtures deliver reliable illumination in challenging environments. Through engineering, they ensure consistent and uniform light output, to ensure safety in hazardous areas where interruptions pose risks.

Versatility: Explosion-proof fixtures are versatile, and used in various industries like petroleum and food production. Their adaptability ensures reliable lighting solutions for diverse needs, enhancing safety and efficiency in chemical plants, pumping stations, and more.

AAHL Explosion-proof Ratings:

Atex Marking
II 3 G Ex ec IIC T3C Gc
Il 2 D Ex op is tb IIIC T160°C Db
EX IIC EX mb eb IIC T3C Gb
II2 EX op is tb IIC T3C Db
IECEX Marking
Ex ec IIB T3C Gc
Ex op is tb IIIC T160°C Db
EX mb eb IIC T3C Gb
EX op is tb IIC T3C Db
UL844 Marking (North American)
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
Zone 2/21/22 Certified
Marine Marking
UL 1598, UL1598A
ABS
Other Ratings
IP66
IK08

Features:

  • 5000K
  • 100 system watts
  • 140 lumens per watt
  • 100-277v
  • Tempered flat glass lens or Clear Polycarbonate Lens
  • Die-cast aluminum housing
  • Gray powder coat finish
  • 120° beam
  • 70+ CRI
  • -40°F to 131°F
  • 14.76″ x 13.39″ x 8.46″
  • 17.42 lbs

Please be aware that the shipping weight may vary due to the actual configuration of the product. Therefore, the shipping weight may differ from the specified shipping weight shown.

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.


Get a Custom Photometric Analysis for Your AAHL 100 Explosion-proof Flood Light, Project

A photometric analysis is a custom computer simulation of your particular project. This service provides average footcandles at various heights, max/min (uniformity) ratios, minimum footcandles, light trespass levels, and more. For exacting lighting specifications, a photometric analysis helps you ensure light levels before making a big purchase. One of our lighting specialists will walk you through the process so you know exactly what you will be receiving. Call us at 800-468-9925 or [email protected] for more information about ordering a photometric analysis for your project.

Ready to Order AAHL 100 Explosion-proof Flood Light, or Speak to a Lighting Specialist?

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists is available to provide what you need to purchase fixtures and illuminate your project with confidence.
