Product Specifications

Weight	16.9 lbs
Dimensions	25.91 × 13.78 × 6.30 in
Application	Sports Luminaires
Availability	3 to 4 Week Production, plus Shipping
Light Source	590nm Amber, 2200K – Very Warm White, 3000K – Neutral White, 4000K – Cool White, 5000K – Bright White, 5700K – Cinematography
Available Finishes	Black, Gray
Housing	High-Grade Aluminum
Light Source Included	LED Array Included
Light Source Lumens	25,200
Listings	IK10, IP66, CB, CE, CuL Listed, DLC Listed, ENEC, ETL Listed, SAA
Mounting	L Mount, T Mount, U Mount
Product Family	APTA
Rated Life	L70 @ up to 200,000 Hours
System Watts	180
Voltage	120v, 208v, 240v, 277v, 347v, 480v
Warranty	5-Year Limited Warranty

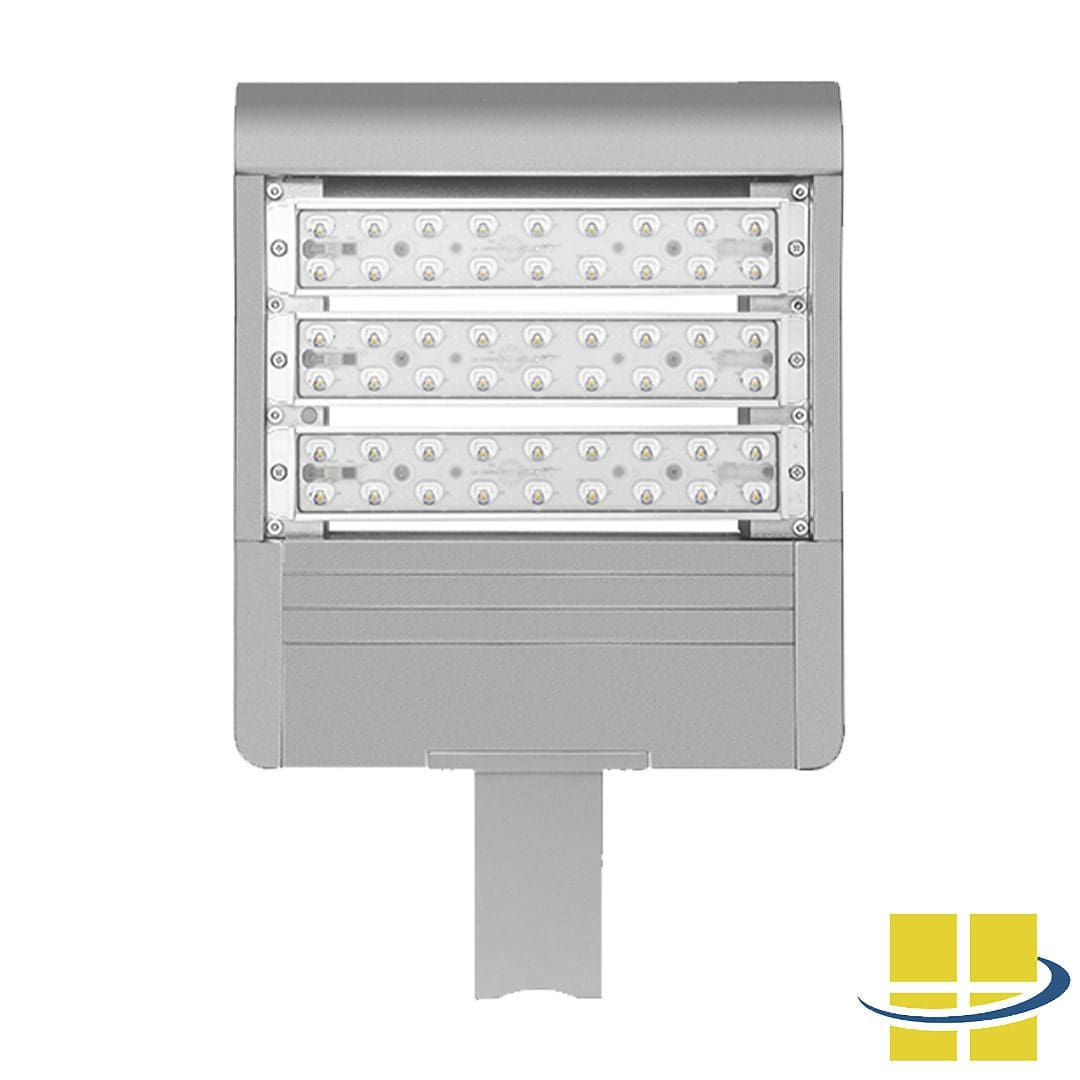

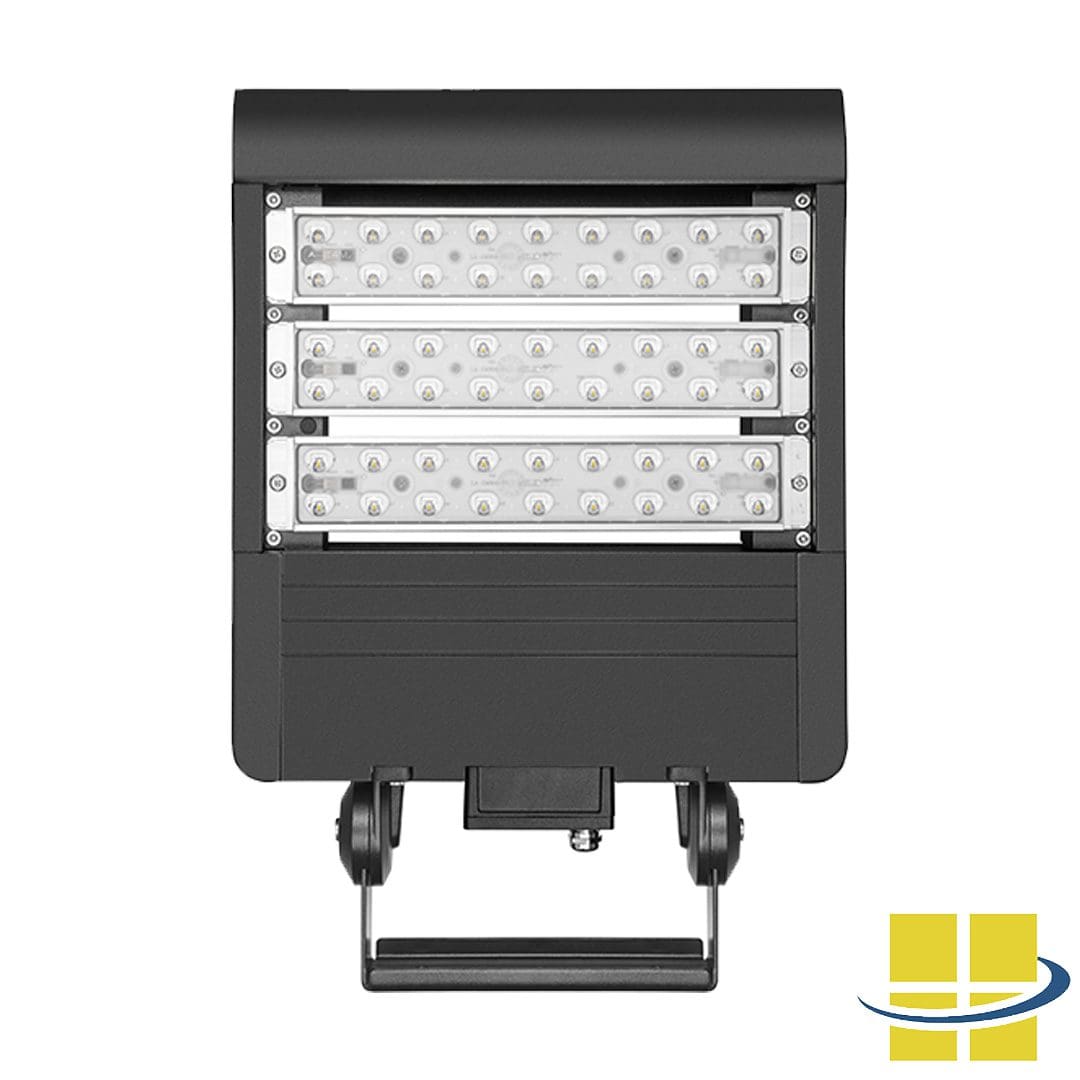

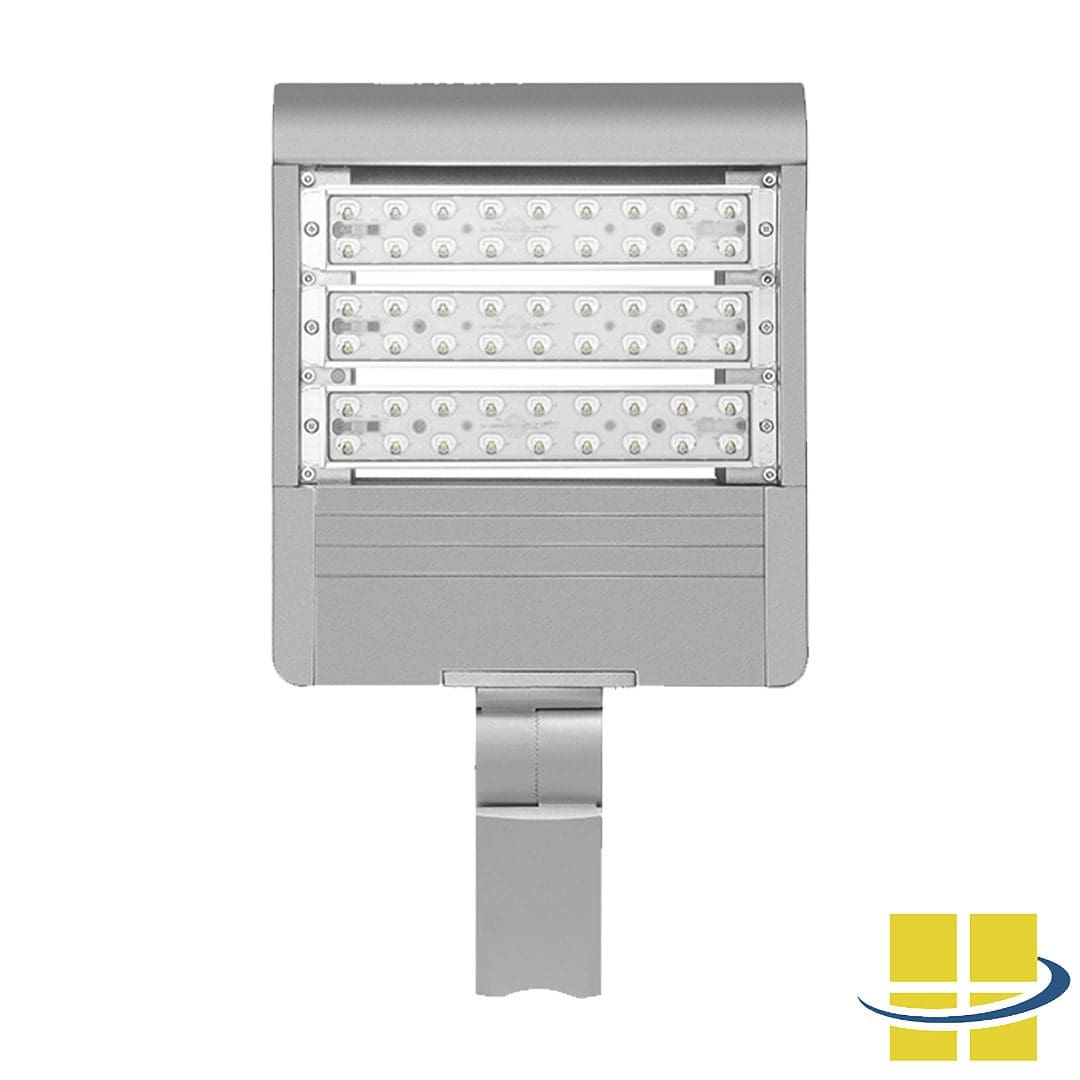

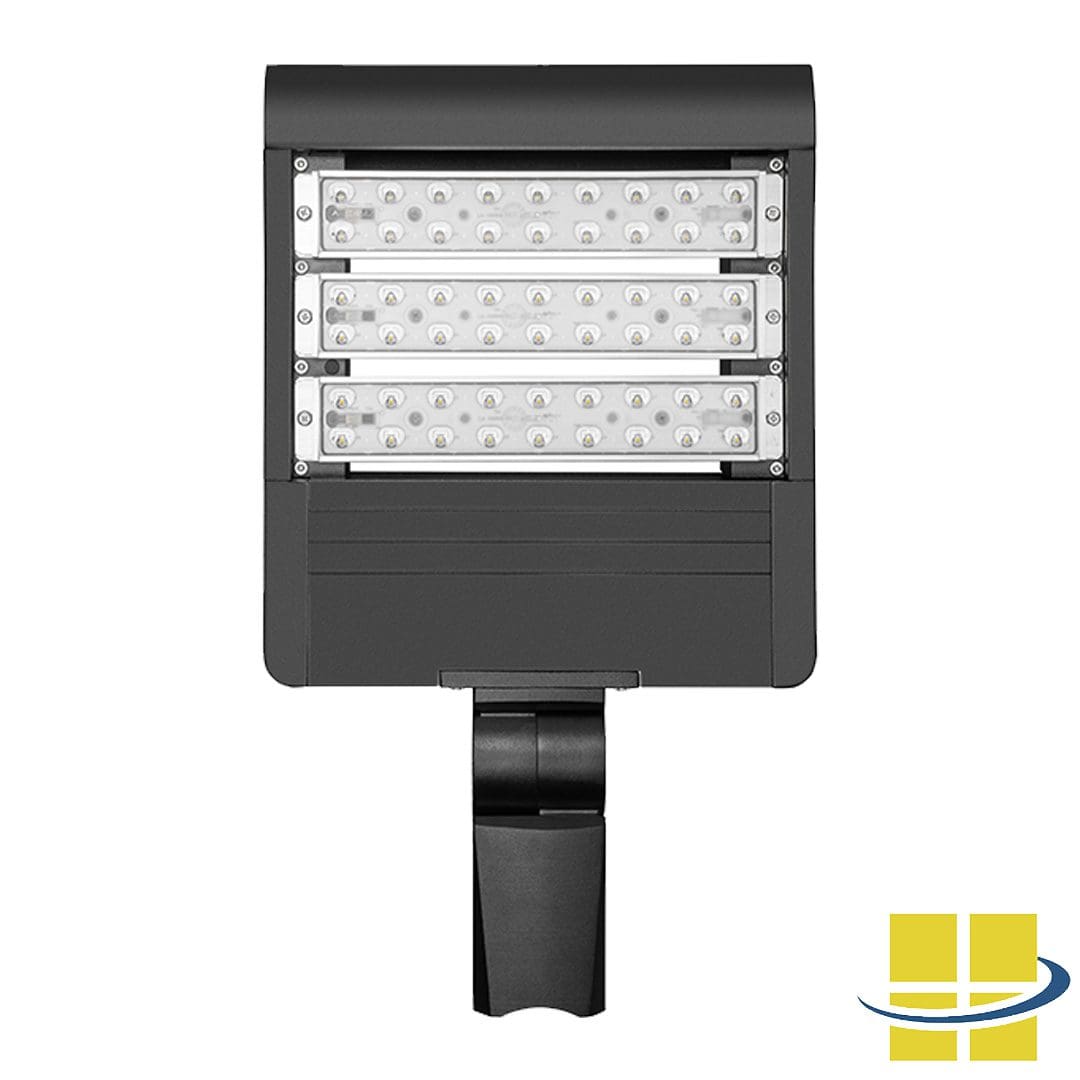

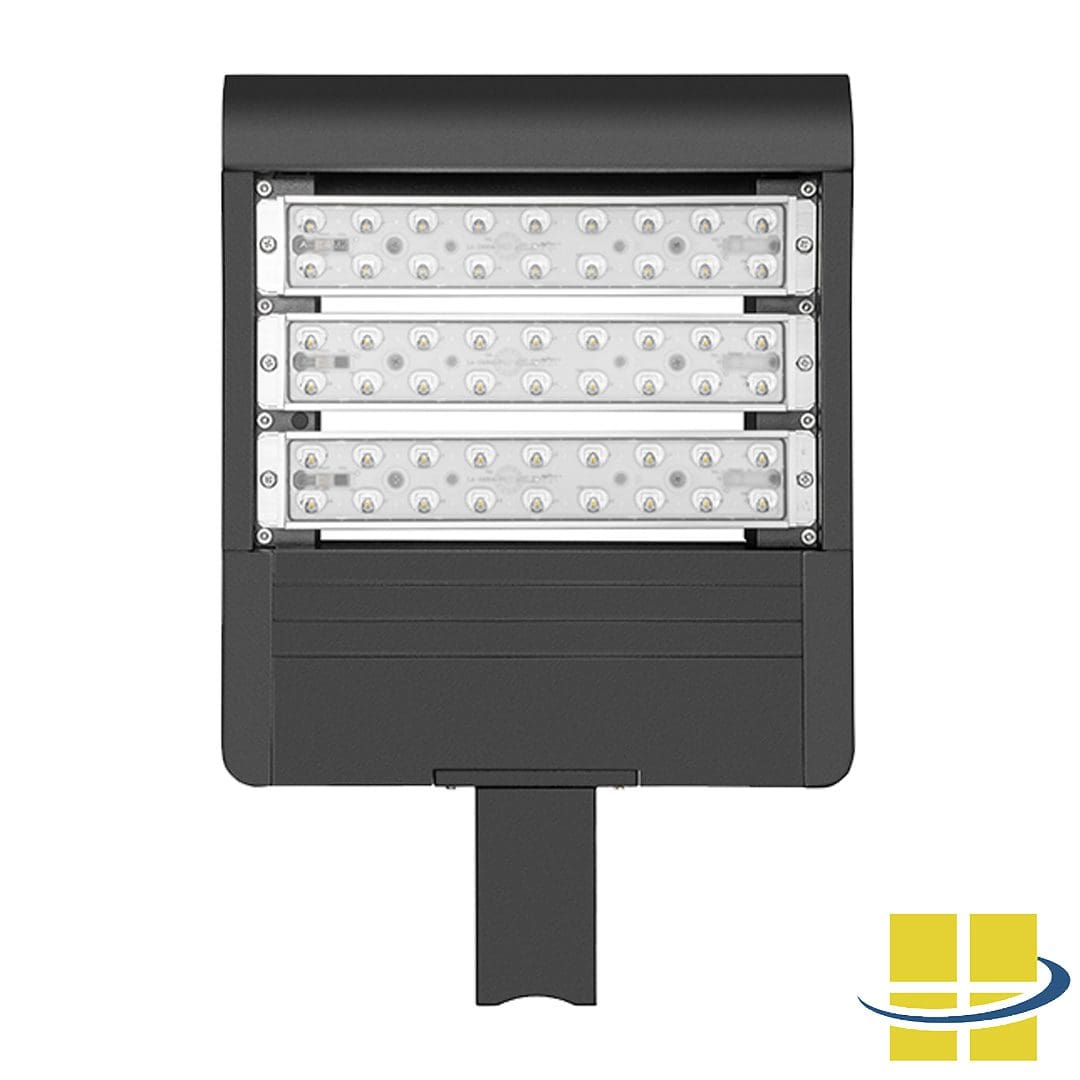

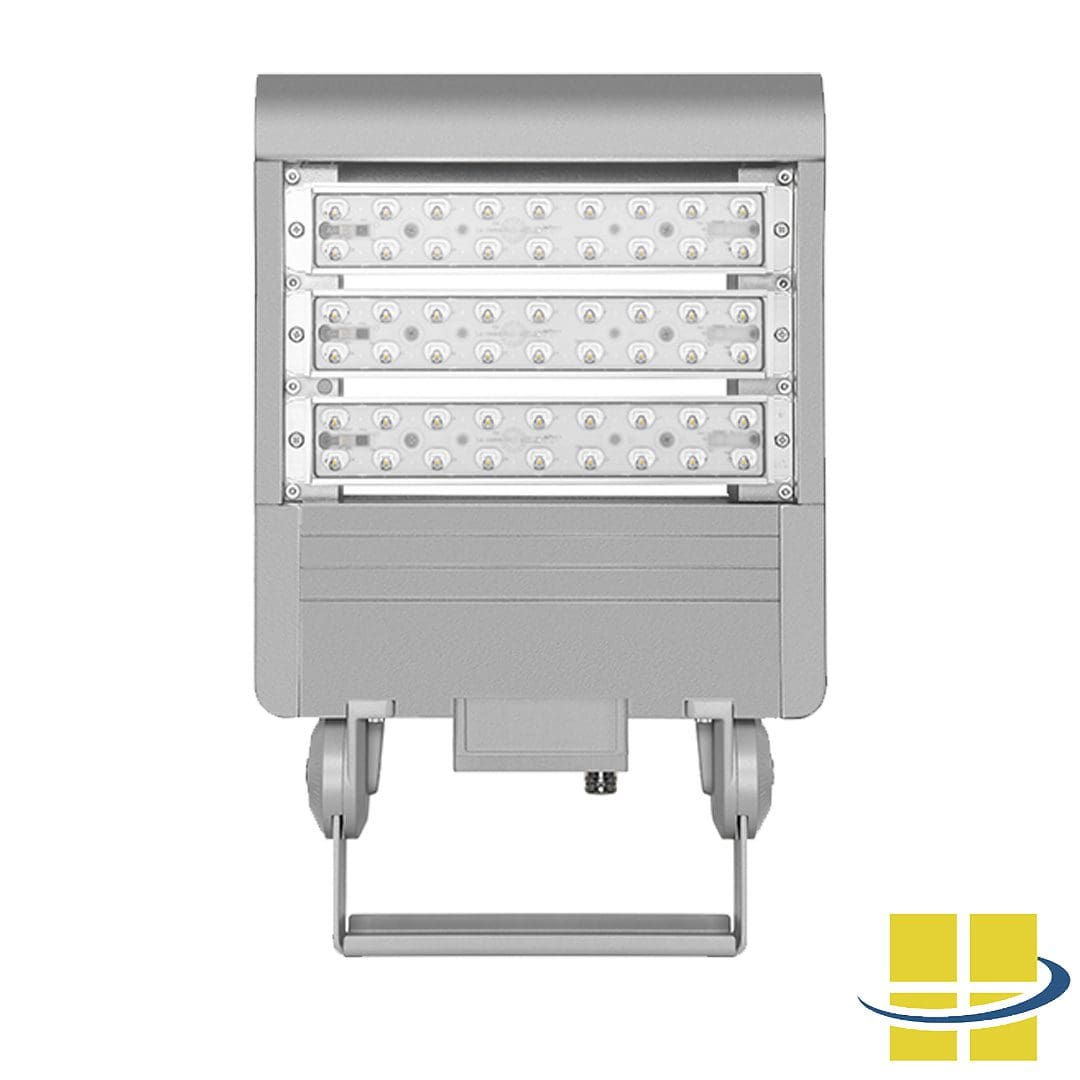

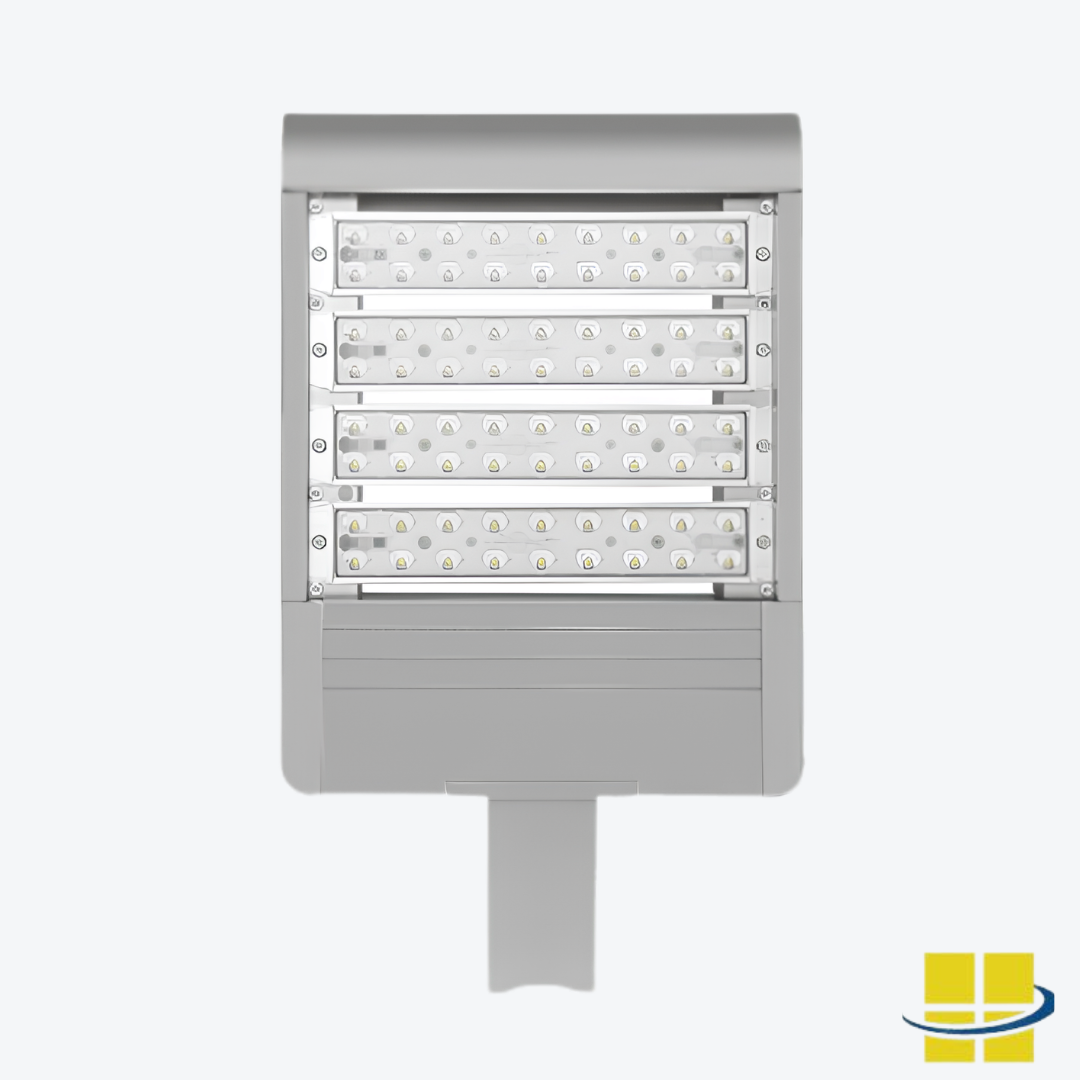

AFFO 180 EXTREME-LIFE Marine Grade LED Flanking Light

Name: AFFO 180 EXTREME-LIFE Marine Grade LED Flanking Light
SKU: AF88XPAC180L-L/T-S
Availability: InStock

AFFO is designed and manufactured to provide powerful & reliable lighting. With superior optics, spill light control design, lumen-per-watt output (LPW) of up to 160, and low weight/low effective projection area (EPA), AFFOs are designed to provide long-lasting, superior quality, anti-glare light for all high-mast lighting applications.

EXTREME-LIFE: Exceptional heat sink design produces an EXTREME-LIFE rating of L70 @ 200,000 hours for years of virtually maintenance-free performance

Lasting Durability: AFFOs feature an anti-corrosive, marine-grade finish, 10ka surge protection, and IP66 and IK10 impact resistance to withstand extreme weather conditions

Maximum Wattage and LPW: With up to 960 watts per light fixture and lumens per watt of up to 160, AFFOs can provide over 150,000 lumens from a single light fixture

APTA-MMS-Remote-Spec-Sheet-C.pdf

$699.87

In Stock

"*" indicates required fields

Housing Color*

Black, Gray, Bronze, White and Green are standard colors. Custom RAL finishes are available at an up-charge with a minimum order quantity (MOQ).

Mounting Options*

Kelvin Temperature*

Dimming*

0-10v Dimming is suggested and is no additional cost. If dimming is not used, simply cap the 2 low voltage dimming wires.

Voltage*

Color Rendering - Ra Rating*

Bird Spikes*

Large facilities may have birds living inside the building. Installing bird spikes on area/spot/flood lights stops the birds from nesting on the lights.

Optics*

Back Light Shield*

Vandal Resistant Screws*

Power Cord Length*

APTAs are manufactured with a 3' power cord exiting the light fixture. You may add additional length to the power cord.

Emergency Power Supply*

Do you need the APTA to stay on when the power goes out? If yes, add the Emergency Power Supply.

SAC Safety Cable*

This is a safety cable that will stop the light fixture from crashing to the floor is the primary mount ever becomes loose or disconnected.

MMS - Microwave Motion Sensor*

Maximize energy savings and the life of the canopy light by adding a programable microwave control with an occupancy sensor and light sensor.

Surge Protection*

Photocell*

Adding a photocell prevents the need to manually turn on/off your area/spot/flood lights when it gets dark.

Warranty*

Subtotal
Options
Total

SKU: AF88XPAC180L-L/T-S Categories: What Are LED Flanking Lights, and How Do I Choose the Right One?, What Does 3000K Mean In Lighting?, Why Choose 2200 Kelvin Light Fixtures?

Lead Time: 7 to 10 Day Production, plus Shipping

Product Specifications

Weight	16.9 lbs
Dimensions	25.91 × 13.78 × 6.30 in
Application	Sports Luminaires
Availability	3 to 4 Week Production, plus Shipping
Light Source	590nm Amber, 2200K – Very Warm White, 3000K – Neutral White, 4000K – Cool White, 5000K – Bright White, 5700K – Cinematography
Available Finishes	Black, Gray
Housing	High-Grade Aluminum
Light Source Included	LED Array Included
Light Source Lumens	25,200
Listings	IK10, IP66, CB, CE, CuL Listed, DLC Listed, ENEC, ETL Listed, SAA
Mounting	L Mount, T Mount, U Mount
Product Family	APTA
Rated Life	L70 @ up to 200,000 Hours
System Watts	180
Voltage	120v, 208v, 240v, 277v, 347v, 480v
Warranty	5-Year Limited Warranty
