Product Specifications
| Weight | 19.62 lbs |
|---|---|
| Dimensions | 25.91 × 16.14 × 6.30 in |
| Model Number | AF88XPAD240L-L/T-S |
| Weight Pounds | 19.18 lbs |
| Product Family | AFFO |
| EPA | Check spec sheet for details |
| Housing Material | Die-cast aluminum end caps enclose housing and extruded aluminum. |
| Finish Specifications | Super Durable and Corrosion-Resistant Polyester Powder Paint |
| Finish Color (s) | Black, Bronze, Gray, White, Green, Custom RAL |
| Lens Material | Polycarbonate Lens |
| Optics | T2S, T3S, T3M, T4M, T5M, T4S, T4VS, T4VVSB, T10D, T20D, T40D, T60D, T90D |
| Color Temperature (Kelvin) | 2200K, 3000K, 4000K, 5000K, 5700K |
| LED Type | LED Module |
| System Watts | 240w |
| Light Source Lumens | TBD |
| Luminaire Lumens | 34,080 lm |
| Luminaire Lumens Per Watts | 142 lm/W |
| Dimensions in Inches | 27.24 X 16.73 X 6.30 |
| Dimension in mm | 642 X 334 X 75 |
| Mount (s) | Slipfitter (L Mount), Arm (T Mount), Bracket (U Mount) |
| Rated Life (L70@ x Hours) | 200,000 Hours |
| Voltage | 120-277v, 347-480v |
| Surge Protection | 10KA, 20KA |
| Controls and Add-Ons | 1-10V Dimming, Vandal Resistant Screws, Power Cords, Safety Cables, Microwave Motion Sensor, Photocell, Backlight Shield, Bird Spikes, Emergency Power Supply. |
| Operating Temperature | -40°C~+50°C |
| IP Rating | IP66 |
| lK Rating | lK10 |
| BUG Rating | TBD |
| Listings (ex: UL,CUL,CE) | RoHS compliant, CB, CE, CuL Listed, DLC Listed, ENEC, ETL Listed, SAA |
| Warranty | 5-Year Warranty, 10-Year Warranty |
| Availability (Lead-Time) | 2-4 Weeks Production, Plus Shipping |

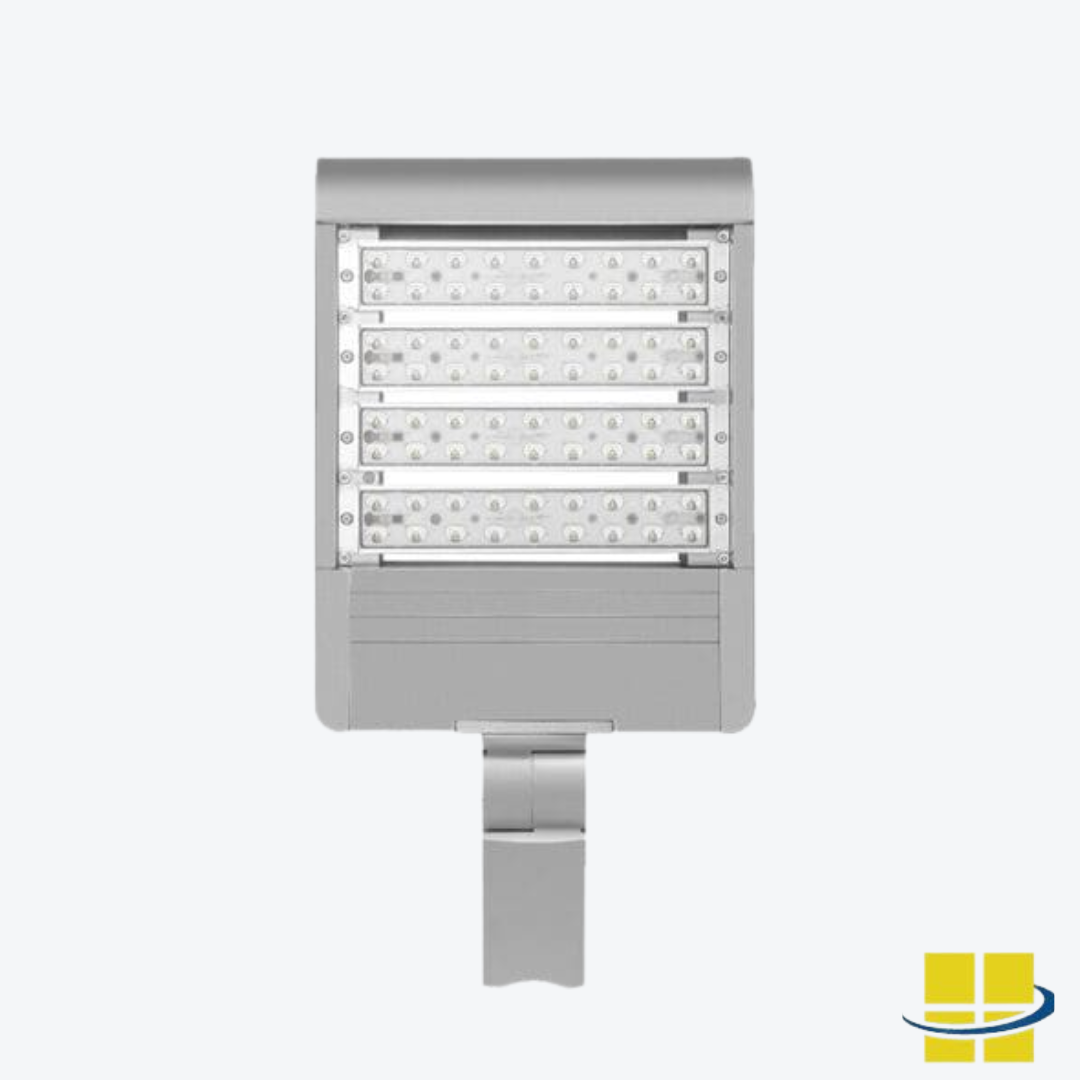

AFFO 240 EXTREME-LIFE Marine Grade LED Flanking Light
AFFO LED Flanking Lights are high-performance, marine- grade lighting solutions engineered to thrive in the harshest ocean environments. Designed for commercial fishing vessels, workboats, and maritime operations, these rugged flanking lights deliver powerful, controlled illumination for riverbanks and shorelines during navigation, detecting or avoiding submerged objects, and safely lighting work areas alongside the ship.
Marine Grade Finish: Engineered with a rugged anti-corrosive marine-grade finish, 10kA surge protection, IP66 weather sealing, and IK10 impact resistance, AFFO flanking lights are built to withstand storms, extreme vibration, salt spray, impacts, and heavy seas. Their advanced fail-safe design ensures critical side lighting remains operational even if individual modules are damaged.
Superior Performance: Delivering powerful, high-output illumination up to 2400W, AFFOs are crafted with precision optics that brightly light riverbanks, shorelines, submerged hazards, and work areas for safe navigation and operations. Their fail-safe modular design keeps critical side lighting running even if modules are damaged, while the low-EPA aerodynamic profile reduces wear and boosts fuel efficiency.
EXTREME-LIFE: Crafted for relentless ocean duty, AFFO flanking lights feature superior thermal management and a rugged heat-sink design that delivers an industry- leading L70 lifespan of 200,000 hours — delivering years of powerful, consistent illumination with virtually zero maintenance.
$839.87
