Product Specifications

Weight 22.26 lbs
Dimensions 25.91 × 18.70 × 6.30 in
Application

Availability

3 to 4 Week Production, plus Shipping

Light Source

, , , , ,

Available Finishes

Black, Gray

Housing

High-Grade Aluminum

Light Source Included

LED Array Included

Light Source Lumens

42,600

Listings

IK10, IP66, CB, CE, CuL Listed, DLC Listed, ENEC, ETL Listed, SAA

Mounting

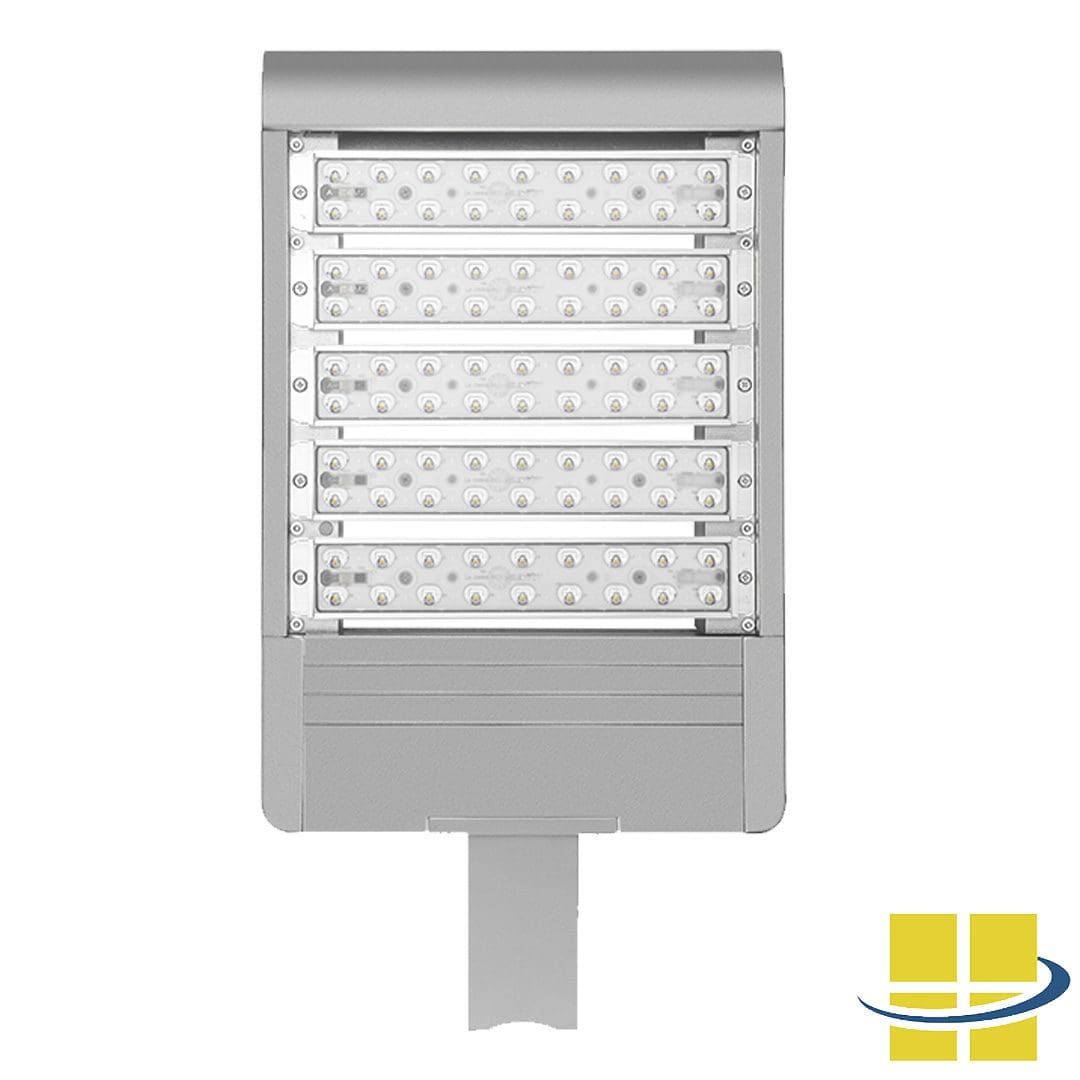

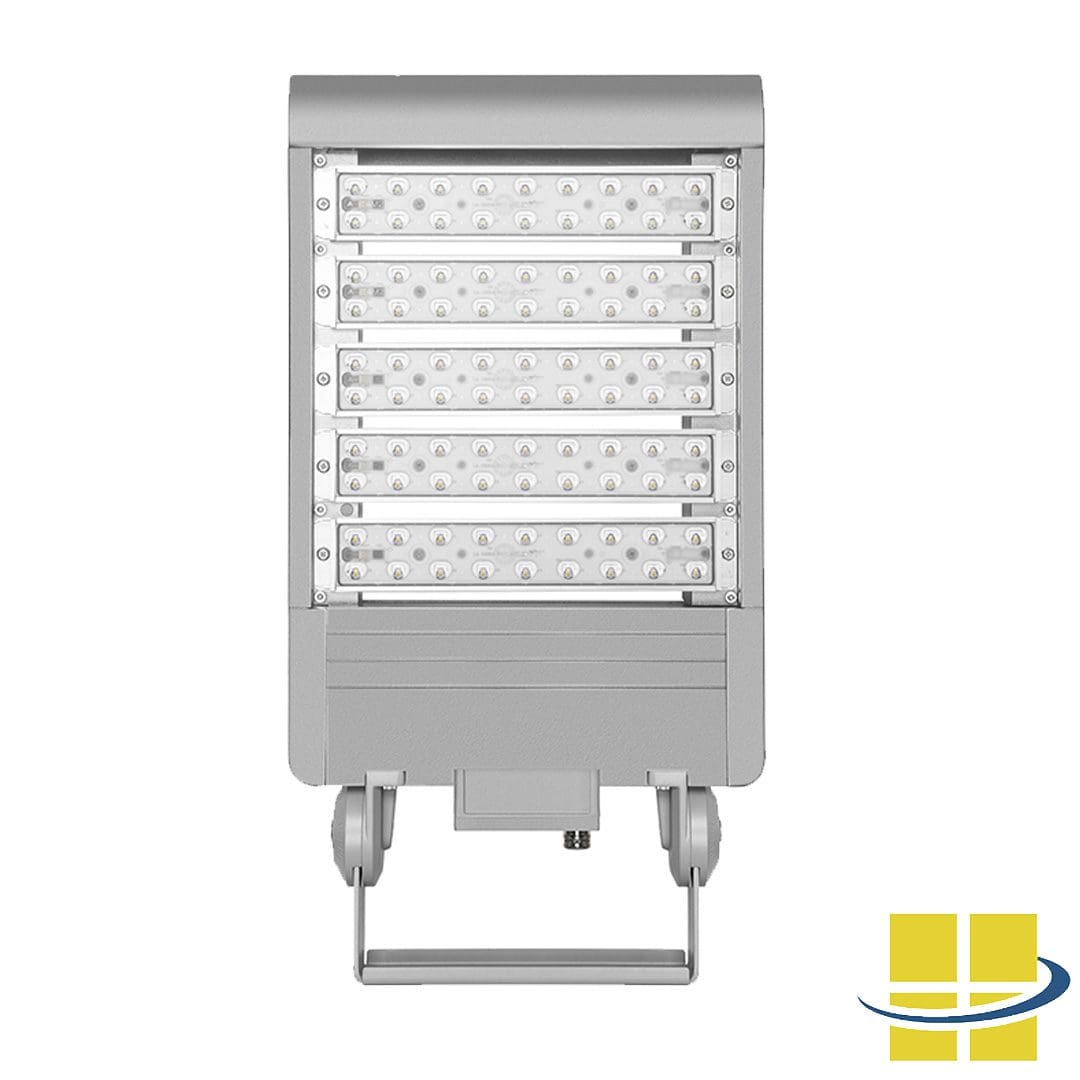

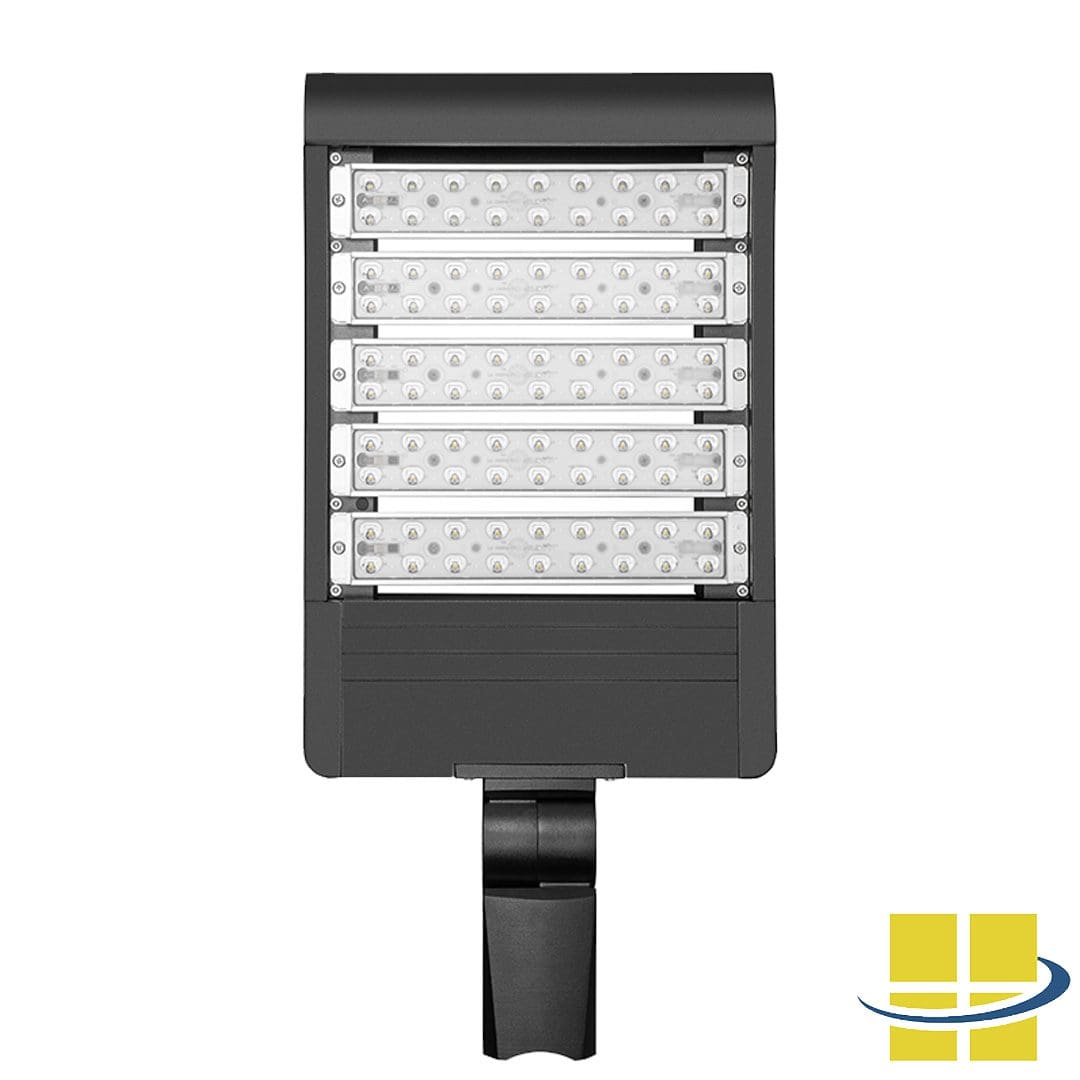

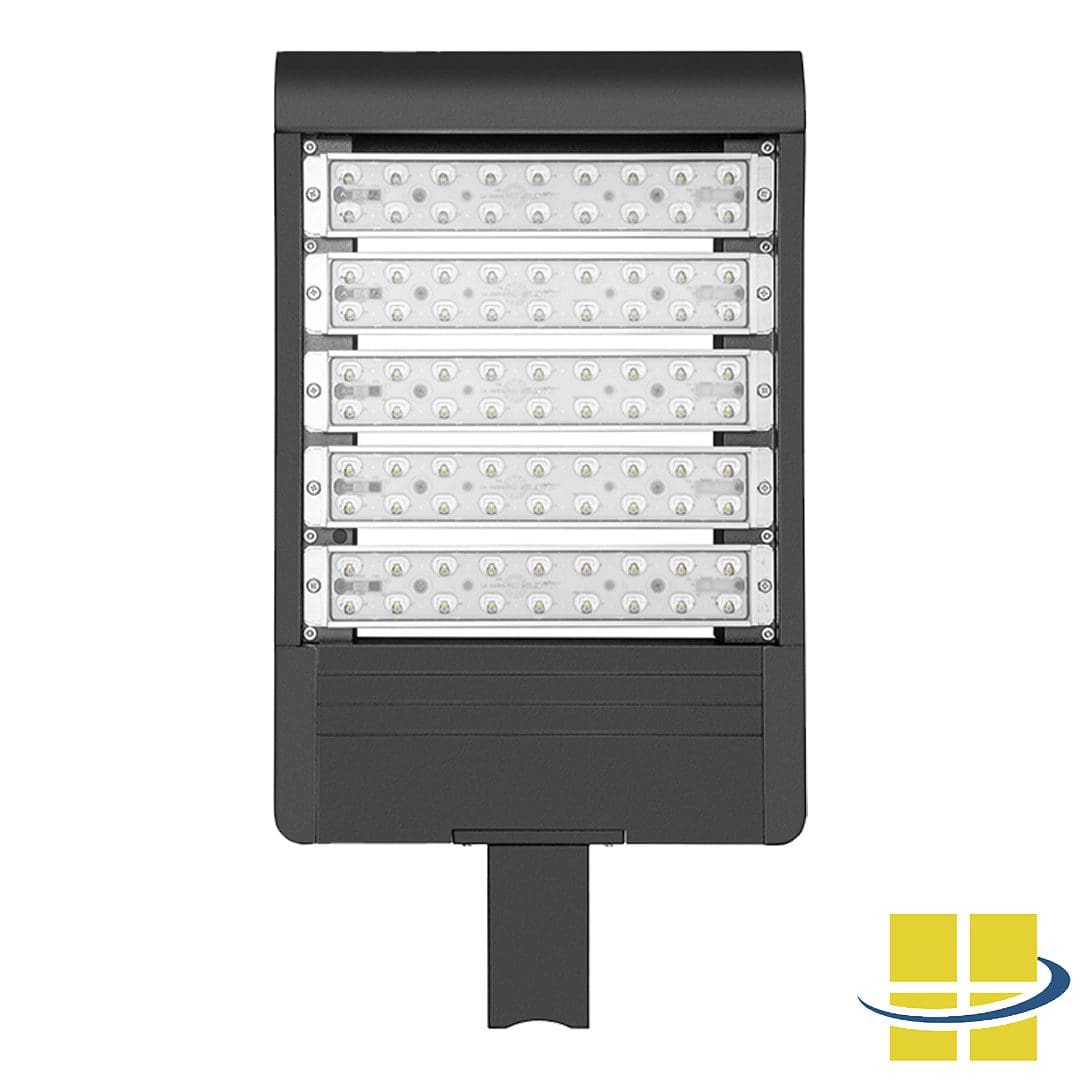

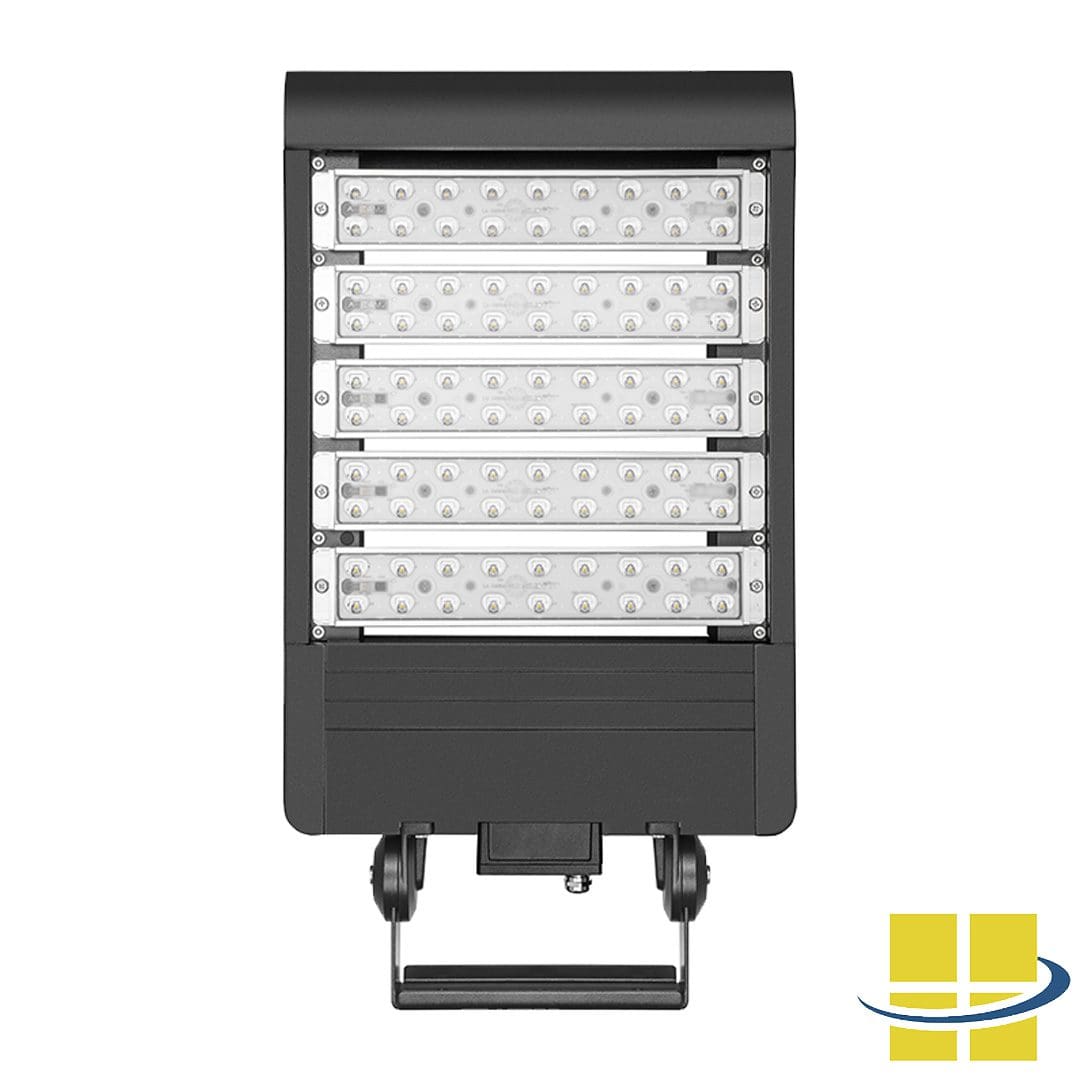

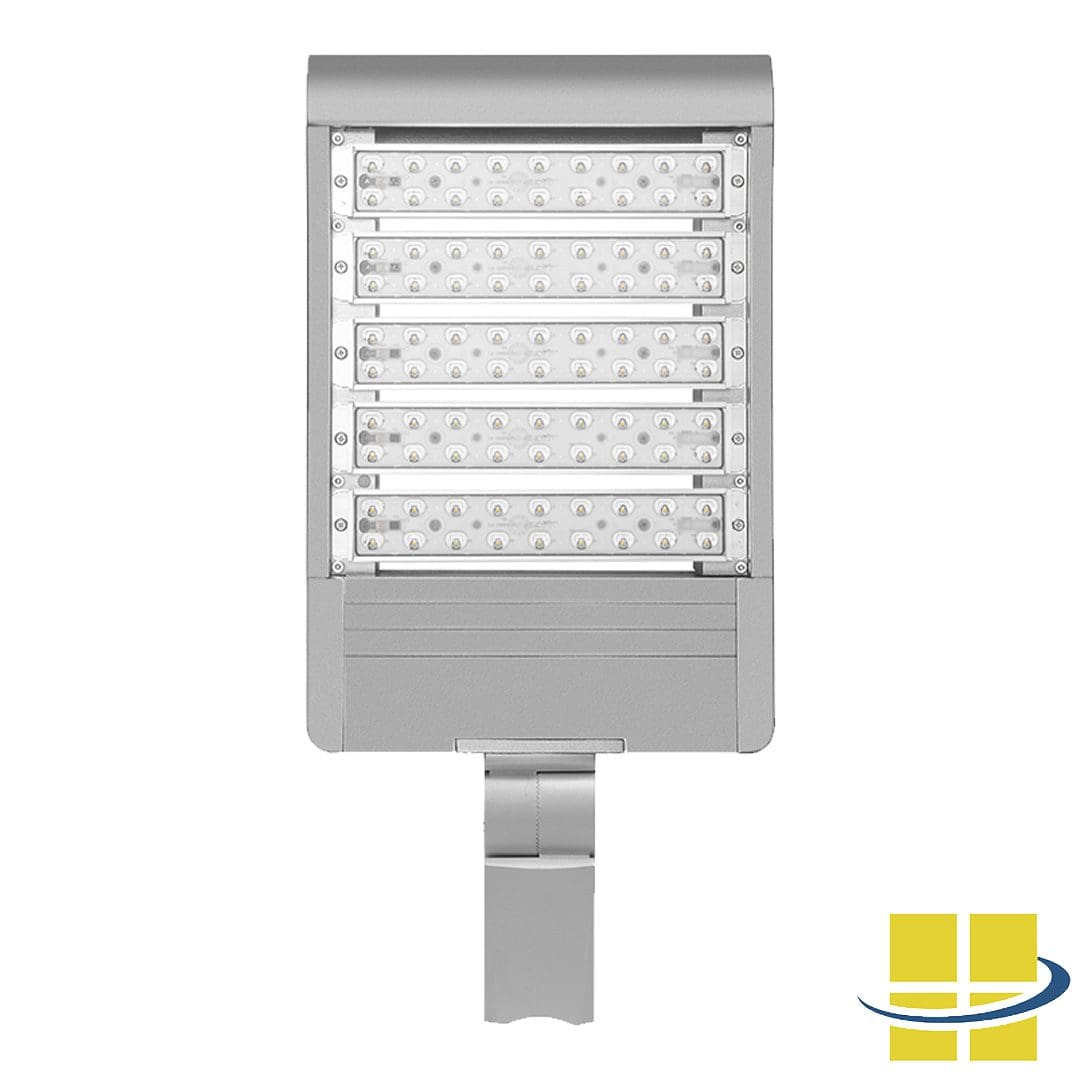

L Mount, T Mount, U Mount

Product Family

APTA

Rated Life

L70 @ up to 200,000 Hours

System Watts

720w

Voltage

120v, 208v, 240v, 277v, 347v, 480v

Warranty

5-Year Limited Warranty

AFFO 720 EXTREME-LIFE Marine Grade LED Flanking Light

AFFO is designed and manufactured to provide powerful & reliable lighting. With superior optics, spill light control design, lumen-per-watt output (LPW) of up to 160, and low weight/low effective projection area (EPA), AFFOs are designed to provide long-lasting, superior quality, anti-glare light for all high-mast lighting applications.

AFFO LED Flanking Lights are high-performance, marine- grade lighting solutions engineered to thrive in the harshest ocean environments. Designed for commercial fishing vessels, workboats, and maritime operations, these rugged flanking lights deliver powerful, controlled illumination for riverbanks and shorelines during navigation, detecting or avoiding submerged objects, and safely lighting work areas alongside the ship.

Marine Grade Finish: Engineered with a rugged anti-corrosive marine-grade finish, 10kA surge protection, IP66 weather sealing, and IK10 impact resistance, AFFO flanking lights are built to withstand storms, extreme vibration, salt spray, impacts, and heavy seas. Their advanced fail-safe design ensures critical side lighting remains operational even if individual modules are damaged.

Superior PerformanceDelivering powerful, high-output illumination up to 2400W, AFFOs are crafted with precision optics that brightly light riverbanks, shorelines, submerged hazards, and work areas for safe navigation and operations. Their fail-safe modular design keeps critical side lighting running even if modules are damaged, while the low-EPA aerodynamic profile reduces wear and boosts fuel efficiency.

EXTREME-LIFE: Crafted for relentless ocean duty, AFFO flanking lights feature superior thermal management and a rugged heat-sink design that delivers an industry- leading L70 lifespan of 200,000 hours — delivering years of powerful, consistent illumination with virtually zero maintenance.

$2,299.87

In Stock

Black, Gray, Bronze, White and Green are standard colors. Custom RAL finishes are available at an up-charge with a minimum order quantity (MOQ).
0-10v Dimming is suggested and is no additional cost. If dimming is not used, simply cap the 2 low voltage dimming wires.
Maximize energy savings and the life of the AFFO by adding a programmable microwave control with an occupancy sensor and light sensor.
Do you need the AFFOs to stay on when the power goes out? If yes, add the Emergency Power Supply.
AFFOs are manufactured with a 3' power cord exiting the light fixture. You may add additional length to the power cord.
Adding a photocell prevents the need to manually turn on/off your area/spot/flood lights when it gets dark.
  • Total

Lead Time: 7 to 10 Day Production, plus Shipping

Product Specifications

Weight 22.26 lbs
Dimensions 25.91 × 18.70 × 6.30 in
Application

Availability

3 to 4 Week Production, plus Shipping

Light Source

, , , , ,

Available Finishes

Black, Gray

Housing

High-Grade Aluminum

Light Source Included

LED Array Included

Light Source Lumens

42,600

Listings

IK10, IP66, CB, CE, CuL Listed, DLC Listed, ENEC, ETL Listed, SAA

Mounting

L Mount, T Mount, U Mount

Product Family

APTA

Rated Life

L70 @ up to 200,000 Hours

System Watts

720w

Voltage

120v, 208v, 240v, 277v, 347v, 480v

Warranty

5-Year Limited Warranty

Ready to Order or Speak to a Lighting Specialist?

You can place your order online or if you want additional information, give us a call at 800-468-9925. Our team of friendly, expert high performance lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.

You can also leave messages for and chat live with a lighting specialist by using our Live Chat feature on the bottom-right side of your browser window.

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures’ complete warranty policy.
