Product Specifications

Weight 11.24 lbs
Dimensions 12.48 × 16.73 × 6.30 in
Model Number

AF88XBAB60L530mA

Weight Pounds

9.47 lbs

Product Family

ALTA

EPA

TBD

Housing Material

High-Grade Aluminum

Finish Specifications

Super durable powder coat paint, corrosion-resistant polyester powder painted

Finish Color (s)

Black, Gray

Color Rendering Index (CRI)

70+, 80+, 90+

Lens

TBD

Optics

T1S, T5M, T5W, T10, T20D, T40D, T60D, T90D

Color Temperature (Kelvin)

3000K, 4000K, 5000K, 5700K

LED Type

TBD

System Watts

60w

Light Source Lumens

8430 lm

Luminaire Lumens

8430 lm

Luminaire Lumens Per Watts

139 lm/W

Dimensions in Inches

6.91 X 13.15 X 5.67

Dimension in mm

176.02 mm X 334.01 mm X 144.02 mm

Mount (s)

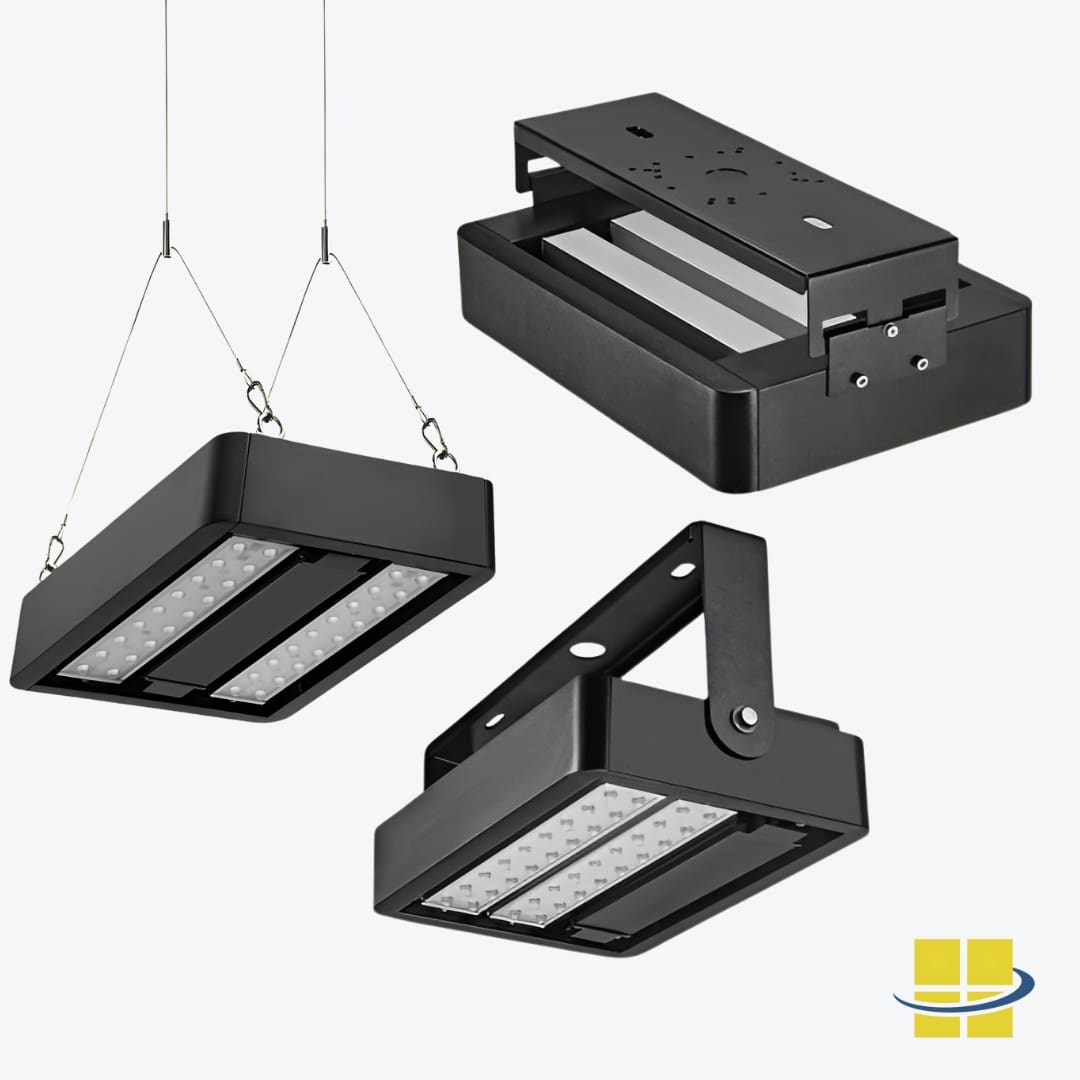

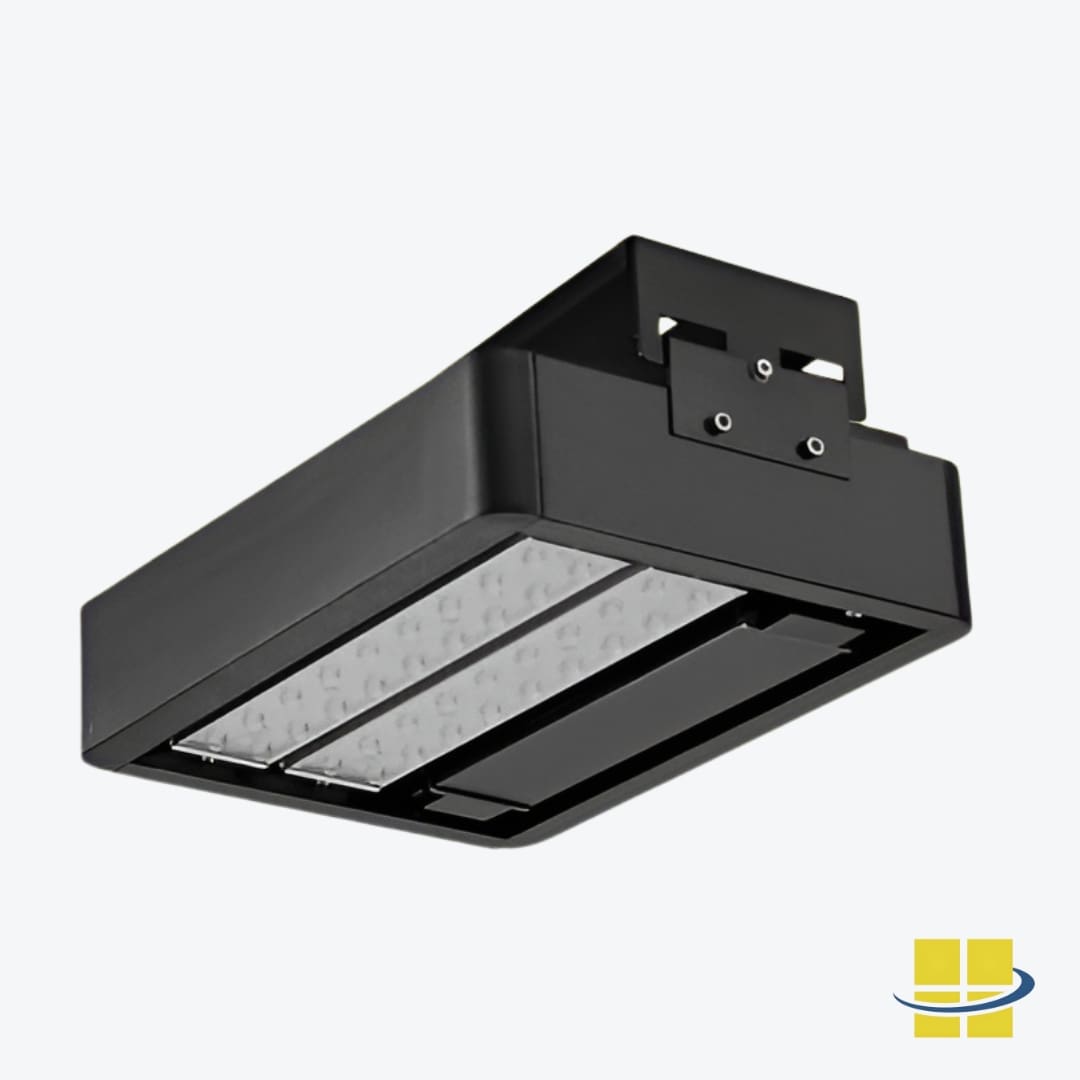

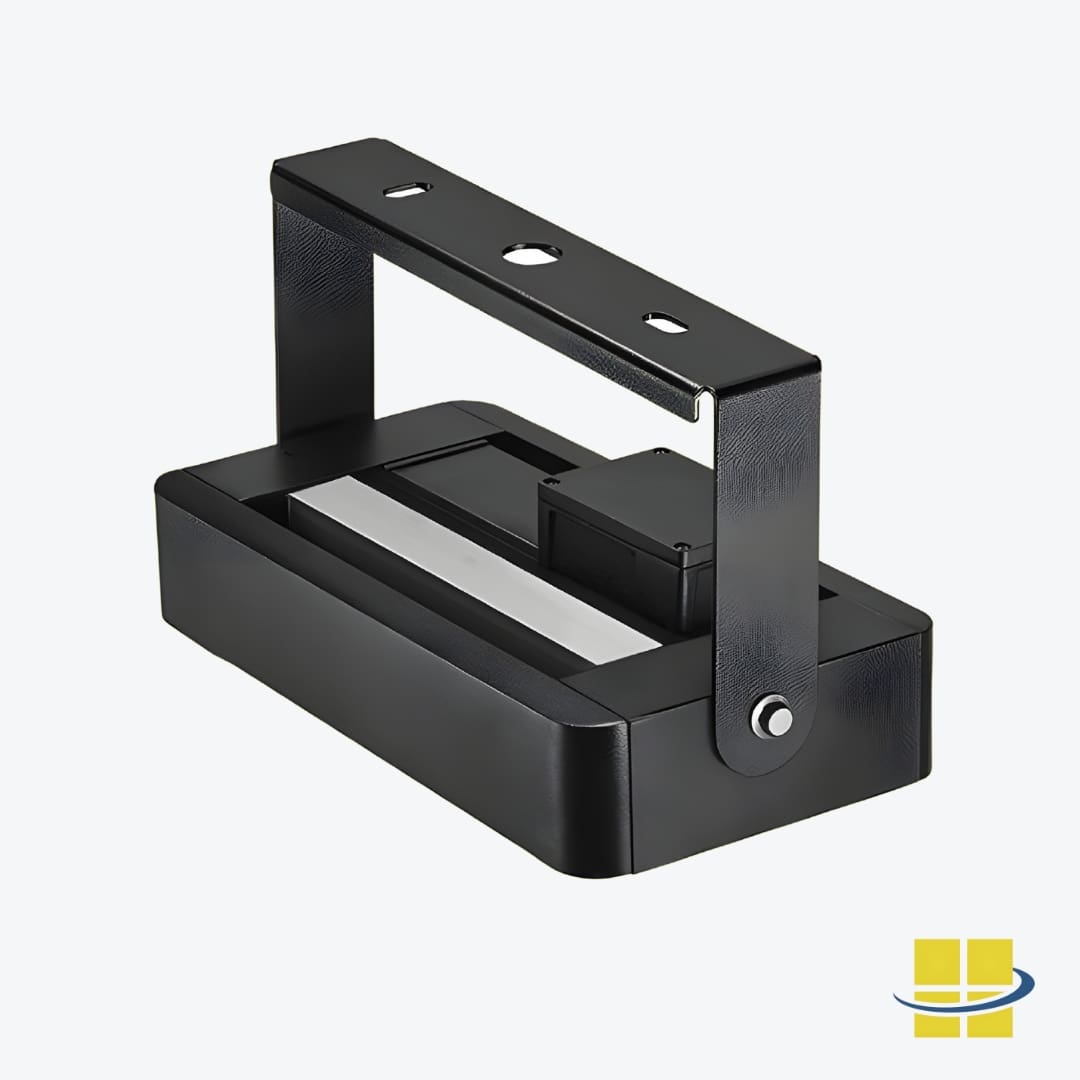

D Mount (Canopy Style) U Mount (Bracket Mount) H Mount (Adjustable Wire)

Rated Life (L70@ x Hours)

100, 000 Hours

Voltage

100-277v, 277-480v

Surge Protection

10kV

Controls

0-10V Dimming, Microwave, Motion Sensor, Safety Cables, Emergency Power Supply

Operating Temperature

-40°C~+50°C (High ambient temperature up to 80°C (176°F)

IP Rating

IP66

lK Rating

IK10

DLC Number

TBD

BUG Rating

TBD

Listings (ex: UL,CUL,CE)

CB, CE, CuL Listed, DLC Listed, ETL Listed, SAA

Warranty

5-Year Warranty

Availability (Lead-Time)

3 to 4 Weeks Production, Plus Shipping

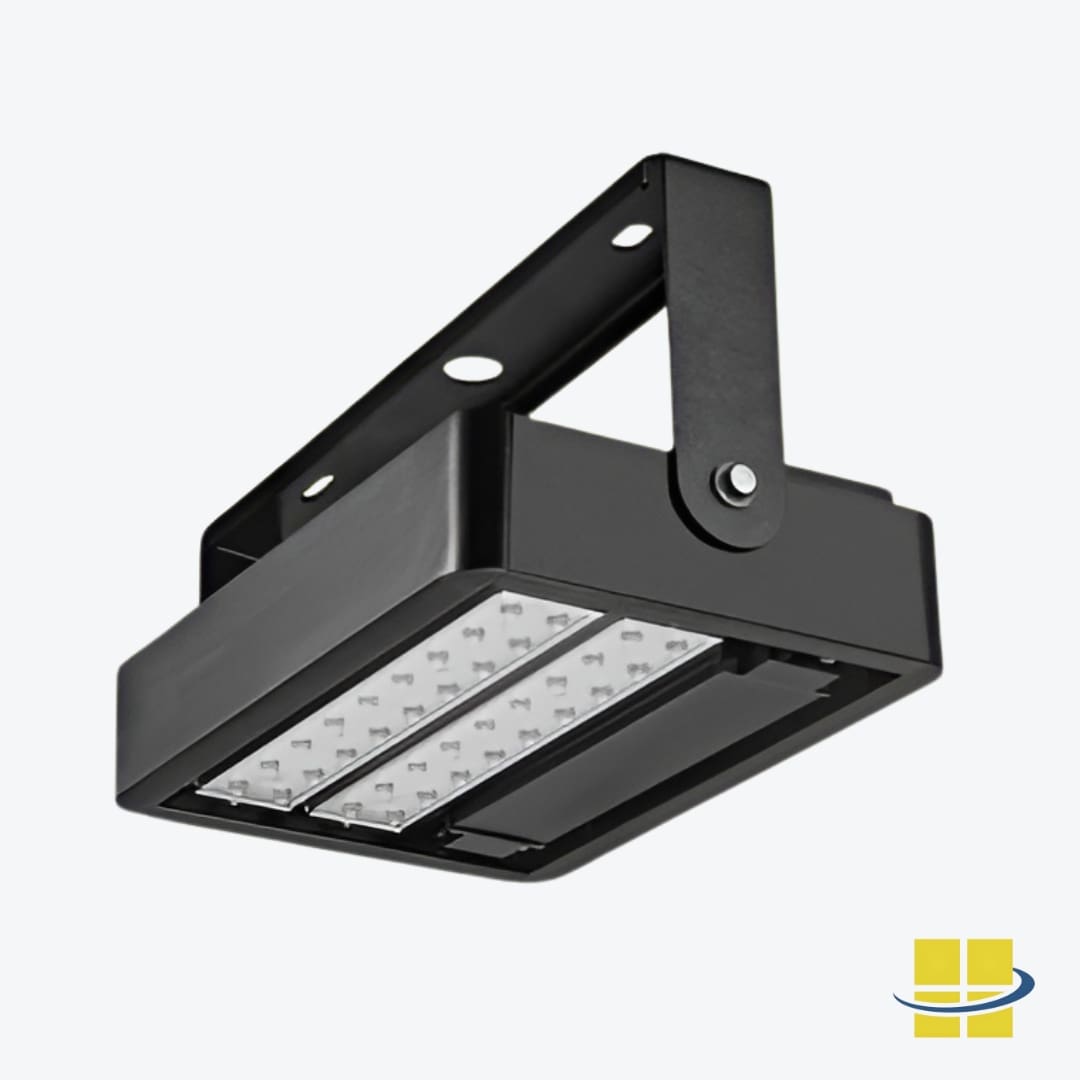

ALTA 60 LED High Heat High Bay Lights, Advanced Optics, EXTREME-LIFE

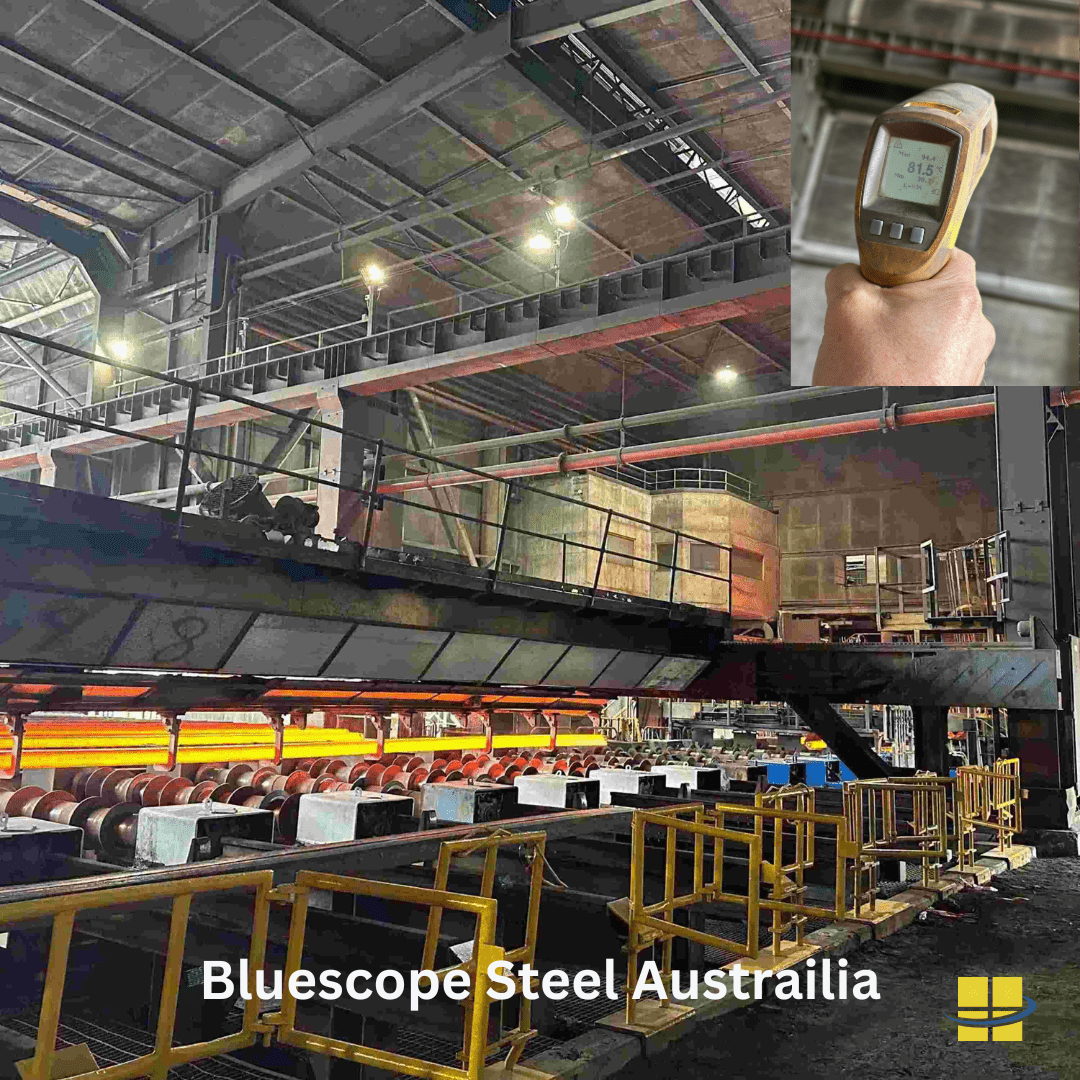

ALTA LED High Heat High Bay Lights are designed to excel in ambient maximum temperature environments. This luminaire features durable extruded aluminum construction with superior thermal performance and IP66 waterproof and dust-proof certification. Its advanced optics deliver precise, waste-free light spill while minimizing light pollution. Engineered to operate in ambient temperatures up to 80°C with a removable driver, the LED drivers are easy to maintain, support multiple voltages (100–480VAC, 50/60Hz, and 530mA), and ensure reliable performance in extreme conditions. Finished with corrosion-resistant polyester powder paint, it meets strict certifications, including cULus, RoHS, and DLC Premium, making it the perfect solution for high-temperature applications.

Durable Construction: Crafted from extruded aluminum housing with die-cast end caps and heat sinks, it ensures superior thermal performance, structural durability, and strength. The interlocking design is 3G vibration tested, IP66-rated for waterproof and dustproof protection, and offers exceptional longevity for this fixture.

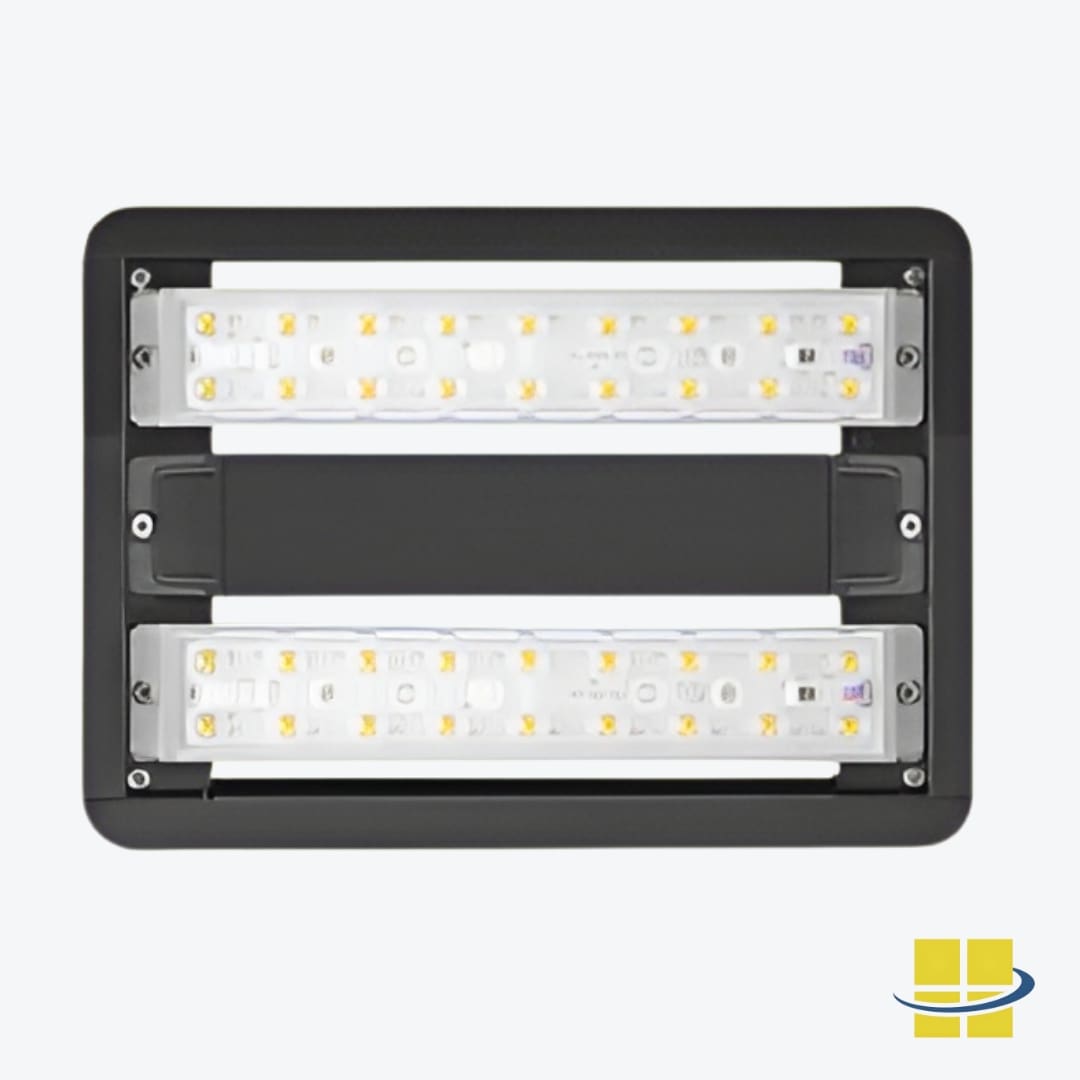

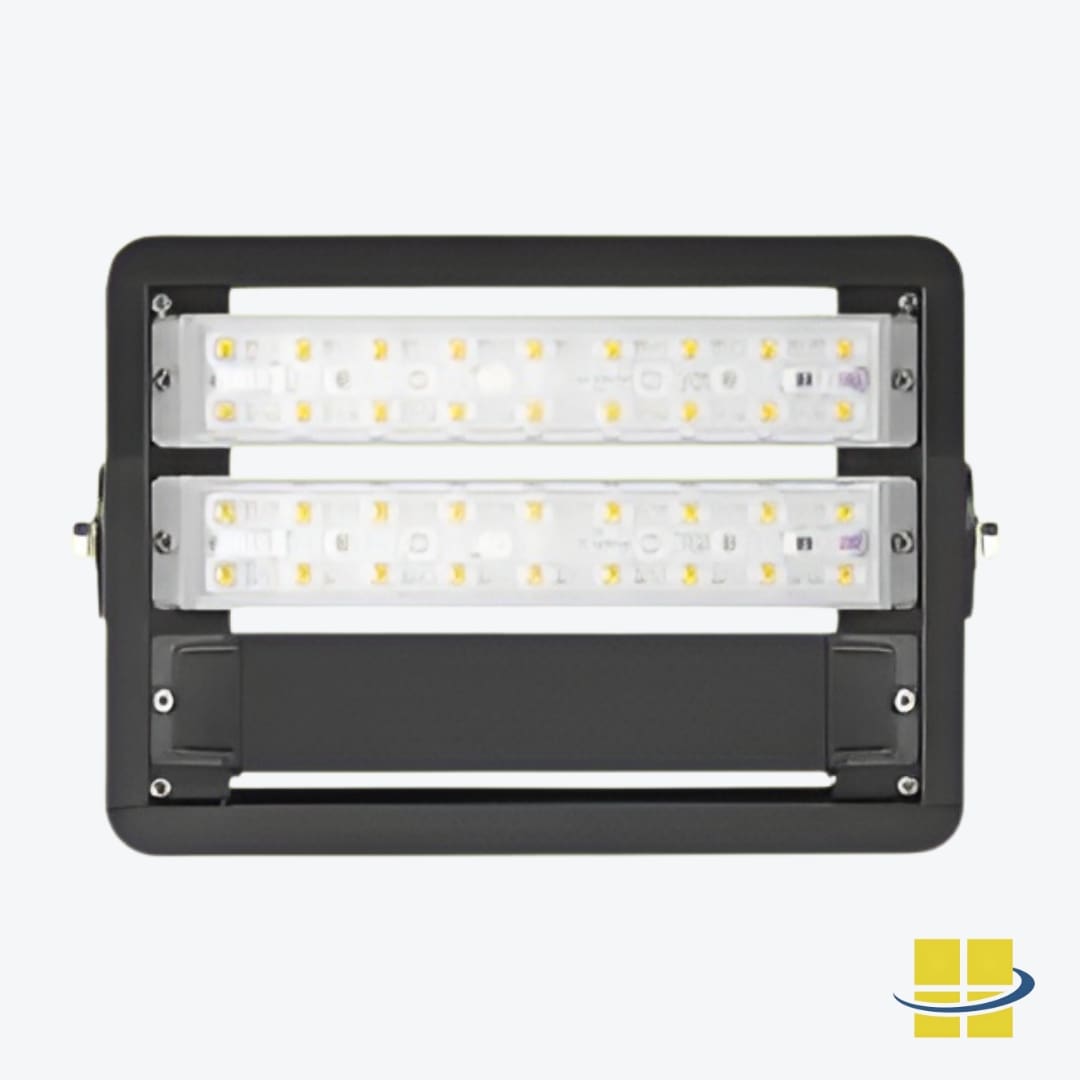

Advanced Optics: This technology ensures precise illumination with minimal waste. With 8 different optic options, you can focus light only where needed, reducing glare and minimizing light pollution.

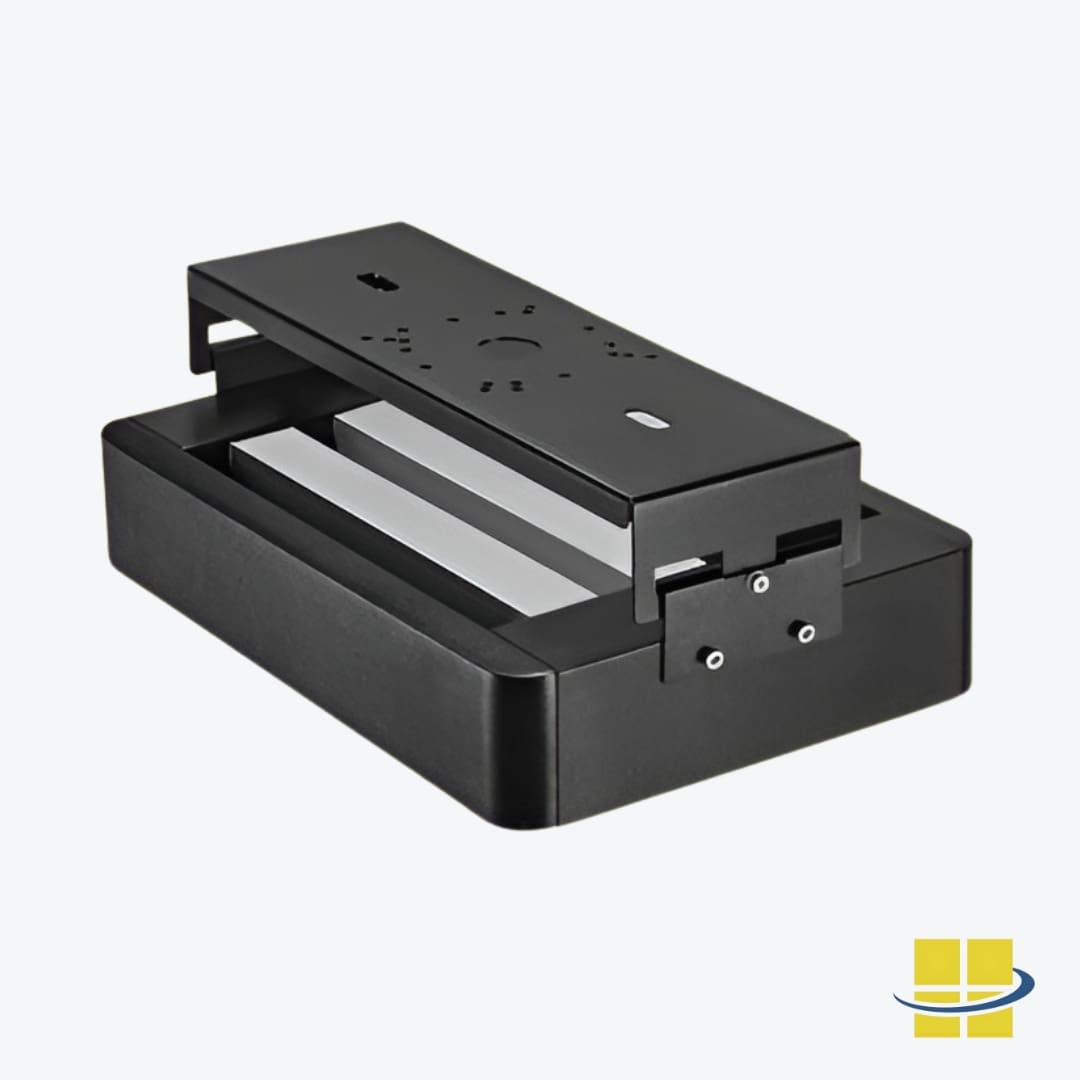

Removable LED Driver Tray Assembly: Designed for optimal performance, the removable tray assembly features a removable driver pack, ensuring effortless maintenance and quick access for servicing while effectively managing higher heat levels when the driver is removed. ALTA is suitable for ambient temperatures of up to 80°C.

No documents available

$589.87

In Stock

"*" indicates required fields

Black and Gray are standard colors. Custom RAL finishes are available at an up charge with a minimum order quantity (MOQ).
0-10v Dimming is suggested and is no additional cost. If dimming is not used, simply cap the 2 low voltage dimming wires.
ALTAs are manufactured with a 3' power cord exiting the light fixture. You may add additional length to the power cord.

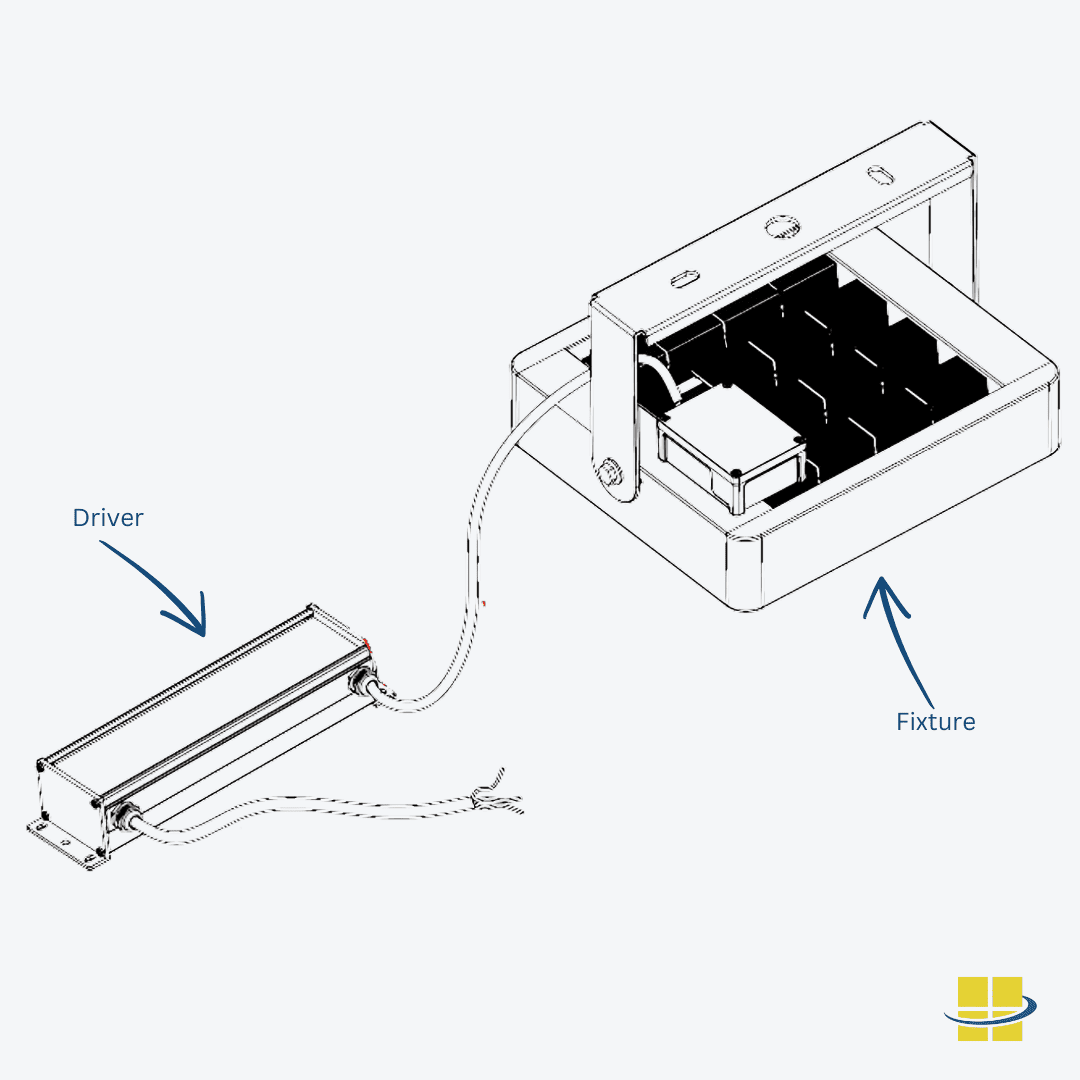

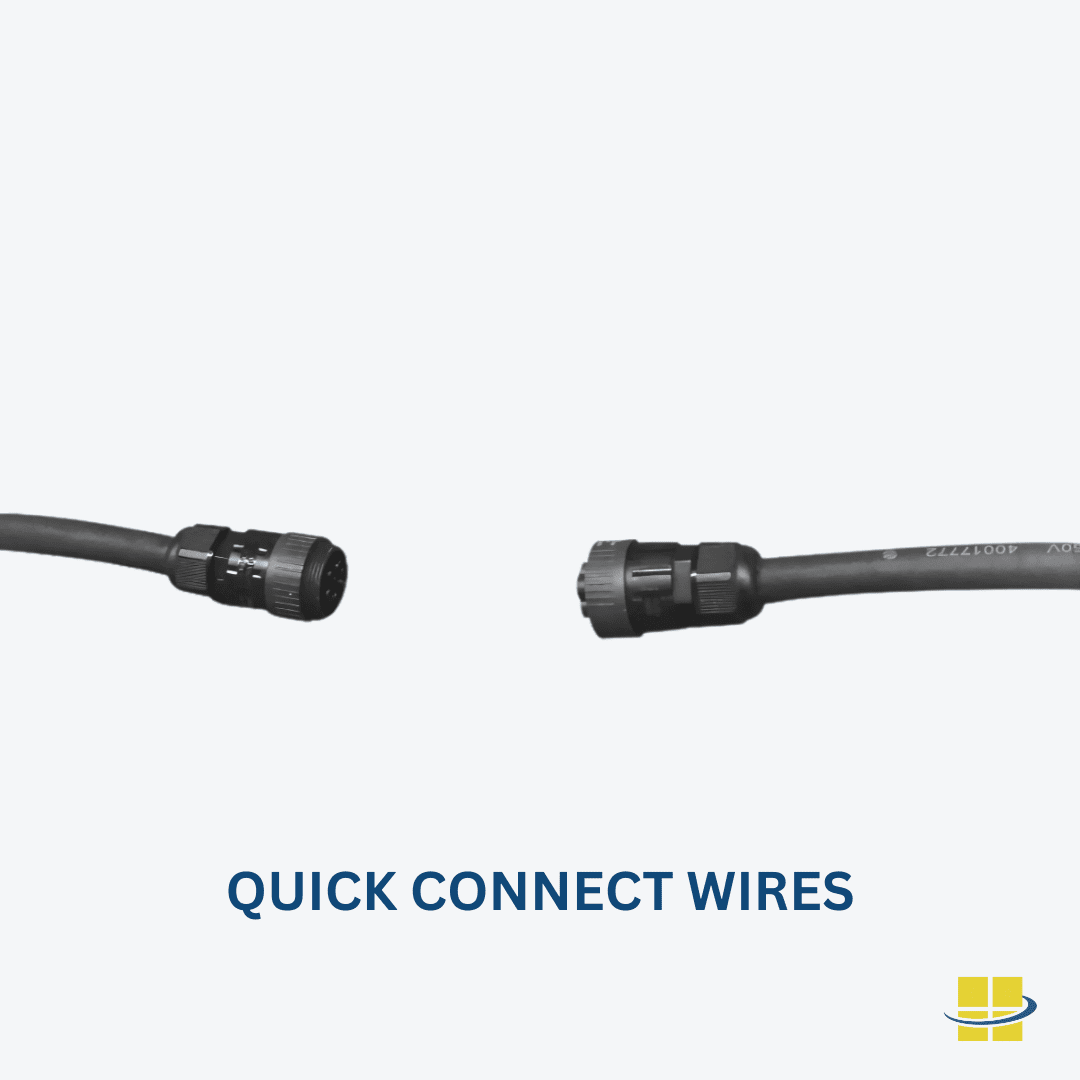

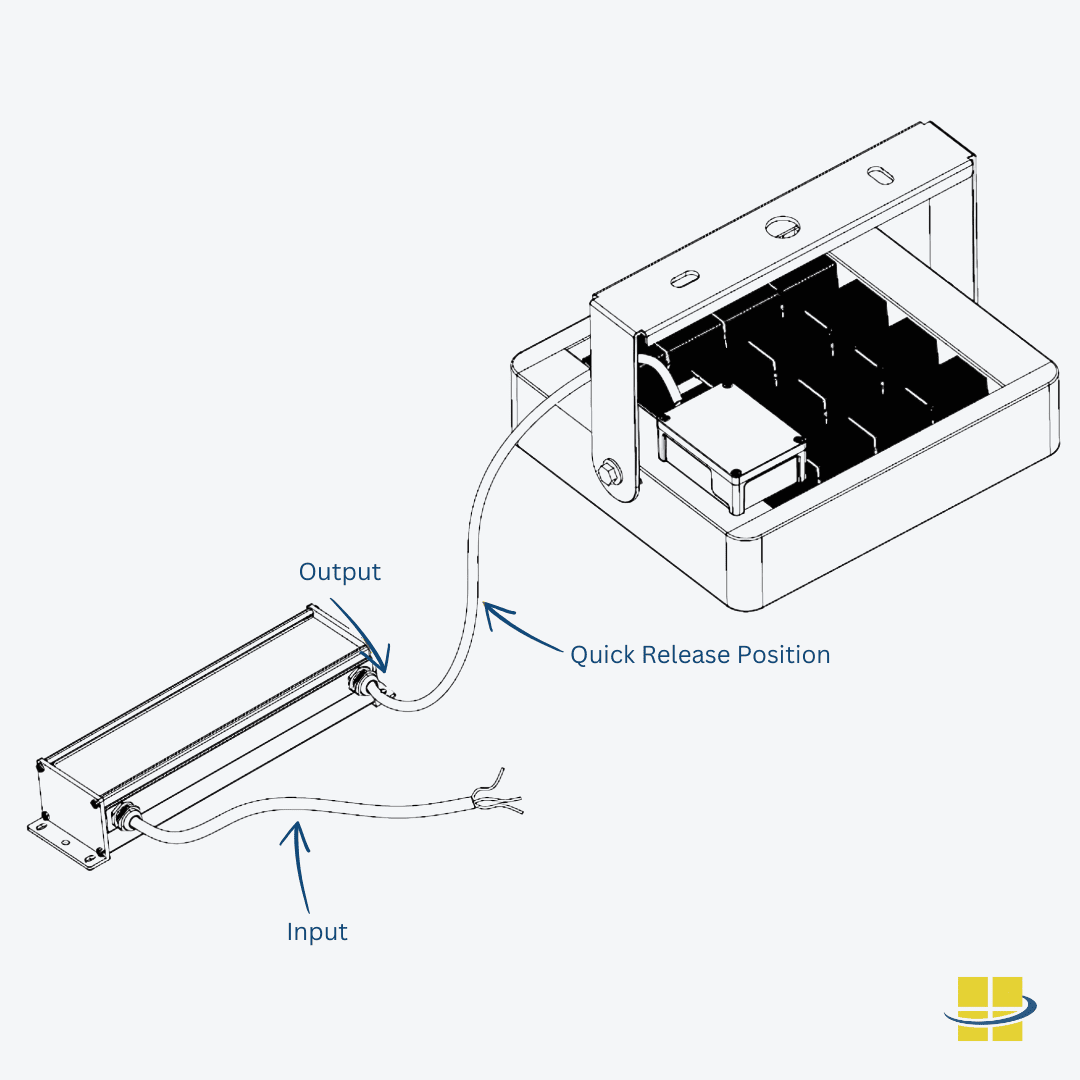

Remote LED drivers require a power cord that connects the light fixture to the remote driver. Select the length of the Remote Driver Cord using this dropdown. The maximum distance between the LED driver and the light fixture is 80 ft.
Do you need the ALTAs to stay on when the power goes out? If yes, add the Emergency Power Supply.
This is a safety cable that will stop the light fixture from crashing to the floor is the primary mount ever becomes loose or disconnected.
Maximize energy savings and the life of the high heat high bay light by adding a programable microwave control with an occupancy sensor and light sensor.
  • Total

Lead Time: 7 to 10 Day Production, plus Shipping
