Product Specifications
| Weight | 16.3 lbs |
|---|---|
| Dimensions | 25.91 × 13.78 × 6.30 in |
| Model Number | AF88XPBE1440L |
| Weight Pounds | 48.06 lbs |
| Product Family | APTA |
| EPA | Check spec sheet for details |
| Housing Material | Die-cast aluminum end caps enclose housing and extruded aluminum. |
| Finish Specifications | Super Durable and Corrosion-Resistant Polyester Powder Paint |
| Finish Color (s) | Black, Bronze, Gray, White, Green, Custom RAL |
| Lens Material | Polycarbonate Lens |
| Optics | T2S, T3S, T3M, T4M, T5M, T4S, T4VS, T4VVSB, T10D, T20D, T40D, T60D, T90D |
| Color Temperature (Kelvin) | 2200K, 3000K, 4000K, 5000K, 5700K |
| LED Type | LED Module |
| System Watts | 1440w |
| Light Source Lumens | TBD |
| Luminaire Lumens | 184,320 lm |
| Luminaire Lumens Per Watts | 128 lm/W |
| Dimensions in Inches | 34.37 X 23.94 X 2.95 |
| Dimension in mm | 873 X 608 X 75 |

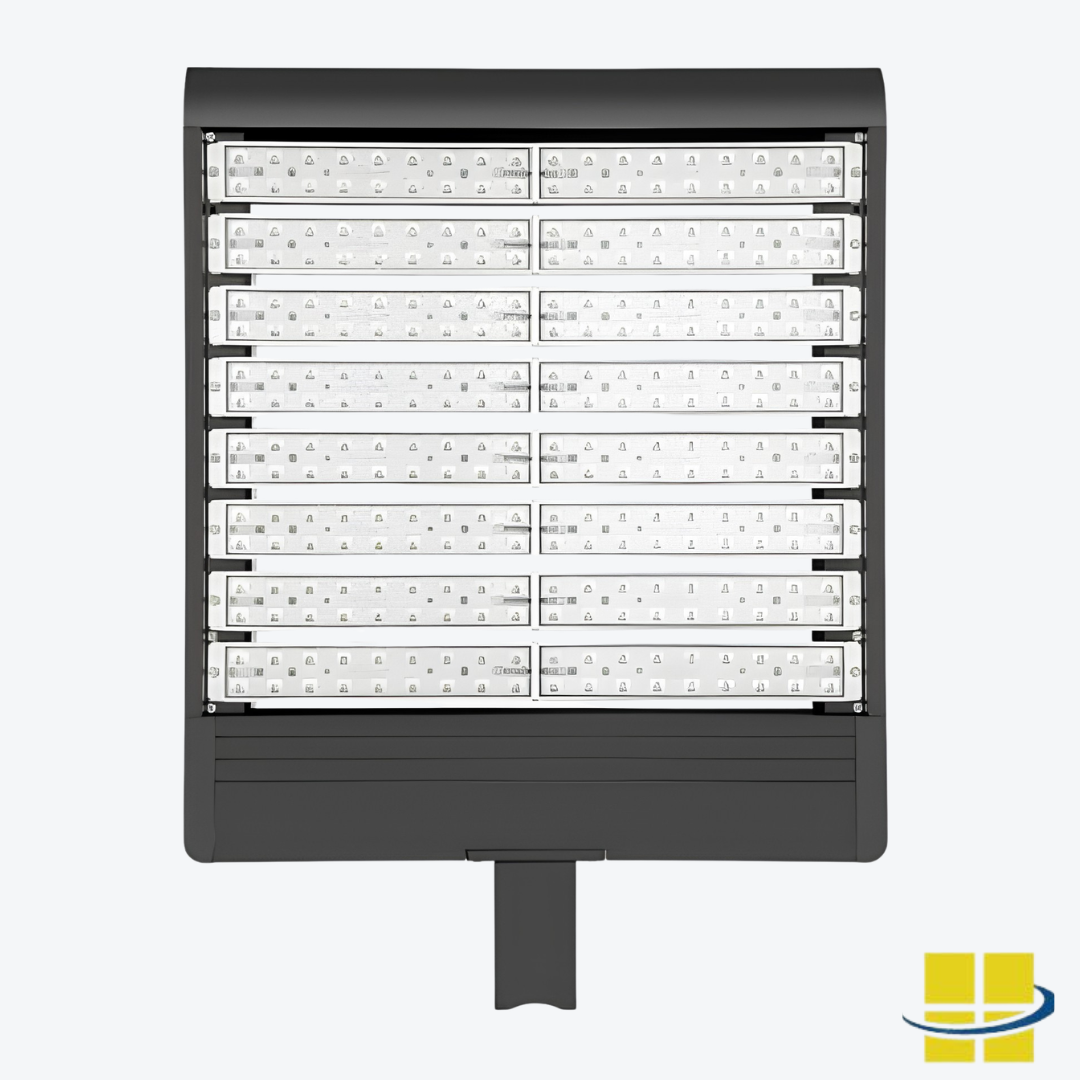

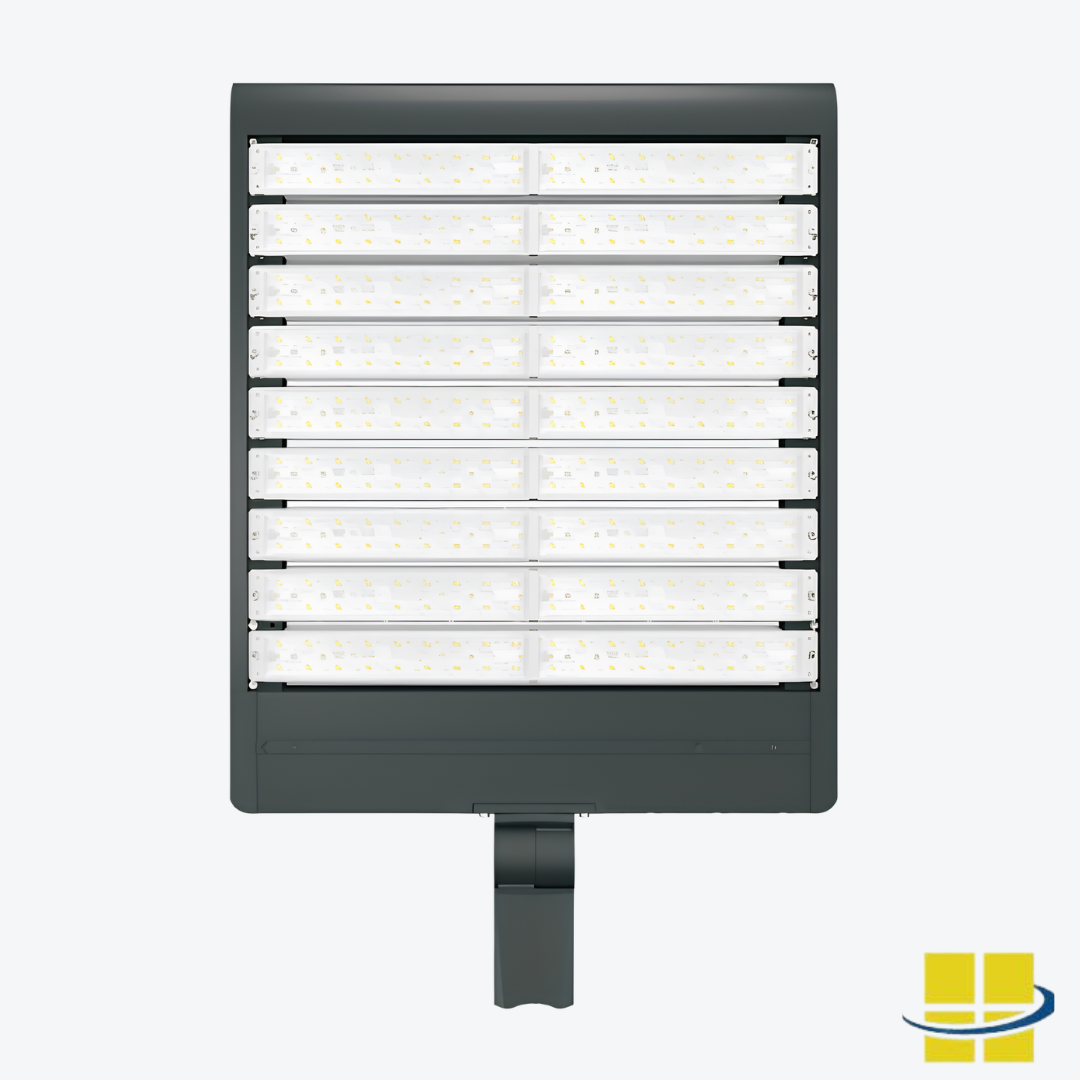

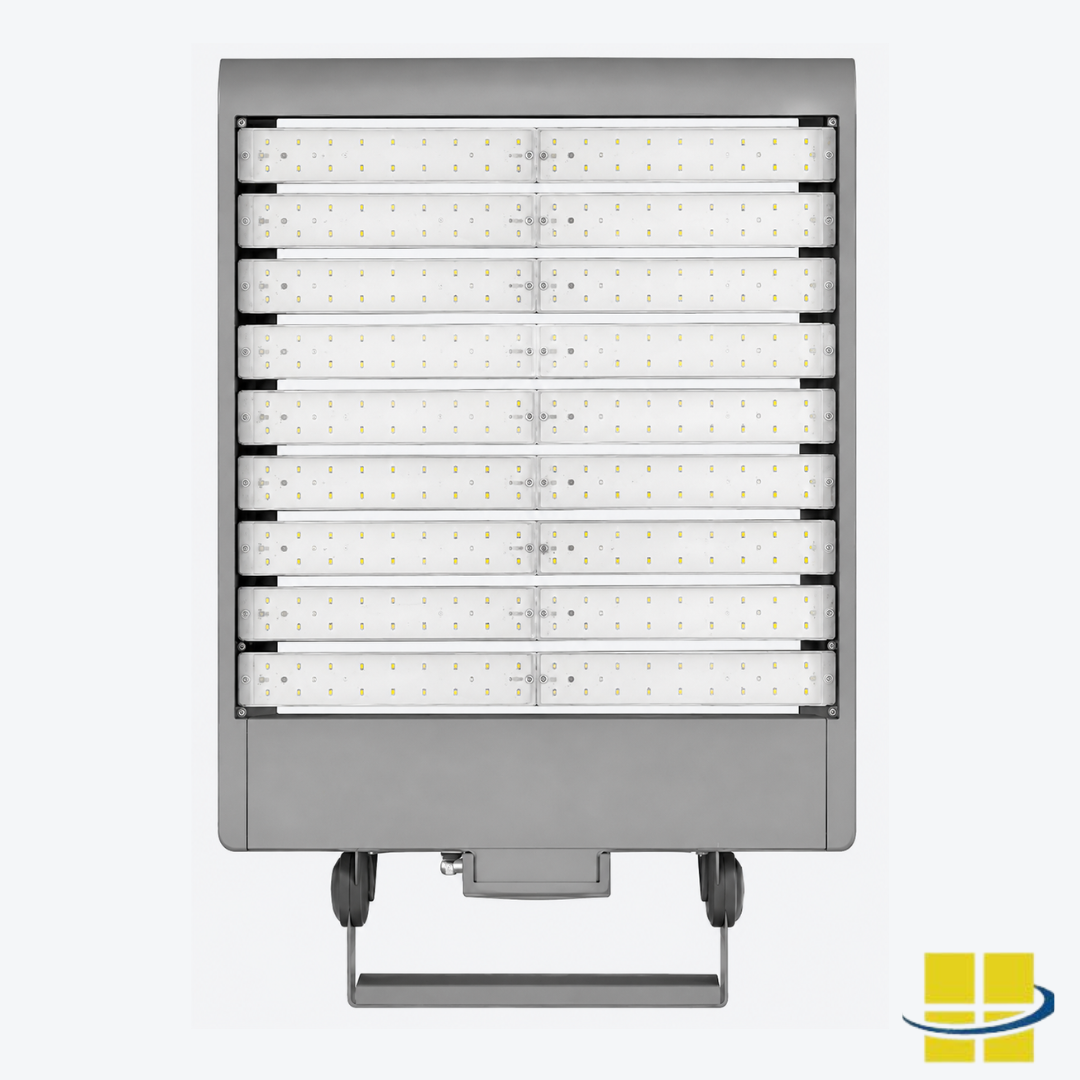

| Mount (s) | Slipfitter (L Mount), Arm (T Mount), Bracket (U Mount) |
| Rated Life (L70@ x Hours) | 200,000 Hours |
| Voltage | 120-277v, 347-480v |
| Surge Protection | 10KA, 20KA |
| Controls and Add-Ons | 1-10V Dimming, Vandal Resistant Screws, Power Cords, Safety Cables, Microwave Motion Sensor, Photocell, Backlight Shield, Bird Spikes, Emergency Power Supply. |
| Operating Temperature | -40°C~+50°C |
| IP Rating | IP66 |
| lK Rating | lK10 |
| DLC Number | n/a |
| BUG Rating | TBD |
| Listings (ex: UL,CUL,CE) | RoHS compliant, CB, CE, CuL Listed, DLC Listed, ENEC, ETL Listed, SAA |
| Warranty | 5-Year Warranty, 10-Year Warranty |
| Availability (Lead-Time) | 2-4 Weeks Production, Plus Shipping |

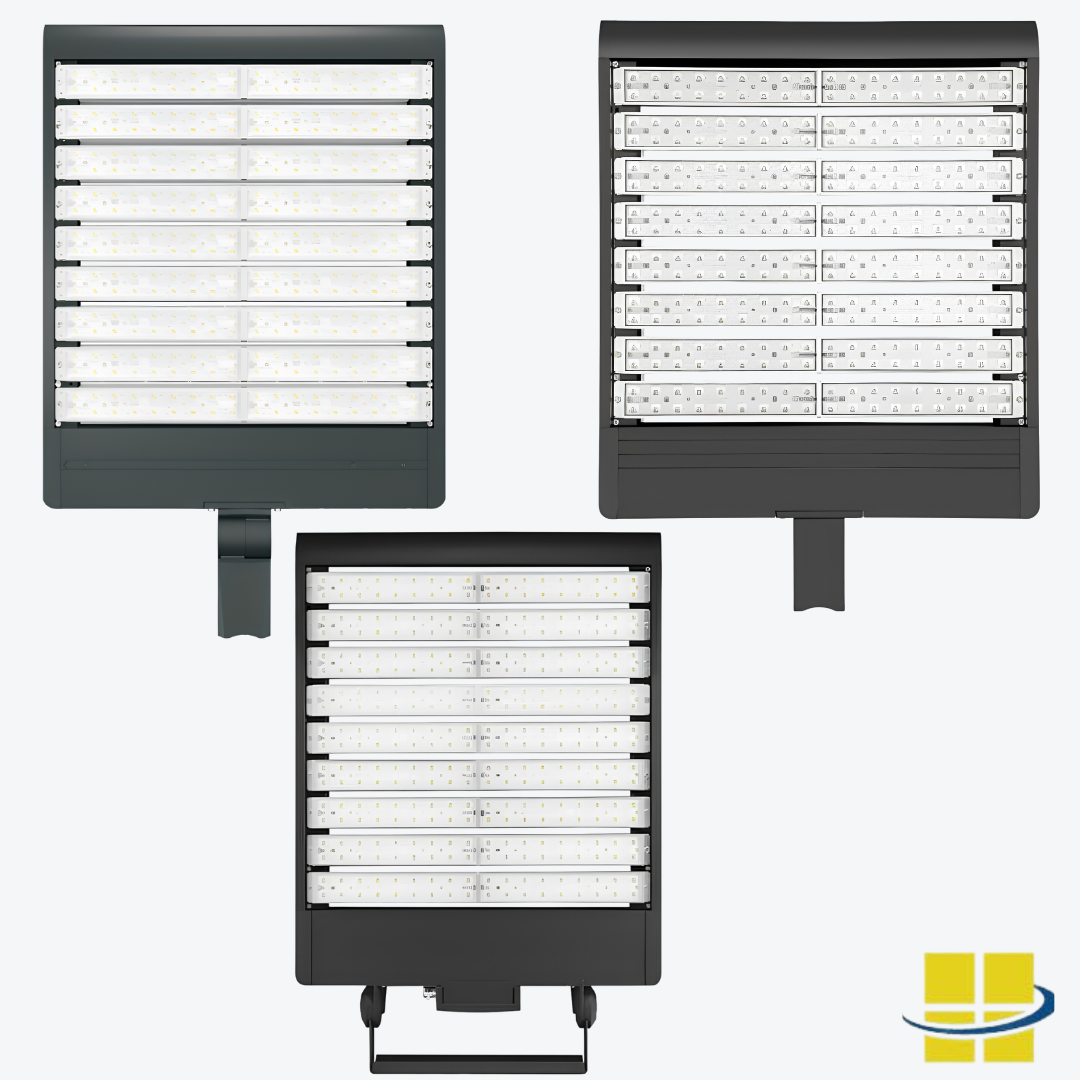

APTA 1440 LED Area and Flood Lights with EXTREME-LIFE
APTA LED Area and Flood Lights are engineered to deliver powerful, reliable, and high-performance illumination. Featuring superior optics, precision spill light control, and an impressive efficacy of up to 160 lumens per watt (LPW), these lights are designed to provide long-lasting, exceptional quality, anti-glare light for all high-mast lighting applications.
CUSTOMIZABLE & DARK-SKY COMPLIANT: With fully customizable optics, sophisticated shielding, and flexible Kelvin options, APTA lights achieve complete full cut- off and strict Dark-Sky compliance. They deliver exceptional performance for sports and area lighting — maximizing visibility while eliminating glare and unwanted light spill into the night sky.
DURABLE & RELIABLE: Built with an anti-corrosive marine-grade finish, 10kA surge protection, IP66 weather sealing, and IK10 impact resistance, APTAs stand strong against salt, storms, and severe weather — ensuring long- term reliability with minimal maintenance.
EXTREME-LIFE: Exceptional thermal management and advanced heat sink design deliver an industry- leading L70 rated lifespan of 200,000 hours — ensuring years of reliable, high-performance illumination with virtually zero maintenance
