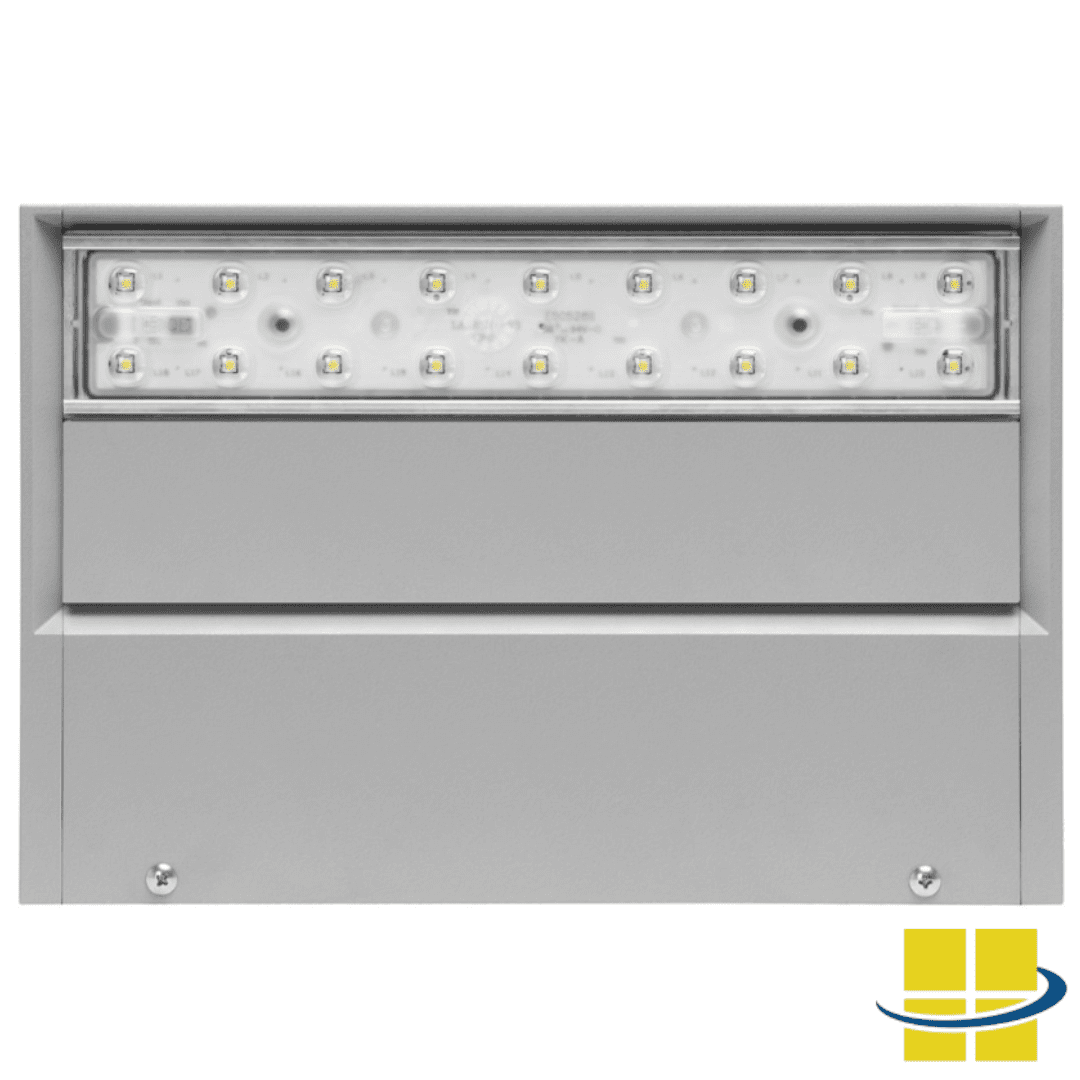

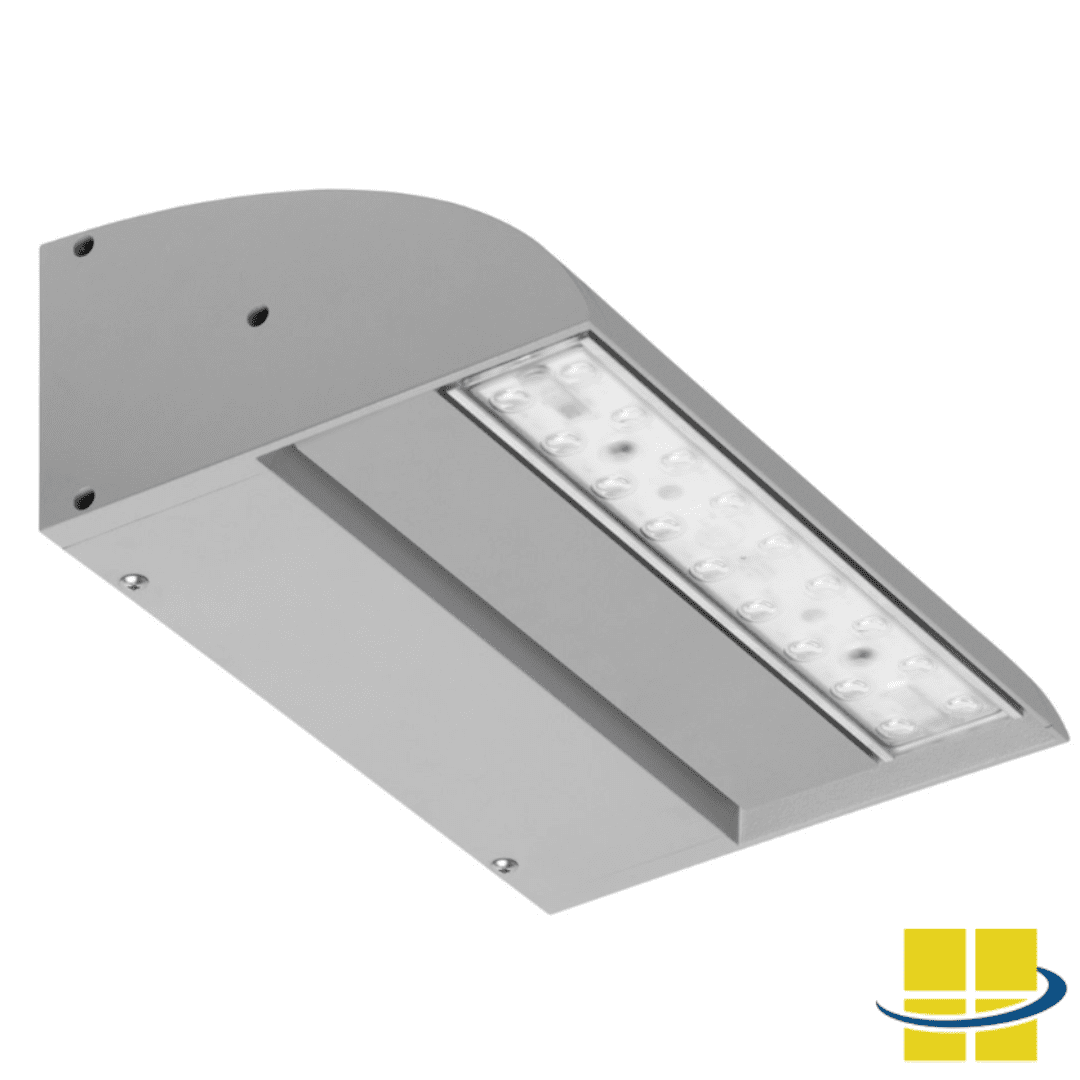

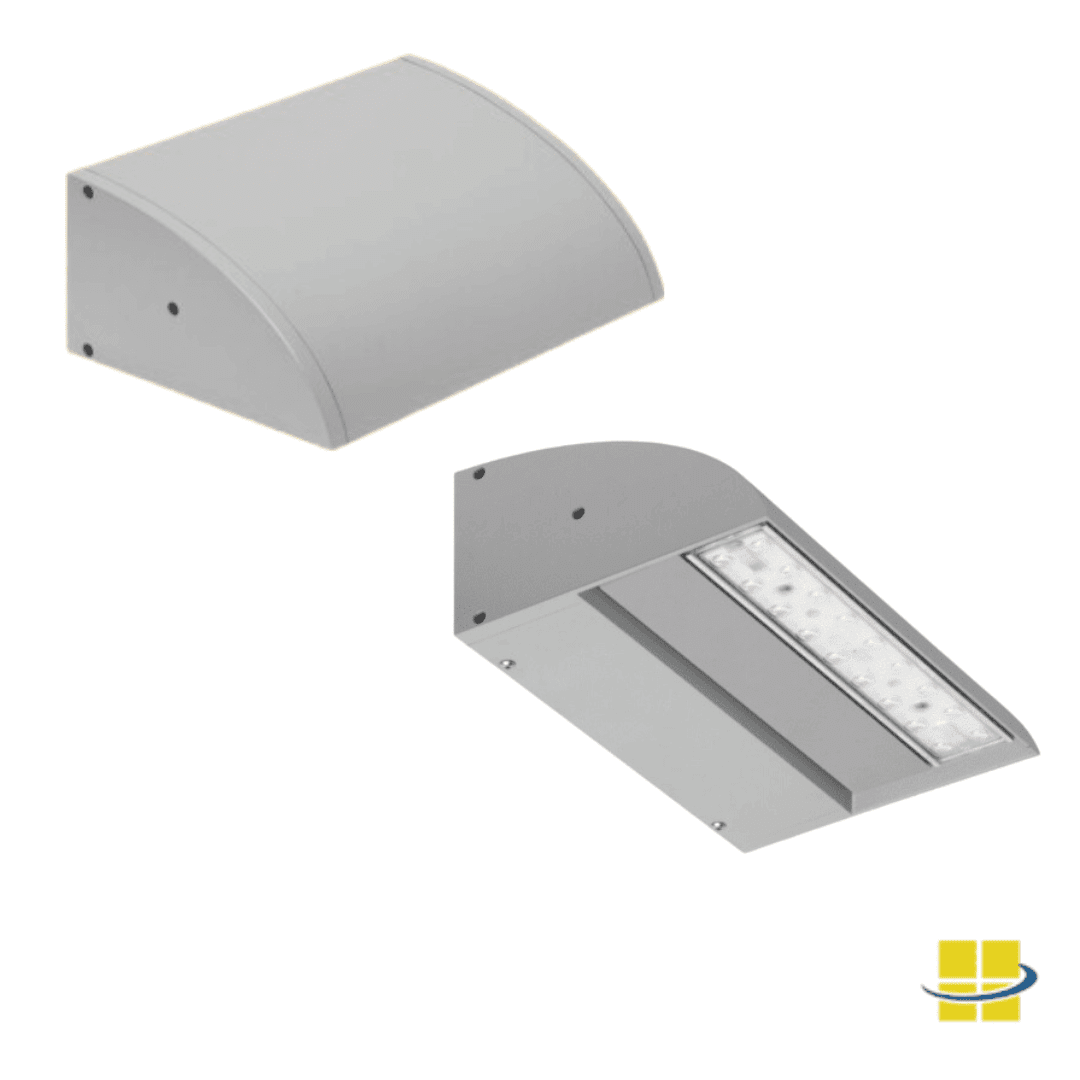

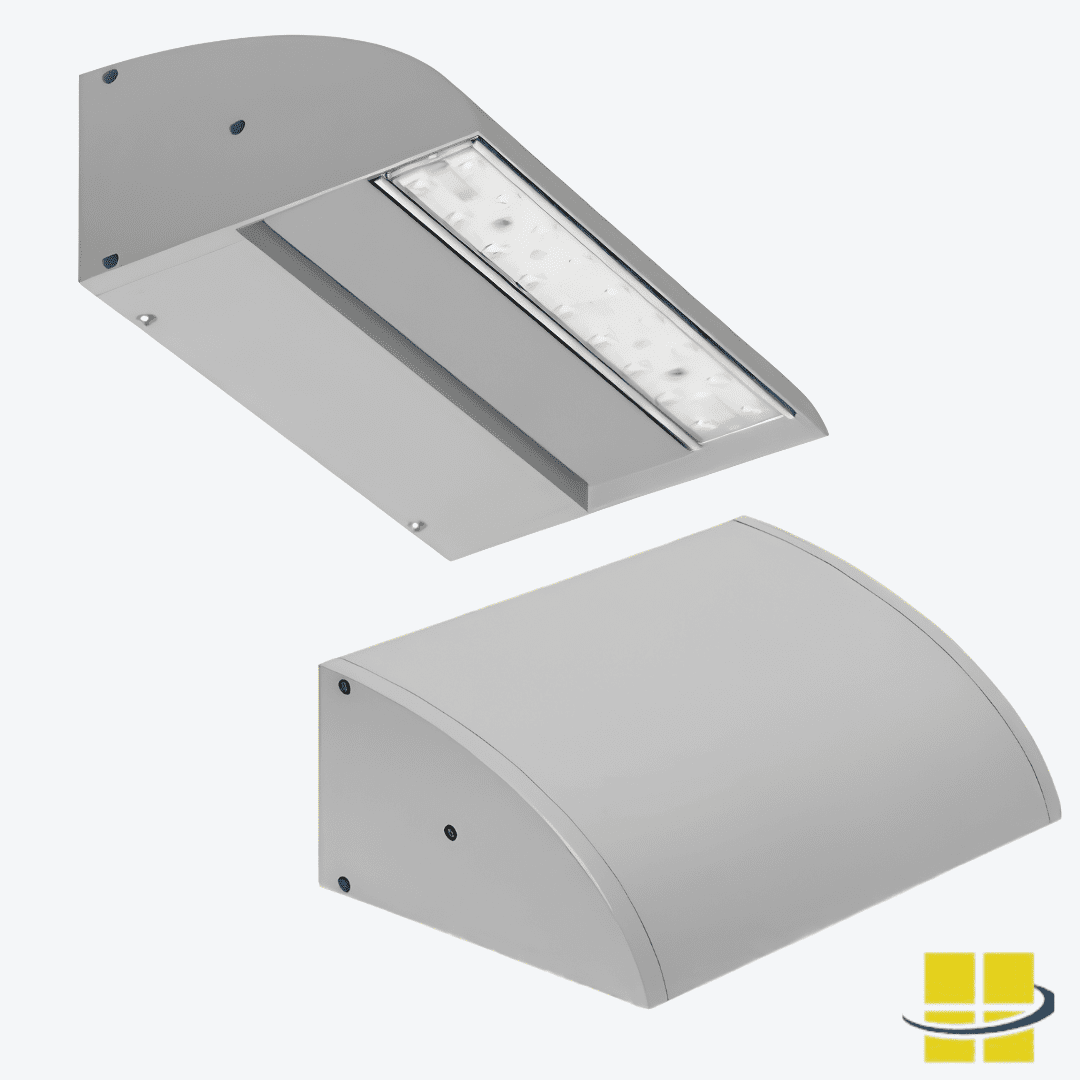

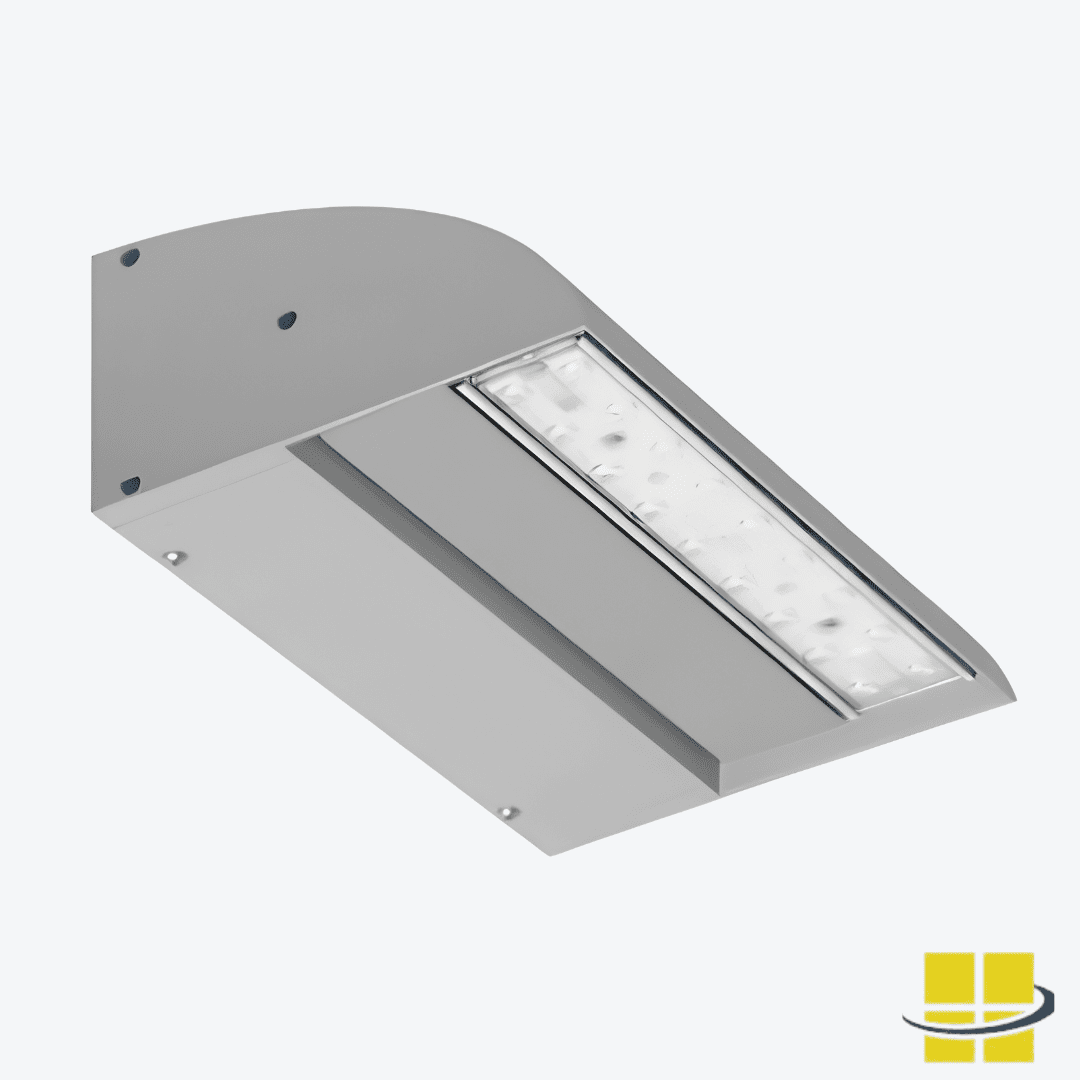

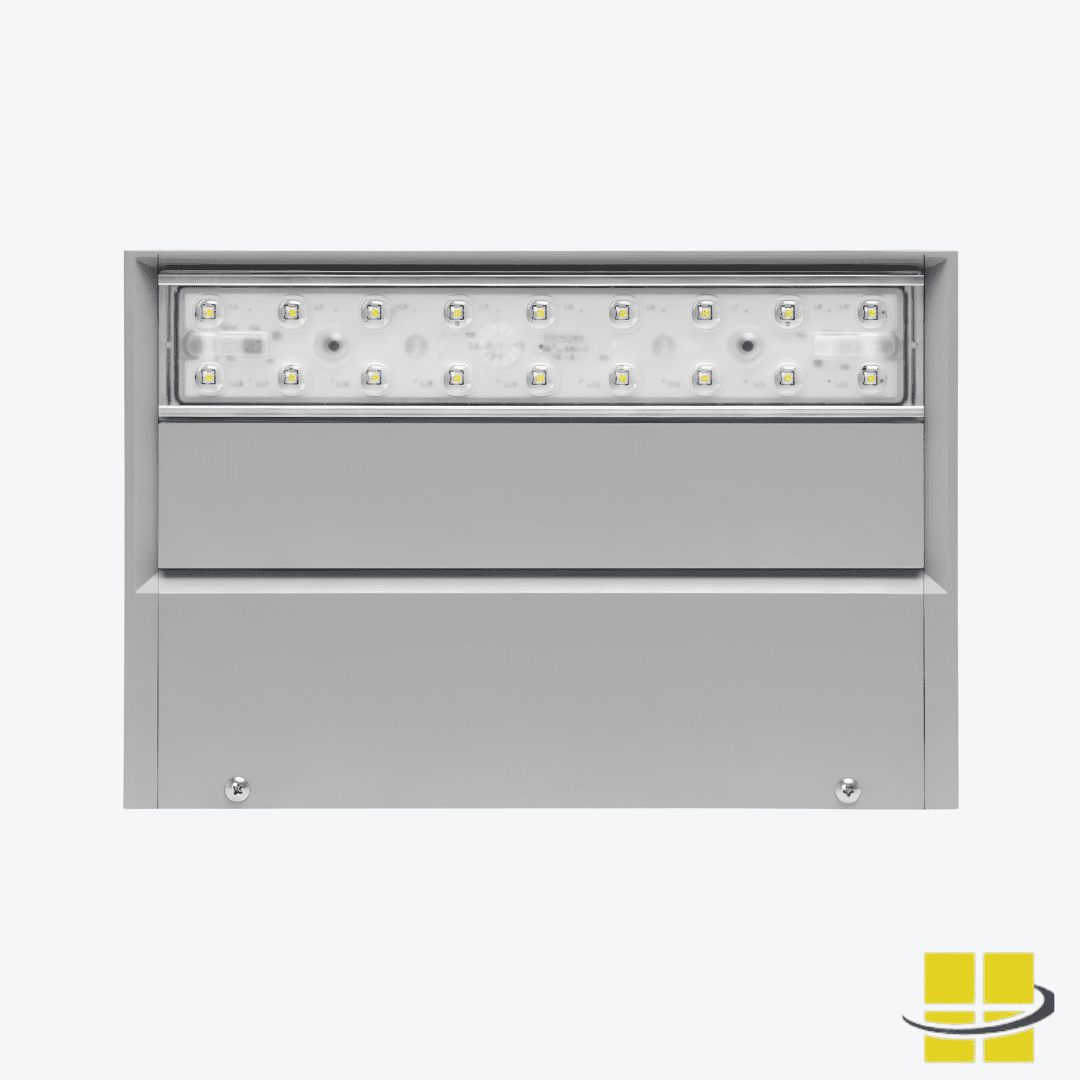

APTO 20 LED Full Cutoff Wall Pack, EXTREME-LIFE, 120-277v


APTO EXTREME-LIFE Full Cutoff LED Wall Packs are designed and manufactured to meet virtually any lighting ordinances, to be vandal resistant, and to require virtually no maintenance.

EXTREME-LIFE: L70 @ 200,000 hours rated and 5/10 year limited warranty means years of maintenance free service

Precision Optics: Full cut off precision optics distribute light where you want it and not up or where you don’t want it. Dark sky compliant when equipped with 2200 or 3000K LEDs

Controls: Available with a photocell, programmable occupancy/daylighting sensor, or ready for DALI or similar control systems



  • Lumens per Watt (LPW) may vary based on Kelvin and mA used to achieve wattage
  • Custom RAL finishes are available with a minimum order quantity (MOQ)
  • Dark Sky Compliant with 2200 Kelvin or 3000 Kelvin LEDs


In Stock

  • Standard colors shown. Custom RAL colors available with minimum order quantity (MOQ) and additional charge.
  • 1-10v dimming is required for microwave occupancy/daylighting sensor. 1-10v is recommended and does not have to be used.
  • See APTO pdf for description of optics.
  • For higher color rendering, the Kelvin must be 3000K or higher. This option is NOT for 2200K
  • Programmable Microwave Occupancy and Daylighting Sensor requires (1) APTO Remote Programmer to program sensor. APTO Remote Programmer is a separate line item.
  • The standard warranty is a 5-year limited warranty. There is a 10-year optional limited warranty available for purchase.

SKU: AF88XWFA20L Categories: , , Tags: , ,


Weight 7 lbs
Dimensions 16 × 11 × 8 in

Typically ships in 6-8 weeks.

Light Source

, , , ,

Available Finishes

Black, Bronze, Gray, White, Custom RAL

Color Rendering Index (CRI)

70+, 80+, 90+


Modular design, Vandal reistant screws optional, Die cast aluminum housing, Finish meets 1000-hour salt-spray certification per ASTM B117/ ISO 9227:2012


12+ Optics avaialbe to meet all light distributon requirements

Light Source Included

LED Array Included

Light Source Lumens



IP67, RoHS Compliant, CB, CE, CuL Listed, DLC Listed, IK08, LM79, SAA, UL Listed


Wall Mount

Product Family


Rated Life

200,000+ Hours

System Watts



120v, 208v, 240v, 277v


5-Year Limited Warranty, Optional 10-Year Limited Warranty


Full Cutoff

Product Description


APTO Full Cutoff Wall Pack Notes:

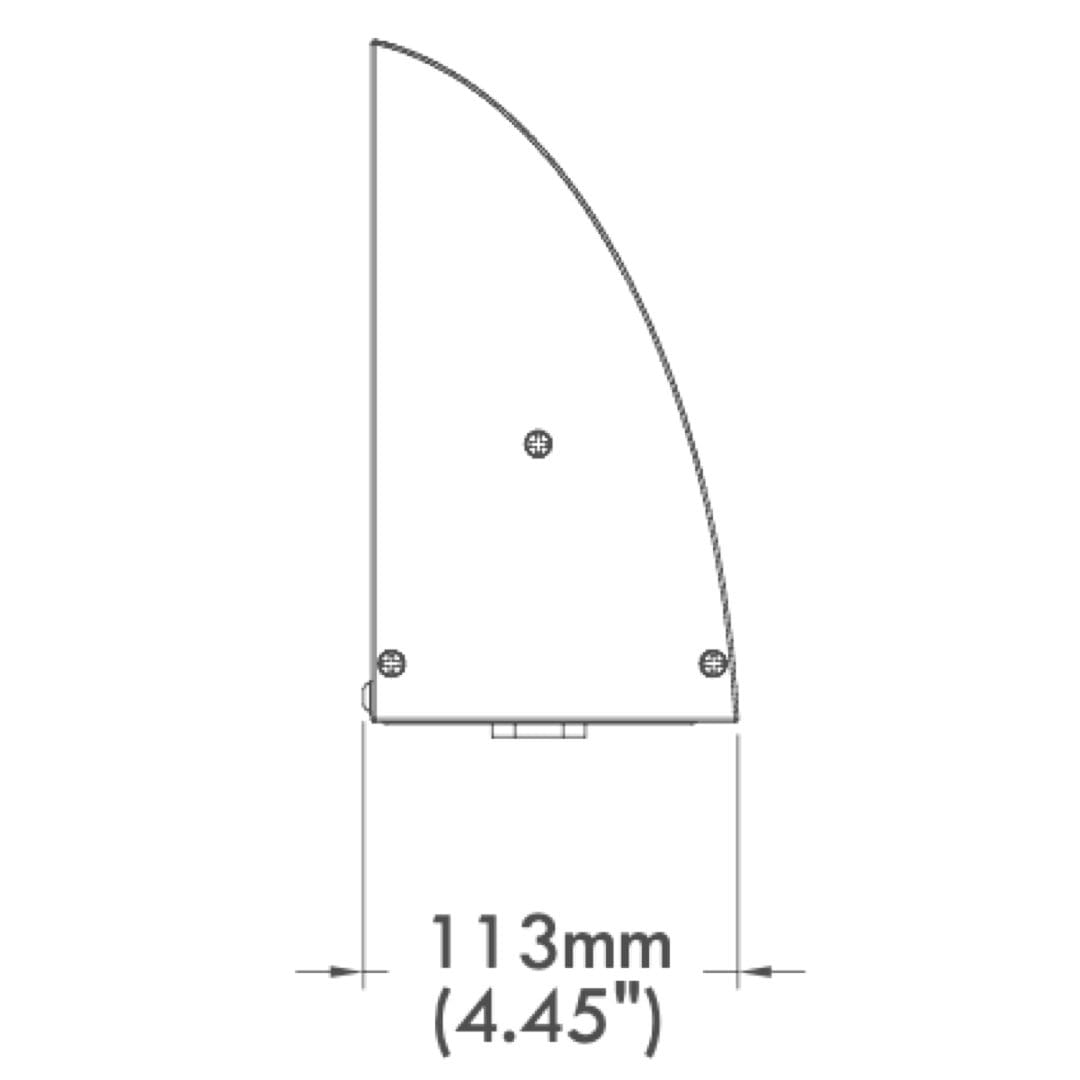

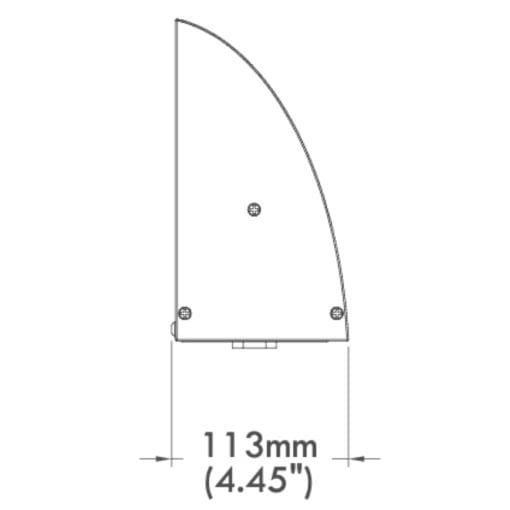

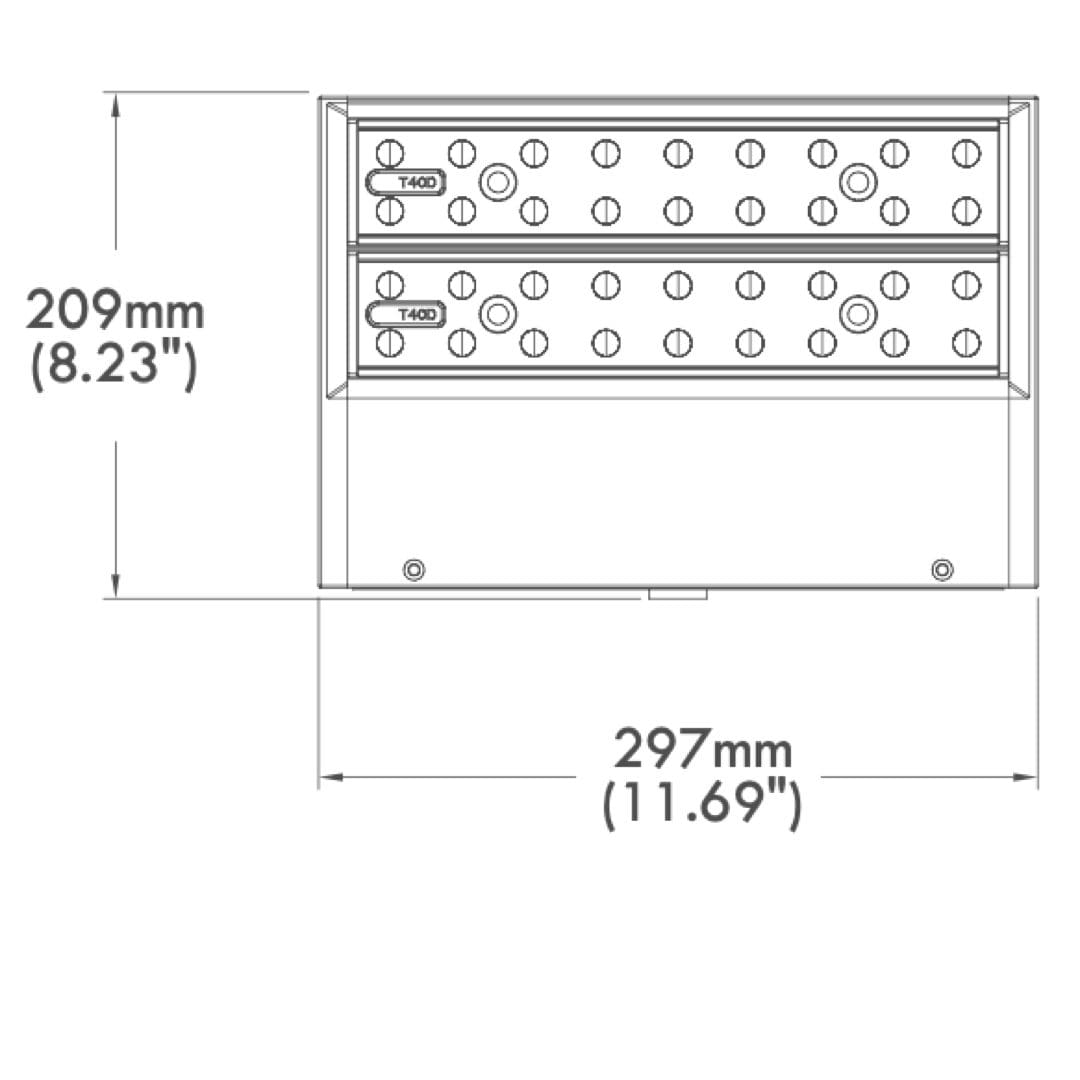

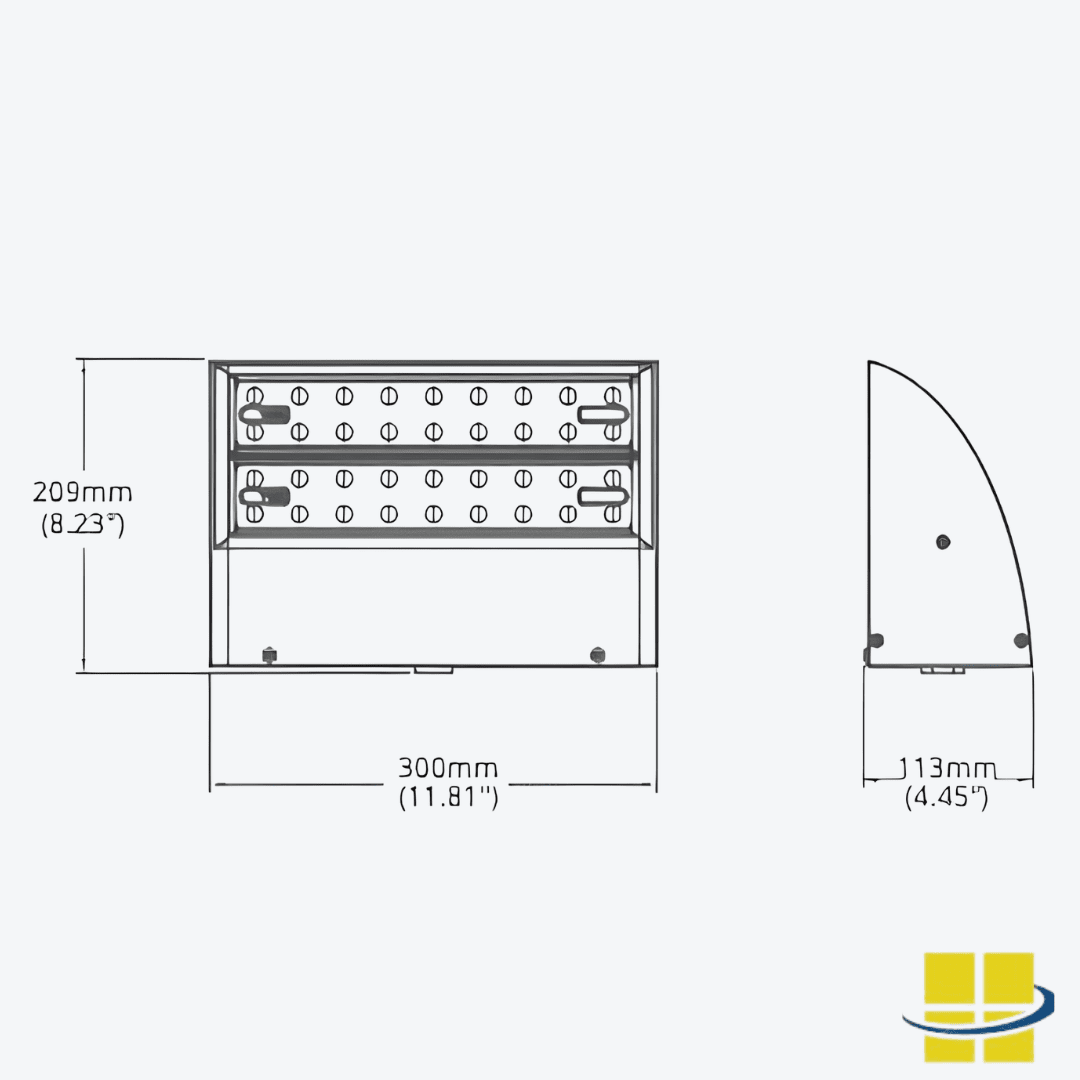

  • APTO Full Cutoff Wall Pack dimensions are provided in the attached product pdf
  • Lumens per Watt may vary based on mA used to achieve wattage(LPW)
  • Low Kelvin reduces Lumens per Watt (LPW)
  • 5700K is about approximately 160 LPW
  • 5000K is about approximately 140 LPW
  • 3000K is about approximately 125 LPW
  • 2200K is about approximately 112 LPW

APTO Full Cutoff Wall Pack Features:

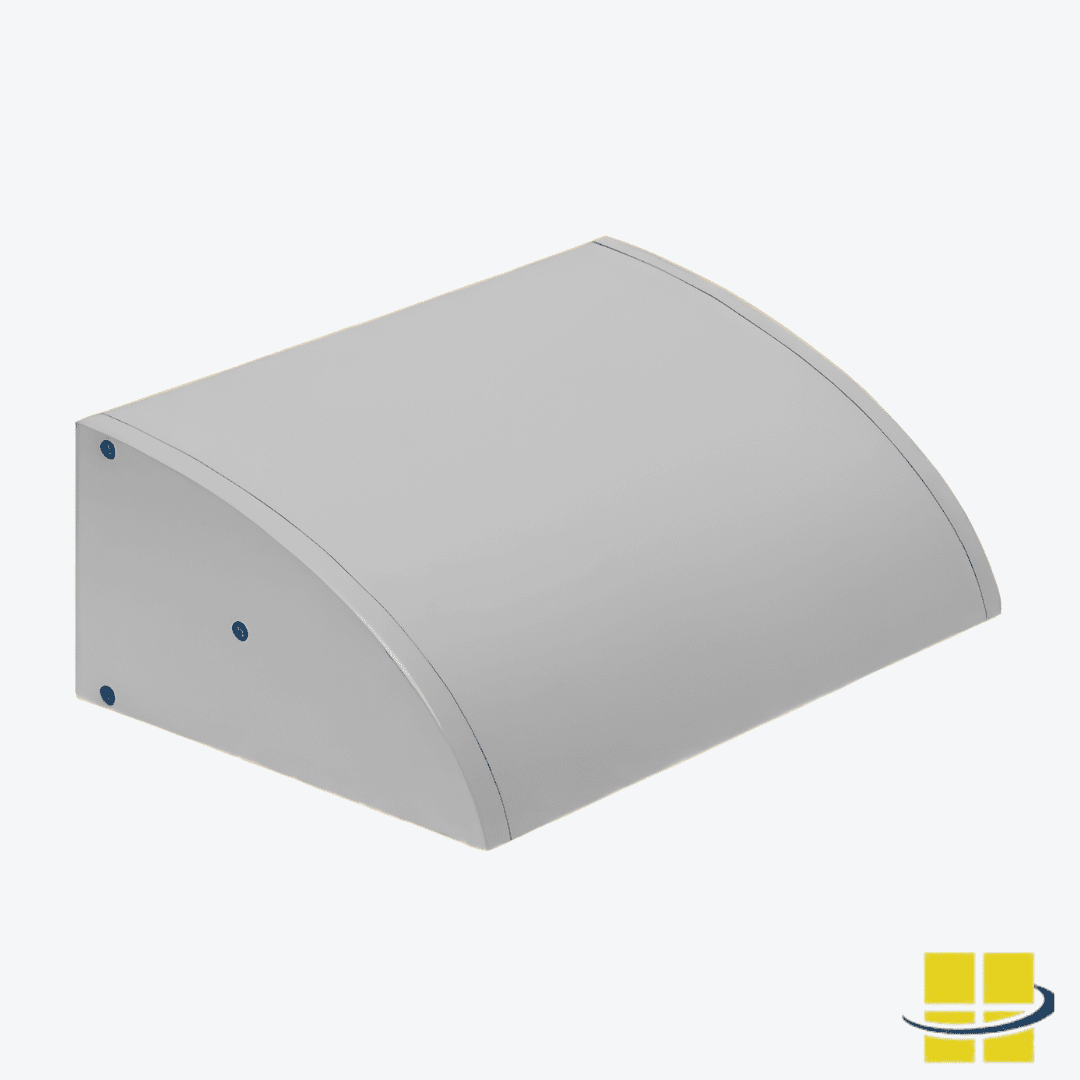

  • Die-cast aluminum housing
  • IP66 wet location rated
  • 10KA Surge protection standard
  • L70 @ 200,000+ hours
  • CSA listed
  • >Color rendering of Ra>70 standard, Ra>80 and Ra>90 Optional
  • Operating temperature -40°C to +50°C, -40°F to 122°C
  • 1-10v Dimming
  • 5-Year limited warranty

APTO Full Cutoff Wall Pack Selections:

  • Select Finish – bronze, black, white, or gray
  • Select Kelvin – 2200K, 3000K, 4000K, 5000K, or 5700K
  • Select Mount – 2 3/8″ or 2 7/8″ vertical tenon
  • Select Optics – Optics

APTO Full Cutoff Wall Pack Options:

  • Option – Backlight blockers
  • Option – Tamper proof – vandal resistant screws
  • Option – RAL finishes available with MOQ
  • Option – Ra>80 or Ra>90 (color rendering)
  • Option – Photocell
  • Option – Programable microwave occupancy/daylighting sensor
  • Option – Emergency power supply
  • Option – Works with DALI, PWM or DMX controls when ordered/specified for these operating systems
  • Option – 10-Year limited warranty

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.

Need a Custom Photometric Analysis Project?

A photometric analysis is a custom computer simulation of your particular project. This service provides average footcandles at various heights, max/min (uniformity) ratios, minimum footcandles, light trespass levels, and more. For exacting lighting specifications, a photometric analysis helps you ensure light levels before making a big purchase. One of our lighting specialist will walk you through the process so you know exactly what you will be receiving. Call us at 800-468-9925 or [email protected] for more information about ordering a photometric analysis for your project.

Ready to Order or Speak to a Lighting Specialist?

You can place your order online or if you want additional information, give us a call at 800-468-9925.
Does your project require multiple fixtures? Ask us about quantity discounts.
