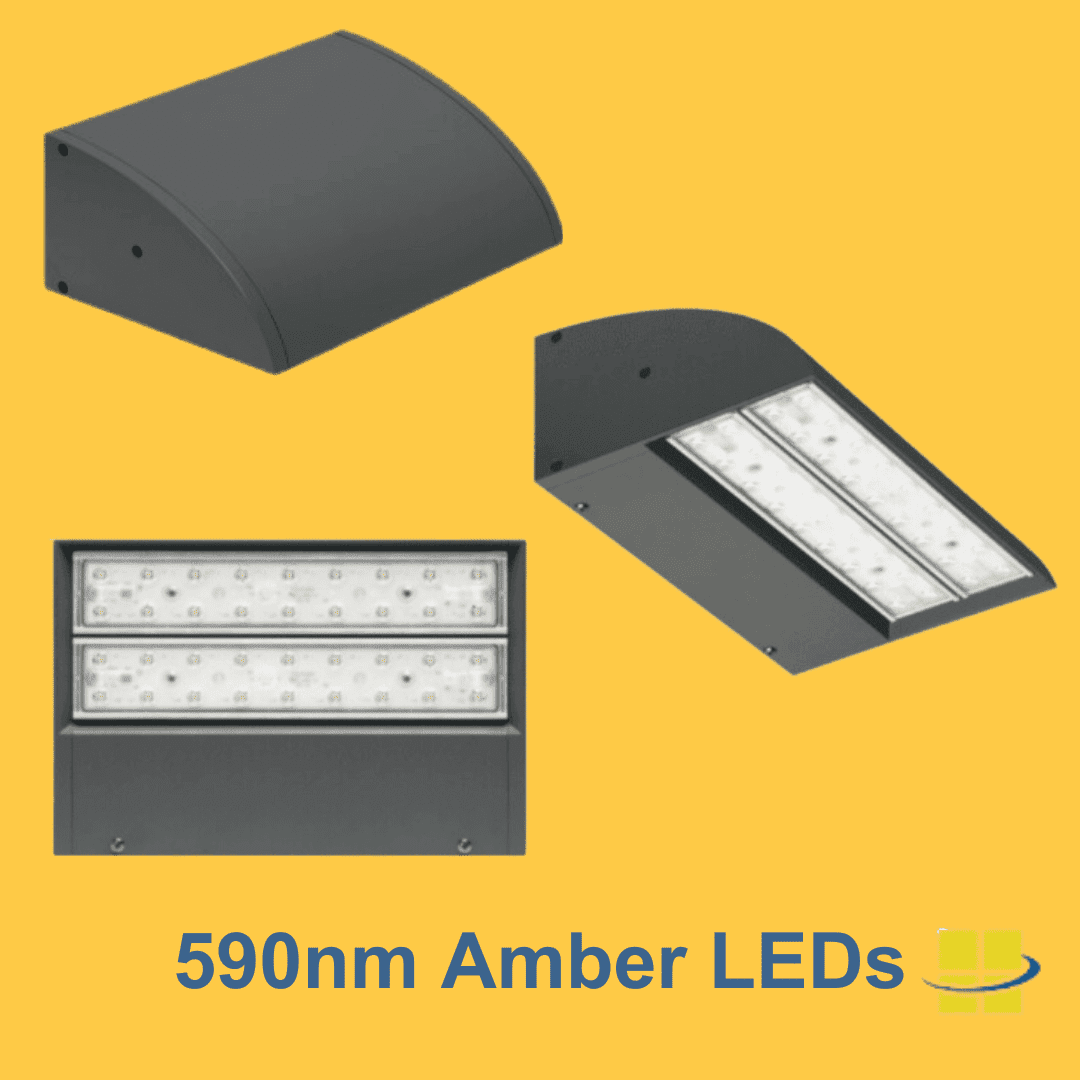

APTO 80 590nm Amber LED Turtle Friendly Wall Pack, 120-277v


APTO 80 590nm Amber LED Full Cutoff Wall Pack, 120-277v is a sea turtle and wildlife Dark Sky compliant wall pack.

Turtle and Wildlife Friendly: The energy efficient monochromatic amber LEDs are turtle and wildlife friendly. Using 590nm follows most coastal light regulations.

Full Cutoff: The full cutoff design of this wall pack helps customers meet local lighting ordinances by minimizing up-light and light trespass.

IP67 Rated: The APTO is IP67 rated which means it is protected from total dust ingress and water immersion between 15cm & 1m in depth.

In Stock

  • Select color. Custom RAL finishes are available too. Speak with an Access Fixtures lighting specialist. 800.468.9925
  • Need advise to decide on the best optic for your application? Speak with an Access Fixtures lighting specialist. 800.468.9925
  • 1-10v Dimming is always recommended as it does not need to be used, but can be used if needed.
  • Limited surge protection is standard. Extra protection is recommended on islands and where the there are power surges. Never put LED lights on the same breaker with HID lights or machinery.

SKU: AF88XWFC80L-590nmAmber Categories: , , Tags: , , , ,


Weight 8 lbs
Dimensions 16 × 11 × 8 in

Typically ships in 6-8 weeks.

Available Finishes

Black, Bronze, Gray, White, Custom RAL


Modular design, Die-cast aluminum housing, Finish meets 1000-hour salt-spray certification per ASTM B117/ ISO 9227:2012


15+ optical lenses available for specific distribution patterns

Light Source

Light Source Included

LED Array Included

Light Source Lumens



IP67, RoHS Compliant, CB, CE, DLC Listed, IK08, LM79, SAA, UL Listed


Wall Mount

Product Family


Rated Life

66,000 Hours

System Watts



120v, 208v, 240v, 277v


5-Year Limited Warranty, Optional 10-Year Limited Warranty


Full Cutoff

Product Description

APTO 40 590nm Amber Full Cutoff Wall Pack Features:

  • 80w integrated modular LED Array
  • Turtle & wildlife friendly 590nm Amber
  • Dimmable 1-10v
  • 6,800 lumens
  • 120-277v
  • IP67-rated and salt-spray certification
  • Die-cast aluminum housing
  • L70 life of 66,000+ hours
  • 5-year warranty- Optional 10-year warranty

APTO 40 590nm Amber Full Cutoff Wall Pack Options:

  • Black, White, Gray, Bronze, or Custom RAL Finish
  • Twelve options for optics and light distribution
  • Choice of surge protection
  • Optional photocell
  • Motion sensor
  • Vandal-resistant screws
  • Marine grade finish

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.

Need a Photometric Analysis for Your Project?

A photometric analysis is a computer simulation of a particular project. Whether using these fixtures to illuminate a parking lot, athletic field, rail yard, dock, or something else entirely, a photometric analysis is an easy way to quantify your light levels before making a big purchase. This service will provide average footcandles, max/min (uniformity) ratios, minimum footcandles, light trespass levels, and more. When the report(s) are generated, a lighting specialist will walk you through them, page by page, so you know exactly what you will be receiving. Call us at 800-468-9925 or email [email protected] for more information about ordering a photometric analysis for your project.

Ready to Order APTO-590nm-Amber-Wall-Packsor Speak to a Lighting Specialist?

If you need some additional information about this fixture, give us a call at 800-468-9925. Of course, you can place your order online, right here, but our team is available to answer any questions that may come up. Does your project require multiple fixtures? Ask us about quantity discounts. We are here to provide anything you need to purchase fixtures and illuminate your project with confidence.
