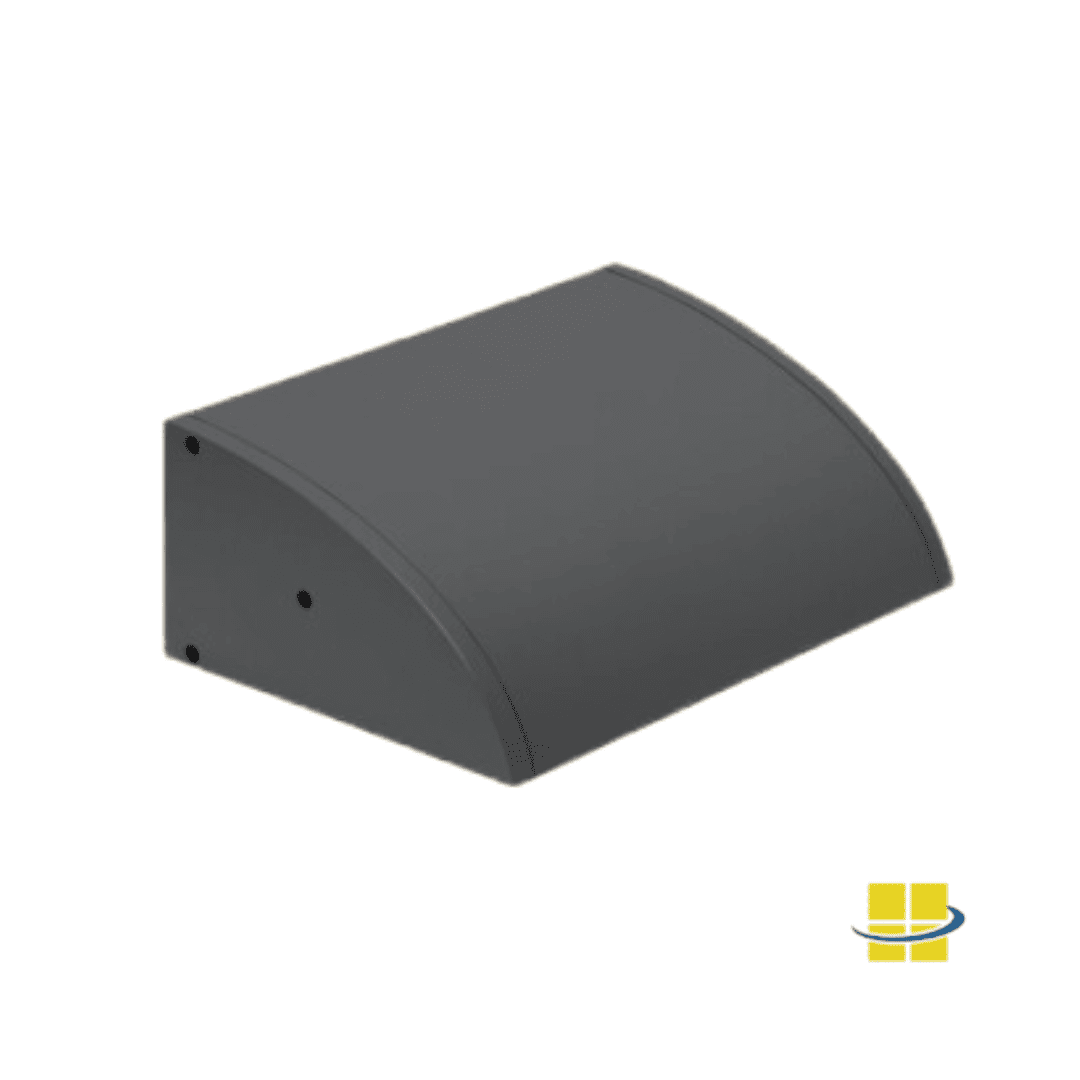

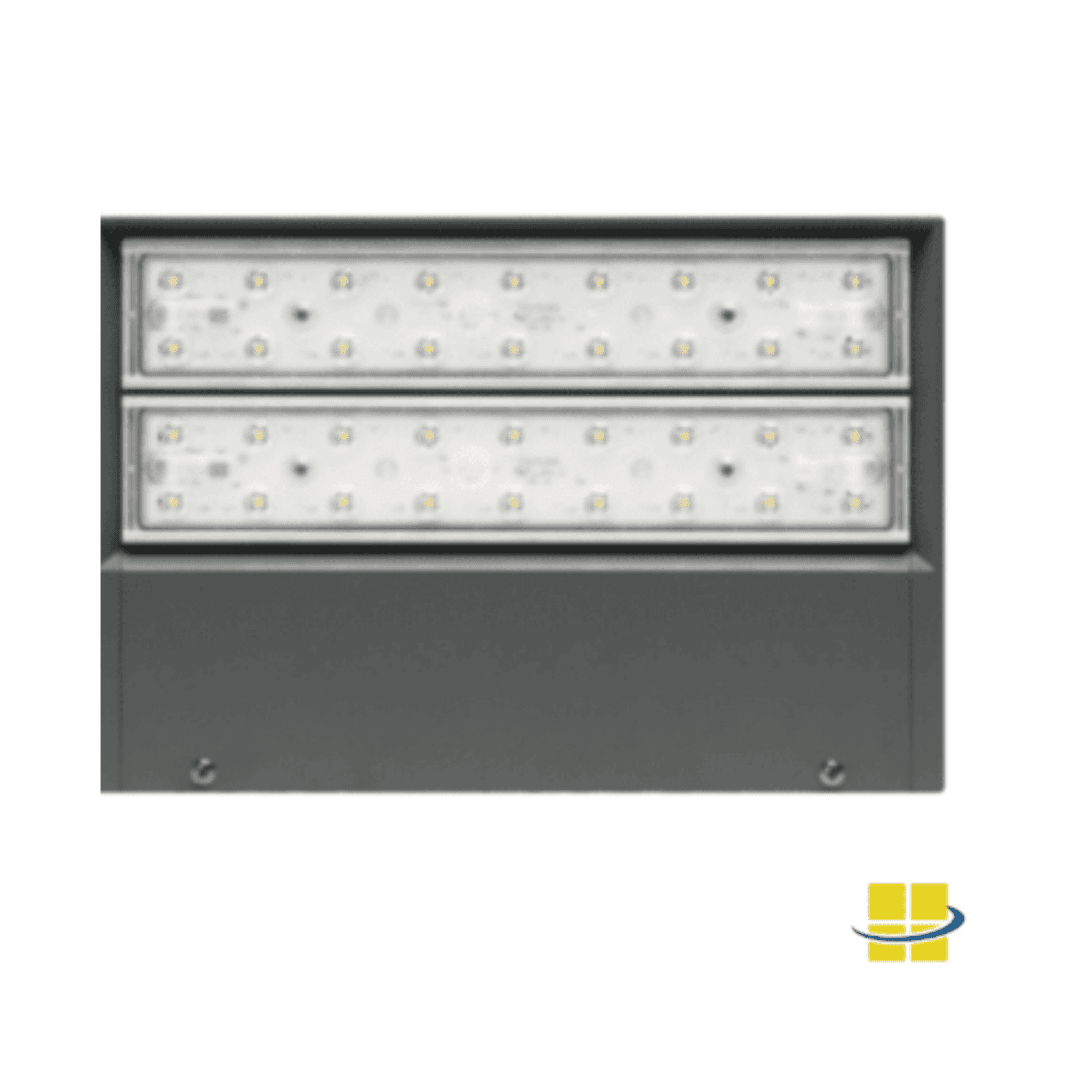

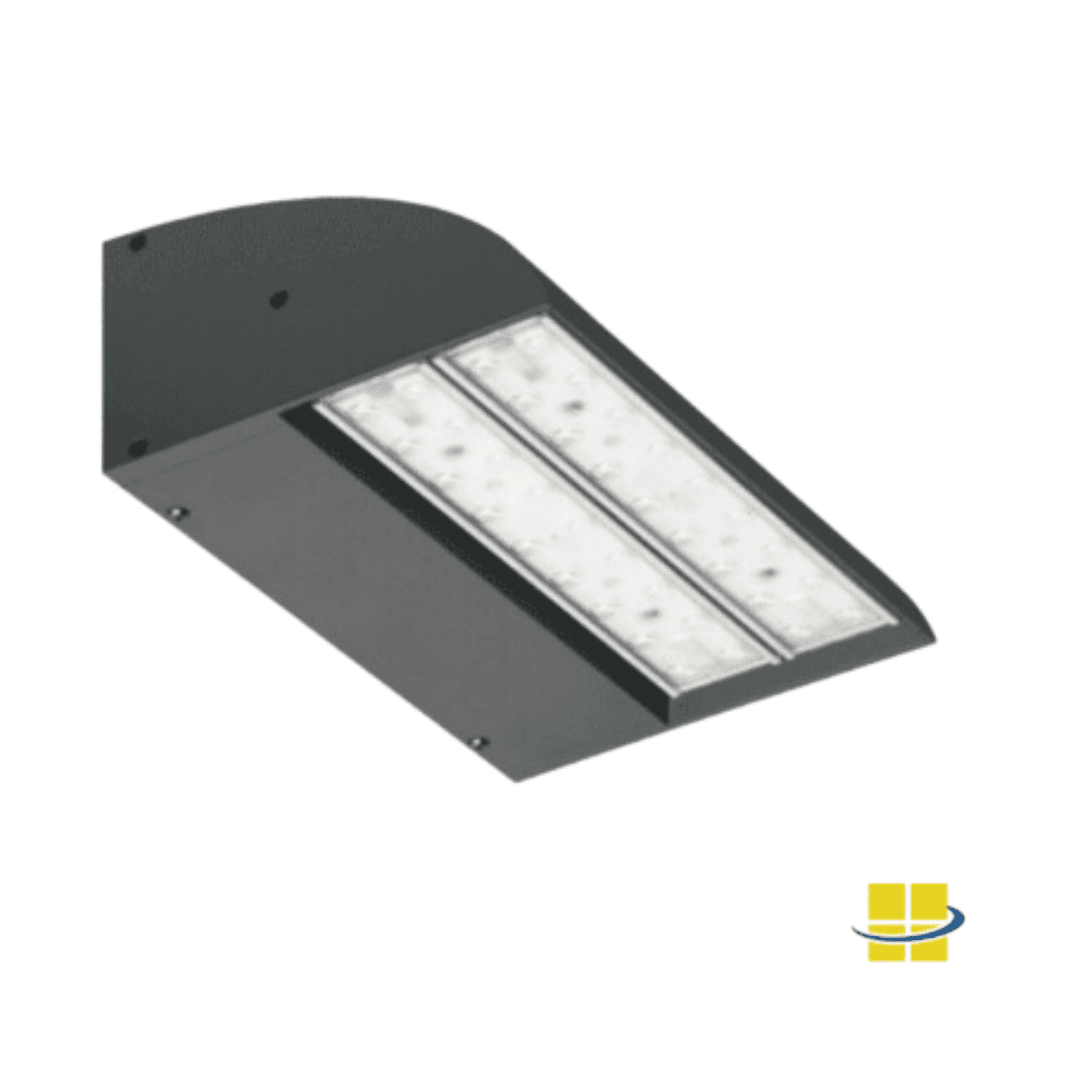

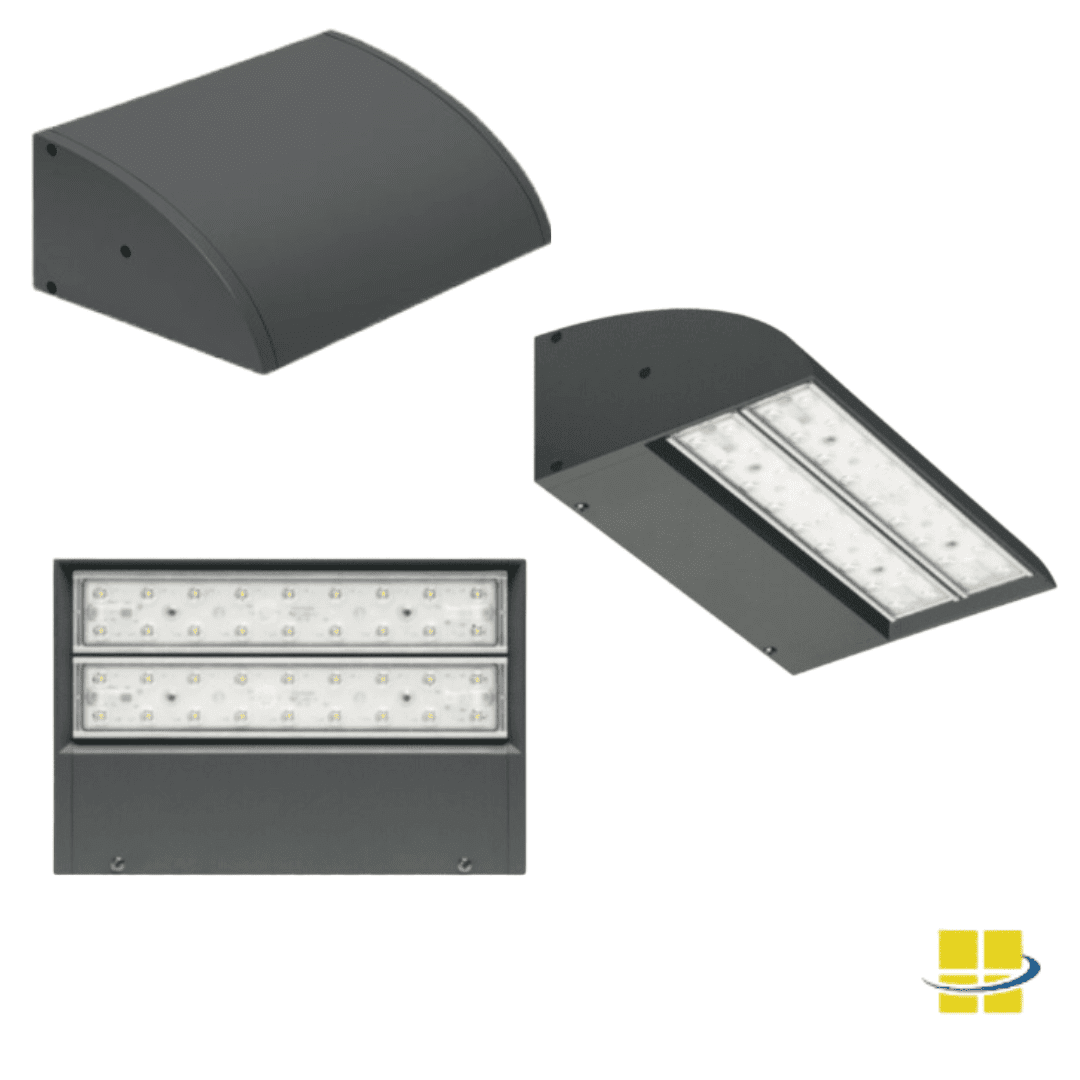

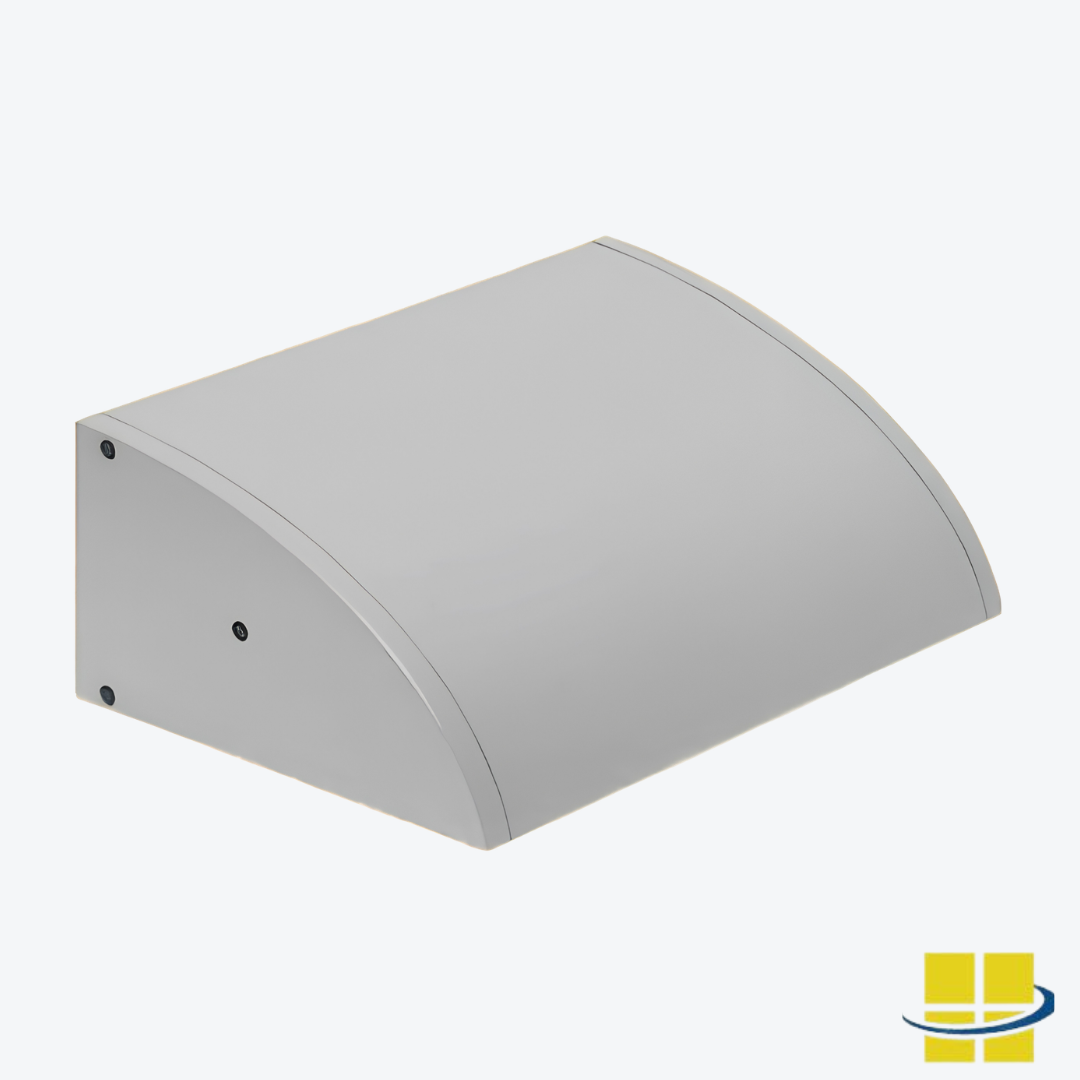

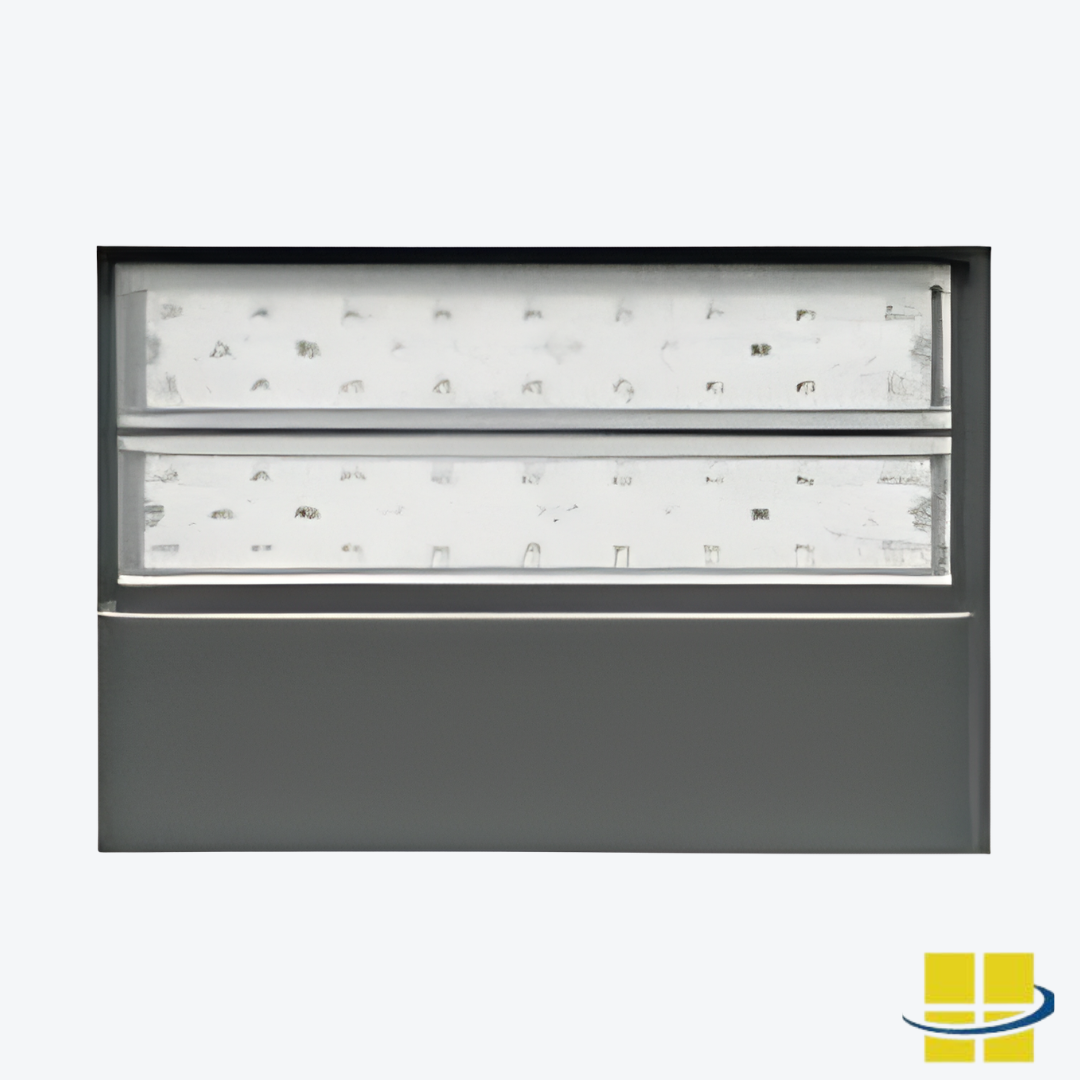

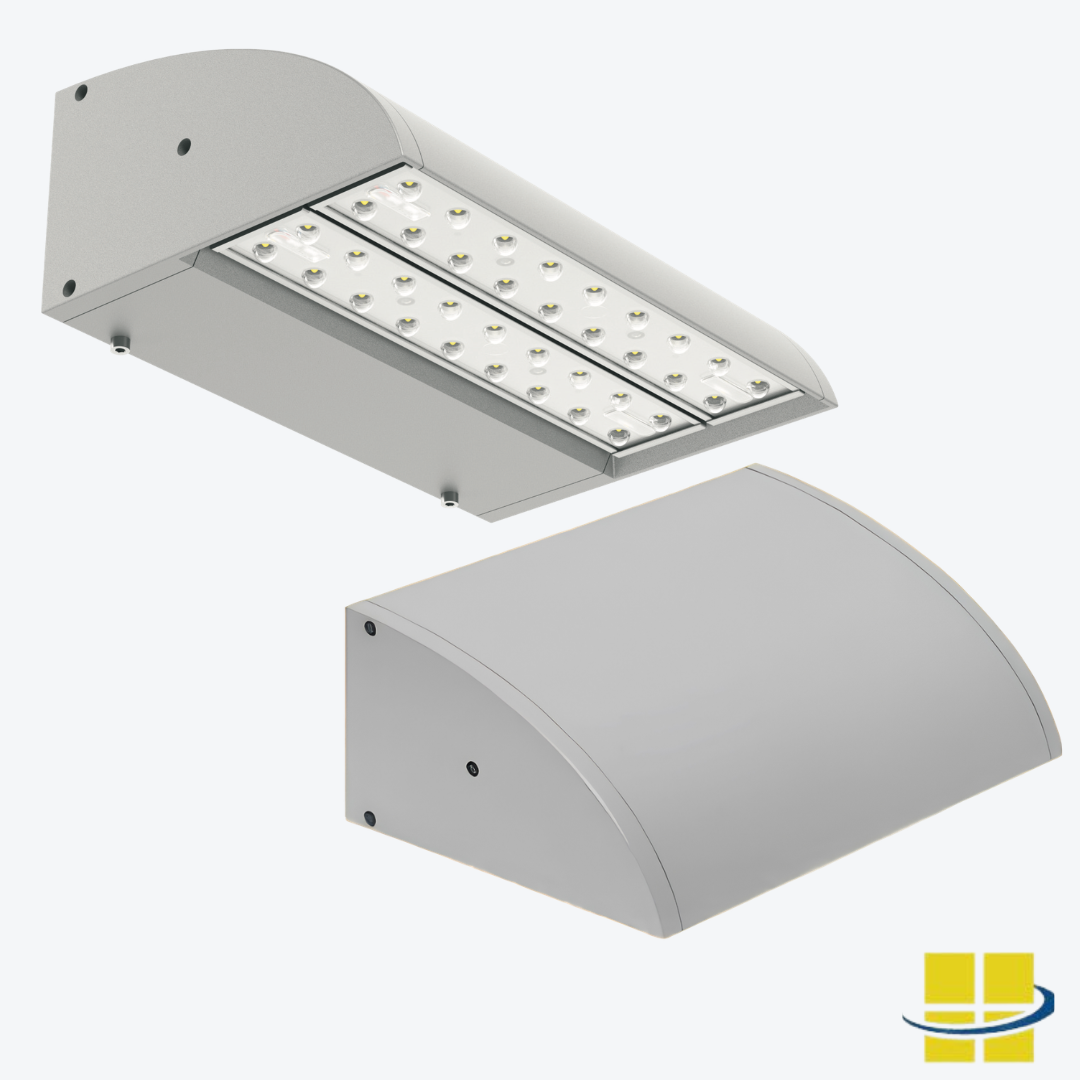

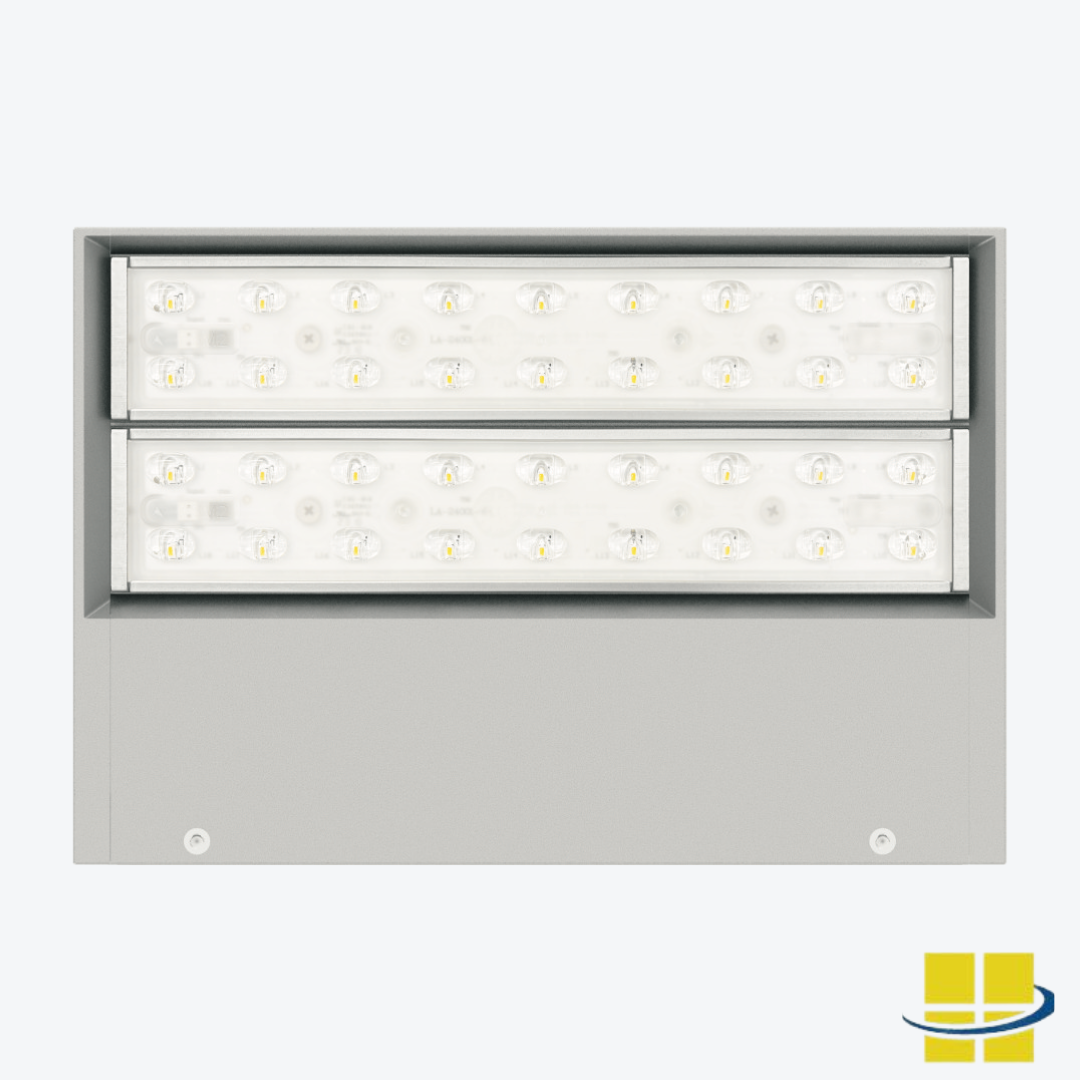

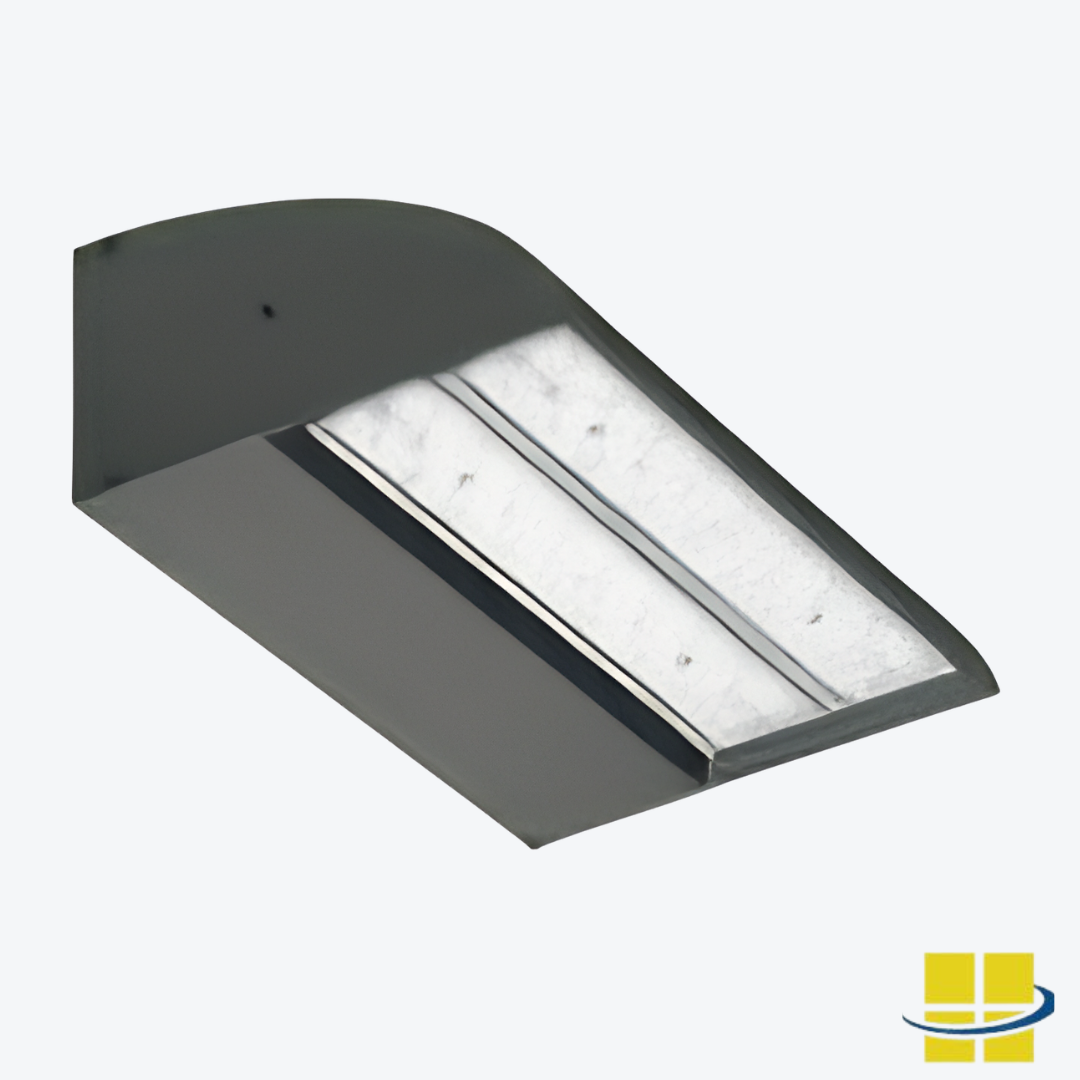

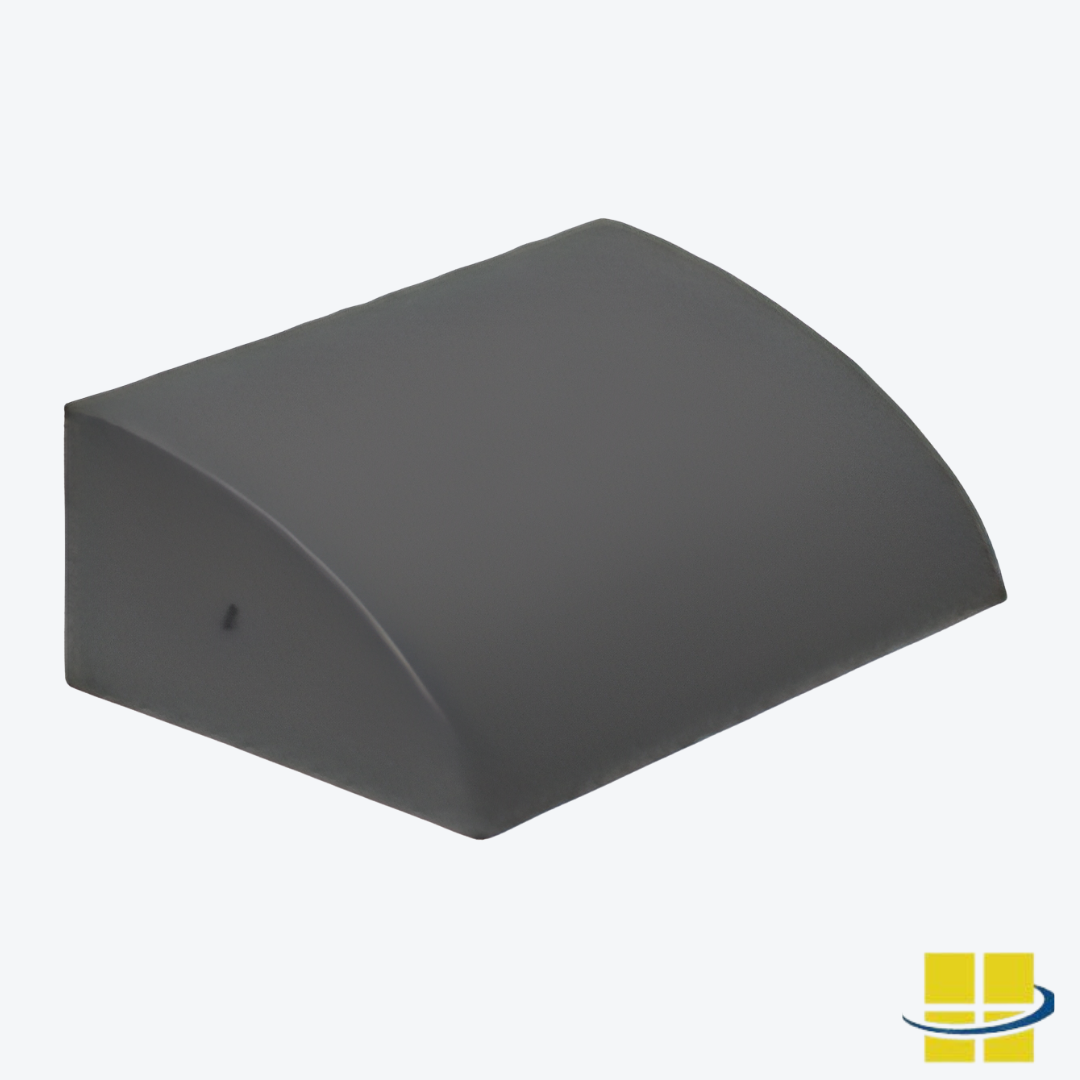

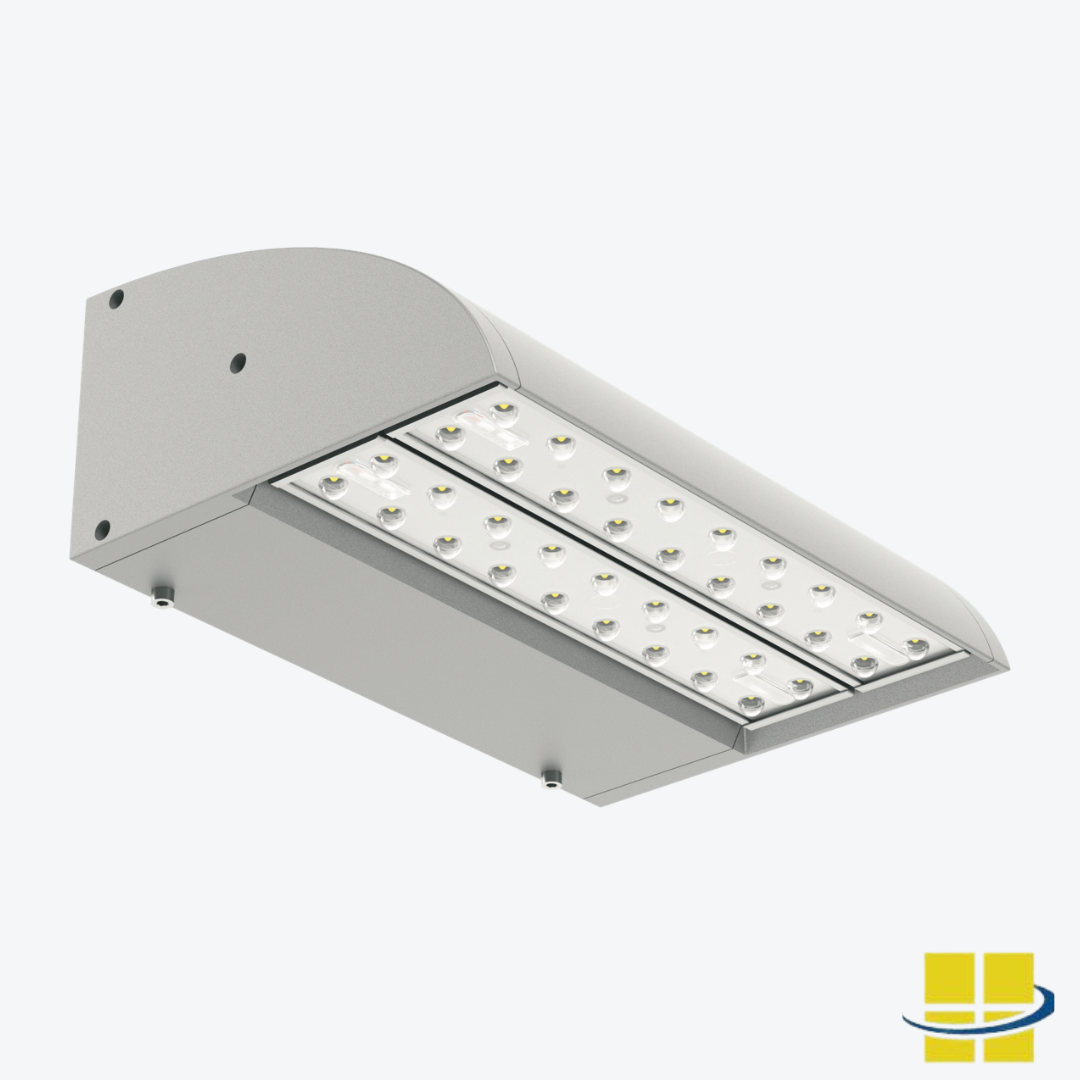

APTO 80 LED Full Cutoff Wall Pack, EXTREME-LIFE, 120-277v


The APTO 80w EXTREME-LIFE Full Cutoff LED Wall Pack is precisely engineered to fulfill a wide range of lighting regulations, fortified for resistance against vandalism, and designed to demand virtually no maintenance.

EXTREME-LIFE: Our Extreme-Life-rated APTO LEDs promise an L70 rating of an impressive 200,000 hours. With an IK08 impact rating, adherence to our IP68 standards, and our IP66 protection against heavy seas and powerful water jets, these lights redefine longevity and resilience.

Completely Customizable: Tailor your preferences by choosing from a variety of housing colors, Kelvin options, optics, CRI, and controls to perfectly align with your specific requirements.

Dark Sky Compliant: Full cut-off design meets dark sky lighting compliance when equipped with 2200 or 3000K LEDs.


  • Lumens per Watt (LPW) may vary based on Kelvin and mA used to achieve wattage
  • Custom RAL finishes are available with a minimum order quantity (MOQ)
  • Dark Sky Compliant with 2200 Kelvin or 3000 Kelvin LEDs


In Stock

  • Total


Weight 7 lbs
Dimensions 16 × 11 × 8 in

6 to 8 Week Production, plus Shipping

Available Finishes

Black, Bronze, Gray, White, Custom RAL

BUG Rating

T2S, T3M: 3, 0, 2, T3S: 4, 0, 1, T4M, T4S, T4VS: 4, 0, 2

Color Rendering Index (CRI)

70+, 80+, 90+


Modular design, Vandal reistant screws optional, Die cast aluminum housing, Finish meets 1000-hour salt-spray certification per ASTM B117/ ISO 9227:2012


12+ Optics avaialbe to meet all light distributon requirements

Light Source

, , , ,

Light Source Included

LED Array Included

Light Source Lumens



IP66, RoHS Compliant, CB, CE, CuL Listed, DLC Listed, IK08, LM79, SAA, UL Listed


Wall Mount

Product Family


Rated Life

200,000+ Hours

System Watts



120v, 208v, 240v, 277v


5-Year Limited Warranty, Optional 10-Year Limited Warranty


Full Cutoff

Product Description

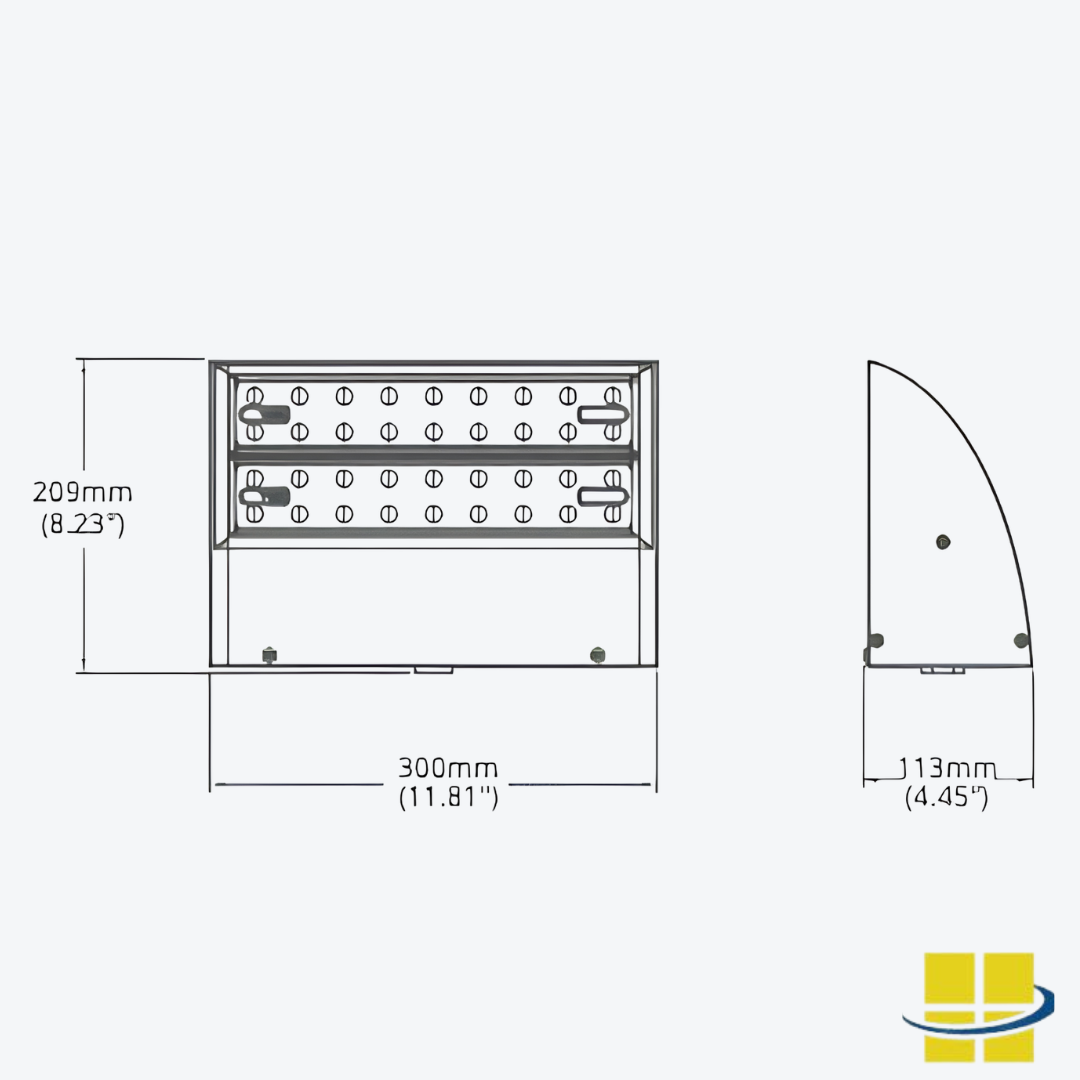

  • APTO Full Cutoff Wall Pack dimensions are provided in the attached product pdf
  • Lumens per Watt may vary based on mA used to achieve wattage(LPW)
  • Low Kelvin reduces Lumens per Watt (LPW)
  • 5700K is about approximately 160 LPW
  • 5000K is about approximately 140 LPW
  • 3000K is about approximately 125 LPW
  • 2200K is about approximately 112 LPW
  • BUG Rating:
    • T2S Optics: B:3, U:0, G:2
    • T3M Optics: B:3, U:0, G:2
    • T3S Optics: B:4, U:0, G:1
    • T4M Optics: B:4, U:0, G:2
    • T4S Optics: B:4, U:0, G:2
    • T4VS Optics: B:4, U:0, G:2


  • Die-cast aluminum housing
  • Built to meet IP68 standards. Rated IP66, protected against heavy seas or powerful jets of water.
  • 10KA Surge protection standard
  • L70 @ 200,000+ hours
  • CSA listed
  • >Color rendering of Ra>70 standard, Ra>80 and Ra>90 Optional
  • Operating temperature -40°C to +50°C, -40°F to 122°C
  • 1-10v Dimming
  • 5-Year limited warranty


  • Select Finish – bronze, black, white, or gray
  • Select Kelvin – 2200K, 3000K, 4000K, 5000K, or 5700K
  • Select Mount – 2 3/8″ or 2 7/8″ vertical tenon
  • Select Optics – T2S, T3M, T3S, T4M, T4S, T4VS, T5M, or T90D


  • Option – Backlight blockers
  • Option – RAL finishes available with MOQ
  • Option – Ra>80 or Ra>90 (color rendering)
  • Option – Photocell
  • Option – Programmable microwave occupancy/daylighting sensor
  • Option – Emergency power supply
  • Option – Works with DALI, PWM, or DMX controls when ordered/specified for these operating systems
  • Option – 10-Year limited warranty
