Product Specifications
| Weight | 29.34 lbs |
|---|---|
| Dimensions | 8.1 × 9.4 × 43.5 in |
| Model Number | AF55XGRPL-009 |
| Weight Pounds | 29.34 lbs |
| EPA | n/a |
| Product Family | ARCO |
| Housing Material | Cast Aluminum Head with Extruded Aluminum Body |
| Finish Specifications | UV-stabilized powder-coated |
| Finish Color (s) | Bronze |
| Color Rendering Index (CRI) | 70+ |
| Lens Material | Clear UV-resistant polycarbonate |
| Optics | Type V |
| Color Temperature (Kelvin) | 5000K (Speak to a Lighting Specialist for 3000K/4000K) |
| LED Type | LED Module |
| System Watts | 40w |
| Light Source Lumens** (5000K) | 740 lm** |
| Luminaire Lumens** (5000K) | 740 lm** |
| Luminaire Lumens Per Watts** (5000K) | 19 lm/w |

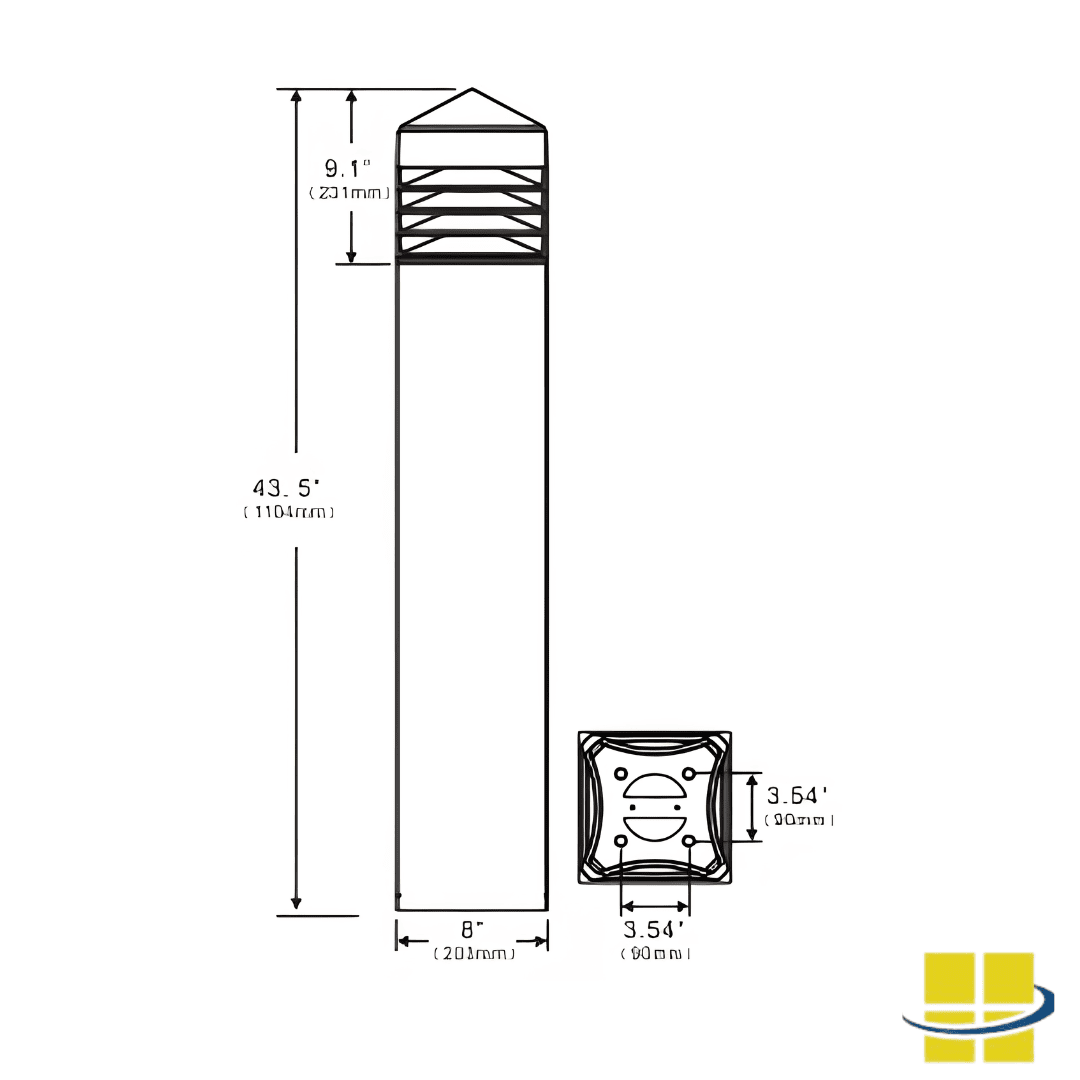

| Dimensions in Inches | 8.1 X 9.1 X 43.5 |
| Dimension in mm | 205.74 X 231.14 X 1104.9 |
| Mount (s) | Bollard Base |
| Rated Life (L70@ x Hours) | 50,000 Hours |
| Voltage | 120-277v |
| Surge Protection | 4kV |
| Controls | n/a |
| Operating Temperature | -40°C to +40°C |
| Availability (Lead Time) | 2-3 Weeks Production, Plus Shipping |
| IP Rating | IP65 |
| lK Rating | IK08 |
| BUG Rating | B1 U2 G2 |
| Diameter | 8" Square O.D |
| Listings (ex: UL,CUL,CE) | UL, cUL Listed |
| Warranty | 5 Year Warranty |

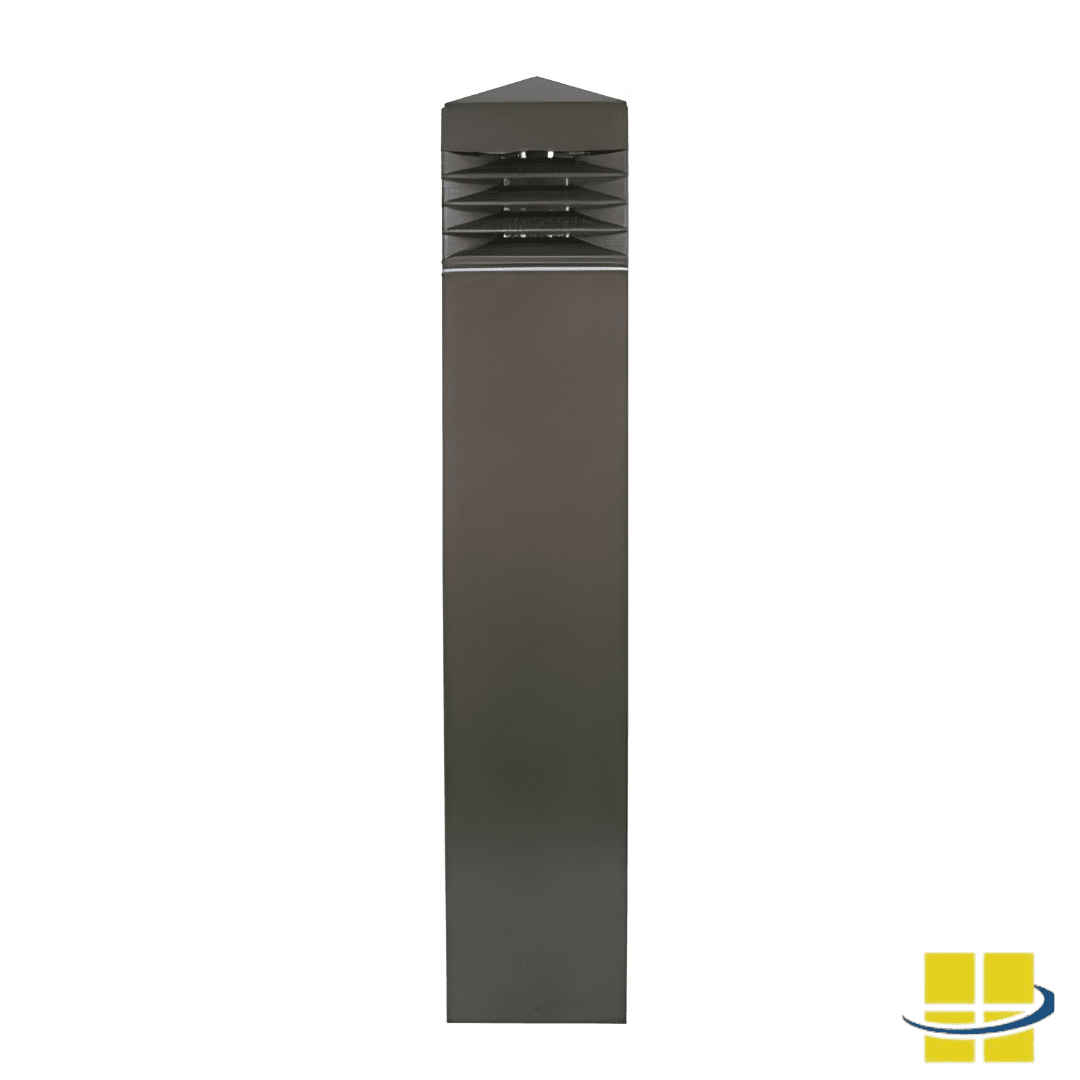

ARCO 40 Square Heavy Duty Vandal Resistant LED Bollard Light
ARCO Square Heavy Duty Vandal Resistant Bollard Light is a robust, modern square bollard designed to deliver both outstanding illumination and architectural elegance. With its sleek 8″ square profile, this heavy-duty bollard provides effective lighting while enhancing the aesthetic appeal of any outdoor space. Built with premium cast aluminum construction, ARCO offers superior durability, corrosion resistance, and vandal resistance — making it ideal for any high-traffic environment.
ARCHITECTURAL DESIGN: ARCO stands out with its sleek square-profile design that gives outdoor spaces a clean, contemporary appearance. More than just functional lighting, it enhances the visual appeal of any outdoor space while blending seamlessly into modern architectural environments.
VANDAL RESISTANT: Built from heavy-duty cast aluminum, ARCO offers superior vandal resistance, crafted strong against impacts, abuse, and tampering in high-traffic spaces. Its solid, robust construction and corrosion-resistant finish ensure lasting durability even in demanding environments—reducing maintenance and replacement costs while delivering reliable performance year after year.

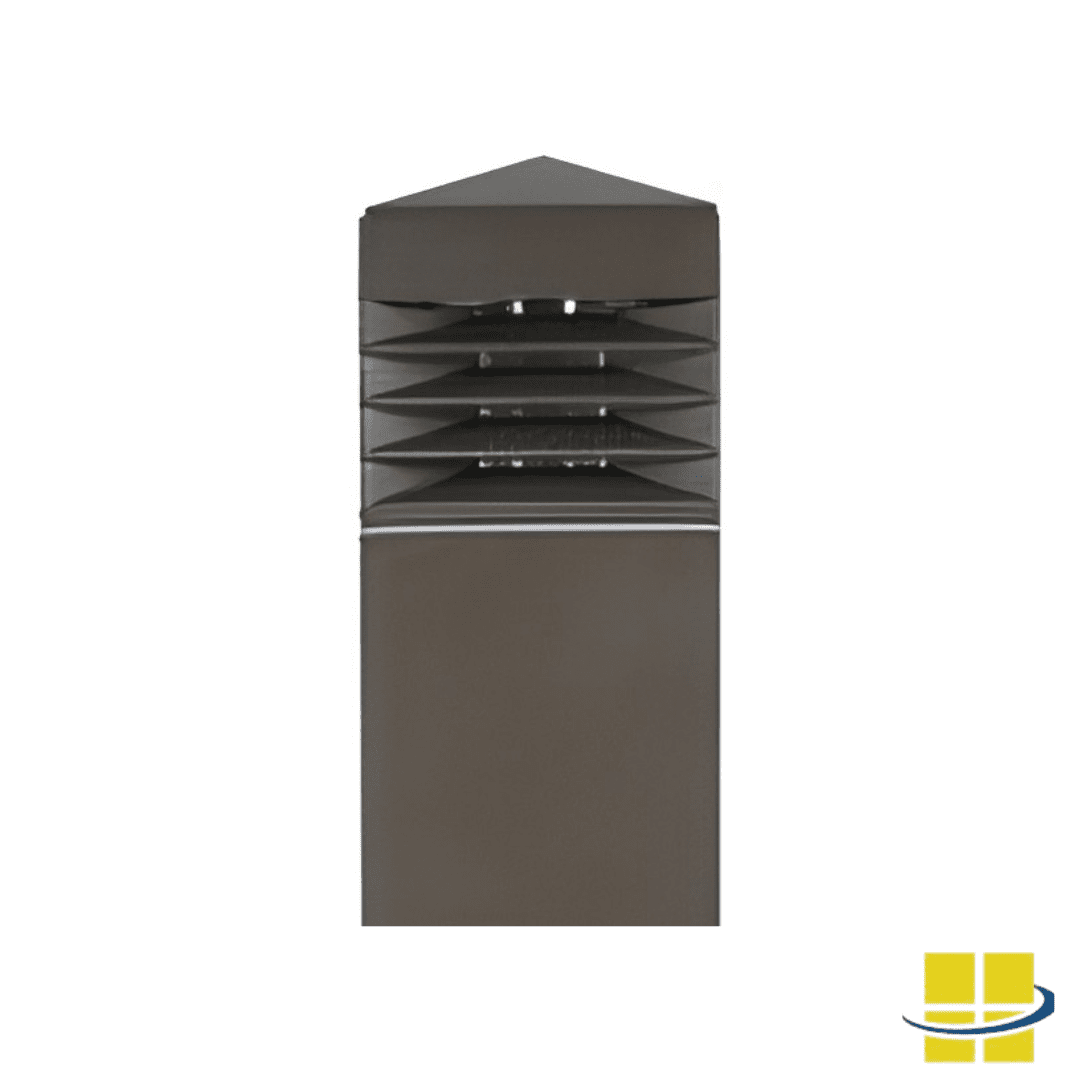

LOUVERED OPTICS: Featuring a precision-engineered louvered lens that enhances both visual comfort and lighting performance, ARCO is designed to help reduce glare and improve light control. The louver system directs illumination downward where it is needed most while minimizing harsh brightness and unnecessary light spill.
No documents available
$699.87
Product Specifications
| Weight | 29.34 lbs |
|---|---|
| Dimensions | 8.1 × 9.4 × 43.5 in |
| Model Number | AF55XGRPL-009 |
| Weight Pounds | 29.34 lbs |
| EPA | n/a |
| Product Family | ARCO |
| Housing Material | Cast Aluminum Head with Extruded Aluminum Body |
| Finish Specifications | UV-stabilized powder-coated |
| Finish Color (s) | Bronze |
| Color Rendering Index (CRI) | 70+ |
| Lens Material | Clear UV-resistant polycarbonate |
| Optics | Type V |
| Color Temperature (Kelvin) | 5000K (Speak to a Lighting Specialist for 3000K/4000K) |
| LED Type | LED Module |
| System Watts | 40w |
| Light Source Lumens** (5000K) | 740 lm** |
| Luminaire Lumens** (5000K) | 740 lm** |
| Luminaire Lumens Per Watts** (5000K) | 19 lm/w |
| Dimensions in Inches | 8.1 X 9.1 X 43.5 |
| Dimension in mm | 205.74 X 231.14 X 1104.9 |
| Mount (s) | Bollard Base |
| Rated Life (L70@ x Hours) | 50,000 Hours |
| Voltage | 120-277v |
| Surge Protection | 4kV |
| Controls | n/a |
| Operating Temperature | -40°C to +40°C |
| Availability (Lead Time) | 2-3 Weeks Production, Plus Shipping |
| IP Rating | IP65 |
| lK Rating | IK08 |
| BUG Rating | B1 U2 G2 |
| Diameter | 8" Square O.D |
| Listings (ex: UL,CUL,CE) | UL, cUL Listed |
| Warranty | 5 Year Warranty |
Ready to Order or Speak to a Lighting Specialist?
You can place your order online or if you want additional information, give us a call at 800-468-9925. Our team of friendly, expert high performance lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
You can also leave messages for and chat live with a lighting specialist by using our Live Chat feature on the bottom-right side of your browser window.
Access Fixtures Warranty
Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures’ complete warranty policy.
