Product Specifications
| Weight | 52 lbs |
|---|---|
| Dimensions | 38.58 × 27.56 × 6.30 in |
| Model Number | AF88XPBE1440L-S |
| Weight Pounds | 48.06 lbs |
| Product Family | APTA |
| EPA | Check spec sheet for details |
| Housing Material | Die-cast aluminum end caps enclose housing and extruded aluminum. |
| Finish Specifications | Super Durable and Corrosion-Resistant Polyester Powder Paint |
| Finish Color (s) | Black, Bronze, Gray, White, Green, Custom RAL |
| Lens Material | Polycarbonate Lens |
| Optics | T2S, T3S, T3M, T4M, T5M, T4S, T4VS, T4VVSB, T10D, T20D, T40D, T60D, T90D |
| Color Temperature (Kelvin) | 2200K, 3000K, 4000K, 5000K, 5700K |
| LED Type | LED Module |
| System Watts | 1440w |
| Light Source Lumens | TBD |
| Luminaire Lumens | 184,320 lm |
| Luminaire Lumens Per Watts | 128 lm/W |
| Dimensions in Inches | 34.37 X 23.94 X 2.95 |
| Dimension in mm | 873 X 608 X 75 |

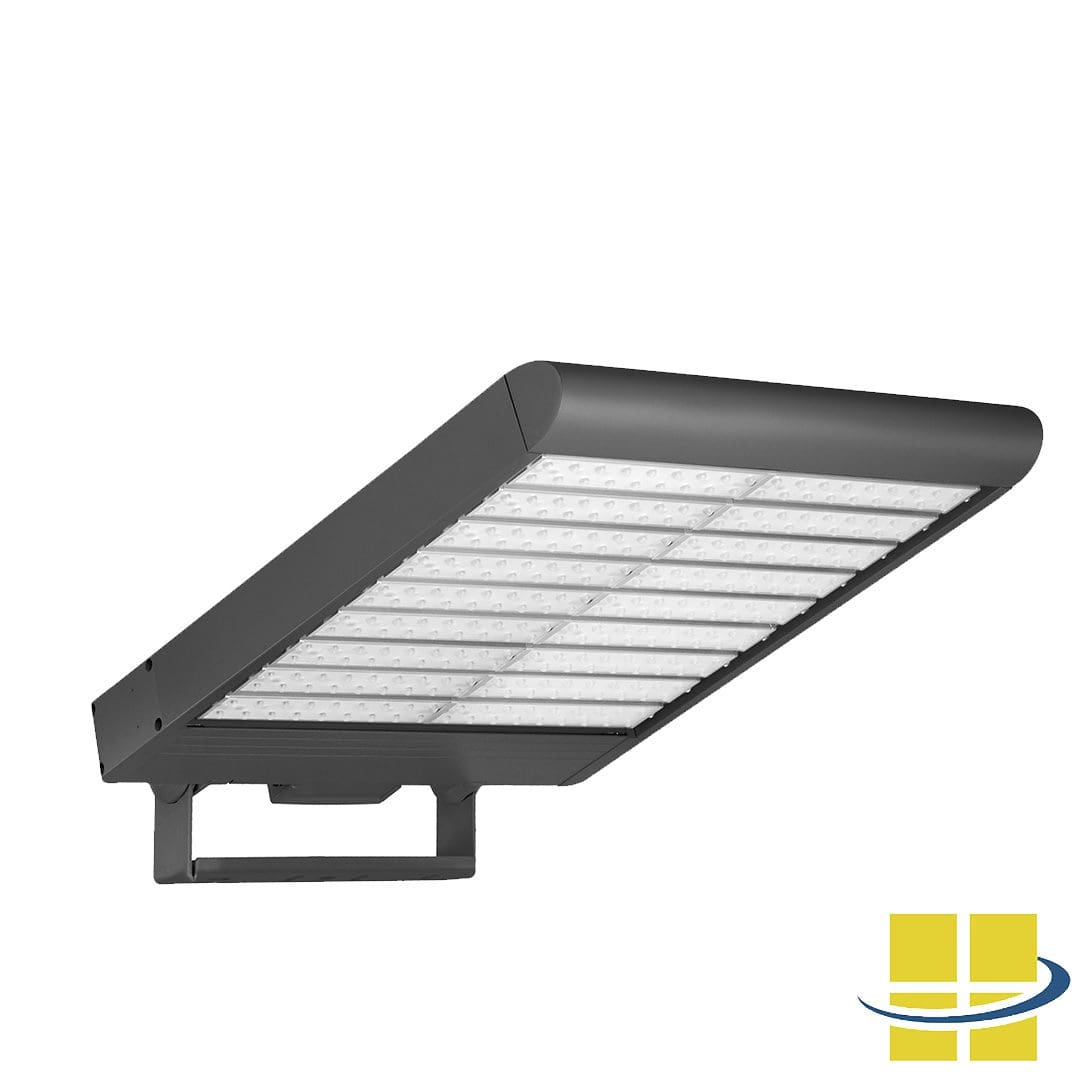

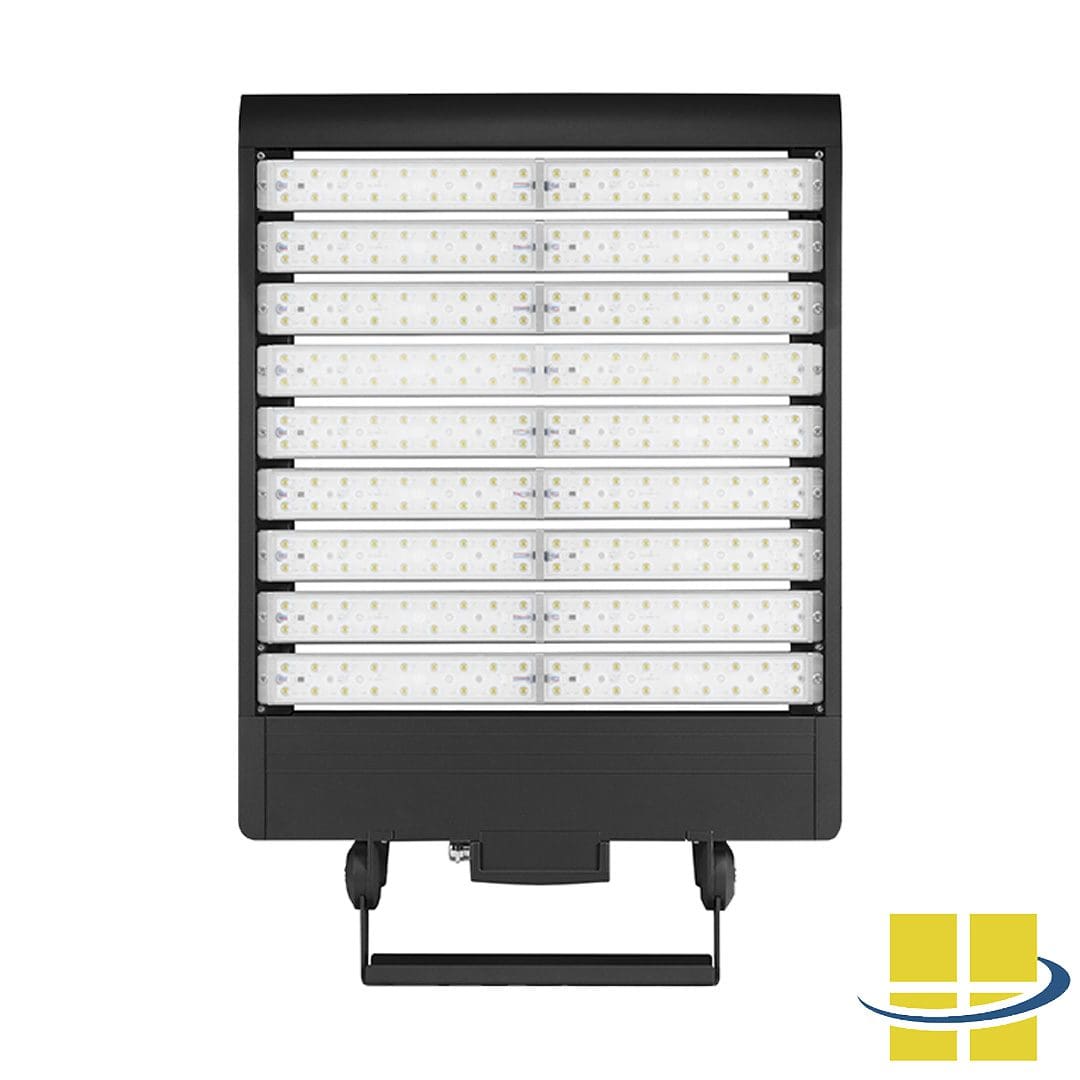

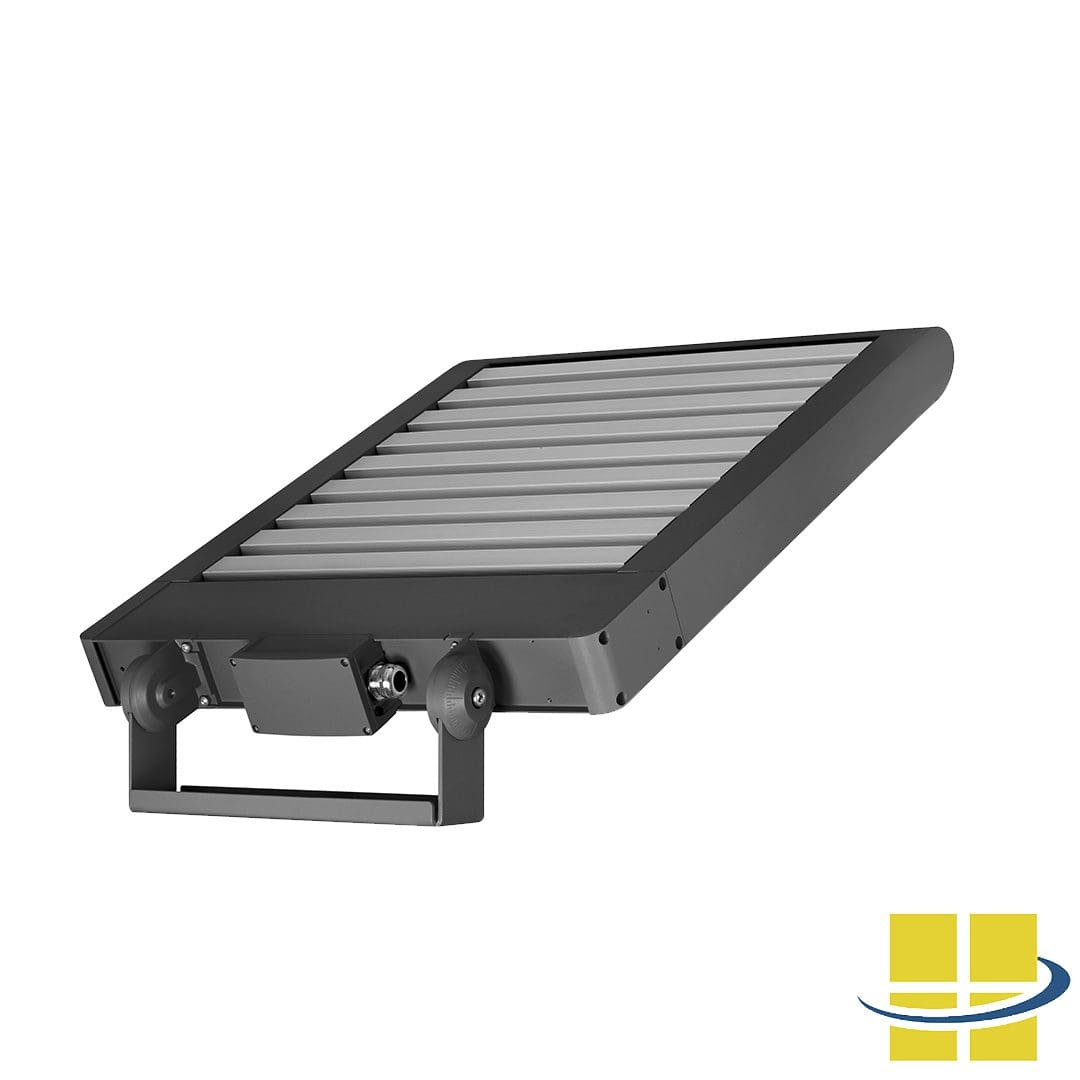

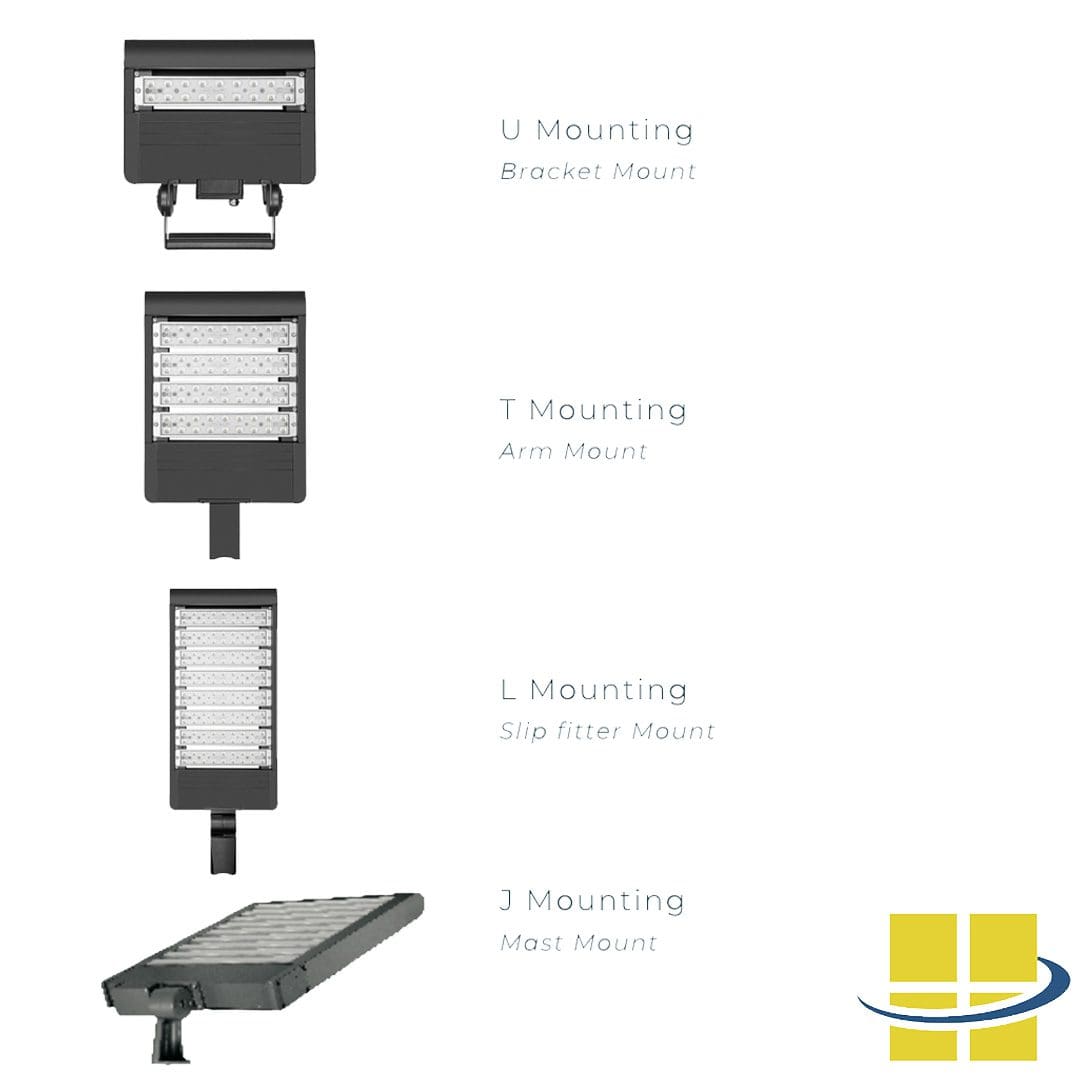

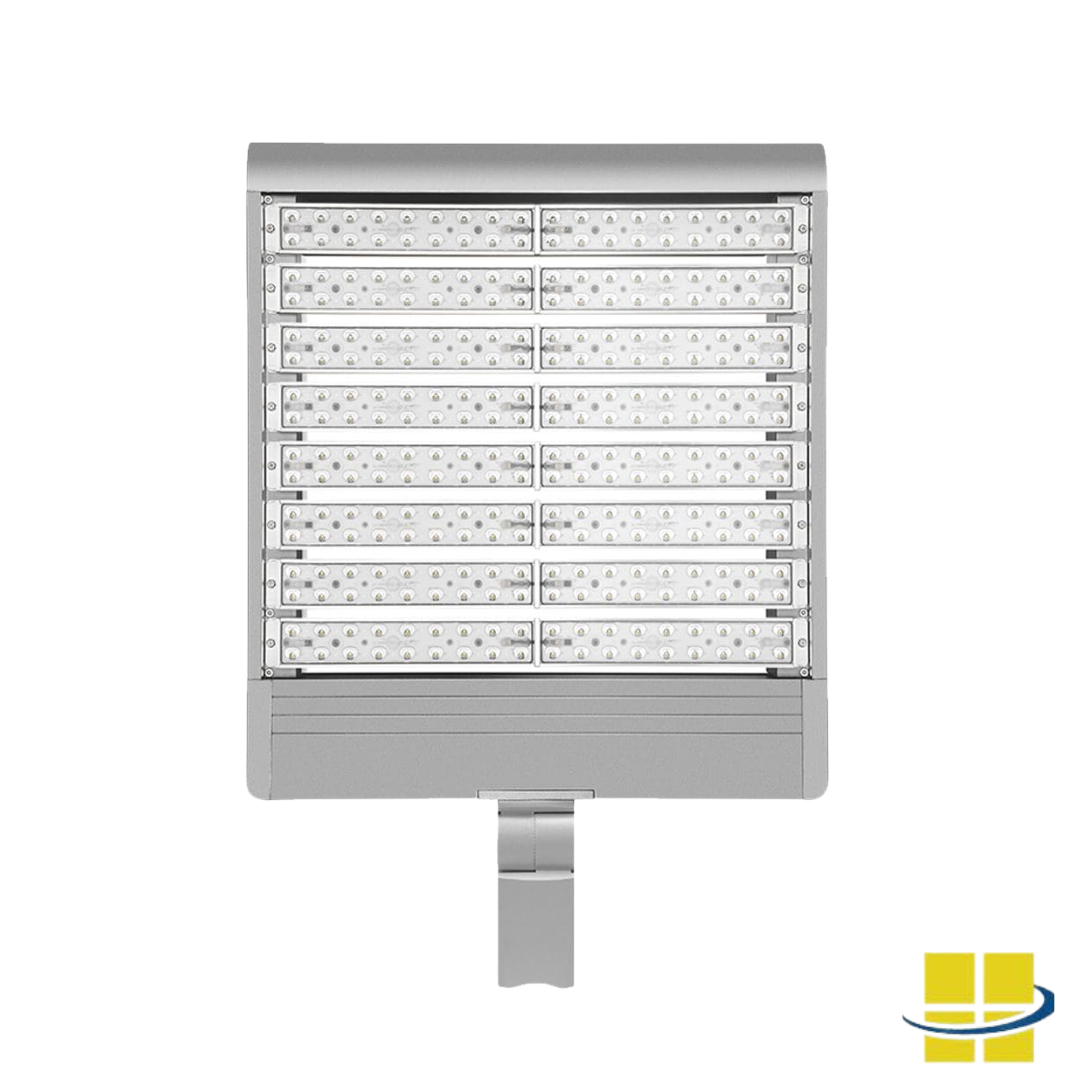

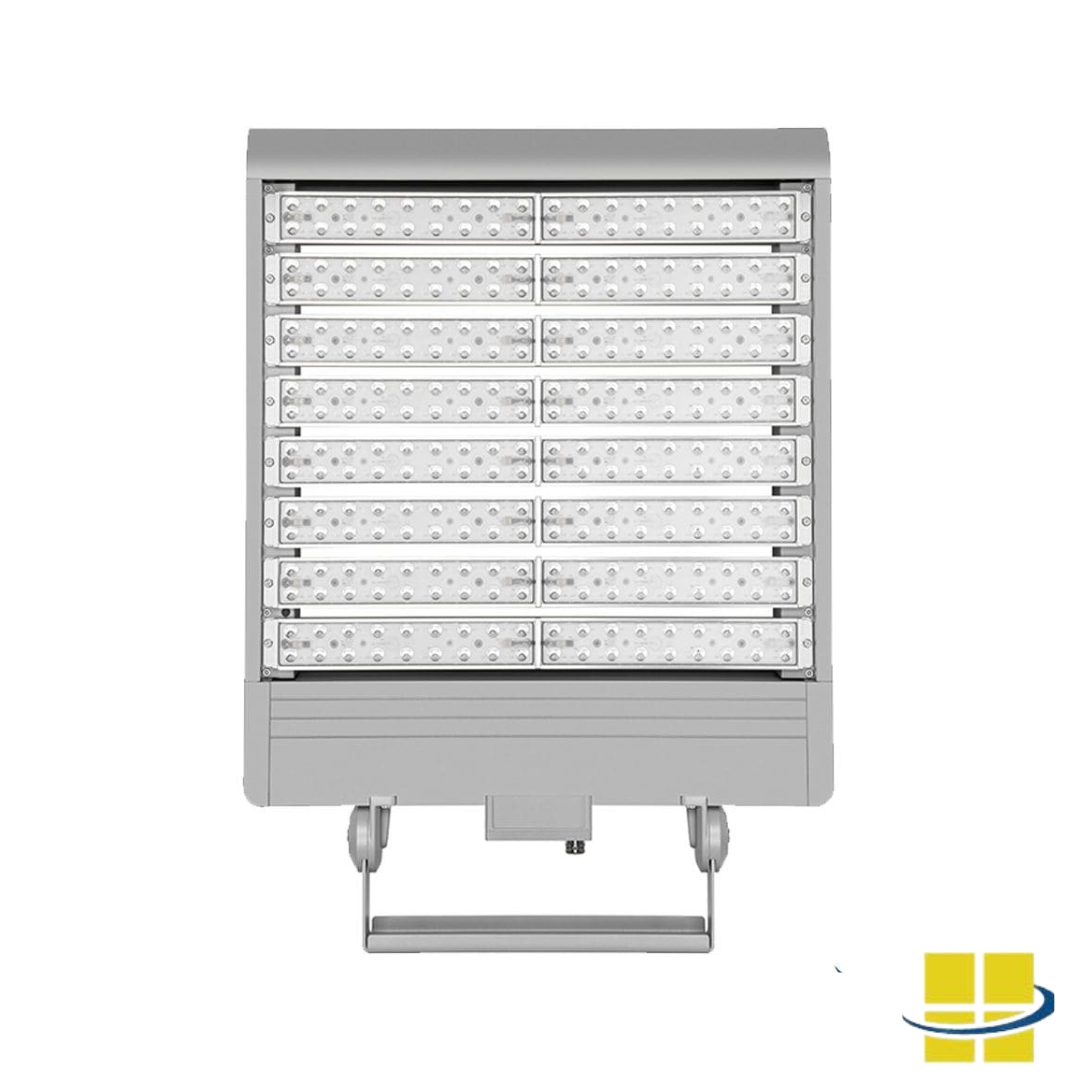

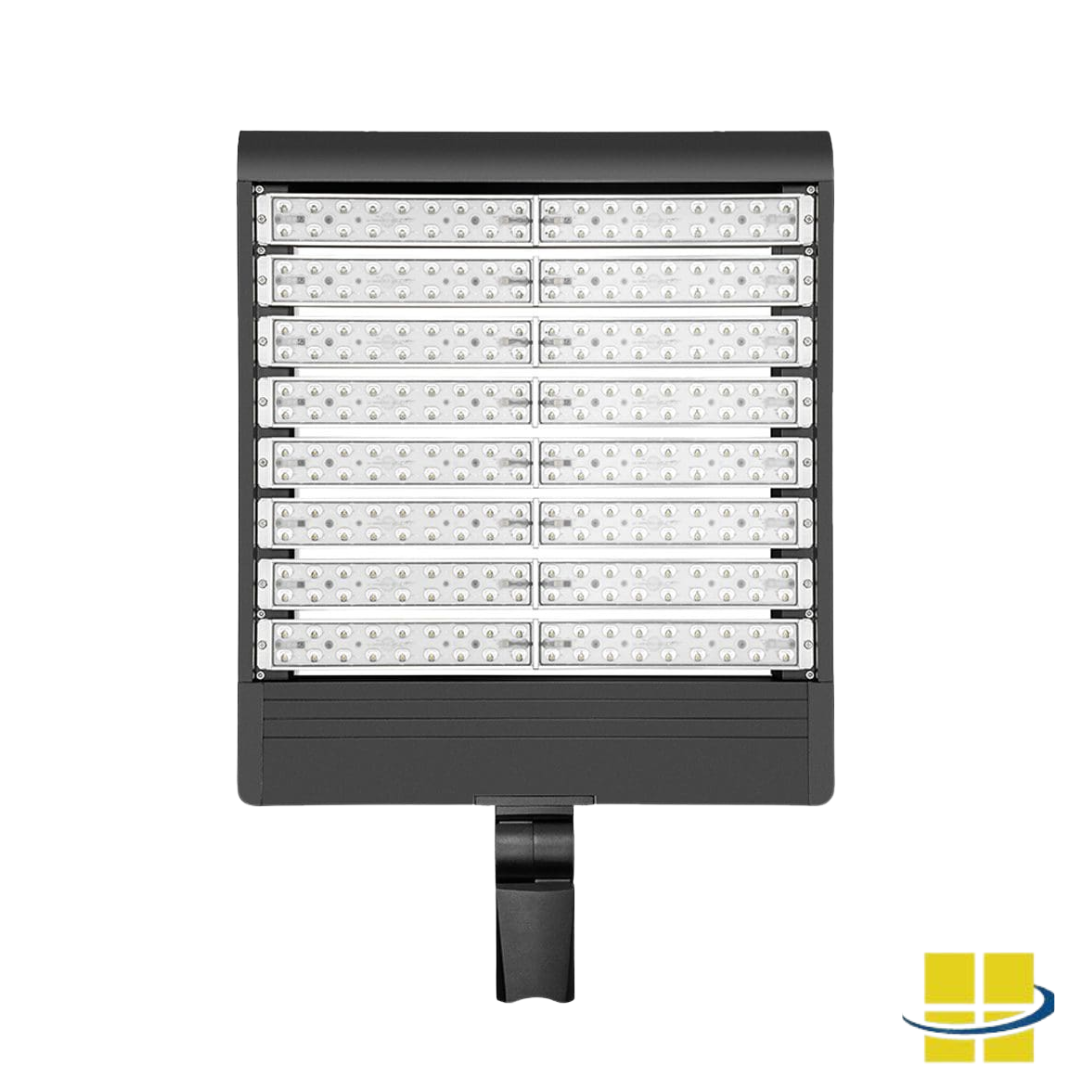

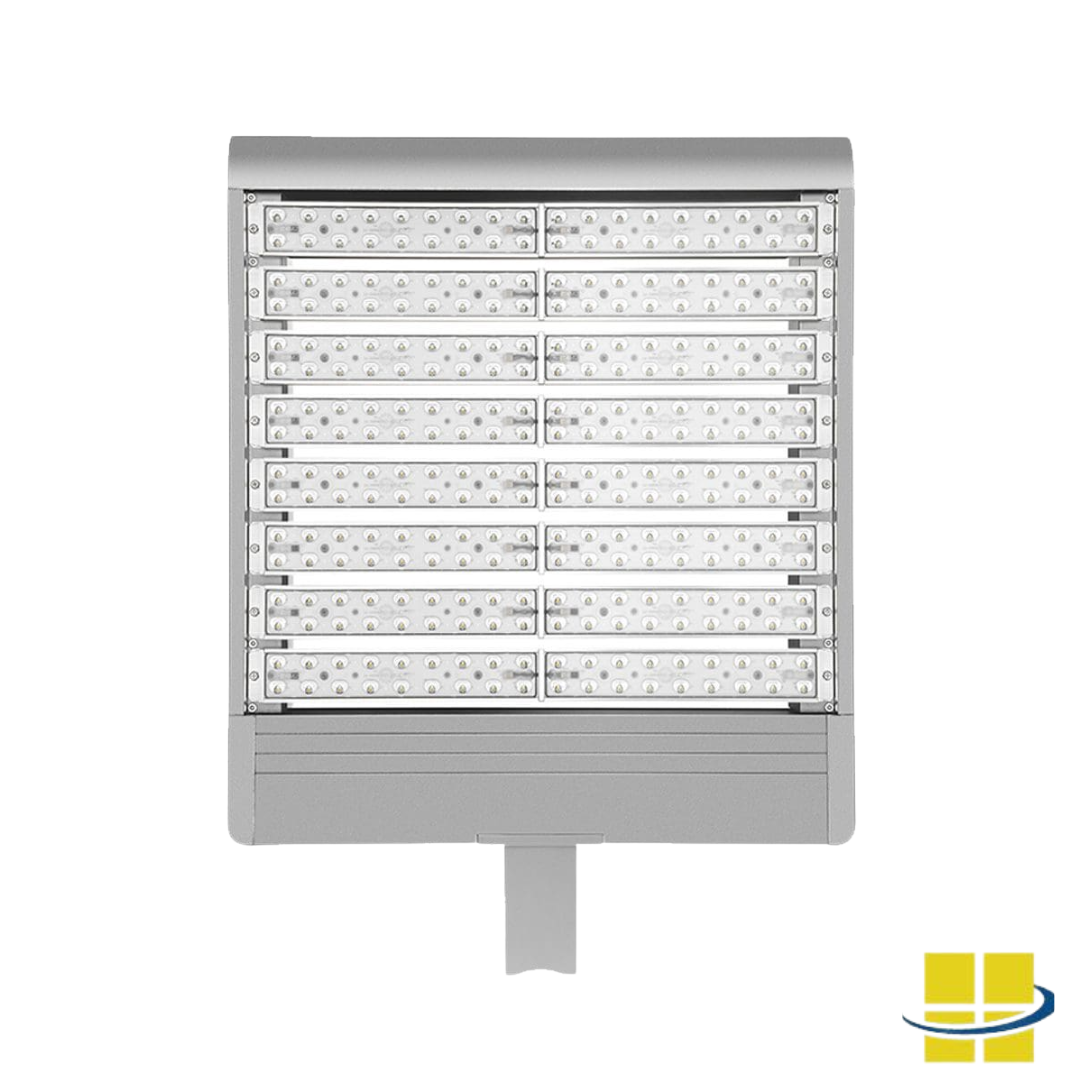

| Mount (s) | Slipfitter (L Mount), Arm (T Mount), Bracket (U Mount) |
| Rated Life (L70@ x Hours) | 200,000 Hours |
| Voltage | 120-277v, 347-480v |
| Surge Protection | 10KA, 20KA |
| Controls and Add-Ons | 1-10V Dimming, Vandal Resistant Screws, Power Cords, Safety Cables, Microwave Motion Sensor, Photocell, Backlight Shield, Bird Spikes, Emergency Power Supply. |
| Operating Temperature | -40°C~+50°C |
| IP Rating | IP66 |
| lK Rating | lK10 |
| BUG Rating | TBD |
| Listings (ex: UL,CUL,CE) | RoHS compliant, CB, CE, CuL Listed, DLC Listed, ENEC, ETL Listed, SAA |
| Warranty | 5-Year Warranty, 10-Year Warranty |
| Availability (Lead-Time) | 2-4 Weeks Production, Plus Shipping |

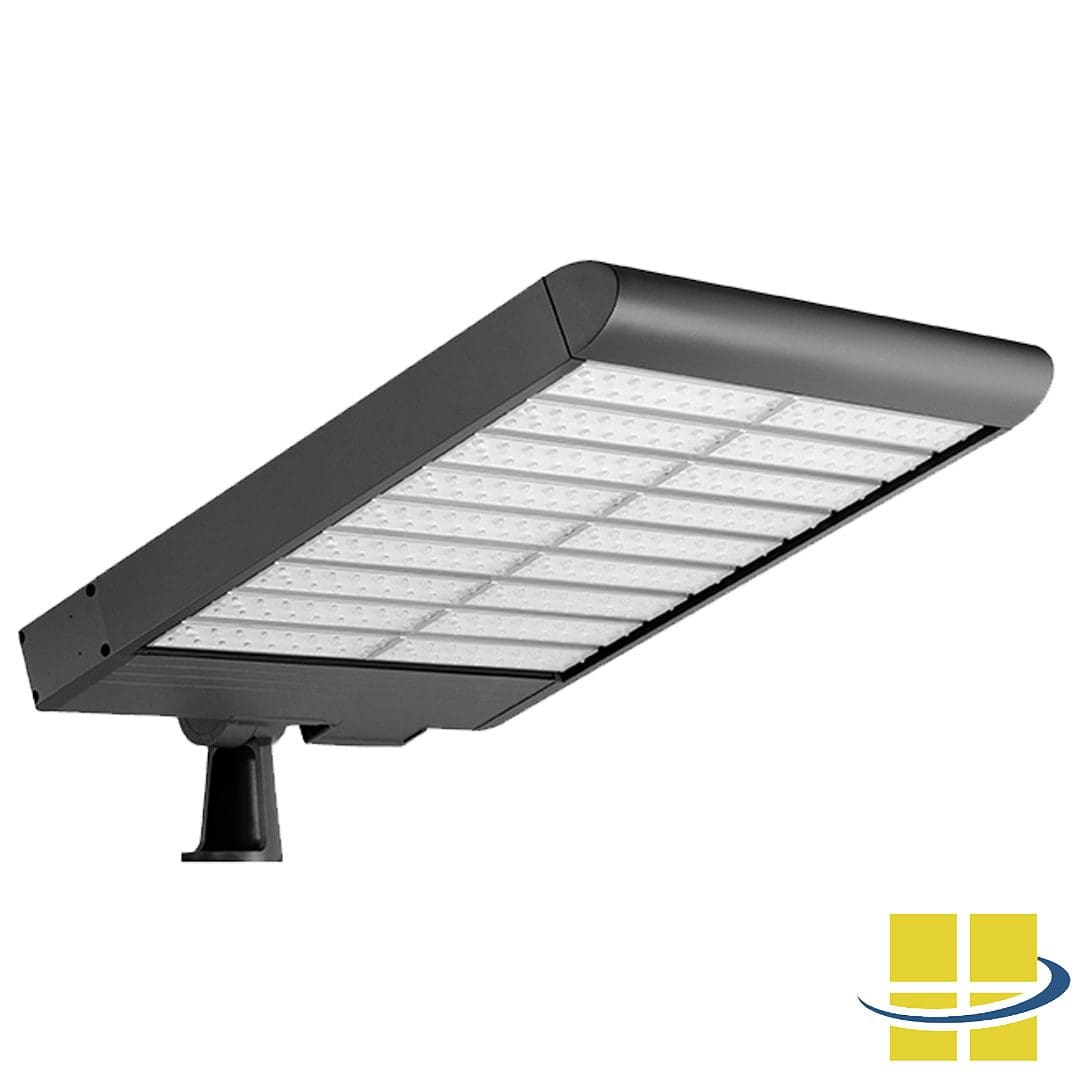

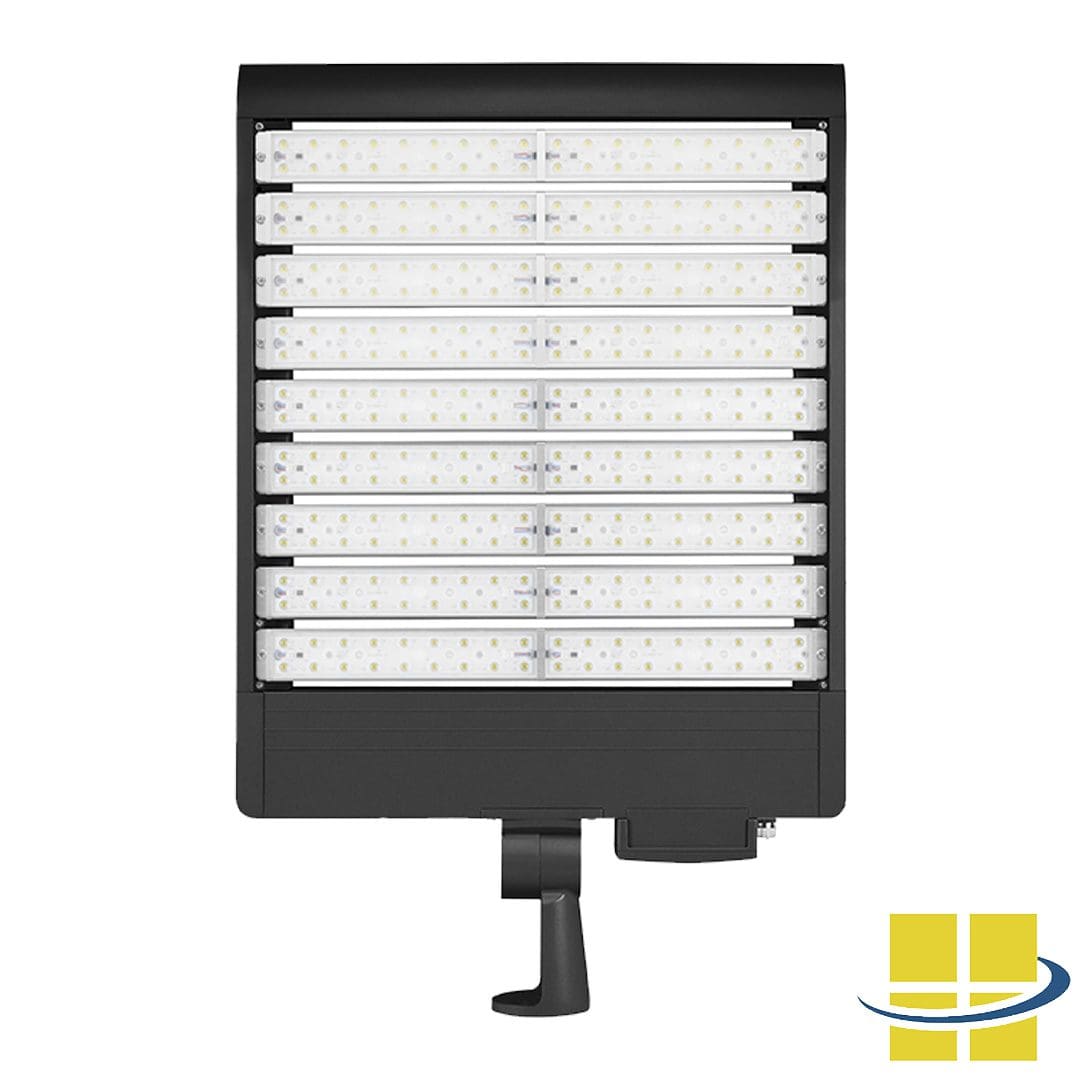

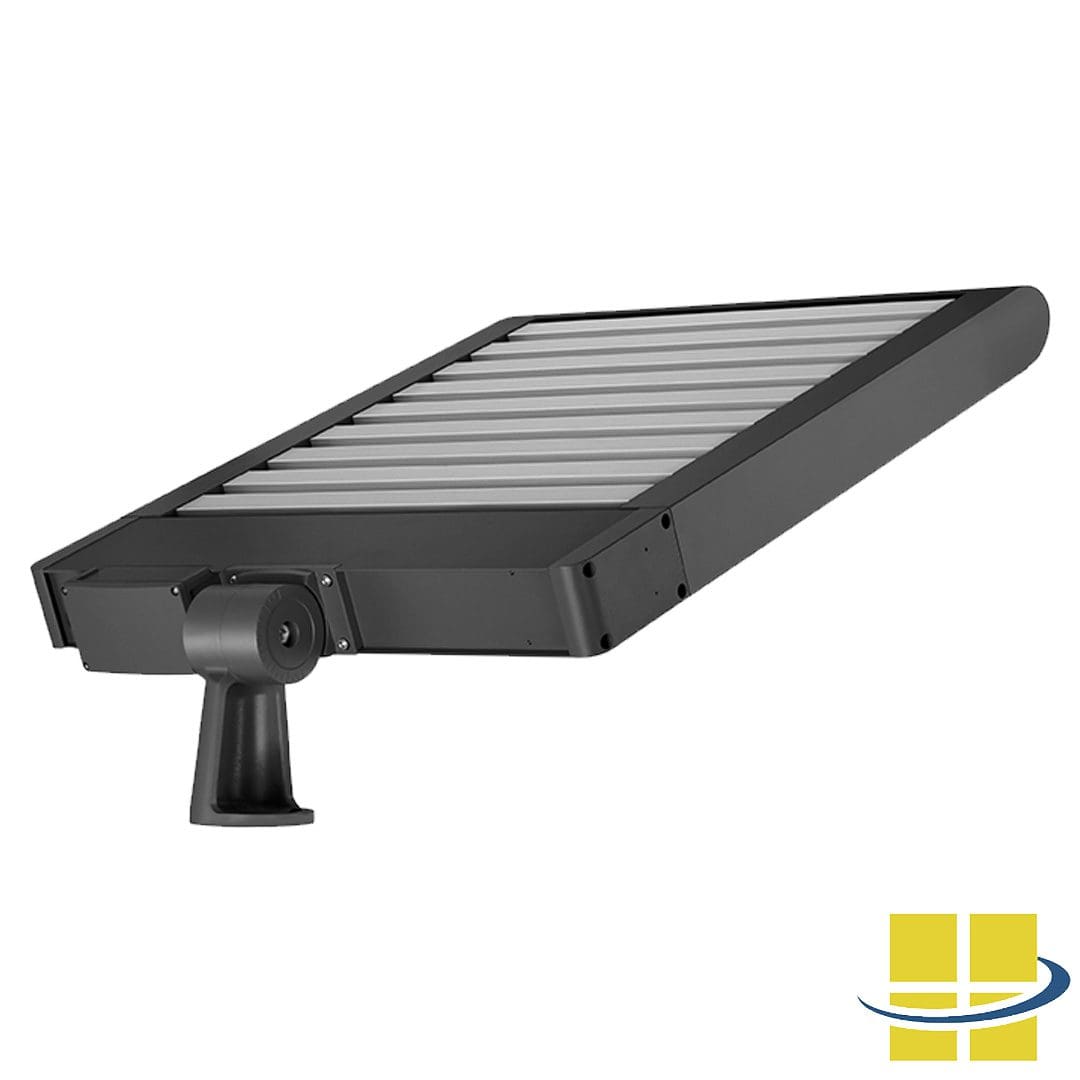

ASTA 1440 LED Sports Light, Superior Optics, EXTREME-LIFE

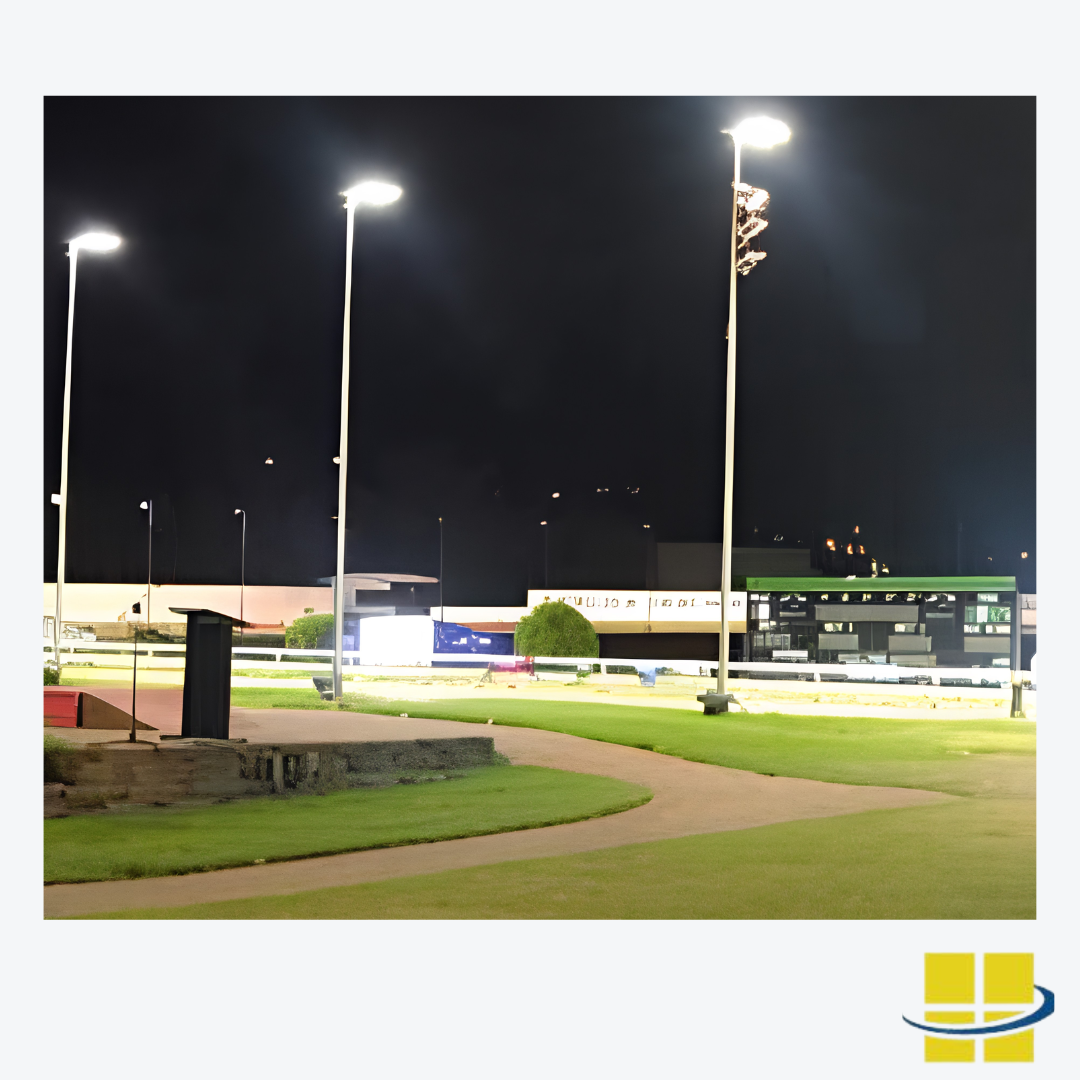

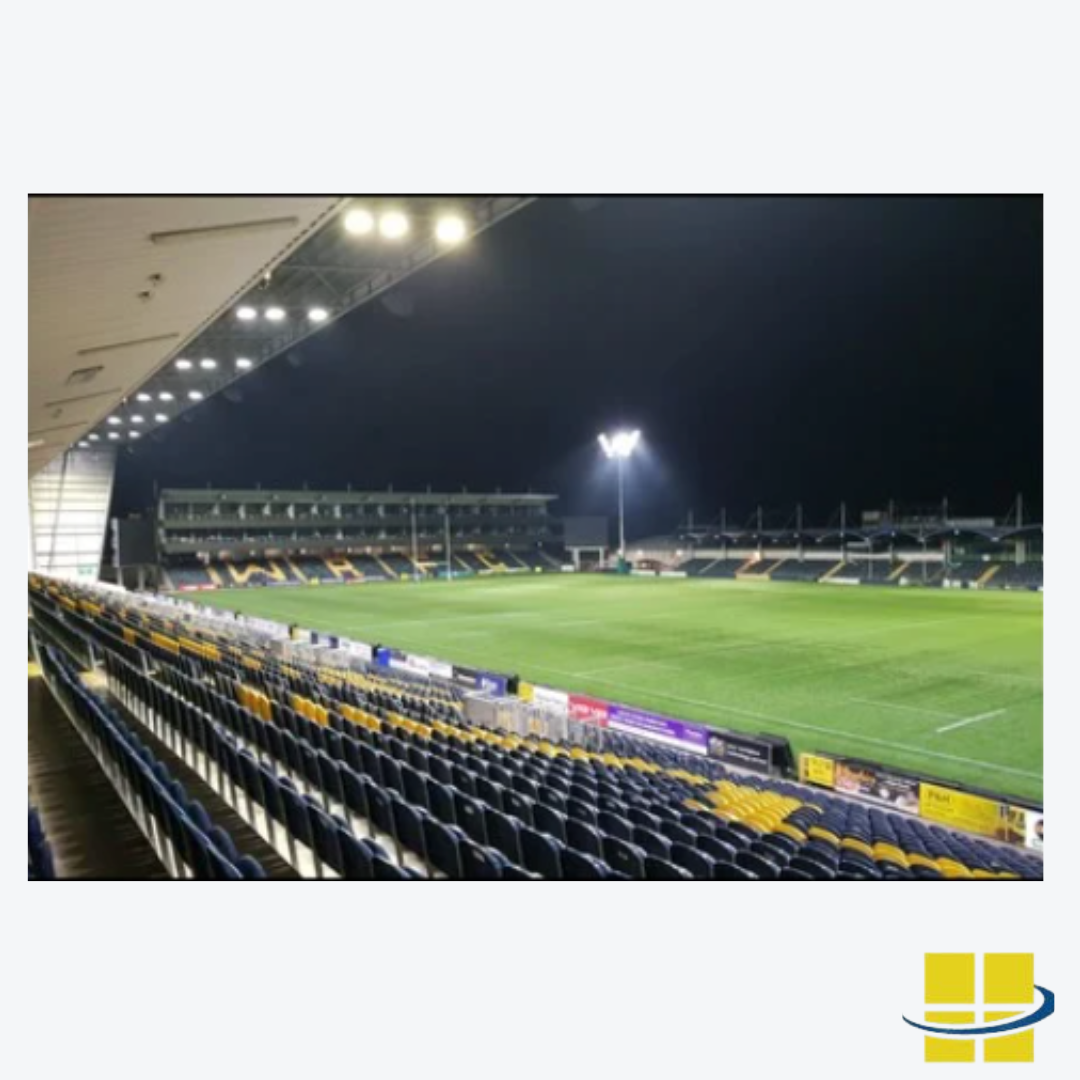

ASTA LED Sports Lights are engineered with advanced thermal management and high- efficiency optics to deliver powerful, uniform illumination with exceptional control — minimizing glare and maximizing visibility across courts, fields, and recreational spaces. Built for harsh environments, ASTA combines durability, efficiency, and optical precision to provide a professional- grade lighting solution that enhances both play and spectator experience.
FULL-CUTOFF: Designed for sports lighting, ASTA’s full-cutoff optics and 3000K LEDs deliver precise, glare-controlled illumination that enhances visibility for both players and spectators while supporting compliance with DarkSky International standards and IES guidelines.
DURABLE and RELIABLE: Constructed from corrosion-resistant materials with IP66, IK10 impact protection, and 1,000-hour salt spray rating, ASTA is built to withstand harsh environments and extreme weather conditions.
EXTREME-LIFE: Engineered with superior heat sink designs, ASTA delivers an industry-leading L70 rating of up to 200,000 hours, ensuring decades of reliable, maintenance-free operation.
$3,499.87
Product Specifications
| Weight | 52 lbs |
|---|---|
| Dimensions | 38.58 × 27.56 × 6.30 in |
| Model Number | AF88XPBE1440L-S |
| Weight Pounds | 48.06 lbs |
| Product Family | APTA |
| EPA | Check spec sheet for details |
| Housing Material | Die-cast aluminum end caps enclose housing and extruded aluminum. |
| Finish Specifications | Super Durable and Corrosion-Resistant Polyester Powder Paint |
| Finish Color (s) | Black, Bronze, Gray, White, Green, Custom RAL |
| Lens Material | Polycarbonate Lens |
| Optics | T2S, T3S, T3M, T4M, T5M, T4S, T4VS, T4VVSB, T10D, T20D, T40D, T60D, T90D |
| Color Temperature (Kelvin) | 2200K, 3000K, 4000K, 5000K, 5700K |
| LED Type | LED Module |
| System Watts | 1440w |
| Light Source Lumens | TBD |
| Luminaire Lumens | 184,320 lm |
| Luminaire Lumens Per Watts | 128 lm/W |
| Dimensions in Inches | 34.37 X 23.94 X 2.95 |
| Dimension in mm | 873 X 608 X 75 |
| Mount (s) | Slipfitter (L Mount), Arm (T Mount), Bracket (U Mount) |
| Rated Life (L70@ x Hours) | 200,000 Hours |
| Voltage | 120-277v, 347-480v |
| Surge Protection | 10KA, 20KA |
| Controls and Add-Ons | 1-10V Dimming, Vandal Resistant Screws, Power Cords, Safety Cables, Microwave Motion Sensor, Photocell, Backlight Shield, Bird Spikes, Emergency Power Supply. |
| Operating Temperature | -40°C~+50°C |
| IP Rating | IP66 |
| lK Rating | lK10 |
| BUG Rating | TBD |
| Listings (ex: UL,CUL,CE) | RoHS compliant, CB, CE, CuL Listed, DLC Listed, ENEC, ETL Listed, SAA |
| Warranty | 5-Year Warranty, 10-Year Warranty |
| Availability (Lead-Time) | 2-4 Weeks Production, Plus Shipping |
