SKU: AF88XPAC40L-L/T Categories: Baseball Lights, Basketball Lights, Bocce Lights, Football Lights, Gym Lights, Hockey Lights, Horseshoes Lights, How to Select The Best LED Sports Lights?, Pickleball Lights, Shuffleboard Lights, Soccer Lights, Swim Lights, Tennis Lights, Volleyball Lights, What Does 3000K Mean In Lighting?, Why Choose 2200 Kelvin Light Fixtures?

Product Specifications

Weight	14.11 lbs
Dimensions	17.91 × 13.15 × 2.95 in
Model Number	AF88XPAC40L-L/T
Weight Pounds	11.46 lbs
Product Family	ASTA
EPA	0.32
Housing Material	Die-cast aluminum end caps enclose housing and extruded aluminum.
Finish Specifications	Super Durable and Corrosion-Resistant Polyester Powder Paint
Finish Color (s)	Black, Gray, Bronze, White, Green, Custom RAL
Color Rendering Index (CRI)	70+, 80+, 90+
Lens Material	TBD
Optics	T2S, T3S, T3M, T5M, T4M, T4S, T4VS, T4VVSB, T10D, T20D, T40D, T60D, T90D
Color Temperature (Kelvin)	3000K, 4000K, 5000K, 5700K
LED Type	LED Module
System Watts	40w
Light Source Lumens	6080 lm
Luminaire Lumens	6080 lm
Luminaire Lumens Per Watts	152 lm/W
Dimensions in Inches	17.91" X 13.15" X 2.95"
Dimension in mm	455mm X 334mm X 75mm

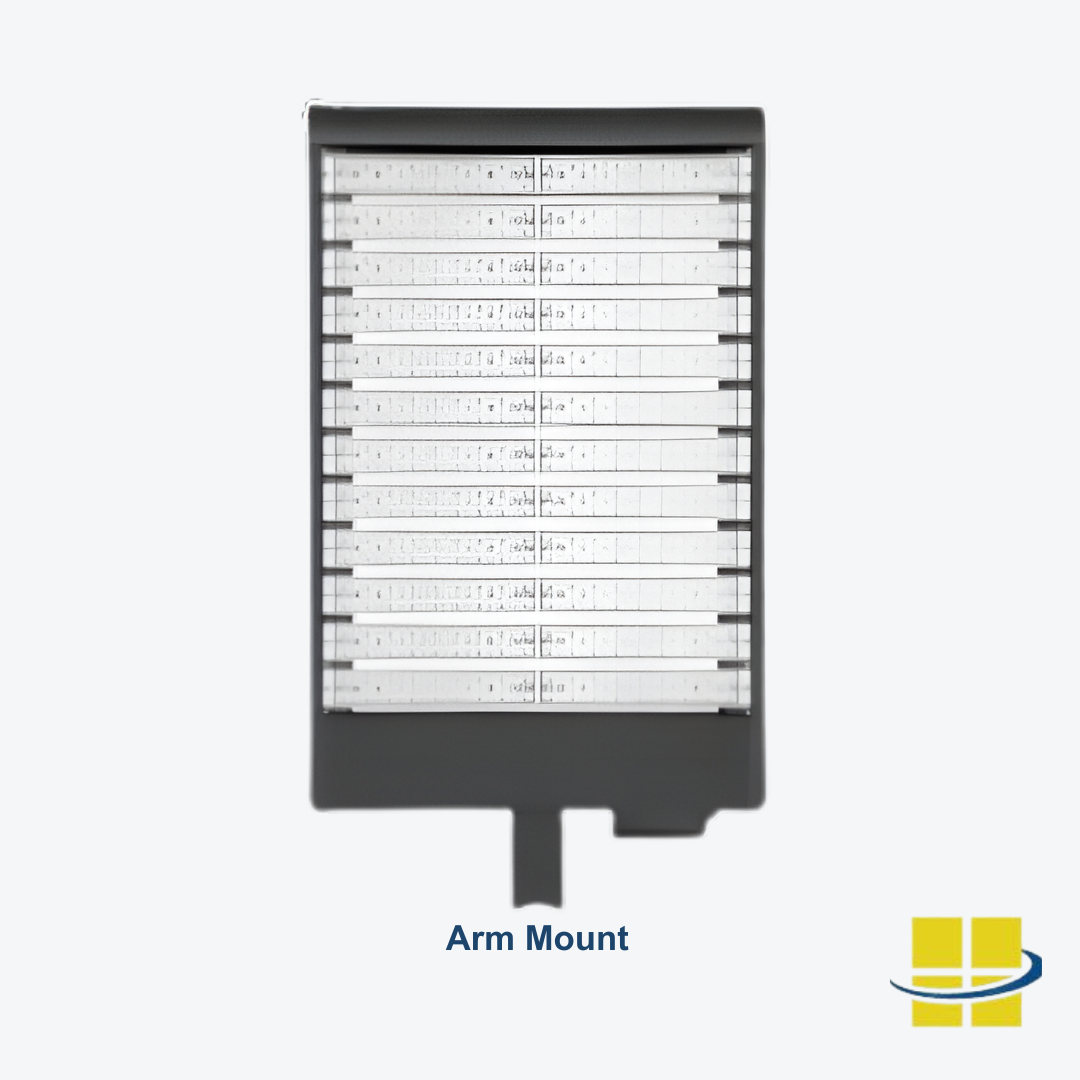

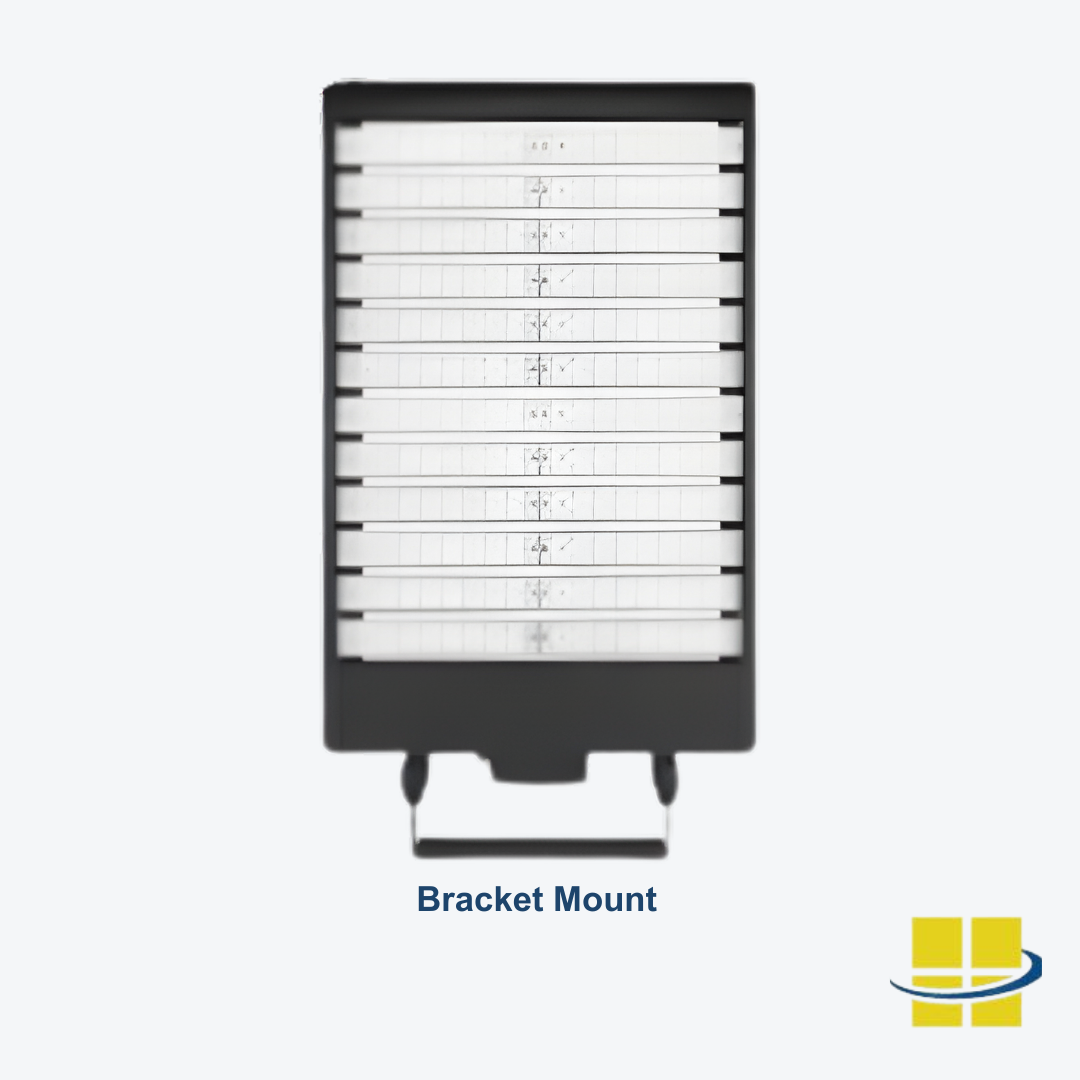

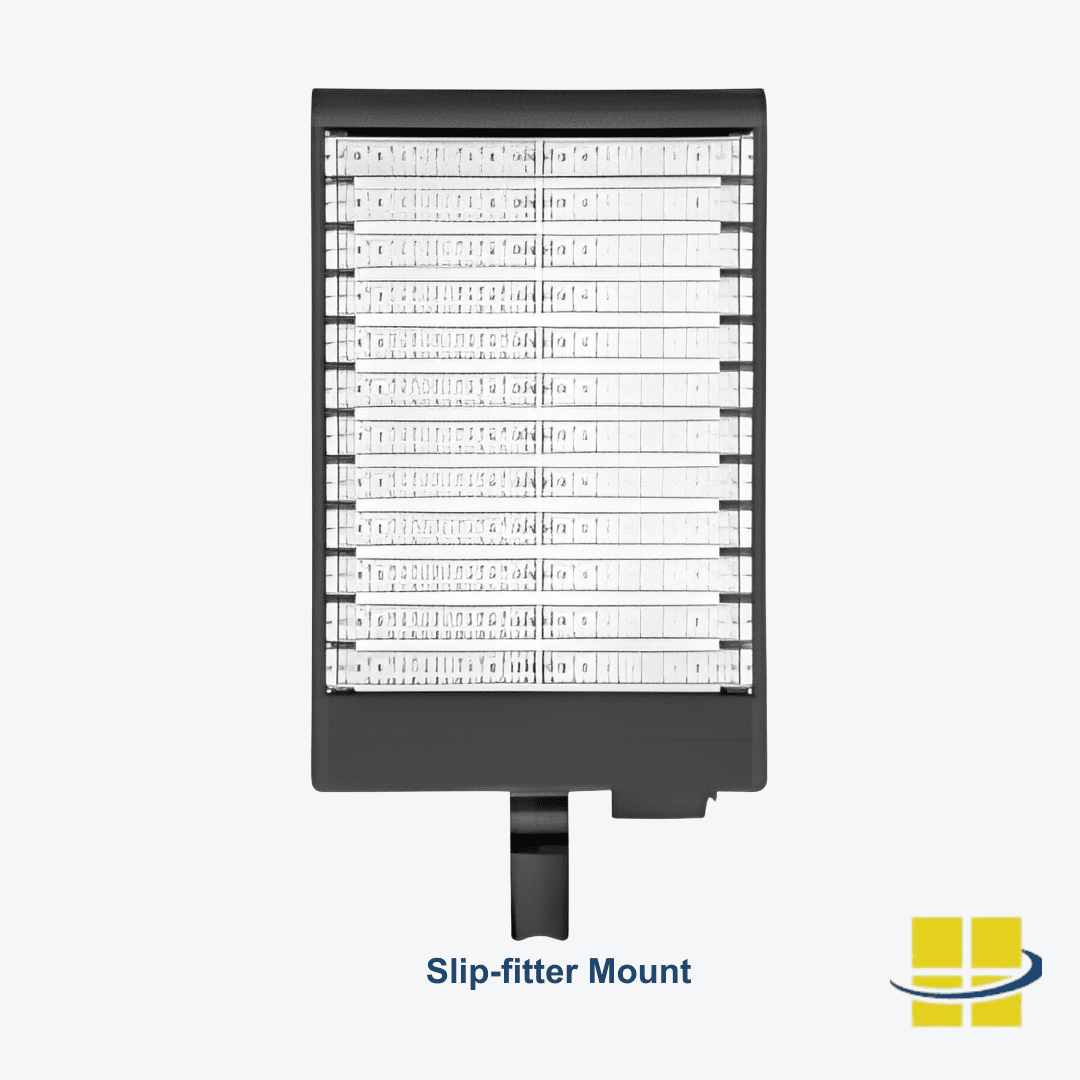

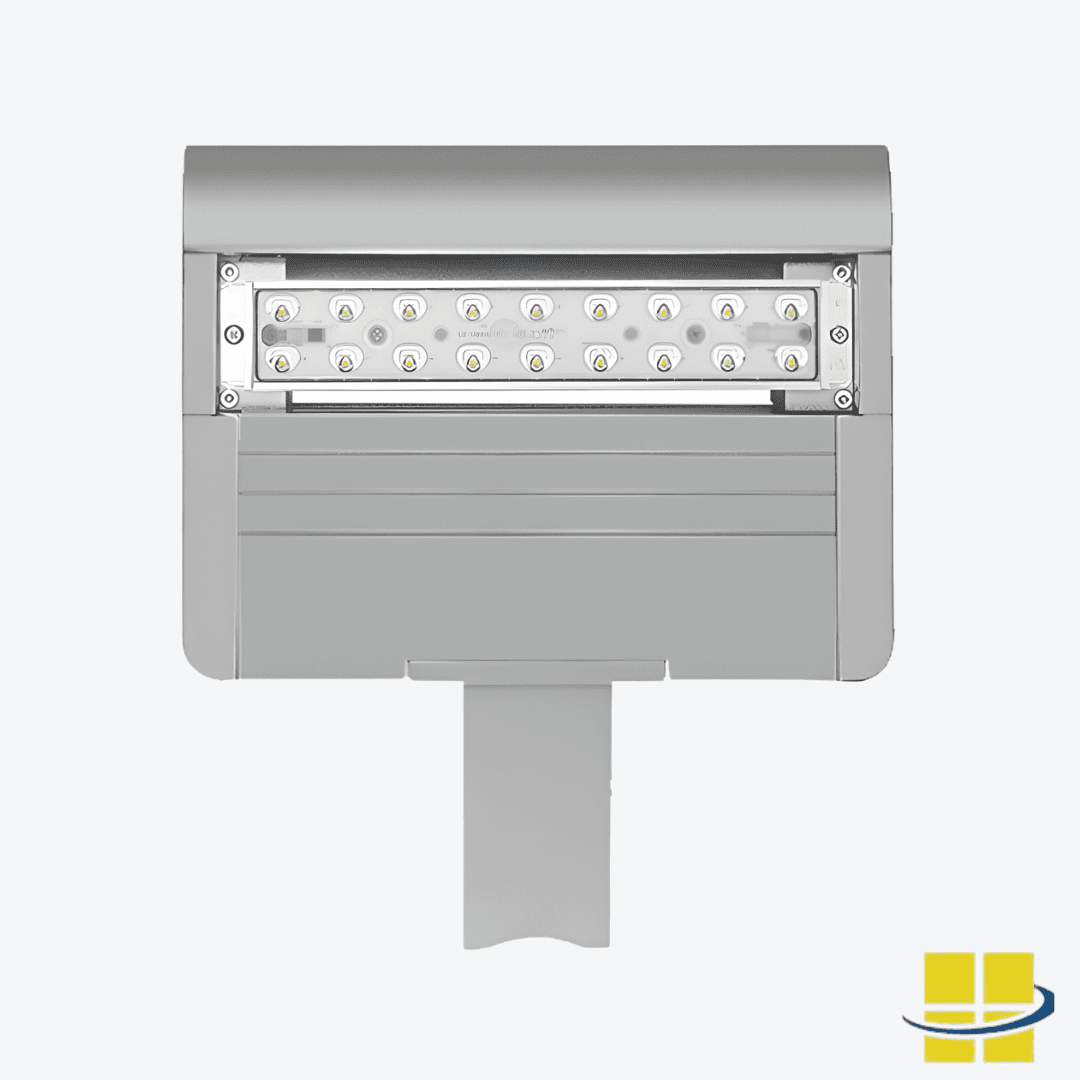

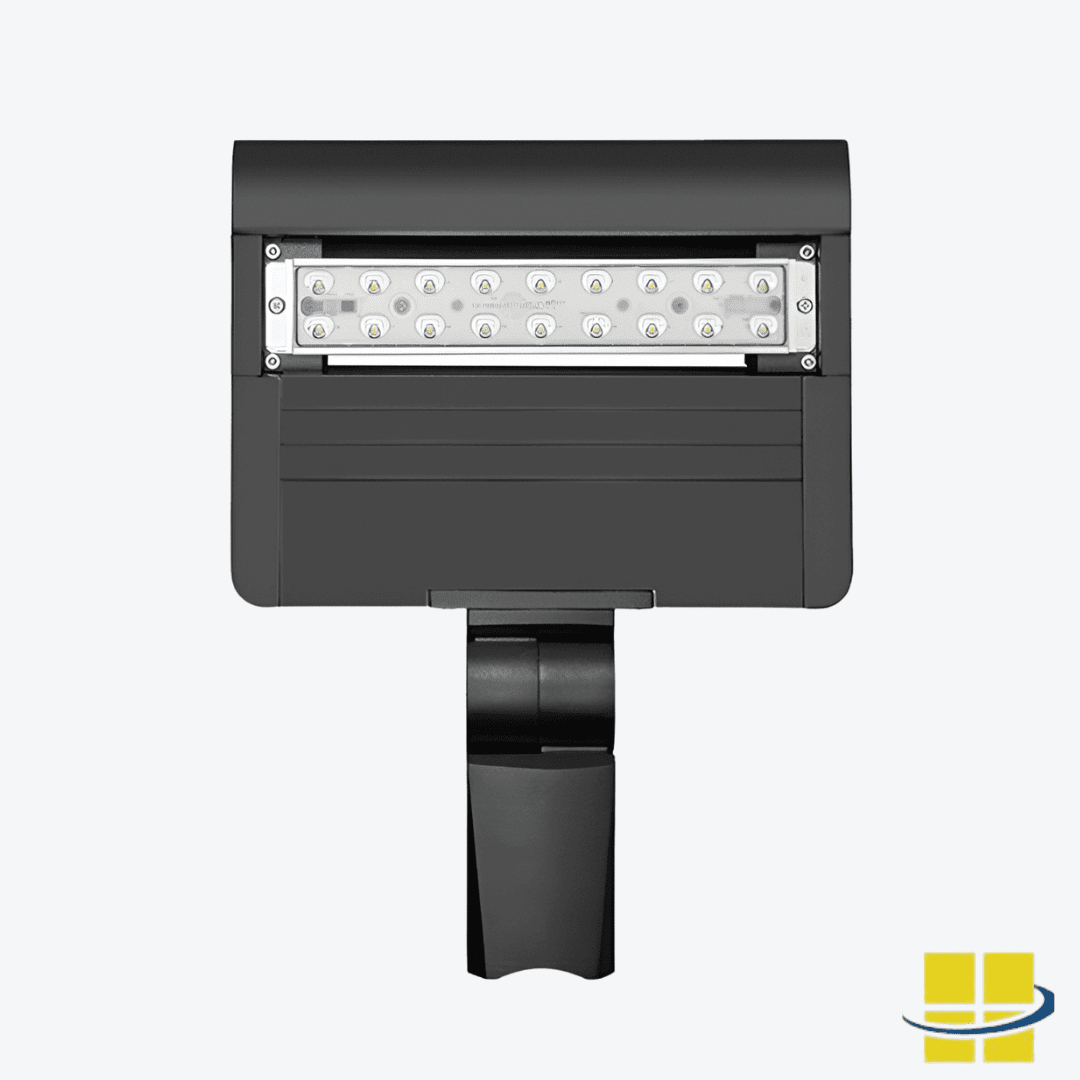

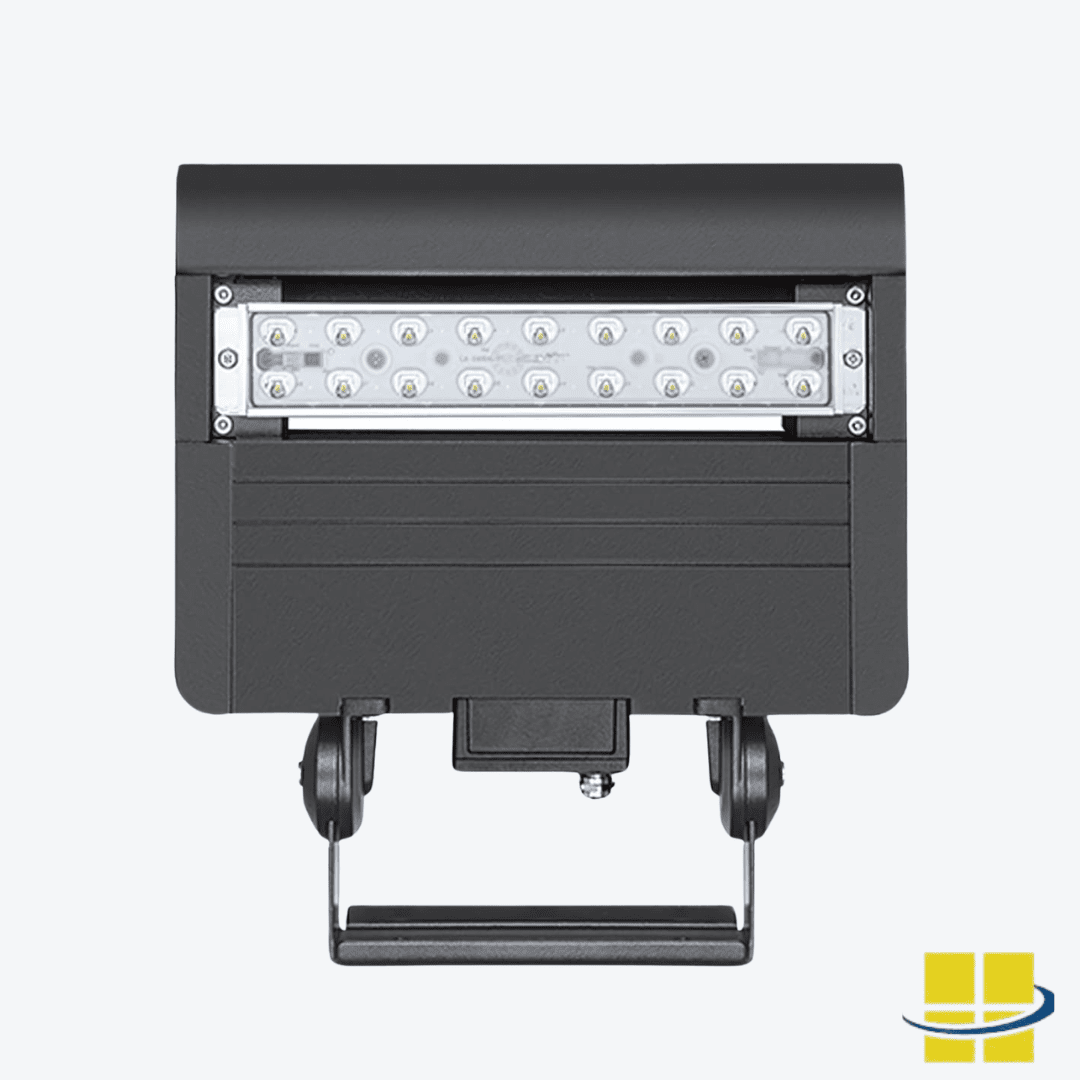

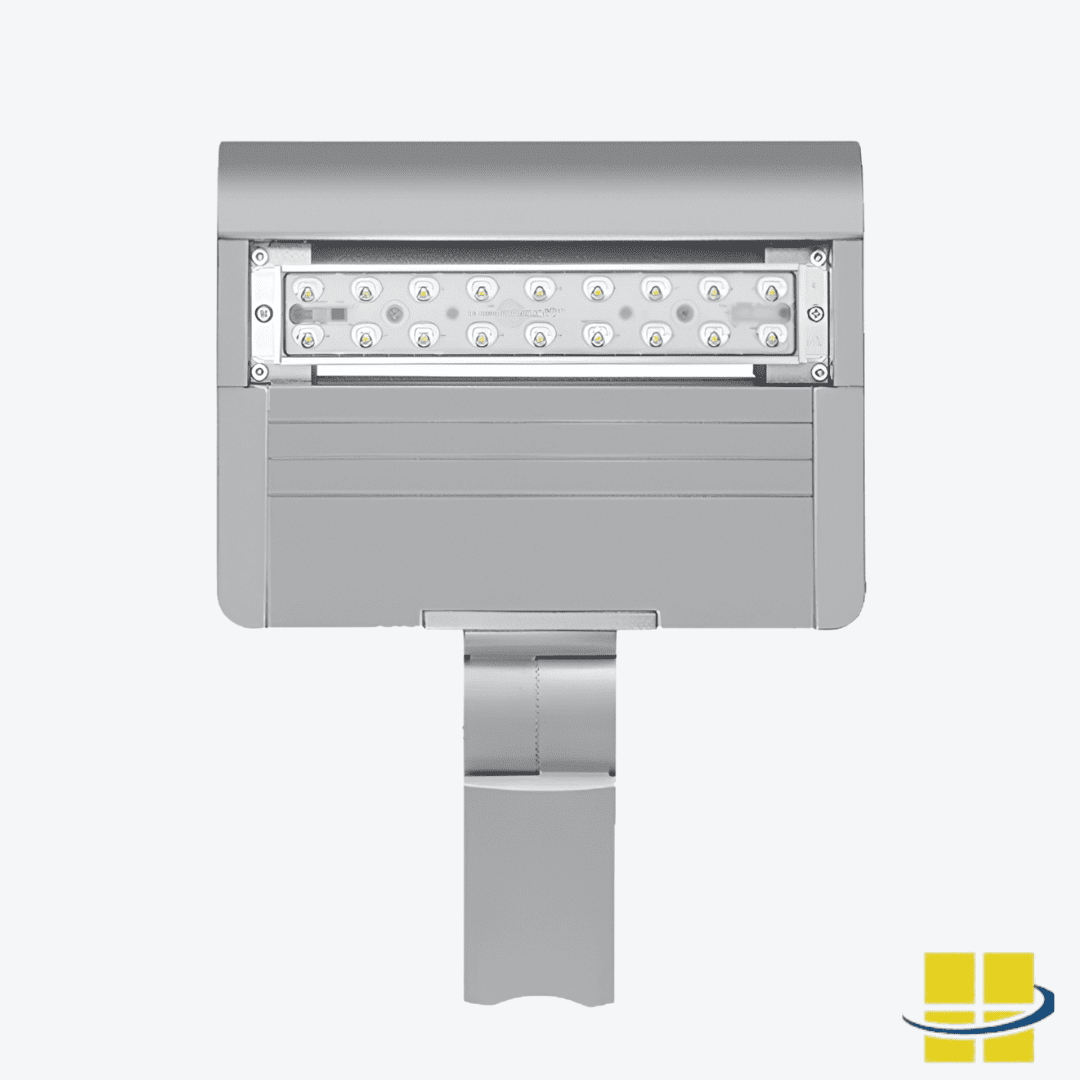

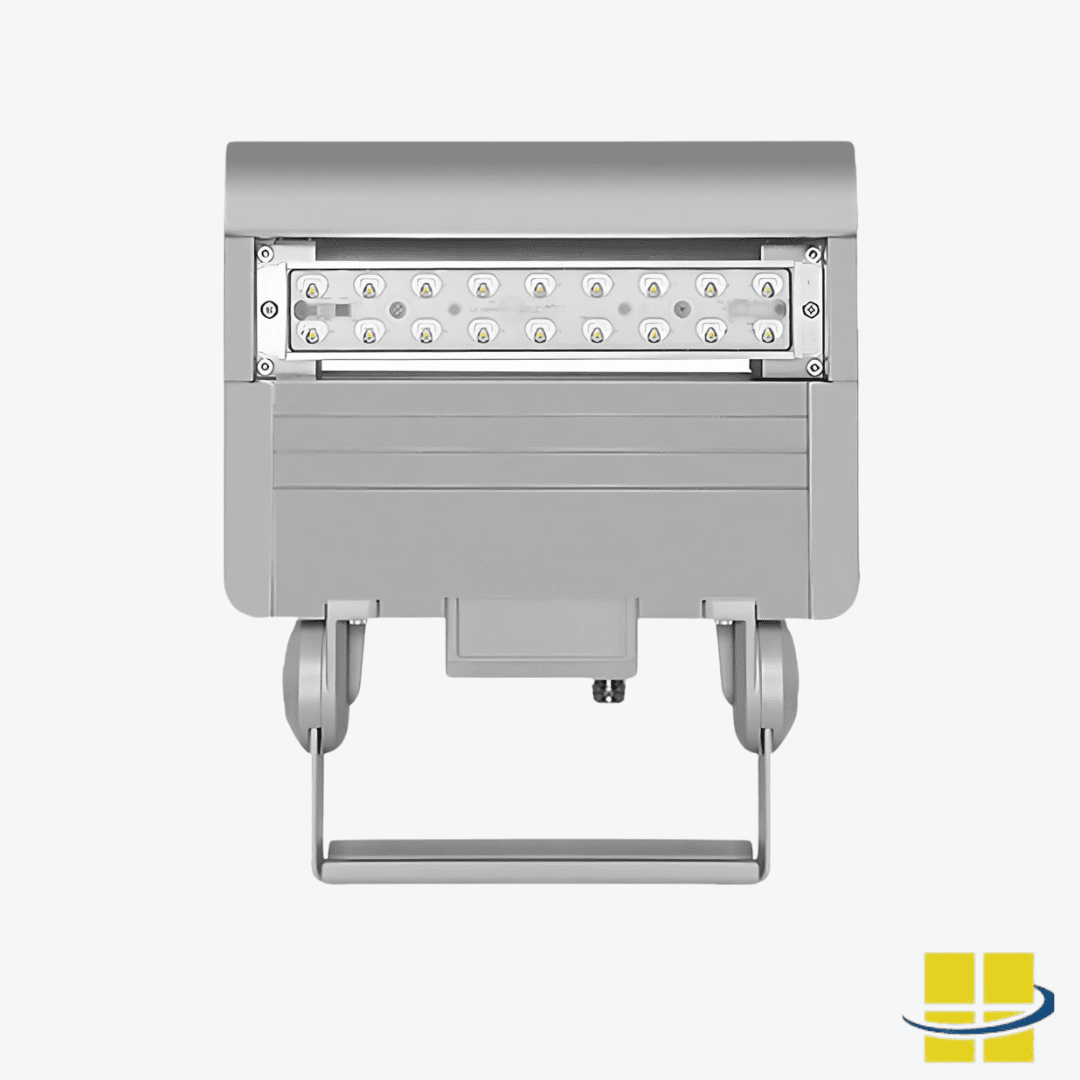

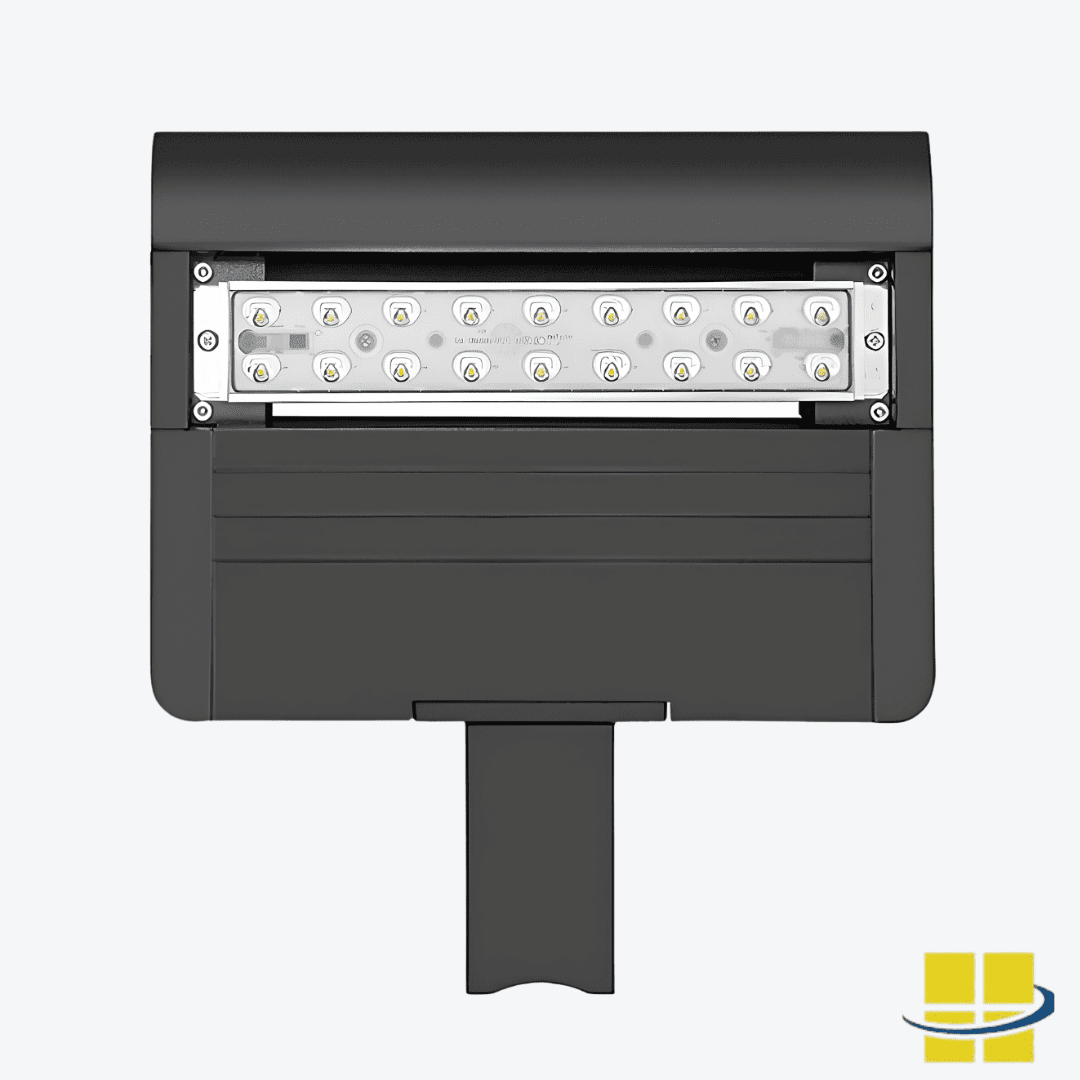

Mount (s)	T Mount (Arm Mount) L Mount (SlipFitter) U Mount (Bracket)
Rated Life (L70@ x Hours)	200,000 Hours
Voltage	120-277v, 277-480v
Surge Protection	10KA, 20KA
Controls and Add-Ons	1-10V Dimming, Vandal Resistant screws, Power Cords, Safety Cables, Microwave Motion Sensor, Photocell, Backlight Shield, Bird Spikes, Emergency Power Supply.
Operating Temperature	-40°C~+50°C
IP Rating	IP66
lK Rating	IK10
DLC Number	TBD
BUG Rating	TBD
Listings (ex: UL,CUL,CE)	CB, CE, CuL Listed, DLC Listed, ENEC, ETL Listed, SAA
Warranty	5 Year Warranty
Availability (Lead-Time)	2-4 Weeks Production, Plus Shipping

ASTA 40 LED Sports Light, Superior Optics, EXTREME-LIFE

Name: ASTA 40 LED Sports Light, Superior Optics, EXTREME-LIFE
SKU: AF88XPAC40L-L/T
Availability: InStock

ASTA LED sports lights are meticulously designed and manufactured to deliver powerful and reliable illumination. Featuring superior optics, advanced spill light control, a high lumen-per-watt (LPW) output of up to 160, and a lightweight, low-effective projection area (EPA) design, ASTA fixtures ensure long-lasting, high-quality, anti-glare lighting for all high-mast applications.

EXTREME-LIFE: Exceptional heat sink design produces an EXTREME-LIFE rating of L70 @ 200,000 hours for years of virtually maintenance-free performance.

Lasting Durability: ASTAs feature an anti-corrosive, marine-grade finish, 10ka surge protection, and IP66 and IK10 impact resistance to withstand extreme weather conditions.

Maximum Wattage and LPW: With up to 960 watts per light fixture and lumens per watt of up to 160, ASTAs can provide over 150,000 lumens from a single light fixture.

APTA-MMS-Remote-Spec-Sheet-C.pdf

$419.87

In Stock

"*" indicates required fields

Housing Color*

Black, Gray, Bronze, White and Green are standard colors. Custom RAL finishes are available at an up-charge with a minimum order quantity (MOQ).

Mounting Options*

Kelvin Temperature*

Dimming*

0-10v Dimming is suggested and is no additional cost. If dimming is not used, simply cap the 2 low voltage dimming wires.

Voltage*

Color Rendering - Ra Rating*

Bird Spikes*

Large facilities may have birds living inside the building. Installing bird spikes on area/spot/flood lights stops the birds from nesting on the lights.

Optics*

Back Light Shield*

Vandal Resistant Screws*

Power Cord Length*

APTAs are manufactured with a 3' power cord exiting the light fixture. You may add additional length to the power cord.

Emergency Power Supply*

Do you need the APTA to stay on when the power goes out? If yes, add the Emergency Power Supply.

SAC Safety Cable*

This is a safety cable that will stop the light fixture from crashing to the floor is the primary mount ever becomes loose or disconnected.

MMS - Microwave Motion Sensor*

Maximize energy savings and the life of the canopy light by adding a programable microwave control with an occupancy sensor and light sensor.

Photocell*

Adding a photocell prevents the need to manually turn on/off your area/spot/flood lights when it gets dark.

Surge Protection*

Warranty*

Subtotal
Options
Total

Lead Time: 7 to 10 Day Production, plus Shipping

Product Specifications

Weight	14.11 lbs
Dimensions	17.91 × 13.15 × 2.95 in
Model Number	AF88XPAC40L-L/T
Weight Pounds	11.46 lbs
Product Family	ASTA
EPA	0.32
Housing Material	Die-cast aluminum end caps enclose housing and extruded aluminum.
Finish Specifications	Super Durable and Corrosion-Resistant Polyester Powder Paint
Finish Color (s)	Black, Gray, Bronze, White, Green, Custom RAL
Color Rendering Index (CRI)	70+, 80+, 90+
Lens Material	TBD
Optics	T2S, T3S, T3M, T5M, T4M, T4S, T4VS, T4VVSB, T10D, T20D, T40D, T60D, T90D
Color Temperature (Kelvin)	3000K, 4000K, 5000K, 5700K
LED Type	LED Module
System Watts	40w
Light Source Lumens	6080 lm
Luminaire Lumens	6080 lm
Luminaire Lumens Per Watts	152 lm/W
Dimensions in Inches	17.91" X 13.15" X 2.95"
Dimension in mm	455mm X 334mm X 75mm
Mount (s)	T Mount (Arm Mount) L Mount (SlipFitter) U Mount (Bracket)
Rated Life (L70@ x Hours)	200,000 Hours
Voltage	120-277v, 277-480v
Surge Protection	10KA, 20KA
Controls and Add-Ons	1-10V Dimming, Vandal Resistant screws, Power Cords, Safety Cables, Microwave Motion Sensor, Photocell, Backlight Shield, Bird Spikes, Emergency Power Supply.
Operating Temperature	-40°C~+50°C
IP Rating	IP66
lK Rating	IK10
DLC Number	TBD
BUG Rating	TBD
Listings (ex: UL,CUL,CE)	CB, CE, CuL Listed, DLC Listed, ENEC, ETL Listed, SAA
Warranty	5 Year Warranty
Availability (Lead-Time)	2-4 Weeks Production, Plus Shipping
