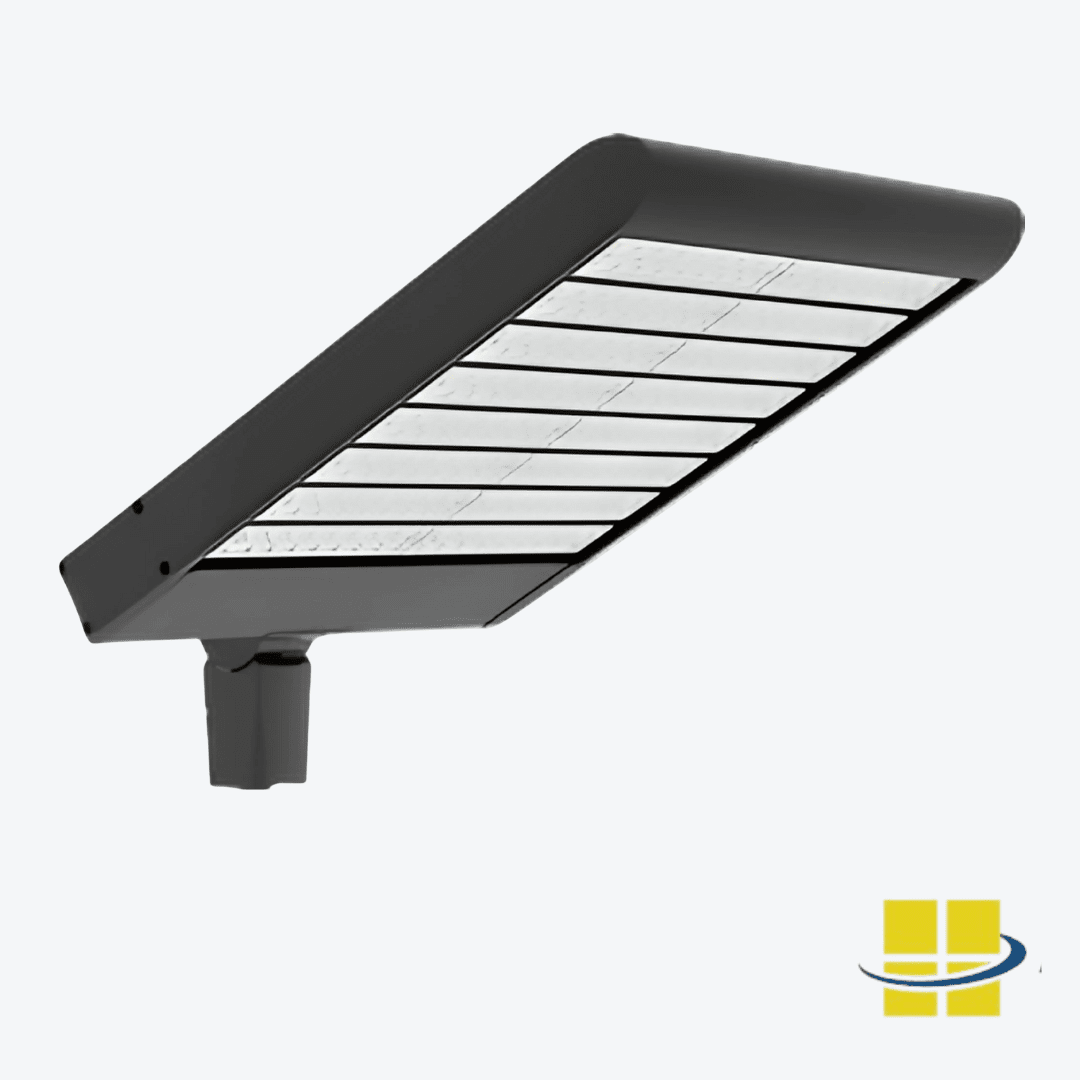

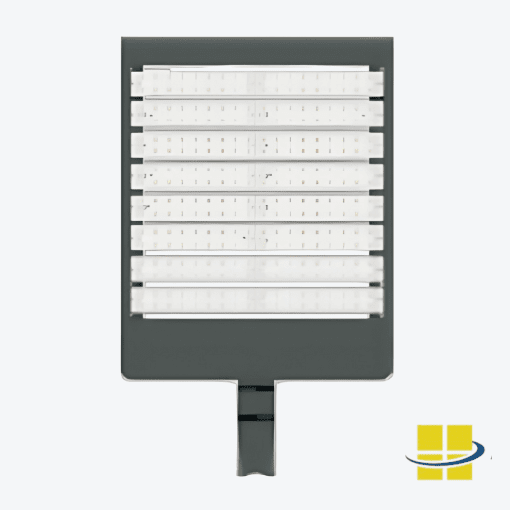

ASTA-QS 960 LED Sports Light, EXTREME-LIFE
APTA LED Sports Light
ASTA-QS 960 LED Sports Light, EXTREME-LIFE - Image 3
ASTA-QS 960 LED Sports Light, EXTREME-LIFE - Image 4
ASTA-QS 960 LED Sports Light, EXTREME-LIFE - Image 5
ASTA-QS 960 LED Sports Light, EXTREME-LIFE - Image 6

ASTA-QS 960 LED Sports Light, EXTREME-LIFE

$1,999.87

ASTA LED sports lights are designed and manufactured to provide powerful & reliable lighting. With lumen-per-watt output (LPW) of up to 160, and low weight/low effective projection area (EPA), ASTAs are designed to provide long-lasting, superior quality, anti-glare light for all high-mast lighting applications.

EXTREME-LIFE: Exceptional heat sink design produces an EXTREME-LIFE rating of L70 @ 200,000 hours for years of virtually maintenance-free performance.

Lasting Durability: ASTAs feature an anti-corrosive, 10ka surge protection, and IP66 and IK10 impact resistance to withstand extreme weather conditions

Maximum Wattage and LPW: With up to 960 watts per light fixture and lumens per watt of up to 160, ASTAs can provide over 150,000 lumens from a single light fixture

ASTA-QS 960 LED Sports Light

Lead Time: 5 to 7 Day Production, plus Shipping

In Stock

SKU: AF89XPBD960L-L Categories: , , , , , , , , , , , , , , ,

Specifications

Weight 48.06 lbs
Dimensions 37.80 × 26.57 × 6.30 in
Application

Availability

5 to 7 Day Production, plus Shipping
Light Source

Available Finishes

Bronze
Housing

High-Grade Aluminum
Light Source Included

LED Array Included
Light Source Lumens

115,200
Listings

IK10, IP66, CB, CE, CuL Listed, DLC Listed, ENEC, ETL Listed, SAA
Mounting

Standard L Mount
Product Family

APTA
Rated Life

L70 @ up to 200,000 Hours
System Watts

960
Optics

T4S
Voltage

120v, 208v, 240v, 277v
Warranty

5-Year Limited Warranty

Product Description

ASTA-QS 960 LED Sports Lights, EXTREME-LIFE Features:

  • 42.54 lbs

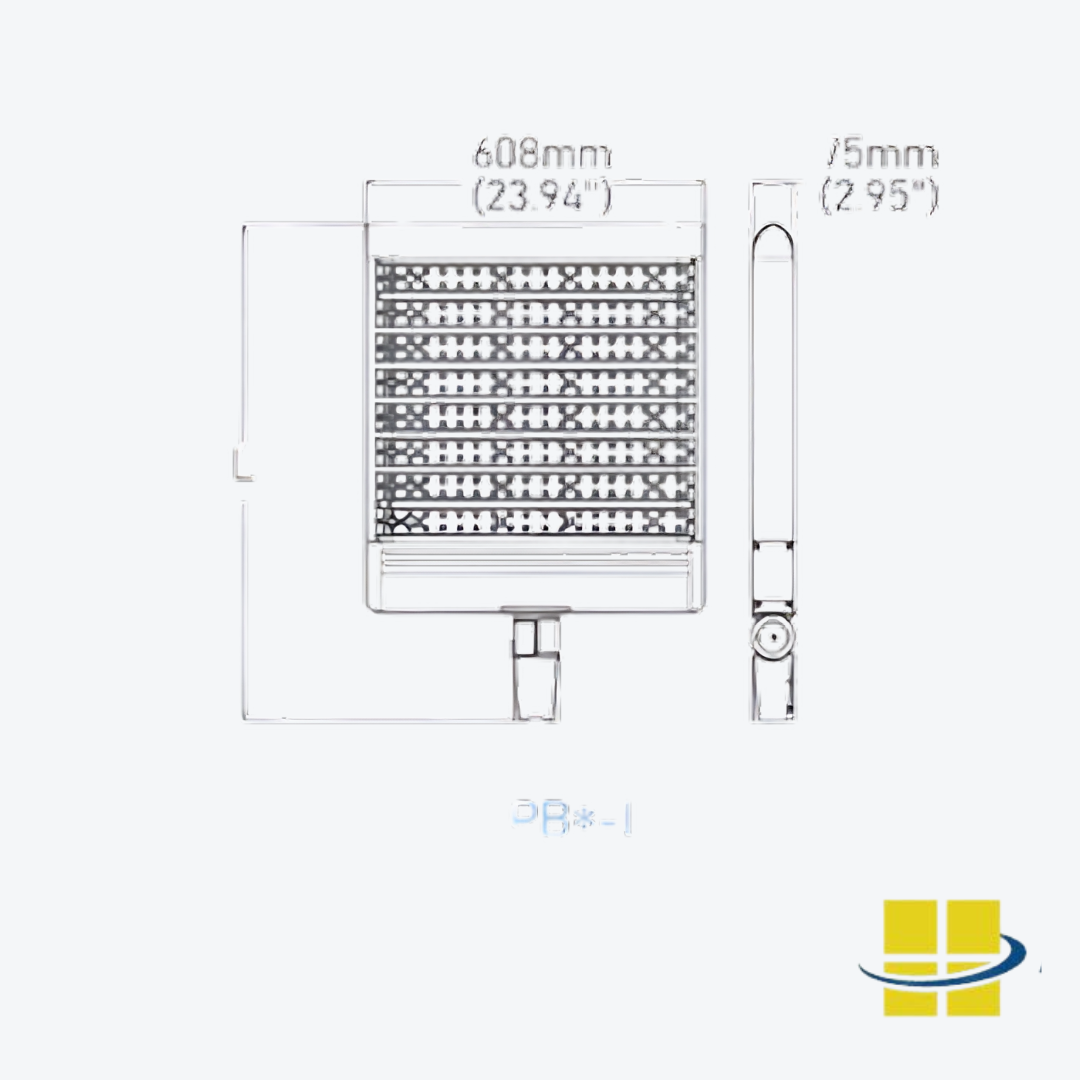

  • 36.22L x 22.87W x 3.23H
  • 120-277v, 50/60Hz
  • Nominal power 960W
  • High light output, low weight
  • Low effective project area (EPA)
  • Provides superior quality anti-glare illumination to large-scale areas
  • Constructed with high-grade aluminum
  • 115,200 lumens
  • 1050 mA
  • Ra70 standard
  • <20% total harmonic distortion at full load
  • Imax 10KA surge protection
  • Exceptional heat sink design to ensure these fixtures will last, with a rating of L70 @ 200,000 hours of operation – making them virtually maintenance-free for a lifetime

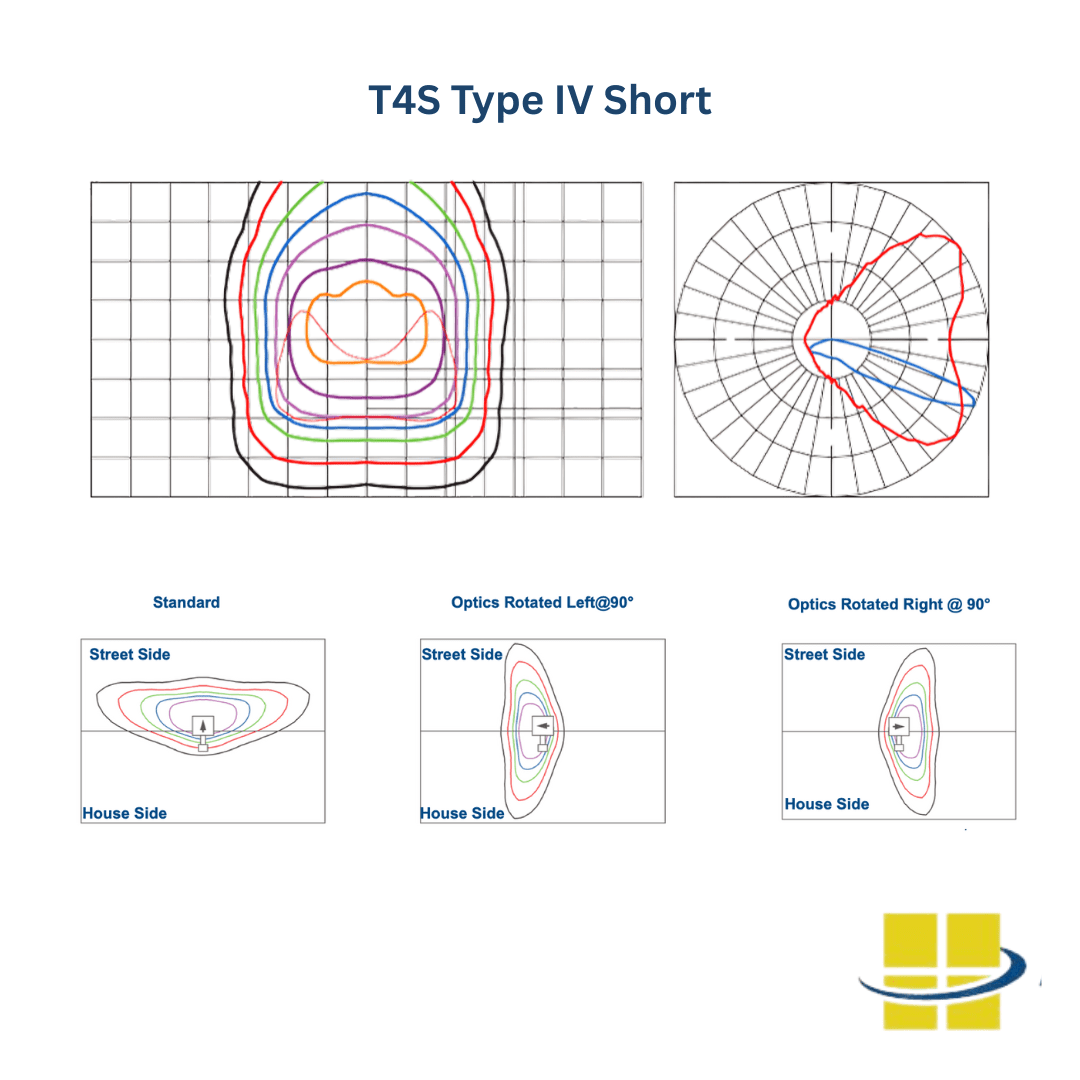

  • T4S optics
  • Bronze
  • L70 @ 200,000 hours
  • DLC, IP66 rated, IK10 rated, CUL, CE, CB, SAA, ENEC, TUV rated

ASTA-QS 960 LED Sports Lights, EXTREME-LIFE Options:

  • 5000K
  • 0-10v dimming

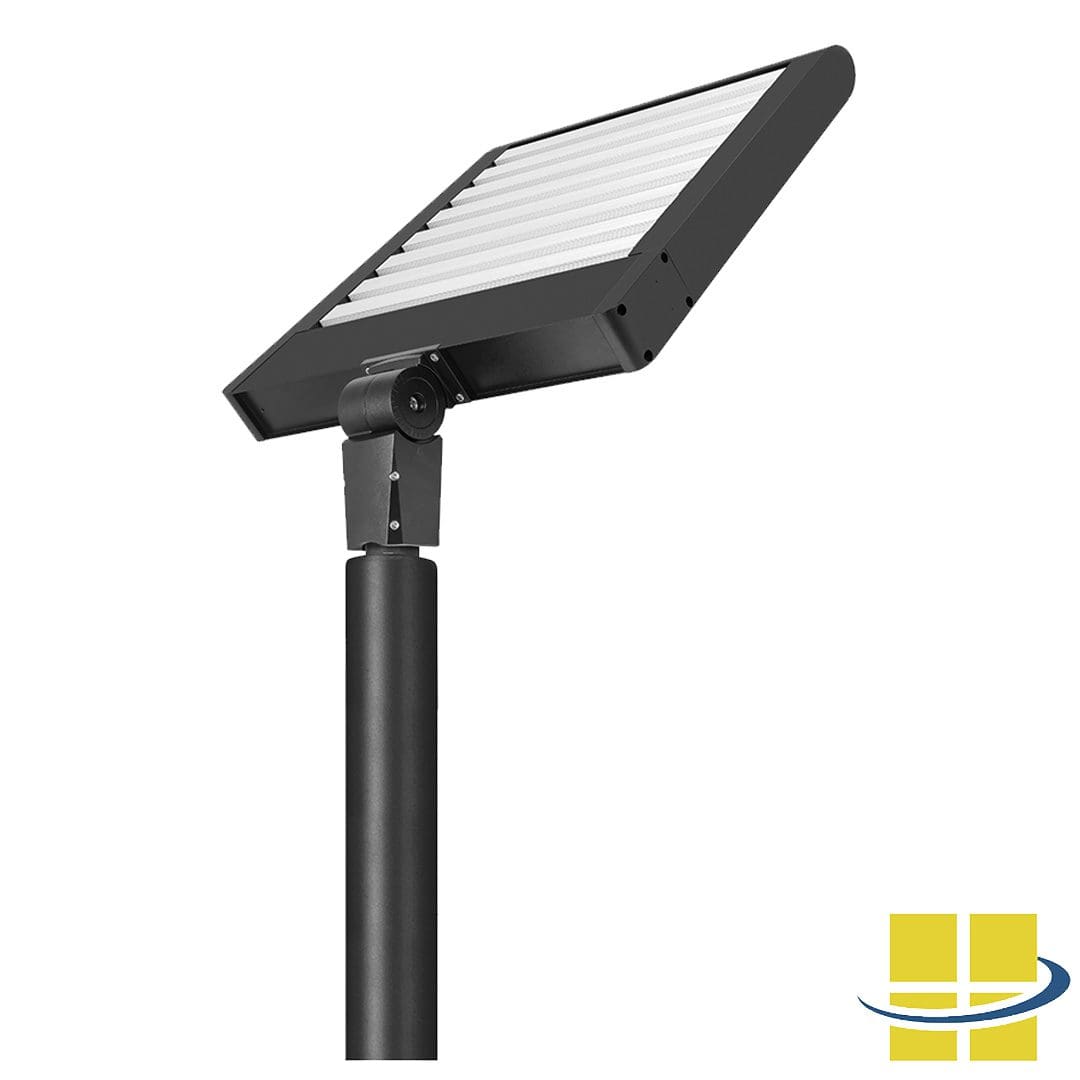

  • L Mount (slip fitter mount)

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.


Need a Photometric Analysis for Your ASTA-QS 960 LED Sports Lights, EXTREME-LIFE Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometric studies include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order or Speak to a Lighting Specialist?

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
