Product Specifications
| Weight | 30 lbs |
|---|---|
| Dimensions | 20 × 20 × 24 in |
| Model Number | AF55XLED9800V080345P |
| Weight Pounds | 28lbs |
| Shipping Weight (Pounds) | 30 lbs |
| EPA | n/a |
| Housing Material | Corrosion Resistant Heavy Duty Die-Cast Aluminum |
| Finish Specifications | Superior Powder Coated Finish |
| Finish Color (s) | Bronze |
| Color Rendering Index (CRI) | 80+ |
| Lens Material | UV Polycarbonate Optic Lens |
| Optics | T5 = Type VS |
| Color Temperature (Kelvin) | 3000K, 4000K, 5000K |
| LED Type | LED Module |
| System Watts | 45w, 60w, 80w |
| Light Source Lumens** (5000K) | 9258 lm* |
| Luminaire Lumens** (5000K | 9258 lm* |
| Luminaire Lumens Per Watts** (5000K) | 121 lm/W* |

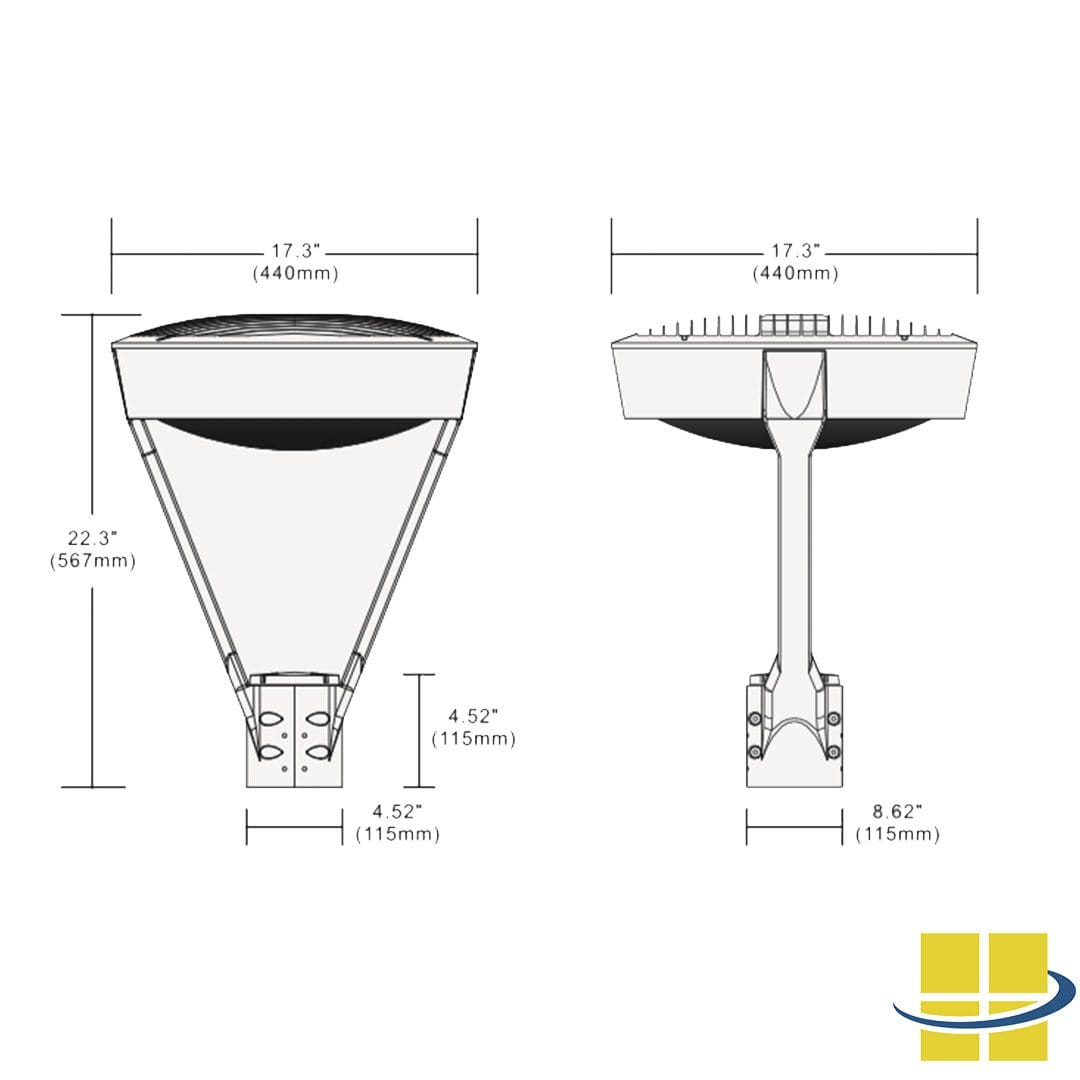

| Dimensions in Inches | 17.3 x 17.3 x22.2 |
| Dimension in mm | 439.42 x 439.42 x 563.88 |
| Mount (s) | Mounts on 2 3/8" Vertical Tenon, Mounts on 2 7/8" Vertical Tenon |
| Rated Life (L70@ x Hours) | 50,000 Hours |
| Voltage | 120-277v |
| Surge Protection | 10Kv Standard |
| Controls | Photocell |
| Operating Temperature | -40°C – +40°C |
| IP Rating | IP65 |
| lK Rating | TBD |
| DLC Number | S-GFY3U0 |
| BUG Rating | B2, U2, G1 |
| Listings (ex: UL,CUL,CE | Anti-vibration, CUL, DLC Listed, IP65, UL |
| Warranty | 5 Year Warranty |
| Availability (Lead-Time) | 7-10 Production Days, Plus Shipping |

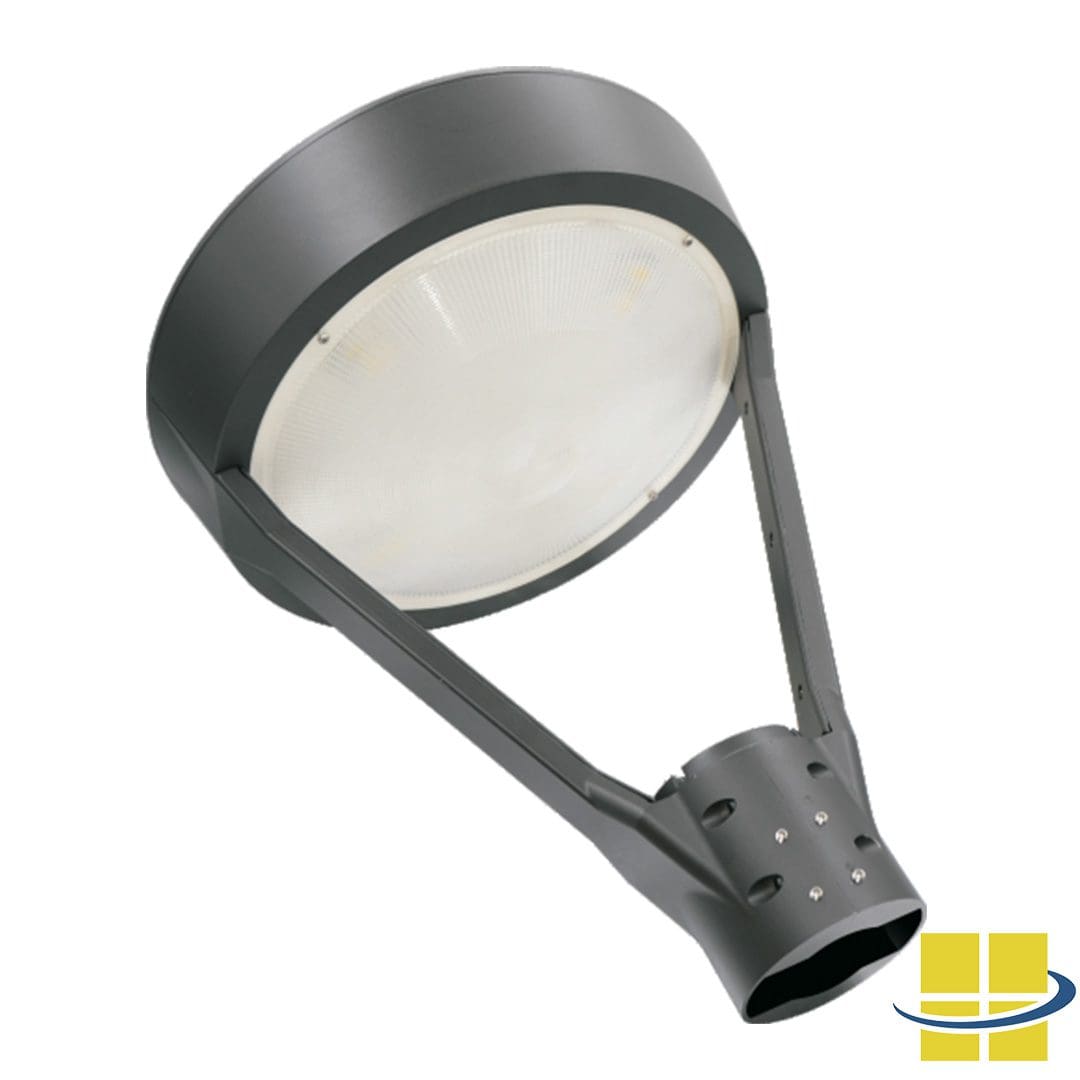

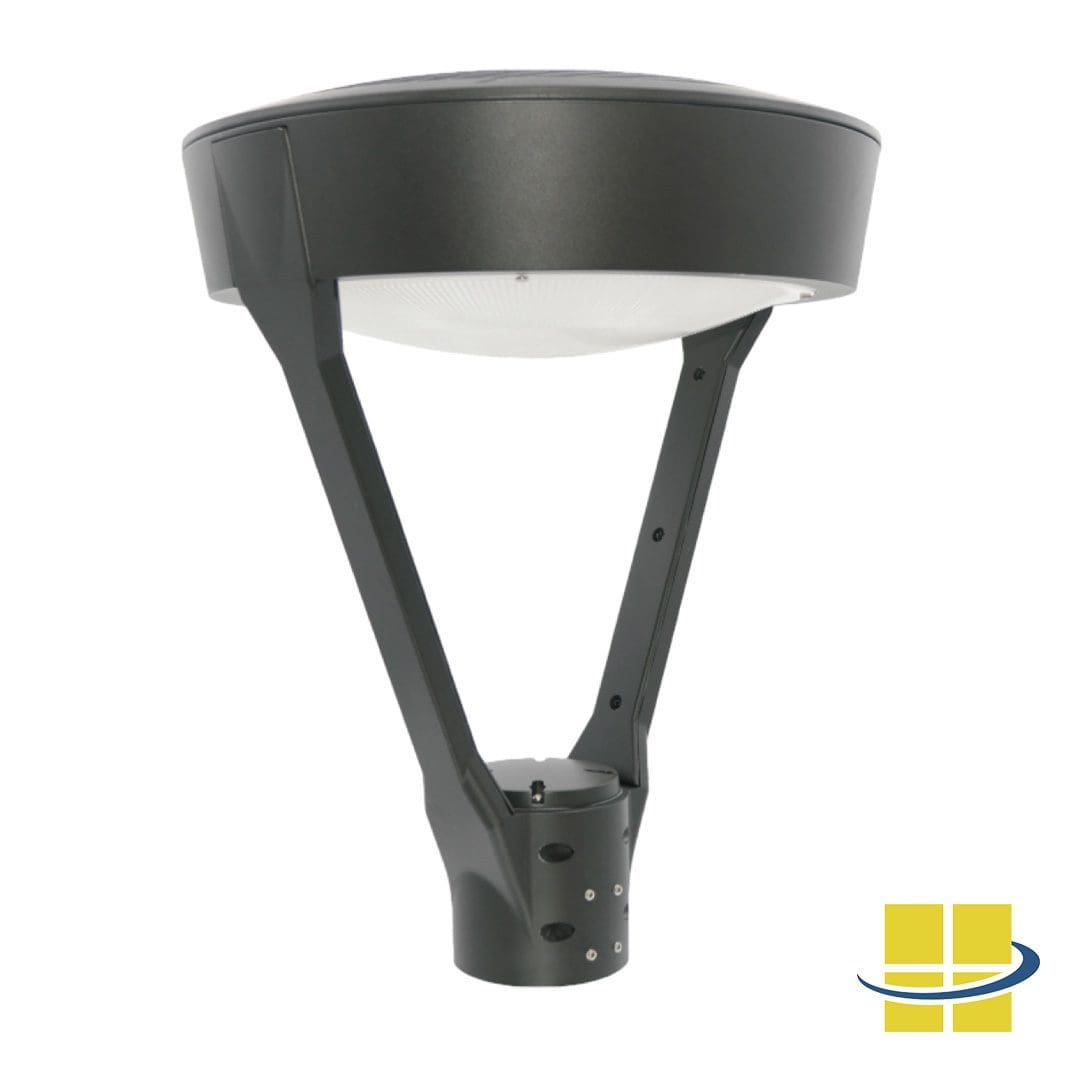

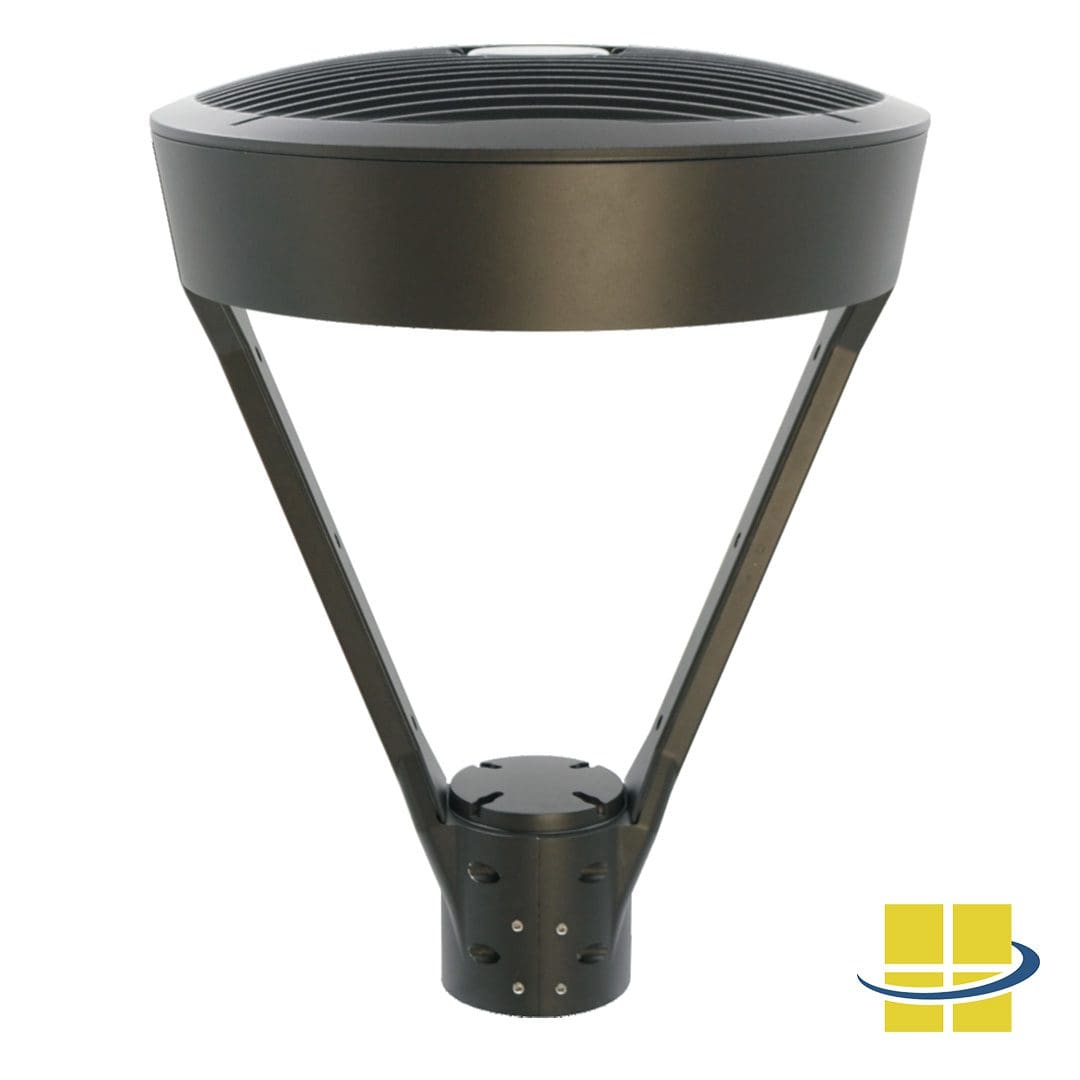

BAHB 45-60-80 LED Post-Top Light with Selectable Wattage, Kelvin and Built-In Photocell
BAHB LED post top is designed to elevate any outdoor space with sleek, elegant charm and well-controlled illumination. Its slim, open-frame design creates a refined look while directing light exactly where it’s needed—downward and outward—reducing glare and wasted uplight.
Field-Selectable: BAHB Post top offers selectable wattage (45w, 60w, and 80w) and Kelvin temperature (3000K, 4000K, and 5000K), empowering you to tailor light output to any specific need.
Diffuser Lens: Designed to deliver smooth, uniform illumination while minimizing glare and harsh brightness, BAHB is engineered to evenly distribute light across the intended space, reducing hot spots and improving visual comfort.

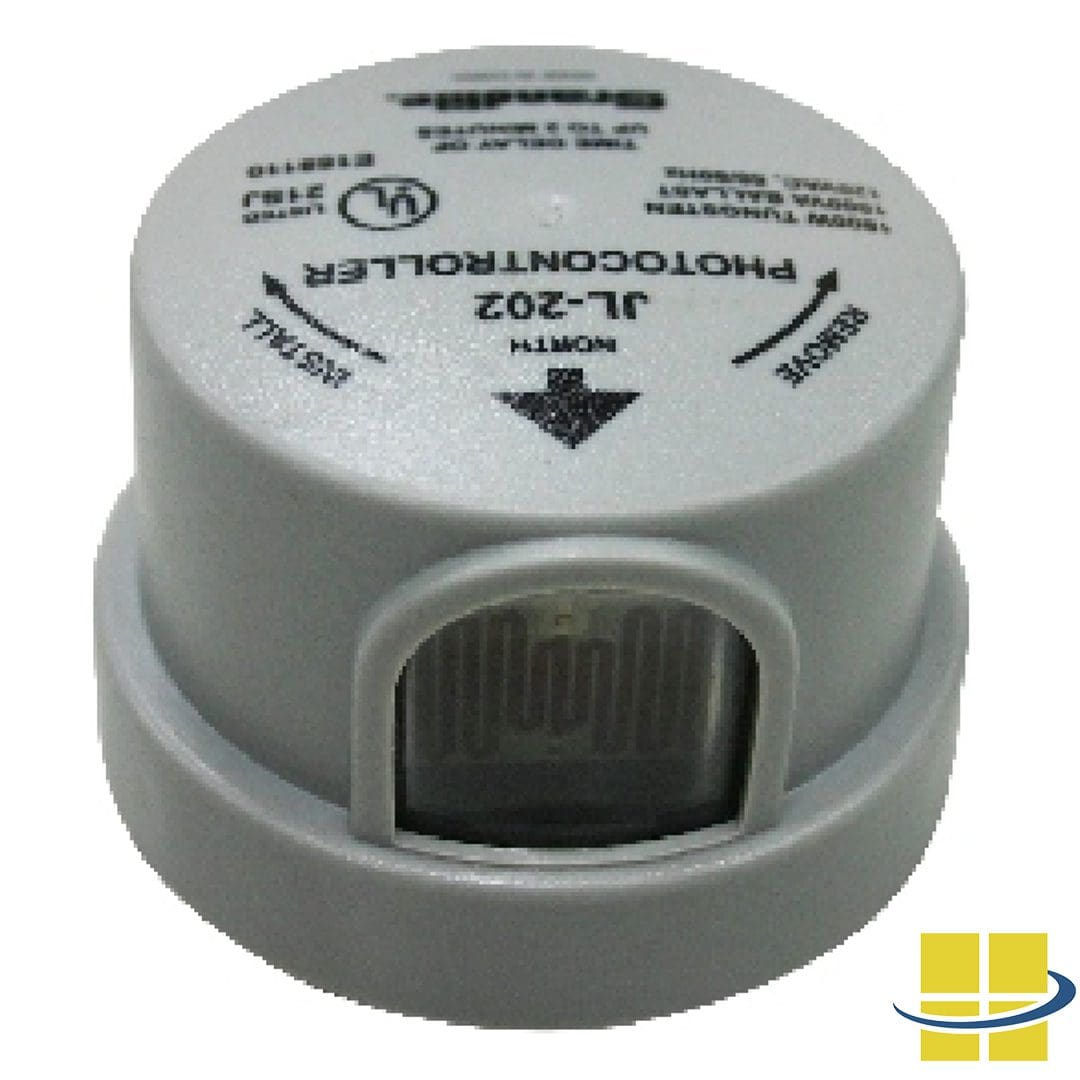

Built-In Photocell: BAHB features a built-in photocell for effortless, energy-saving operation. Automatically turning on at dusk and off at dawn, it ensures your space is perfectly illuminated only when needed.
$509.87
Product Specifications
| Weight | 30 lbs |
|---|---|
| Dimensions | 20 × 20 × 24 in |
| Model Number | AF55XLED9800V080345P |
| Weight Pounds | 28lbs |
| Shipping Weight (Pounds) | 30 lbs |
| EPA | n/a |
| Housing Material | Corrosion Resistant Heavy Duty Die-Cast Aluminum |
| Finish Specifications | Superior Powder Coated Finish |
| Finish Color (s) | Bronze |
| Color Rendering Index (CRI) | 80+ |
| Lens Material | UV Polycarbonate Optic Lens |
| Optics | T5 = Type VS |
| Color Temperature (Kelvin) | 3000K, 4000K, 5000K |
| LED Type | LED Module |
| System Watts | 45w, 60w, 80w |
| Light Source Lumens** (5000K) | 9258 lm* |
| Luminaire Lumens** (5000K | 9258 lm* |
| Luminaire Lumens Per Watts** (5000K) | 121 lm/W* |
| Dimensions in Inches | 17.3 x 17.3 x22.2 |
| Dimension in mm | 439.42 x 439.42 x 563.88 |
| Mount (s) | Mounts on 2 3/8" Vertical Tenon, Mounts on 2 7/8" Vertical Tenon |
| Rated Life (L70@ x Hours) | 50,000 Hours |
| Voltage | 120-277v |
| Surge Protection | 10Kv Standard |
| Controls | Photocell |
| Operating Temperature | -40°C – +40°C |
| IP Rating | IP65 |
| lK Rating | TBD |
| DLC Number | S-GFY3U0 |
| BUG Rating | B2, U2, G1 |
| Listings (ex: UL,CUL,CE | Anti-vibration, CUL, DLC Listed, IP65, UL |
| Warranty | 5 Year Warranty |
| Availability (Lead-Time) | 7-10 Production Days, Plus Shipping |
Ready to Order or Speak to a Lighting Specialist?
You can place your order online or if you want additional information, give us a call at 800-468-9925. Our team of friendly, expert high performance lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
You can also leave messages for and chat live with a lighting specialist by using our Live Chat feature on the bottom-right side of your browser window.
Access Fixtures Warranty
Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures’ complete warranty policy.
