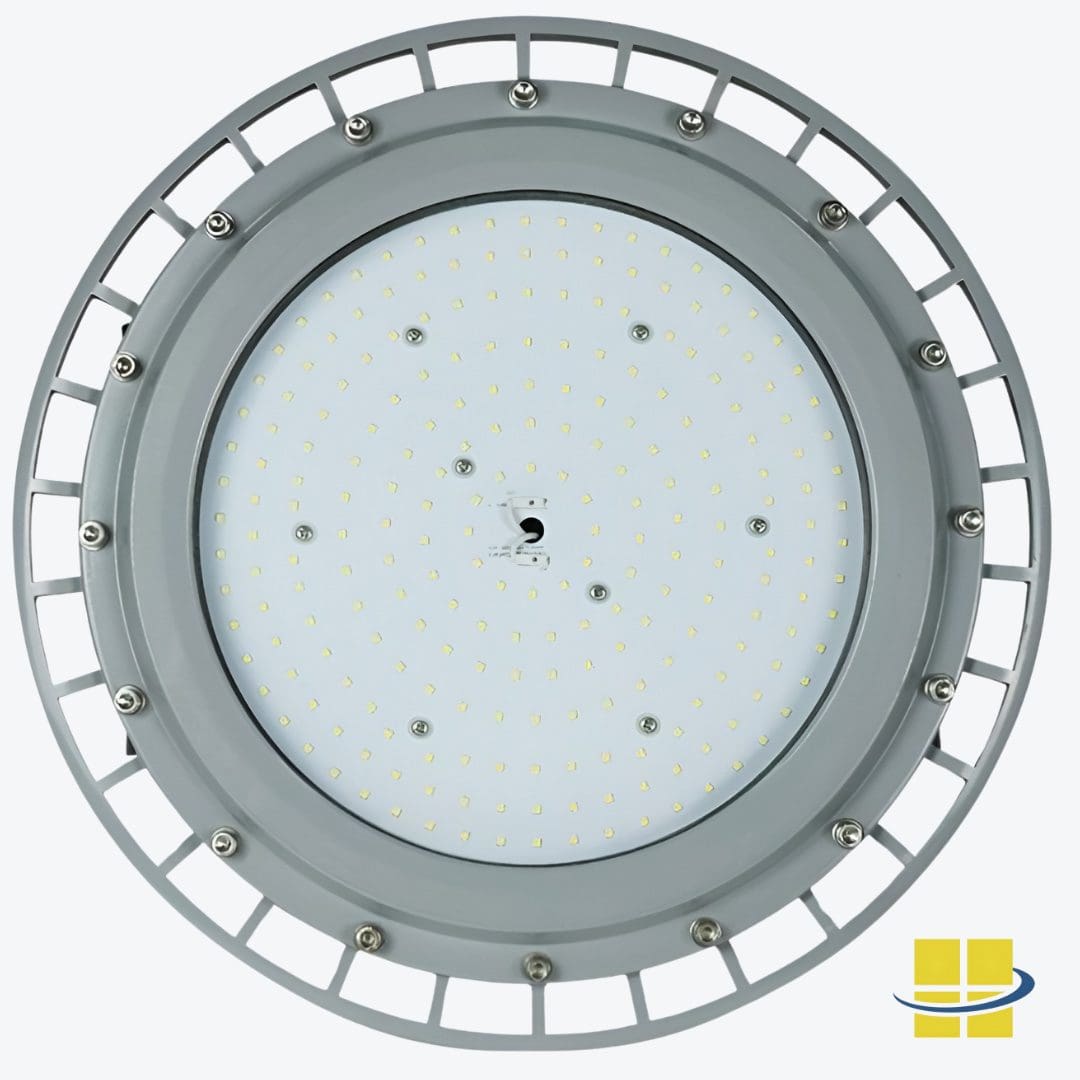

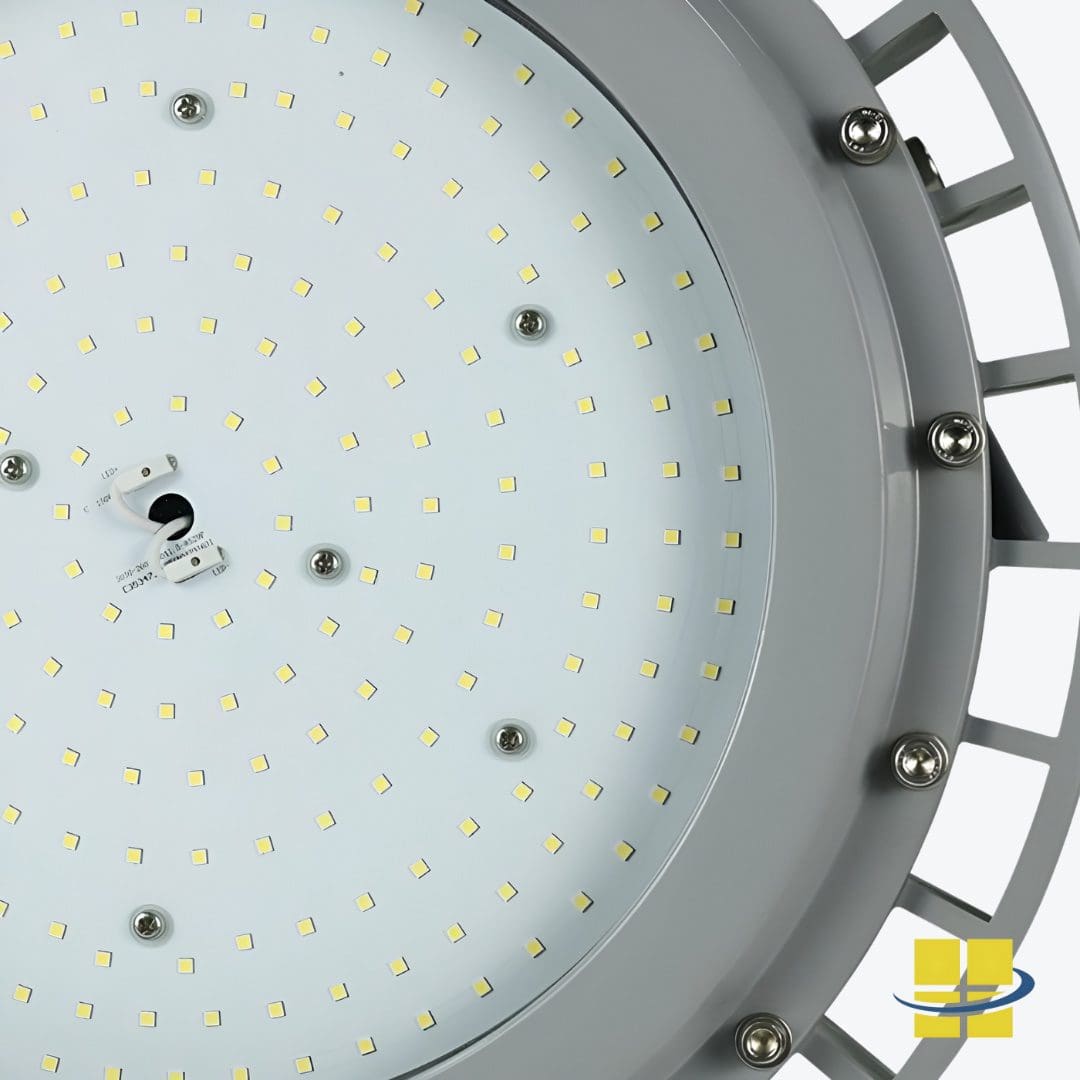

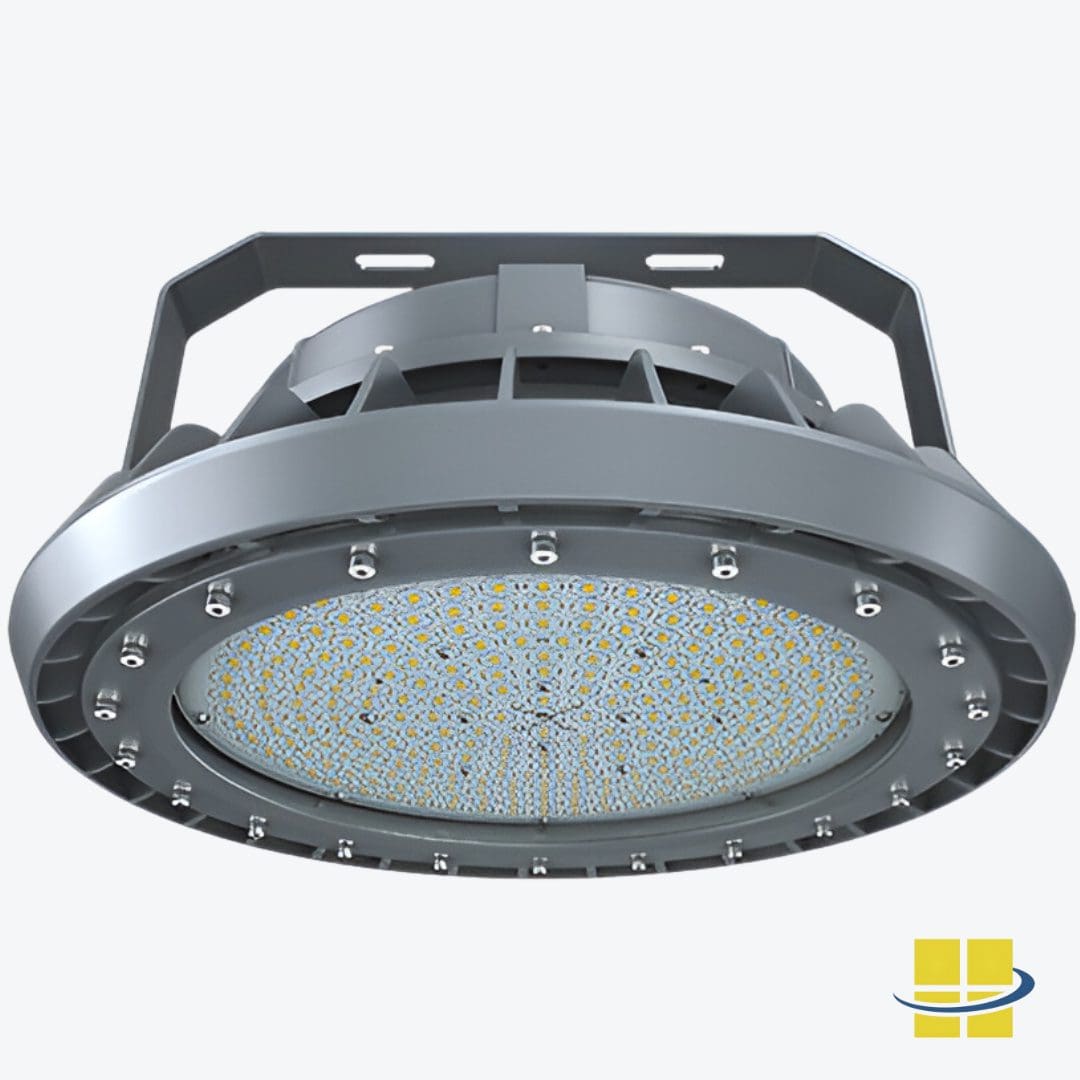

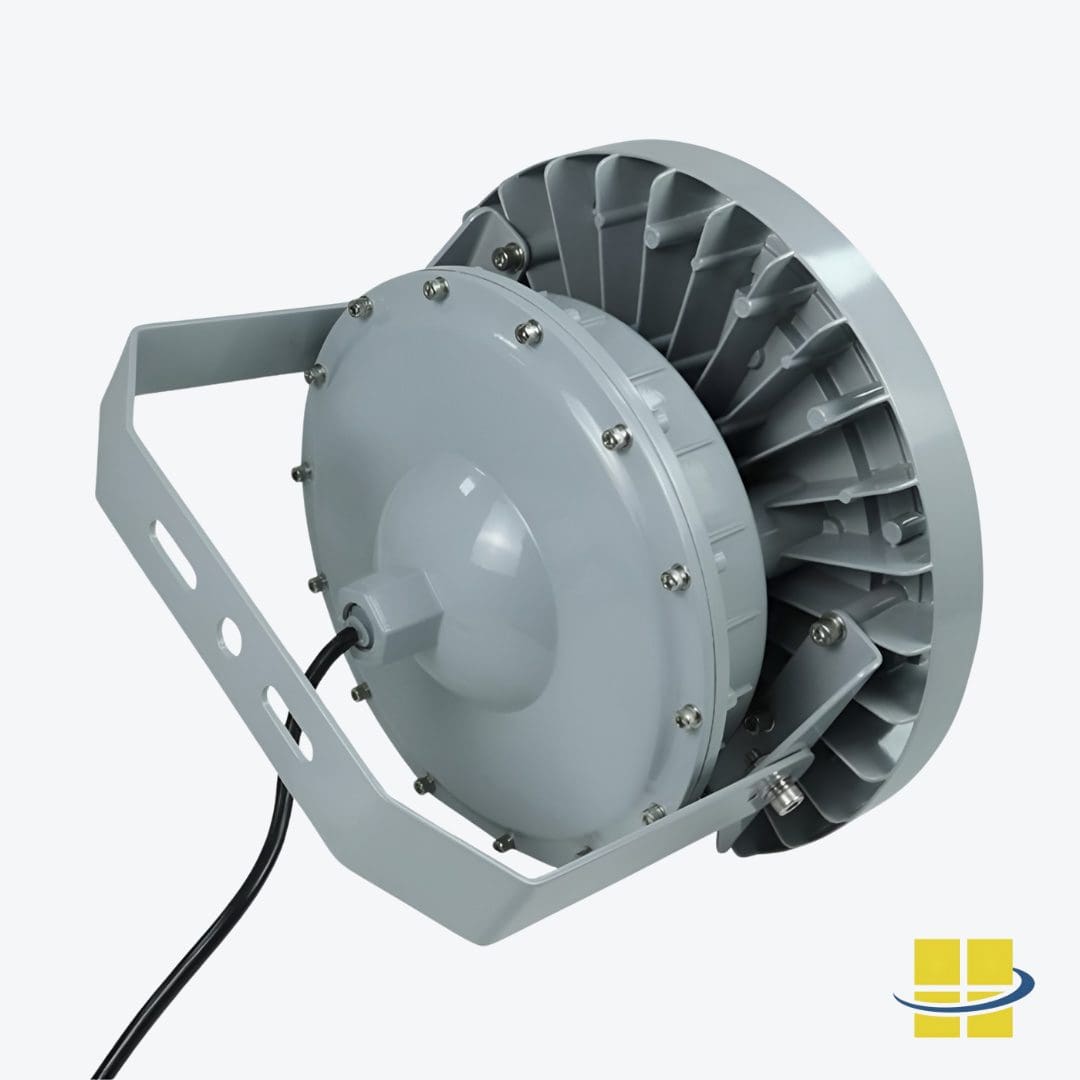

BAHL 300 Explosion-proof Flood Light

$689.87

Extreme Durability: In hazardous environments, durability is crucial for explosion-proof fixtures. Constructed from top-grade lightweight Copper-free aluminum housing material with a sleek design, this fixture withstand impacts, extreme temperatures, and exposure to hazardous substances. This ensures uninterrupted performance, enhancing safety.

Exceptional Performance: Explosion-proof fixtures deliver reliable illumination in challenging environments. Through engineering, they ensure consistent and uniform light output, to ensure safety in hazardous areas where interruptions pose risks.

Versatility: Explosion-proof fixtures are versatile, and used in various industries like petroleum and food production. Their adaptability ensures reliable lighting solutions for diverse needs, enhancing safety and efficiency in chemical plants, pumping stations, and more.

In Stock

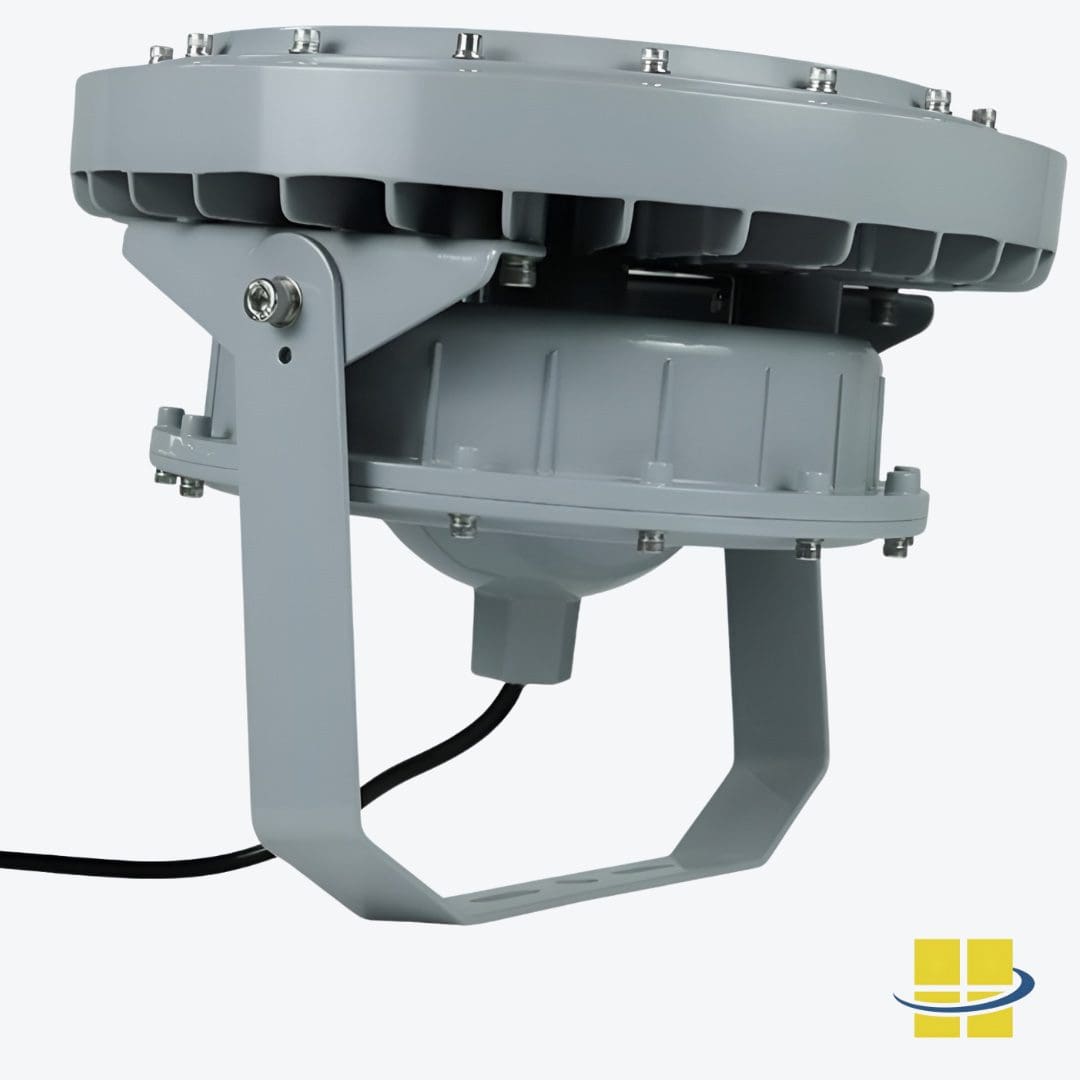

Featuring a variety of mounting options, offering versatility and functionality to suit your specific lighting needs.
Tempered glass provides superior strength and safety, up to 3 times stronger than heat-treated glass, with the added safety benefit of breaking into small pebbles. Perfect for areas needing durability and impact resistance. PC lens, a durable thermoplastic, thrives in harsh environments.
*Choose this option only if you prefer to install your Cable entries on the Side.
*Choose this option only if you prefer to install your Cable entries at the Top.
Do you need the BAHL to stay on when the power goes out? If yes, add the Emergency Power Supply.
  • Total

Specifications

Weight 45.19 lbs
Dimensions 23.23 × 23.23 × 12.20 in
Light Source

Availability

7 to 10 Day Production, plus Shipping

Available Finishes

Gray

Color Rendering Index (CRI)

70+

Housing

Powdercoat finish, Copper-free Aluminum

Lens

Clear polycarbonate lens, Clear tempered glass lens

Light Source Included

LED Array Included

Light Source Lumens

42,000

Listings

IP66, ANSI/UL 1598, 8750, IK08, UL 844

Product Family

BAHL

Rated Life

150,000

System Watts

300

System Watts Filter

200w – 499w

Voltage

100v, 277v

Warranty

5-Year Limited Warranty

Product Description

Extreme Durability: In hazardous environments, durability is crucial for explosion-proof fixtures. Constructed from top-grade lightweight Copper-free aluminum housing material with a sleek design, this fixture withstand impacts, extreme temperatures, and exposure to hazardous substances. This ensures uninterrupted performance, enhancing safety.

Exceptional Performance: Explosion-proof fixtures deliver reliable illumination in challenging environments. Through engineering, they ensure consistent and uniform light output, to ensure safety in hazardous areas where interruptions pose risks.

Versatility: Explosion-proof fixtures are versatile, and used in various industries like petroleum and food production. Their adaptability ensures reliable lighting solutions for diverse needs, enhancing safety and efficiency in chemical plants, pumping stations, and more.

BAHL Explosion-proof Ratings:

Atex Marking

II2 G Ex mb eb IIC T4 Gb
II2 D Ex tb IIIC T135C Db IP66
II3 G Ex ec IIC T3C Gc
II2 D Ex tb IIIC T135C Db IP66
IECEX Marking
Ex mb eb IIC T4 Gb
Ex tb IIIC T135C Db IP66
Ex ec IIC T3C Gc
Ex tb IIIC T135C Db Ip66
UL844 Marking (North American)
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
Marine Marking
UL1598, UL1598A
ABS
Other Rating
IP66
IK08

Features:

  • 5000K
  • 300 system watts
  • 140 lumens per watt
  • Tempered flat glass lens or Clear Polycarbonate Lens
  • Gray powder-coat finish
  • 100-277v
  • 120° beam
  • 70+ CRI
  • -40°F to 131°F
  • Copper-free Aluminum hardware
  • 23.23″ x 23.23″ x 12.20″
  • 45.19 lbs

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.


Get a Custom Photometric Analysis for Your BAHL 300 Explosion-proof Flood Light Project

A photometric analysis is a custom computer simulation of your particular project. This service provides average footcandles at various heights, max/min (uniformity) ratios, minimum footcandles, light trespass levels, and more. For exacting lighting specifications, a photometric analysis helps you ensure light levels before making a big purchase. One of our lighting specialist will walk you through the process so you know exactly what you will be receiving. Call us at 800-468-9925 or [email protected] for more information about ordering a photometric analysis for your project.

Ready to Order BAHL 300 Explosion-proof Flood Light or Speak to a Lighting Specialist?

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
