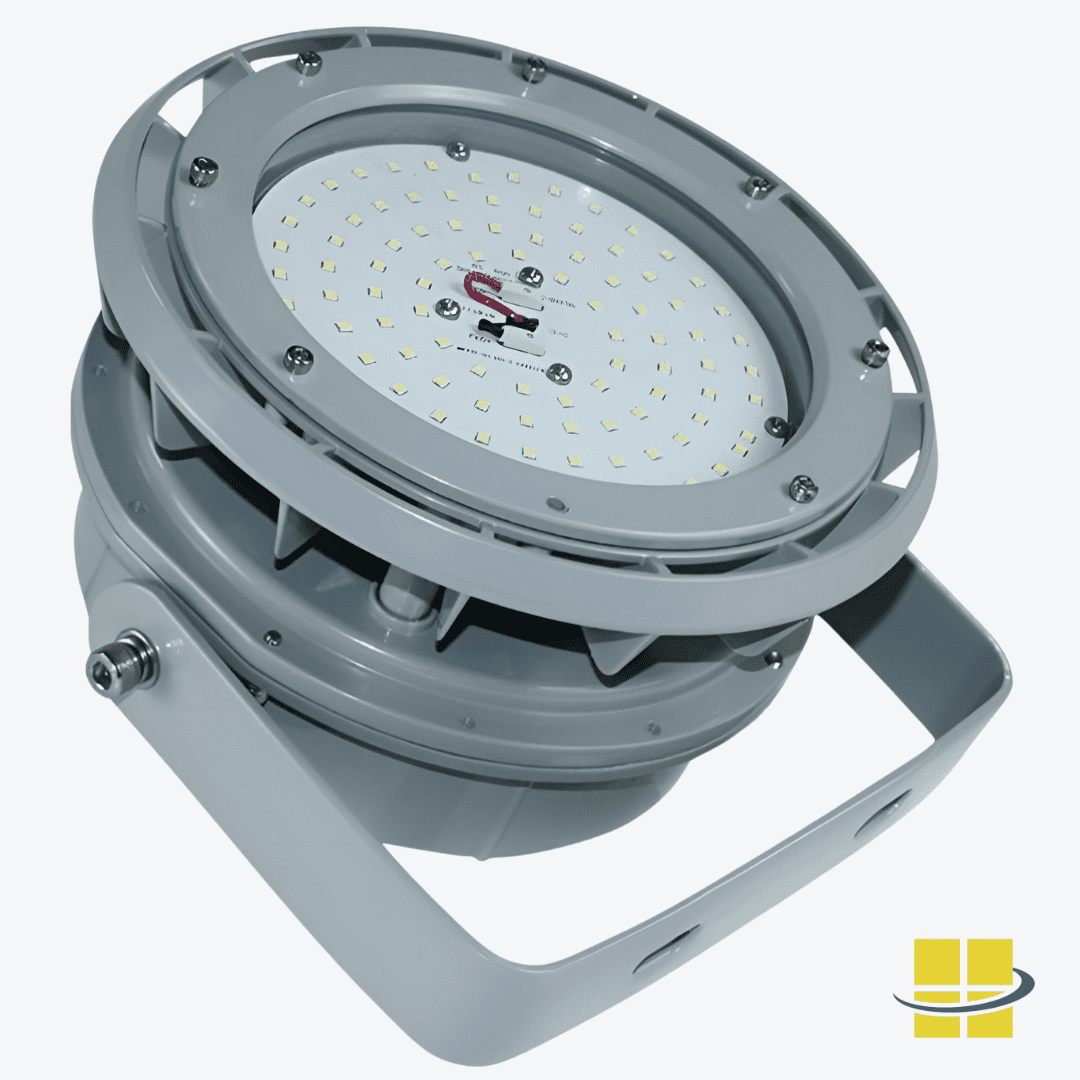

BAHL 60 Explosion Proof Flood Light, 120-277v

$369.87

The BAHL 60 Explosion Proof Flood Light, 120-277v is a hazardous location and explosion proof light fixture built to last.

Explosion Proof: BAHL is explosion and hazardous location proof. See features for complete listing information.

Lightweight: This fixture is constructed from lightweight die-cast aluminum and weighs only 7.7 lbs.

Extremely Efficient  : This explosion proof fixture emits a whopping 140 lumens per watt while staying budget-friendly.



Questions? Contact a lighting specialist.



Call 800-468-9925

In Stock

SKU: AF87XEX-60WB2N50D120 Categories: , , , , Tag:


Product Description

The BAHL 60 Explosion Proof Flood Light, 120-277v is a hazardous location and explosion proof light fixture built to last.

Explosion Proof: BAHL is explosion and hazardous location proof. See features for complete listing information.

Lightweight: This fixture is constructed from lightweight die-cast aluminum and weighs only 7.7 lbs.

Extremely Efficient  : This explosion proof fixture emits a whopping 140 lumens per watt while staying budget-friendly.

BAHL Explosion Proof Ratings:

Atex Marking

II2 G Ex mb eb IIC T4 Gb
II2 D Ex tb IIIC T135C Db IP66
II3 G Ex ec IIC T3C Gc
II2 D Ex tb IIIC T135C Db IP66
IECEX Marking
Ex mb eb IIC T4 Gb
Ex tb IIIC T135C Db IP66
Ex ec IIC T3C Gc
Ex tb IIIC T135C Db Ip66
UL844 Marking (North American)
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
Marine Marking
UL1598, UL1598A
ABS
Other Rating
IP 66

Features:

  • 5000K
  • 60 system watts
  • 8,400 lumens
  • 140 lumens per watt
  • Tempered flat glass lens
  • Die cast aluminum housing with gray powdercoat finish
  • 100-277v
  • 120° beam
  • 80 CRI
  • -40°F to 131°F
  • Stainless steel hardware
  • Stainless steel U-bracket mount

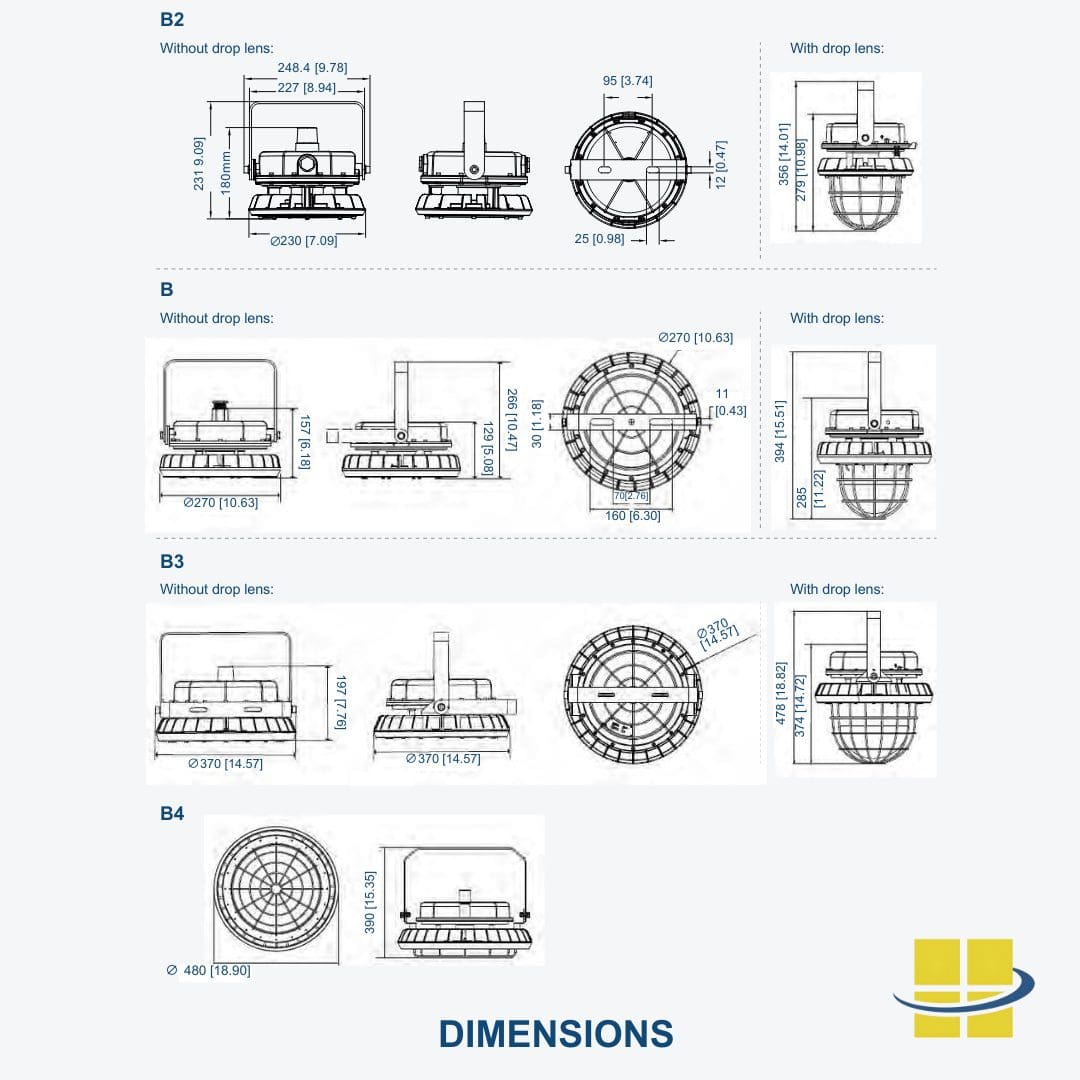

  • 10.6″ x 10.6″ x 6.5″
  • 7.7 lbs



Access Fixtures 5-Year Warranty

All Access Fixtures products come with a 5-year warranty. If your product is found to have a manufacturing defect, we will replace components, the entire product, or issue a refund. We stand behind the quality of our products. Our customer service team, located in Worcester, MA, is happy to address any questions, comments, or concerns you may have. Please give us a call at 800-468-9925. Please view Access Fixtures’ return policy.

Get a Custom Photometric Analysis for Your BAHL 60 Explosion Proof Flood Light, 120-277v Project

A photometric analysis is a custom computer simulation of your particular project. This service provides average footcandles at various heights, max/min (uniformity) ratios, minimum footcandles, light trespass levels, and more. For exacting lighting specifications, a photometric analysis helps you ensure light levels before making a big purchase. One of our lighting specialist will walk you through the process so you know exactly what you will be receiving. Call us at 800-468-9925 or customerservice@accessfixtures.com for more information about ordering a photometric analysis for your project.

Ready to Order BAHL 60 Explosion Proof Flood Light, 120-277v or Speak to a Lighting Specialist?

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.

Specifications

Weight 9 lbs
Dimensions 13 × 12 × 6 in
Light Source

Availability

Typically ships in 7-10 business days

Available Finishes

Gray

Color Rendering Index (CRI)

80+

Housing

Powdercoat finish

Lens

Clear tempered glass lens

Light Source Included

LED Array Included

Light Source Lumens

8,400

Listings

IP66, ANSI/UL 1598, 8750, UL 844

Mounting

Yoke Mount/U-Bracket Mount

Product Family

BAHL

Rated Life

50,000 Hours

System Watts

60

System Watts Filter

50w – 99w

Voltage

120-277v

Warranty

5-Year Limited Warranty
