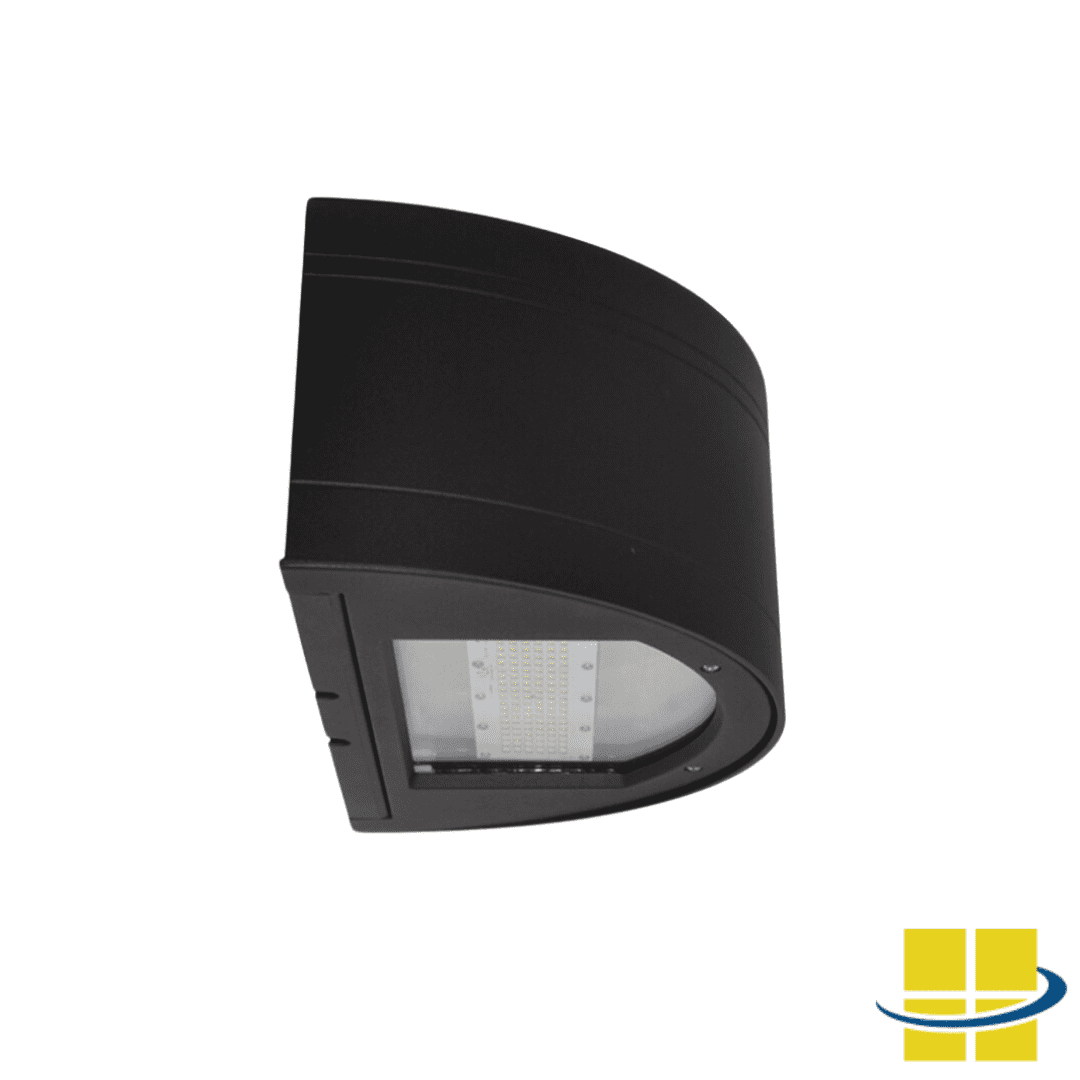

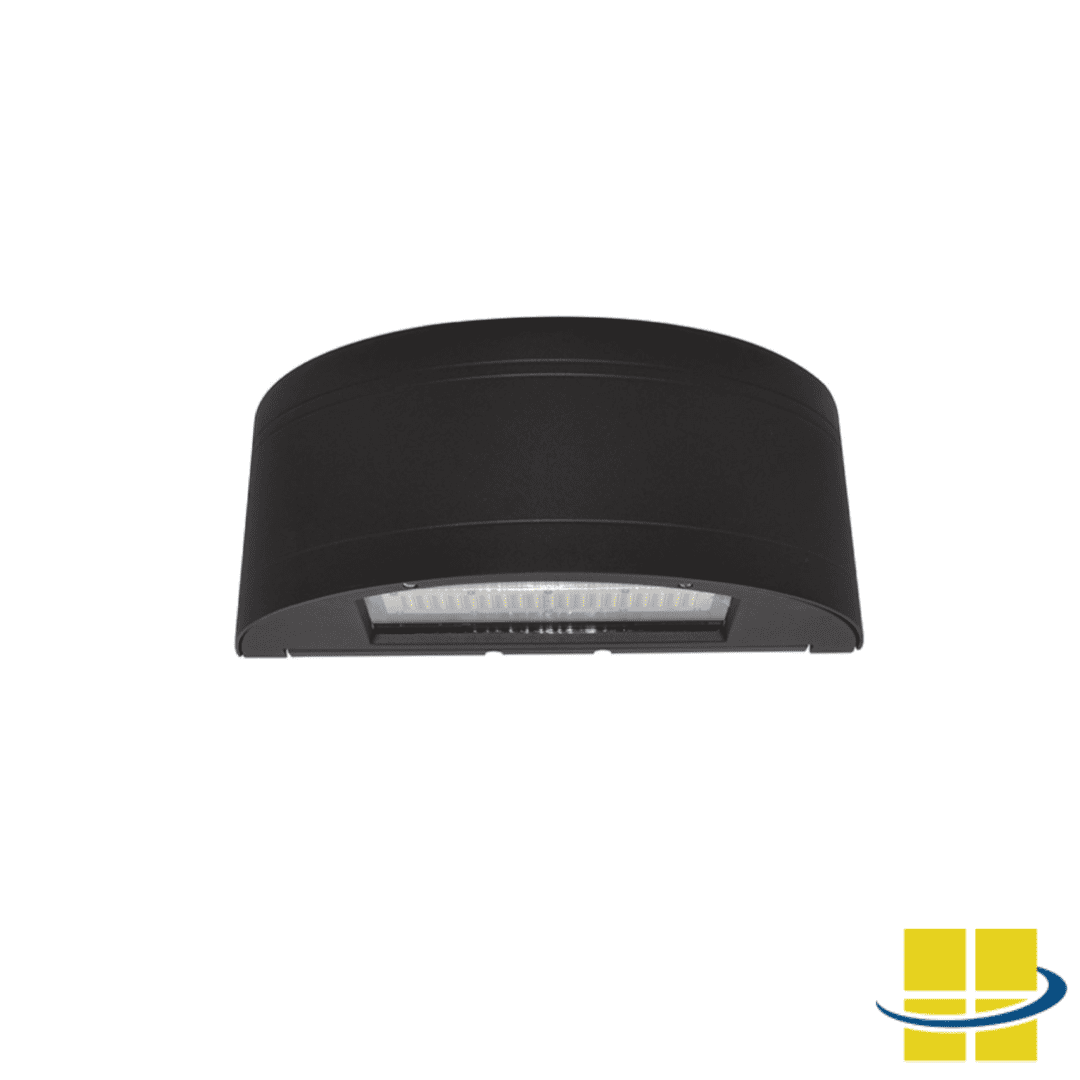

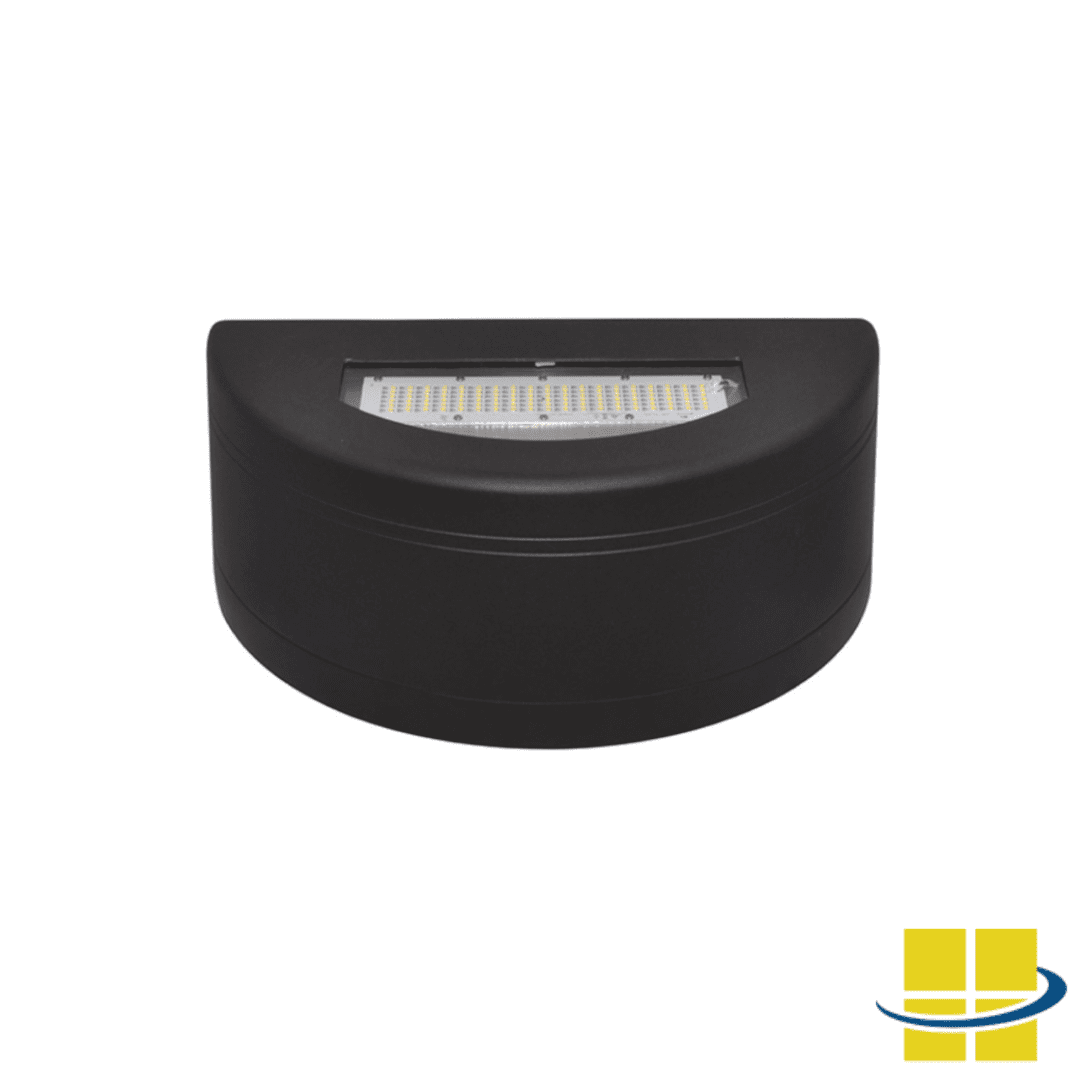

BAKO 40 Up Down Light Architectural LED Wall Pack 120-277v


The BAKO Crescent Up Down 40w LED Wall Pack expertly balances aesthetics and function. Its thoughtful design highlights buildings with uplighting, ensures even light distribution with reduced glare, and offers versatile optics for tailored illumination.

Architectural Lighting: The up light accentuates the building while the downlight illuminates the walkway.

Low Glare: Glare reduction lens provides superior light distribution while minimizing glare.

Select the Optics: Available with T4 wide or T5 forward throw optics for maximum illumination.

Questions? Contact a lighting specialist.

Call 800-468-9925

In Stock

  • Total

SKU: AF55XSML302UD40/xK Category:


Weight 20 lbs

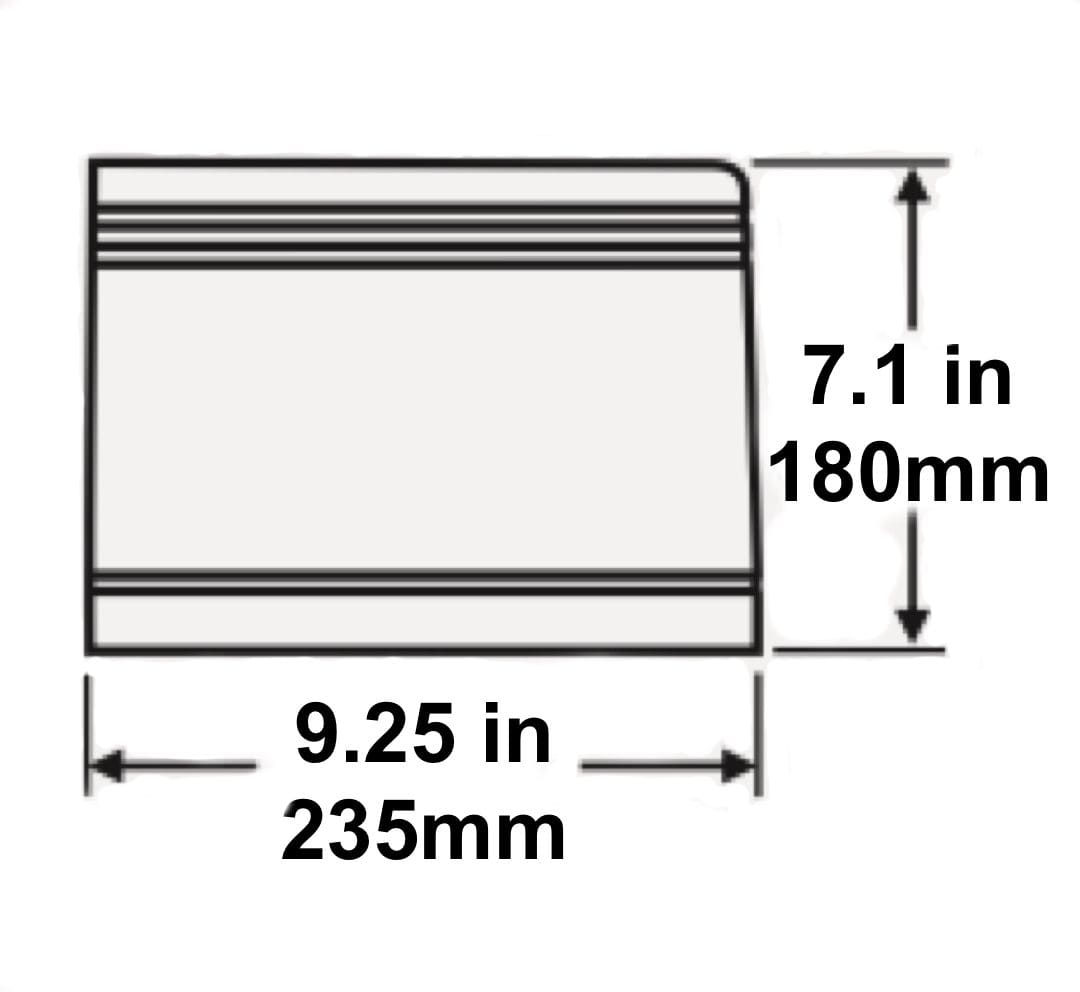

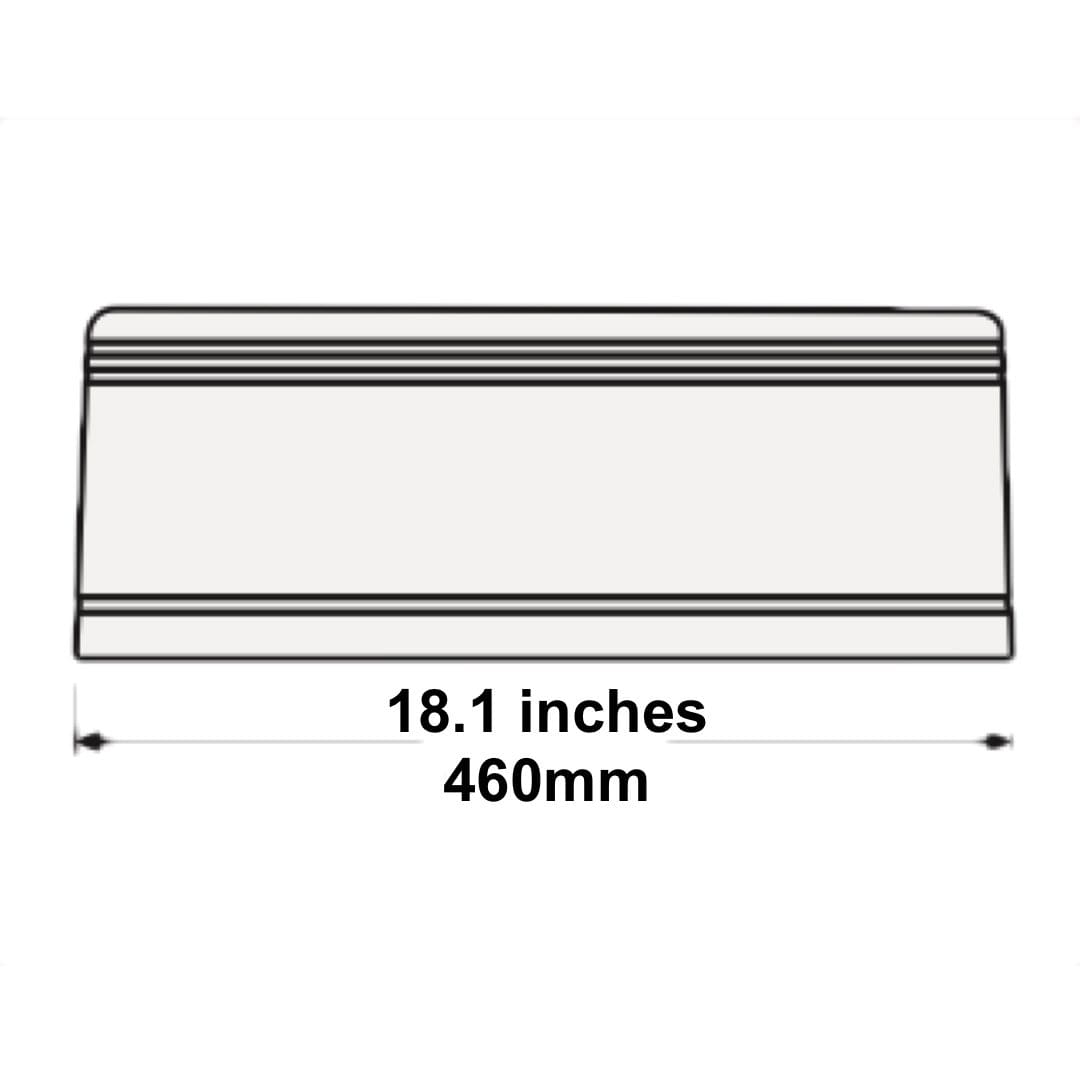

Dimensions 22 × 11 × 13 in

7 to 10 Day Production, plus Shipping

Available Finishes

Bronze, Custom RAL

BUG Rating

1, 5, 1

Color Rendering Index (CRI)



Die-cast aluminum housing


Glare Reduction Lens

Light Source


Light Source Included

LED Array Included

Light Source Lumens



CuL Listed, IP65, UL Listed


Surface Mount

Mounting Height

10 ft., 15 ft., 20 ft.

Product Family


Rated Life

50,000 Hours


Up Down

System Watts



120v, 208v, 240v, 277v


5-Year Limited Warranty

Product Description


  • 40 watts
  • Choice of Kelvin – 4000K, or 5000K
  • Glare reduction lens
  • Die-cast aluminum housing
  • 8 Stage UV stabilized powder coat bronze finish
  • BUG Rating: 1, 5, 1
  • 120-277v
  • 6,056 lumens with 5000K LEDs
  • L70-rated @ 50,000 hours
  • 6kV Surge protection standard
  • Operating/starting range of -40°C to +50°C (-40°F to 122°F)
  • IP65-rated
  • 1 person install surface mount
  • 70+ CRI (learn more about Color Rendering Index here)
  • CE, UL, and CUL Listed


  • Photocell
