CARA 81w LED FWC Certified Area/Wall/Flood, EXTREME-LIFE

Product Description

Features

• Florida Wildlife Commission Certified

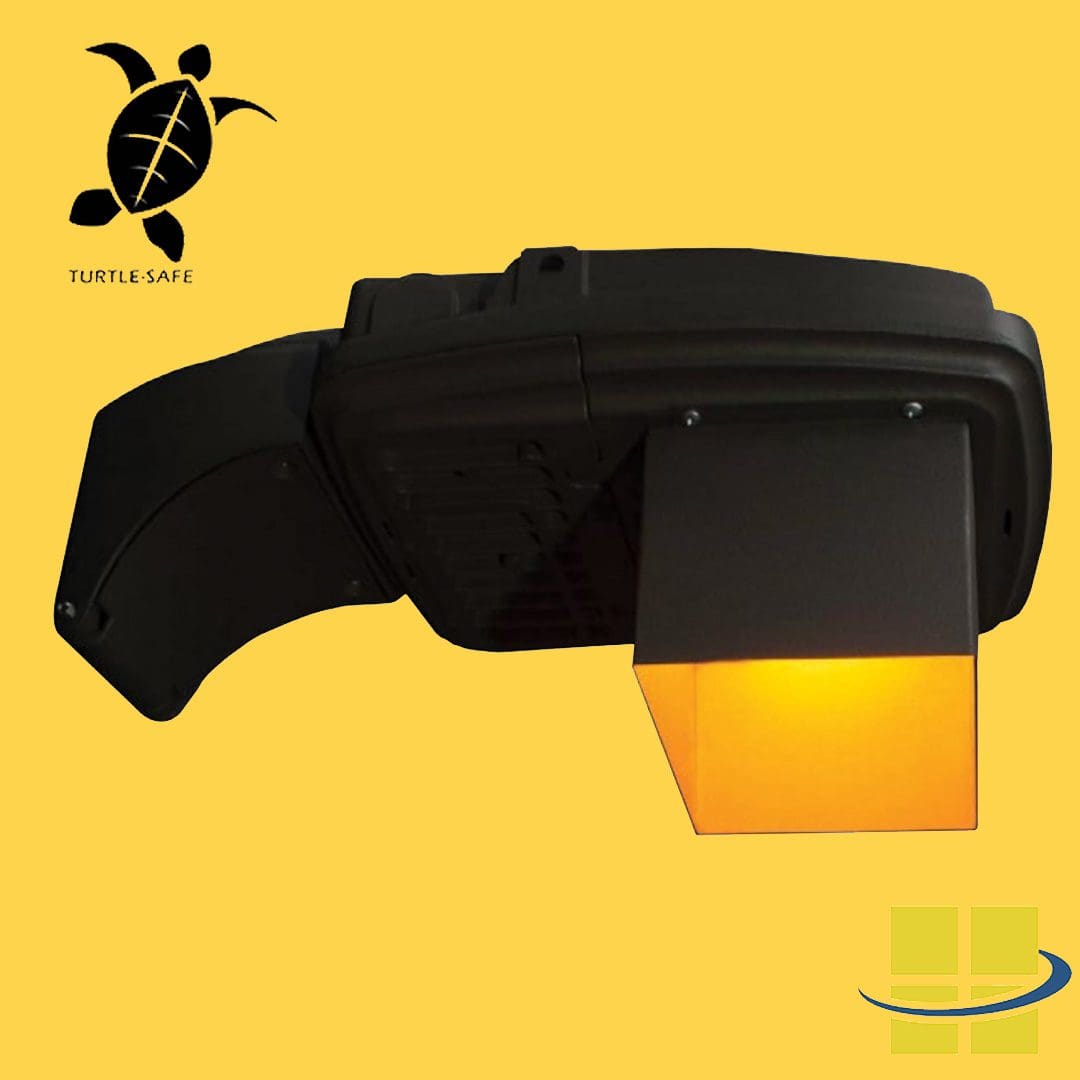

• Includes full baffle required to maintain FWC Turtle Lighting certification
• 32 LPW
• 2,607 lumens
• Choice of Finish: Bronze or custom RAL colors available upon request
• Horizontal cut-off mounting configurations
• Shielded IES Type V distribution
• Die-cast aluminum housing and front frame
• Integral heat sinking and driver compartment
• Photocell Adaptable
• Nickel-plated stainless steel hardware
• CSA listed for wet locations
• IP66 sealed LED compartment
• Textured architectural bronze powdercoat finish over a chromate conversion coating
• Tempered clear flat glass lens
• Mounted with arm, 2⅜˝ Diameter Mounting Arm Adapter, or Easy Hang Wall Bracket (factory Installed)
• Electronic driver
• 120-277v, or 347-480v
• 120-277VAC 10KA Surge Suppressor
• 347-480VAC 10KA Surge Suppressor
• 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps
• Operating temperature: -40°C~+50°C environment

Options

• Choice of Finish: Bronze or custom RAL colors available upon request
• Photocell Adaptable
  • 3-Pin Twist Lock Photocell Receptacle
  • 5-Pin Twist Lock Photocell Receptacle
  • 7-Pin ANSI C136.41—2013 Twist Lock Photocell Receptacle
  • 120-277VAC Universal Twist Lock Photocell
• Surge protection
  • 120-277VAC 10KA Surge Suppressor
  • 347-480VAC 10KA Surge Suppressor
• Mounts with arm, 2 3/8″ diameter mounting arm adapter, or easy hang wall bracket (factory installed)
• Motion sensor
  • Motion Sensor IR with Lens, 120-277V Only, for heights up to 40′
  • Motion Sensor IR with Lens, 120-277V Only, for heights up to 20′
  • Microwave Sensor with Dimming, 120-277V Only
  • Microwave On/Off Motion Sensor – NO Dimming, 120-277V Only

Need a Photometric Analysis for Your CARA Area/Flood/Wall Light Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometric studies include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order or Speak to a Lighting Specialist?

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
