Product Specifications
| Weight | 21 lbs |
|---|---|
| Dimensions | 15 × 26 × 9 in |
| Model Number | AF55XL6010NT3/08345K |
| Weight in Pounds | 12 lbs |
| Shipping Weight | 21 lbs |
| EPA | 1.34 |
| Housing | Die-cast aluminum housing |
| Finish Specifications | UV Stabilized Powder Coat |
| Available Finishes | Bronze |
| Color Rendering Index (CRI) | 70+ |
| Lens | Polycarbonate |
| Optics | lll, IV, V |
| Color Temperature (Kelvin) | 3000K, 4000K, 5000K |
| LED Type | LED Module |
| System Watts | 40, 60, 80 |
| Light Source Lumens @ 4000K | 12,000 |
| Luminaire Lumens @ 4000K | 12,000 |
| Dimensions in Inches Lumens Per Watts @ 4000K* | 26 x 10 x 4 |
| Luminaire Lumens Per Watts @ 4000K* | 162 |
| Dimension in mm | 650 x 240 x 100 |
| Mounting | Universal Mount |
| Rated Life | 50,000 Hours |
| Voltage | 120v, 208v, 240v, 277v |
| Surge Protection | 10KV |
| Controls | Pole side shield, Photocell/Occupancy Sensor |
| Operating Temperature | -40C to 40C |
| IP Rating | IP65 |
| lK Rating | IK08 |
| DLC Number | S-DJS2CK |
| Listings | RoHS Compliant, Wet locations, CuL Listed, DLC Premium,UL |
| Warranty | 5-Year Limited Warranty |
| Availability | 5 to 7 Day Production, plus Shipping |

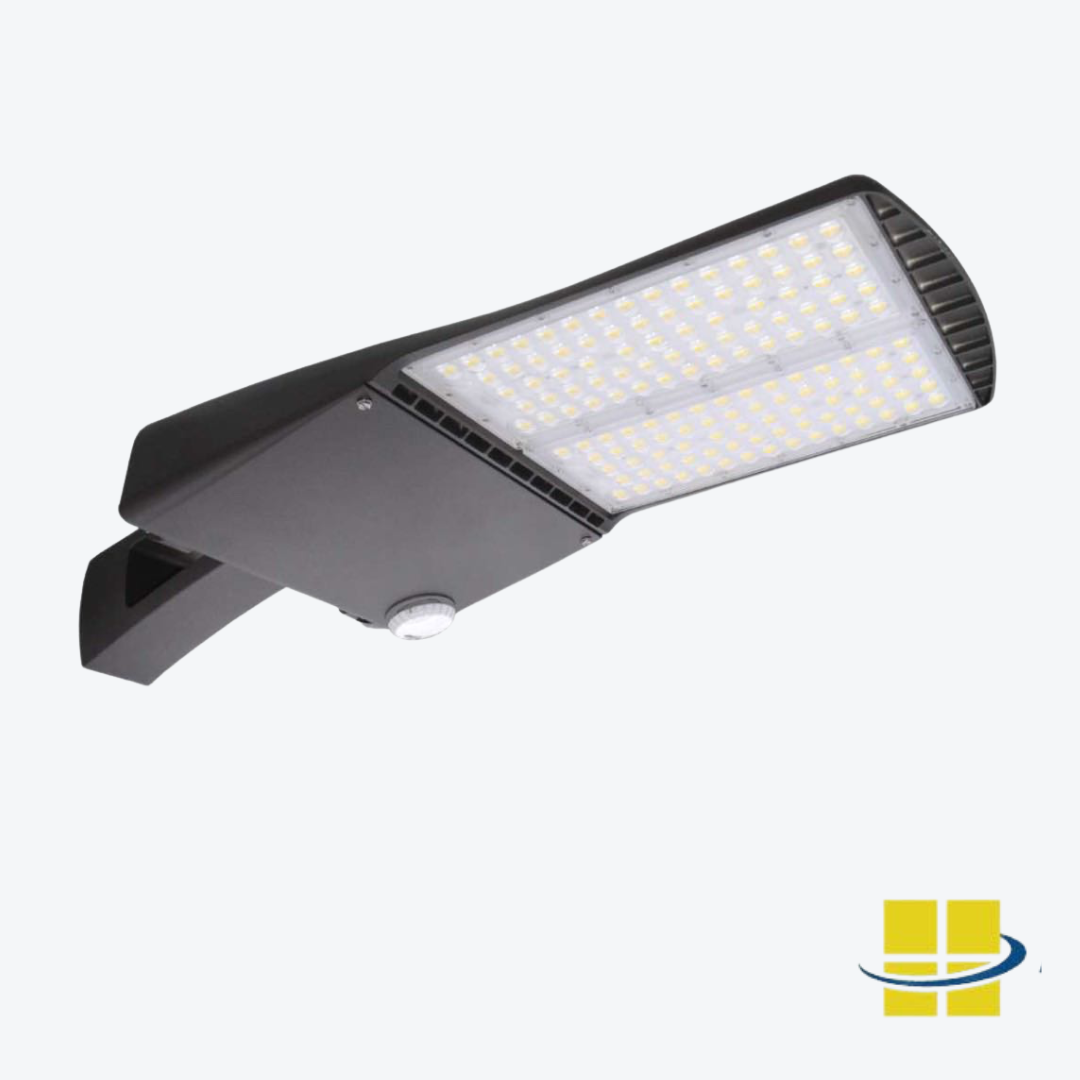

CARO 40-60-80 LED Sports Light and Area Light with Selectable Kelvin 3K-4K-5K
With its streamlined, aerodynamic profile and precision-engineered design, CARO blends modern aesthetics with tough performance. The die-cast aluminum housing and UV-stabilized powder coat finish ensure long-lasting durability, while the impact-resistant polycarbonate lens protects the LEDs.

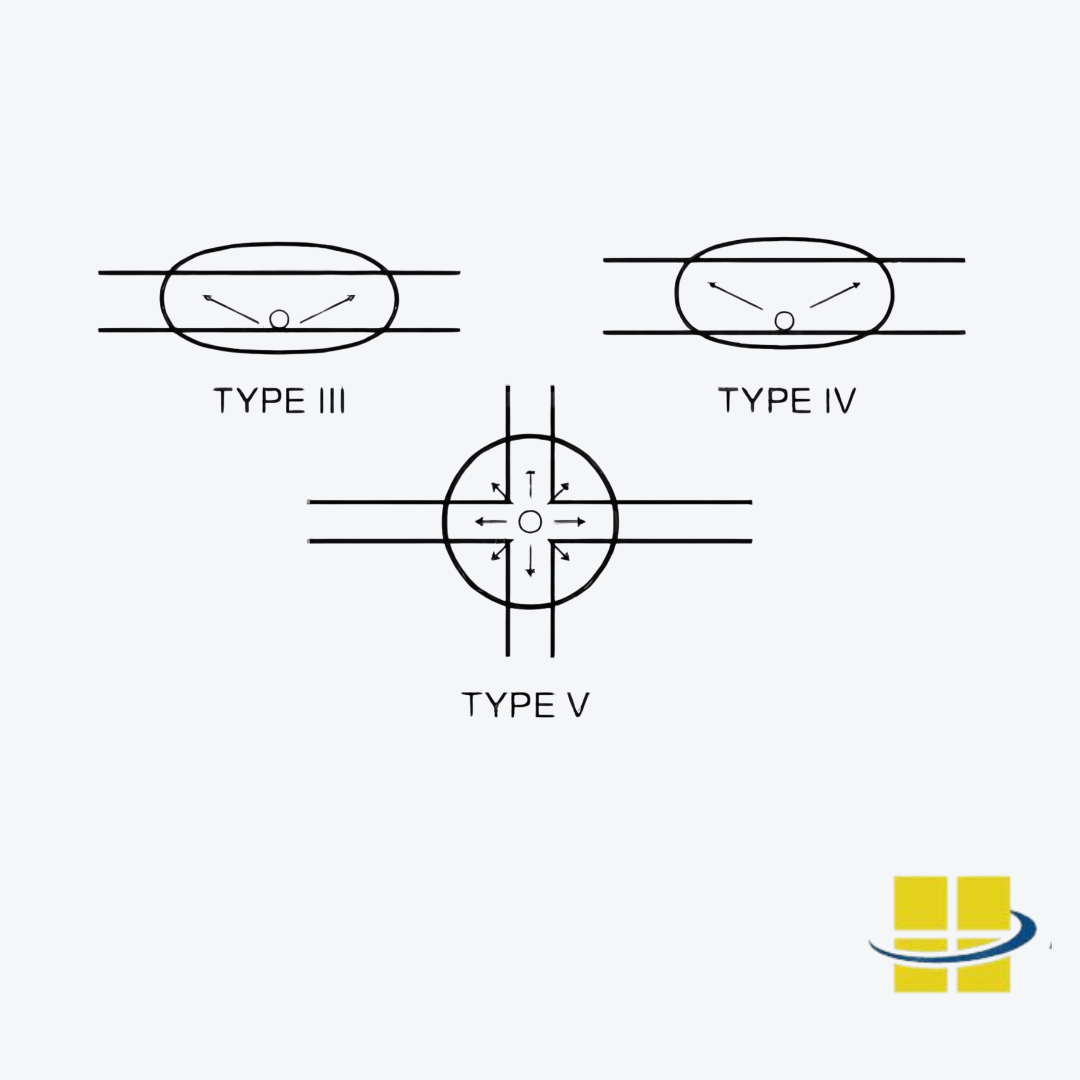

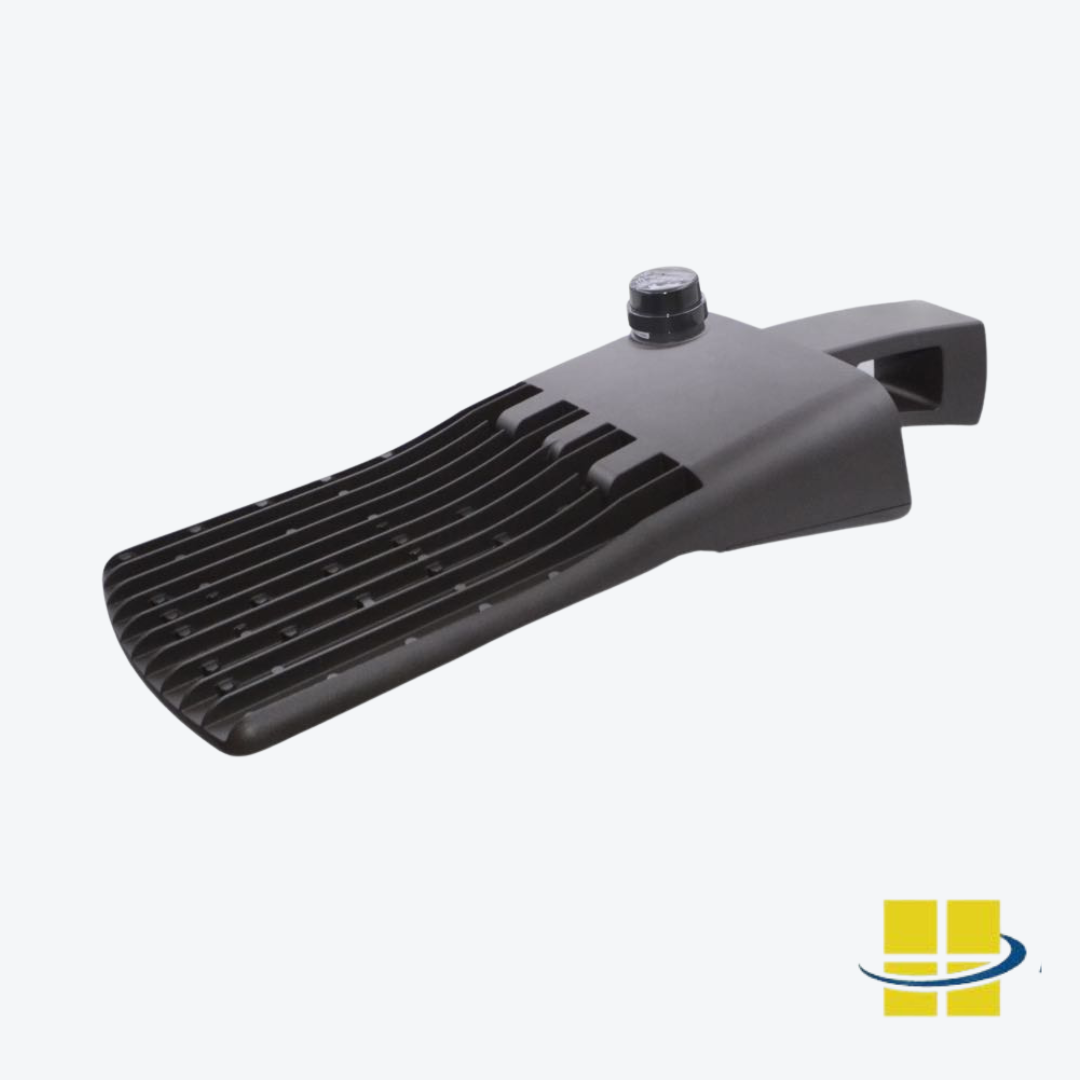

CUSTOMIZABLE: This fixture is built to order, offering customizable features to suit your specific application. Choose a pole-side shield to reduce backlight, or add a photocell or occupancy sensor for energy-saving control. Available with Type III, IV, or V optics, it delivers powerful, precise illumination exactly where it’s needed.
FIELD SELECTABLE: CARO offers selectable wattage and Kelvin temperature, giving you the flexibility to tailor light output and ambiance to your desires. Choose from 3000K, 4000K, or 5000K and adjust between 40w, 60w, or 80w based on your specific needs.

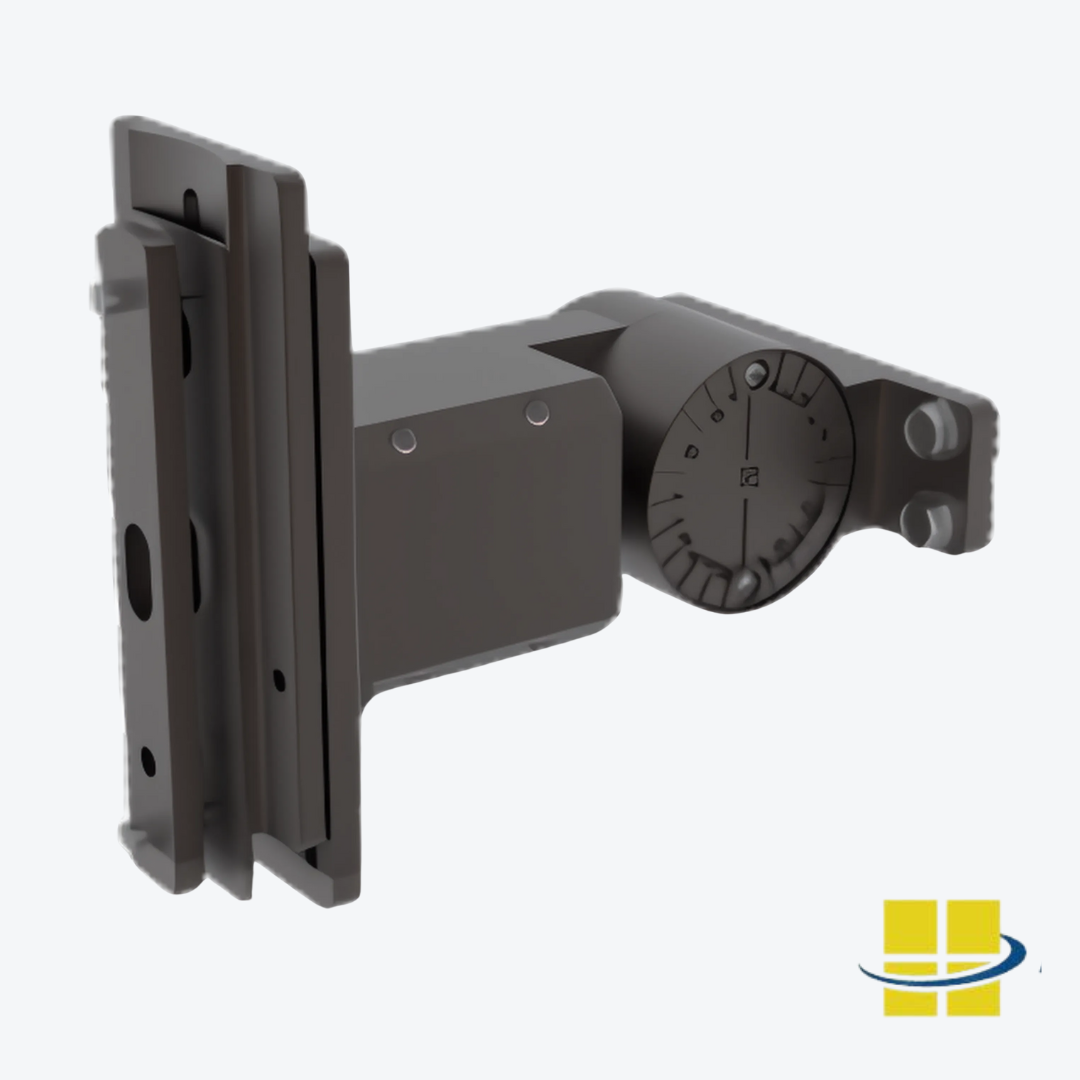

UNIVERSAL MOUNT: CARO’s universal mounting is designed for seamless adaptability across a wide range of installation scenarios. Its 180° adjustable mount enhances both form and function, effortlessly integrating with round or square poles, ensuring fast, secure and versatile installation.
No documents available
$219.87
Product Specifications
| Weight | 21 lbs |
|---|---|
| Dimensions | 15 × 26 × 9 in |
| Model Number | AF55XL6010NT3/08345K |
| Weight in Pounds | 12 lbs |
| Shipping Weight | 21 lbs |
| EPA | 1.34 |
| Housing | Die-cast aluminum housing |
| Finish Specifications | UV Stabilized Powder Coat |
| Available Finishes | Bronze |
| Color Rendering Index (CRI) | 70+ |
| Lens | Polycarbonate |
| Optics | lll, IV, V |
| Color Temperature (Kelvin) | 3000K, 4000K, 5000K |
| LED Type | LED Module |
| System Watts | 40, 60, 80 |
| Light Source Lumens @ 4000K | 12,000 |
| Luminaire Lumens @ 4000K | 12,000 |
| Dimensions in Inches Lumens Per Watts @ 4000K* | 26 x 10 x 4 |
| Luminaire Lumens Per Watts @ 4000K* | 162 |
| Dimension in mm | 650 x 240 x 100 |
| Mounting | Universal Mount |
| Rated Life | 50,000 Hours |
| Voltage | 120v, 208v, 240v, 277v |
| Surge Protection | 10KV |
| Controls | Pole side shield, Photocell/Occupancy Sensor |
| Operating Temperature | -40C to 40C |
| IP Rating | IP65 |
| lK Rating | IK08 |
| DLC Number | S-DJS2CK |
| Listings | RoHS Compliant, Wet locations, CuL Listed, DLC Premium,UL |
| Warranty | 5-Year Limited Warranty |
| Availability | 5 to 7 Day Production, plus Shipping |
Ready to Order or Speak to a Lighting Specialist?
You can place your order online or if you want additional information, give us a call at 800-468-9925. Our team of friendly, expert high performance lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
You can also leave messages for and chat live with a lighting specialist by using our Live Chat feature on the bottom-right side of your browser window.
Access Fixtures Warranty
Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures’ complete warranty policy.
