CUDL 93w LED Full Cutoff Wall Pack, Type 4 Optics, EXTREME-LIFE

$659.87

The CUDL LED Full Cutoff Wall Pack features Type 4 optics uniquely designed to optimize light distribution. With its exceptional EXTREME-LIFE L70 rating at 646,000 hours, the CUDL wall pack is not only designed to deliver outstanding performance but is also engineered for long-lasting durability. With a variety of features and options, CUDL stands out as an excellent choice for illuminating high walls and diverse commercial settings, including airports, medical facilities, universities, schools, retail centers, and beyond.

Full Cutoff: Our full cutoff design aids customers in meeting local lighting regulations by minimizing up-light and reducing light trespass.

EXTREME-LIFE: With an L70 rating at an impressive 646,000 hours, the CUDL is a perfect choice for hot climates, challenging-to-access areas, and any location where reliability and longevity are needed.

Type 4 Optics: The standard Wide-angle type 4 optics, optimize light distribution effectively between wall packs and across surface areas.


Buy American Act Compliant

In Stock

  • 4000k will be similar to the fluorescent light in an office or commercial area. 5000k will be the temperature you use in an application like a sports facility.
  • Maximize energy savings and the life of the lights by adding a motion sensor with IR Lens
  • Adding a photocell prevents the need to manually turn on/off your area/spot/flood lights when it gets dark.
  • Adding surge protection protects your light from unwanted power spikes that can damage the fixture
  • Battery back up keeps the lights on when the power goes out.
  • Total

SKU: AF33XWPC45QD1X81 Categories: ,

Specifications

Weight 15 lbs
Dimensions 15 × 12 × 6 in
Availability

7 to 10 Day Production, plus Shipping

Available Finishes

Bronze, Custom RAL

BUG Rating

3, 3, 3

Color Rendering Index (CRI)

80+

Housing

NIckel plated stainless steel hardware, Die cast aluminum housing

Lens

Clear One-Piece Molded Type 4 Polycarbonate Lens

Light Source

,

Light Source Included

LED Array Included

Light Source Lumens

10,402

Listings

CSA – listed for wet Locations, IP66

Mounting

Built-in level, Easy-hang wall bracket, Mounts over 4-inch electrical box, Optional Trim Plate for retrofit applicatons

Mounting Height

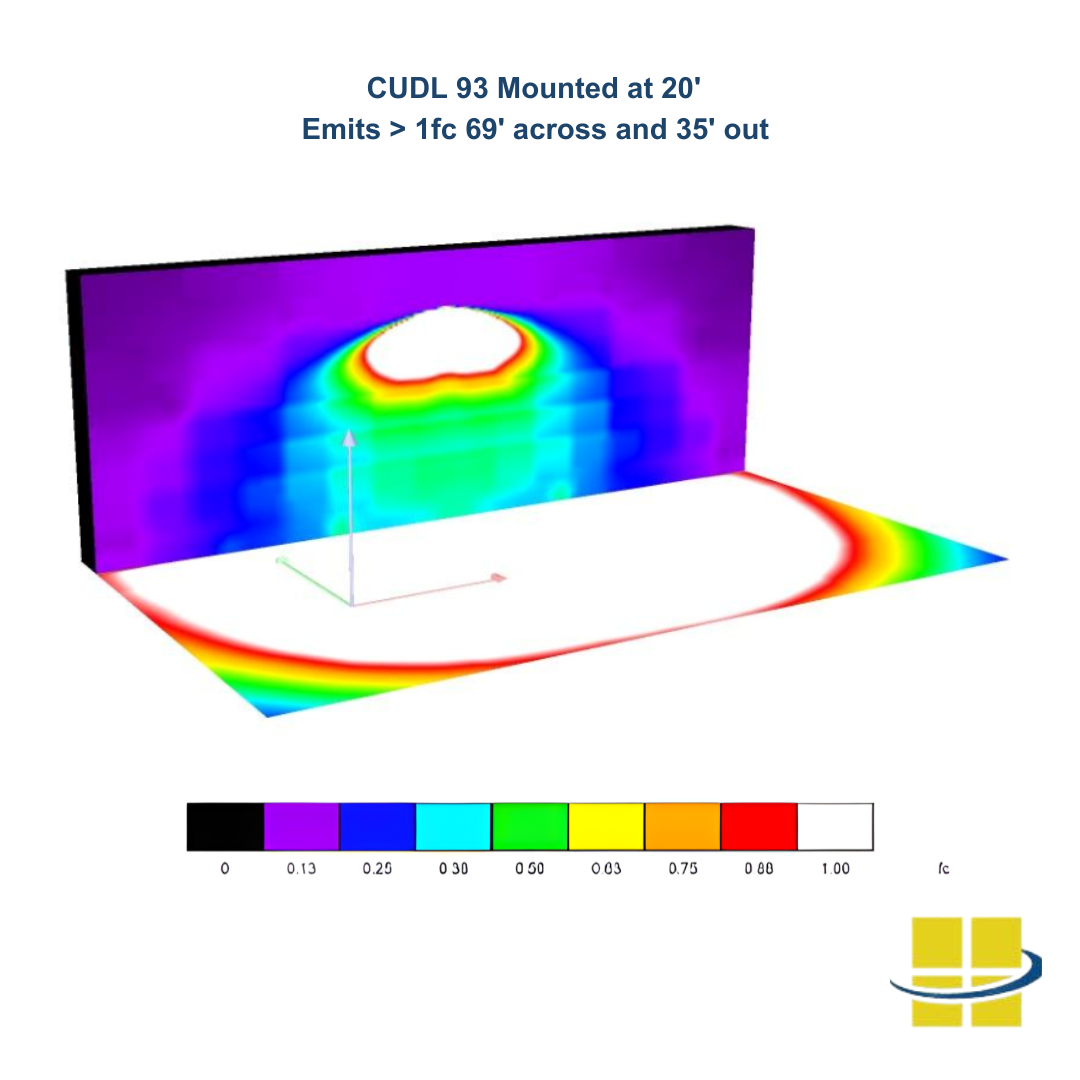

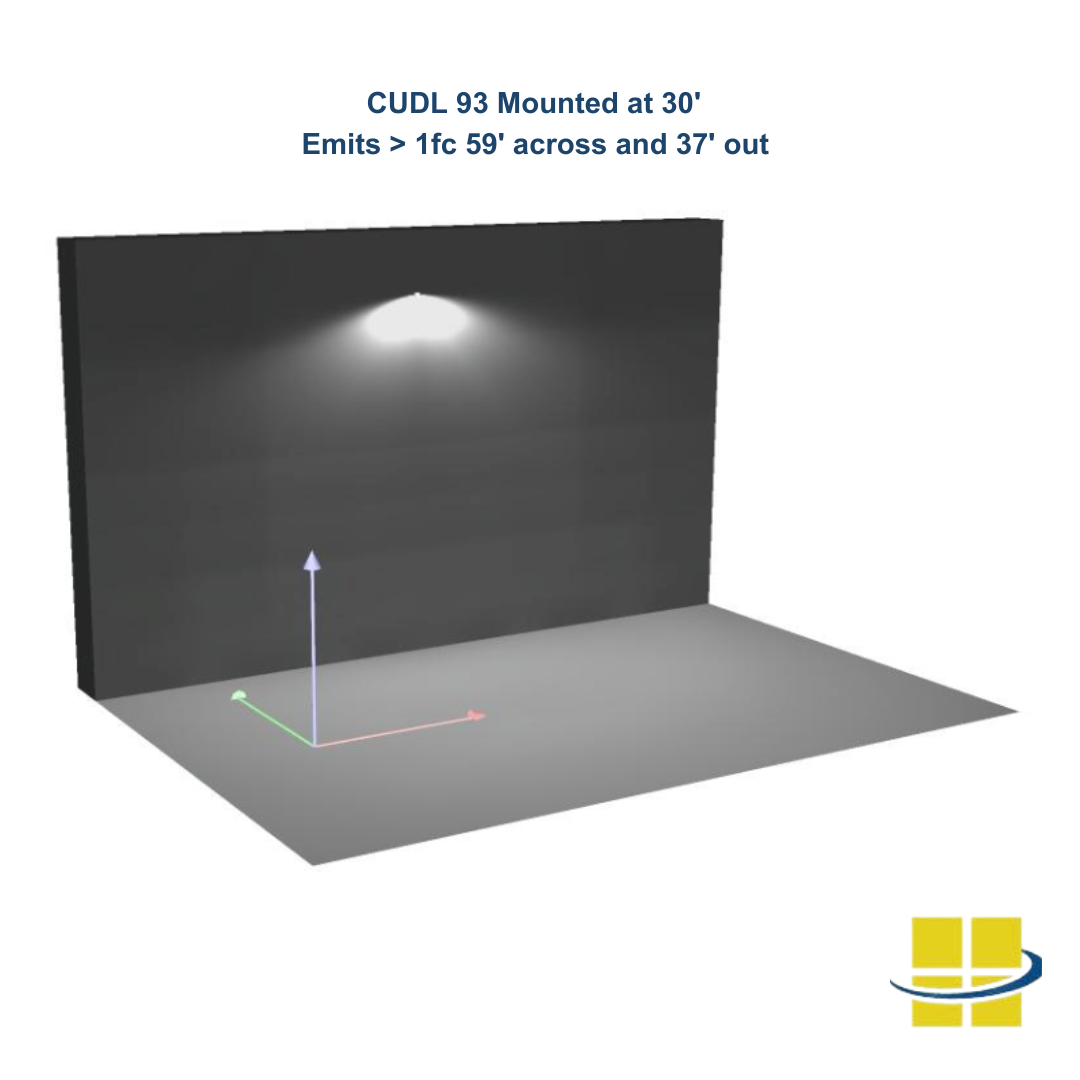

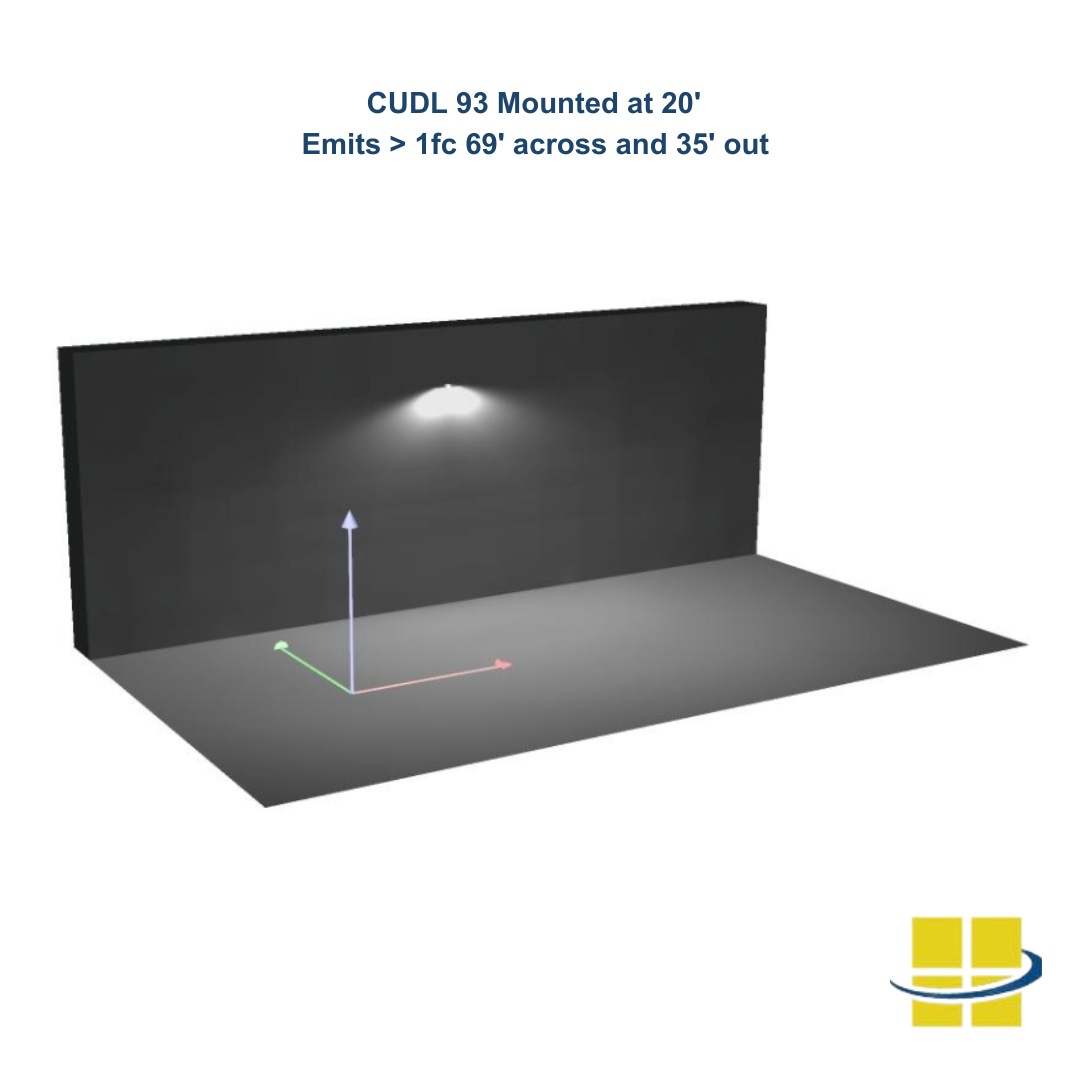

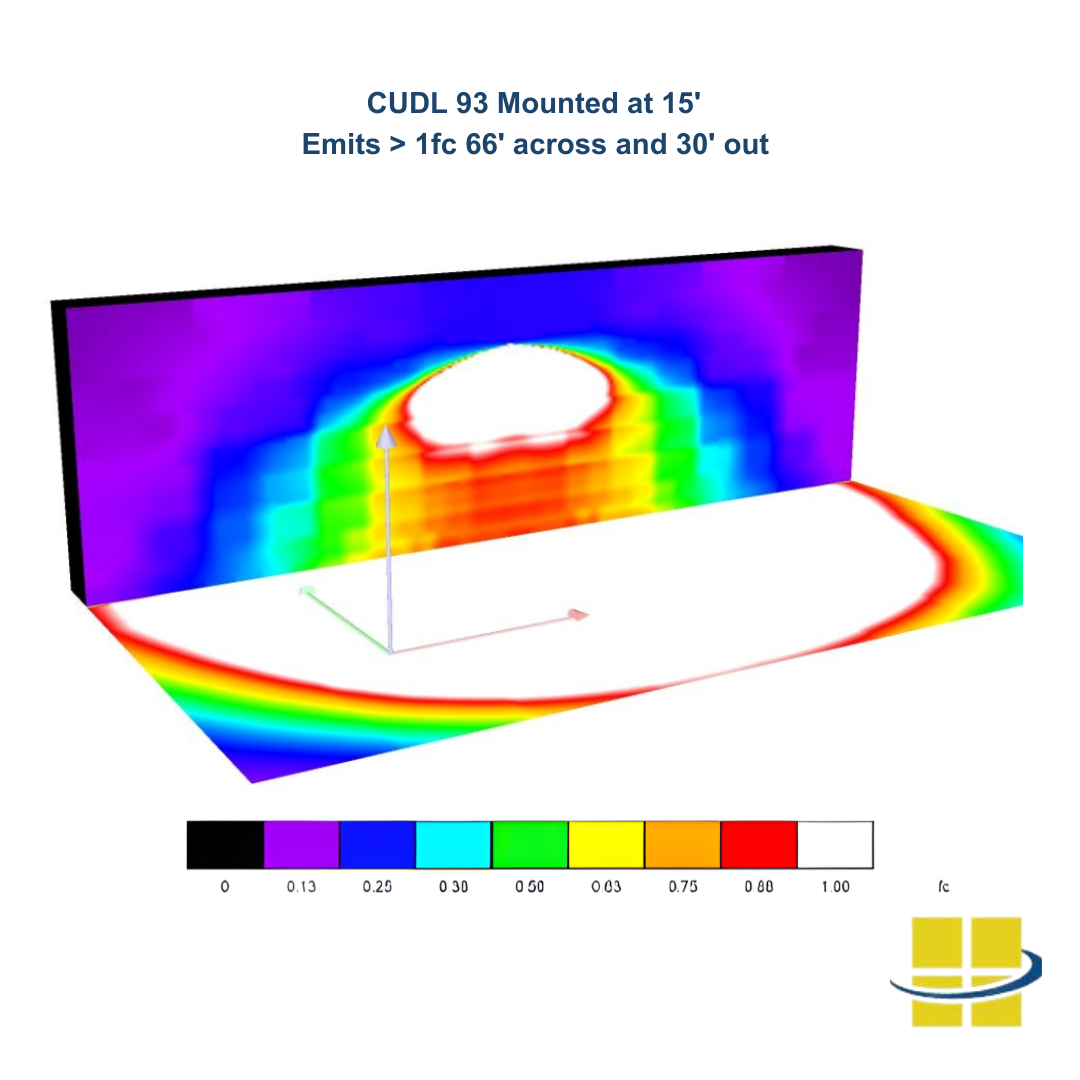

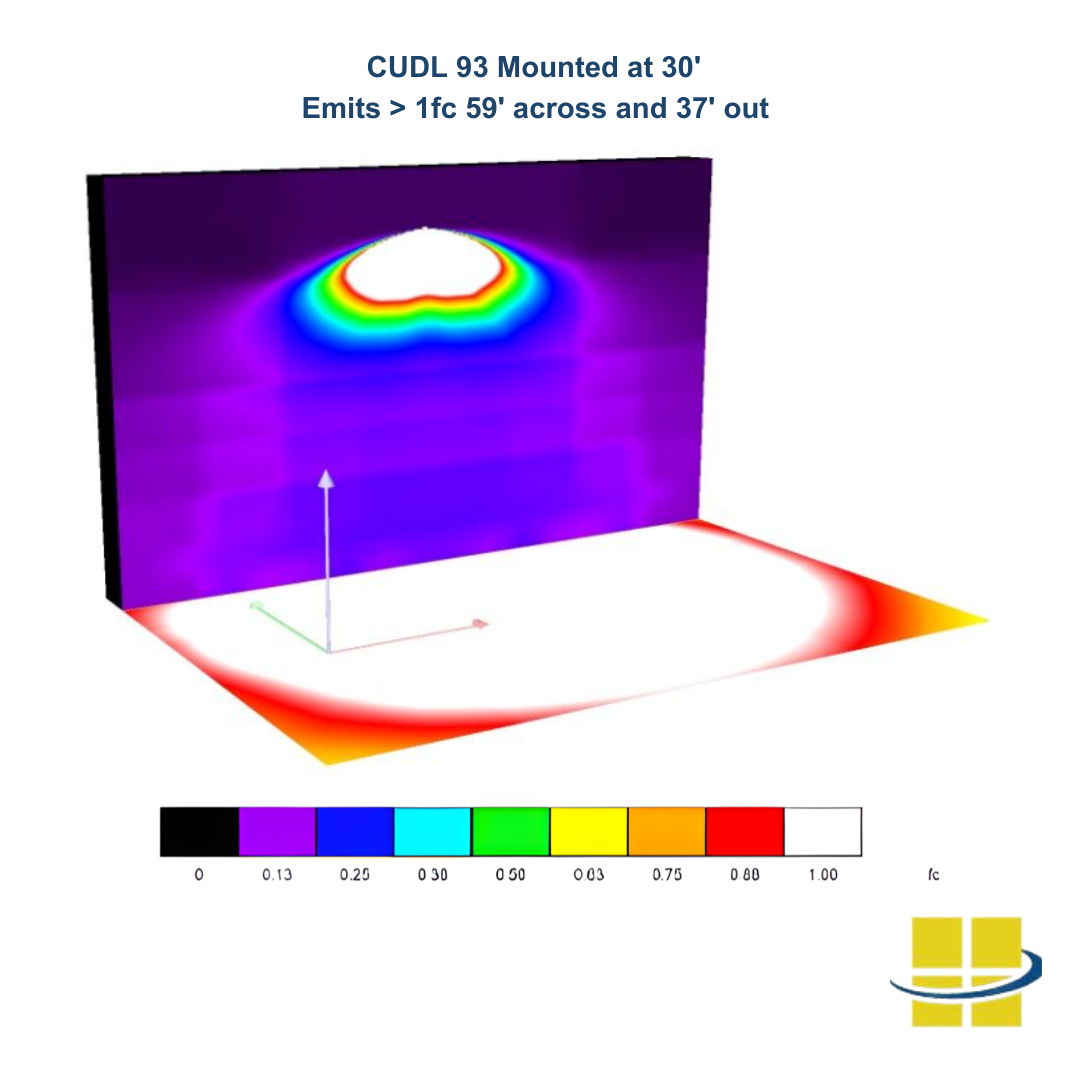

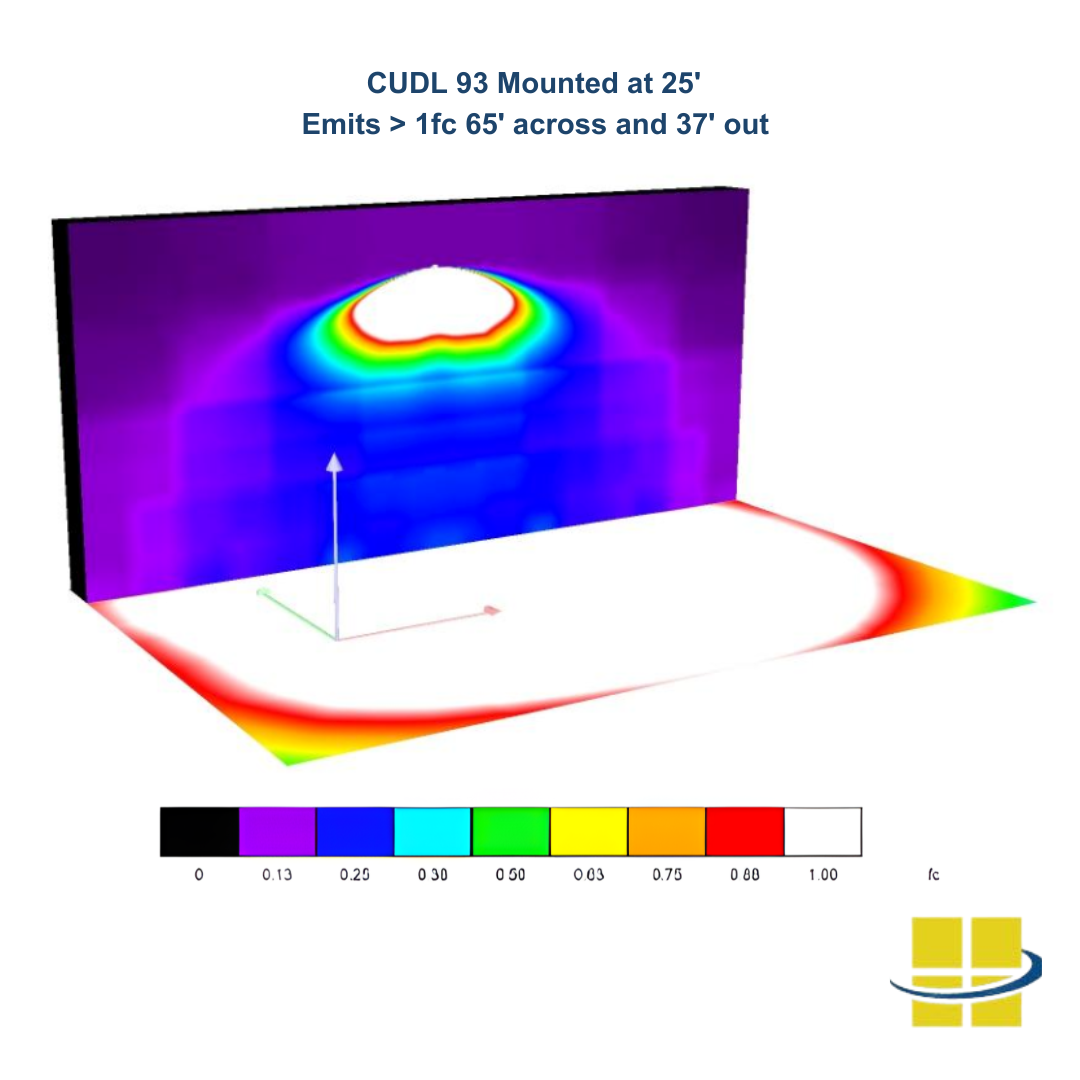

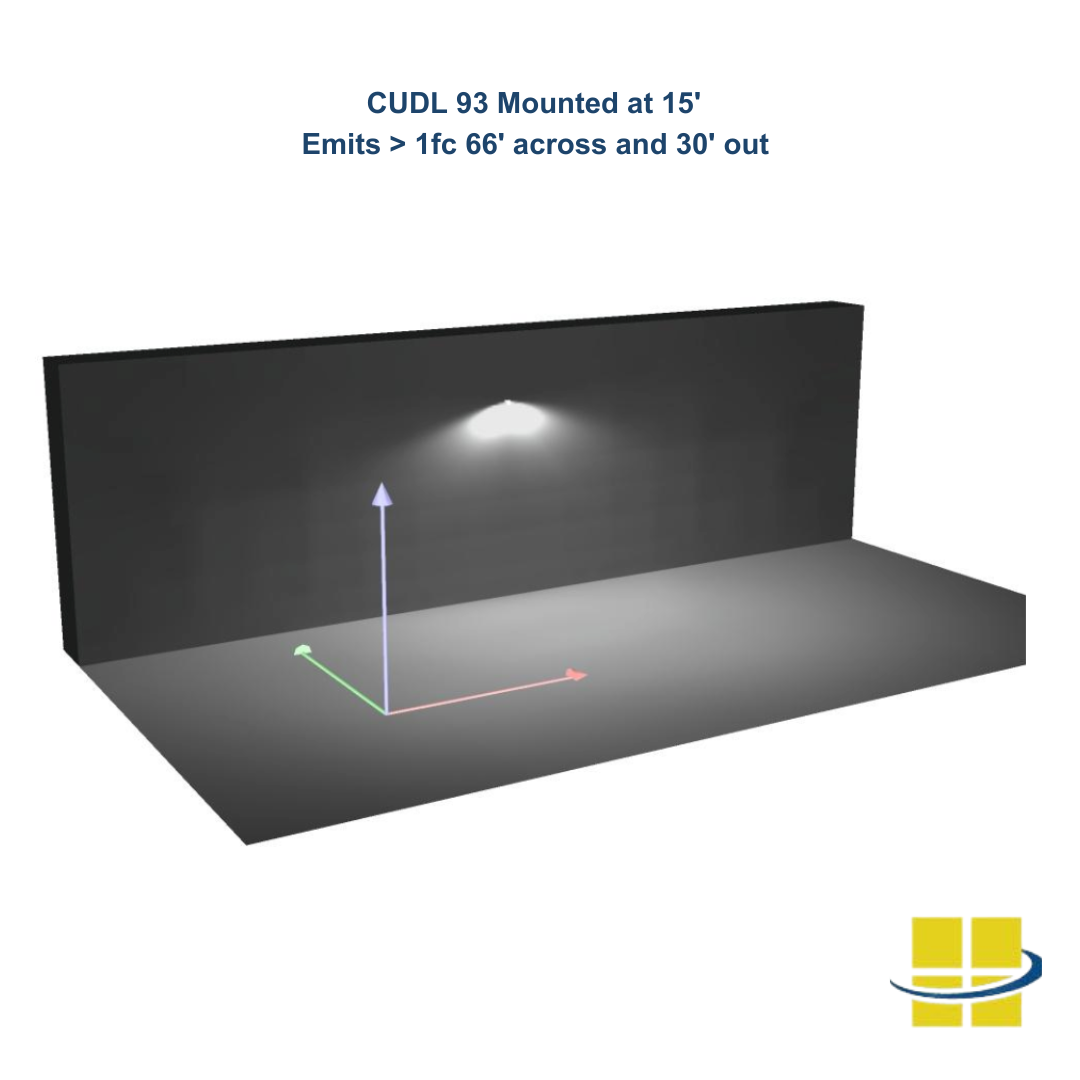

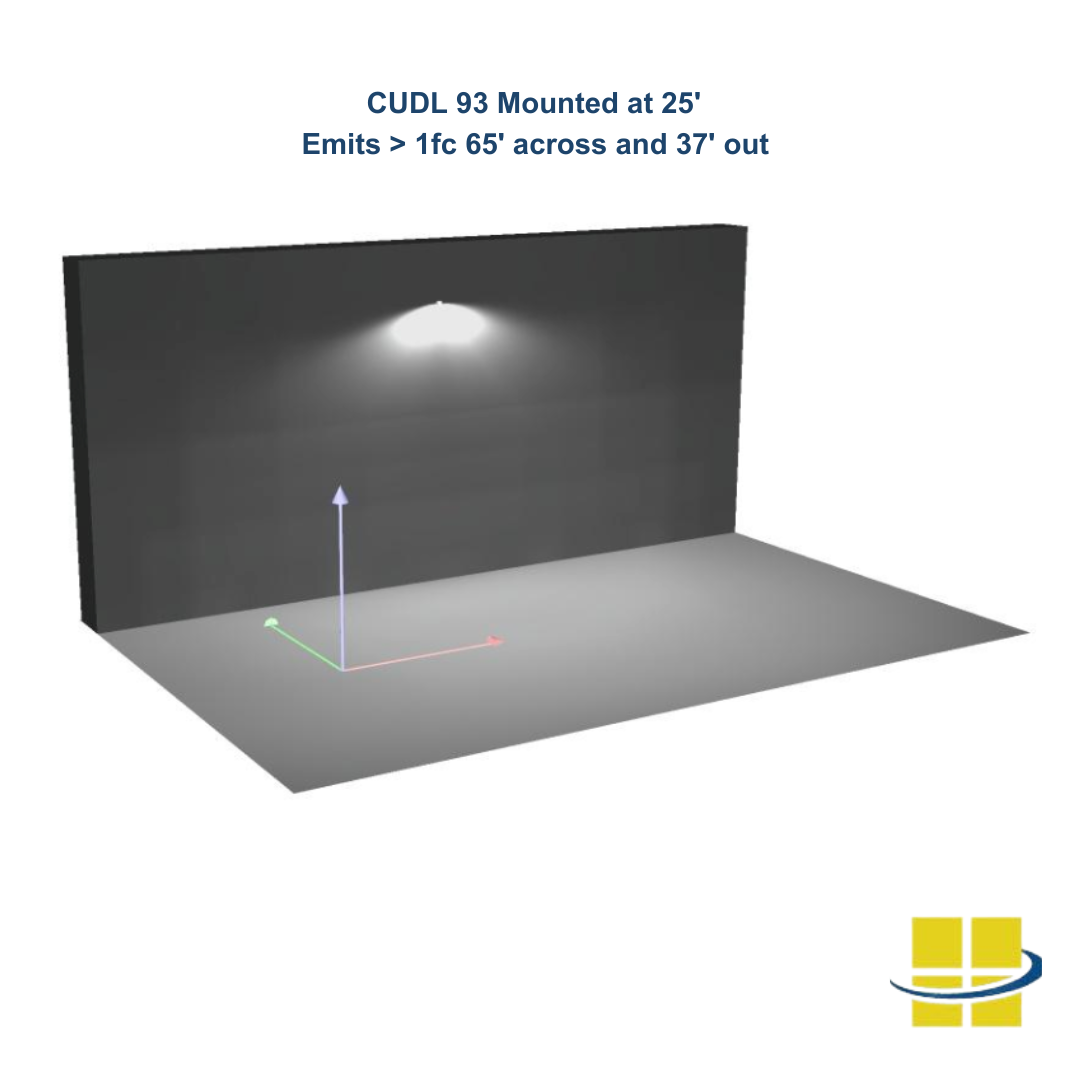

18 ft., 20 ft., 25 ft., 30 ft., 35 ft.

Product Family

CUDL

Rated Life

646,000 Hours

System Watts

93

Voltage

120v, 208v, 240v, 277v, 347v, 480v

Warranty

5-Year Limited Warranty

Style

Full Cutoff

Product Description

Features

  • 93w integrated LED
  • 12″ L x 15″ W x 6″ H
  •  0-10v Dimmable
  • 120-277v, 347-480v
  • L70 @ 646,000 hours
  • Die-cast aluminum housing with full cutoff front frame
    • Nickel-plated stainless steel hardware
  • Integral heat sinking and driver compartment
  • Twist-lock photocell adaptable
  • Clear one-piece molded type IV UV-stabilized polycarbonate lens
  • Lumen output:
    • 4000K: 9,700 lumens / BUG rating: B:3, U:3, G:3 / LPW: 104
    • 5000K: 10,402 lumens / BUG rating: B:3, U:3, G:3 / LPW: 112
  • Great for 18-35 foot mounting heights based on light level and uniformity requirements
    • Mount directly over a 4″ recessed outlet box
    • Includes easy-hang wall mounting bracket with built-in level
  • Electronic driver
  • CSA listed for wet locations
  • IP66 rated against dust and water
  • 5-year warranty included

Options

  • Choice of 4000K or 5000K (learn more here)
  • Choice of bronze, or custom RAL
  • 120-277v, 347-480v
  • 120-277VAC 10KA Surge Suppressor
  • Microwave Sensor with Dimming, 120-277V Only.
  • 3-Pin Twist Lock Photocell Receptacle
  • Battery Backup, 90 Minutes

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.


Need a Photometric Analysis for Your 93w Full Cutoff Wall Pack, Extreme Life LED Light Project?

A photometric analysis offers a straightforward way to assess light levels before purchasing your project. The report includes average and minimum footcandles, uniformity ratios, spacing, and light trespass information. Additionally, the cost of the study is refundable upon purchasing the fixtures. If you need any additional help feel free to contact our Lighting specialists at 800-468-9925. They are here and available to assist you with any lighting queries you may have!

Ready to Order 93w Full Cutoff Wall Pack, Extreme Life LED Light, or Speak to a Lighting Specialist?

While you can easily place your order online, we’re just a call away at 800-468-9925 if you need more details or a helping hand. Do you have a big project in mind where you need multiple fixtures? Don’t hesitate to ask us about quantity discounts! Our team of friendly lighting specialists is here and ready to assist. Let’s light up your project together with confidence!
