Product Specifications
| Weight | 8.5 lbs |
|---|---|
| Dimensions | 14.2 × 9.55 × 5.15 in |
| Model Number | AF55XSML3110T404345P |
| Weight Pounds | 6.5 lbs |
| Shipping Weight (Pounds) | 8.5 lbs |
| EPA | 0.61 |
| Housing Material | Heavy duty die-cast aluminum powder coating, corrosion resistant |
| Finish Specifications | UV Stabilized powder coated finish |
| Finish Color (s) | Bronze |
| Color Rendering Index (CRI) | 70+ |
| Lens Material | Heat and Impact Polycarbonate Lens |
| Optics | Type IV |
| Color Temperature (Kelvin) | 3000K, 4000K, 5000K |
| LED Type | LED Module |
| System Watts | 20w/30w/40w |
| Light Source Lumens** (5000K) | 5804.03 lm |
| Luminaire Lumens** (5000K) | 5804.03 lm |
| Luminaire Lumens Per Watts** (5000K) | 143 lm/w |

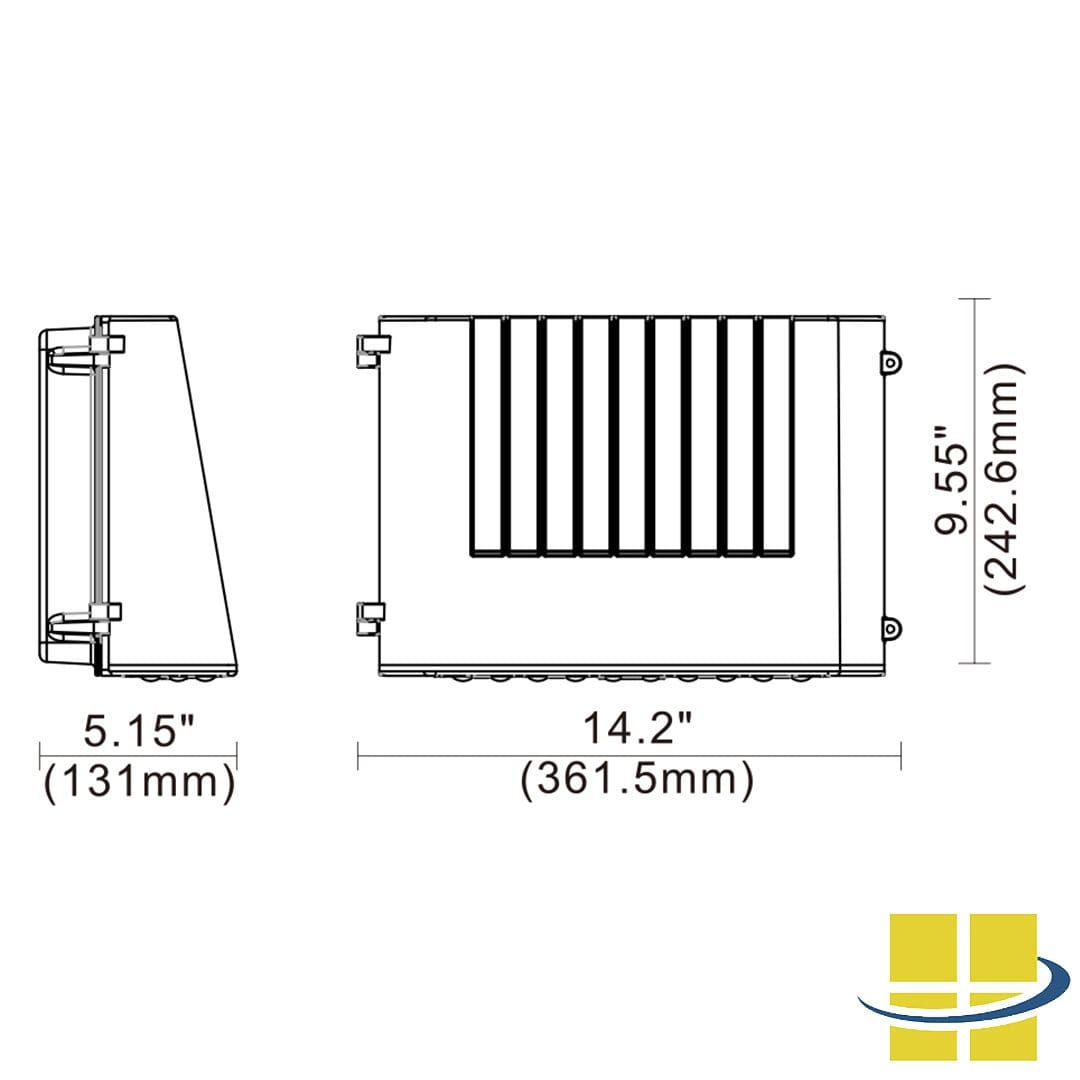

| Dimensions in Inches | 14.2" X 9.55" X 5.15" |
| Dimension in mm | 361.5 X 242.6 X 131 |
| Mount (s) | Surface Mount |
| Rated Life (L70@ x Hours) | 54,000 Hours |
| Voltage | 120-277v |
| Surge Protection | 6kV |
| Controls | Internal Photocell, Back-up Battery |
| Operating Temperature | -40°C – +40°C |
| IP Rating | IP65 |
| lK Rating | IK08 |
| DLC Number | S-PCARFG |
| BUG Rating | B2 U0 G1 |
| Listings (ex: UL,CUL,CE) | UL and cUL listed for wet locations |
| Warranty | 5 Years Warranty |
| Availability (Lead-Time) | 5-7 Production Days, Plus Shipping |

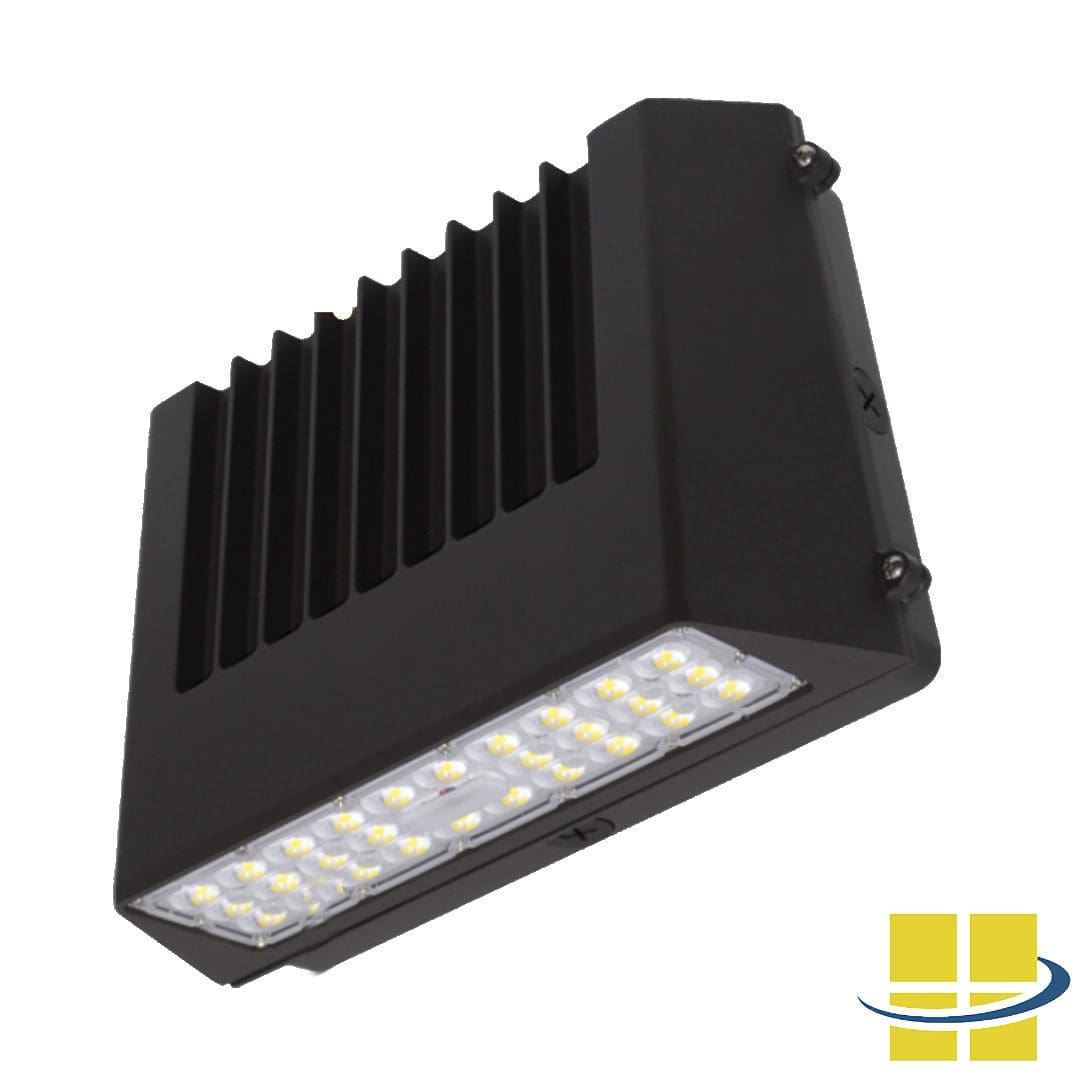

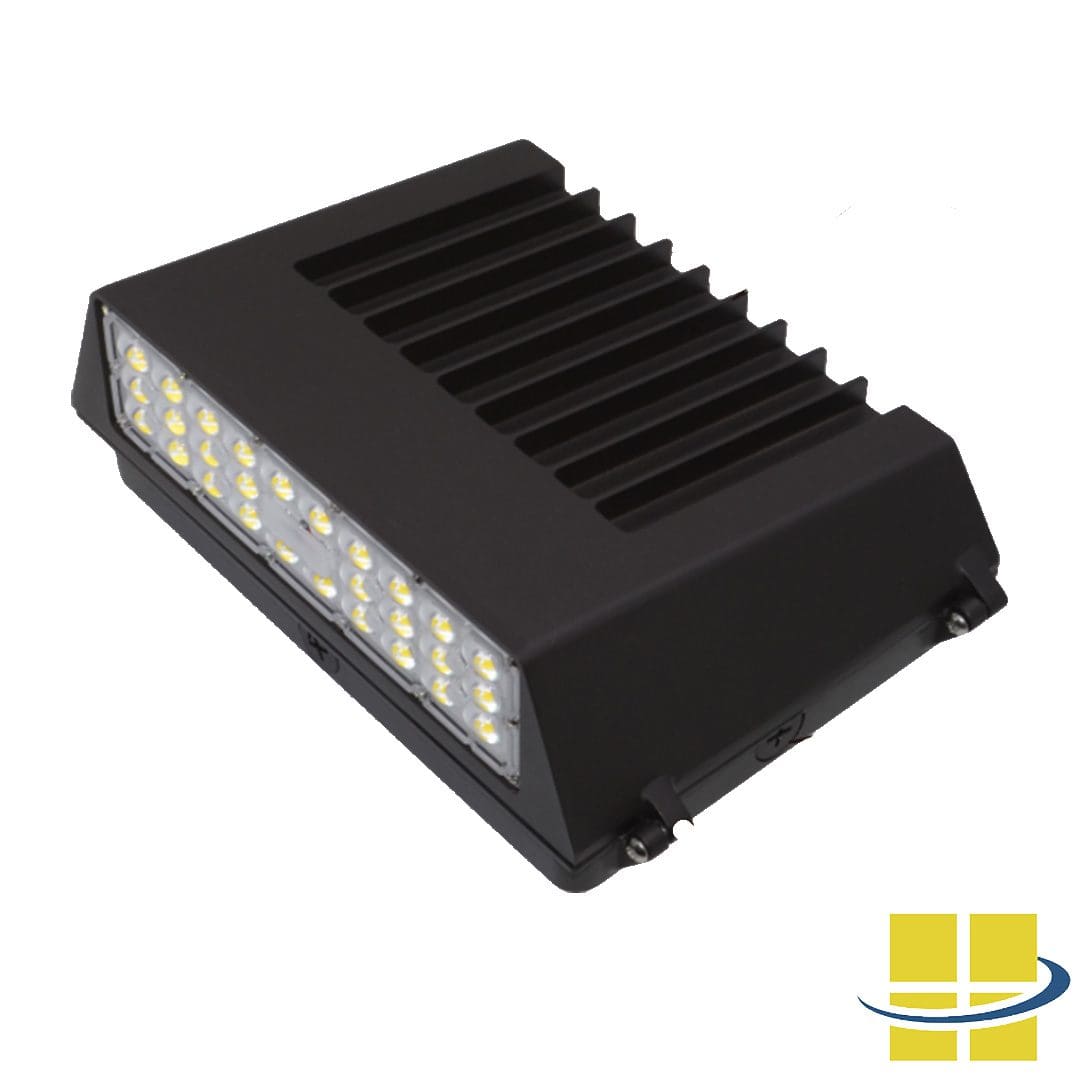

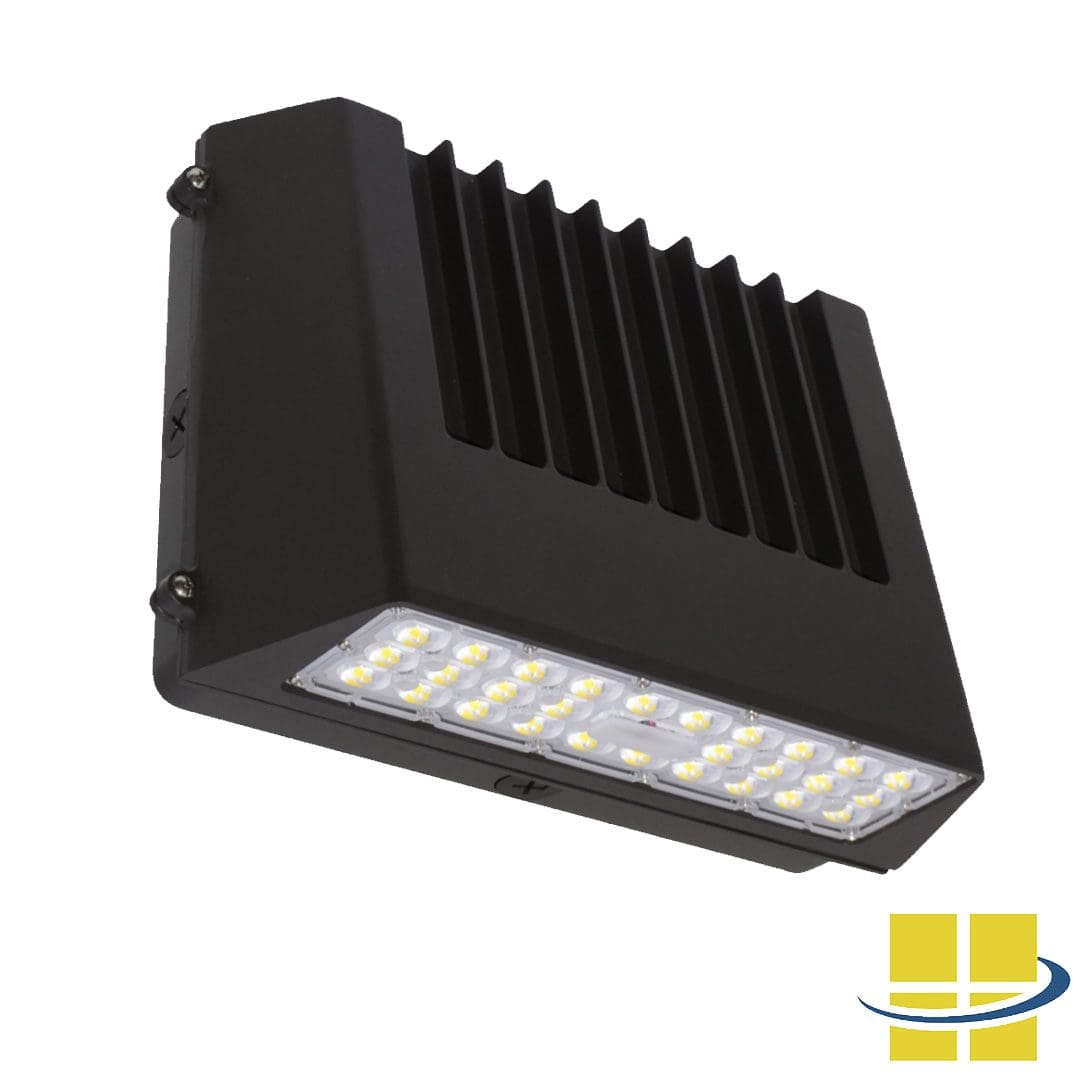

CUTO 20-30-40 LED Wall Pack with Selectable Wattage, Kelvin and Built-in Photocell
CUTO LED Wall Packs combine rugged industrial durability with precise light control. The full cutoff design directs light outward and downward only, eliminating uplight, reducing glare, and enhancing safety. Built with robust construction and efficient thermal management, CUTO delivers reliable, long-term performance with targeted illumination.
FIELD SELECTABLE: CUTO offers selectable wattage and Kelvin temperature, giving you the flexibility to tailor light output and ambiance to your desires. Choose from 3000K,4000K or 5000K and adjust between 20w, 30w, or 40w based on your specific needs.
DARK SKY COMPLIANT: When configured with the 3000K LED option, CUTO meets Dark Sky requirements by minimizing uplight and light pollution while maintaining effective, targeted illumination.
BUILT-IN PHOTOCELL: CUTO automatically senses dusk and dawn to turn the wall pack on and off as needed, reducing energy use while ensuring consistent, reliable illumination.
No documents available
$119.87
Product Specifications
| Weight | 8.5 lbs |
|---|---|
| Dimensions | 14.2 × 9.55 × 5.15 in |
| Model Number | AF55XSML3110T404345P |
| Weight Pounds | 6.5 lbs |
| Shipping Weight (Pounds) | 8.5 lbs |
| EPA | 0.61 |
| Housing Material | Heavy duty die-cast aluminum powder coating, corrosion resistant |
| Finish Specifications | UV Stabilized powder coated finish |
| Finish Color (s) | Bronze |
| Color Rendering Index (CRI) | 70+ |
| Lens Material | Heat and Impact Polycarbonate Lens |
| Optics | Type IV |
| Color Temperature (Kelvin) | 3000K, 4000K, 5000K |
| LED Type | LED Module |
| System Watts | 20w/30w/40w |
| Light Source Lumens** (5000K) | 5804.03 lm |
| Luminaire Lumens** (5000K) | 5804.03 lm |
| Luminaire Lumens Per Watts** (5000K) | 143 lm/w |
| Dimensions in Inches | 14.2" X 9.55" X 5.15" |
| Dimension in mm | 361.5 X 242.6 X 131 |
| Mount (s) | Surface Mount |
| Rated Life (L70@ x Hours) | 54,000 Hours |
| Voltage | 120-277v |
| Surge Protection | 6kV |
| Controls | Internal Photocell, Back-up Battery |
| Operating Temperature | -40°C – +40°C |
| IP Rating | IP65 |
| lK Rating | IK08 |
| DLC Number | S-PCARFG |
| BUG Rating | B2 U0 G1 |
| Listings (ex: UL,CUL,CE) | UL and cUL listed for wet locations |
| Warranty | 5 Years Warranty |
| Availability (Lead-Time) | 5-7 Production Days, Plus Shipping |
