CUTO LED Wall Pack, Selectable Kelvin and Wattage 20/30/40

$99.87

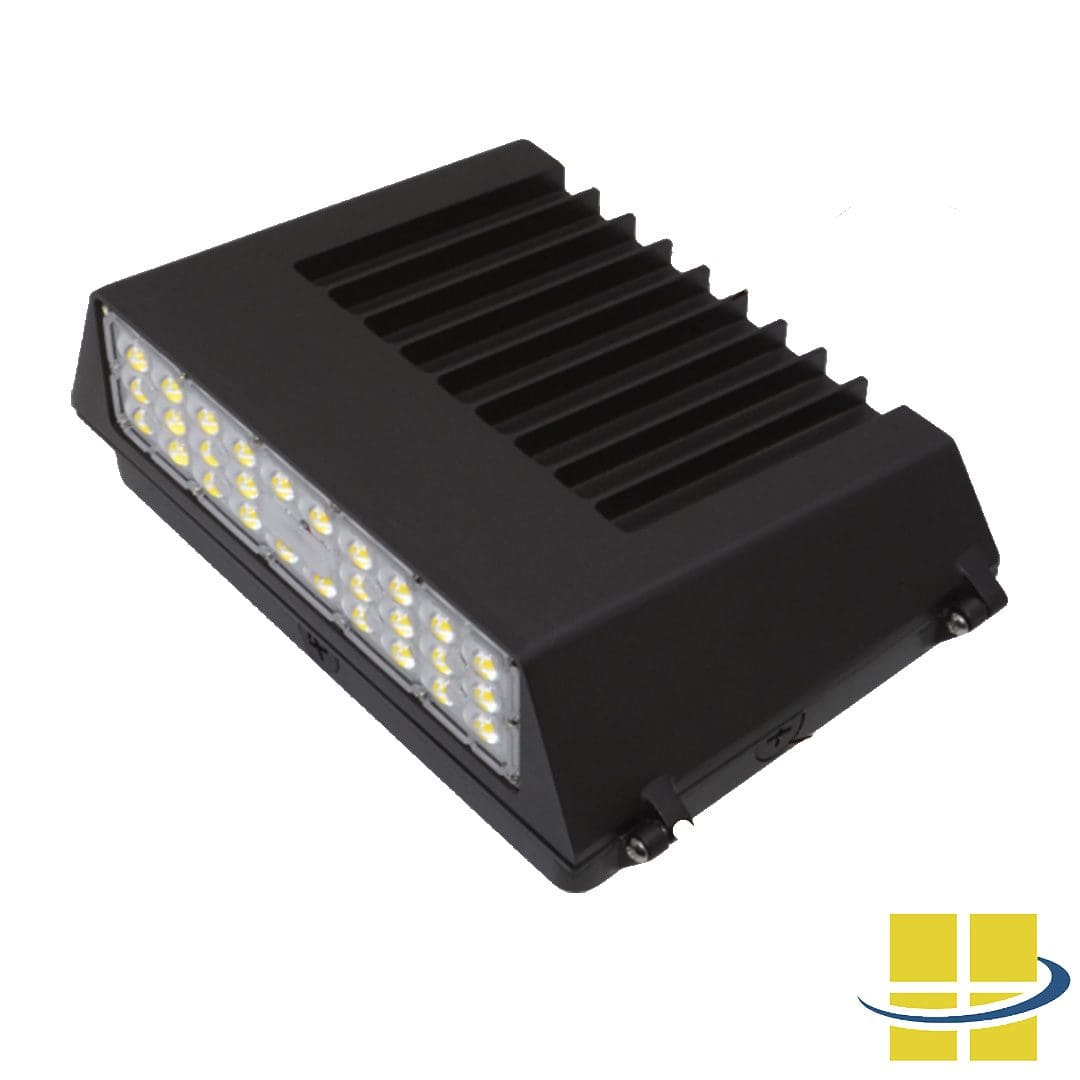

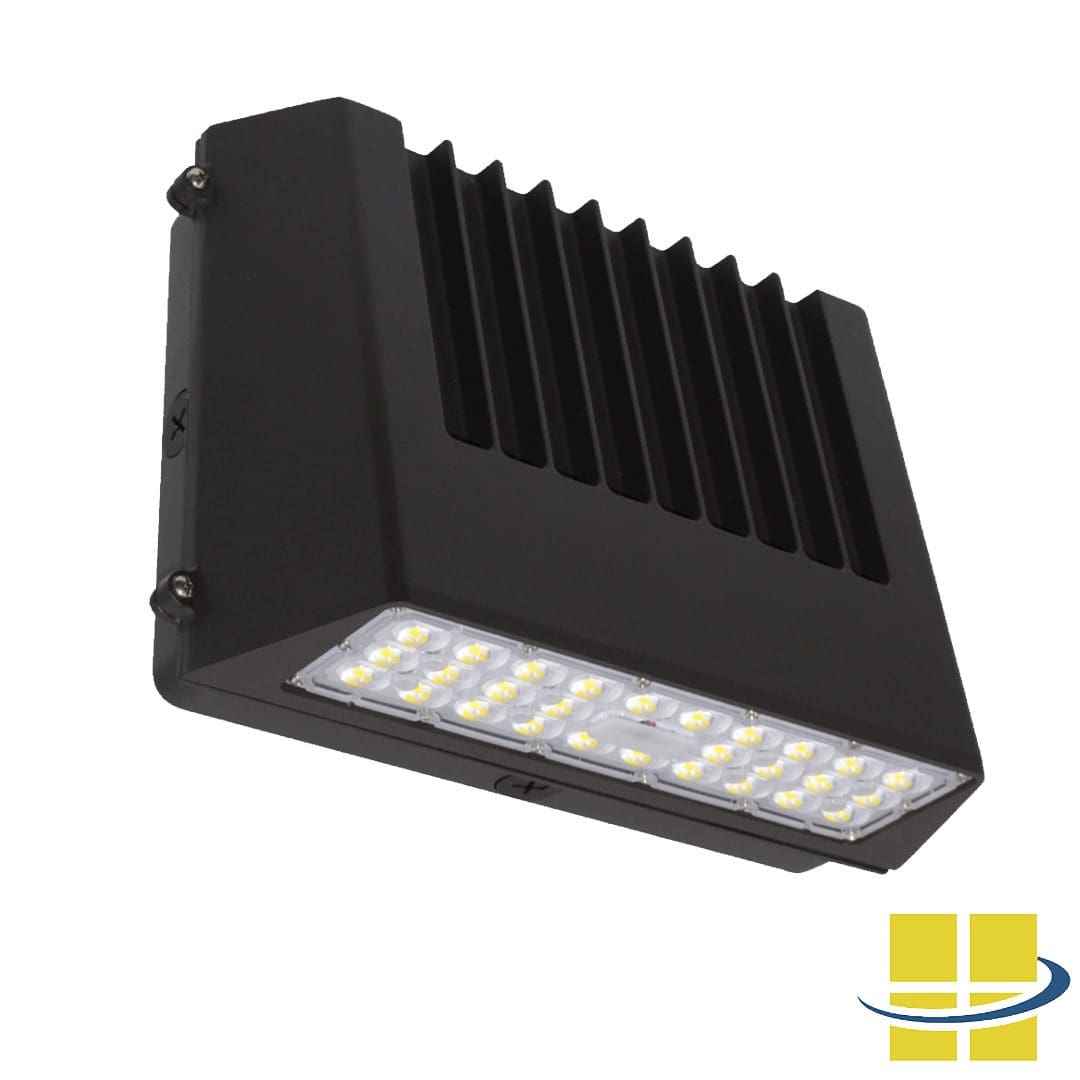

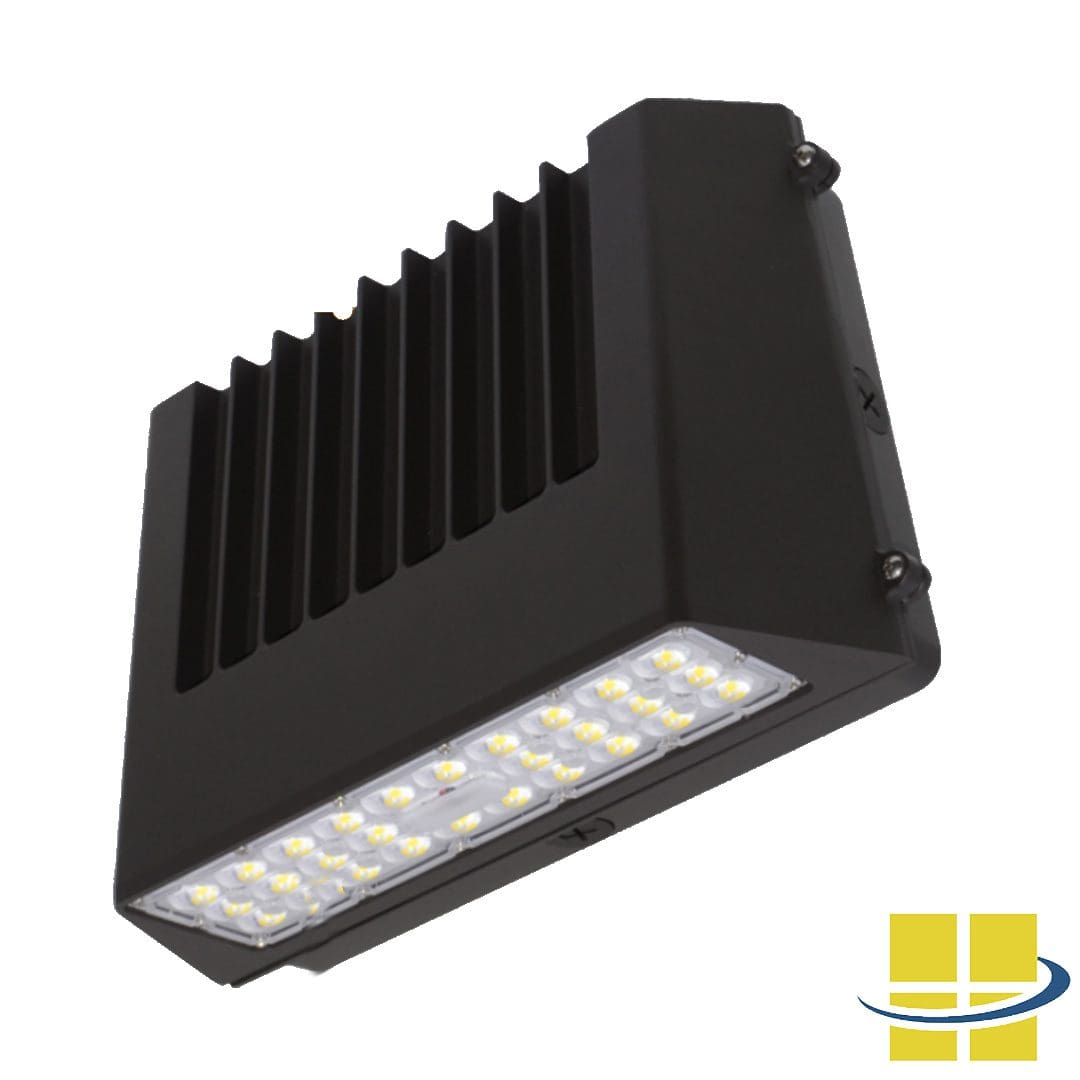

The CUTO Wall Pack luminaire is a versatile lighting solution suitable for various locations. Its multiple mounting options allow it to function as both a flood light and an area light. Equipped with LEDs on a large heatsink, the fixture maintains a high-lumen output while keeping the LED modules cool. CUTO LED wall packs offer flexibility with selectable Kelvin (3K, 4K, or 5K) and wattage (20W, 30W, or 40W). Constructed with a heavy-duty die-cast aluminum housing and a robust heat- and impact-resistant polycarbonate lens, CUTO also features a standard internal photocell for added convenience.

Selectable Kelvin: Achieve your desired Kelvin temperature on-site with the convenience of a smart controller switch. Customize the lighting to your preference.

Selectable Wattage: Achieve precise lighting levels with the flexibility of selectable wattage options: 20W, 30W, or 40W. Enhance control further with the 0-10v dimmable driver for additional lighting adjustments.

Photocell Included: The integrated photocell intuitively senses dusk and dawn, seamlessly turning the wall pack on or off as needed – contributing to energy savings!

In Stock

  • Do you need your Wall Pack to stay on when the power goes out? If yes, add the Emergency Power Supply!
  • Shield your CUTO from sudden power surges and voltage spikes. Recommended on any place that has fluctuations in voltage. LED lights should never be on the same circuit as HID lights or machinery.
  • Our screws offer extra protection for your fixtures. They are designed to deter vandalism and ensure long-lasting performance.

SKU: AF55XSML3110T404345P Categories: , , , , , ,

Specifications

Weight 8.5 lbs
Dimensions 16 × 11 × 9 in
Application

Availability

5 to 7 Day Production, plus Shipping
Available Finishes

Bronze
BUG Rating

1, 0, 1
Housing

Die cast aluminum housing
Lens

High-impact polycarbonate lens
Light Source

, ,

Light Source Included

LED Array Included
Light Source Lumens

5,594
Listings

RoHS Compliant, CUL, UL
Product Family

CUTO
Style

Full Cutoff
System Watts

30, 20, 40
Voltage

120v, 208v, 240v, 277v
Warranty

5-Year Limited Warranty

Product Description

Features

  • Selectable Wattage
    • 20/30/40w
  • Selectable Kelvin
    •  3000K, 4000K, 5000K

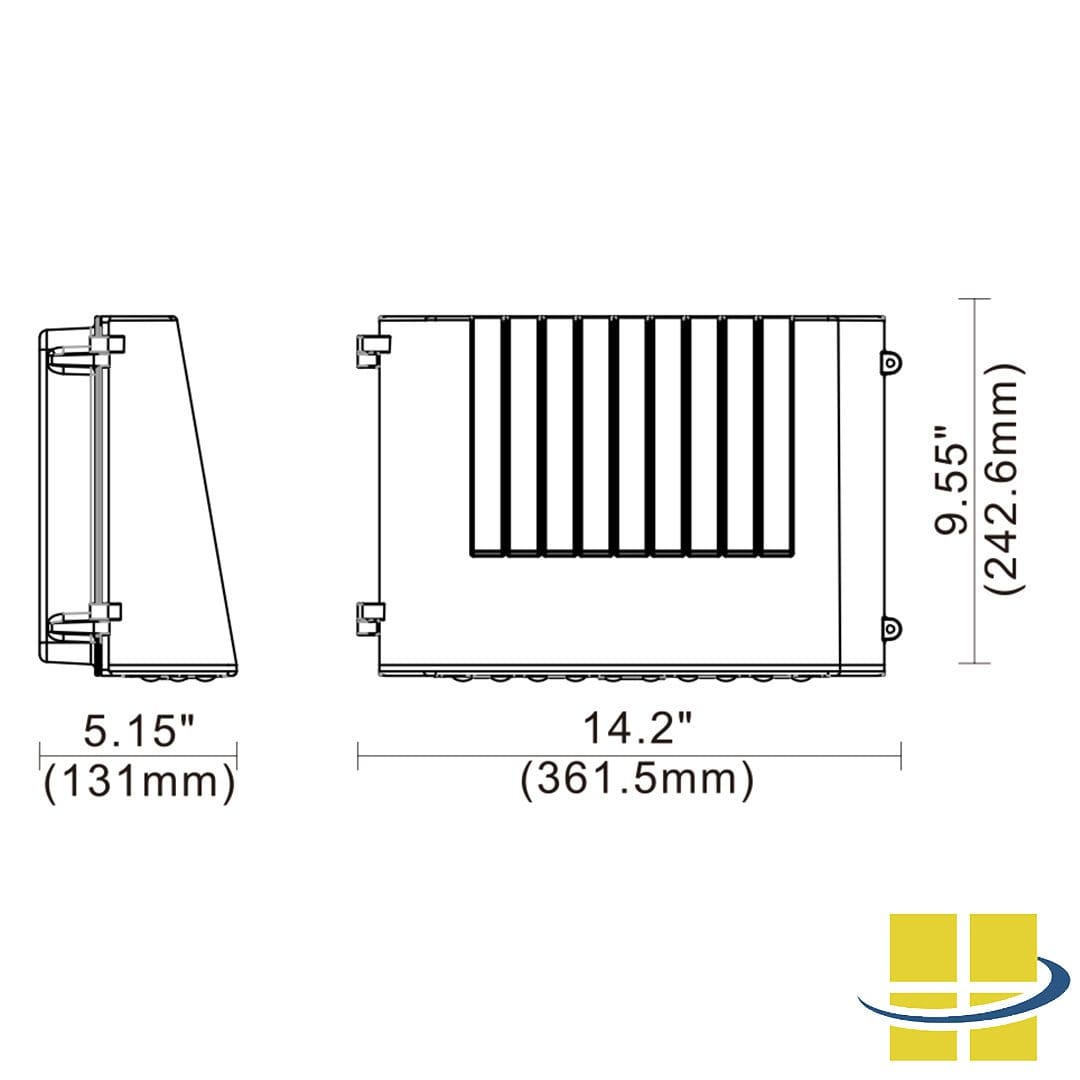

  • 14.2″ x 5.15″ x 9.55″ inches
  • Bronze finish
  • UL and CUL listed for wet locations
  • RoHS compliant
  • UV-stabilized powder-coated finish
    • Die-cast aluminum powder coating
    • Corrosion resistant hardware
  • Heat and impact PC lens
  • BUG Rating: B:1, U:0, G:1
  • 120-277VAC
  • 10KV surge protector
  • Standard internal photocell
  • Easy access for wattage and CCT tuning
  • Easy access to photocell switch
  • Proprietary optical control
  • Specifically designed lens for freedom of layout design without any restraint
    • optics engineered for maximum light output
  • Integrated heatsink cooling fin provides excellent thermal dissipation to allow the fixture to have an EXTREME-LIFE
  • Lumen output:
    • 140 LPW
    • 5,594  lumens
  • Easy access hands-free door frame when entering the electrical compartment – saves time and money!
  • Optional emergency backup battery
  • 5-year warranty

Options

  • 8w emergency battery backup
  • 10KV surge protection
  • Vandal-resistant screws

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.


Need a Photometric Analysis for Your CUTO LED Wall Pack Project?

A photometric analysis involves creating a computer simulation for a specific project, providing a convenient way to measure light levels before making a purchase. Upon generating a report, a lighting specialist will guide you through it, ensuring a clear understanding of what you’ll receive. The study covers average and minimum footcandles, uniformity ratios, spacing, light trespass information, and more. Notably, the cost of the study is reimbursed when you purchase the fixtures. Contact us at 800-468-9925 for further details on ordering a photometric analysis for your project.

Ready to Order or Speak to a Lighting Specialist?

While you can easily place your order online, we’re just a call away at 800-468-9925 if you need more details or a helping hand. Do you have a big project in mind where you need multiple fixtures? Don’t hesitate to ask us about quantity discounts! Our team of friendly lighting specialists is here and ready to assist. Let’s light up your project together with confidence!
