Product Specifications
| Weight | 7.38 lbs |
|---|---|
| Dimensions | 12.5 × 6 × 8.07 in |
| Model Number | AF55XLED6040W345K75B |
| Weight Pounds | 4.18 lbs |
| Shipping Weight (Pounds) | 7.38 lbs |
| EPA | n/a |
| Housing Material | Alumium Extrusion |
| Finish Specifications | UV Stabilized Powdercoat |
| Finish Color (s) | Black |
| Color Rendering Index (CRI) | 80 |
| Lens Material | Glass |
| Optics | 75° |
| Color Temperature (Kelvin) | 3000K, 4000K, 5000K |
| LED Type | LED Module |
| System Watts | 40w |
| Light Source Lumens** (5000K) | 4571 lm |
| Luminaire Lumens** (5000K) | 4571 lm |
| Luminaire Lumens Per Watts** (5000K) | 130 lm/W |
| Dimensions in Inches | 12.05x6x8.07 |
| Dimension in mm | 306×152.4×204.98 |
| Mount (s) | Wall Mount |
| Rated Life (L70@ x Hours) | 54,000 |
| Voltage | 120-277V |
| Surge Protection | 4KV |
| Controls | FAO |
| Operating Temperature | -40°C – +40°C |
| IP Rating | IP65 |
| lK Rating | IK08 |
| DLC Number | n/a |
| Listings (ex: UL,CUL,CE) | UL / CUL |
| Warranty | 5 Year Warranty |
| Availability (Lead-Time) | 5-7 Production Days, Plus Shipping |

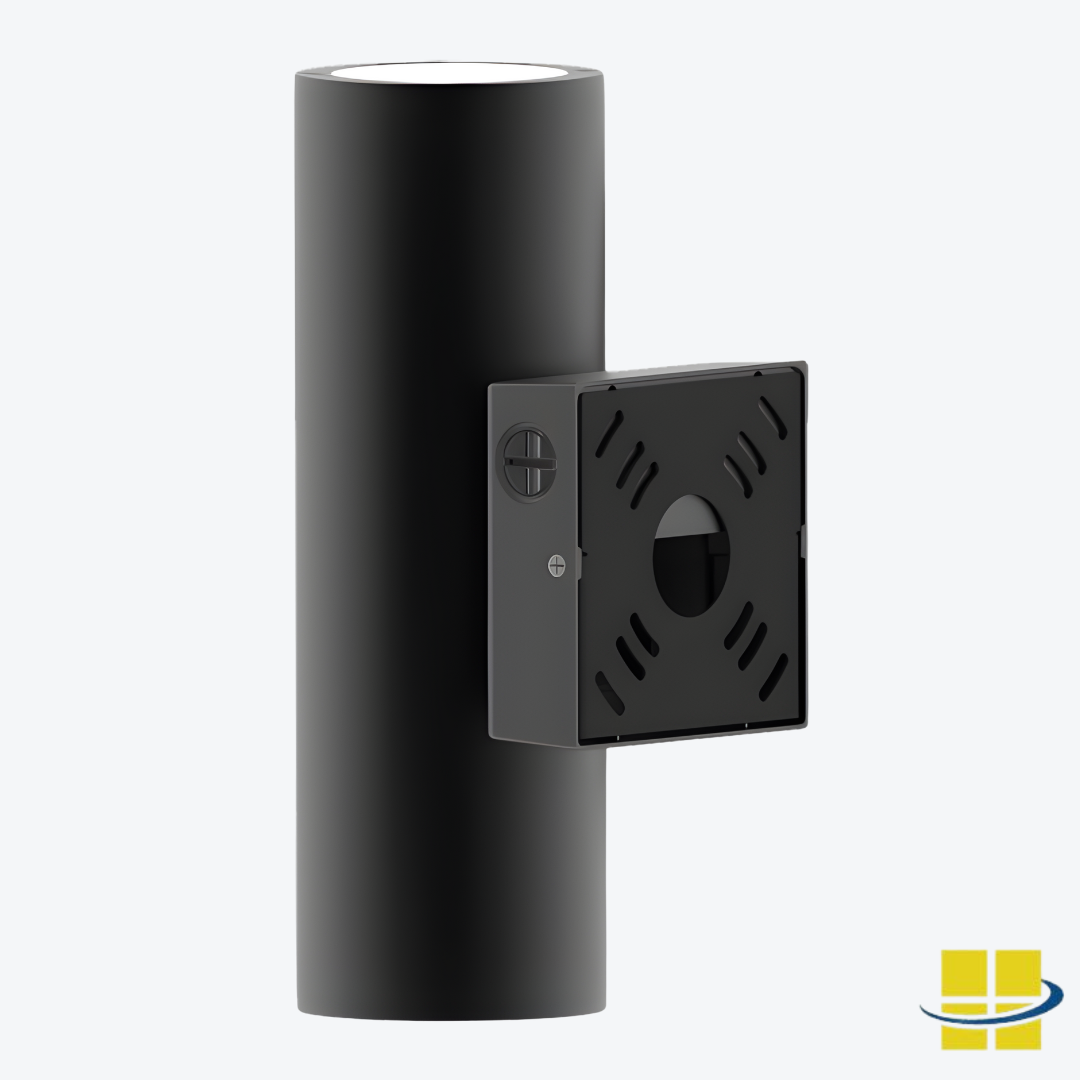

CYLR 6″ 40 LED Up/Down Wall Mount with Selectable Kelvin and Built-In Photocell
The CYLR Wall Mount combines sleek architectural design with powerful, precision lighting. Its 75° optics deliver uniform, glare-free illumination, while the corrosion-resistant aluminum body and premium powder-coated finish ensure lasting durability in any environment.
Versatile Lighting Design: CYLR offers Up, Down, or Up/Down beam options, giving you flexible lighting control to highlight and enhance any façade.
Selectable Kelvin: With selectable 3000K, 4000K, or 5000K Kelvin settings, CYLR empowers you to craft the perfect ambience for any occasion.
Built-In Photocell: Featuring a built-in photocell for effortless, energy-saving operation. CYLR automatically turns on at dusk and off at dawn, ensuring your space is perfectly illuminated only when needed..
No documents available
$169.87
Product Specifications
| Weight | 7.38 lbs |
|---|---|
| Dimensions | 12.5 × 6 × 8.07 in |
| Model Number | AF55XLED6040W345K75B |
| Weight Pounds | 4.18 lbs |
| Shipping Weight (Pounds) | 7.38 lbs |
| EPA | n/a |
| Housing Material | Alumium Extrusion |
| Finish Specifications | UV Stabilized Powdercoat |
| Finish Color (s) | Black |
| Color Rendering Index (CRI) | 80 |
| Lens Material | Glass |
| Optics | 75° |
| Color Temperature (Kelvin) | 3000K, 4000K, 5000K |
| LED Type | LED Module |
| System Watts | 40w |
| Light Source Lumens** (5000K) | 4571 lm |
| Luminaire Lumens** (5000K) | 4571 lm |
| Luminaire Lumens Per Watts** (5000K) | 130 lm/W |
| Dimensions in Inches | 12.05x6x8.07 |
| Dimension in mm | 306×152.4×204.98 |
| Mount (s) | Wall Mount |
| Rated Life (L70@ x Hours) | 54,000 |
| Voltage | 120-277V |
| Surge Protection | 4KV |
| Controls | FAO |
| Operating Temperature | -40°C – +40°C |
| IP Rating | IP65 |
| lK Rating | IK08 |
| DLC Number | n/a |
| Listings (ex: UL,CUL,CE) | UL / CUL |
| Warranty | 5 Year Warranty |
| Availability (Lead-Time) | 5-7 Production Days, Plus Shipping |
