Product Specifications
| Weight | 13.02 lbs |
|---|---|
| Dimensions | 13.46 × 8 × 10.07 in |
| Model Number | AF55XLED8060W345K75B |
| Weight Pounds | 13.02 lbs |
| Shipping Weight (Pounds) | 14.83 lbs |
| EPA | n/a |
| Housing Material | Alumium Extrusion |
| Finish Specifications | UV Stabilized Powdercoat |
| Finish Color (s) | Black |
| Color Rendering Index (CRI) | 80 |
| Lens Material | Glass |
| Optics | 75° |
| Color Temperature (Kelvin) | 3000K, 4000K, 5000K |
| LED Type | LED Module |
| System Watts | 30w/47w/65w |
| Light Source Lumens** (5000K) | 9176 lm |
| Luminaire Lumens** (5000K) | 9176 lm |
| Luminaire Lumens Per Watts** (5000K) | 166 lm/W |

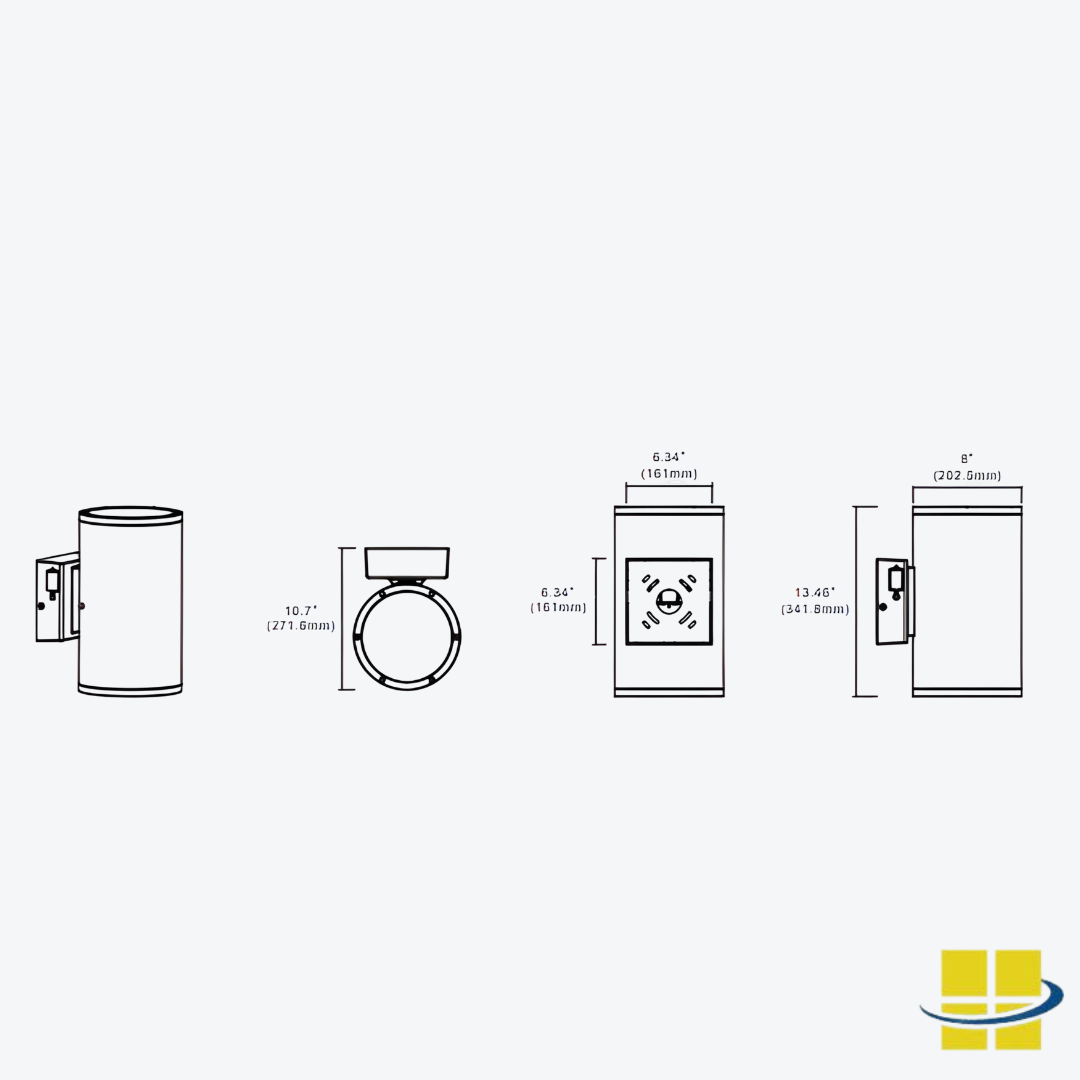

| Dimensions in Inches | 13.46x8x10.7 |
| Dimension in mm | 341.8×202.5×271.6 |
| Mount (s) | Wall Mount |
| Rated Life (L70@ x Hours) | 54,000 |
| Voltage | 120-277V |
| Surge Protection | 4KV |
| Controls | FAO |
| Operating Temperature | -40°C – +40°C |
| IP Rating | IP65 |
| lK Rating | IK08 |
| DLC Number | n/a |
| Listings (ex: UL,CUL,CE) | UL / CUL |
| Warranty | 5 Year Warranty |
| Availability (Lead-Time) | 5-7 Production Days, Plus Shipping |

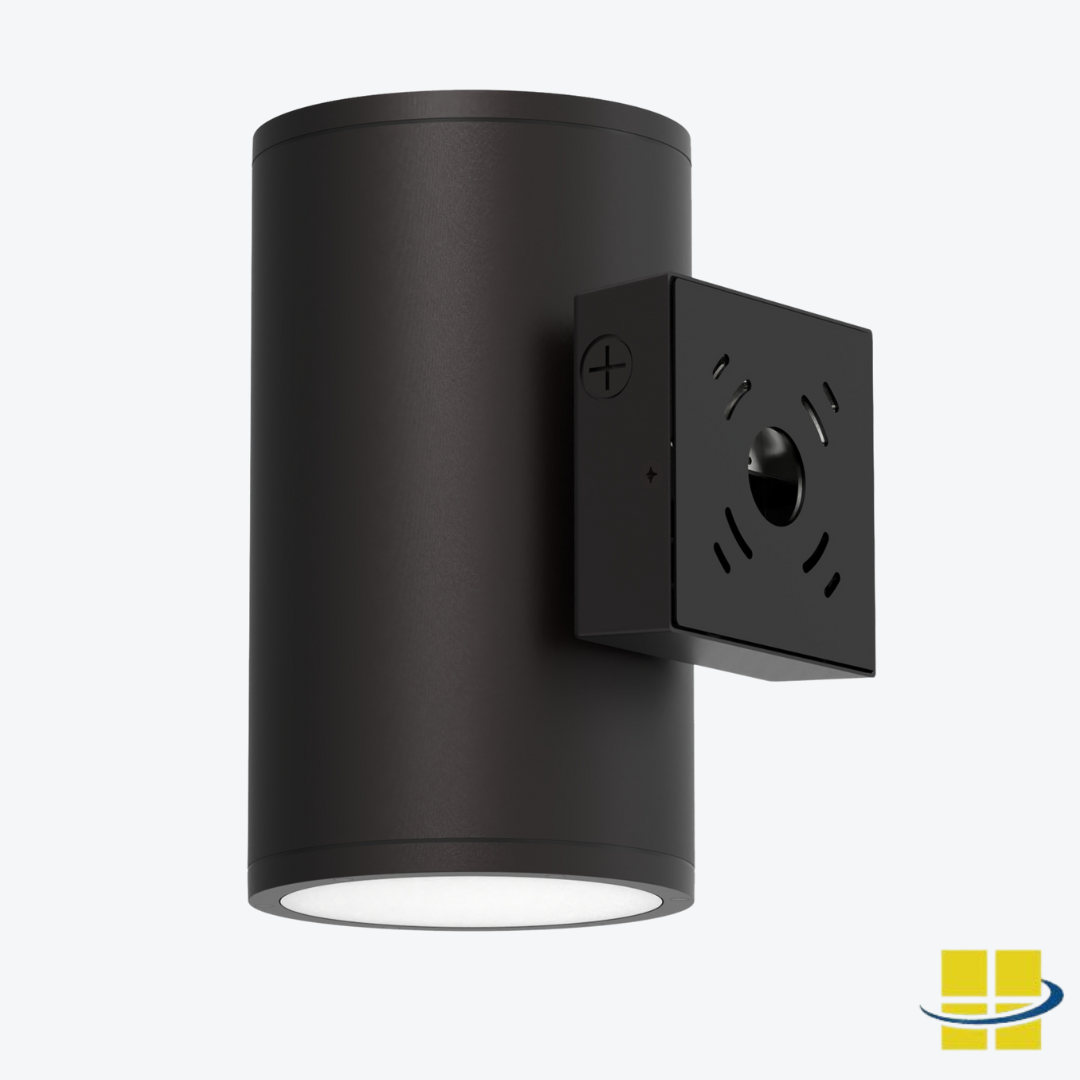

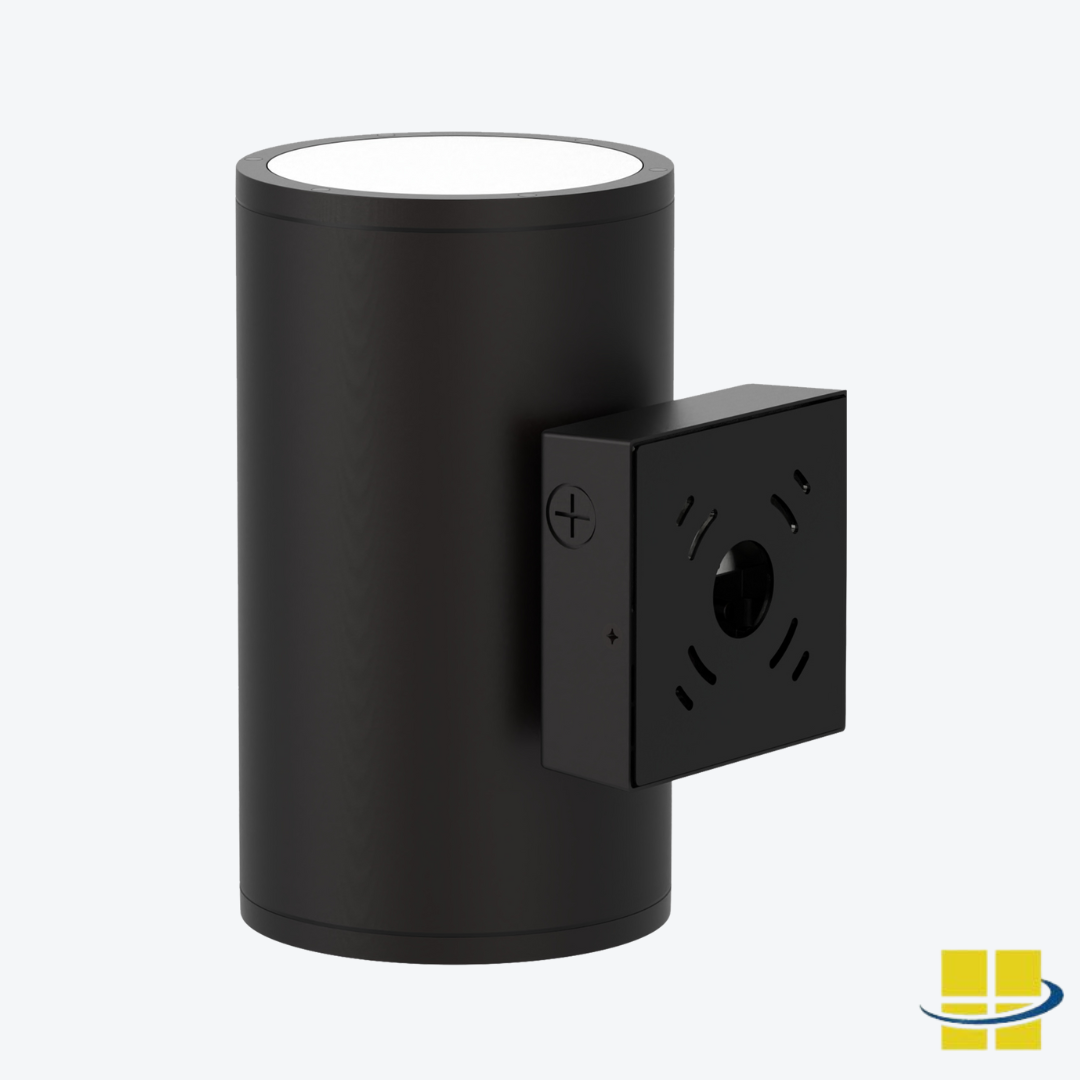

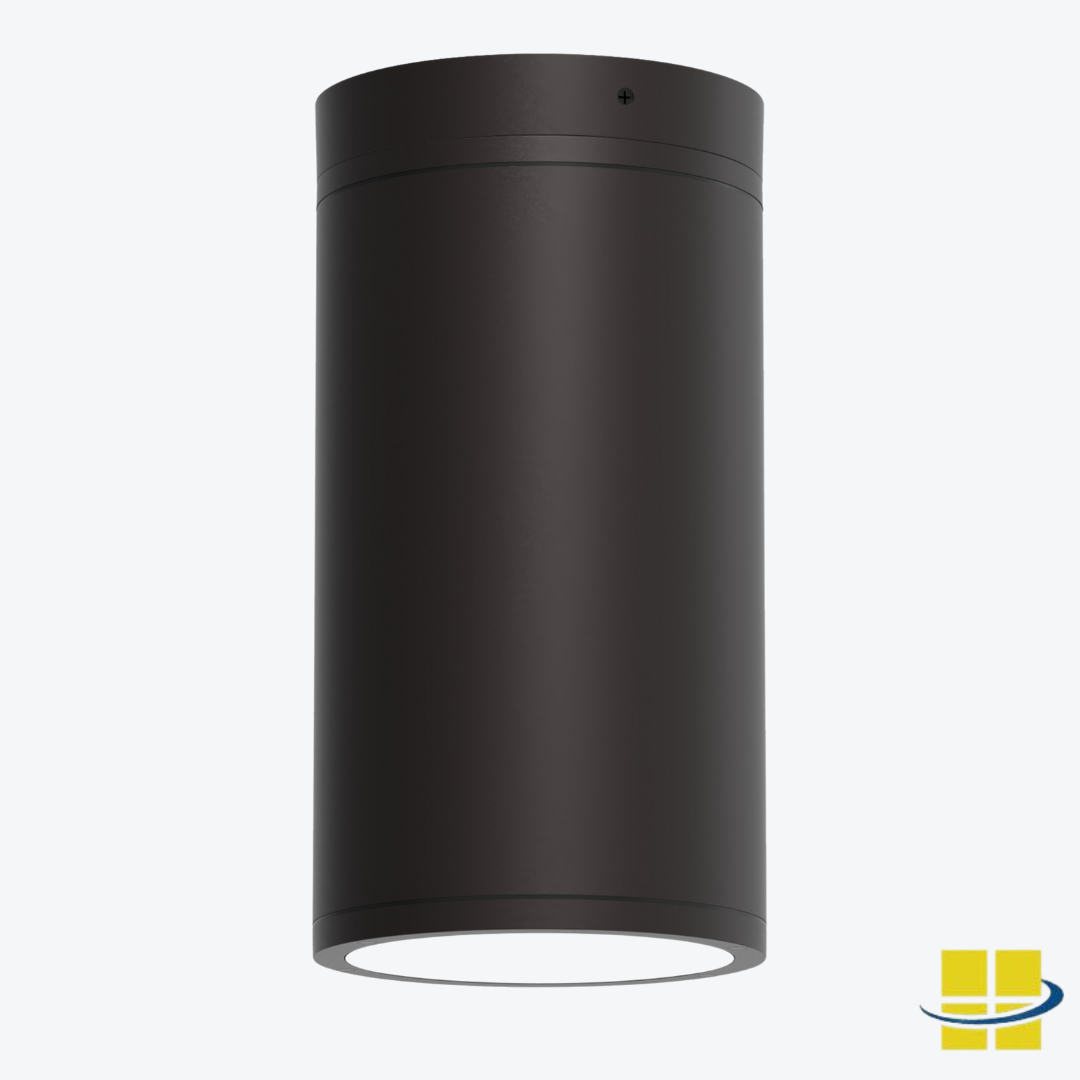

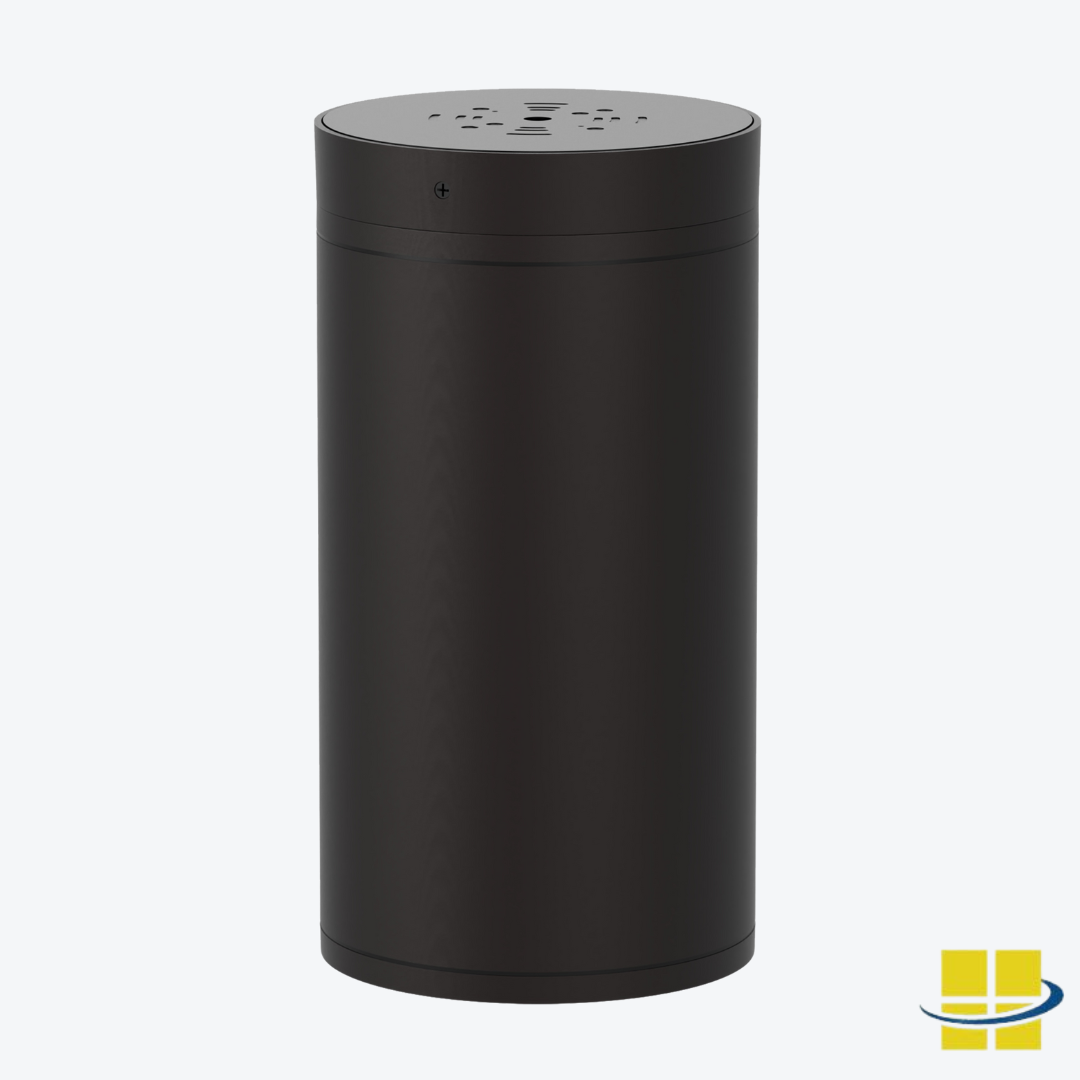

CYLR 8″ 30-47-65 LED Up/Down Wall Mount with Selectable Kelvin & Wattage
The CYLR Wall Mount combines sleek architectural design with powerful, precision lighting. Its 75° optics deliver uniform, glare-free illumination, while the corrosion-resistant aluminum body and premium powder-coated finish ensure lasting durability in any environment.
Versatile Lighting Design: CYLR offers Up, Down, or Up/Down beam options, giving you flexible lighting control to highlight and enhance any façade.
Field Selectable: CYLR offers selectable wattage and Kelvin temperature, giving you the flexibility to tailor light output and ambiance to your desires. Choose from 3000K, 4000K, or 5000K and adjust between 30w, 47w, or 65w based on your specific needs.
Built-In Photocell: Featuring a built-in photocell for effortless, energy-saving operation. CYLR automatically turns on at dusk and off at dawn, ensuring your space is perfectly illuminated only when needed.
.
.
No documents available
$249.87
Product Specifications
| Weight | 13.02 lbs |
|---|---|
| Dimensions | 13.46 × 8 × 10.07 in |
| Model Number | AF55XLED8060W345K75B |
| Weight Pounds | 13.02 lbs |
| Shipping Weight (Pounds) | 14.83 lbs |
| EPA | n/a |
| Housing Material | Alumium Extrusion |
| Finish Specifications | UV Stabilized Powdercoat |
| Finish Color (s) | Black |
| Color Rendering Index (CRI) | 80 |
| Lens Material | Glass |
| Optics | 75° |
| Color Temperature (Kelvin) | 3000K, 4000K, 5000K |
| LED Type | LED Module |
| System Watts | 30w/47w/65w |
| Light Source Lumens** (5000K) | 9176 lm |
| Luminaire Lumens** (5000K) | 9176 lm |
| Luminaire Lumens Per Watts** (5000K) | 166 lm/W |
| Dimensions in Inches | 13.46x8x10.7 |
| Dimension in mm | 341.8×202.5×271.6 |
| Mount (s) | Wall Mount |
| Rated Life (L70@ x Hours) | 54,000 |
| Voltage | 120-277V |
| Surge Protection | 4KV |
| Controls | FAO |
| Operating Temperature | -40°C – +40°C |
| IP Rating | IP65 |
| lK Rating | IK08 |
| DLC Number | n/a |
| Listings (ex: UL,CUL,CE) | UL / CUL |
| Warranty | 5 Year Warranty |
| Availability (Lead-Time) | 5-7 Production Days, Plus Shipping |
