Product Specifications
| Weight | 2.93 lbs |
|---|---|

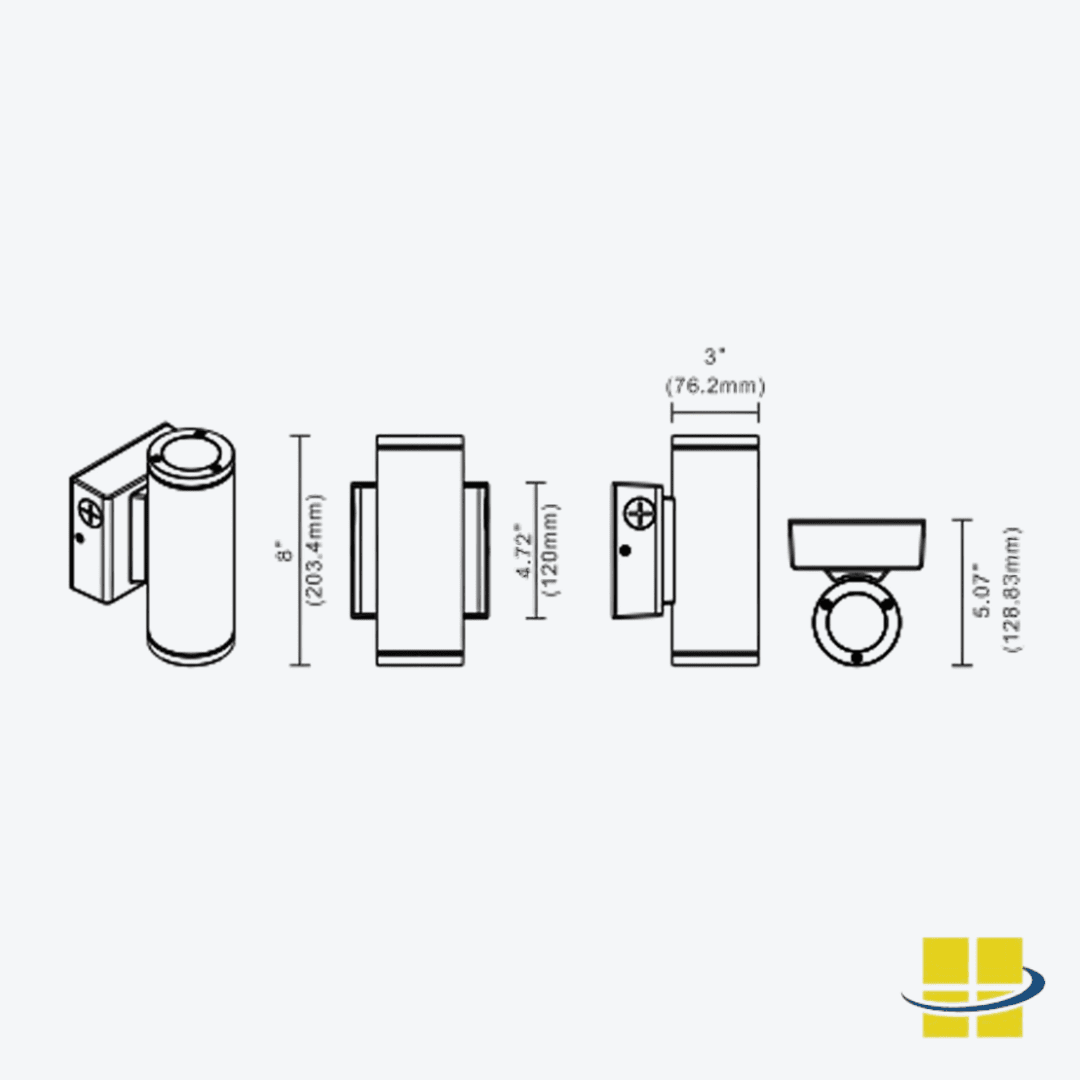

| Dimensions | 8 × 3 × 5.07 in |
| Model Number | AF55XLED3815W345K75B |
| Weight Pounds | 2.93 lbs |
| Shipping Weight (Pounds) | 3.7 lbs |
| EPA | n/a |
| Housing Material | Alumium Extrusion |
| Finish Specifications | UV Stabilized Powdercoat |
| Finish Color (s) | Black |
| Color Rendering Index (CRI) | 80 |
| Lens Material | Glass |
| Optics | 75° |
| Color Temperature (Kelvin) | 3000K, 4000K, 5000K |
| LED Type | LED Module |
| System Watts | 15w |
| Light Source Lumens** (5000K) | 1559 lm |
| Luminaire Lumens** (5000K) | 1559 lm |
| Luminaire Lumens Per Watts** (5000K) | 126 lm/W |
| Dimensions in Inches | 8x3x5.07 |
| Dimension in mm | 203.4×76.2×128.83 |
| Mount (s) | Wall Mount |
| Rated Life (L70@ x Hours) | 54,000 |
| Voltage | 120-277V |
| Surge Protection | 4KV |
| Controls | FAO |
| Operating Temperature | -40°C – +40°C |
| IP Rating | IP65 |
| lK Rating | IK08 |
| DLC Number | n/a |
| Listings (ex: UL,CUL,CE) | UL / CUL |
| Warranty | 5 Year Warranty |
| Availability (Lead-Time) | 5-7 Production Days, Plus Shipping |

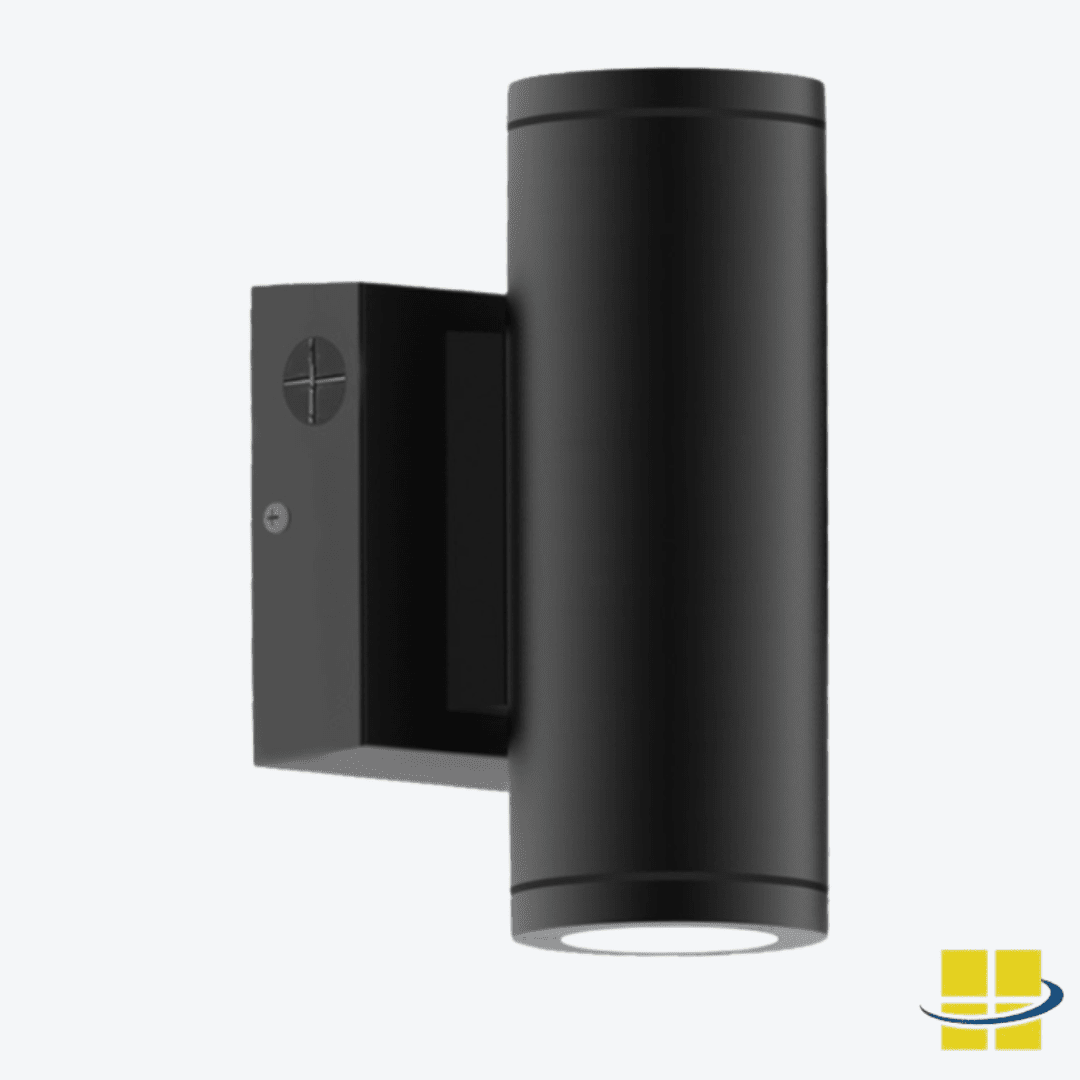

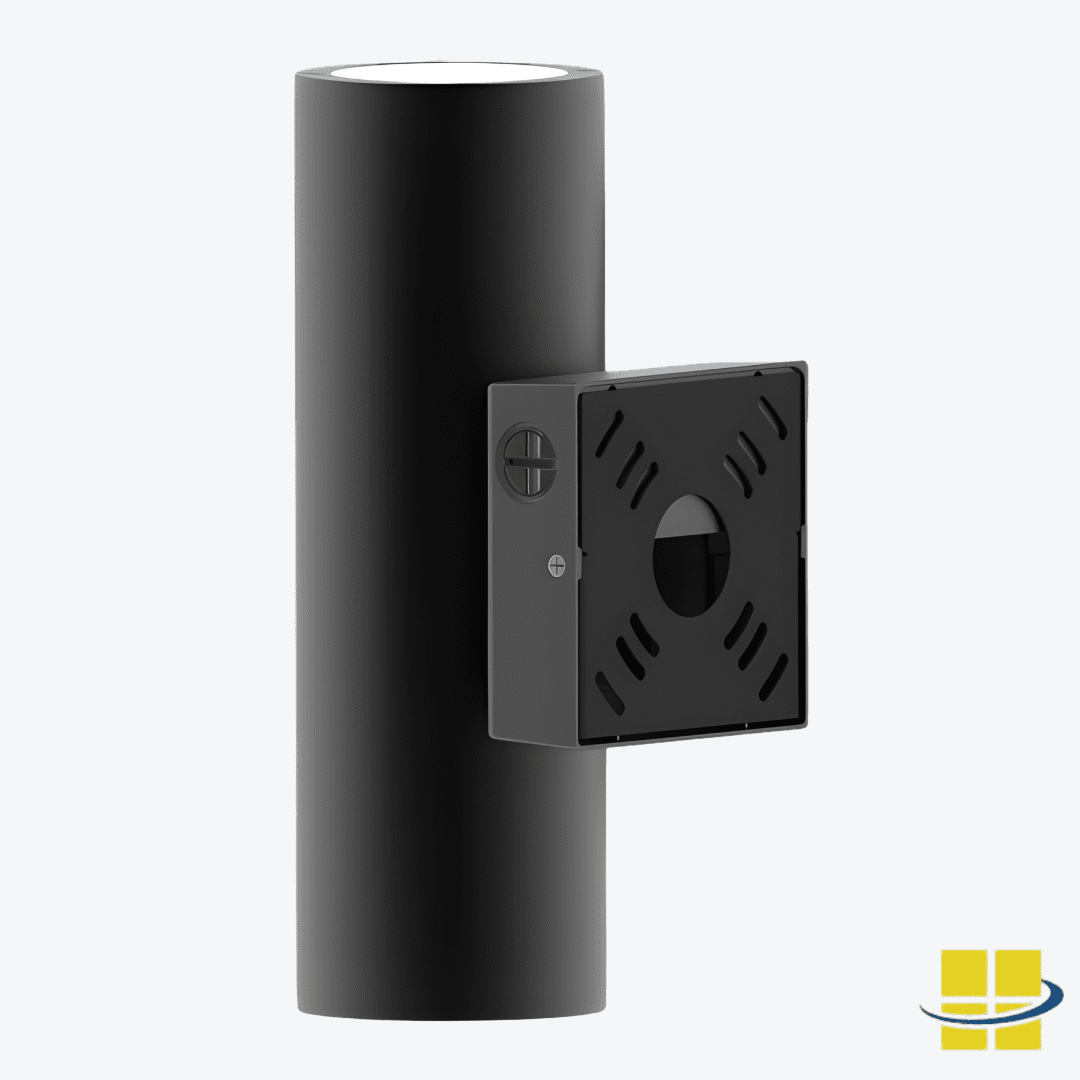

CYLR 3″ 15 LED Up/Down Wall Mount with Selectable Kelvin and Built-In Photocell
The CYLR Wall Mount combines sleek architectural design with powerful, precision lighting. Its 75° optics deliver uniform, glare-free illumination, while the corrosion-resistant aluminum body and premium powder-coated finish ensure lasting durability in any environment.
Versatile Lighting Design: CYLR offers Up, Down, or Up/Down beam options, giving you flexible lighting control to highlight and enhance any façade.
Selectable Kelvin: With selectable 3000K, 4000K, or 5000K Kelvin settings, CYLR empowers you to craft the perfect ambience for any occasion.
Built-In Photocell: Featuring a built-in photocell for effortless, energy-saving operation. CYLR automatically turns on at dusk and off at dawn, ensuring your space is perfectly illuminated only when needed..
No documents available
$119.87
Product Specifications
| Weight | 2.93 lbs |
|---|---|
| Dimensions | 8 × 3 × 5.07 in |
| Model Number | AF55XLED3815W345K75B |
| Weight Pounds | 2.93 lbs |
| Shipping Weight (Pounds) | 3.7 lbs |
| EPA | n/a |
| Housing Material | Alumium Extrusion |
| Finish Specifications | UV Stabilized Powdercoat |
| Finish Color (s) | Black |
| Color Rendering Index (CRI) | 80 |
| Lens Material | Glass |
| Optics | 75° |
| Color Temperature (Kelvin) | 3000K, 4000K, 5000K |
| LED Type | LED Module |
| System Watts | 15w |
| Light Source Lumens** (5000K) | 1559 lm |
| Luminaire Lumens** (5000K) | 1559 lm |
| Luminaire Lumens Per Watts** (5000K) | 126 lm/W |
| Dimensions in Inches | 8x3x5.07 |
| Dimension in mm | 203.4×76.2×128.83 |
| Mount (s) | Wall Mount |
| Rated Life (L70@ x Hours) | 54,000 |
| Voltage | 120-277V |
| Surge Protection | 4KV |
| Controls | FAO |
| Operating Temperature | -40°C – +40°C |
| IP Rating | IP65 |
| lK Rating | IK08 |
| DLC Number | n/a |
| Listings (ex: UL,CUL,CE) | UL / CUL |
| Warranty | 5 Year Warranty |
| Availability (Lead-Time) | 5-7 Production Days, Plus Shipping |
Ready to Order or Speak to a Lighting Specialist?
You can place your order online or if you want additional information, give us a call at 800-468-9925. Our team of friendly, expert high performance lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
You can also leave messages for and chat live with a lighting specialist by using our Live Chat feature on the bottom-right side of your browser window.
Access Fixtures Warranty
Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures’ complete warranty policy.
