DIY Half Court LED Basketball Lighting Package, 19fc, 120-277v


This DIY Half Court LED Basketball Lighting Package, 19fc, 120-277v is equipped with LED lighting covering a 20’x 40′ area and features perfectly even lighting with an average of 19fc with 2.60 Max/Min ratio. This package does NOT include poles. It is a simple and cost-effective illumination system to get you playing immediately, using 2 LED high-performance fixtures. The 50,000 hours L70 rating translates to virtually maintenance-free usage. Minimized energy and low to no maintenance results in the perfect mixture of performance, efficiency, and sustainability.

*Poles NOT included. Recommended mounting height of 20′ ft.


Package includes everything you need to light a half basketball court measuring 20 x 40′.  Poles Not Included. Specifically, it includes:


  • (2) CARO 308w LED sports lighters
  • (2) U-bracket Mounts
  • Poles Not Included
  • Complete photometric analysis.


In Stock

SKU: AF55XLED6099A302BBALLHALF19FC Categories: , Tags: ,

Product Description

DIY Half Court LED Basketball Lighting Package, 19fc, 120-277v Overview

DIY Half Court LED Basketball Lighting Package, 19fc, 120-277v from Access Fixtures provides the LED fixtures you need to light a recreational half basketball court measuring 20′ x 40′ with an average of 19 footcandles, using your own 20′ poles. This package provides a tremendous amount of light using fixtures rated for 50,000 hours of life. Another bonus of this package is that it ships quickly. This package includes two high-output CARO 308 LED sports lighters with U-bracket mounts.  View the photometric analysis to see exactly what kind of light you’ll receive and take the guesswork out of lighting your court.

DIY Half Court LED Basketball Lighting Package, 19fc, 120-277v Sizing and Shipping

While there are many variations of half basketball courts, 47′ x 50′ is regulation size.  This package works great for residential applications.  If your court is of a different size or application, call an Access Fixtures lighting specialist to see if and how we can modify this package to fit your layout. Of course, we can always run a customized photometric report for your court, if necessary.

This package comes with two CARO 308 LED Area Lights with U-bracket mounts, which are 308-system watt LED fixtures. They deliver 37,042 lumens and are L70 rated at 50,000 hours. They automatically detect line voltages between 120-277 volts and come with a 5-year warranty. Additionally, they feature an IP65 rating, meaning they are fully protected against dust and water ingress and are even submersible. For more information about these fixtures, call Access Fixtures today at 800-468-9925.

Fixtures for DIY Half Court LED Basketball Lighting Package

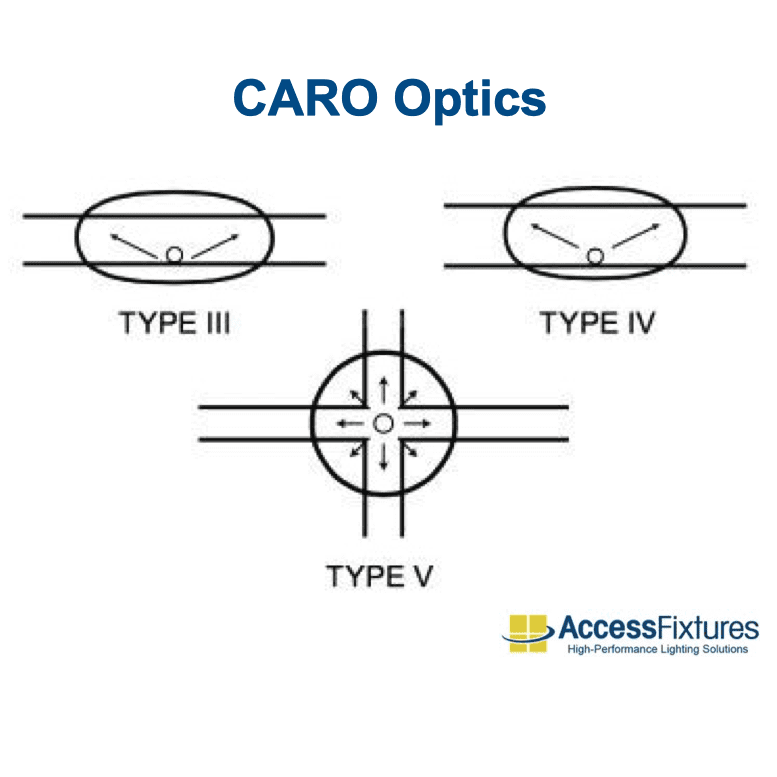

This DYI Basketball LED Lighting 20’x40′, Avg 19fc, 3.3 Max/Min package includes weatherproof, energy-efficient, CARO 308w LED Area Light, is IP65 rated, emits a total of 74,084 lumens – while using just 308 watts per fixture. The CARO utilizes custom optics that sends light forward, where you need it. This package reduces energy cost by at least 50% when compared to old-fashioned incandescent or pulse start-metal halides.

  • Luminaires: CARO 308 area light with Yoke/U-bracket mount
  • Number of Luminaires: 2
  • Total Light Source Lumens: 74,084
  • System Wattage: 308
  • Rated Life (L70): 50,000+ Hours
  • Kelvin Temperature: 4000K
  • Color Rendering Index: 70+
  • Housing: Die-cast aluminum housing
  • Listings: RoHS Compliant, CuL Listed, IP65, UL
  • Weight: 19 lbs. ea.
  • Fixture Dimension: 21.1 × 13 × 5.6 in
  • Warranty: 5-Year Warranty

*Poles NOT included. Recommended mounting height of 20′ ft.  Please refer to the DIY installation guide.

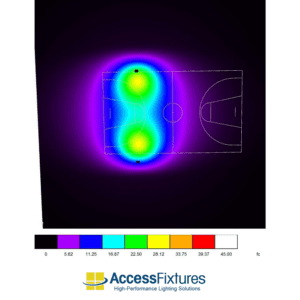

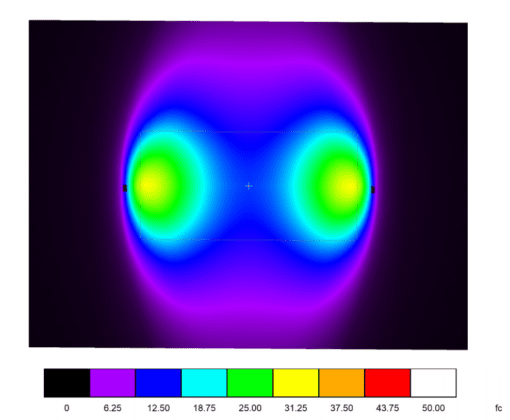

Light Levels: Half LED Basketball Court – 17 FC

Average Footcandles: 19 FC

Minimum Footcandles: 12 FC

Maximum Footcandles: 31 FC

Max/min Ratio: 2.60

If you need help understanding the report, give Access Fixtures a call and a lighting specialist will be glad to go through it with you, page by page.

Access Fixtures 5-Year Limited Warranty

All Access Fixtures packages come with a 5-year warranty. If your product is found to have a manufacturing defect – we will replace components, the entire product, or issue a refund. We stand behind the quality of our products. Our customer service team is happy to help with all your questions or address any concerns. If you have any questions, please give us a call at 800-468-9925.

Ready to Order DIY Half Court LED Basketball Lighting Package, 19fc, 120-277v? Have More Questions?

Lighting a basketball court often means a significant investment of both time and money. We want to make sure you select the appropriate package for your needs and that you understand exactly what you’ll be receiving. If you’d like to discuss this package with a lighting specialist, call us today at 800-468-9925 or send us an email at Otherwise, select your options with the drop-down menu at the top of this page, click “Add to Cart,” and follow the payment steps online. When your order ships, we will send you tracking information via email.


Weight 100 lbs
Dimensions 30 × 30 × 30 in

Typically ships in 2-4 weeks

Available Finishes



Electronic 50/60 Hz

Color Rendering Index (CRI)



Die cast aluminum housing




Tempered Glass

Light Source Included

LED Array Included


Yoke Mount/U-Bracket Mount

Product Family


Number of Poles

Not Included

Sports Level of Play



5-Year Limited Warranty

Pole Height

20 Feet

Number of Courts


Average Footcandles


Number of Fixtures


Max/Min Uniformity
