Product Specifications
| Weight | 12 lbs |
|---|---|
| Dimensions | 17 × 18 × 5 in |
| Model Number | AF55XL29150FT576345P |
| Weight Pounds | 10.08 lbs |
| Product Family | DOHU |
| EPA | 1.05 sqft |
| Housing Material | Die-cast Aluminum |
| Finish Specifications | UV Stabilized Powder Coat |
| Finish Color (s) | Bronze |
| Color Rendering Index (CRI) | 80+ |
| Lens Material | High translucent tempered glass |
| Beam Angle | 130° |
| Color Temperature (Kelvin) | 3000K, 4000K, 5000K (Selectable) |
| LED Type | LED Module |
| System Watts | 105w, 120w, 150w (Selectable) |
| Light Source Lumens** (5000K) | 20,154 lm |
| Luminaire Lumens** (5000K) | 20,154 lm |
| Luminaire Lumens Per Watts** (5000K) | 152 lm/W |
| Dimensions in Inches | 15.75 X 14.17 X 3.15 |
| Dimension in mm | 400 X 360 X 80 |

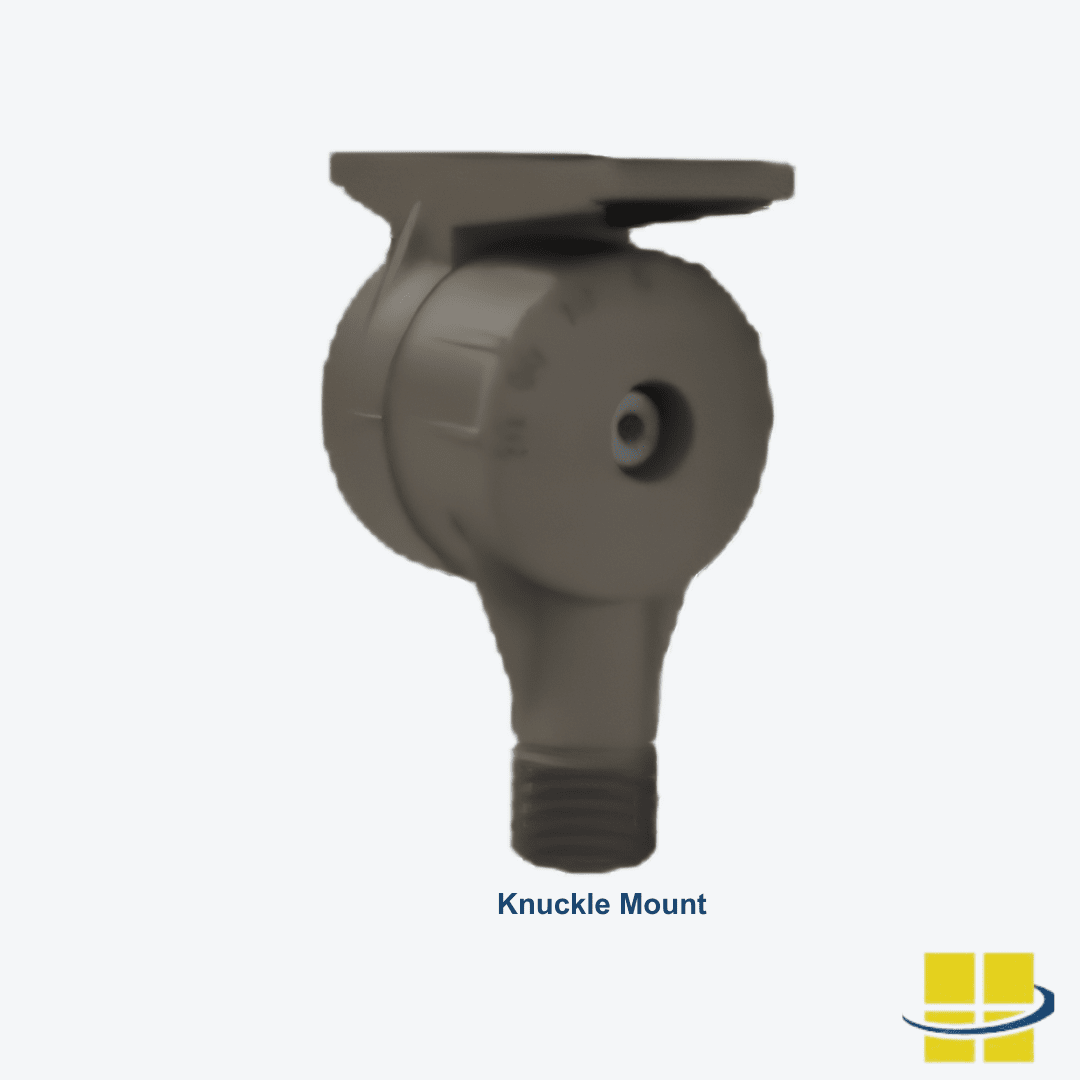

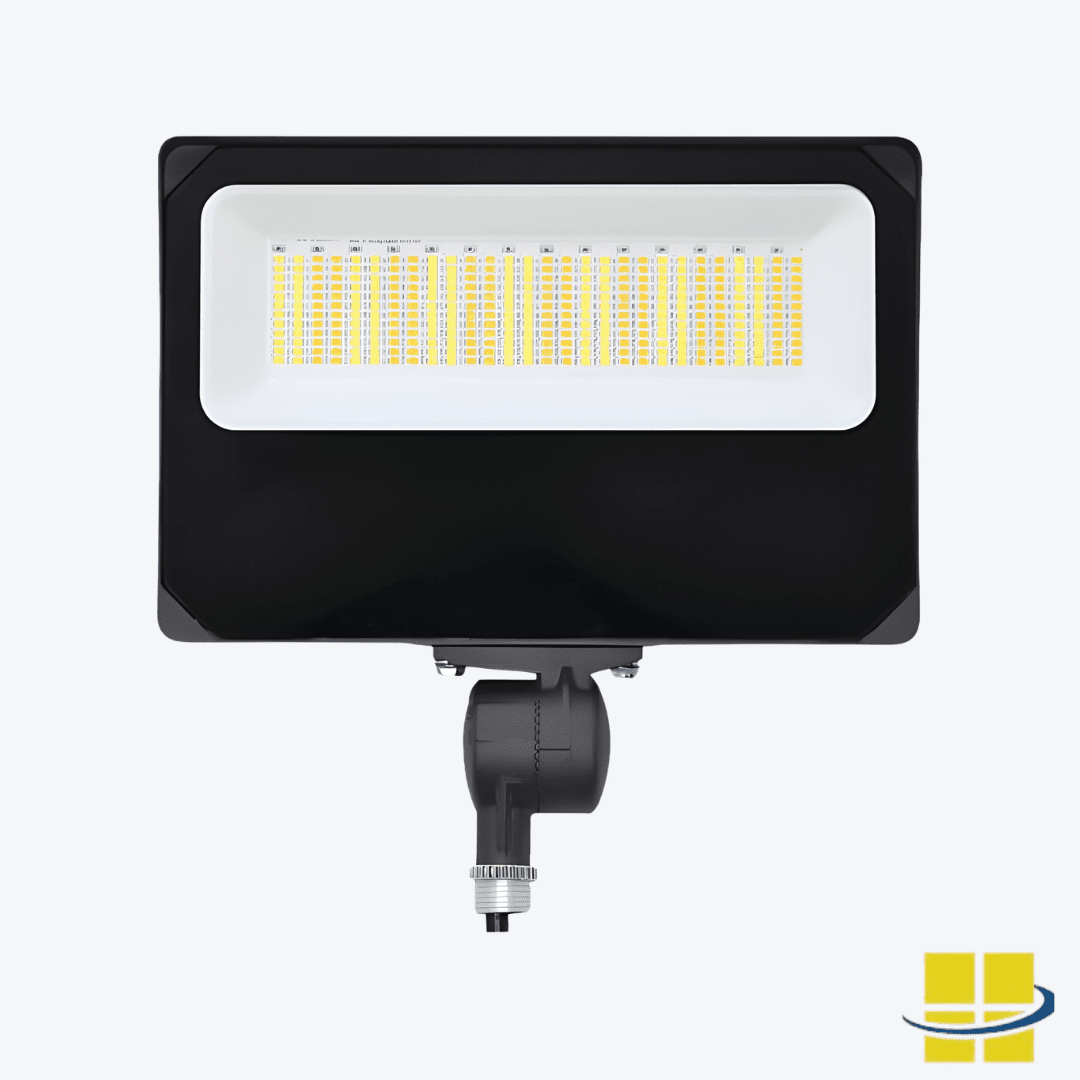

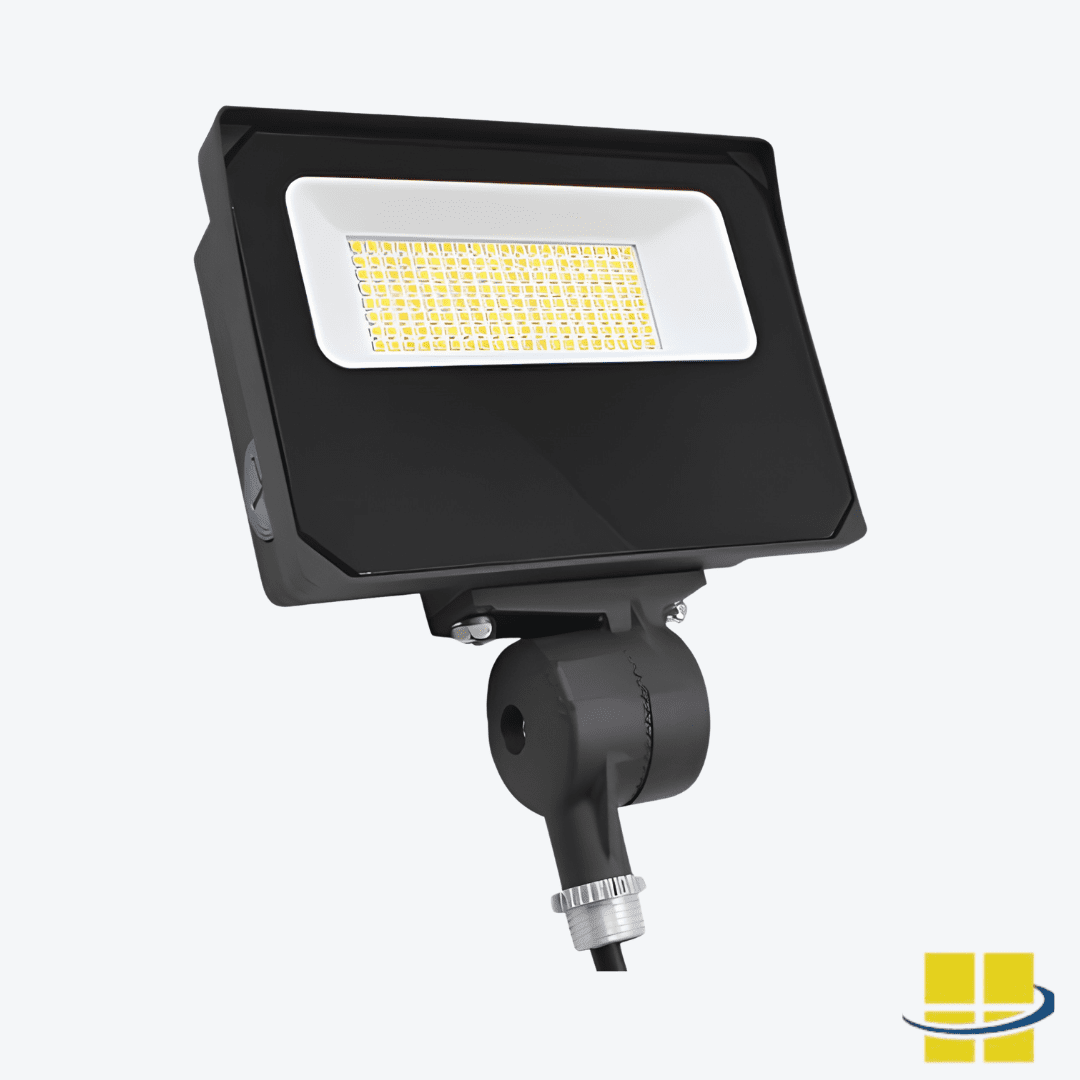

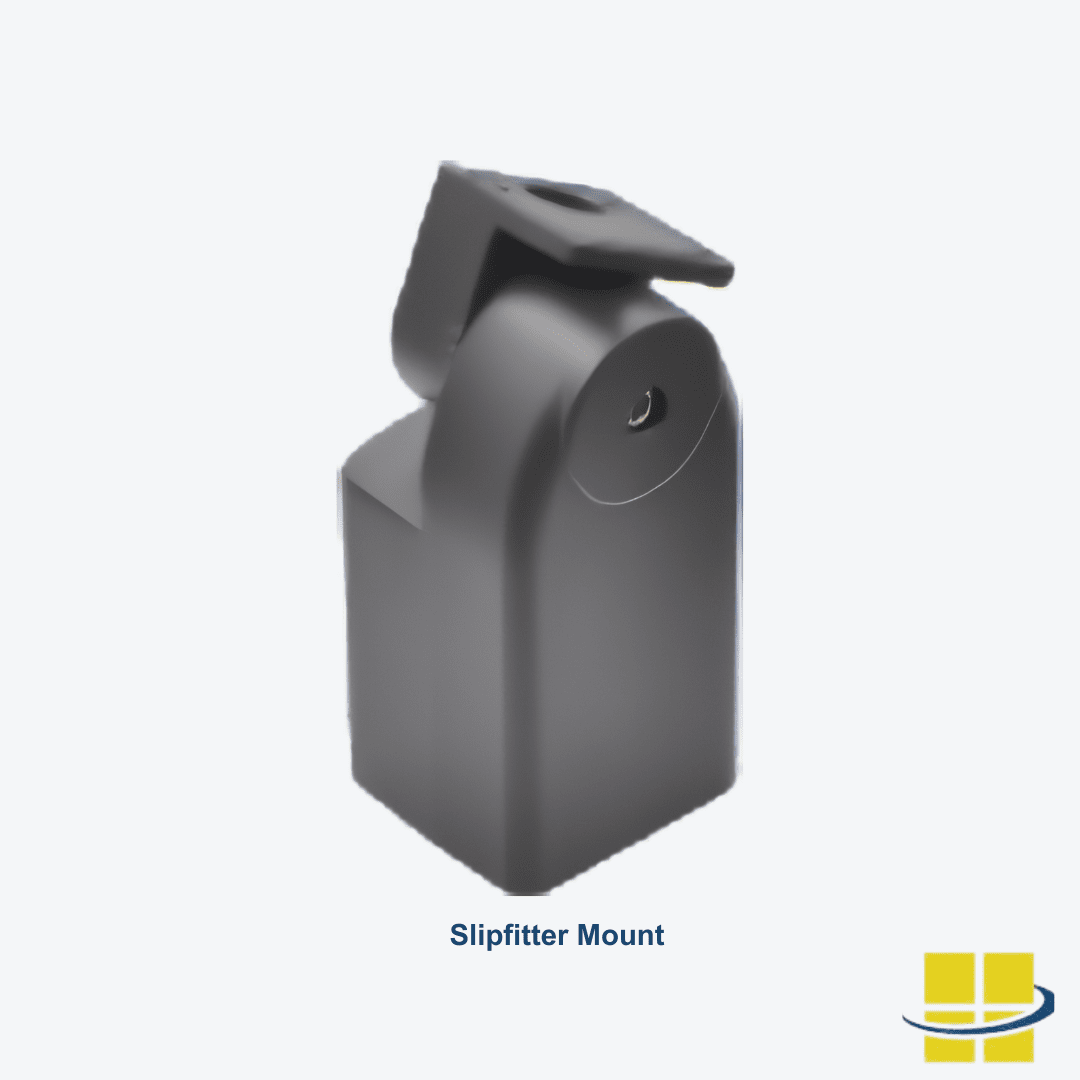

| Mount (s) | Knuckle Mount, Slip Fitter Mount |
| Rated Life (L70@ x Hours) | 50,000 Hours |
| Voltage | 120-277v |
| Surge Protection | 6kV |
| Controls | Built-In Photocell |
| Operating Temperature | -40C to 40C |
| IP Rating | n/a |
| lK Rating | IK08 |
| BUG Rating | B4 U3 G1 |
| Listings (ex: UL,CUL,CE) | RoHS Compliant, CSA: Listed for wet locations, DLC Listed |
| Warranty | 5 Year Warranty |
| Availability (Lead-Time) | 5-7 Production Days, Plus Shipping |

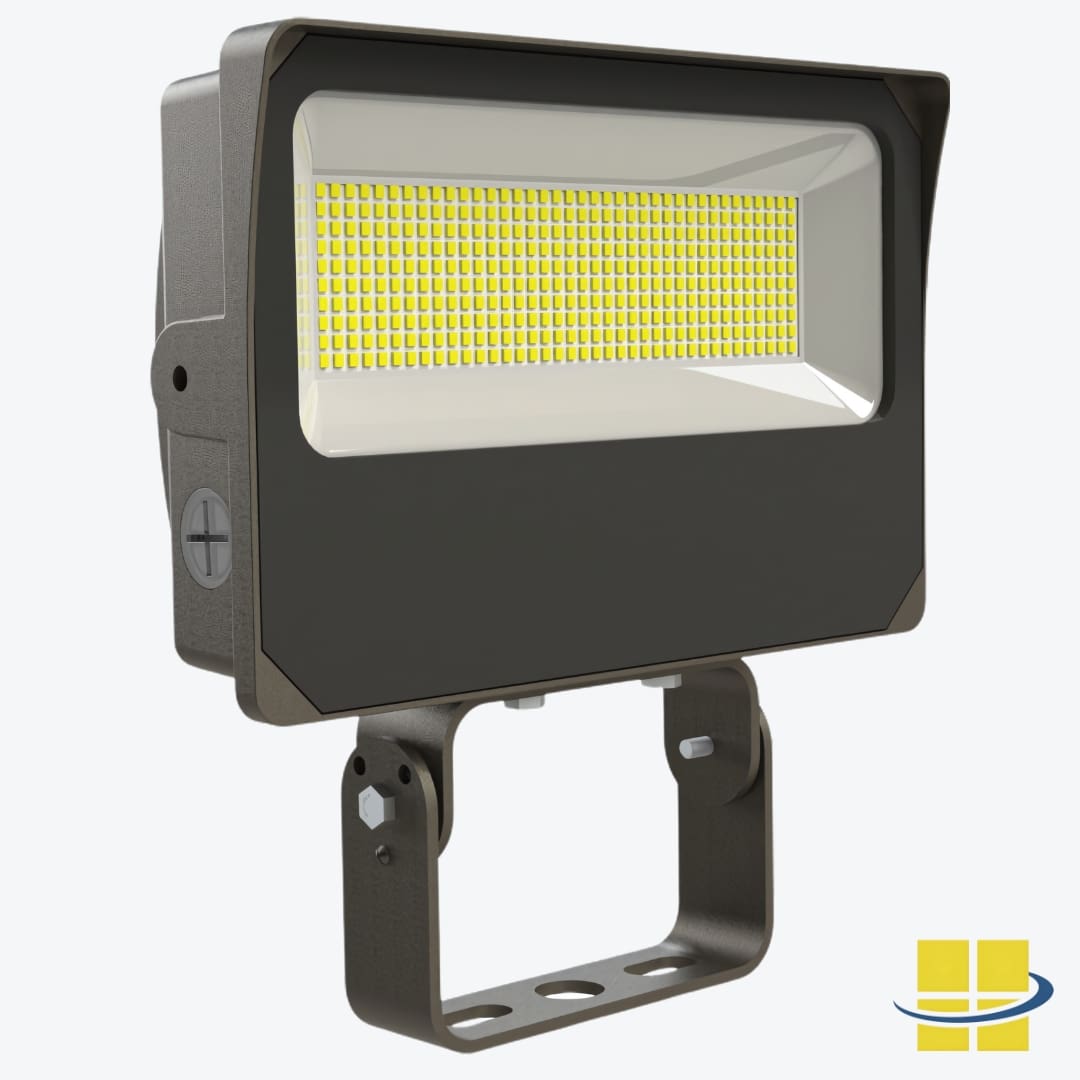

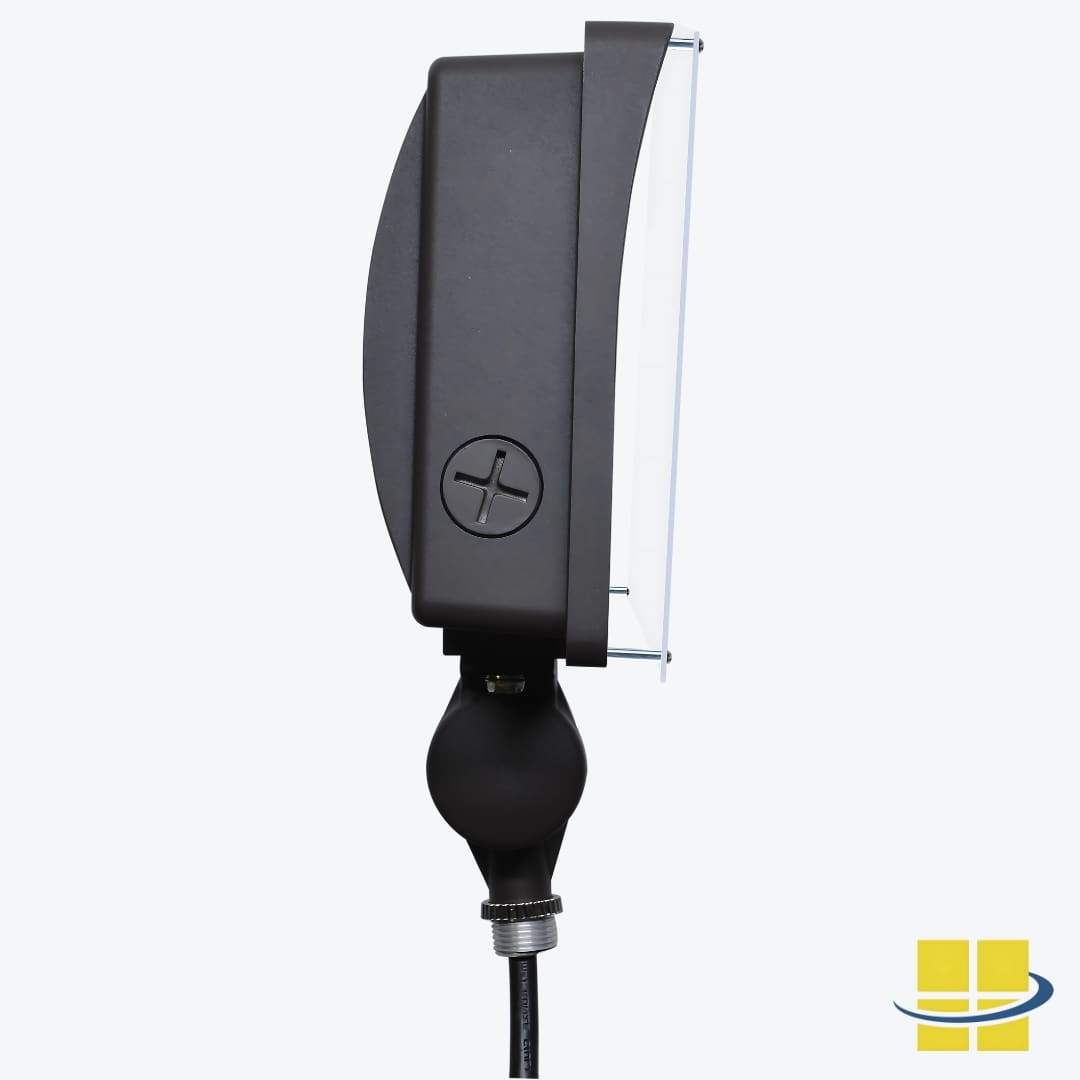

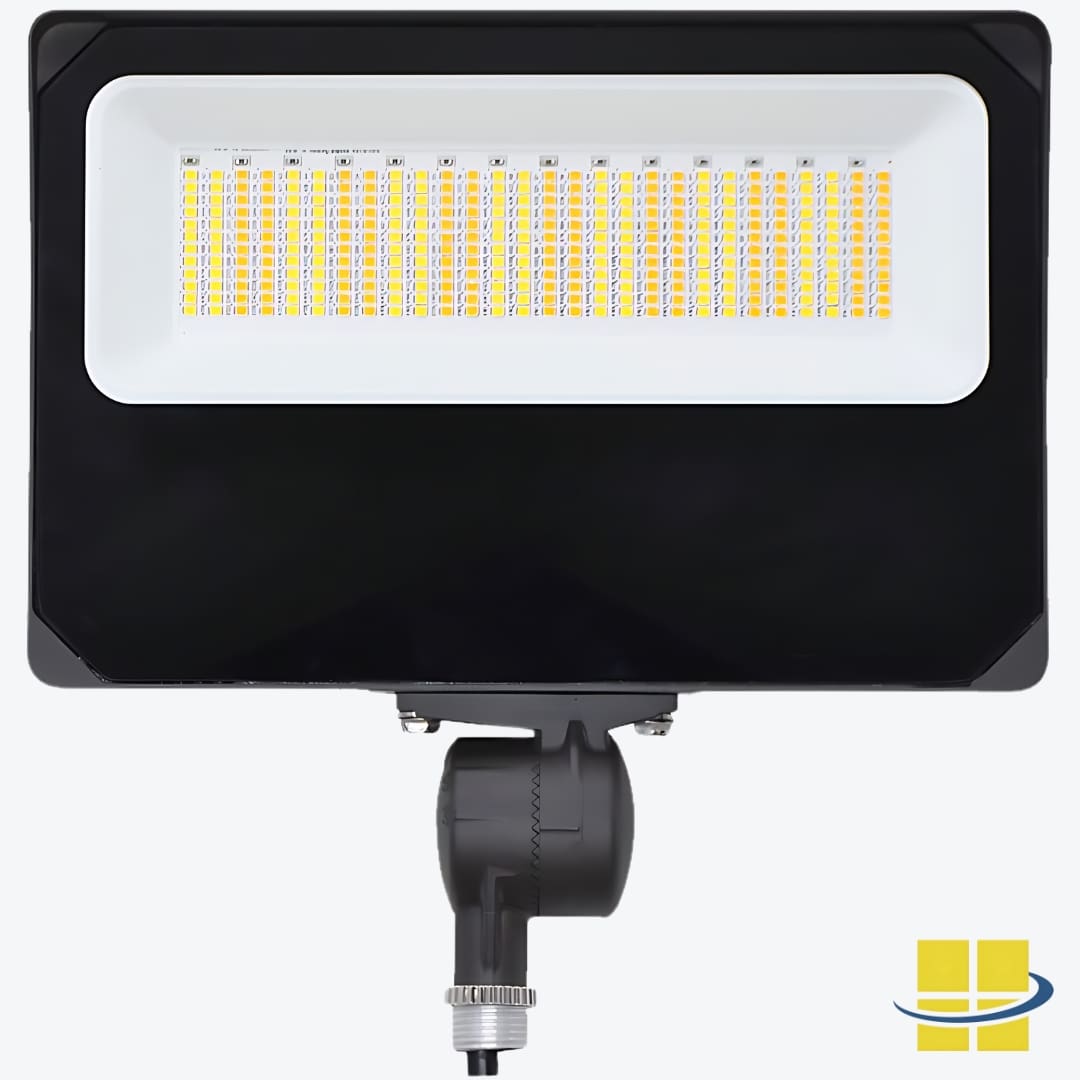

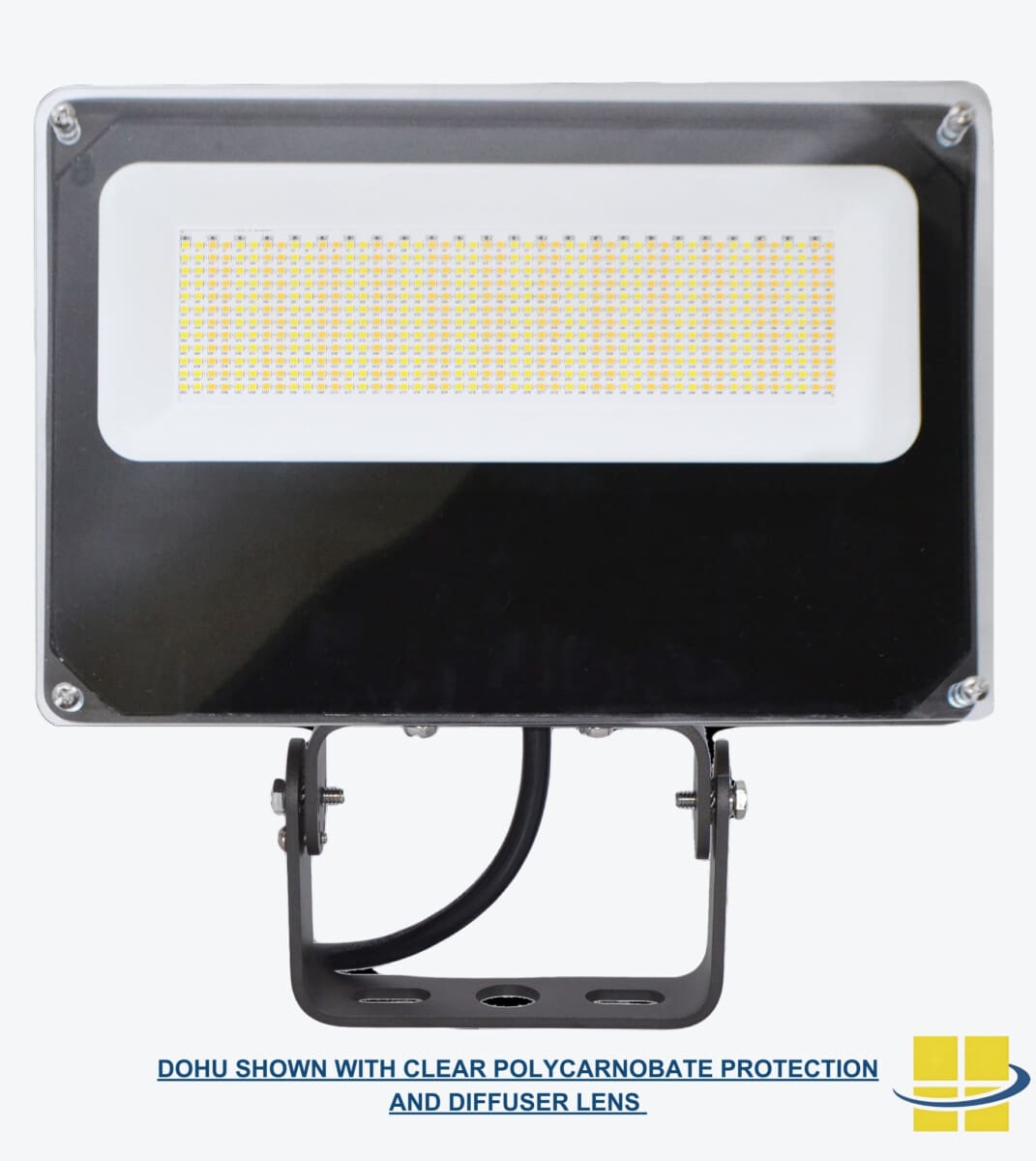

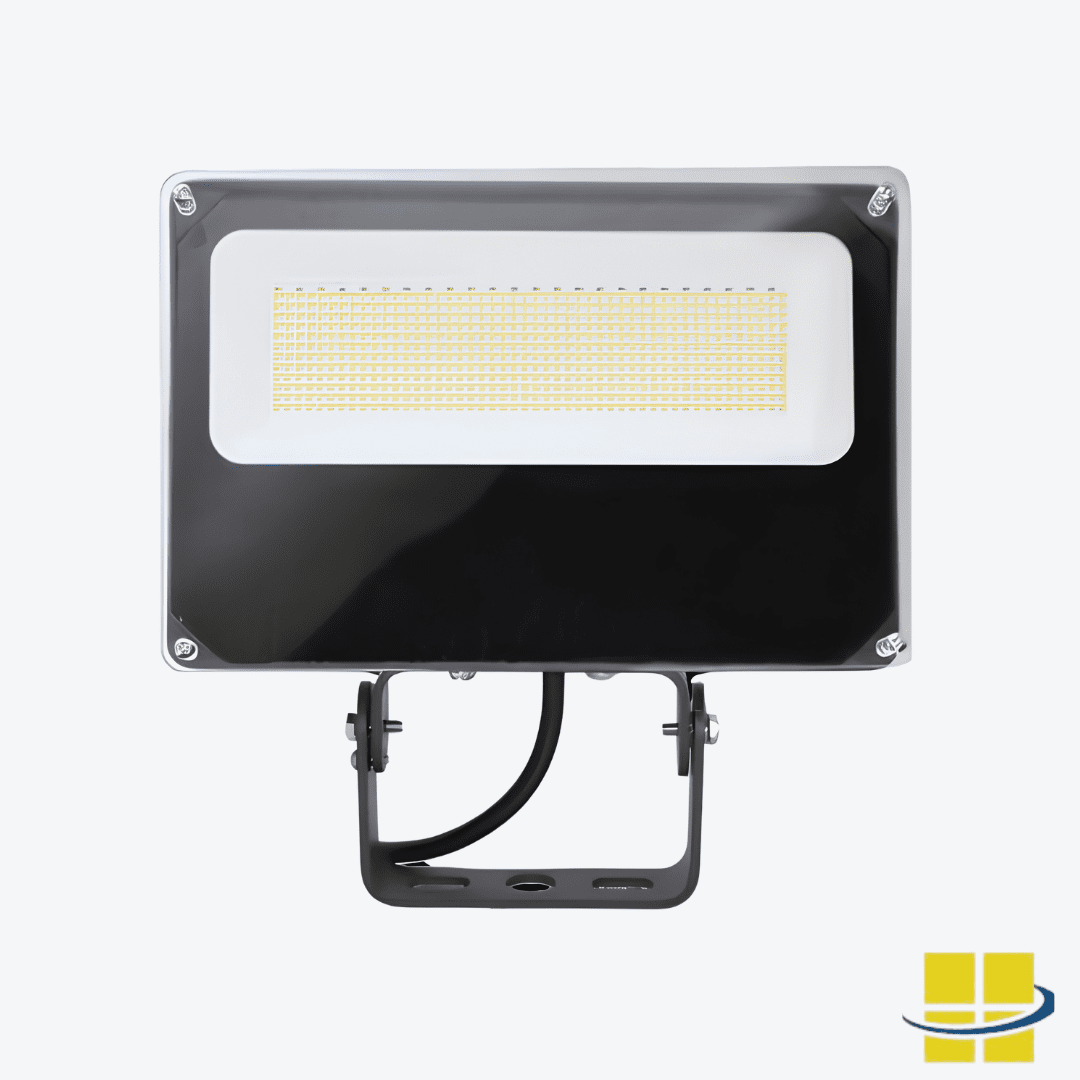

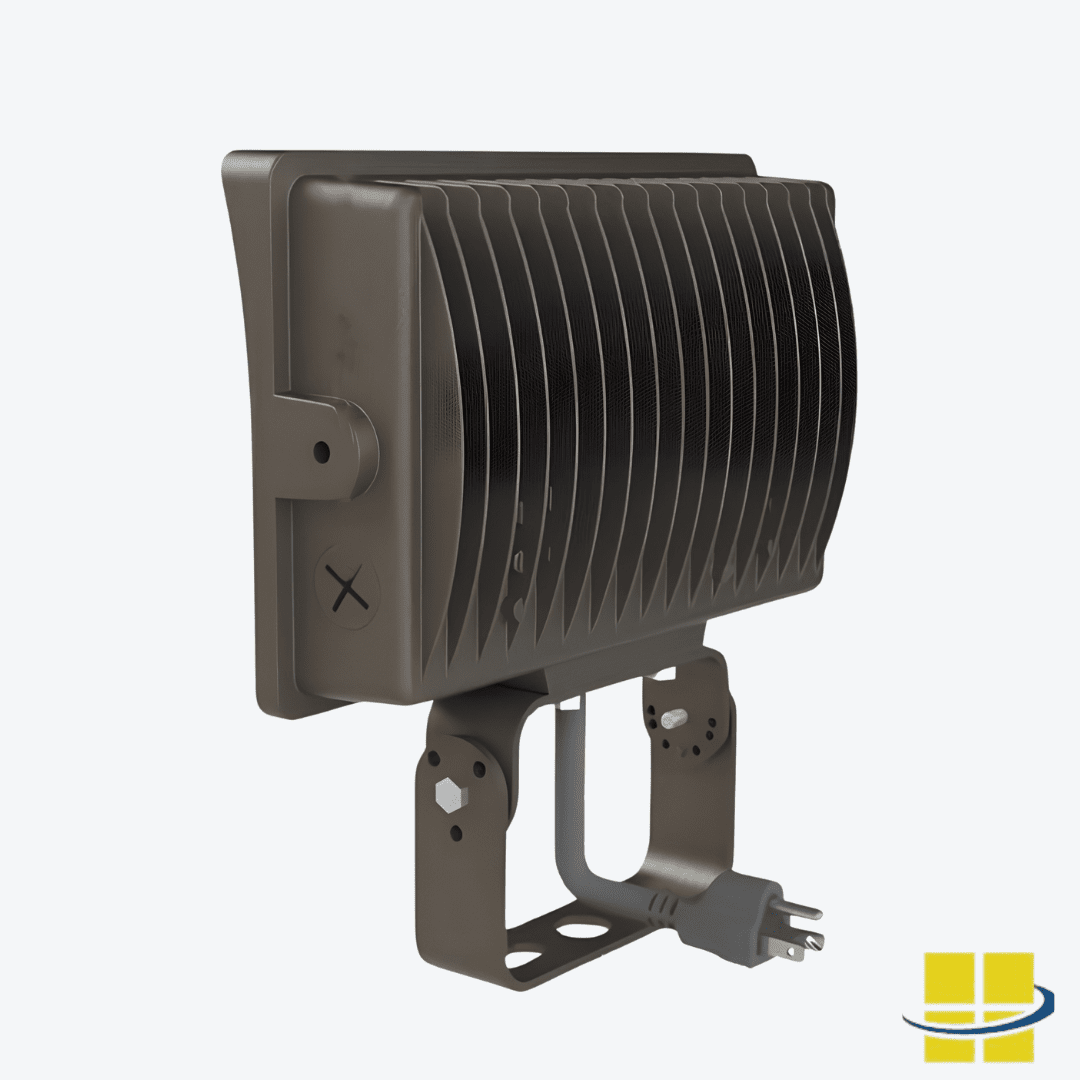

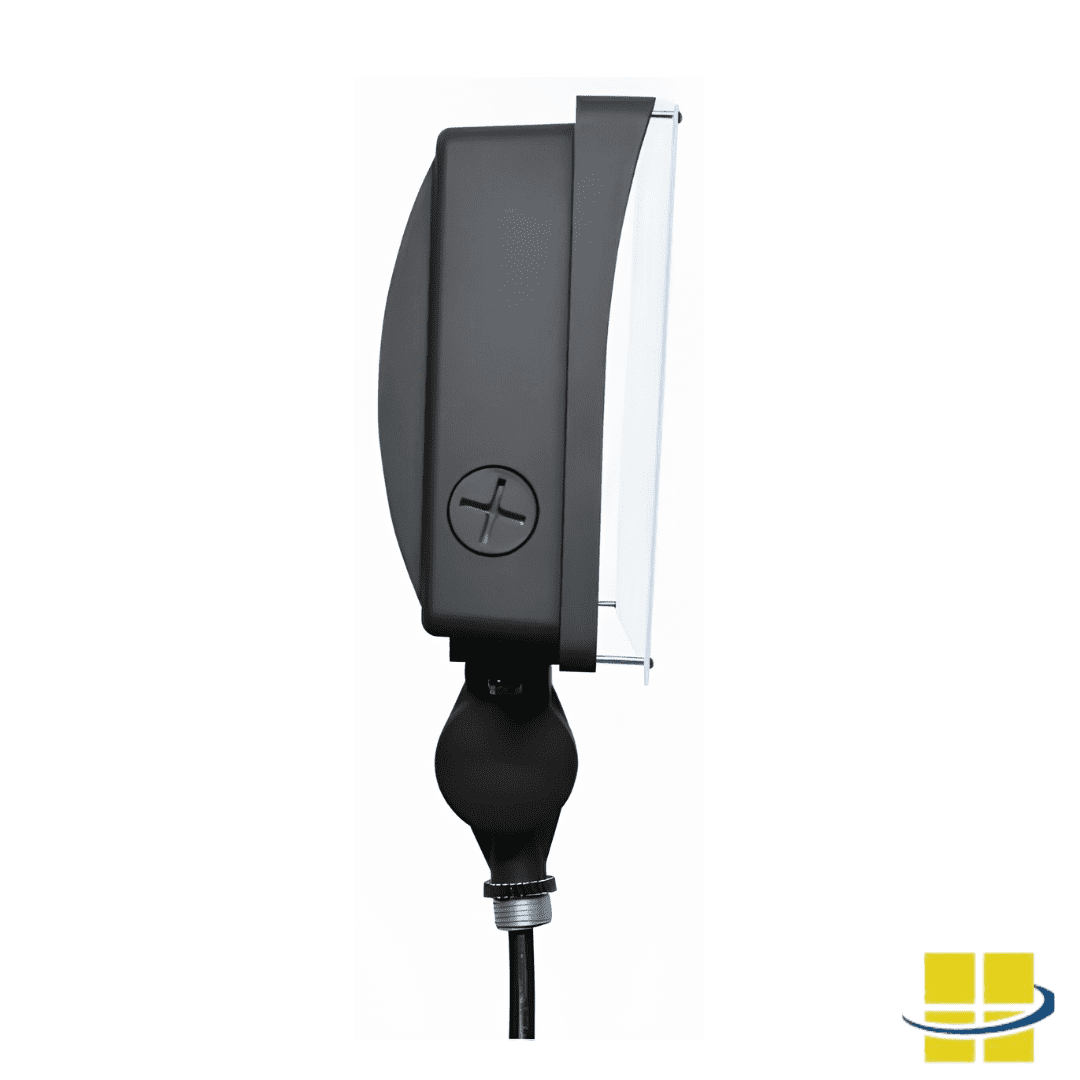

DOHU 105-120-150 LED Flood Light with Selectable Wattage and Selectable Kelvin
Designed to deliver powerful performance with modern versatility, DOHU LED Flood Lights combines rugged durability, advanced efficiency, and customizable lighting in a sleek, compact fixture. Featuring selectable wattages and kelvin temperatures, DOHU adapts effortlessly to a wide range of outdoor applications to provide efficient, reliable illumination while ensuring long-lasting performance and minimal maintenance.
Built-in Photocell: DOHU features a built-in photocell that automatically turns the lights on at dusk and off at dawn, delivering reliable, hands-free operation without the need for manual controls or external timers.
Field Selectable: DOHU offers selectable wattage and Kelvin temperature, giving you the flexibility to tailor light output and ambiance to your desires. Choose from 3000K, 4000K, or 5000K and adjust between 105w, 120w, or 150w based on your specific needs.

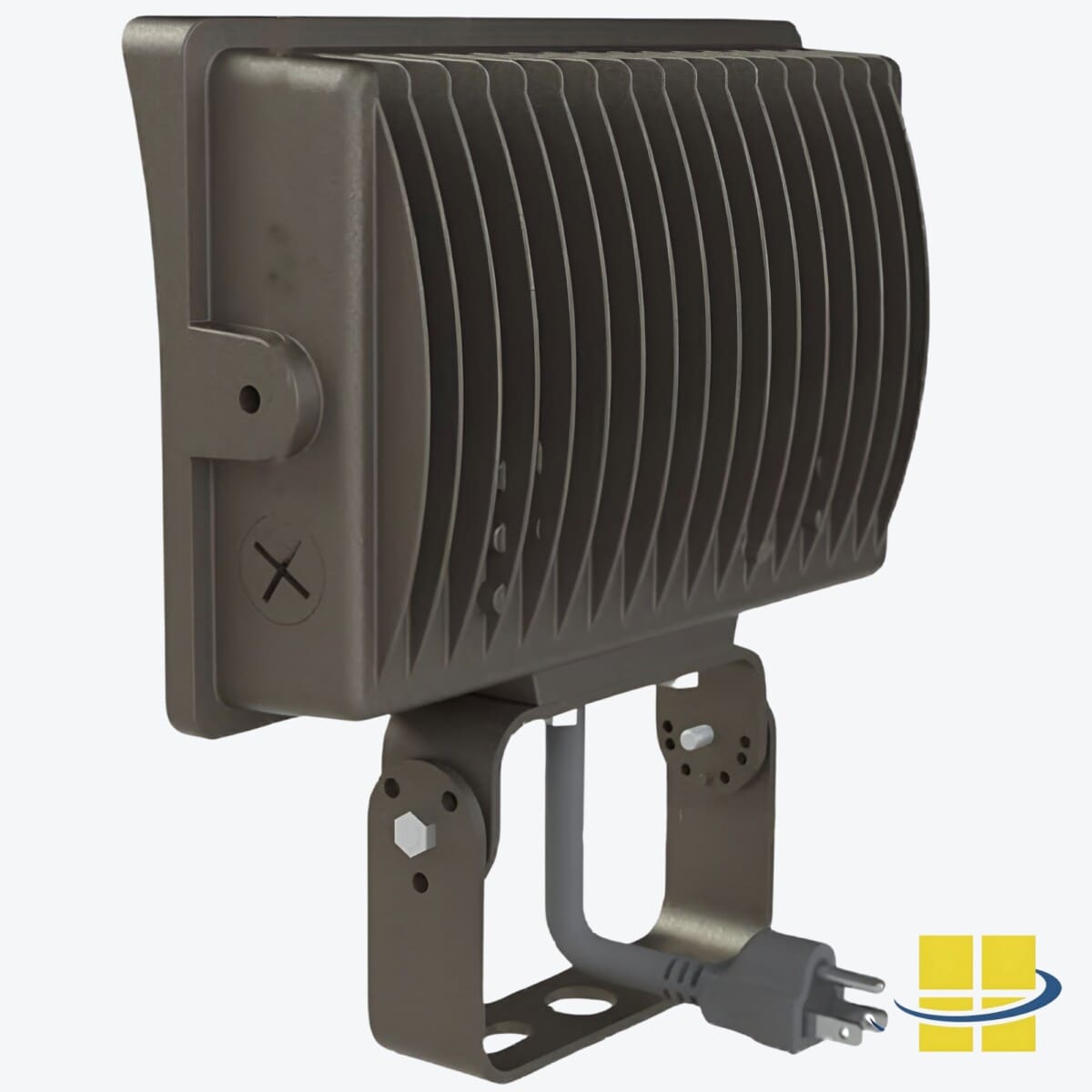

Exceptional Durability: Built to withstand demanding outdoor environments, DOHU features a rugged die-cast aluminum housing and a durable tempered glass lens that resists impact, corrosion, and harsh weather conditions.
No documents available
$159.87
Product Specifications
| Weight | 12 lbs |
|---|---|
| Dimensions | 17 × 18 × 5 in |
| Model Number | AF55XL29150FT576345P |
| Weight Pounds | 10.08 lbs |
| Product Family | DOHU |
| EPA | 1.05 sqft |
| Housing Material | Die-cast Aluminum |
| Finish Specifications | UV Stabilized Powder Coat |
| Finish Color (s) | Bronze |
| Color Rendering Index (CRI) | 80+ |
| Lens Material | High translucent tempered glass |
| Beam Angle | 130° |
| Color Temperature (Kelvin) | 3000K, 4000K, 5000K (Selectable) |
| LED Type | LED Module |
| System Watts | 105w, 120w, 150w (Selectable) |
| Light Source Lumens** (5000K) | 20,154 lm |
| Luminaire Lumens** (5000K) | 20,154 lm |
| Luminaire Lumens Per Watts** (5000K) | 152 lm/W |
| Dimensions in Inches | 15.75 X 14.17 X 3.15 |
| Dimension in mm | 400 X 360 X 80 |

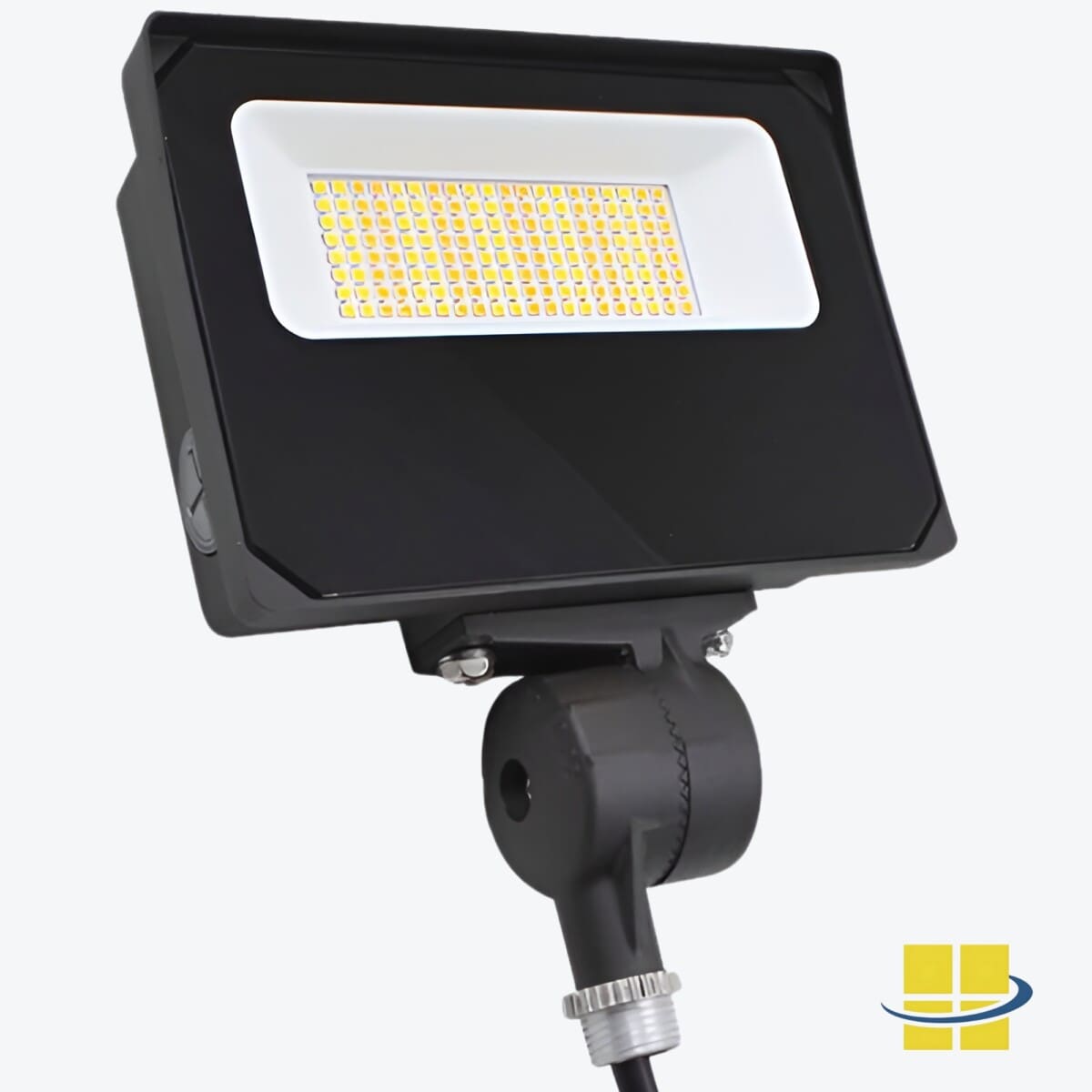

| Mount (s) | Knuckle Mount, Slip Fitter Mount |
| Rated Life (L70@ x Hours) | 50,000 Hours |
| Voltage | 120-277v |
| Surge Protection | 6kV |
| Controls | Built-In Photocell |
| Operating Temperature | -40C to 40C |
| IP Rating | n/a |
| lK Rating | IK08 |
| BUG Rating | B4 U3 G1 |
| Listings (ex: UL,CUL,CE) | RoHS Compliant, CSA: Listed for wet locations, DLC Listed |
| Warranty | 5 Year Warranty |
| Availability (Lead-Time) | 5-7 Production Days, Plus Shipping |
