EPTA 80w 590nm Amber LED Linear Lights, Turtle-Safe, EXTREME-LIFE

$289.87

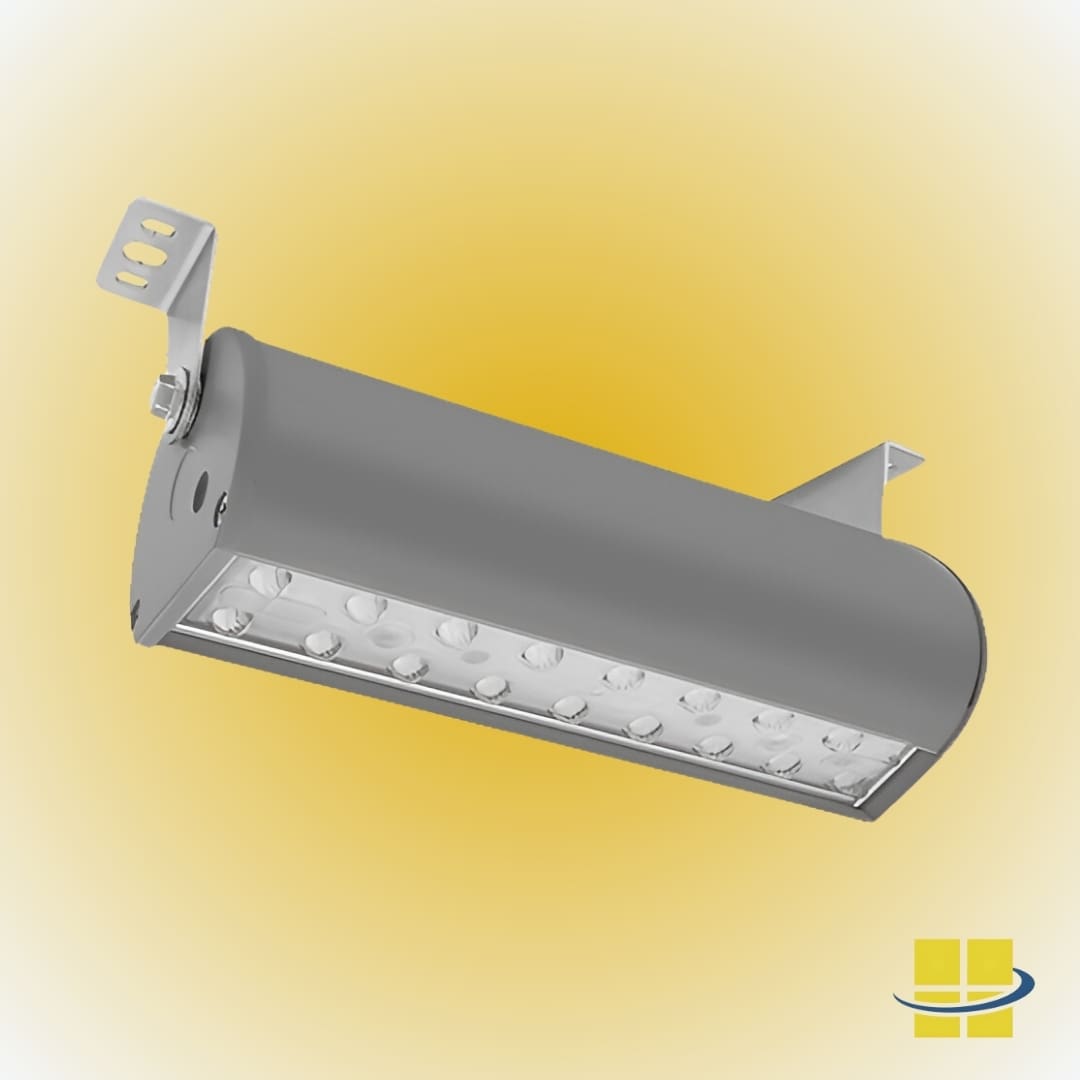

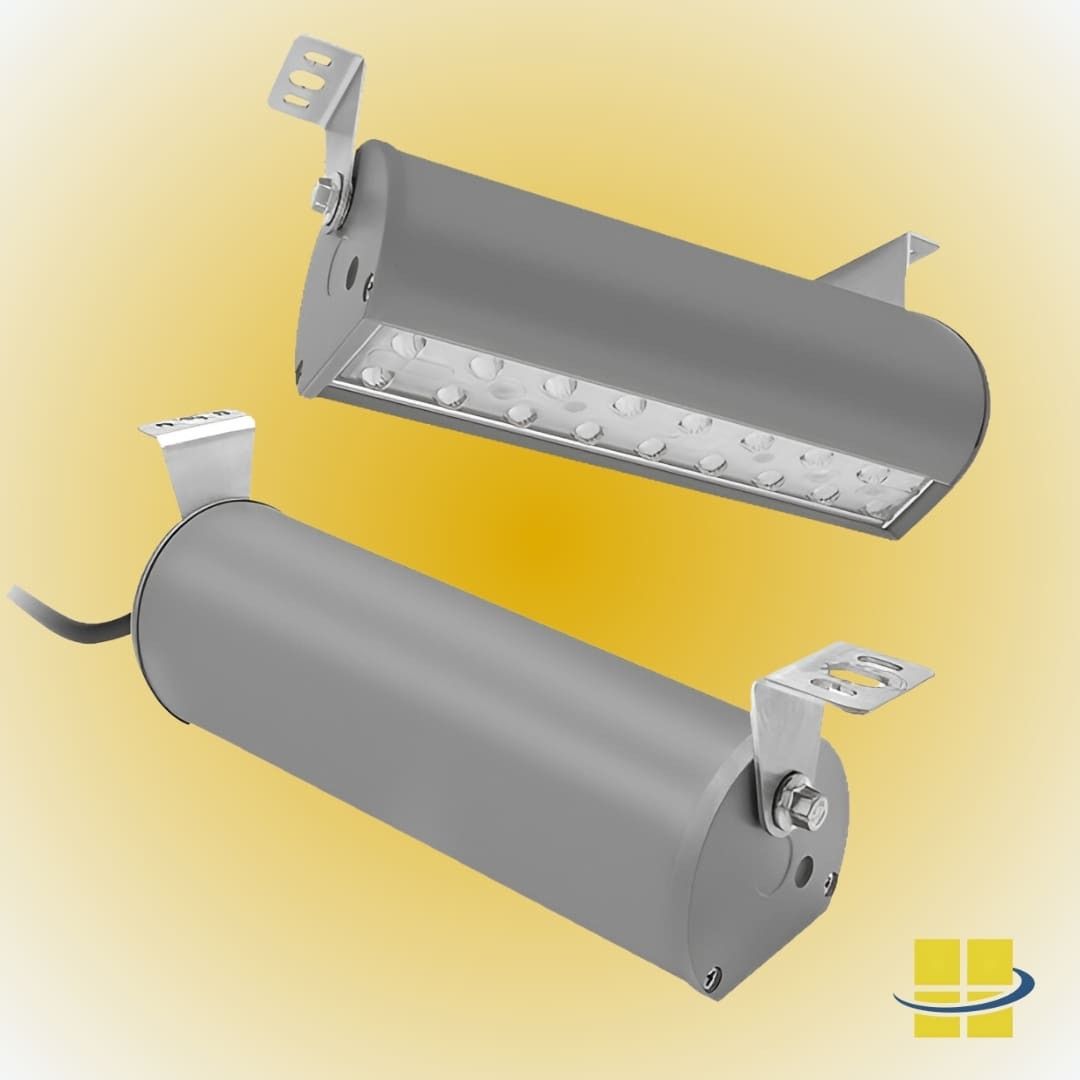

EPTA LED 590nm Amber linear lights are designed and manufactured to function as task lighting, high bay lights, directional lights, and for multiple specific applications. Built to be durable and reliable, EPTA features superior optics and spill light control design. EPTA is low weight, has multiple ways to be mounted, and can be linked together.
EXTREME-LIFE: Exceptional heat sink design produces an EXTREME-LIFE rating of L70 @ 200,000 hours for years of virtually maintenance-free performance
590nm Amber LEDs: 590nm Amber LEDs provide turtle-friendly and wildlife-friendly LED lighting

Premium Build – IP66 rated against water jets, 1000-hour salt spray certification, and extruded aluminum housing for maximum life and durability

ARCI LED Bollard Light PDF

In Stock

  • Black and Gray are standard colors. Custom RAL finishes are available at an up charge with a minimum order quantity (MOQ).
  • Select a Marine Grade finish to protect against extreme environments where there are harsh conditions, such as areas where chemicals are being used or coastal areas with high amounts of salt
  • 0-10v Dimming is suggested and is no additional cost. If dimming is not used, simply cap the 2 low voltage dimming wires.
  • EPTAs are manufactured with a 3' power cord exiting the light fixture. You may add additional length to the power cord.
  • Maximize energy savings and the life of the canopy light by adding a programable microwave control with an occupancy sensor and light sensor.
  • Adding a photocell prevents the need to manually turn on/off your area/spot/flood lights when it gets dark.
  • Total

Specifications

Weight 4.6 lbs
Dimensions 15.94 × 4.53 × 5.12 in
Application

, ,

Availability

3 to 4 Week Production, plus Shipping

Light Source

Available Finishes

Black, Gray

Housing

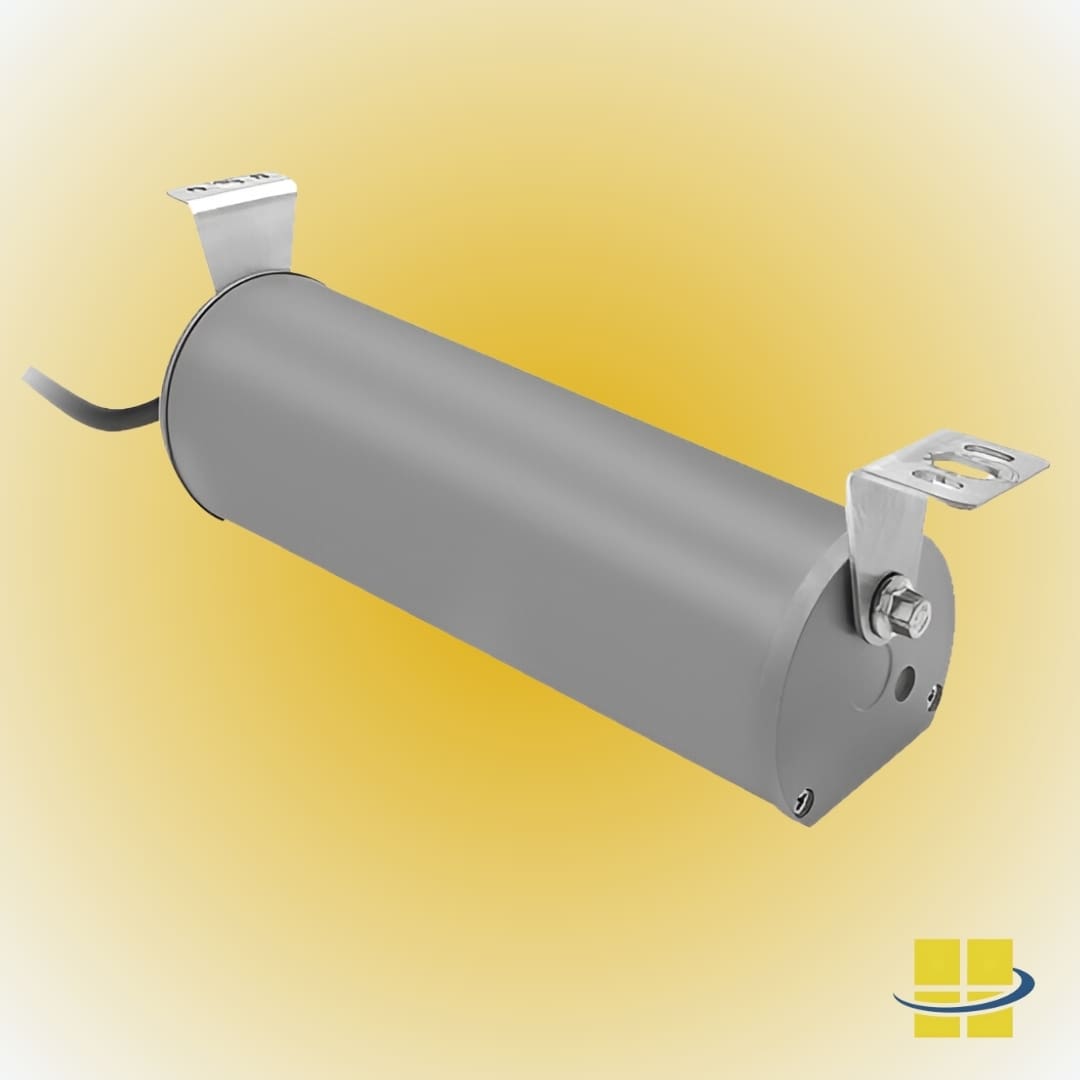

Extruded aluminum housing

Light Source Included

LED Array Included

Listings

IP66, RoHS Compliant, CB, CE, CuL Listed, DLC Listed, IK08, SAA

Mounting

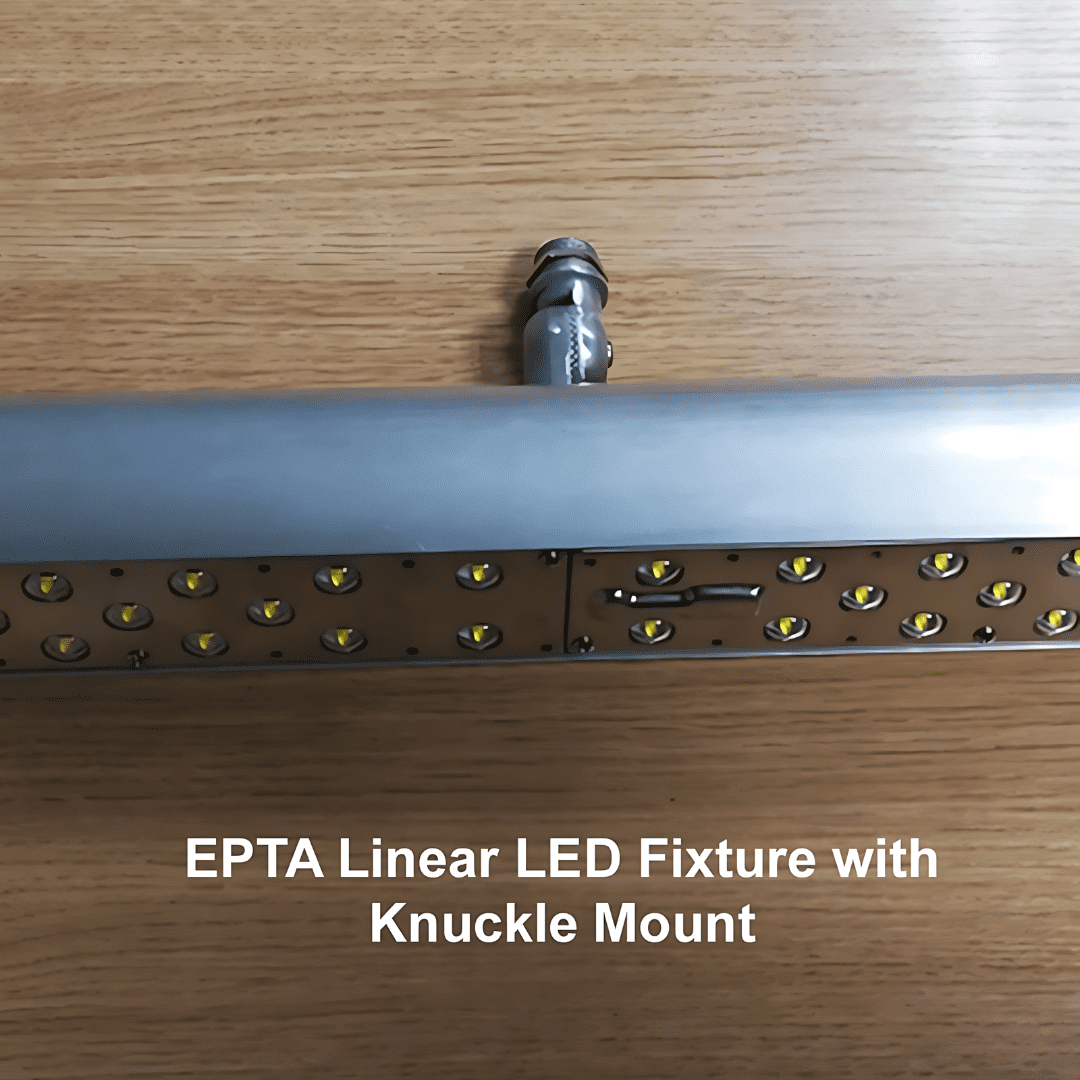

Knuckle Mount, Surface Mount, Suspension Mounting

Product Family

EPTA

Rated Life

L70 @ up to 200,000 Hours

System Watts

80w

Voltage

120v, 208v, 240v, 277v, 347v, 480v

Warranty

5-Year Limited Warranty

Product Description

EPTA 80w 590nm Amber LED Linear Lighting Features:

  • 5.07 lbs
  • 22.05L x 3.23W x 2.80H
  • 590nm Amber (wildlife and turtle friendly)
  • 100-277VAC 50/60Hz
  • Nominal power 40W-160W
  • 700 mA

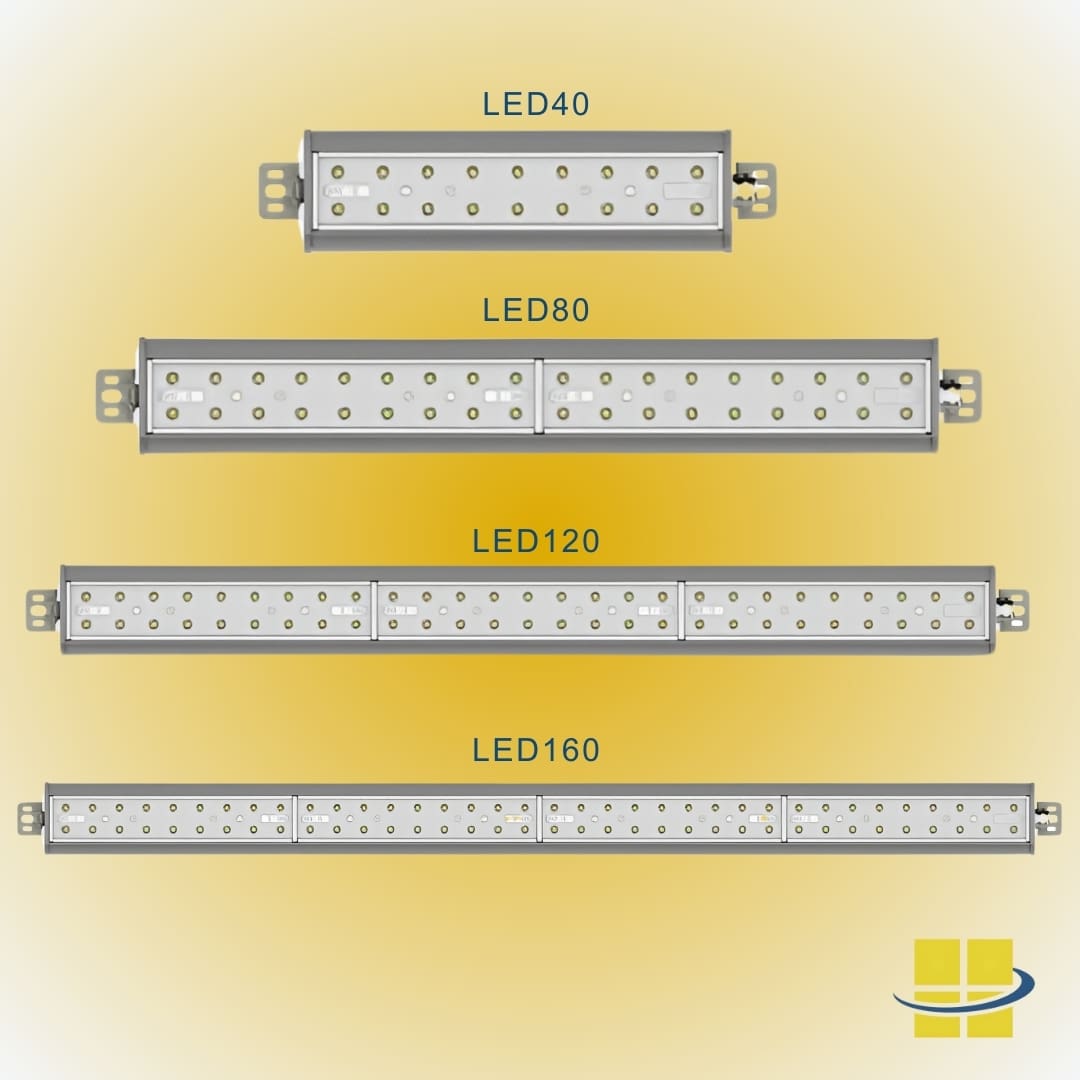

  • Modular system – each fixture can be linked together. Contact for more info
  • Marine grade finish – all exposed metal is 304 stainless steel meaning all fixtures can be installed at sea-side projects

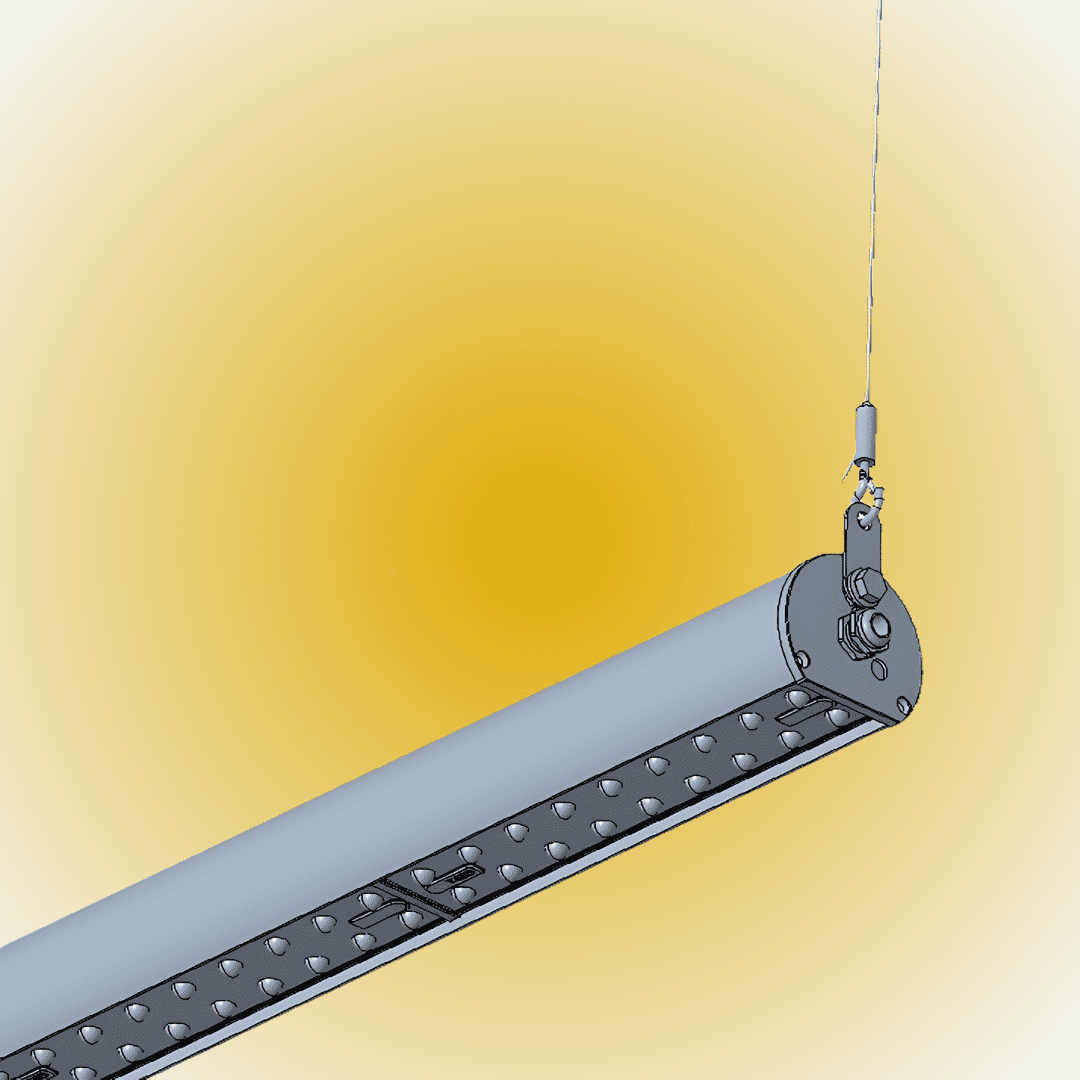

  • Surface-mounted, knuckle mount or suspended

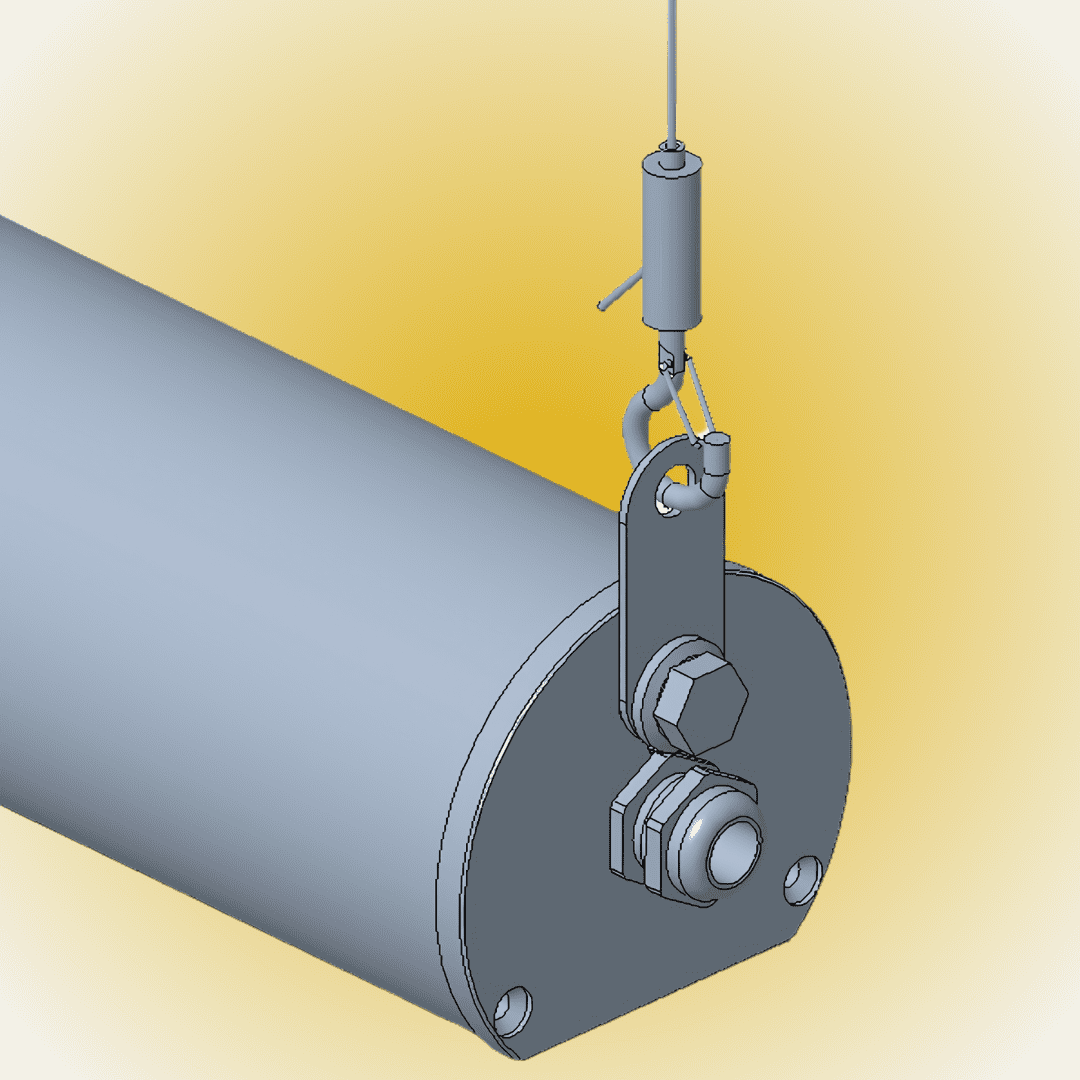

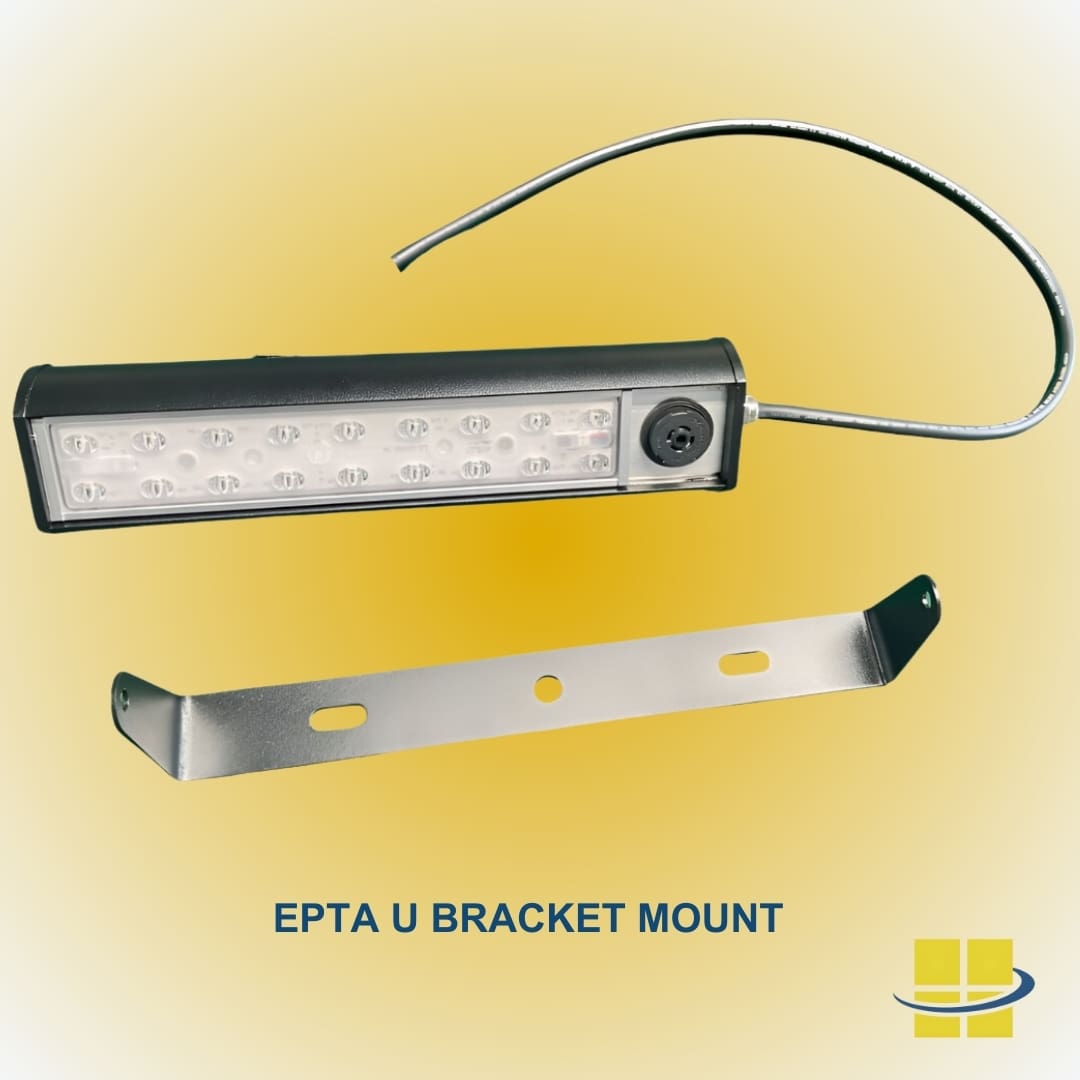

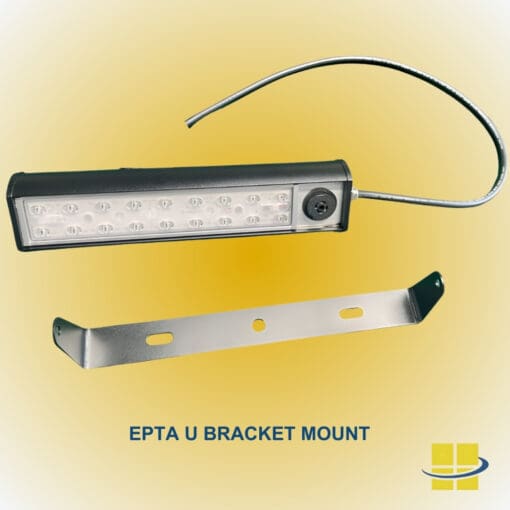

    • End brackets, full brackets, wire pendant, or knuckle mount mounting
  • Operating temperature: -40°C~+50°C
  • T1S, T5M, T5W, T40D, T60D, T90D optics
  • Black or Gray color options
  • Finished in durable powder cost paint
  • Corrosion-resistant polyester powder painted 100μm thickness
  • Meets 1000-hour salt spray certification
  • L70 @ 200,000 hours
  • DLC, IP66 rated, IK08 rated, CUL, CE, CB, SAA, RoHS, TUV rated

EPTA 80w 590nm Amber LED Linear Lighting Options:

  • 1-10v dimming
  • 347-480v
  • Microwave motion sensor
  • Photocell MINI
  • 3′, 6′, 12′, 18′ power cord
  • Back light shield
