Product Specifications
| Model Number | AF33XPB10*Q1X10 |
|---|---|
| Weight Pounds | 14 lbs |
| Shipping Weight (Pounds) | TBD |
| EPA | 0.8 |
| Housing Material | Die Cast Aluminum Housing |
| Finish Specifications | Black Powdercoat Finish Over a Chromate Conversion Coating |
| Finish Color (s) | Black, Custom RAL Colors available. Speak to a Lighting Specialist |
| Color Rendering Index (CRI) | 80 |

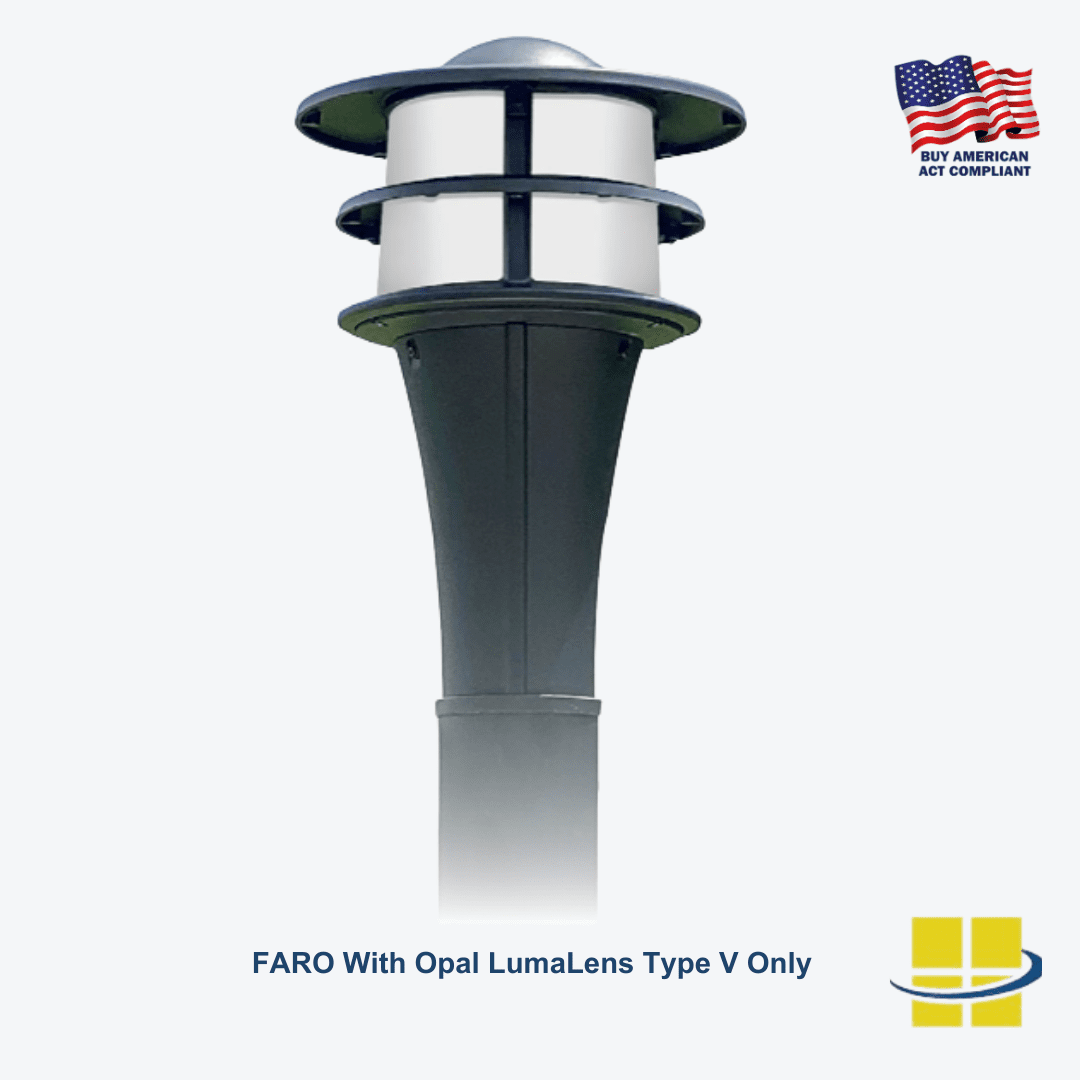

| Lens Material | Clear UV-Stabilized Polycarbonate Array Lens,SoftLED LumaLens Opal UV-Stabilized Polycarbonate Vandal-Resistant Lens* |
| Optics | Types ll, Type lll, Type IV, Type V |
| Color Temperature (Kelvin) | 3000K,4000K,5000K |
| LED Type | Aluminum Boards |
| System Watts | 10w/19w/28w |
| Light Source Lumens | TBD |
| Luminaire Lumens | TBD |
| Luminaire Lumens Per Watts | TBD |

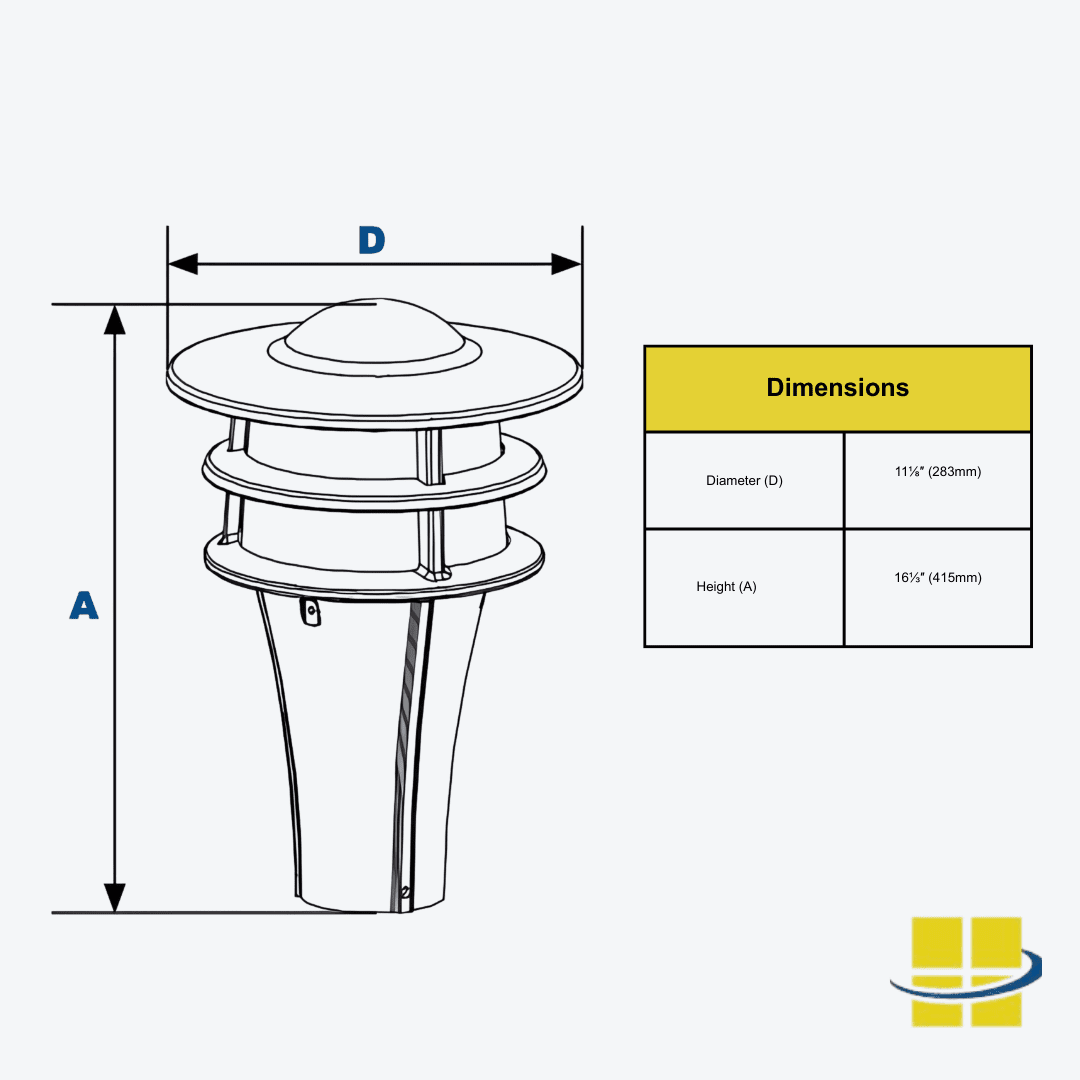

| Dimensions in Inches | 11⅛″ X 16⅓″ |
| Dimension in mm | 283mm X 415mm |

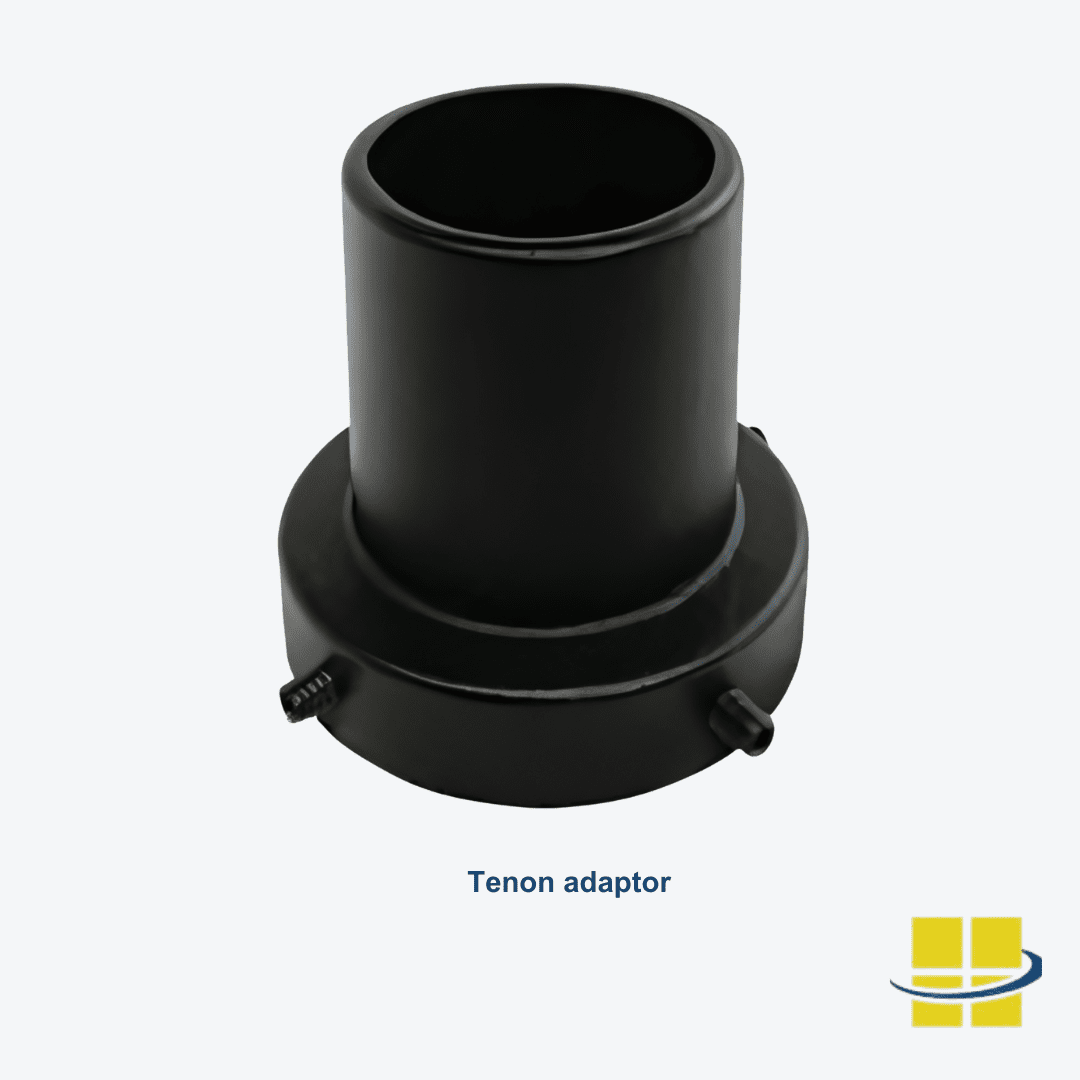

| Mount (s) | Post Top Accommodates "P3" 2⅞" O.D. x 3″ Tenon. |

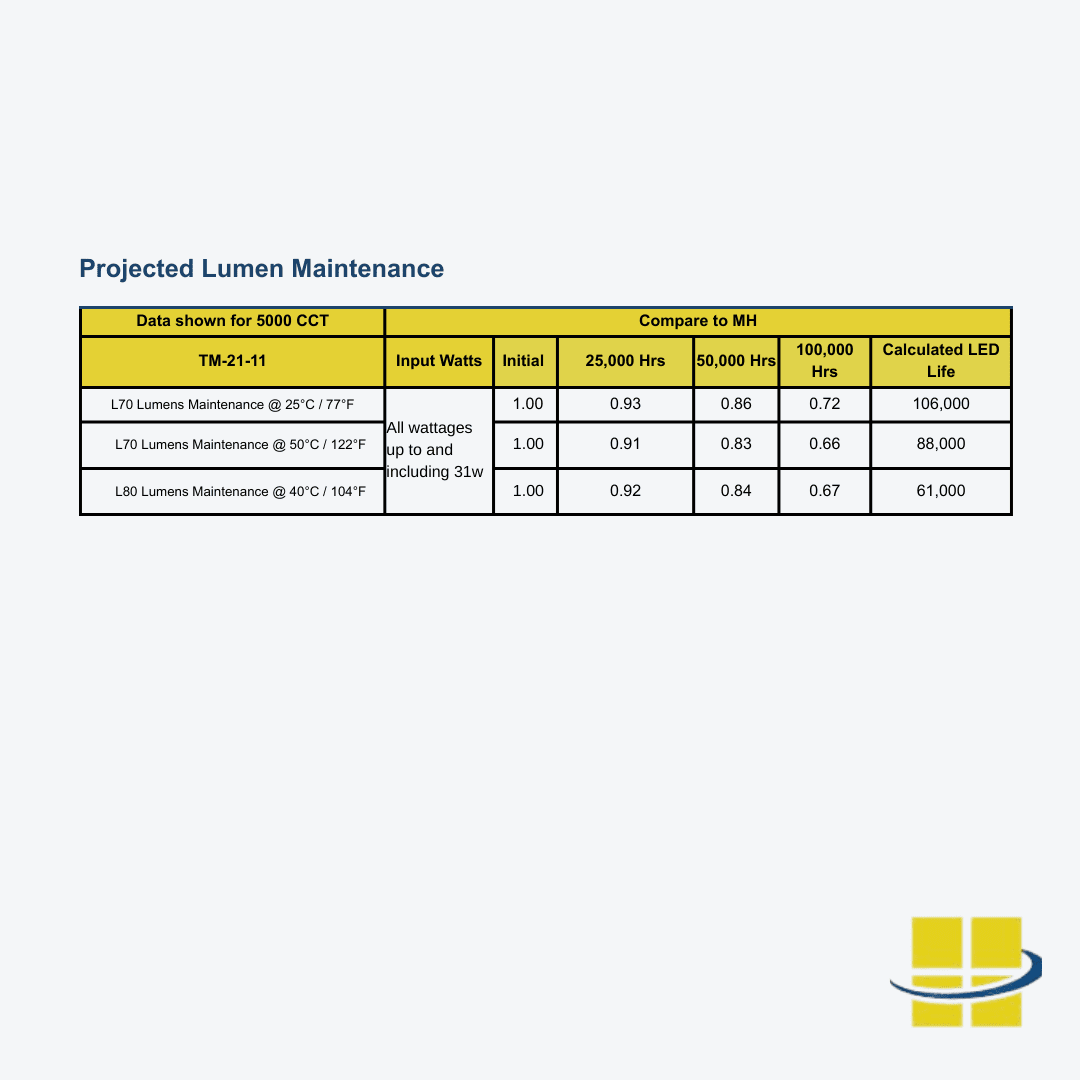

| Rated Life (L70@ x Hours) | 106,000 Hours |
| Voltage | 120-277V, 347-480v |
| Surge Protection | 2kV |
| Controls | Button Eye Photocell, House-Side Shield, 0-10v Dimmable Driver |
| Operating Temperature | -40°C to +50°C |
| IP Rating | IP66 |
| lK Rating | n/a |
| DLC Number | n/a |

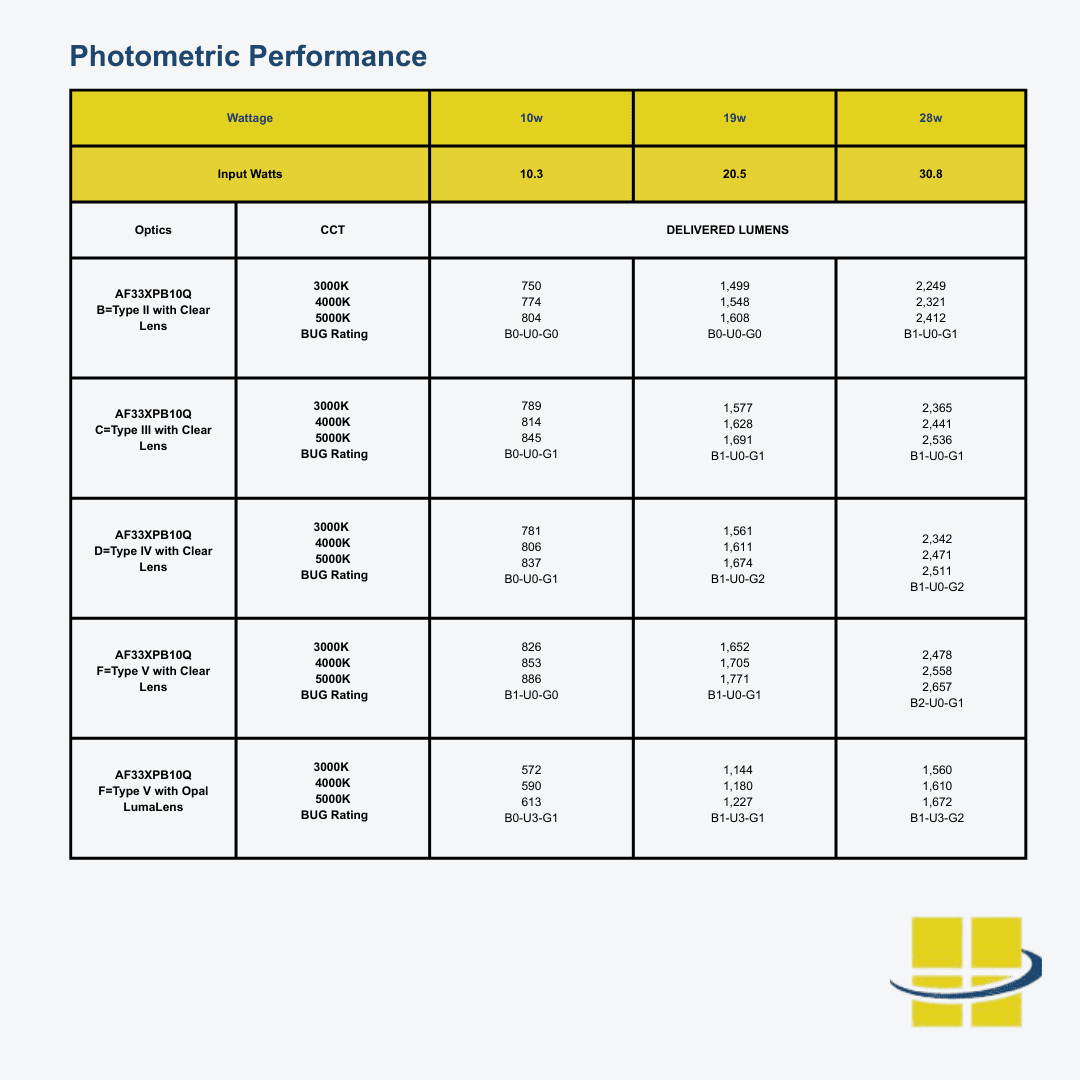

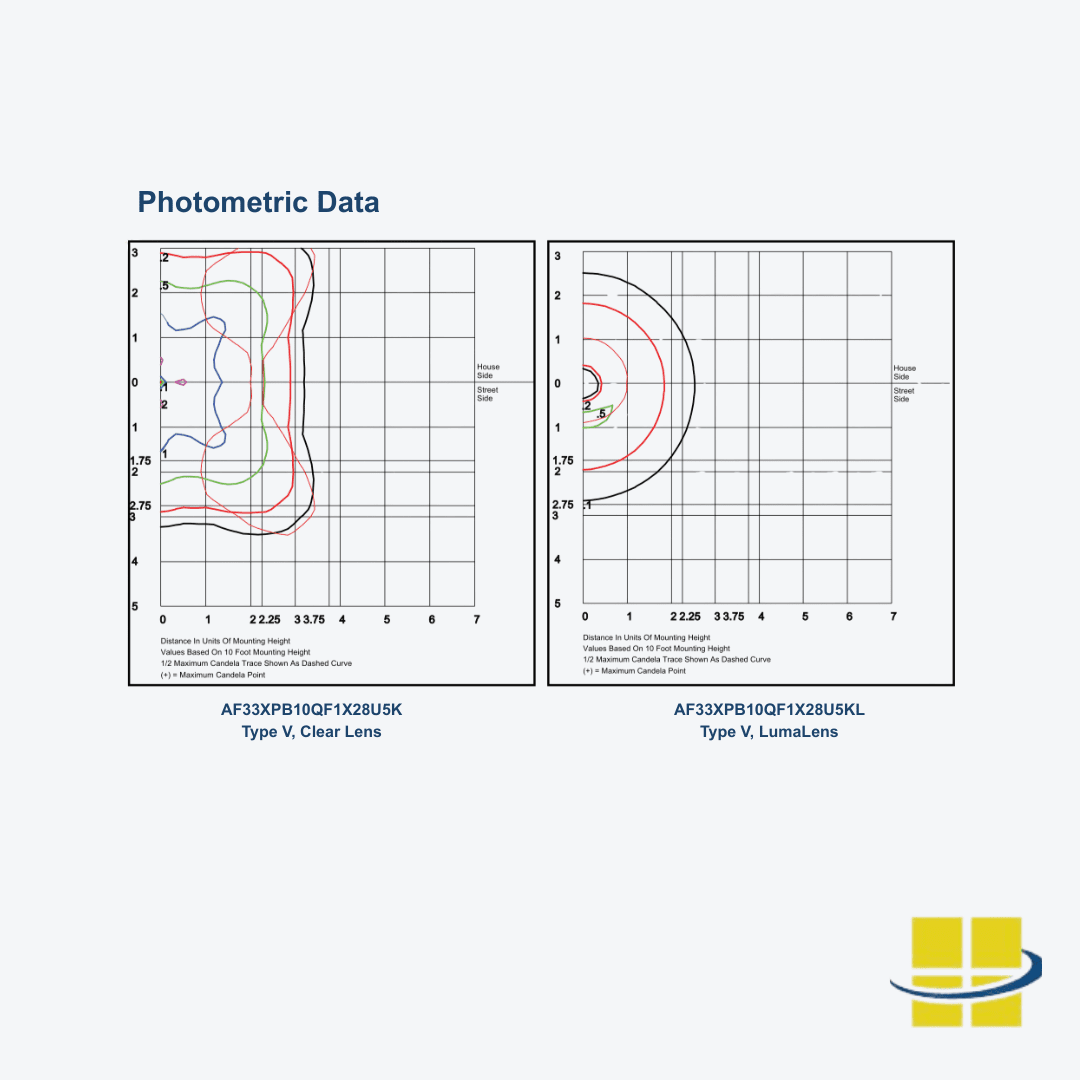

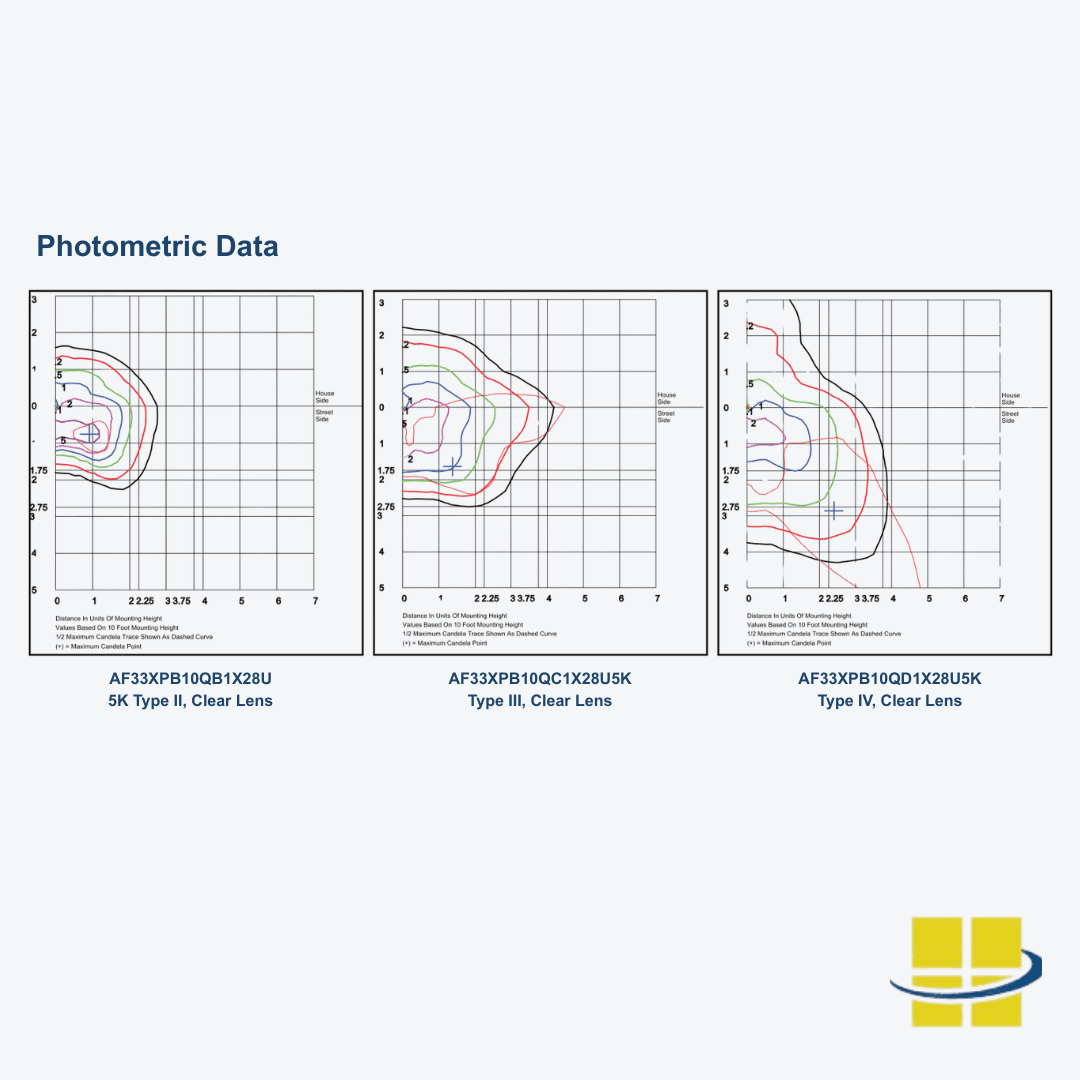

| B.U.G Rating | See Photometric Performance |
| Listings (ex: UL,CUL,CE) | ETL: Listed for Wet Locations, ANSI/UL 1598, 8750 |
| Warranty | 5 Year Limited Warranty |
| Availability (Lead-Time) | 7-10 Days Production, Plus Shipping |

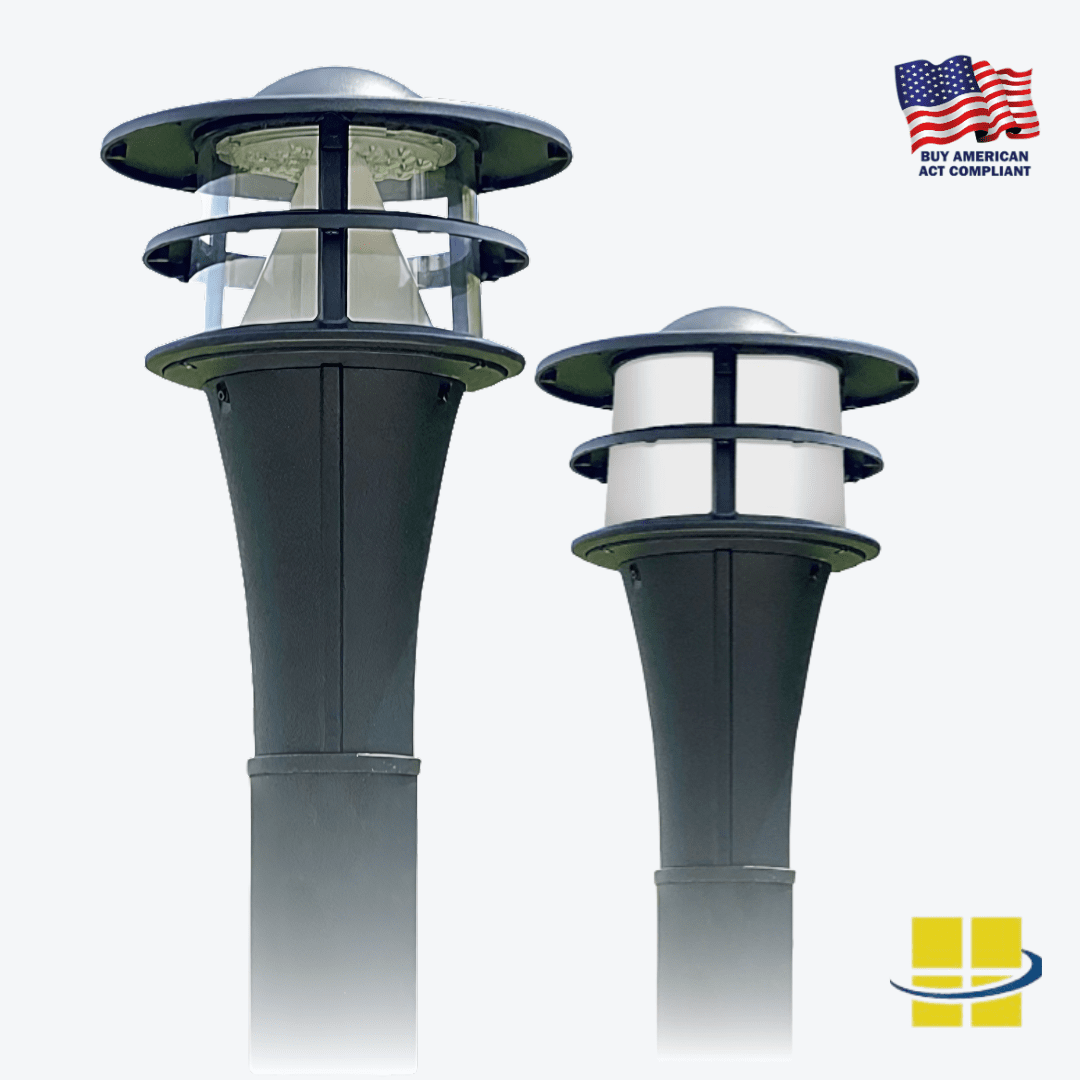

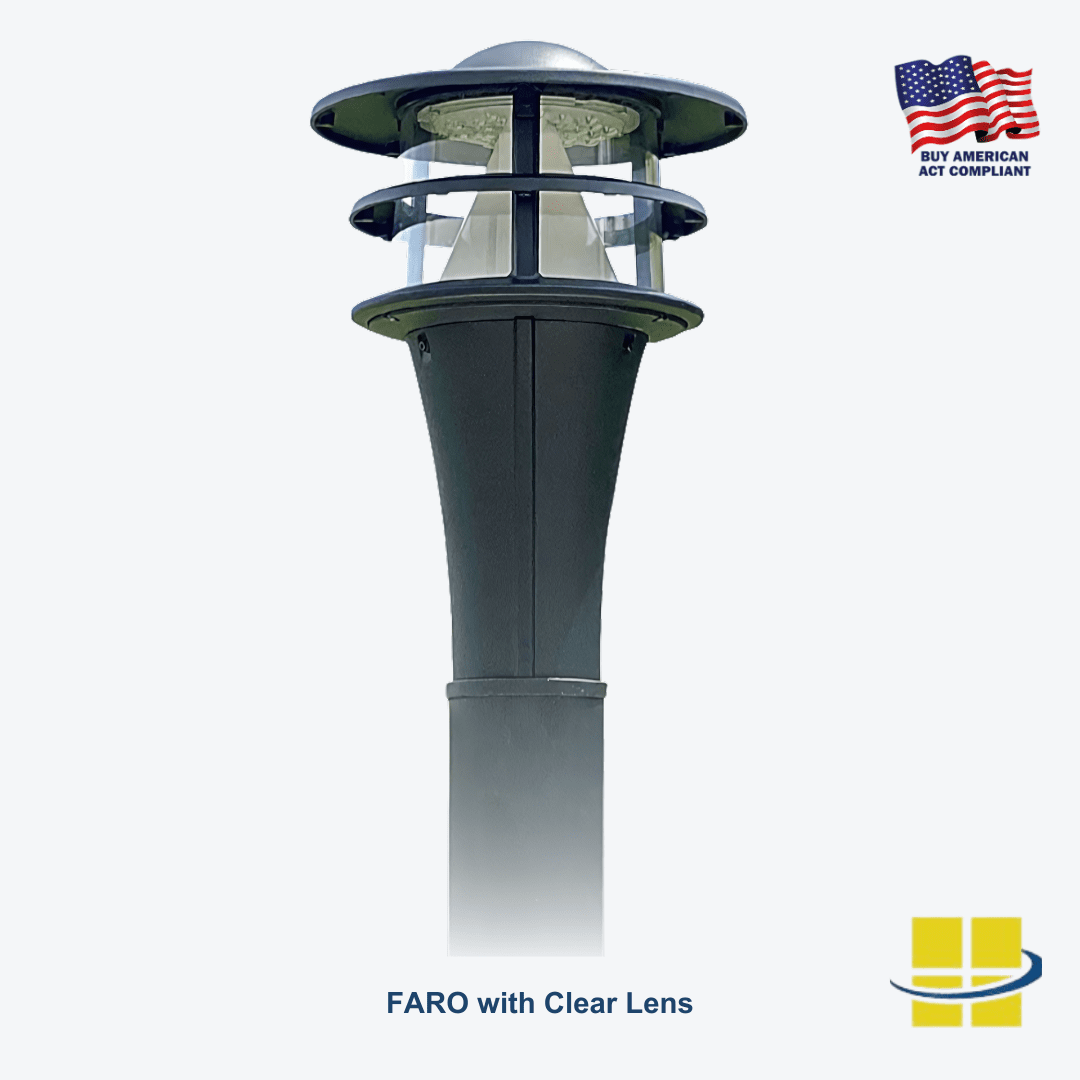

FARO 10 LED Post Top Light, BAA Compliant with EXTREME-LIFE
FARO Post Top merges classic coastal-style charm with crisp, modern aesthetic. Its signature lighthouse-inspired form and elegantly tiered housing form a striking silhouette that enhances and adds architectural character. Designed with versatility in mind, FARO offers multiple customizable options for both the look and performance needed for any project.
Lighthouse-Inspired Design: Standing out with its unmistakable maritime silhouette—FRO merges nostalgic coastal styling with modern architectural refinement. Its layered housing and elevated form create a visually striking presence that enhances any outdoor space.
Architectural Grade: Built to your specifications, FARO offers unmatched flexibility with a wide range of wattages, optics, and Kelvin options—delivering tailored performance that aligns perfectly with your project vision.
EXTREME-LIFE: Powered by advanced, energy-efficient LED technology, FARO luminaires feature an EXTREME-LIFE L70 rating of 106,000 hours, exceptional durability, and virtually maintenance-free performance.
No documents available
$589.87
Product Specifications
| Model Number | AF33XPB10*Q1X10 |
|---|---|
| Weight Pounds | 14 lbs |
| Shipping Weight (Pounds) | TBD |
| EPA | 0.8 |
| Housing Material | Die Cast Aluminum Housing |
| Finish Specifications | Black Powdercoat Finish Over a Chromate Conversion Coating |
| Finish Color (s) | Black, Custom RAL Colors available. Speak to a Lighting Specialist |
| Color Rendering Index (CRI) | 80 |
| Lens Material | Clear UV-Stabilized Polycarbonate Array Lens,SoftLED LumaLens Opal UV-Stabilized Polycarbonate Vandal-Resistant Lens* |
| Optics | Types ll, Type lll, Type IV, Type V |
| Color Temperature (Kelvin) | 3000K,4000K,5000K |
| LED Type | Aluminum Boards |
| System Watts | 10w/19w/28w |
| Light Source Lumens | TBD |
| Luminaire Lumens | TBD |
| Luminaire Lumens Per Watts | TBD |
| Dimensions in Inches | 11⅛″ X 16⅓″ |
| Dimension in mm | 283mm X 415mm |
| Mount (s) | Post Top Accommodates "P3" 2⅞" O.D. x 3″ Tenon. |
| Rated Life (L70@ x Hours) | 106,000 Hours |
| Voltage | 120-277V, 347-480v |
| Surge Protection | 2kV |
| Controls | Button Eye Photocell, House-Side Shield, 0-10v Dimmable Driver |
| Operating Temperature | -40°C to +50°C |
| IP Rating | IP66 |
| lK Rating | n/a |
| DLC Number | n/a |
| B.U.G Rating | See Photometric Performance |
| Listings (ex: UL,CUL,CE) | ETL: Listed for Wet Locations, ANSI/UL 1598, 8750 |
| Warranty | 5 Year Limited Warranty |
| Availability (Lead-Time) | 7-10 Days Production, Plus Shipping |
Ready to Order or Speak to a Lighting Specialist?
You can place your order online or if you want additional information, give us a call at 800-468-9925. Our team of friendly, expert high performance lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
You can also leave messages for and chat live with a lighting specialist by using our Live Chat feature on the bottom-right side of your browser window.
Access Fixtures Warranty
Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures’ complete warranty policy.
