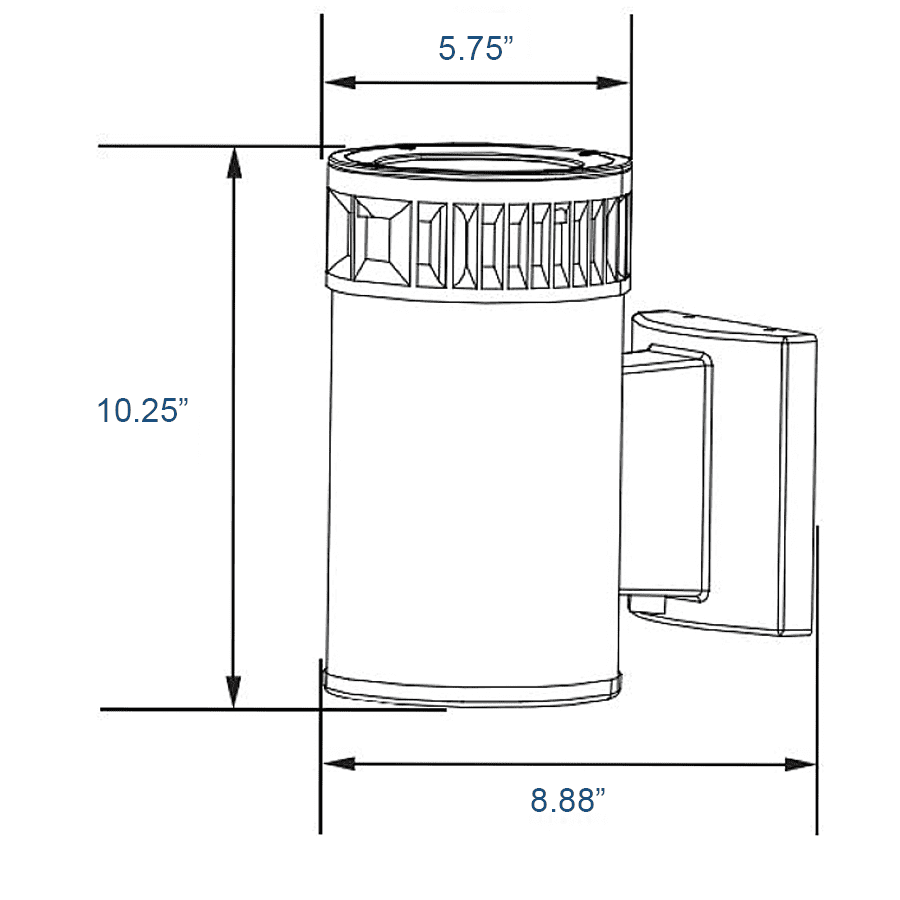

HAMA 21w Up Light LED Fixture Dimensions

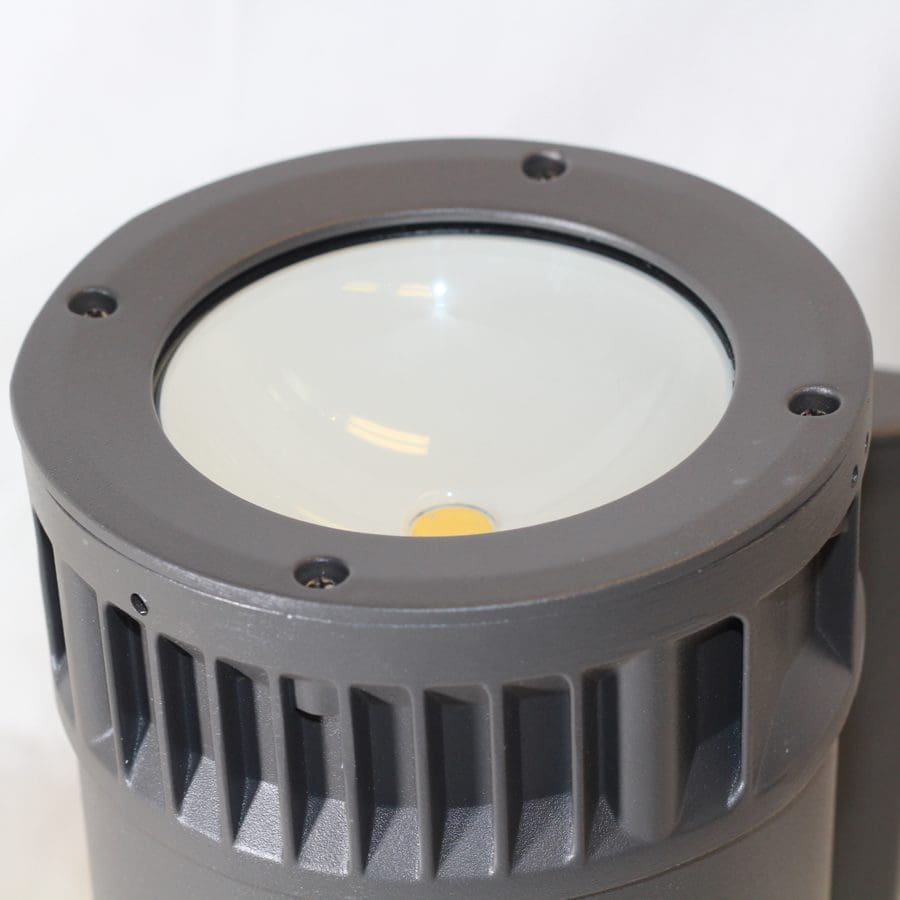

HAMA 21w LED Fixture Close Up

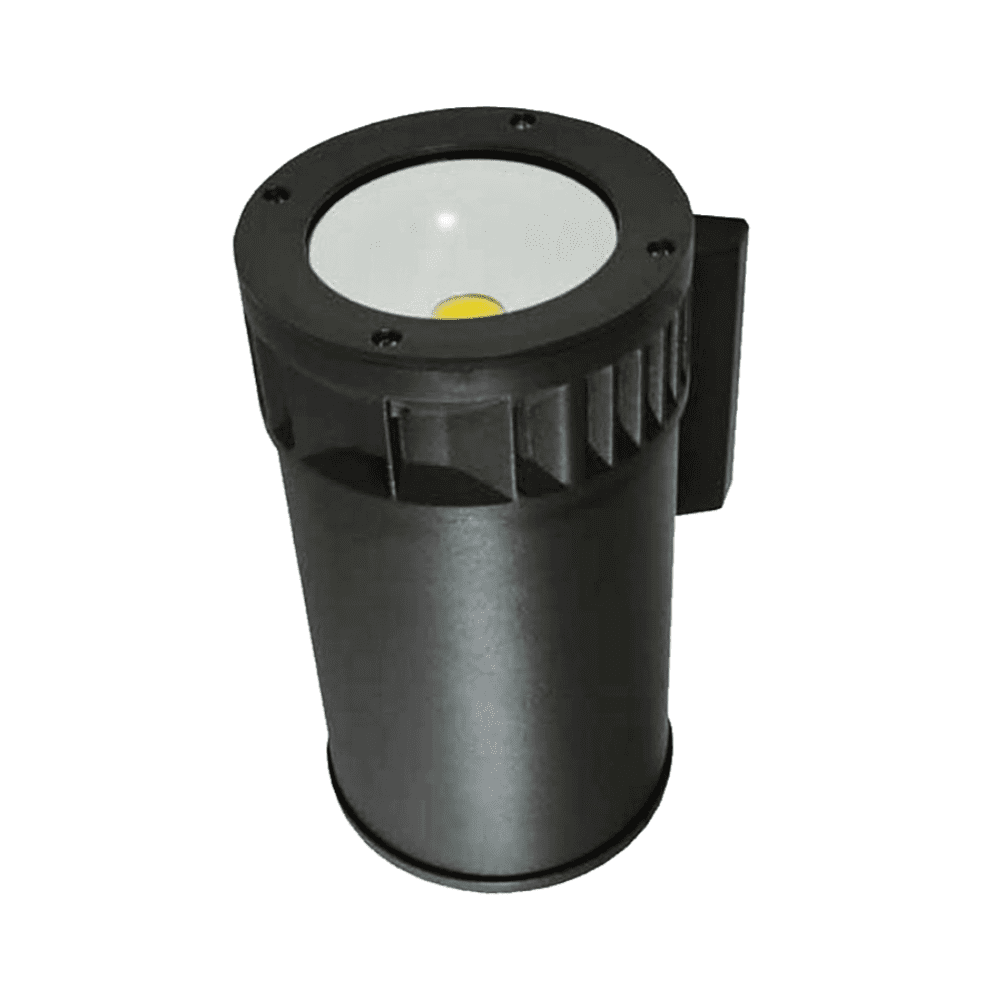

HAMA 21w LED Up Light Wall Pack, Beam Width Options, 120-277v

$349.87

HAMA 21w LED Up Outdoor Wall Sconce, Beam Width Options, 120-277v, is a great choice for commercial, industrial, or hospitality areas requiring classic architectural design.

Unique Architectural Style: This wall pack is designed to provide a wash of light up the walls of commercial buildings.

Extreme Durability:  The HAMA is sealed, IP67 rated, and boasts an extruded aluminum housing for durability.

Choice of Beam Spread: Choose between 30° narrow beam, 70° medium beam, and 100° wide beam spreads for a fully customized look.

Mounted at 10′ with a 30° narrow beam: Emits >1fc 18’ Across and 8’ Out

Mounted at 15′ with a 30° narrow beam: Emits >1fc 22’ Across and 10’ Out

Mounted at 20′ with a 30° narrow beam: Emits >1fc 25’ Across and 12’ Out

Mounted at 10′ with a 70° narrow beam: Emits >1fc 21’ Across and 10’ Out

Mounted at 15′ with a 70° narrow beam: Emits >1fc 26’ Across and 13’ Out

Mounted at 20′ with a 70° narrow beam: Emits >1fc 30’ Across and 15’ Out

Mounted at 10′ with a 100° narrow beam: Emits >1fc 27’ Across and 12’ Out

Mounted at 15′ with a 100° narrow beam: Emits >1fc 31’ Across and 16’ Out

Mounted at 20′ with a 100° narrow beam: Emits >1fc 30’ Across and 15’ Out

In Stock

WCTRS (HAMA Up or Down Cylinder Wall Pack)

SKU: AF33XWCTRS-UP Category: Tag:


Specifications

Weight 10 lbs
Dimensions 15 × 10 × 8 in
Availability

Typically ships in 7-10 business days
Available Finishes

Black, Bronze, Custom RAL
BUG Rating

Medium-Beam: 2, 1, 0, Narrow-Beam: 2, 1, 0, Wide-Beam: 1, 1, 0
Color Rendering Index (CRI)

80+
Housing

Built-in heat sinks, Extruded aluminum housing
Lens

Clear flat tempered glass lens
Light Source

Light Source Included

LED Array Included
Light Source Lumens

2308
Listings

IP66, CSA: Listed for wet locations
Mounting

Mounts over 4-inch electrical box
Product Family

HAMA
Rated Life

89,000 Hours
System Watts

21
Voltage

120v, 208v, 240v, 277v, 347v, 480v
Warranty

5-Year Limited Warranty

Product Description

Features:

  • Extruded aluminum housing
  • BUG Rating:
    • Medium-Beam (A): 2, 1, 0
    • Wide-Beam (B): 1, 1, 0
    • Narrow-Beam (D): 2, 1, 0
  • IP67 rated
  • 120-277v
  • 4000K (learn more here)
  • 0-10v dimmable driver
  • 89,000 L70 hours
  • CSA listed
  • 80+ CRI (learn more about Color Rendering Index here)
  • 7.95 lbs.
  • 8.875 × 10.25 × 5.75 in
  • Mounts on 4″ recessed box

Options:

  • Choice of bronze or black
  • Choice of optics and beam spread
  • Photocell
  • Surge protection

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.


Get a Custom Photometric Analysis for Your HAMA 40w Up LED Wall Sconce Project

A photometric analysis is a custom computer simulation of your particular project. This service provides average footcandles at various heights, max/min (uniformity) ratios, minimum footcandles, light trespass levels, and more. For exacting lighting specifications, a photometric analysis helps you ensure light levels before making a big purchase. One of our lighting specialist will walk you through the process so you know exactly what you will be receiving. Call us at 800-468-9925 or [email protected] for more information about ordering a photometric analysis for your project.

Ready to Order HAMA 40w Up LED Wall Sconce or Speak to a Lighting Specialist?

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
