HAMA 40w LED Up/Down Shape Wall Pack, Architectural Style

$399.87

HAMA Up/Down LED Wall Pack features a choice of beam spreads so you can achieve a fully personalized look. With its EXTREME-LIFE of 89,000 hours at L70, the HAMA wall pack is built to perform, and built to last. HAMA offers an array of features and options and is a great choice for commercial, industrial, or hospitality areas requiring a classic architectural design.

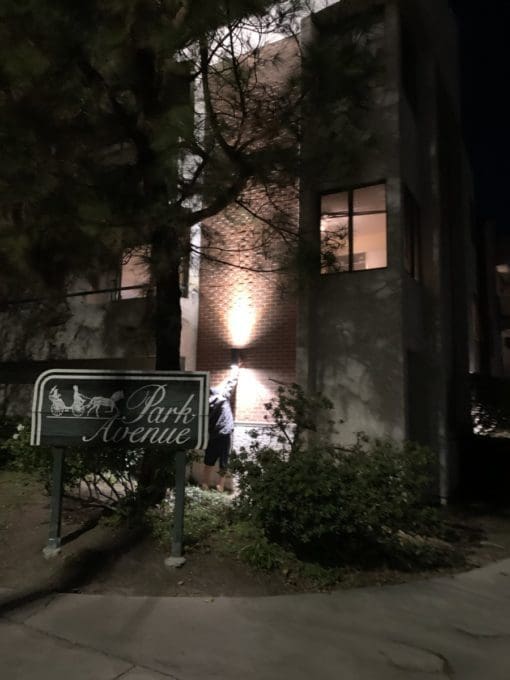

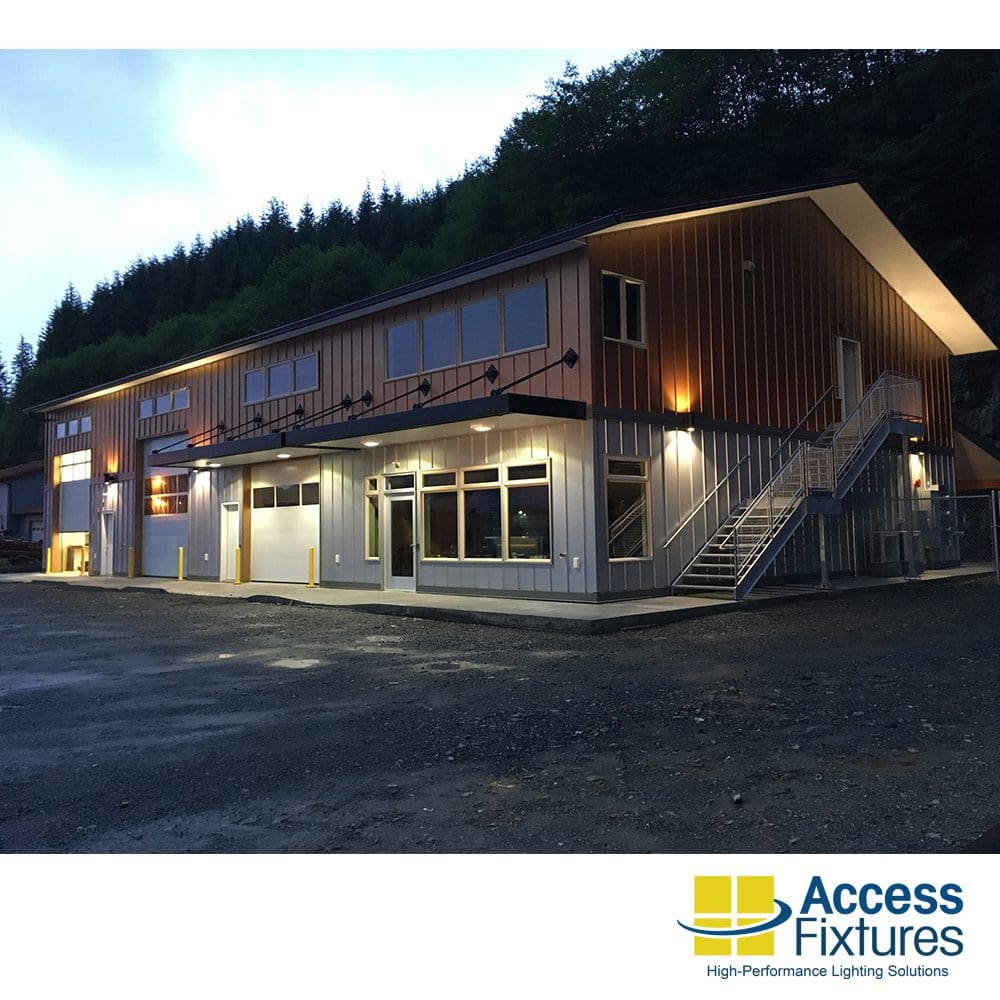

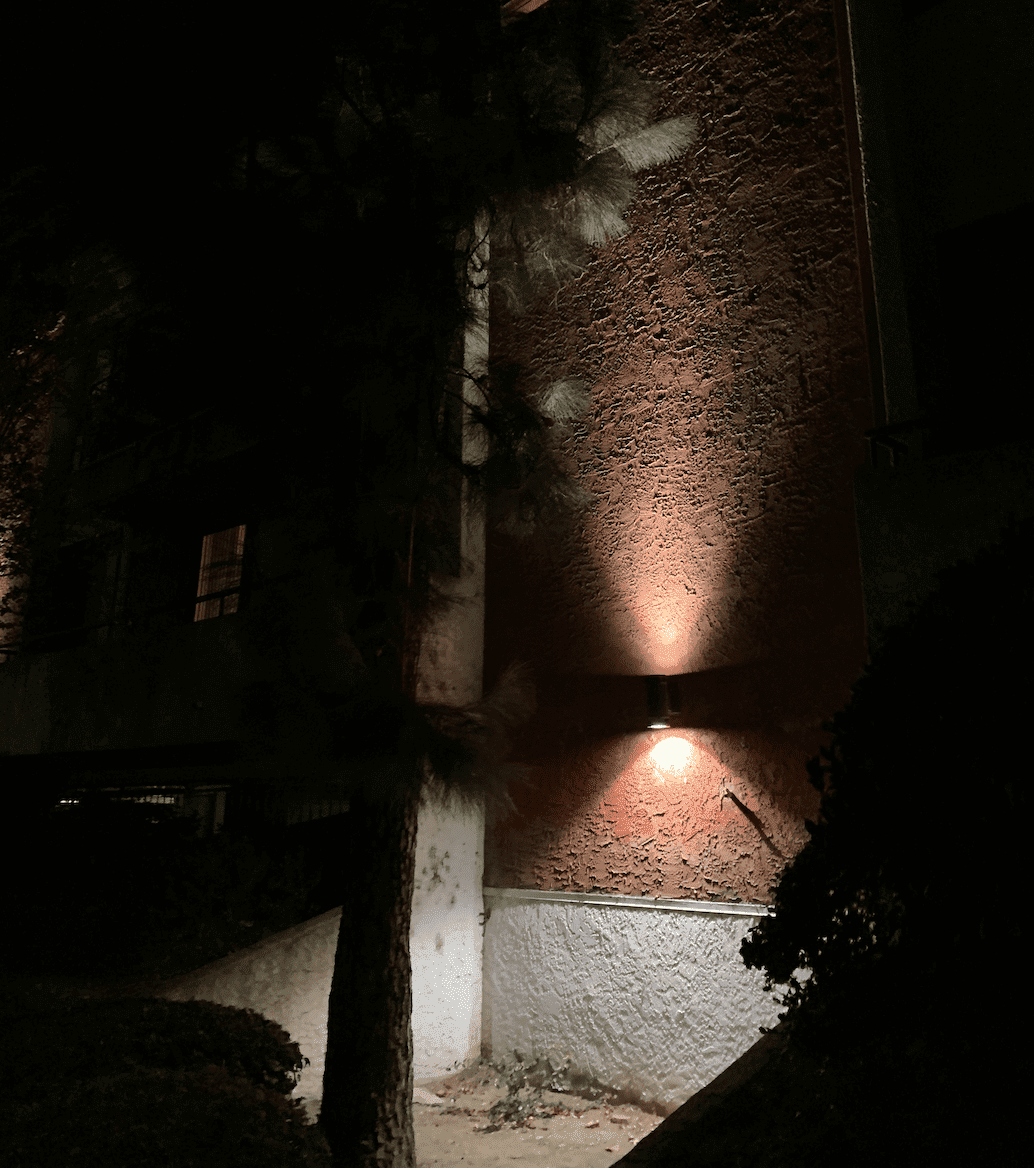

Architectural Style: HAMA is designed to provide a wash of light up and down the walls of commercial buildings. Uplight accentuates the building while the downlight illuminates the walkway.

Superb Durability: Featuring an extruded aluminum housing, HAMA is IP66-rated and CSA-listed for wet locations.

Excellent Value: Architectural style, premium optics, and durable construction available at entry-level pricing.

Beam Spread Options: Choose between narrow, medium, and wide beam spreads for a fully customized look.

*Photometrics reflect “downlight” data ONLY

In Stock

WCTRD (HAMA Up and Down Cylinder Wall Pack)

  • Total

SKU: AF33XWCTRDAC32X20U Category:

Specifications

Weight 12 lbs
Dimensions 15 × 10 × 8 in
Availability

7 to 10 Day Production, plus Shipping

Available Finishes

Black, Bronze, Custom RAL

BUG Rating

Medium-Beam: 2, 5, 0, Narrow-Beam: 2, 5, 0, Wide-Beam: 1, 5, 0

Color Rendering Index (CRI)

80+

Housing

Built-in heat sinks, Extruded aluminum housing

Lens

Clear flat tempered glass lens

Light Source

Light Source Included

LED Array Included

Light Source Lumens

4577

Listings

IP66, CSA: Listed for wet locations

Mounting

Mounts over 4-inch electrical box

Product Family

HAMA

Rated Life

89,000 Hours

System Watts

40

Voltage

120v, 208v, 240v, 277v, 347v, 480v

Warranty

5-Year Limited Warranty

Style

Up Down

Product Description

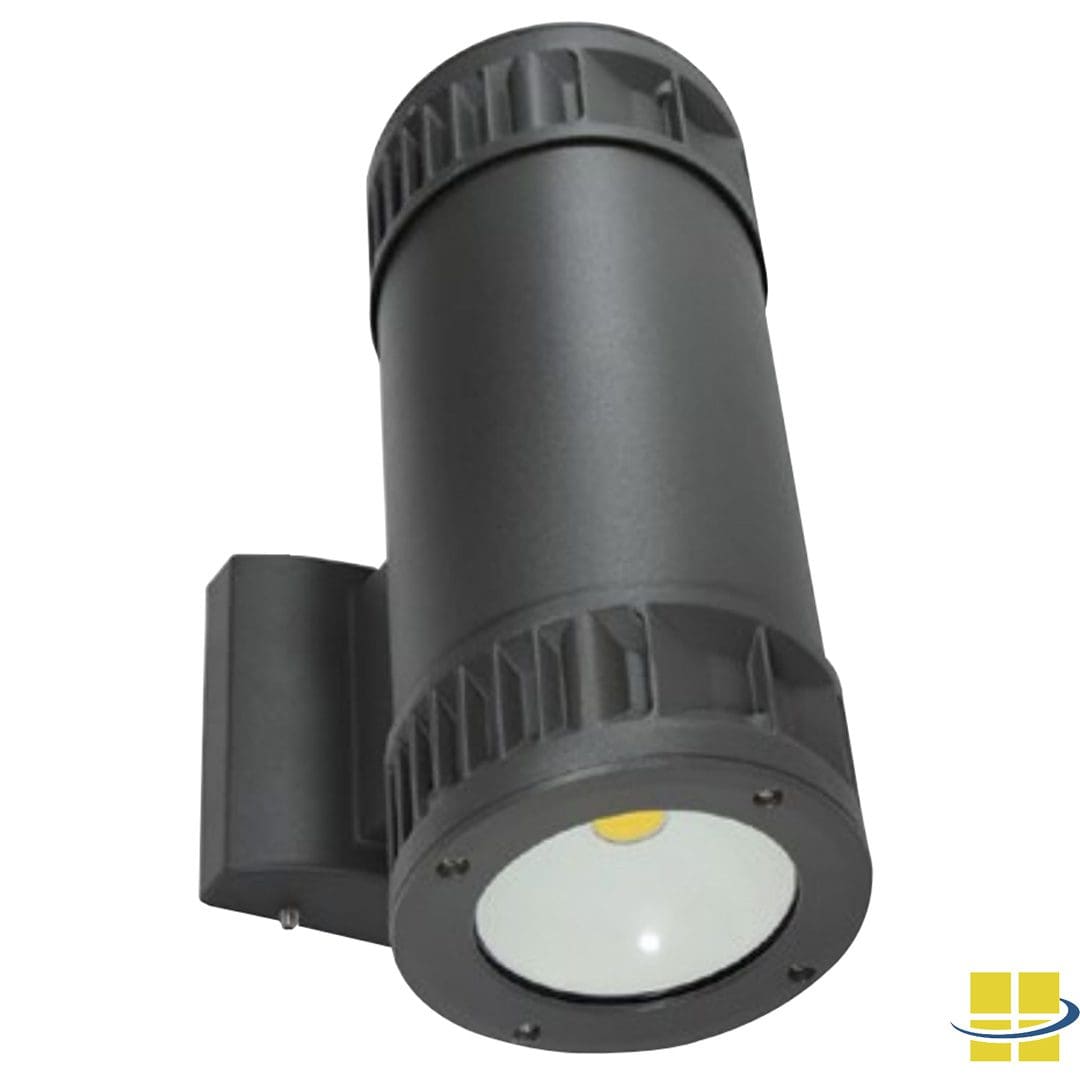

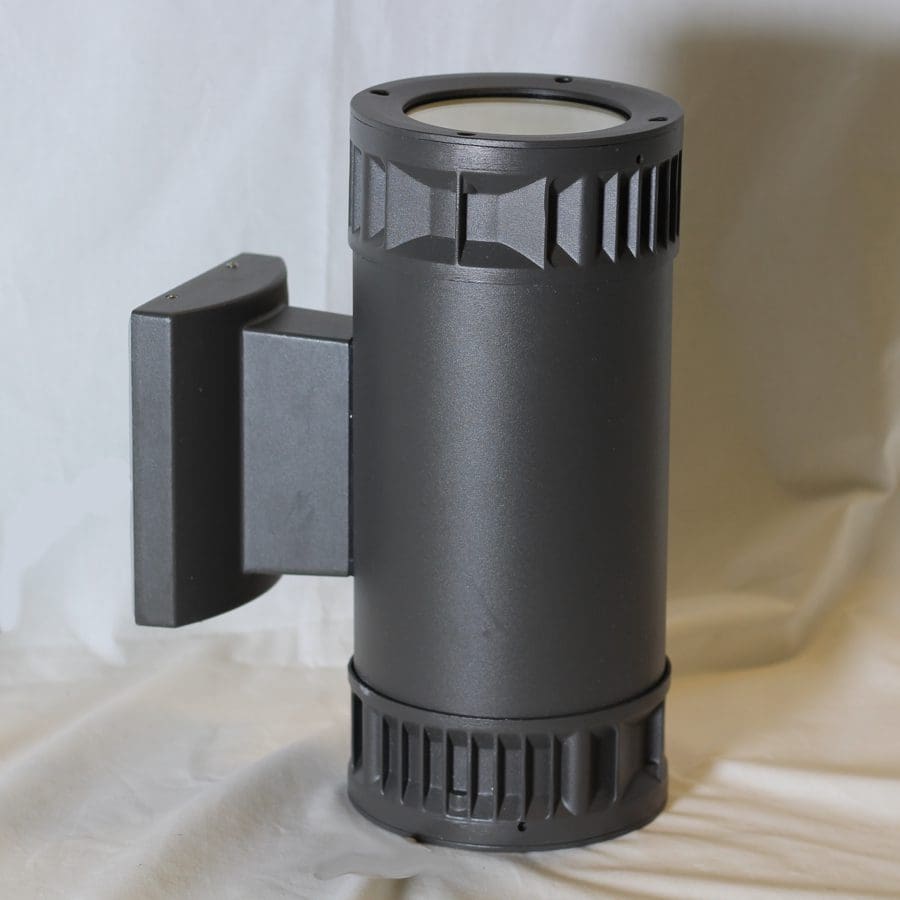

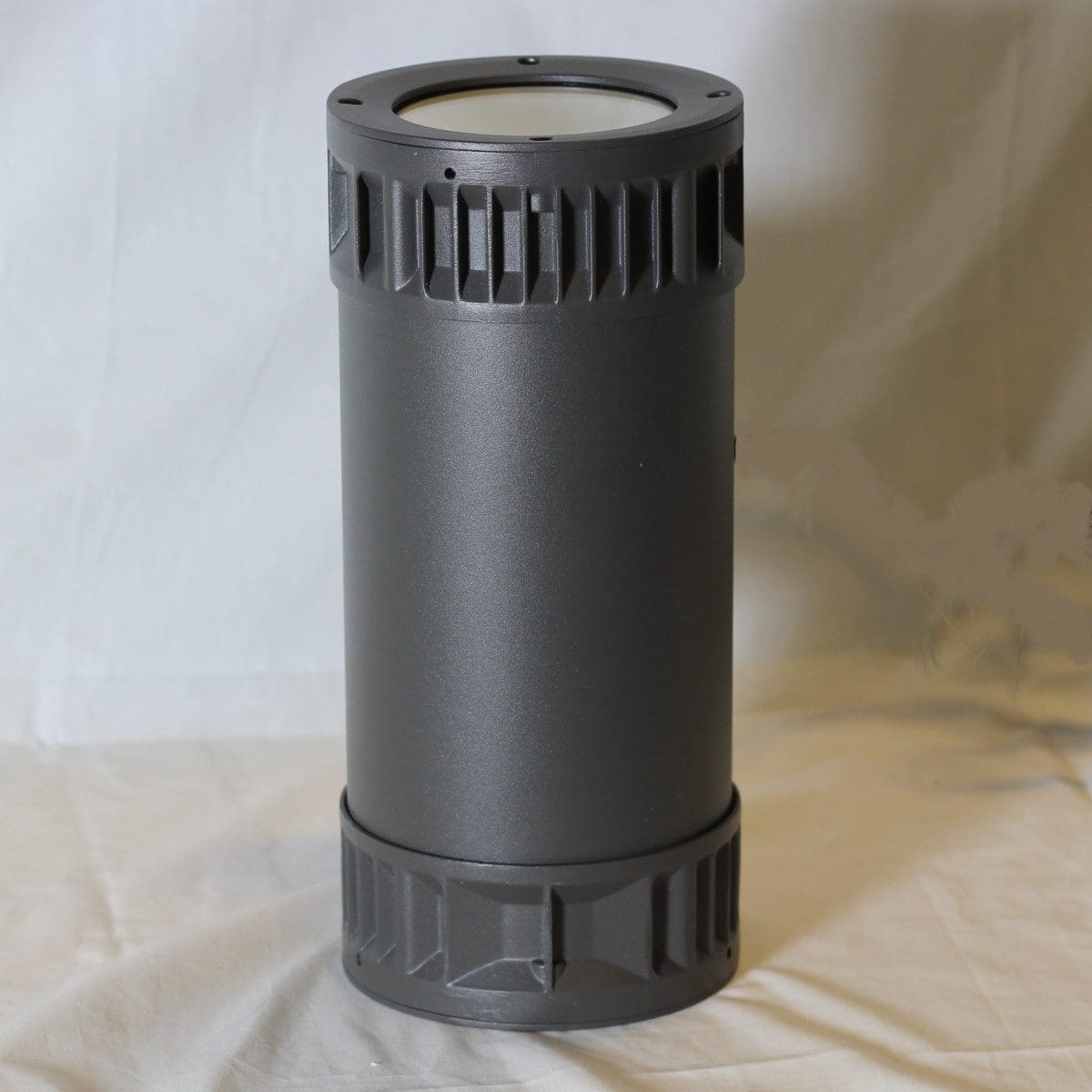

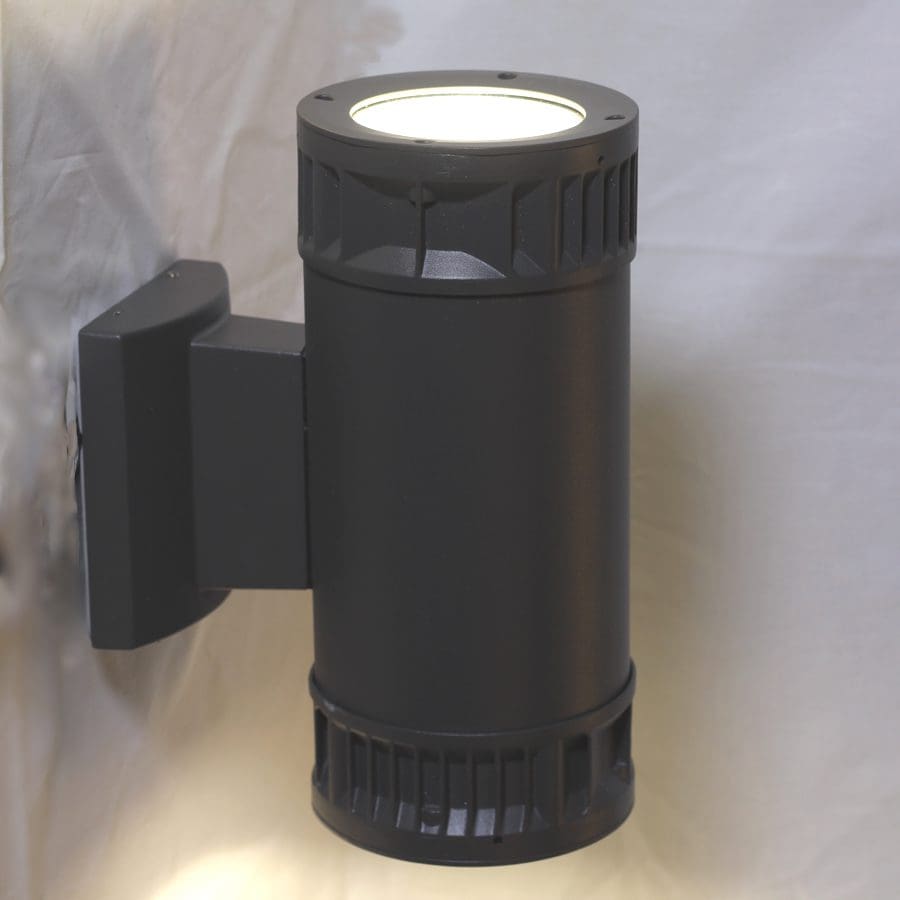

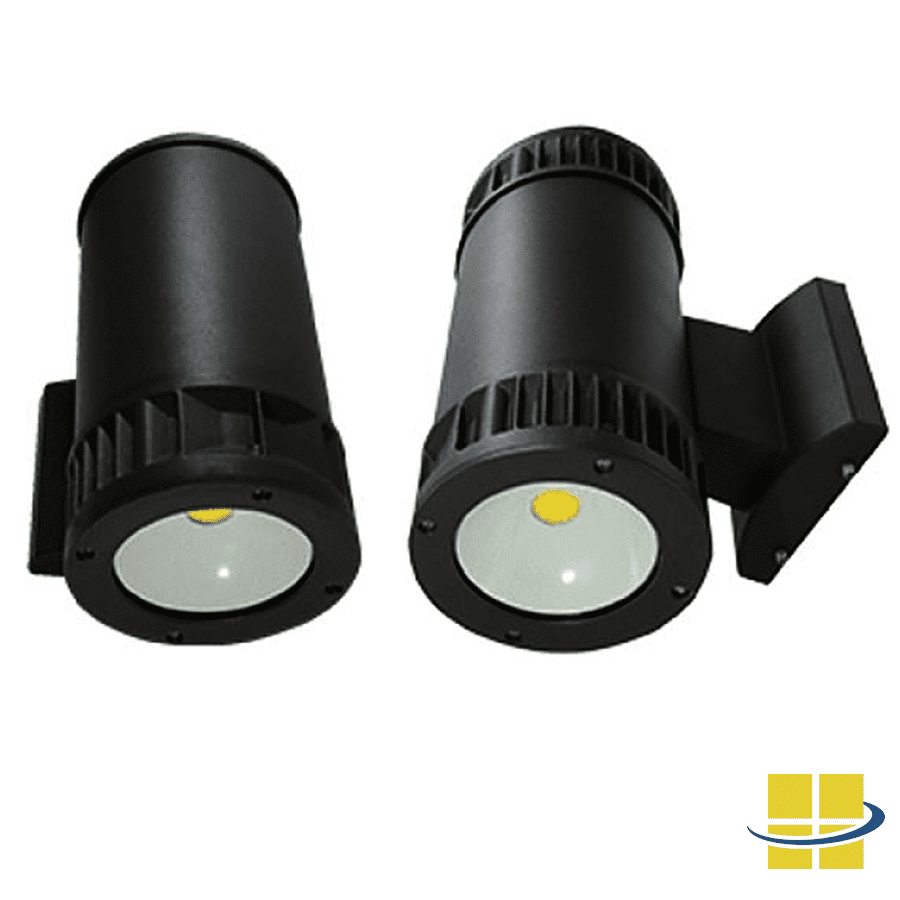

HAMA LED Up/Down Wall Pack Features:

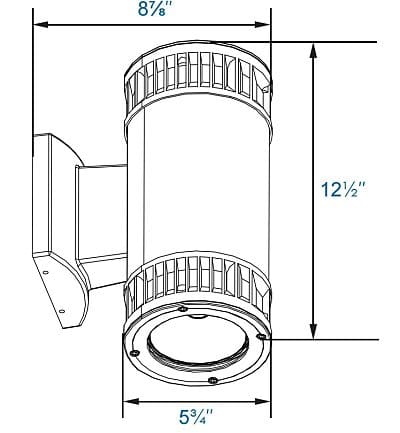

  • 8.875″L x 12.50″H x 5.75″D
  • 9 lbs.
  • Extruded round aluminum housing
    • Built-in heat sinks
  • Powder coat finish over a chromate conversion coating
  • Textured architectural bronze or black finish
    • Custom colors available on request
  • 120-277v, 347-480v
  • Up to 4,600 lumens
  • BUG rating:
    • Medium beam (A): 2, 5, 0
    • Wide beam (B): 1, 5, 0
    • Narrow beam (D): 2, 5, 0
  • CSA listed for wet locations
  • ANSI/UL 1598, 8750
  • IP66 rated
  • Standard internal 6kV surge protection
  • 0-10v Dimmable driver
  • White reflector
  • Optics options:
    • A=70° Up/70° Down
    • B=100° Up/100° Down
    • C=70° Up/100° Down
    • D=30° Up/30° Down
    • E=30° Up/100° Down
    • F=30° Up/70° Down
    • G=100° Up/30° Down
    • H=100° Up/70° Down
    • I=70° Up/30° Down

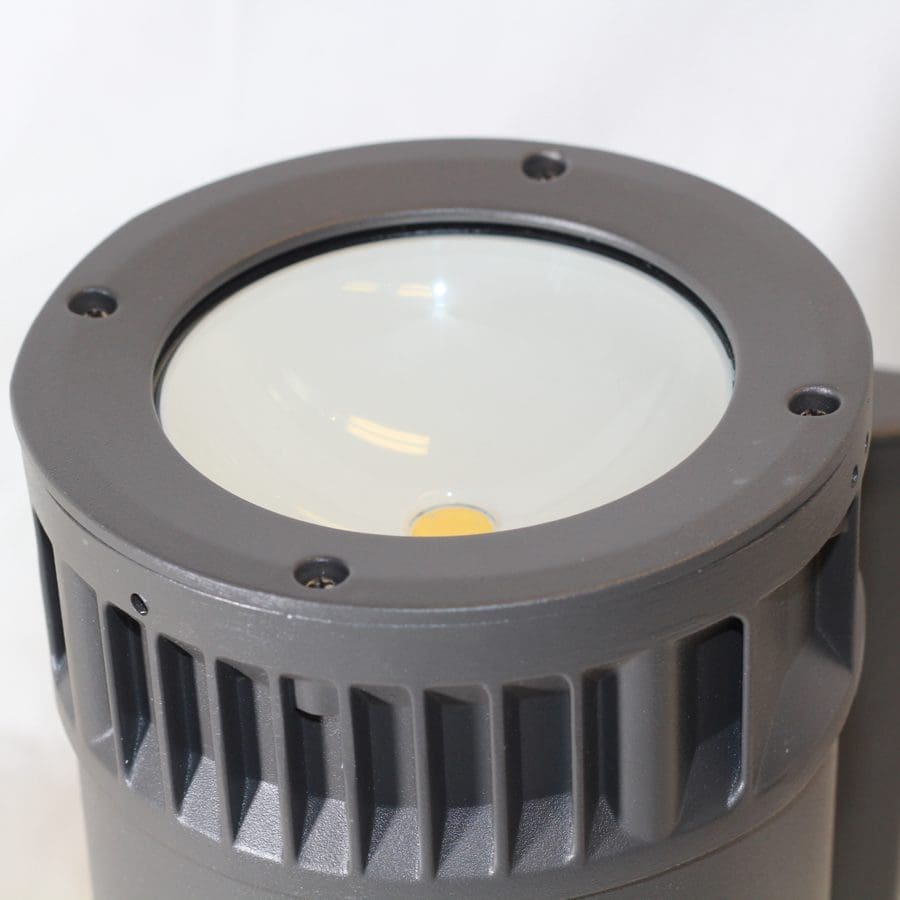

  • Tempered clear flat glass lenses
  • 4100K (learn more here)
  • L70 @ 89,000 hours
  • 80+ CRI (learn more about Color Rendering Index here)
  • Mounting height of 8-16 feet
  • Mounts on 4″ recessed box
  • 5-year warranty
  • Mounting

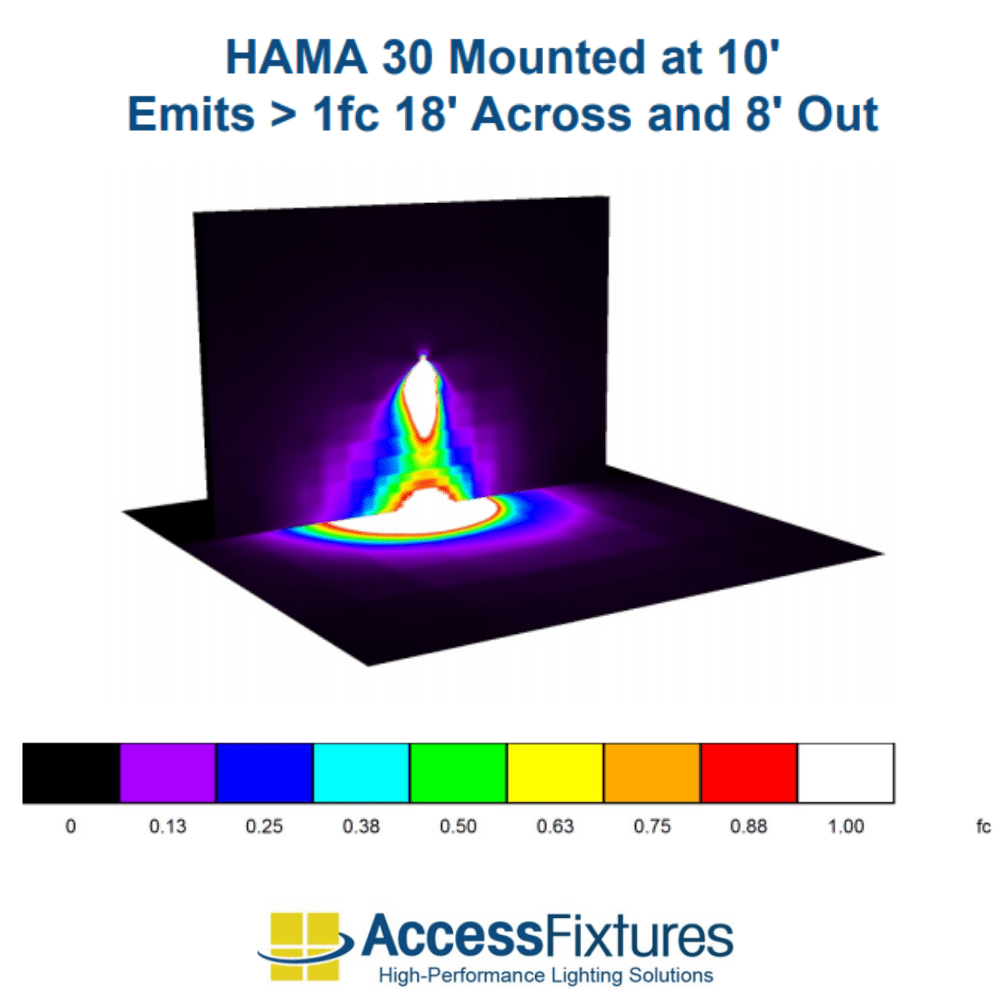

    • Mounted at 10′ feet with a 30° narrow beam: Emits >1fc 18’ Across and 8’ Out

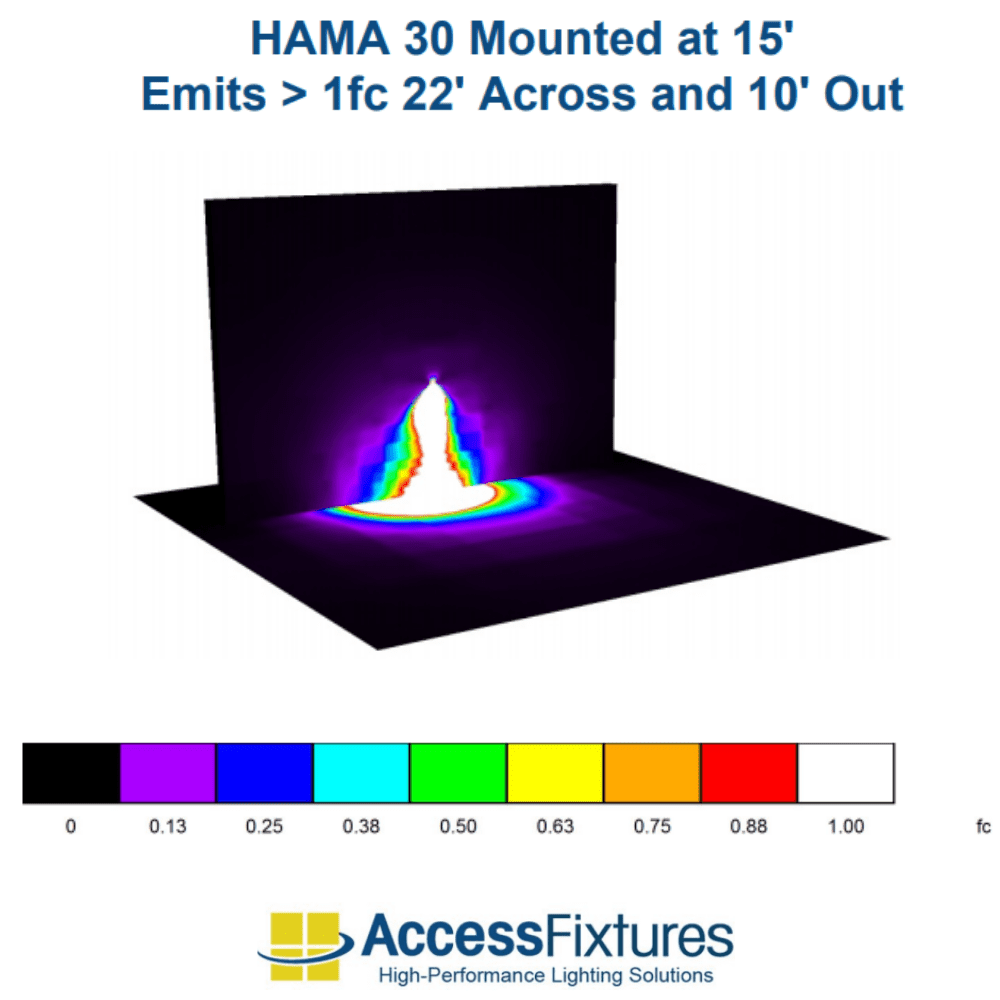

    • Mounted at 15′ feet with a 30° narrow beam: Emits >1fc 22’ Across and 10’ Out

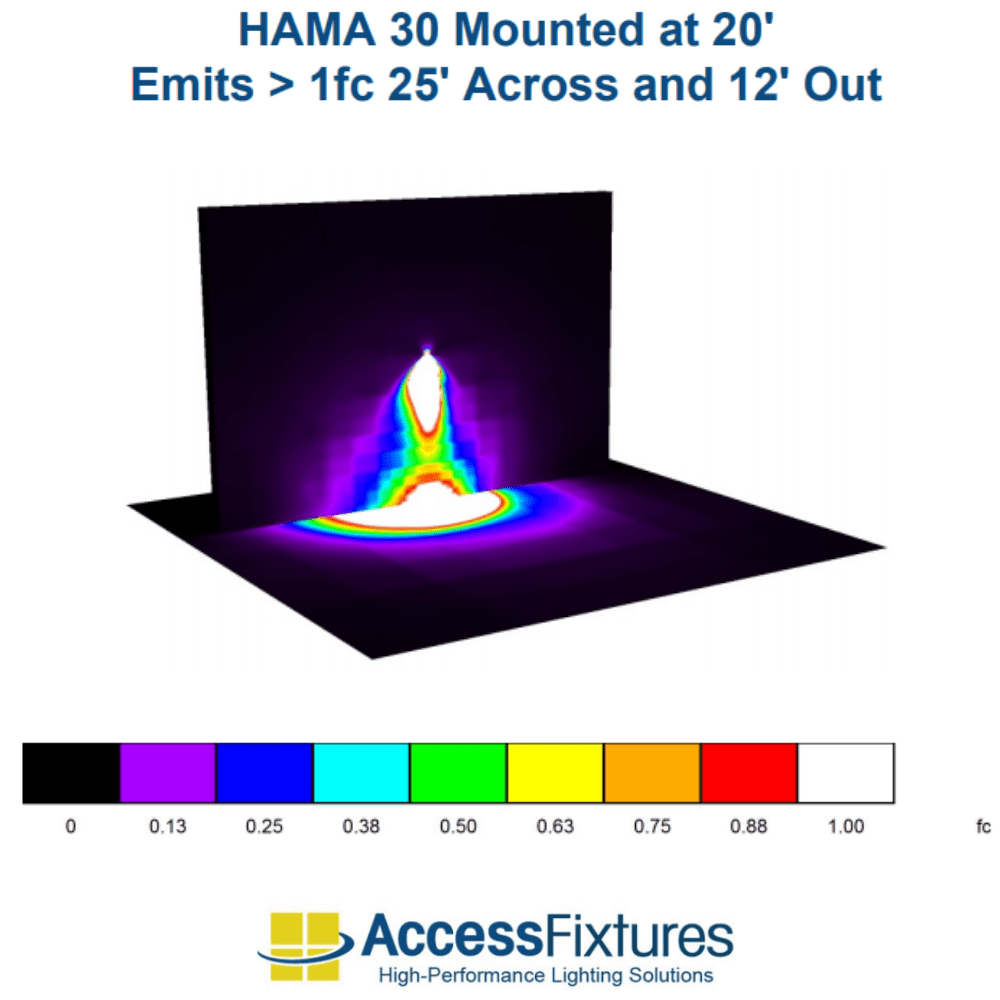

    • Mounted at 20′ feet with a 30° narrow beam: Emits >1fc 25’ Across and 12’ Out

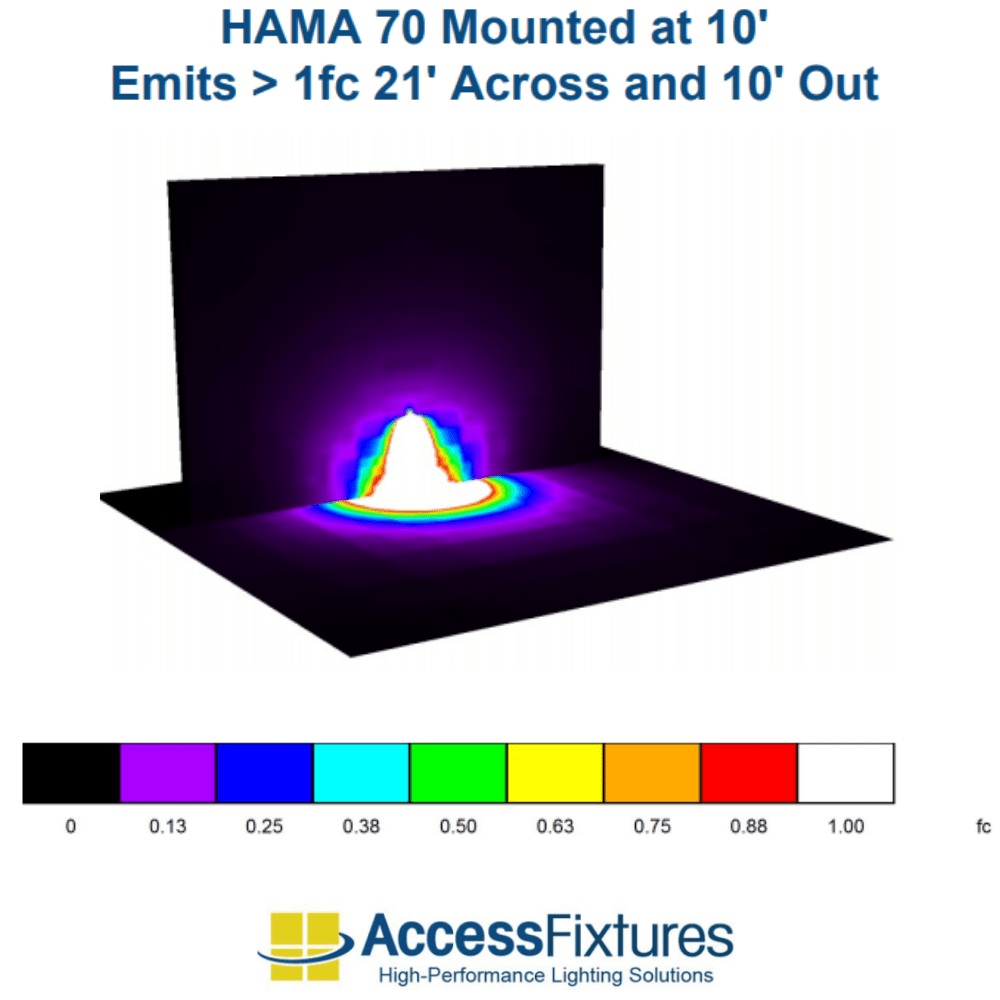

    • Mounted at 10′ feet with a 70° narrow beam: Emits >1fc 21’ Across and 10’ Out

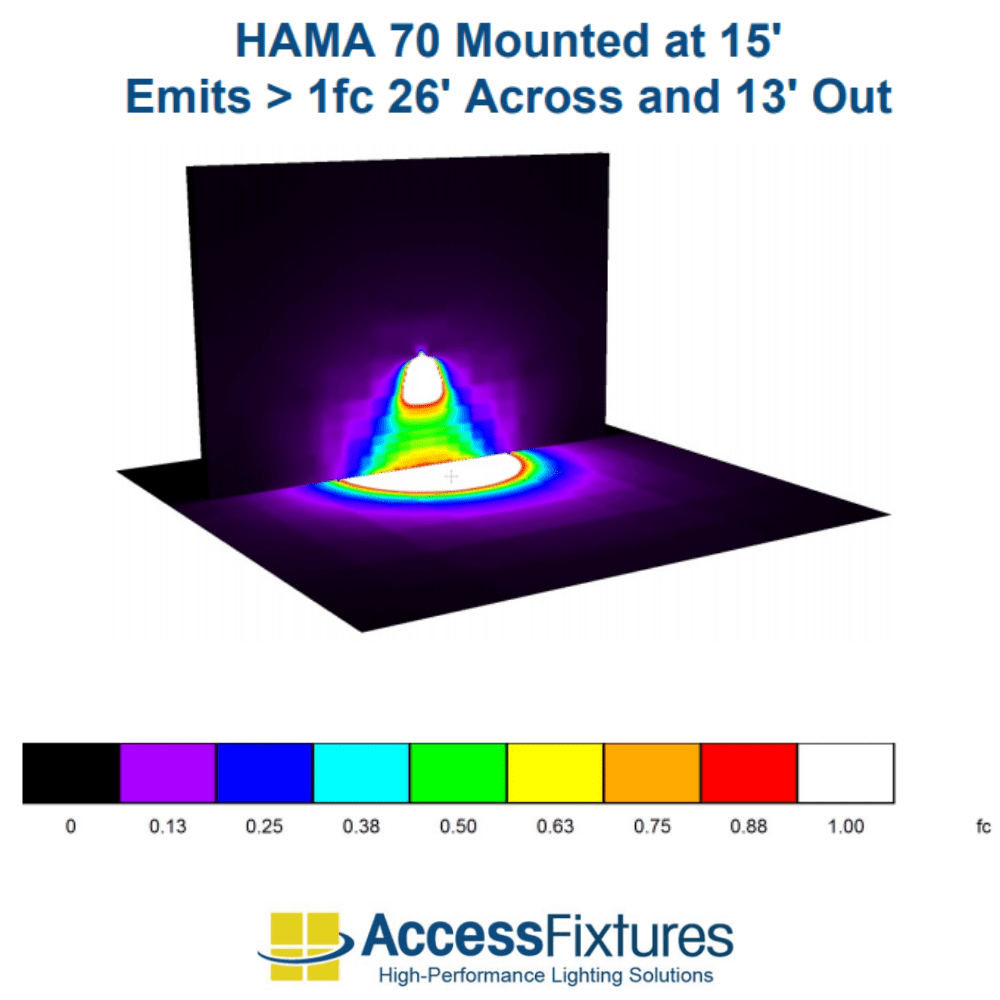

    • Mounted at 15′ feet with a 70° narrow beam: Emits >1fc 26’ Across and 13’ Out
    • Mounted at 20′ feet with a 70° narrow beam: Emits >1fc 30’ Across and 15’ Out

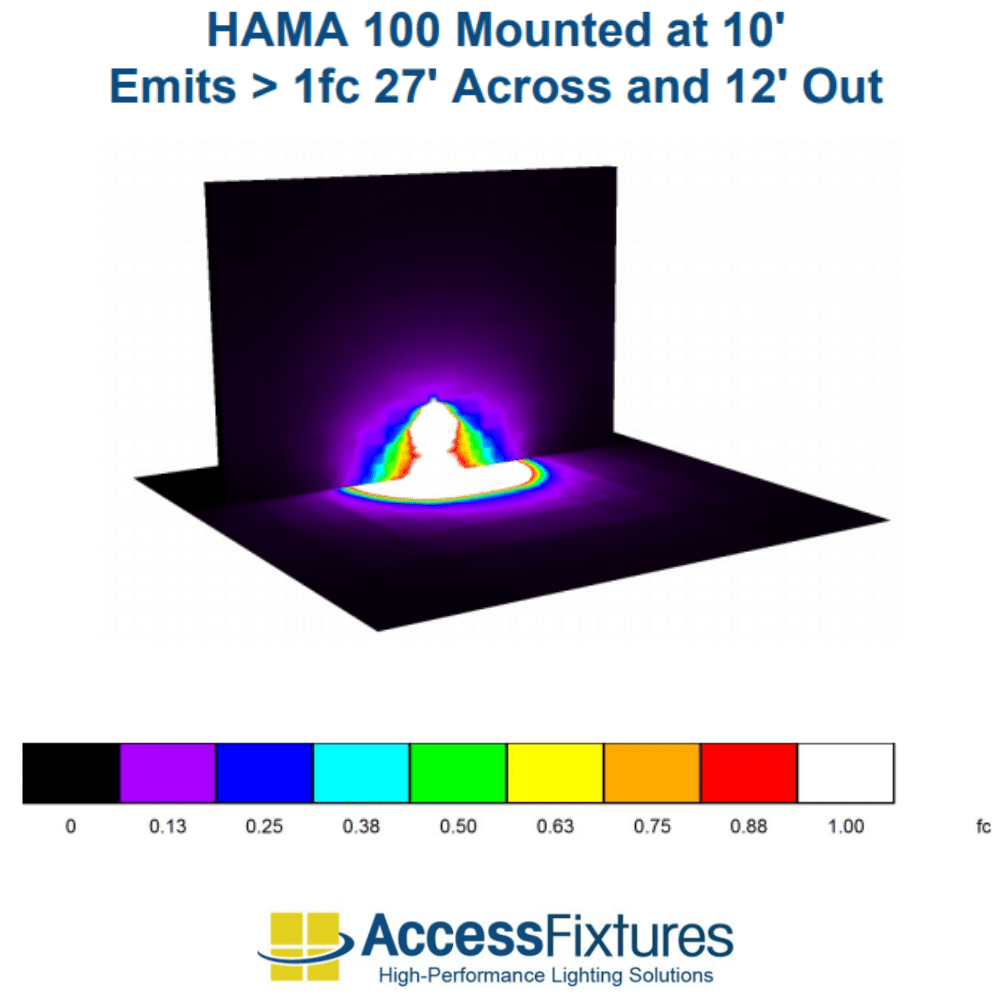

    • Mounted at 10′ feet with a 100° narrow beam: Emits >1fc 27’ Across and 12’ Out

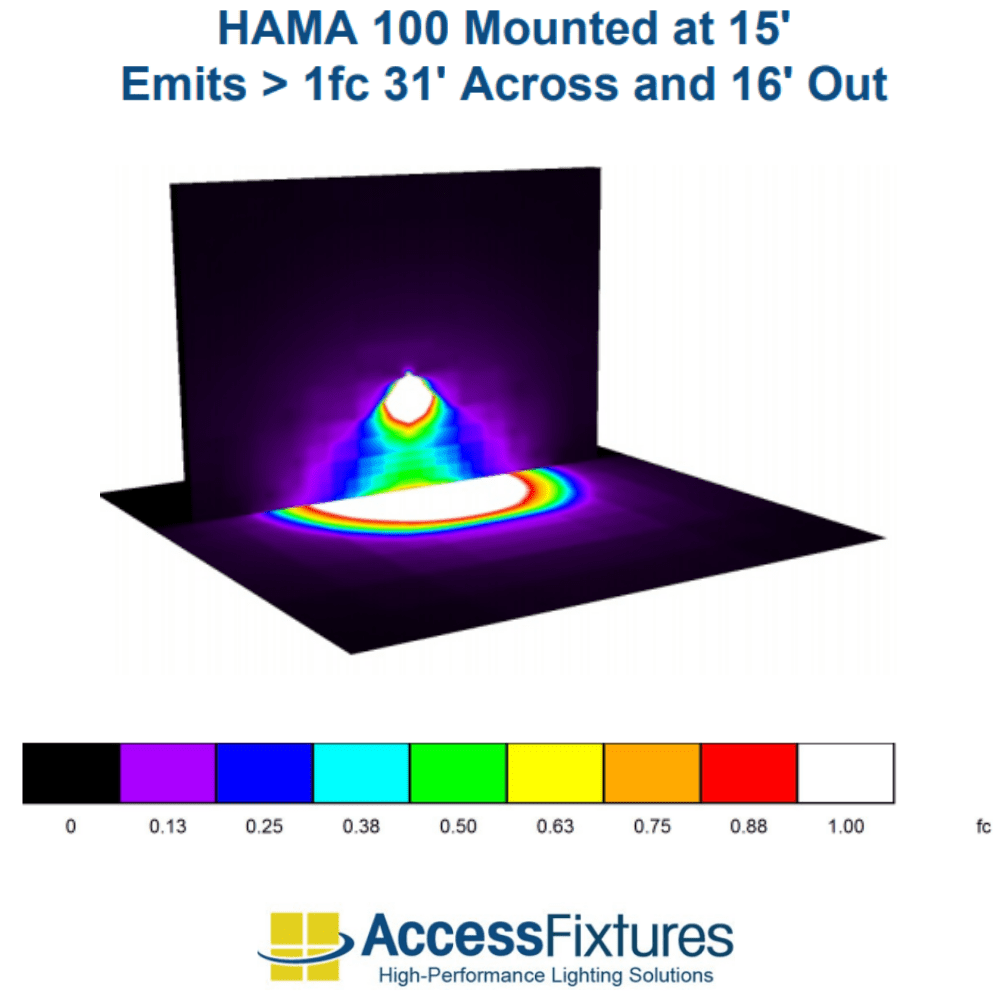

    • Mounted at 15′ feet with a 100° narrow beam: Emits >1fc 31’ Across and 16’ Out

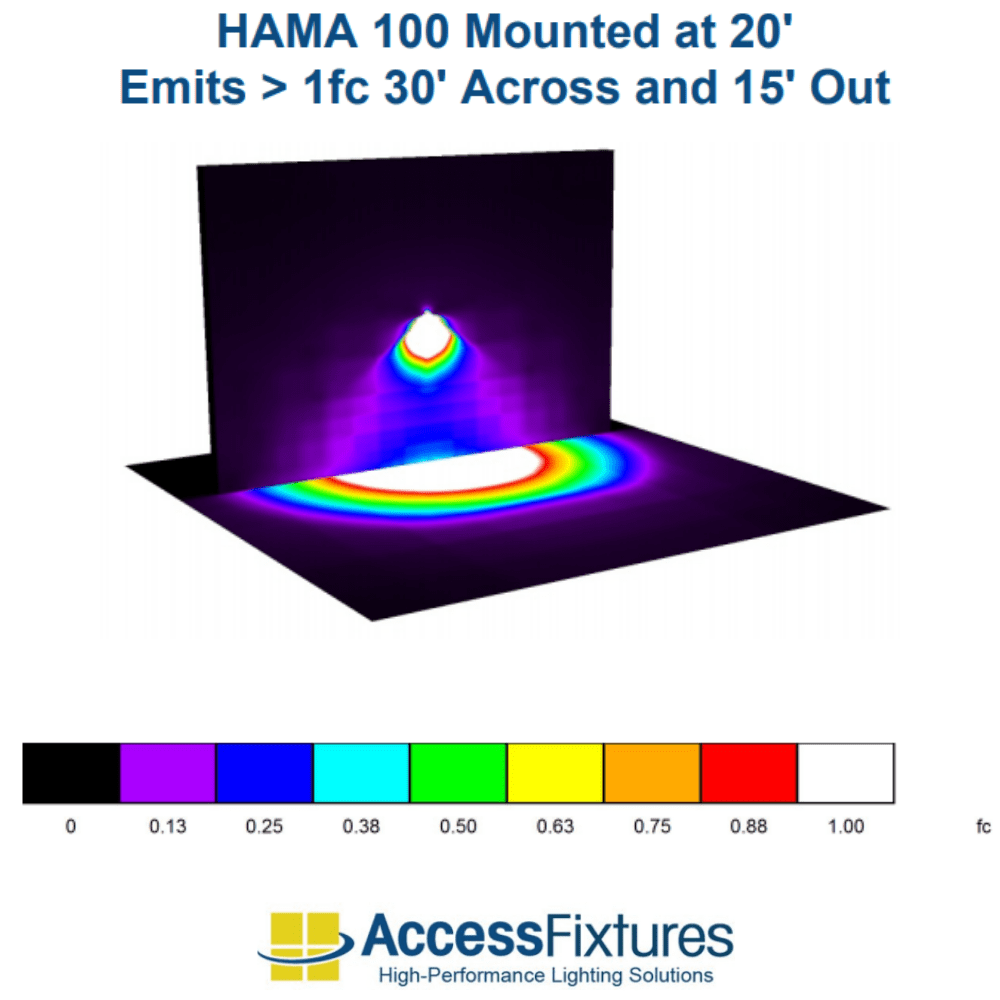

    • Mounted at 20′ feet with a 100° narrow beam: Emits >1fc 30’ Across and 15’ Out

HAMA LED Up/Down Wall Pack Options:

  • Choice of bronze or black
  • Choice of optics and beam spread
  • Photocell (120-277v model only)
  • 90-minute battery backup (120-277v model only)
  • 20KA Surge protection
