Full cutoff wall pack

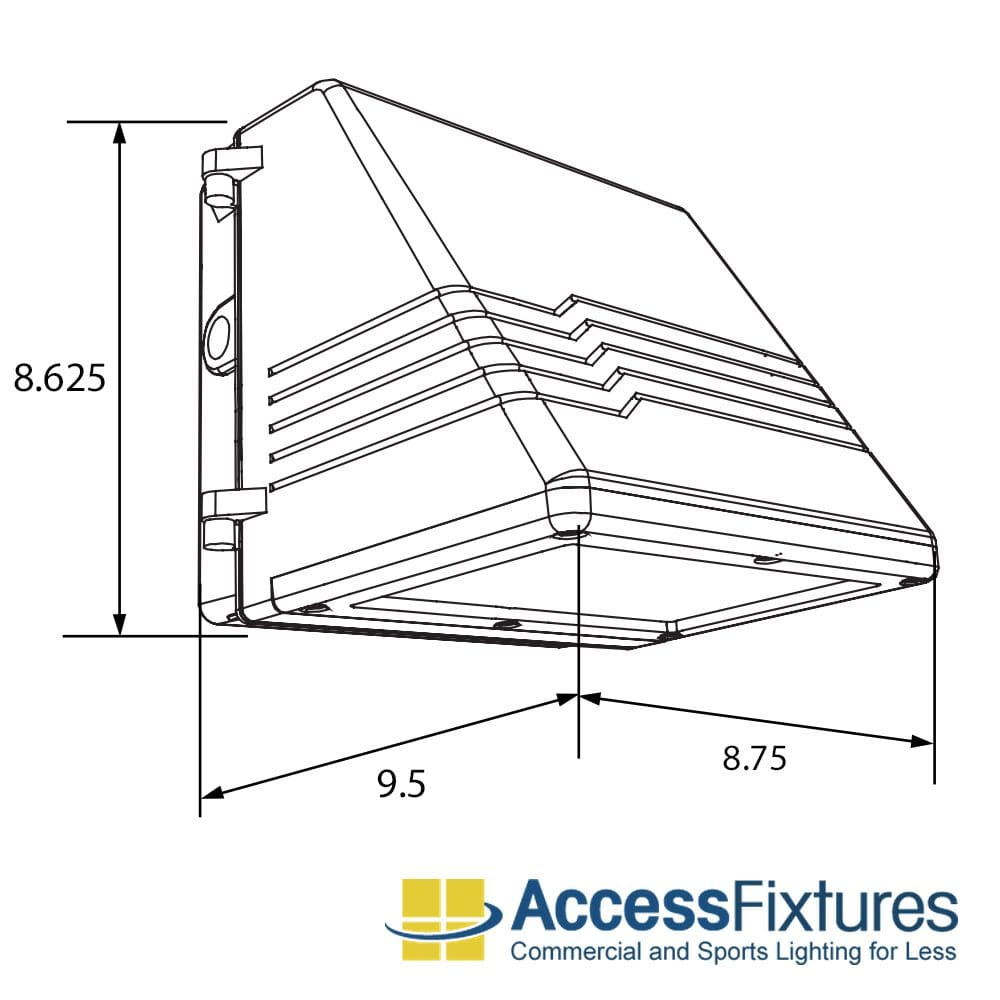

25w Full Cutoff Wall Pack Dimensions

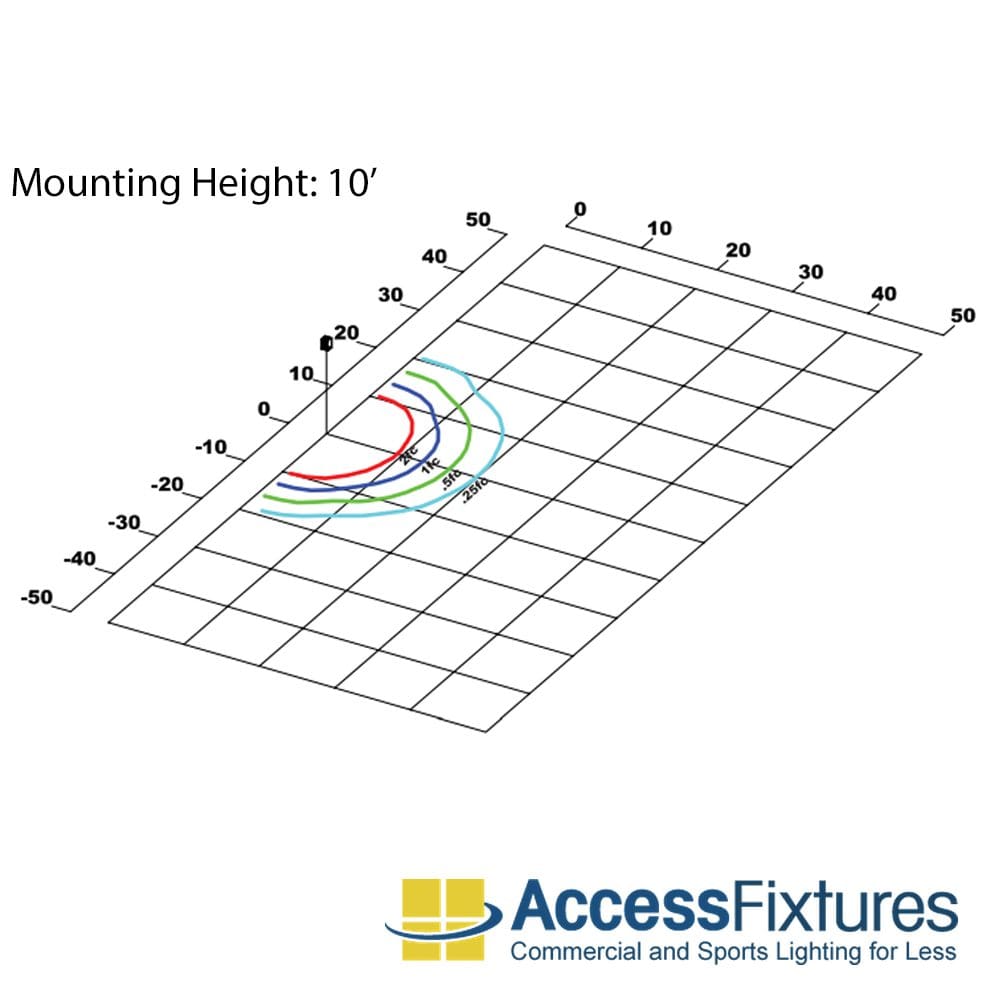

25w Full Cutoff Wall Pack Photometric
Buy American

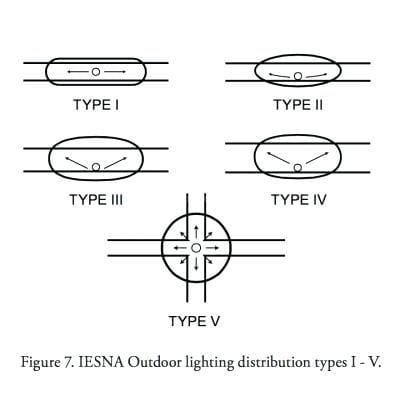

Optic type light distribution patterns

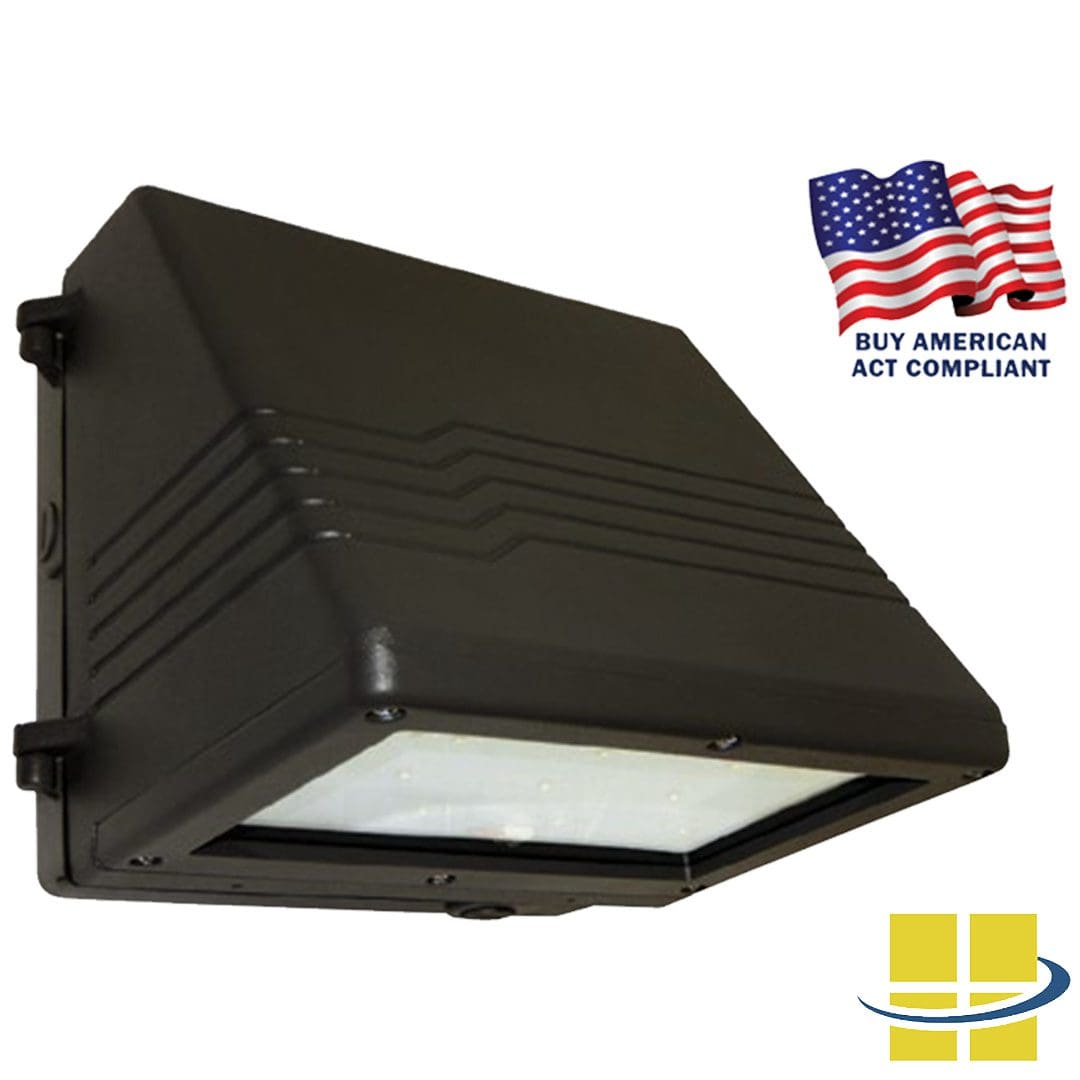

HEZE 25w LED Full Cutoff Wall Pack, Superior Optics, EXTREME-LIFE

$279.87

The HEZE 25w LED Full Cutoff Wall Pack is a perfect commercial lighting solution for those who need a durable, long-lasting wall pack. HEZE comes standard with a full cutoff design, type V or type III optics, durable die-cast, and gasketed aluminum housing, and is EXTREME-LIFE rated @ 196,000 hours. HEZE is not only attractive in appearance, but in performance too.

Full Cutoff: The full cutoff design of this wall pack helps to meet local lighting ordinances by minimizing light trespass – also making it neighbor and dark-sky friendly.

Extreme Life: L70 rated life of 196,000 hours. This means that after 196,000 hours this fixture will still deliver 70% or more of its initial lumens – making it virtually maintenance-free.

Durable Construction: This HEZE wall pack fixture is made of die-cast aluminum and IP65 rated against water and dust.

Mounted at 10′ feet: Emits >1fc 30’ Across and 15’ Out

Mounted at 15′ feet: Emits >1fc 30’ Across and 13’ Out


Buy American Act Compliant

In Stock

HEZE 25w Wall Pack

SKU: AF33XWPC12QU Category: Tags: ,


Specifications

Weight 15 lbs
Dimensions 15 × 10 × 8 in
Availability

Typically ships in 7-10 business days
Light Source

,

Available Finishes

Bronze, Custom RAL
Color Rendering Index (CRI)

80+
Housing

Gasketed front frame, NIckel plated stainless steel hardware, Die cast aluminum housing
System Watts

25
Lens

Clear flat tempered glass lens
Light Source Included

LED Array Included
Light Source Lumens

2251
Listings

CSA: Listed for wet locations, IP65
Mounting

Includes template for mounting directly over 4-inch electrical box
Mounting Height

10 ft., 15 ft.
Product Family

HEZE
Rated Life

196,000 Hours
Voltage

120v, 208v, 240v, 277v, 347v, 480v
Warranty

5-Year Limited Warranty
Style

Full Cutoff

Product Description

HEZE 16w LED Full Cutoff Wall Pack Features:

  • Die cast aluminum housing
  • Textured architectural powdercoat finish over a chromate conversion coating
  • 25w integrated LEDs
  • 120-277v
  • 2,251 lumens
  • Tempered clear glass lens
  • Mountable at multiple heights
  • IP65 rated
  • CSA listed for wet locations, ANSI/UL 1598, 8750
  • Dimmable driver 0-10v
  • 80+ CRI (learn more about Color Rendering Index here)
  • 8.875 × 12.50 × 5.75 in
  • 12 lbs.
  • Mounts over a 4″ recessed outlet box

HEZE 16w LED Full Cutoff Wall Pack Options:

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.


Ready to Order the HEZE 25w LED Full Cutoff Wall Pack, EXTREME-LIFE or Speak to a Lighting Specialist?

If you need some additional information about this fixture, give us a call at 800-468-9925. Of course, you can place your order online, right here, but our team is available to answer any questions that may come up. If your project requires multiple fixtures, ask us about quantity discounts. We are here to provide anything you need to purchase fixtures and illuminate your project with confidence.
