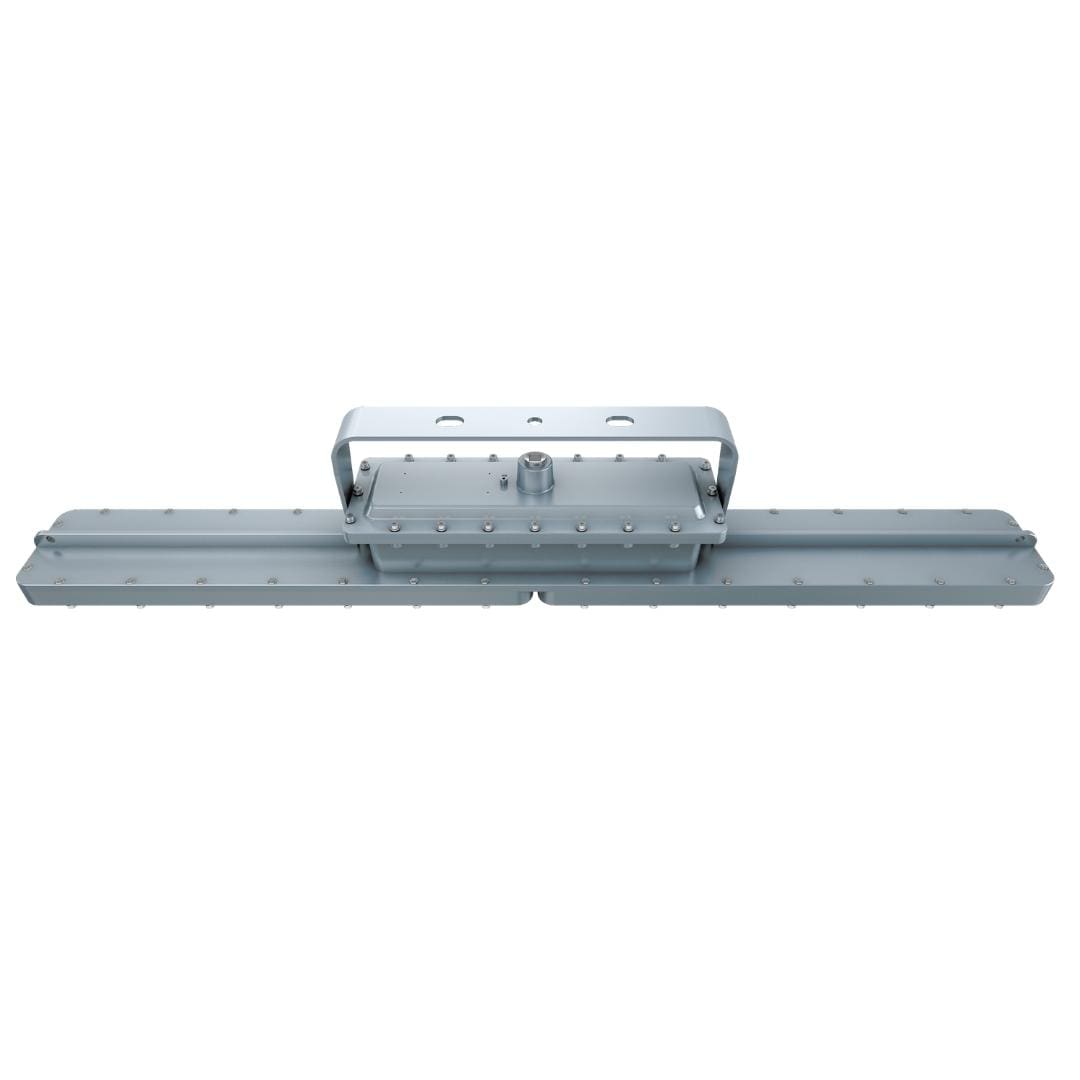

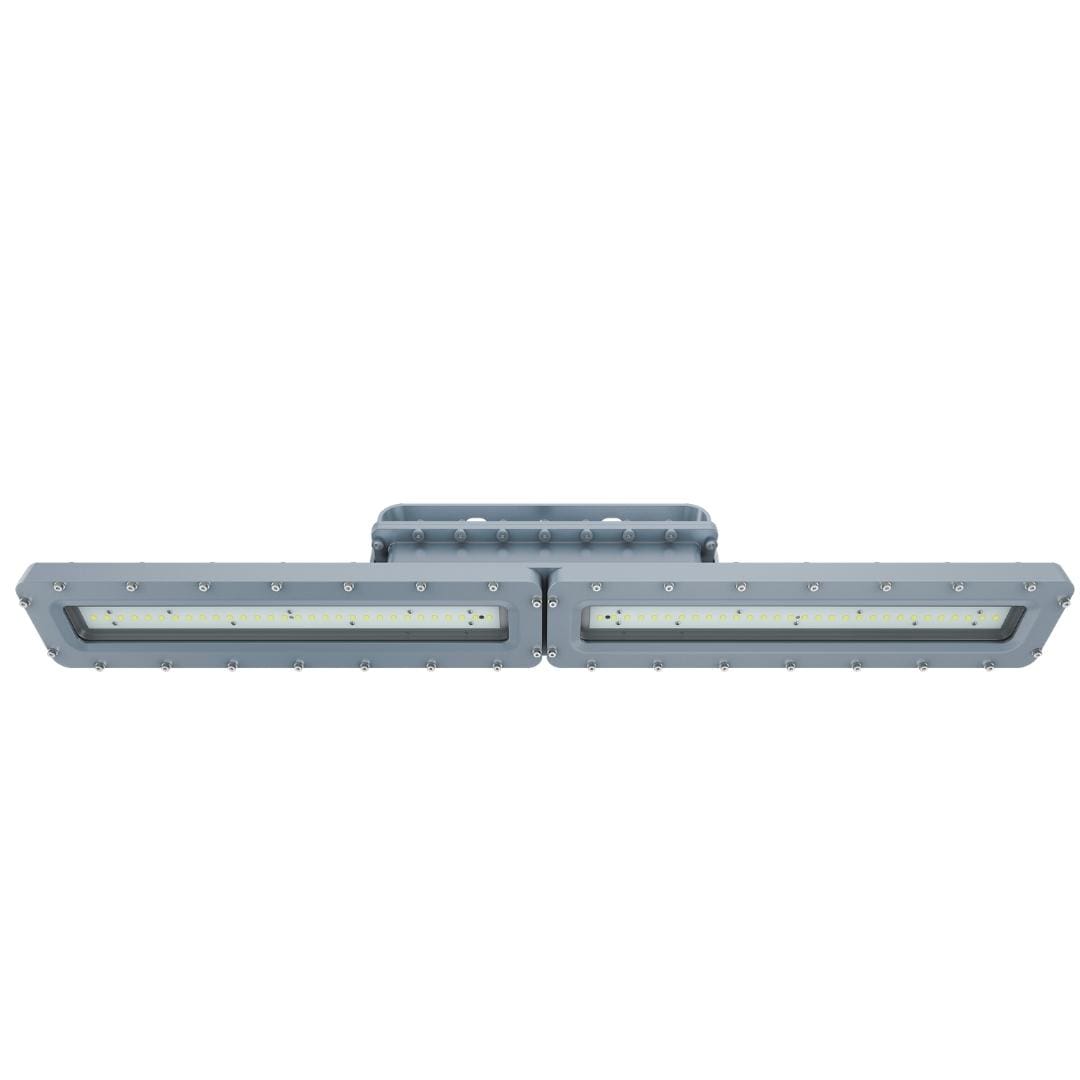

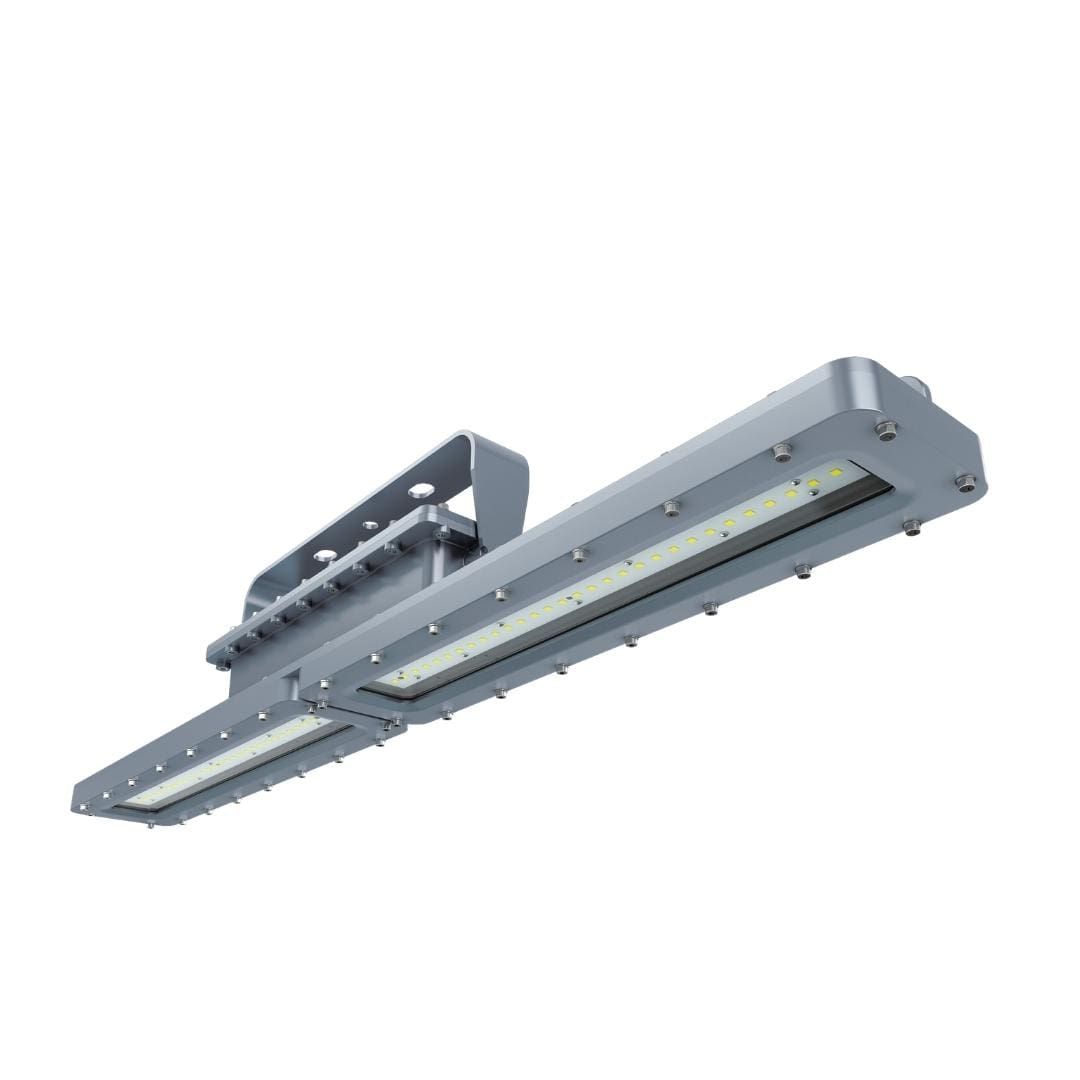

IAHL 100 Explosion Proof Linear Flood Light, 120-277v

$1,099.87

The IAHL 100 Explosion Proof Linear Flood Light, 120-277v is a hazardous location and explosion proof light fixture built to last.

Explosion Proof: IAHL is explosion and hazardous location proof. See features for complete listing information.

Linear Design: This fixture has a rugged linear design that can be mounted in hard-to-light areas.

Extremely Efficient: This explosion proof fixture emits a whopping 140 lumens per watt while staying budget-friendly.



Questions? Contact a lighting specialist.



Call 800-468-9925

In Stock

Specifications

Weight 45 lbs
Dimensions 50 × 6 × 10 in
Light Source

Availability

7 to 10 Day Production, plus Shipping

Available Finishes

Gray

Color Rendering Index (CRI)

80+

Housing

Powdercoat finish

Lens

Clear tempered glass lens

Light Source Included

LED Array Included

Light Source Lumens

13,500

Listings

IP66, ANSI/UL 1598, 8750, UL 844

Mounting

Yoke Mount/U-Bracket Mount

Product Family

IAHL

Rated Life

50,000 Hours

System Watts Filter

100w – 199w

Voltage

120v, 208v, 240v, 277v

Warranty

5-Year Limited Warranty

Product Description

The IAHL 100 Explosion Proof Linear Flood Light, 120-277v is a hazardous location and explosion proof light fixture built to last.

Explosion Proof: IAHL is explosion and hazardous location proof. See features for complete listing information.

Linear Design: This fixture has a rugged linear design that can be mounted in hard-to-light areas.

Extremely Efficient: This explosion proof fixture emits a whopping 140 lumens per watt while staying budget-friendly.

IAHL Explosion Proof Ratings:

Atex Marking
Il3 G Ex ec IIC T5/T6 Gc
Il2 D Ex tb IIIC T80/100°C Db IP66
IECEX Marking
Ex ec IIC T5/T6 Gc
Ex tb IIIC T80/100°C Db IP66
UL844 Marking (North American)
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
Marine Marking
UL 1598, UL1598A
ABS
Other Ratings
IP 66

Features:

  • 5000K
  • 100 system watts
  • 140 lumens per watt
  • 13500 lumens
  • Tempered flat glass lens
  • Die cast aluminum housing with gray powdercoat finish
  • 100-277v
  • 120° beam
  • 80 CRI
  • -40°F to 131°F
  • Stainless steel hardware
  • Stainless steel U-bracket mount

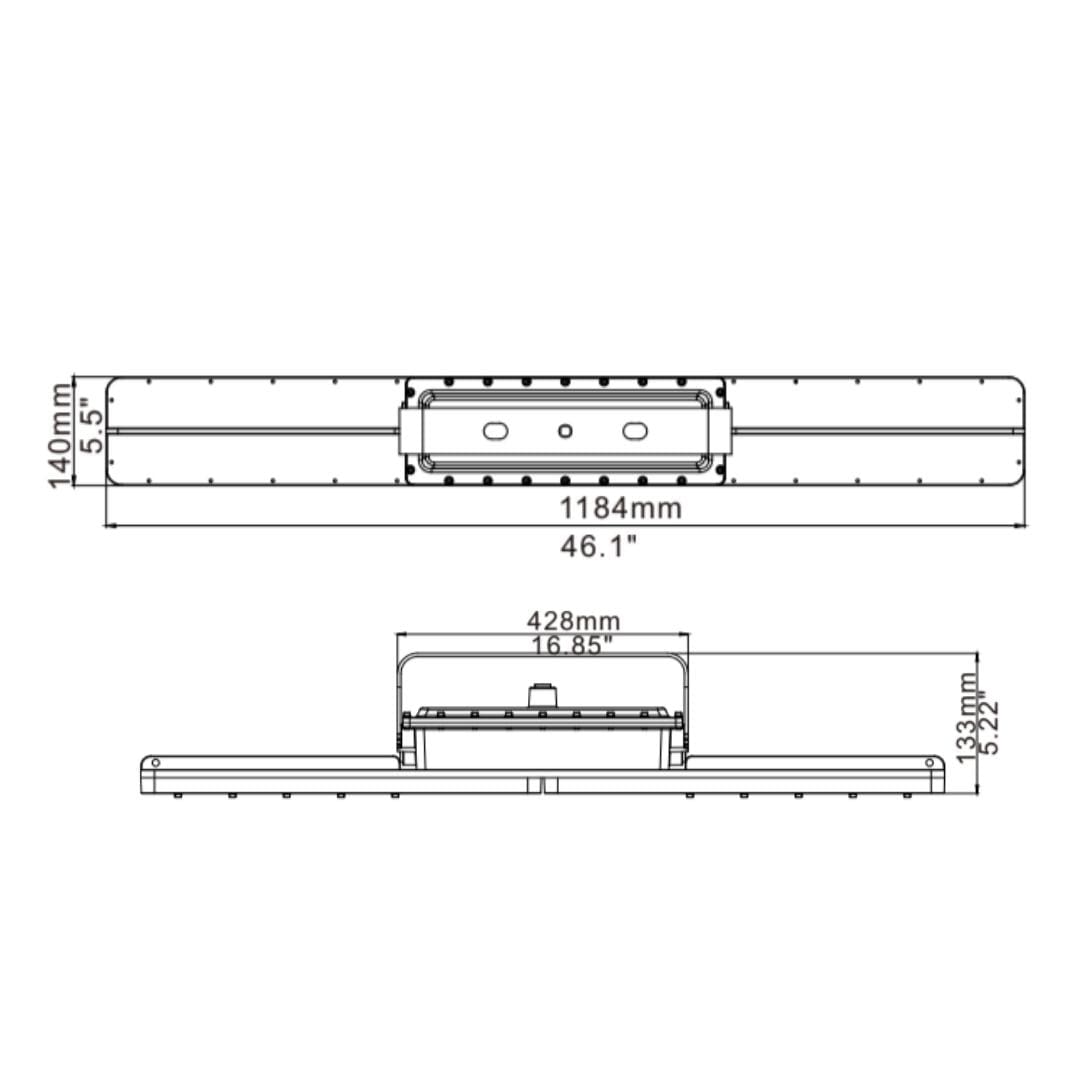

  • 47″ x 4.7″ x 9.5″
  • 40 lbs

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.


Get a Custom Photometric Analysis for Your IAHL 100 Explosion Proof Linear Flood Light, 120-277v Project

A photometric analysis is a custom computer simulation of your particular project. This service provides average footcandles at various heights, max/min (uniformity) ratios, minimum footcandles, light trespass levels, and more. For exacting lighting specifications, a photometric analysis helps you ensure light levels before making a big purchase. One of our lighting specialist will walk you through the process so you know exactly what you will be receiving. Call us at 800-468-9925 or [email protected] for more information about ordering a photometric analysis for your project.

Ready to Order IAHL 100 Explosion Proof Linear Flood Light, 120-277v or Speak to a Lighting Specialist?

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
