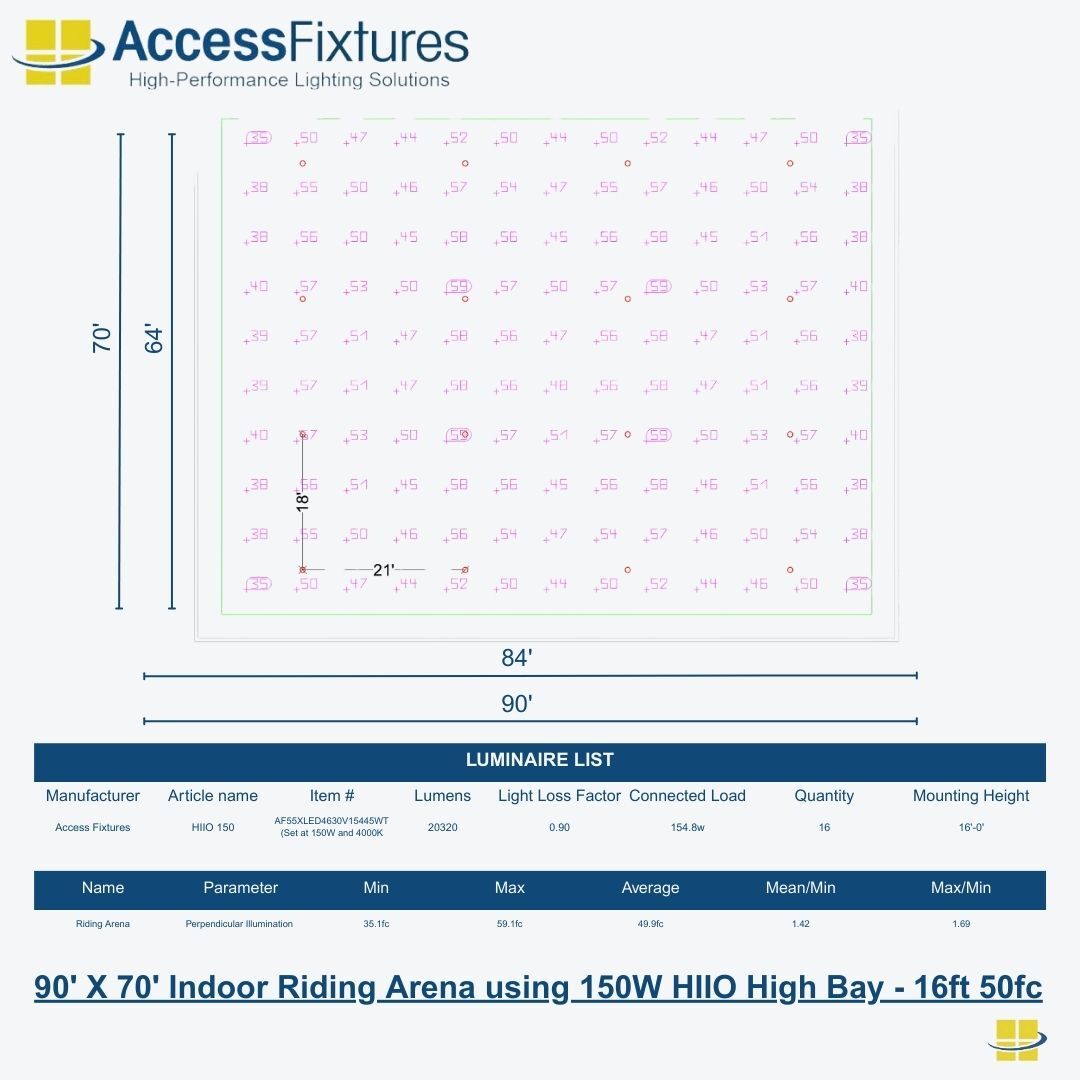

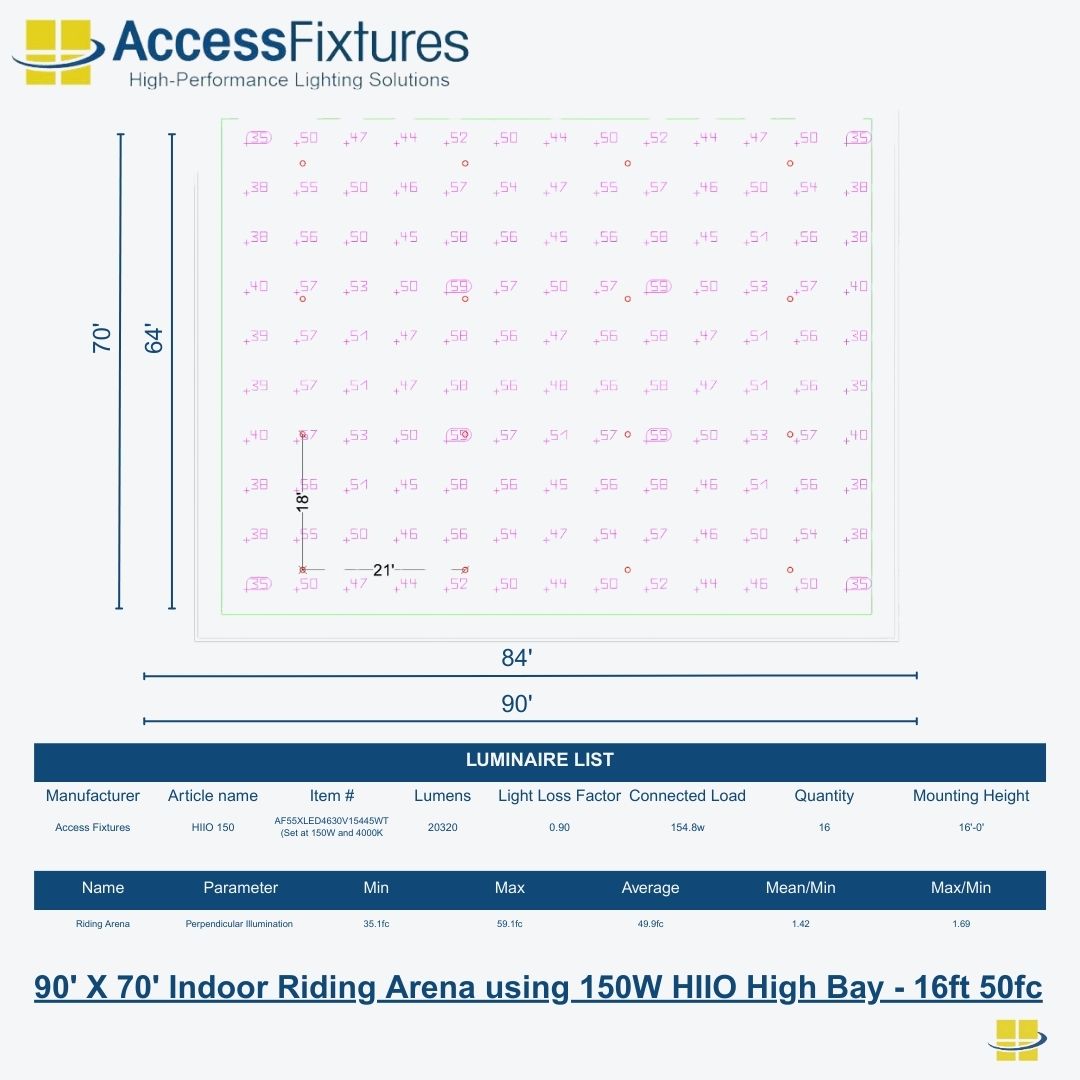

Indoor Riding Arena - 90' X 70' 50fc, 1.69 Max/min - 16 HIIO 150w - 16ft
150w high bay light
Indoor Riding Arena - 90' X 70' 50fc, 1.69 Max/min - 16 HIIO 150w - 16ft - Image 3
Indoor Riding Arena - 90' X 70' 50fc, 1.69 Max/min - 16 HIIO 150w - 16ft - Image 4
Indoor Riding Arena - 90' X 70' 50fc, 1.69 Max/min - 16 HIIO 150w - 16ft - Image 5

Indoor Riding Arena – 90′ X 70′ 50fc, 1.69 Max/min – 16 HIIO 150w – 16ft

$1,999.87

This 16-fixture HIIO LED sports lighting package delivers an average of 50 footcandles with a low 1.69 max/min ratio, offering even coverage for indoor arenas. Each 150W fixture is built for durability with a die-cast aluminum housing. With low glare and even distribution, the HIIO ensures safe, clear visibility for both riders and horses. Its IP65 rating and durable build make it perfect for dust-prone environments like barns and arenas, while 0–10V dimming supports customizable lighting conditions for training, events, or general use.

Quality Lighting: Delivers avg. 50 footcandles of bright, uniform illumination with a low 1.69 max/min ratio, ensuring smooth, shadow-free coverage throughout the arena. The even light distribution enhances visibility and performance, ideal for training, dressage, barrel jumping, and more.

Low Glare: Glare-free lens design ensures visual comfort for riders and horses, reducing eye strain during all activities.

Durable: Each fixture features 6kV surge protection, a glare-reducing lens, and an IP65 rating—sealed against dust, water, dirt, and bugs for reliable performance and enhanced comfort during riding activities.



Lead Time: 5 to 7 Day Production, plus Shipping

In Stock

  • Detects the presence of people in a room or area and automatically controls lighting. It helps improve energy efficiency by ensuring lights are only on when the space is occupied.

  • Total

SKU: AF55XLED4630V15445WT-Pkg-90'x-70'-50fc Categories: ,

Specifications

Weight 80 lbs
Dimensions 9.67 × 9.67 × 5.83 in
Availability

5 to 7 Day Production, plus Shipping
Light Source

Available Finishes

White
Color Rendering Index (CRI)

80+
Housing

Die cast aluminum housing
Listings

IP65 sealed LED compartment, CuL Listed, DLC Listed, UL Listed
Mounting

Hook Mount
Product Family

HIIO
System Watts

150
Voltage

120v, 277v
Mounting Height

16ft
Max/Min Uniformity

1.59
Average Footcandles

50
Number of Fixtures

16
Warranty

5-Year Limited Warranty

Product Description

The Access Fixtures HIIO is a versatile LED high bay fixture engineered for the unique demands of indoor riding arenas. It’s 150W and 4000K temperature allows precise control over light levels and color tone. With low glare and even distribution, the HIIO ensures safe, clear visibility for riders and horses. Its IP65 rating and durable build make it perfect for dust-prone environments like barns and arenas, while 0–10V dimming supports customizable lighting conditions for training, events, or general use.

⚙️ Electrical & Performance

  • Footcandles: avg. 50fc
  • Max/Min: 1.69
  • Wattage: 150W
  • Kelvin: 4000K (Cool White)
  • Efficacy: Approximately 125 lumens per watt
  • Voltage: 120V, 208V, 240V, 277V
  • Dimming: 0- 10V dimmable

🏗️ Construction & Design

  • Housing: Die-cast aluminum with white powder-coat finish
  • Lens: Acrylic or aluminum reflector with Type V distribution
  • Mounting: Built-in die-cast aluminum hook; optional S-hook or ¾″ pendant adapter
  • Dimensions: Diameter: 9.67″ (245.5mm); Height: 5.83″ (148mm)
  • Weight: 8 lbs

🌐 Listings & Ratings

  • Certifications: UL Listed, cUL Listed, DLC Listed
  • Ingress Protection: IP65 rated for wet locations
  • Surge Protection: 6kV built-in
  • CRI: 80+
  • Operating Temperature: -40°C starting temperature

🛠️ Other Options

  • Sensor Compatibility: Optional 120- 277V occupancy sensor for energy savings

Warranty: 5-year limited warranty

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.


Need a Photometric Analysis for Your HIIO LED Indoor Riding Arena Sports Light Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometric studies include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.
