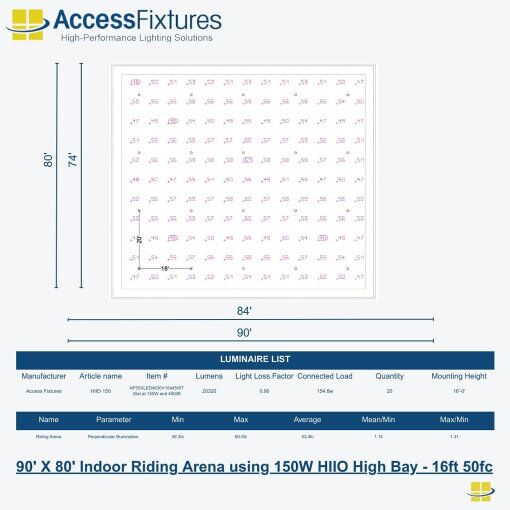

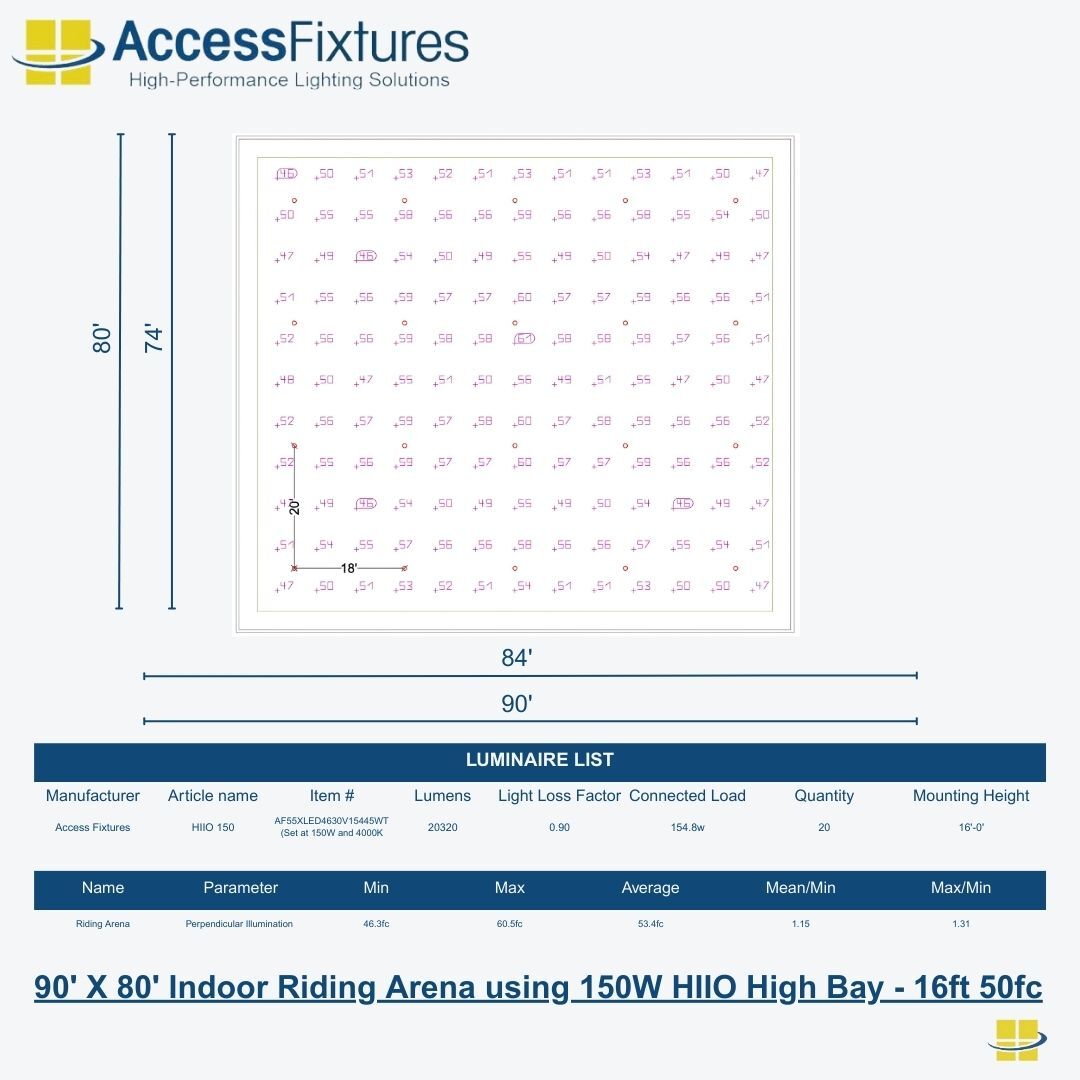

Indoor Riding Arena 90' X 80' 50fc, 1.31 Max/Min 20 HIIOs 150W - 16ft

Indoor Riding Arena 90' X 80' 50fc, 1.31 Max/Min 20 HIIOs 150W - 16ft - Image 3

Indoor Riding Arena 90′ X 80′ 50fc, 1.31 Max/Min 20 HIIOs 150W – 16ft

Name: Indoor Riding Arena 90' X 80' 50fc, 1.31 Max/Min 20 HIIOs 150W - 16ft
SKU: AF55XLED4630V15445WT-Pkg-90'-x-80'-50fc
Availability: InStock

$2,799.87

This 20-fixture HIIO LED sports lighting package delivers an average of 50 footcandles with a low 1.31 max/min ratio, offering even coverage for indoor arenas. Each 150W fixture is built for durability with a die-cast aluminum housing. With low glare and even distribution, the HIIO ensures safe, clear visibility for both riders and horses. Its IP65 rating and durable build make it perfect for dust-prone environments like barns and arenas, while 0–10V dimming supports customizable lighting conditions for training, events, or general use.

Quality Lighting: Delivers avg. 50 footcandles of bright, uniform illumination with a low 1.31 max/min ratio, ensuring smooth, shadow-free coverage throughout the arena. The even light distribution enhances visibility and performance, ideal for training, dressage, barrel jumping, and more.

Low Glare: Glare-free lens design ensures visual comfort for riders and horses, reducing eye strain during all activities.

Durable Construction: Each fixture features 6kV surge protection and an IP65 rating—sealed against dust, water, dirt, and bugs for reliable performance and enhanced comfort during riding activities.

Lead Time: 5 to 7 Day Production, plus Shipping

In Stock

Lens*

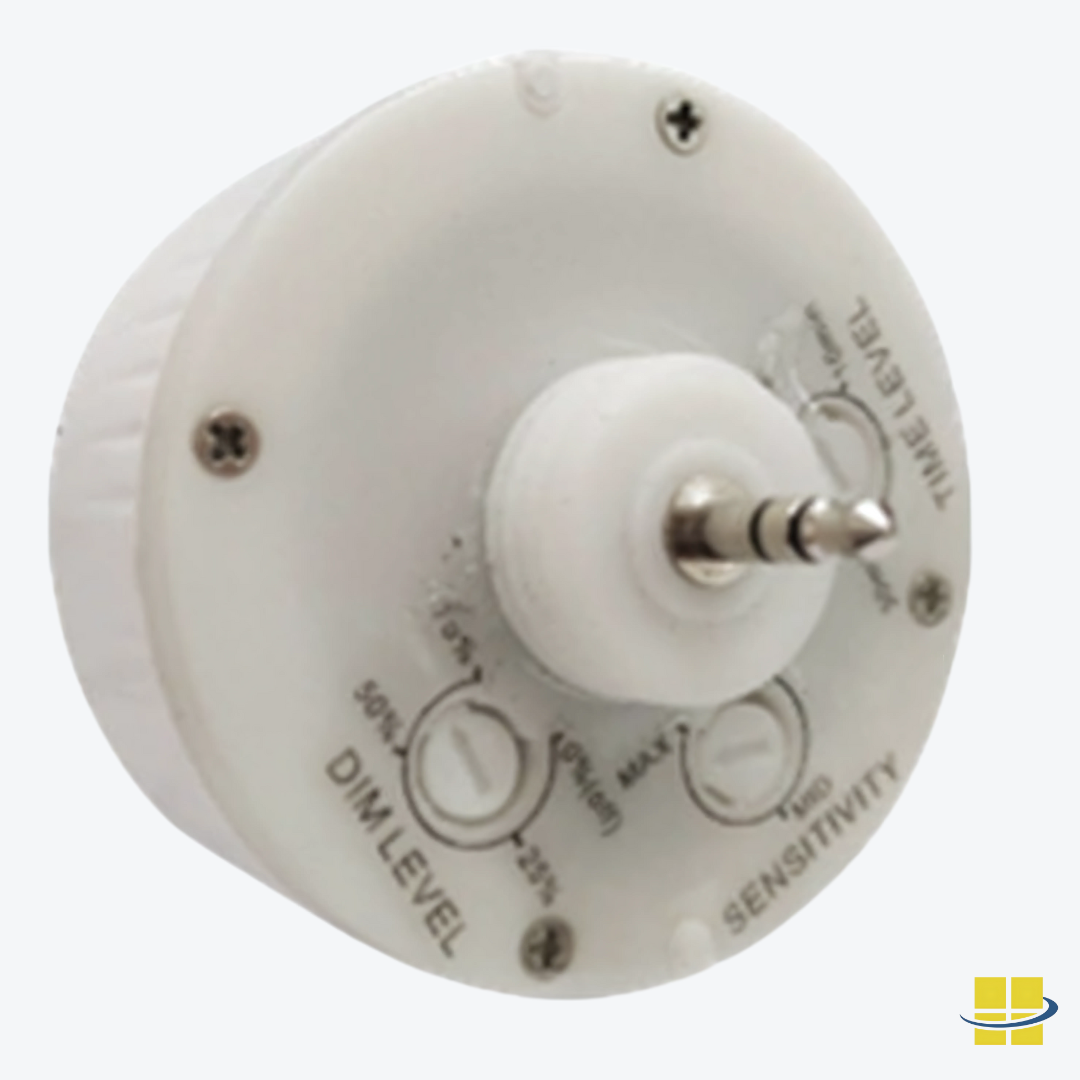

Occupancy Sensor*
Detects the presence of people in a room or area and automatically controls lighting. It helps improve energy efficiency by ensuring lights are only on when the space is occupied.

Subtotal
$2,799.87
Options
$0.00
Total $2,799.87

Compare

SKU: AF55XLED4630V15445WT-Pkg-90'-x-80'-50fc Categories: Arena Lighting Packages, Sports Lighting - LED Sports Lighting

Specifications

Weight	80 lbs
Dimensions	9.67 × 9.67 × 5.83 in
Availabilityi	5 to 7 Day Production, plus Shipping
Available Finishesi	White
Light Sourcei	3000K – Neutral White, 4000K – Cool White, 5000K – Bright White
Color Rendering Index (CRI)i	80+
Housingi	Die cast aluminum housing
Listingsi	IP65 sealed LED compartment, CuL Listed, DLC Listed, UL Listed
Mounting Height	16ft
Mountingi	Hook Mount
Product Familyi	HIIO
System Wattsi	150
Voltagei	120v, 277v
Max/Min Uniformity	1.31
Average Footcandles	50
Number of Fixtures	20
Warrantyi	5-Year Limited Warranty

Product Description

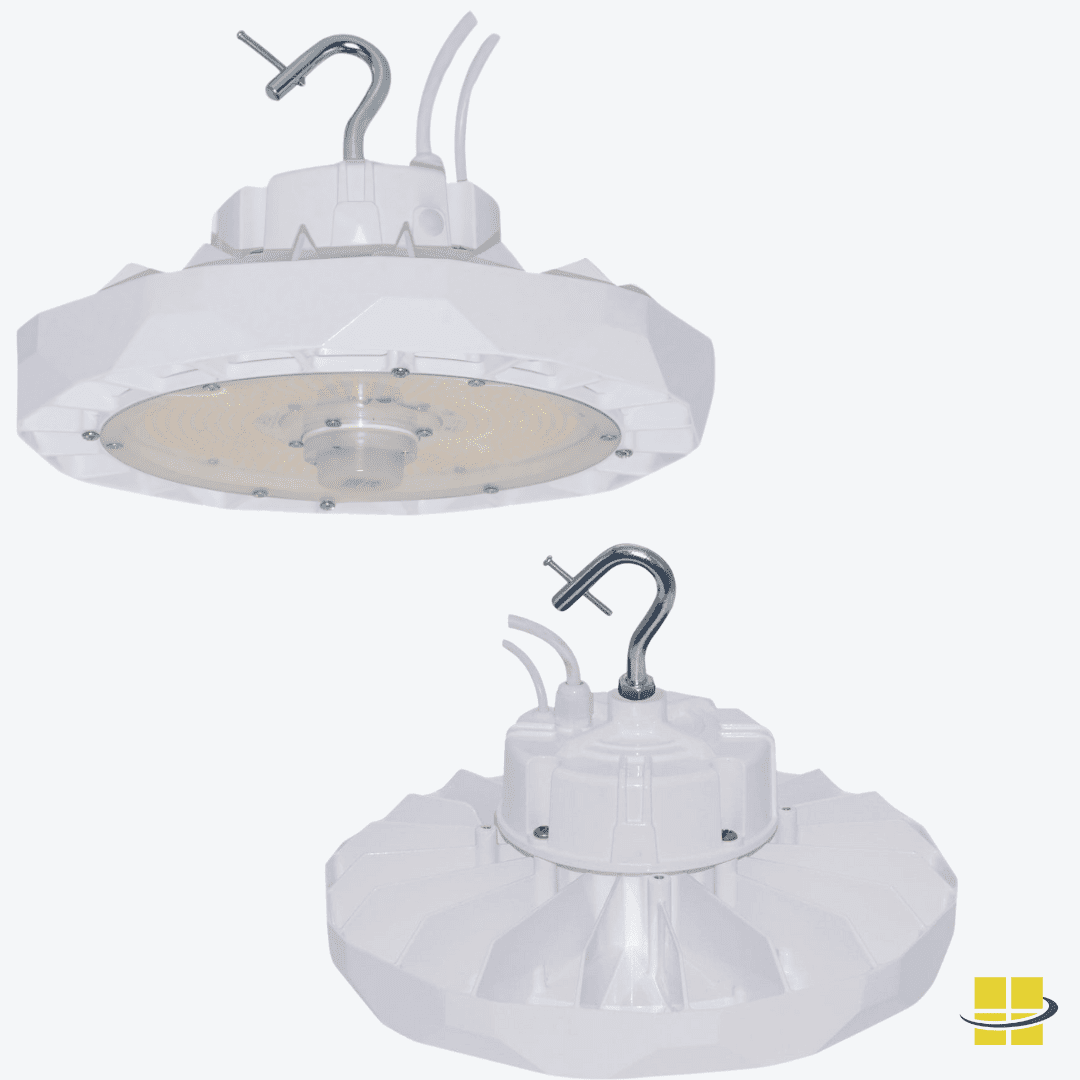

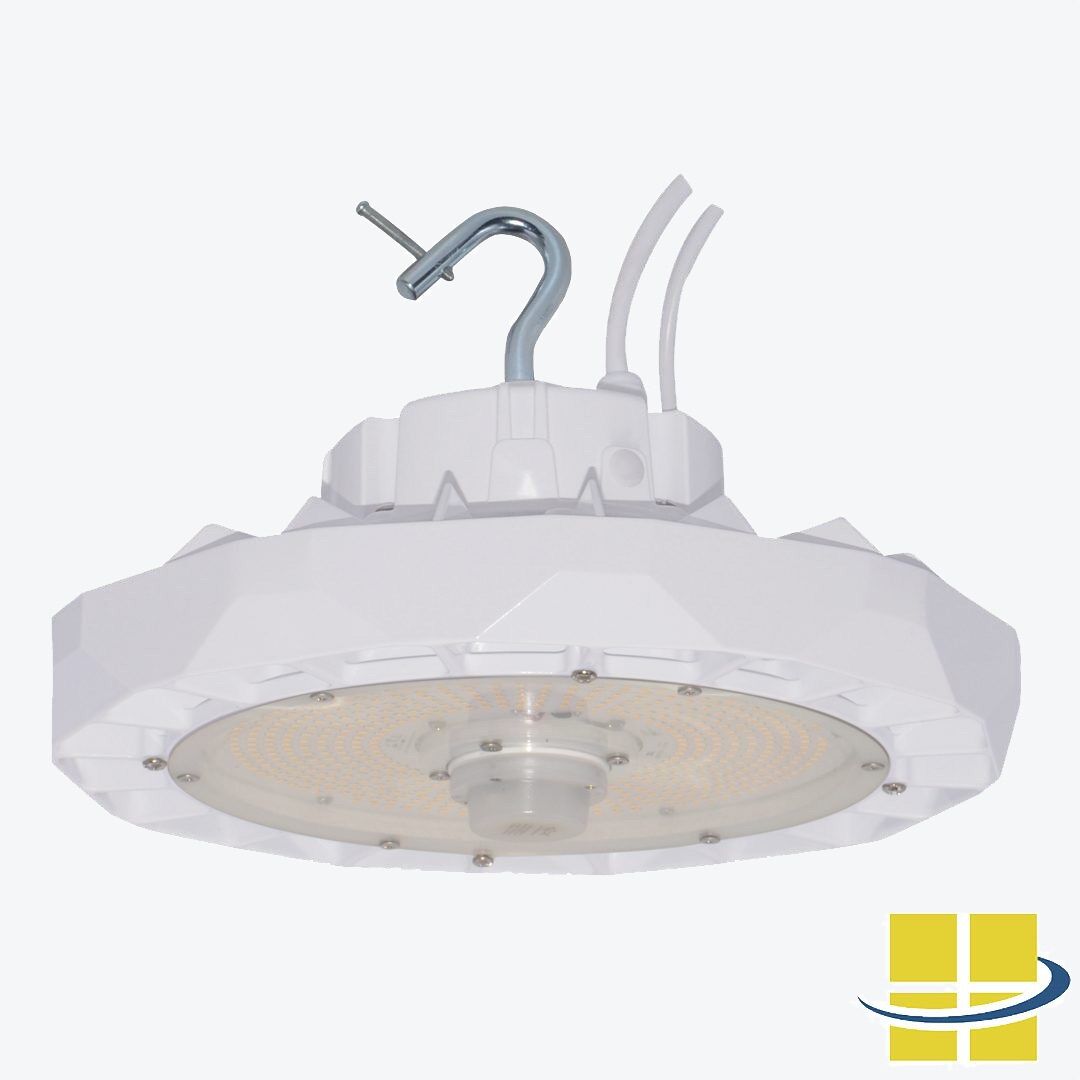

The Access Fixtures HIIO is a versatile LED high bay fixture engineered for the unique demands of indoor riding arenas. It’s 150W and 4000K temperature allows precise control over light levels and color tone. With low glare and even distribution, the HIIO ensures safe, clear visibility for riders and horses. Its IP65 rating and durable build make it perfect for dust-prone environments like barns and arenas, while 0–10V dimming supports customizable lighting conditions for training, events, or general use.

⚙️ Electrical & Performance

Footcandles: avg. 50fc
Max/Min: 1.31
Wattage: 150W
Kelvin: 4000K (Cool White)
Efficacy: Approximately 125 lumens per watt
Voltage: 120V, 208V, 240V, 277V
Dimming: 0- 10V dimmable

🏗️ Construction & Design

Housing: Die-cast aluminum with white powder-coat finish
Lens: Acrylic or aluminum reflector with Type V distribution
Mounting: Built-in die-cast aluminum hook; optional S-hook or ¾″ pendant adapter

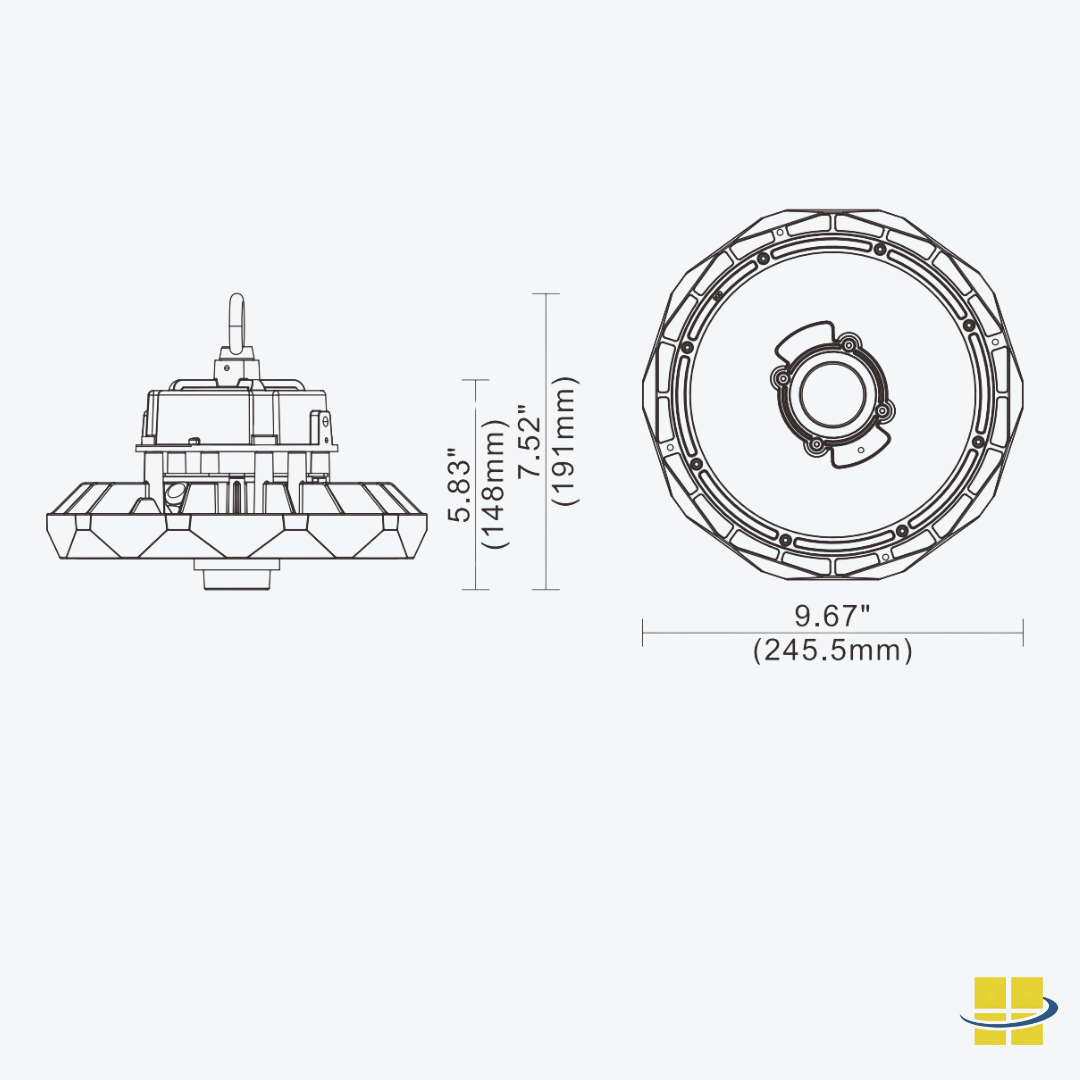

Dimensions: Diameter: 9.67″ (245.5mm); Height: 5.83″ (148mm)
Weight: 8 lbs per fixture

🌐 Listings & Ratings

Certifications: UL Listed, cUL Listed, DLC Listed
Ingress Protection: IP65 rated for wet locations
Surge Protection: 6kV built-in
CRI: 80+
Operating Temperature: -40°C starting temperature

🛠️ Other Options

Sensor Compatibility: Optional 120- 277V occupancy sensor for energy savings

Warranty: 5-year limited warranty

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at sales@accessfixtures.com. Click here to view Access Fixtures' complete warranty policy.

Need a Photometric Analysis for Your HIIO LED Indoor Riding Arena Sports Light Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometric studies include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.
