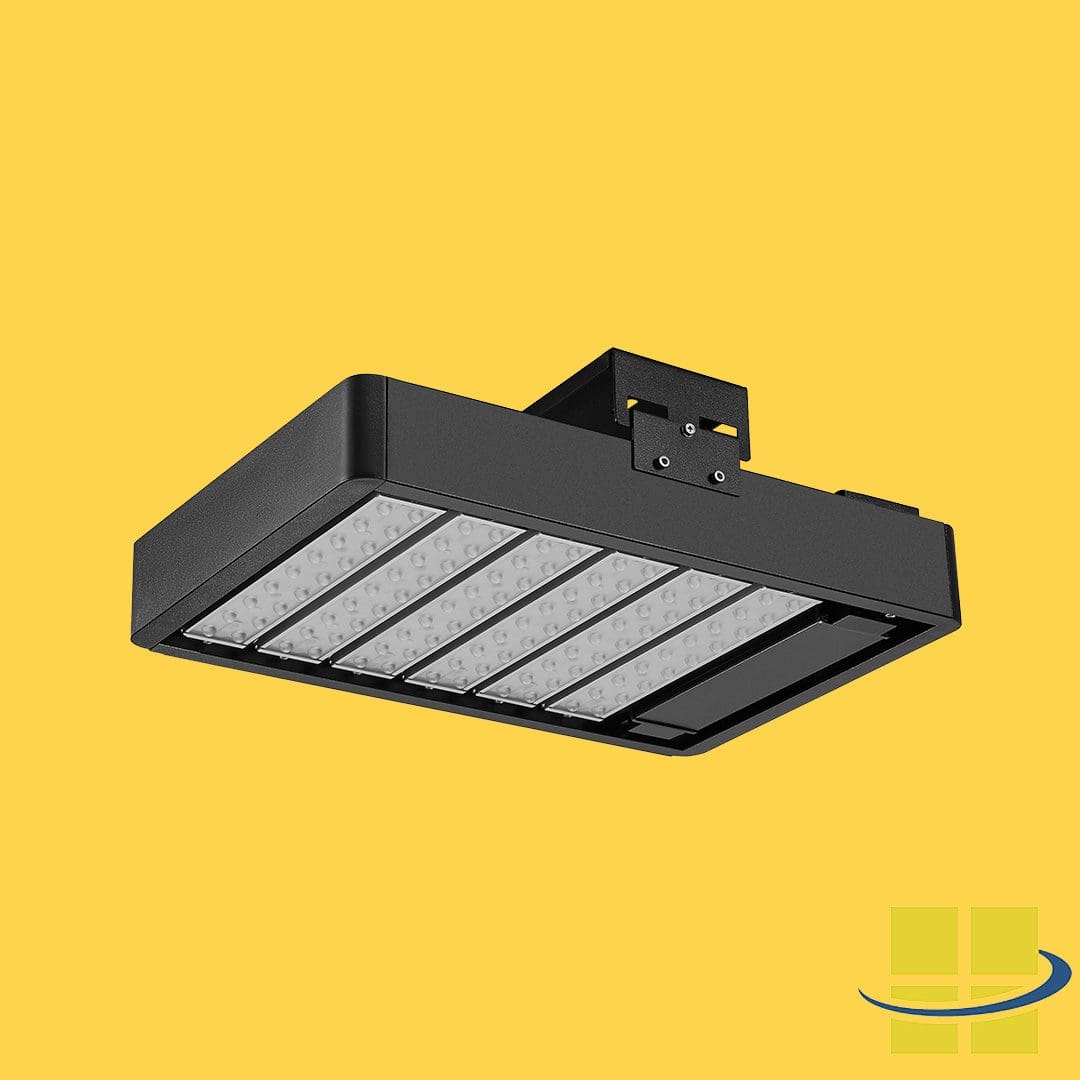

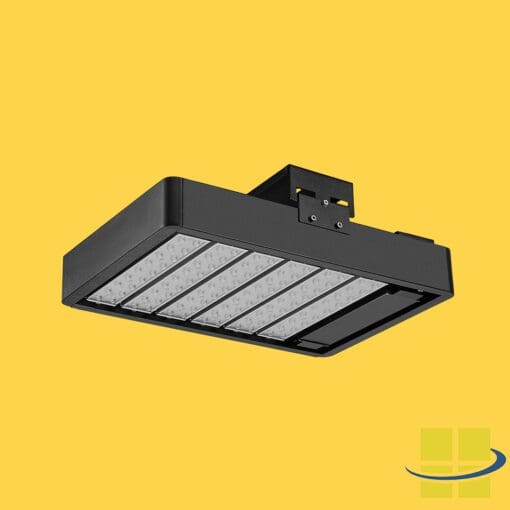

OCTA 360w 590nm Amber LED Canopy Lights, EXTREME-LIFE

$1,799.87

OCTA is specifically designed with advanced optics and heat management to provide the most powerful and reliable LED canopy lighting available. With 590nm amber LEDs, it is turtle and wildlife friendly. Applicable uses are facilities with high footcandle requirements, and very large facilities such as hangars, sports facilities, convention centers, stadiums, and commercial/industrial buildings with clear heights of 60 feet and more. Using a superior patented, high-efficiency spill light control system, high lumen-per-watts of up to 160LPW, OCTAs are designed to provide uniform anti-glare illumination in bright and large-scale areas. The exceptional heat sink design ensures EXTREME-LIFE, virtually maintenance-free performance for years, which reduces the downtime and expense of servicing hard to reach light fixtures.

590nm Amber LEDs: 590nm Amber LEDs provide turtle-friendly and wildlife-friendly LED lighting

EXTREME-LIFE: Exceptional heat sink design produces an EXTREME-LIFE rating of L70 @ 200,000 hours for years of virtually maintenance-free performance

Maximum Wattage and LPW: With up to 960 watts per canopy light fixture and lumens per watt of up to 160, OCTA can provide over 150,000 lumens from a single canopy light

 ARCI LED Bollard Light PDFARCI LED Bollard Light PDF



Lead Time: 3 to 4 Week Production, plus Shipping

In Stock

  • Custom RAL finishes are available at an up charge with a minimum order quantity (MOQ).
  • 0-10v Dimming is suggested and is no additional cost. If dimming is not used, simply cap the 2 low voltage dimming wires.
  • Large facilities may have birds living inside the building. Installing bird spikes on canopy lights stops the birds from nesting on the lights.
  • OCTAs are manufactured with a 3' power cord exiting the light fixture. You may add additional length to the power cord.
  • Do you need the OCTA to stay on when the power goes out? If yes, add the Emergency Power Supply.
  • This is a safety cable that will stop the light fixture from crashing to the floor is the primary mount ever becomes loose or disconnected.
  • Maximize energy savings and the life of the canopy light by adding a programable microwave control with an occupancy sensor and light sensor.
  • Adding a photocell prevents the need to manually turn on/off your canopy lights when it gets dark.
  • Adding a backlight shield prevents light trespass.
  • $1,799.87
  • $0.00
  • Total $1,799.87

Specifications

Weight 23.3 lbs
Dimensions 33.27 × 16.73 × 6.30 in
Application

Availabilityi

3 to 4 Week Production, plus Shipping

Light Sourcei

Available Finishesi

Black, Gray

Housingi

High-Grade Aluminum

Lensi

Type I, Type V

Light Source Includedi

LED Array Included

Light Source Lumensi

50,760

Listingsi

IK10, IP66, CB, CE, CuL Listed, DLC Listed, ETL Listed, SAA

Mountingi

D Type Mounting, H Type Mounting, U Type Mounting

Product Familyi

OCTA

Rated Lifei

L70 @ up to 200,000 Hours

System Wattsi

360

Voltagei

120v, 208v, 240v, 277v, 347v, 480v

Warrantyi

5-Year Limited Warranty
