Product Specifications
| Weight | 18 lbs |
|---|---|
| Dimensions | 16 × 16 × 32 in |
| Model Number | AF55XLED-3778 |
| Weight Pounds | 12.09 lbs |
| EPA | 2.0 ft² |
| Housing Material | Corrosion resistant, heavy duty-cast aluminium construction. |
| Finish Specifications | UV stabilized powder coated |
| Finish Color (s) | Bronze |
| Color Rendering Index (CRI) | 80+ |
| Lens Material | UV-Resistant Acrylic |
| Optics | Type V |
| Color Temperature (Kelvin) | 3000K, 4000K, 5000K (Selectable) |
| LED Type | LED Module |
| System Watts | 30w,50w,70w (Selectable) |
| Light Source Lumens** (4000K) | 9991 lms* |
| Luminaire Lumens** (4000K) | 9991 lms* |
| Luminaire Lumens Per Watts** (4000K) | 142.93 lm/W* |

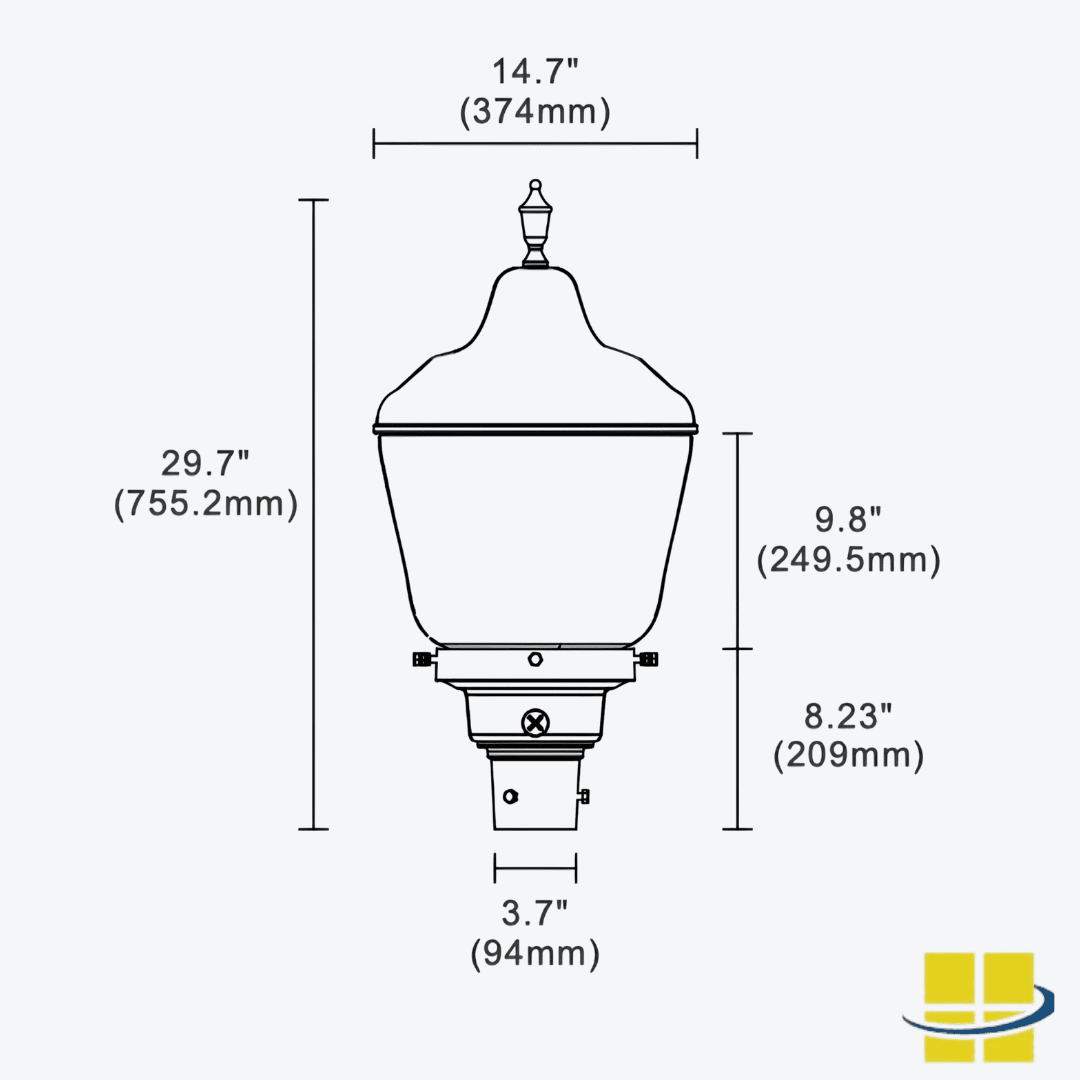

| Dimensions in Inches | 29.7 X 14.7 X 3.7 |
| Dimension in mm | 754.38 X 373.38 X 93.98 |
| Mounting | Post Top Mount |
| Rated Life (L70@ x Hours) | 50,000 Hours |
| Voltage | 120-277v |
| Surge Protection | 6kV |
| Controls | Photocell |
| Operating Temperature | -40°C – +40°C |
| IP Rating | n/a |
| lK Rating | IK08 |
| BUG Rating | B2 U5 G3 |
| Listings (ex: UL,CUL,CE) | UL and cUL listed for wet locations |
| Warranty | 5 Year Warranty |
| Availability (Lead-Time) | 5-7 Production Days, Plus Shipping |

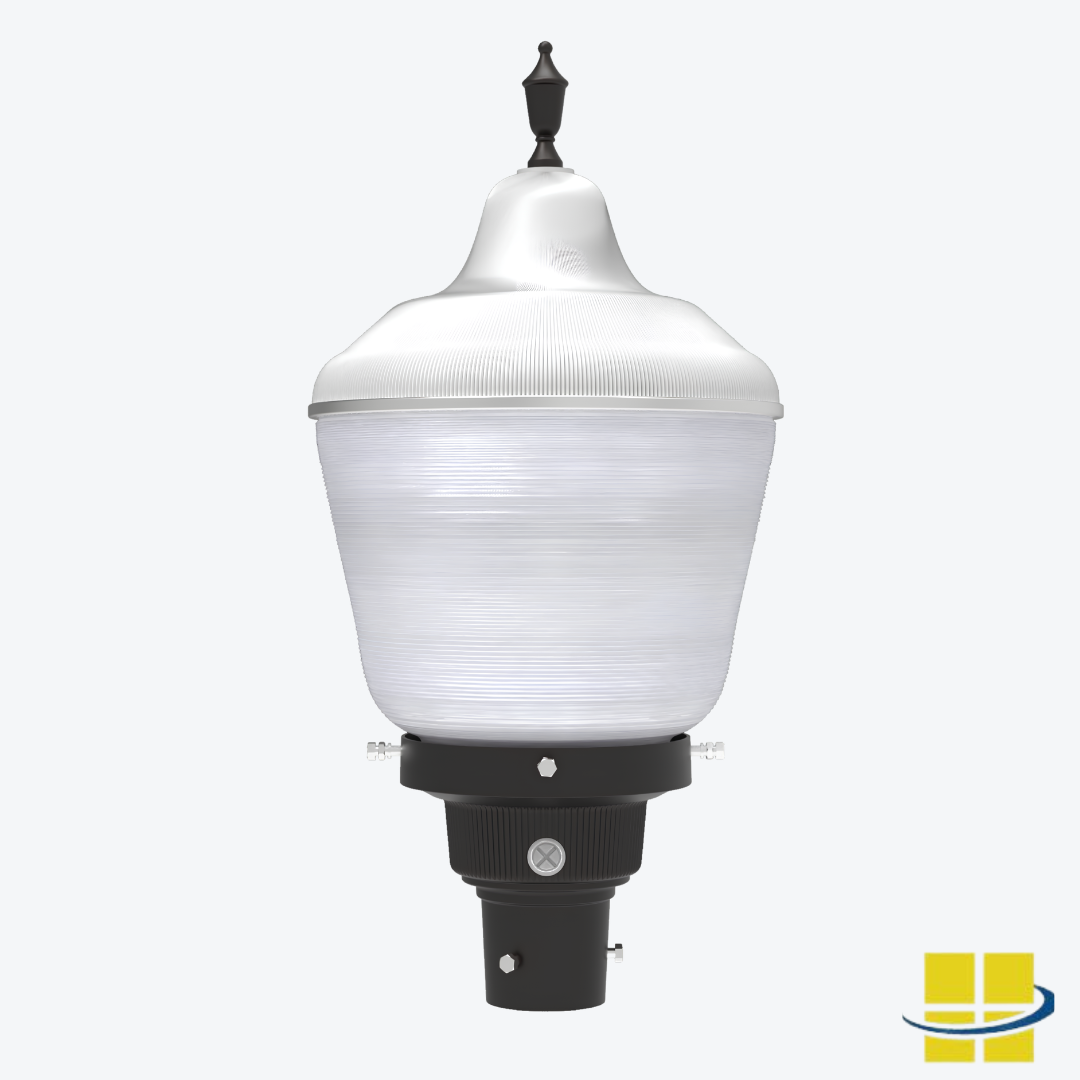

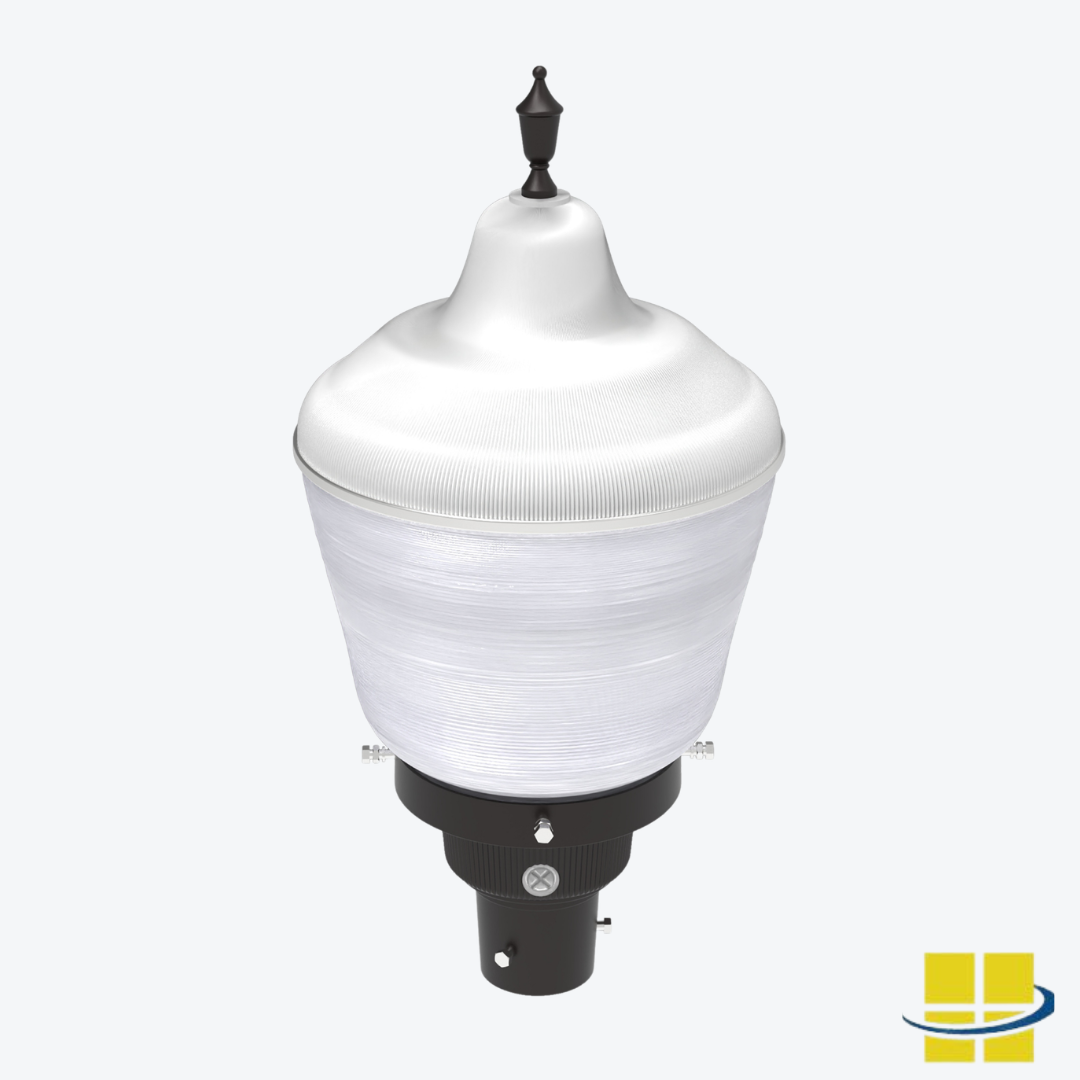

ORBO 30-50-70 LED Post Top Light with Selectable Wattage and Selectable Kelvin
Designed to deliver dependable illumination with modern flexibility, the ORBO LED Post Top Light combines a sleek architectural design with field-selectable performance and rugged outdoor durability. Its corrosion-resistant cast aluminum housing and UV-stabilized powder coat finish are built to withstand demanding environments. With selectable wattage and color temperature, ORBO easily adapts to pathways, campuses, landscapes, plazas, and other outdoor applications.

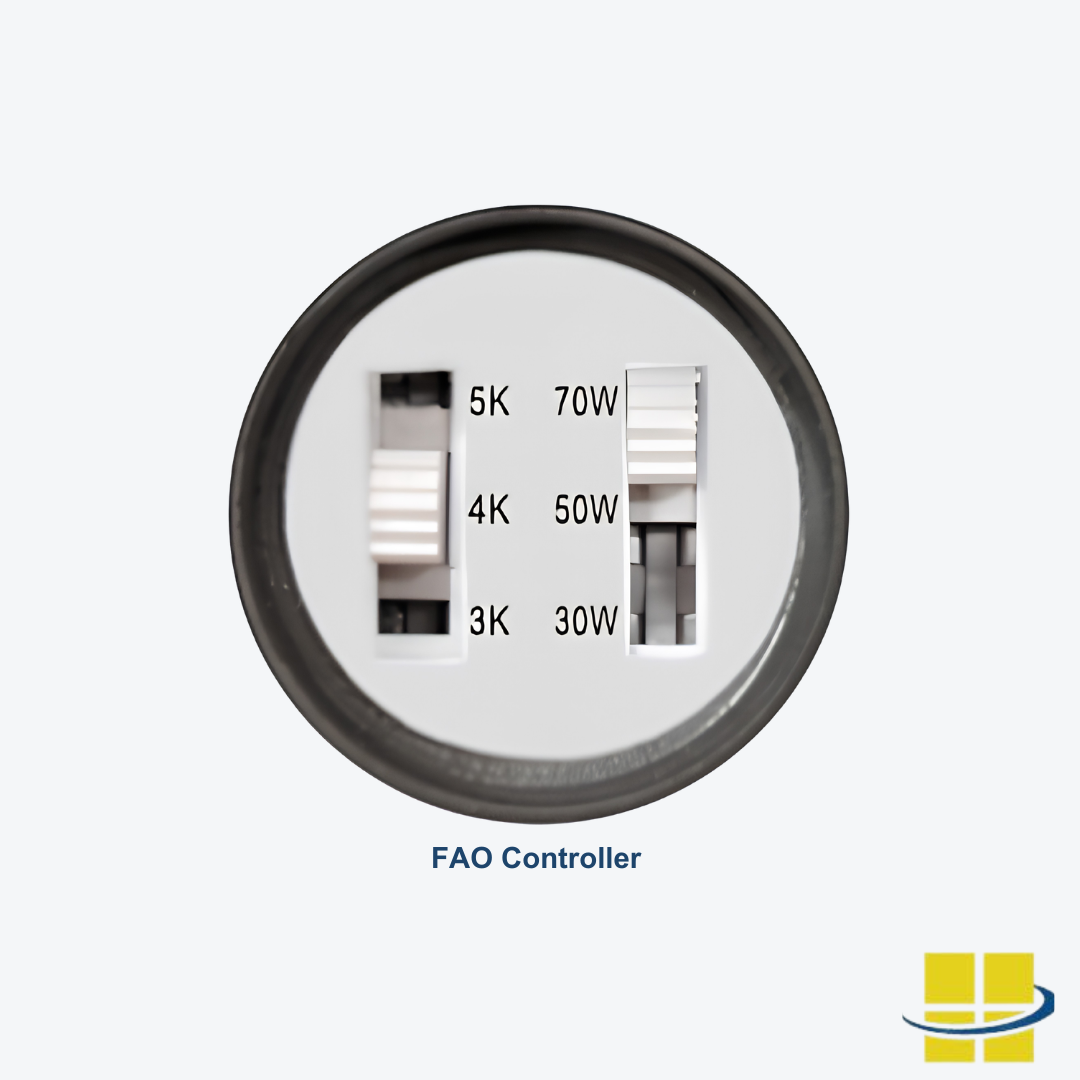

Field-Selectable: ORBO puts flexibility in your hands with selectable 30W, 50W, and 70W and 3000K, 4000K, and 5000K color temperatures. Easily fine-tune the fixture in the field to deliver the right combination of brightness and color for each application.

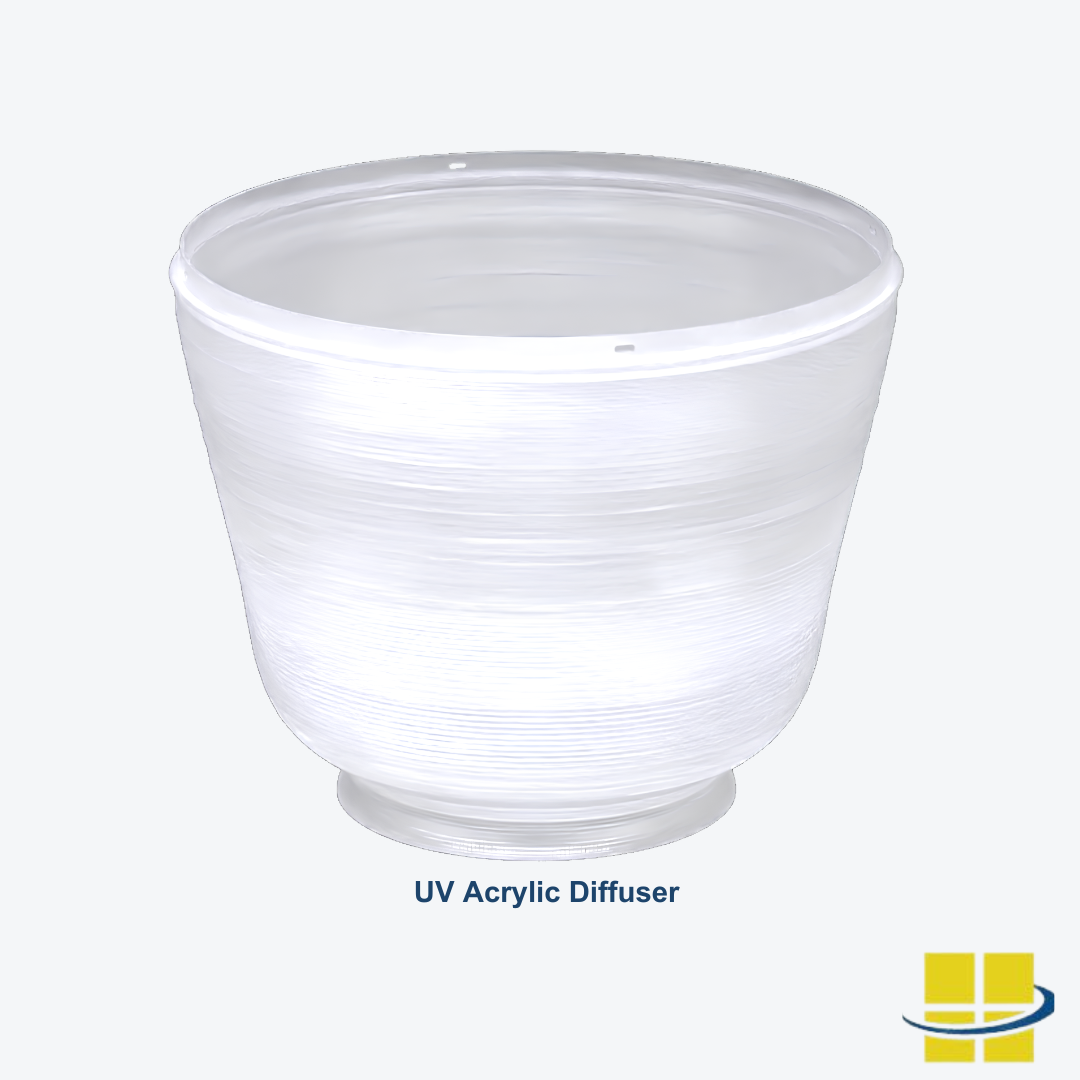

UV-Resistant Acrylic Lens: Built for long-term outdoor performance, ORBO features a durable UV-resistant acrylic optic assembly that maintains reliable light transmission and optical performance in demanding outdoor environments. Combined with Type V distribution, the lens delivers broad, uniform illumination for comfortable and consistent area coverage.
Built-In Photocell: ORBO automatically detects ambient light to provide reliable, energy-efficient dusk-to-dawn operation—Featuring a built-in photocell that turns the light on at twilight and off at dawn.
