Product Specifications
| Weight | 10.57 lbs |
|---|---|
| Dimensions | 24 × 13.5 × 3.1 in |
| Model Number | AF55XLED-HBS180SV |
| Weight Pounds | 5 lbs |
| Shipping Weight (Pounds) | 10.57 lbs |
| EPA | 2.7 sqft |
| Housing Material | High Quality Steel with high reflectance paint |
| Finish Specifications | Polyester powder white finish |
| Finish Color (s) | White |
| Color Rendering Index (CRI) | 80+ |
| Lens Material | Diffuse Lens |
| Optics | Type V |
| Color Temperature (Kelvin) | 3000K, 4000K,5000K |
| LED Type | LED Module |
| System Watts | 80W/125W/180W |
| Light Source Lumens** (5000K) | 23905.1 lm |
| Luminaire Lumens** (5000K) | 23905.1 lm |
| Luminaire Lumens Per Watts** (5000K) | 136.76 lm/W |

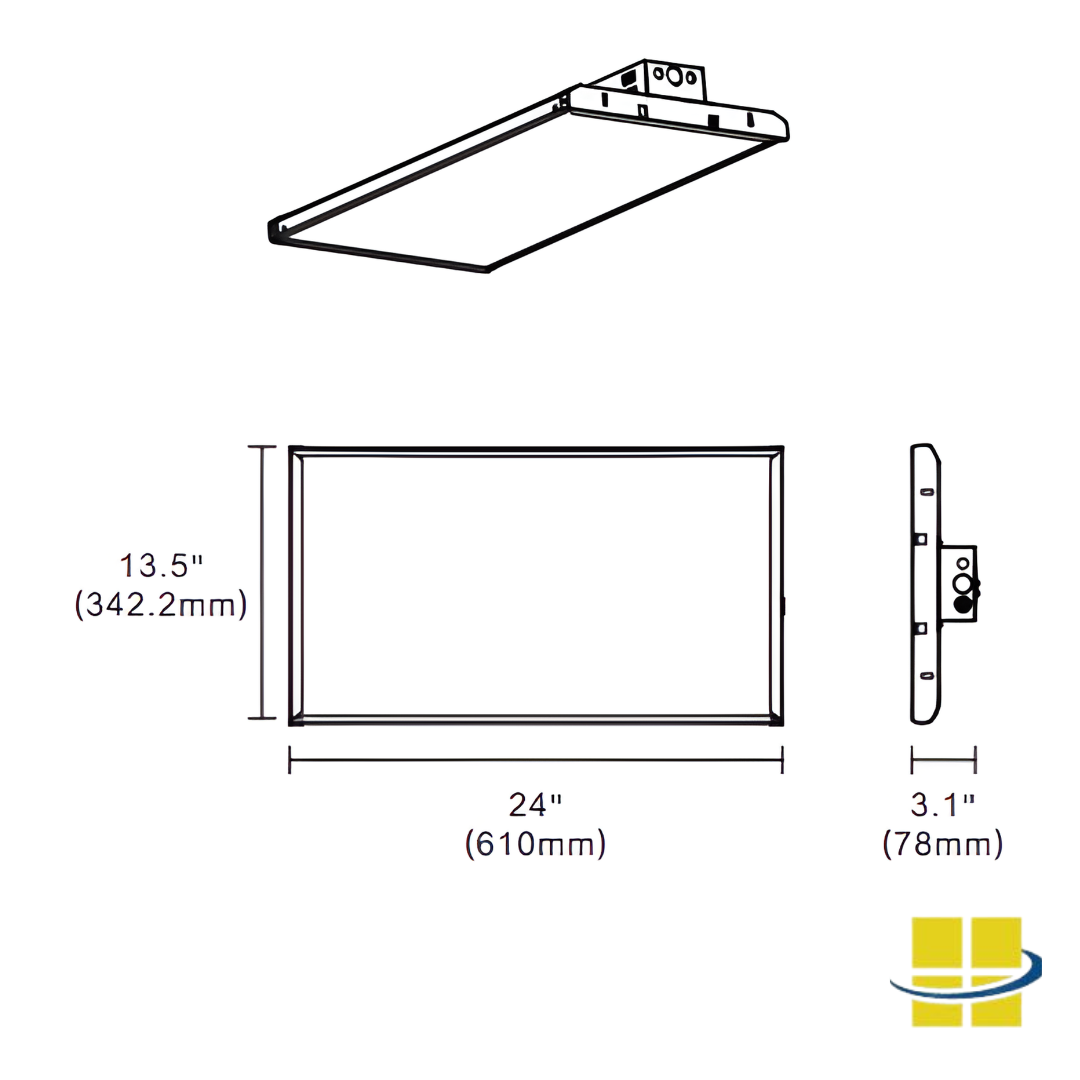

| Dimensions in Inches | 24" X 13.5" X 3.1" |
| Dimension in mm | 610 X 342.6 X 78 |

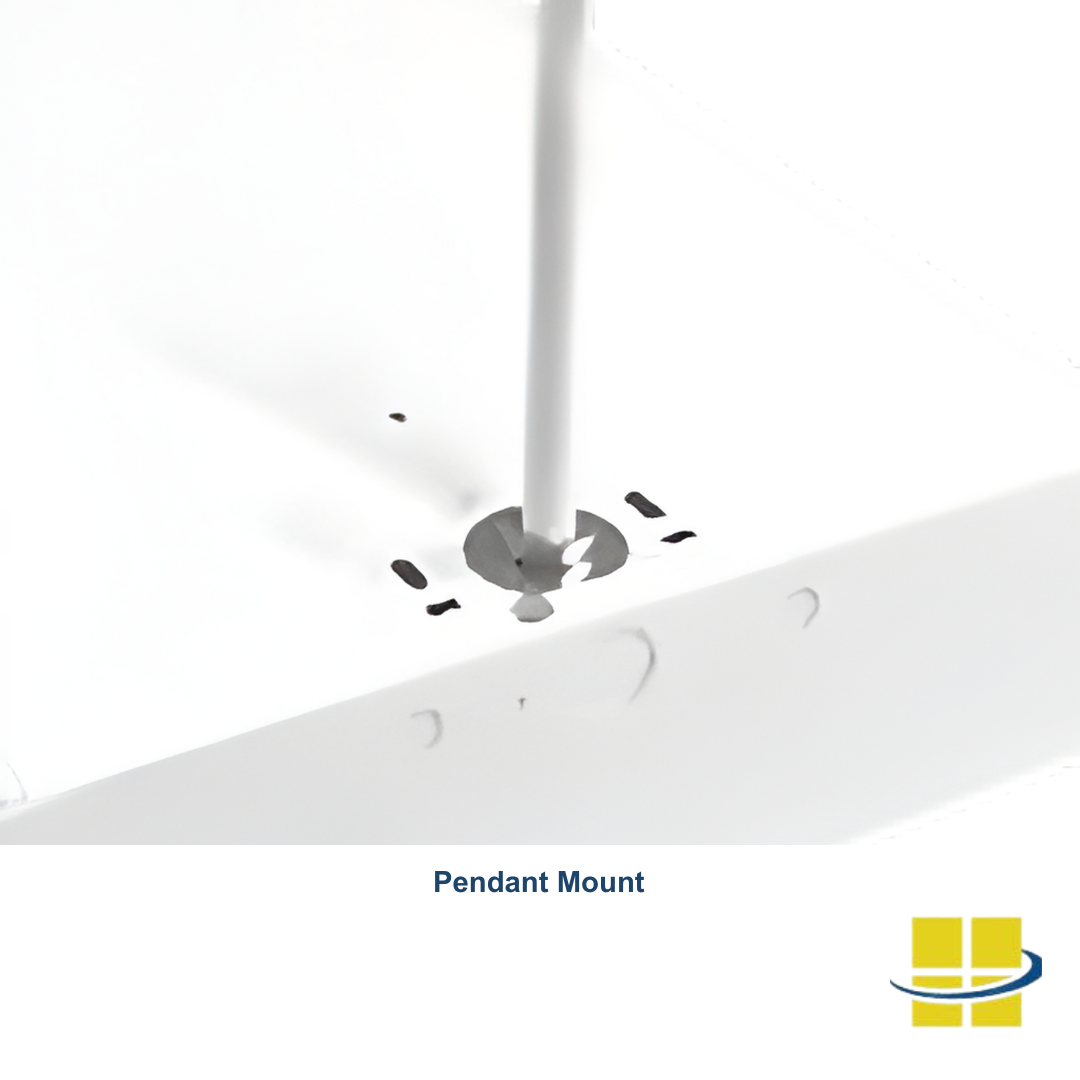

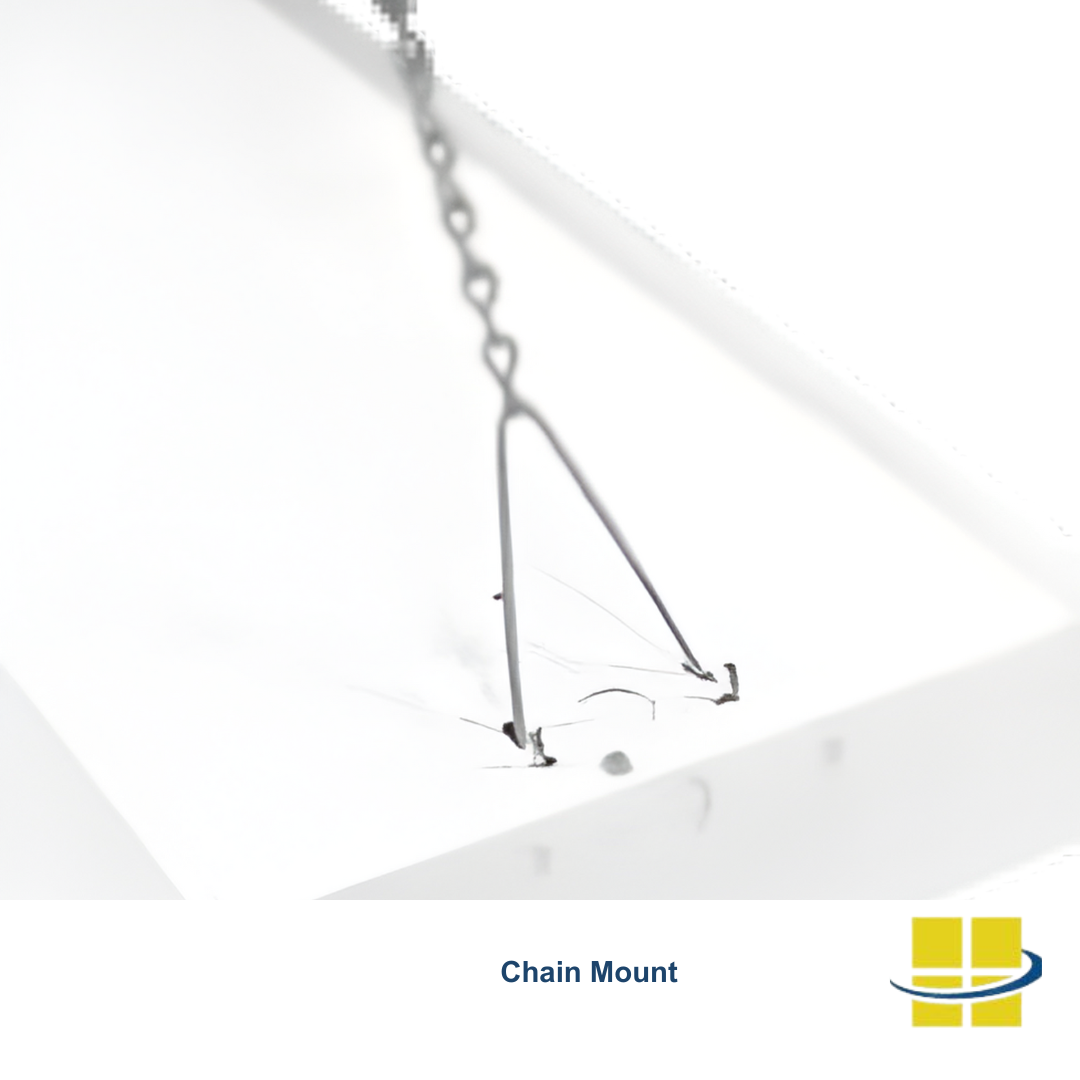

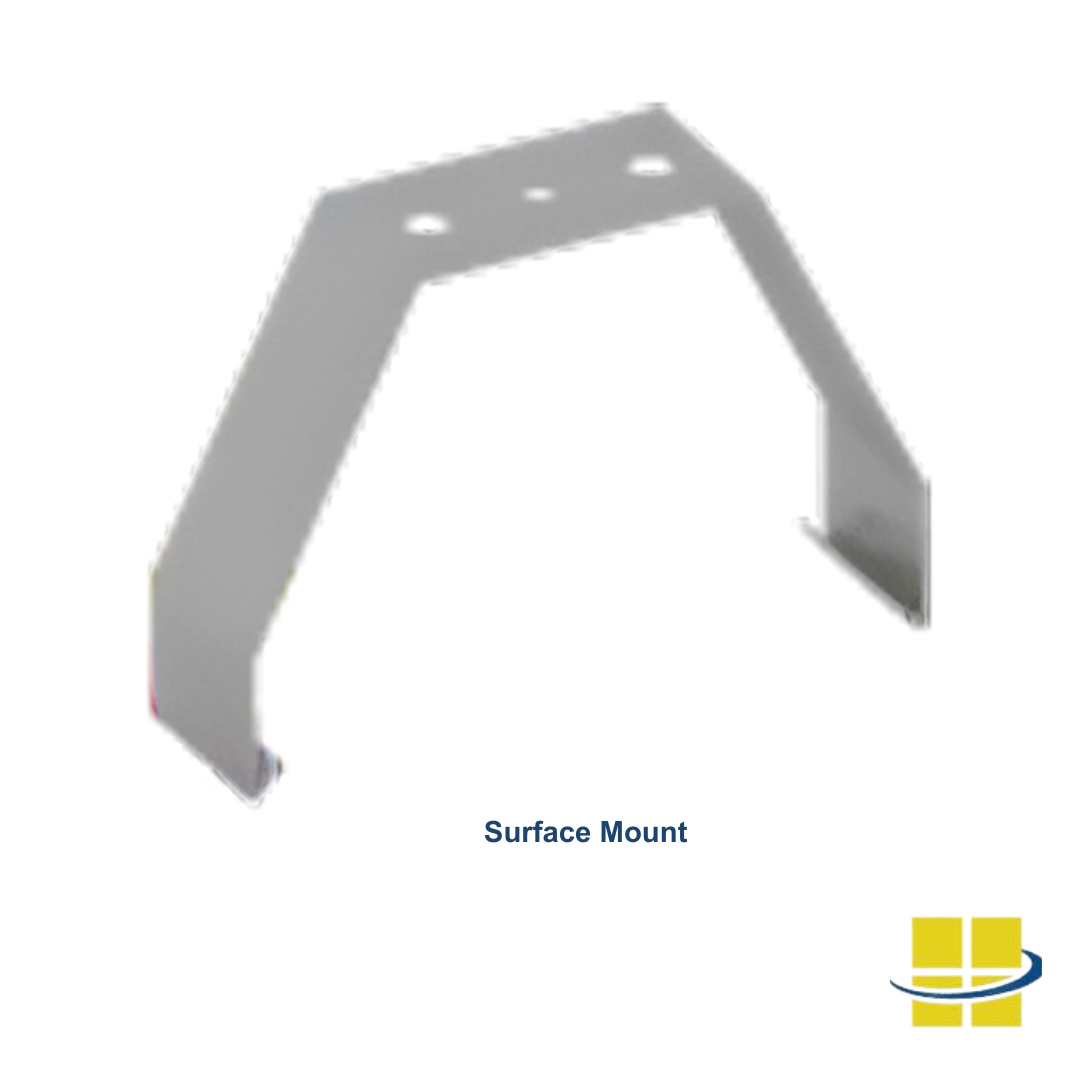

| Mount (s) | Surface Mount / Chain / Pendant |
| Rated Life (L70@ x Hours) | 54,000 Hours |
| Voltage | 120-277v |
| Surge Protection | 6KV |
| Controls | Dimming 0-10v, Microwave Motion sensor |
| Operating Temperature | -40°C – +40°C |
| IP Rating | n/a |
| lK Rating | IK08 |
| DLC Number | S-RW926V |
| BUG Rating | B4 U2 G2 |
| Listings (ex: UL,CUL,CE) | UL and cUL listed |
| Warranty | 5 Years Warranty |
| Availability (Lead-Time) | 5-7 Production Days, Plus Shipping |

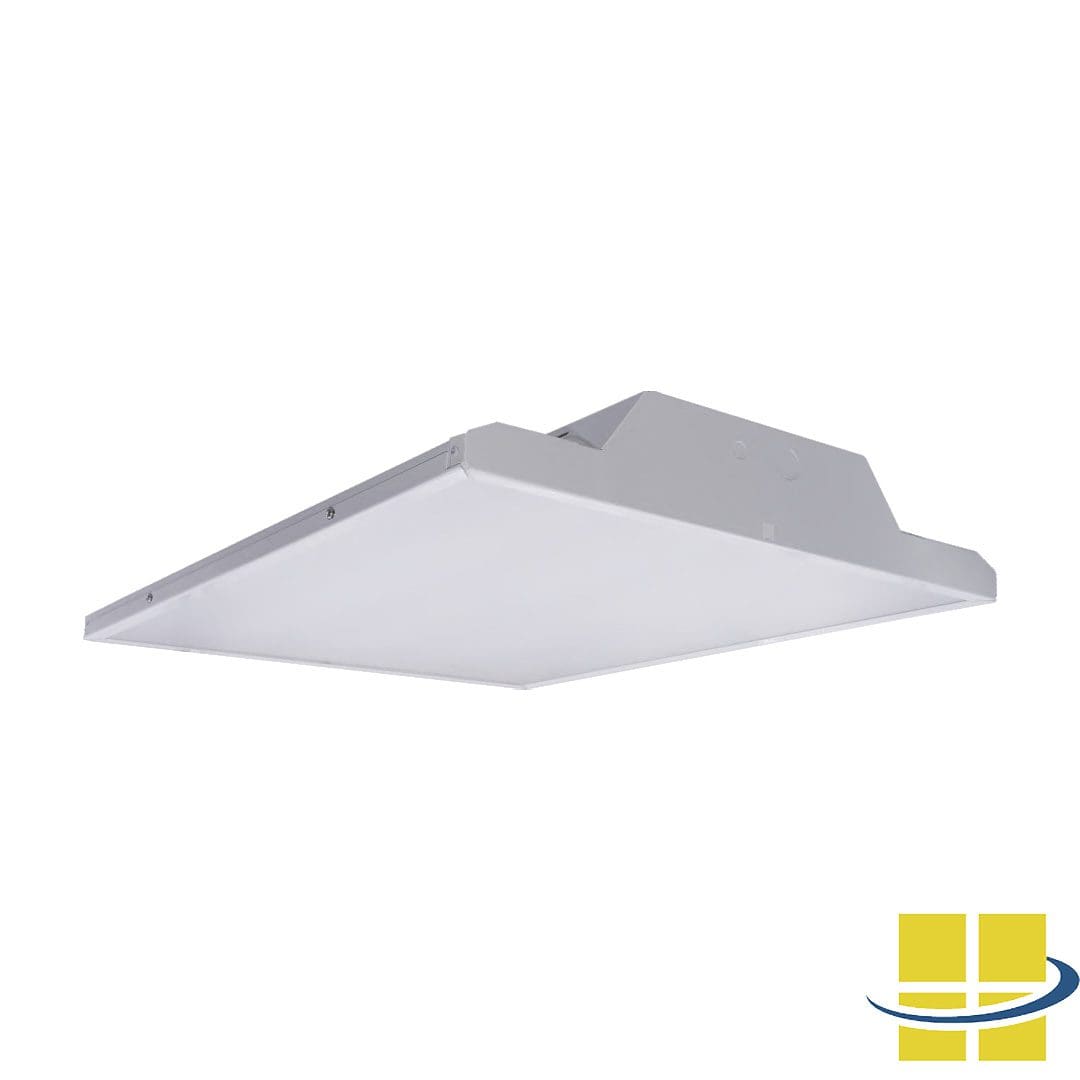

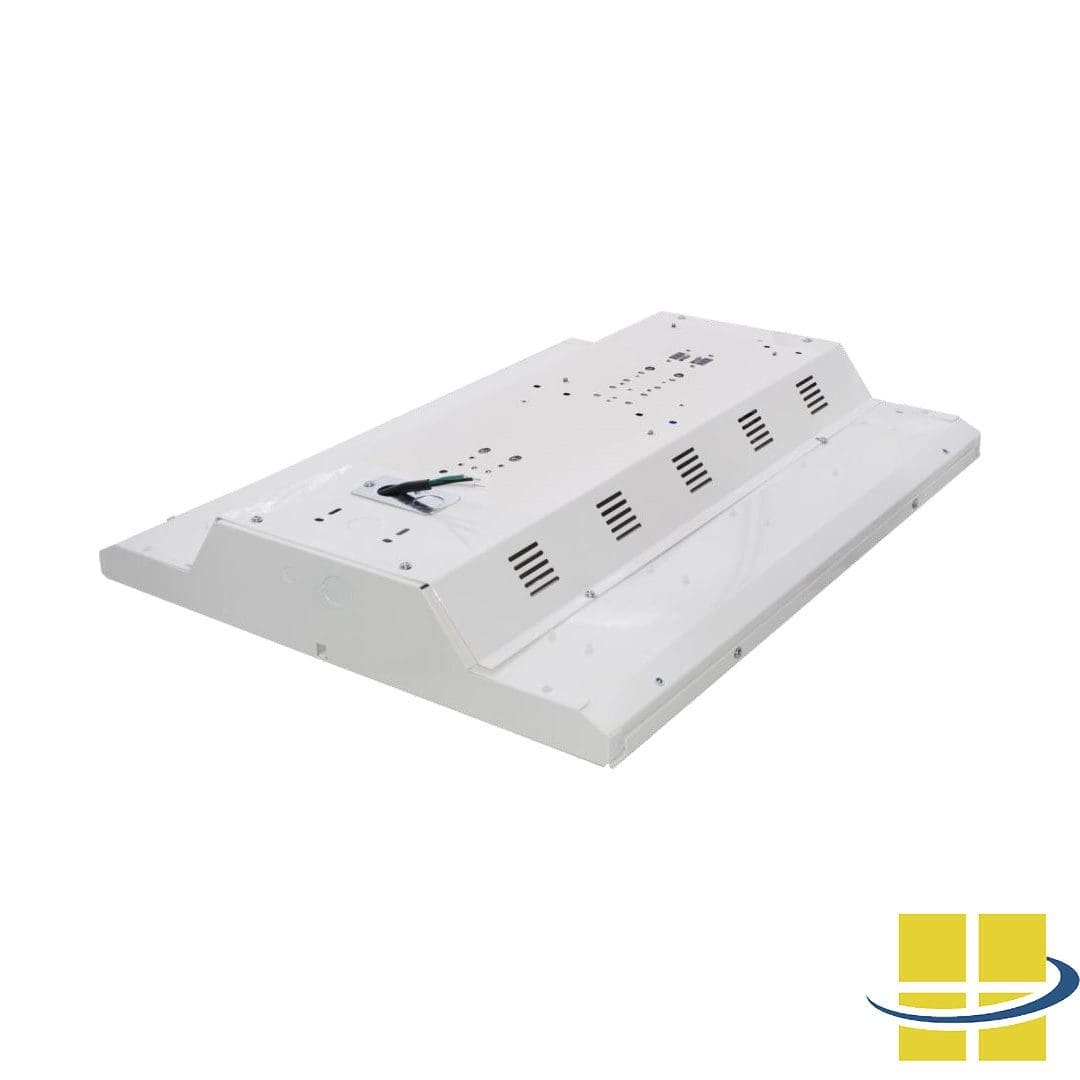

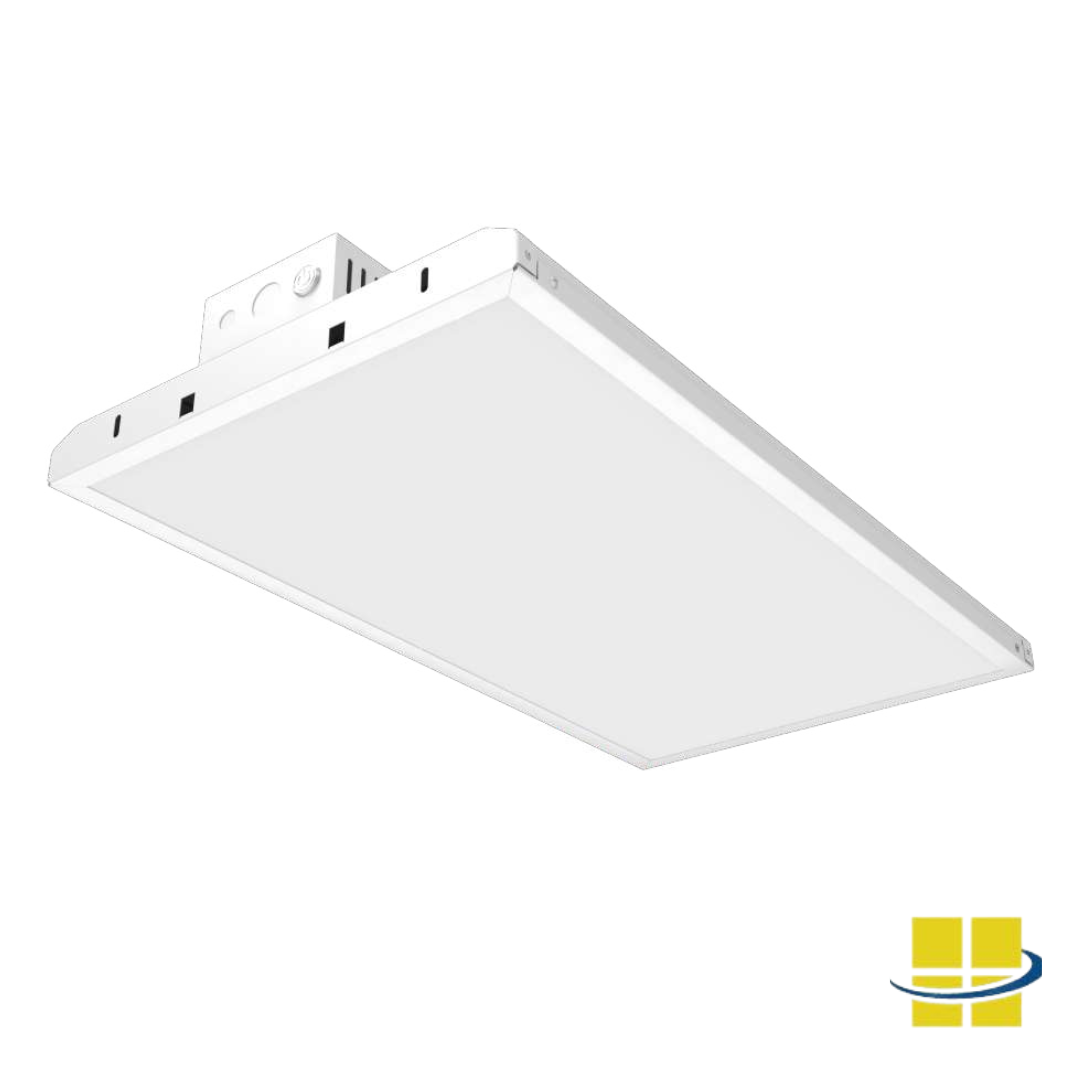

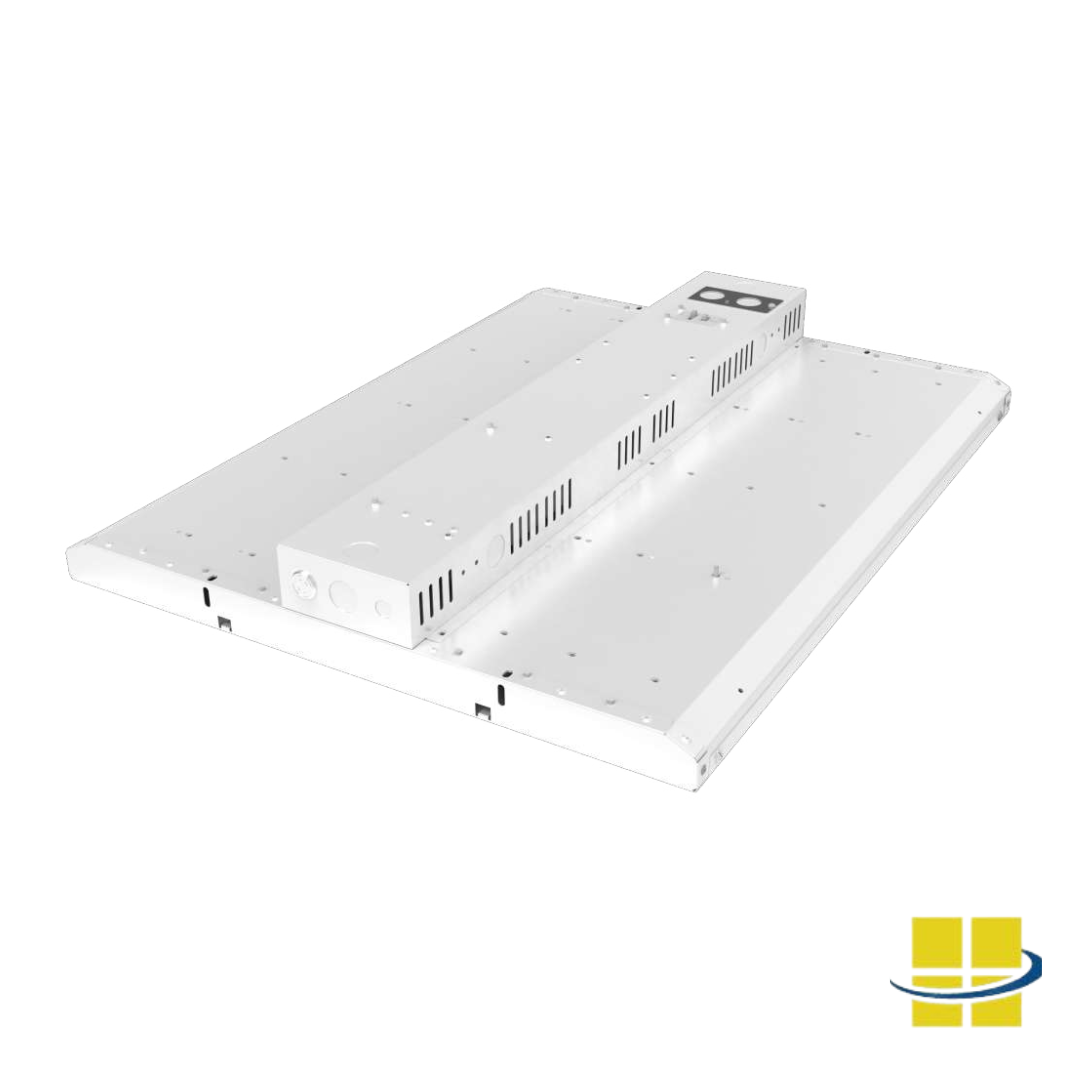

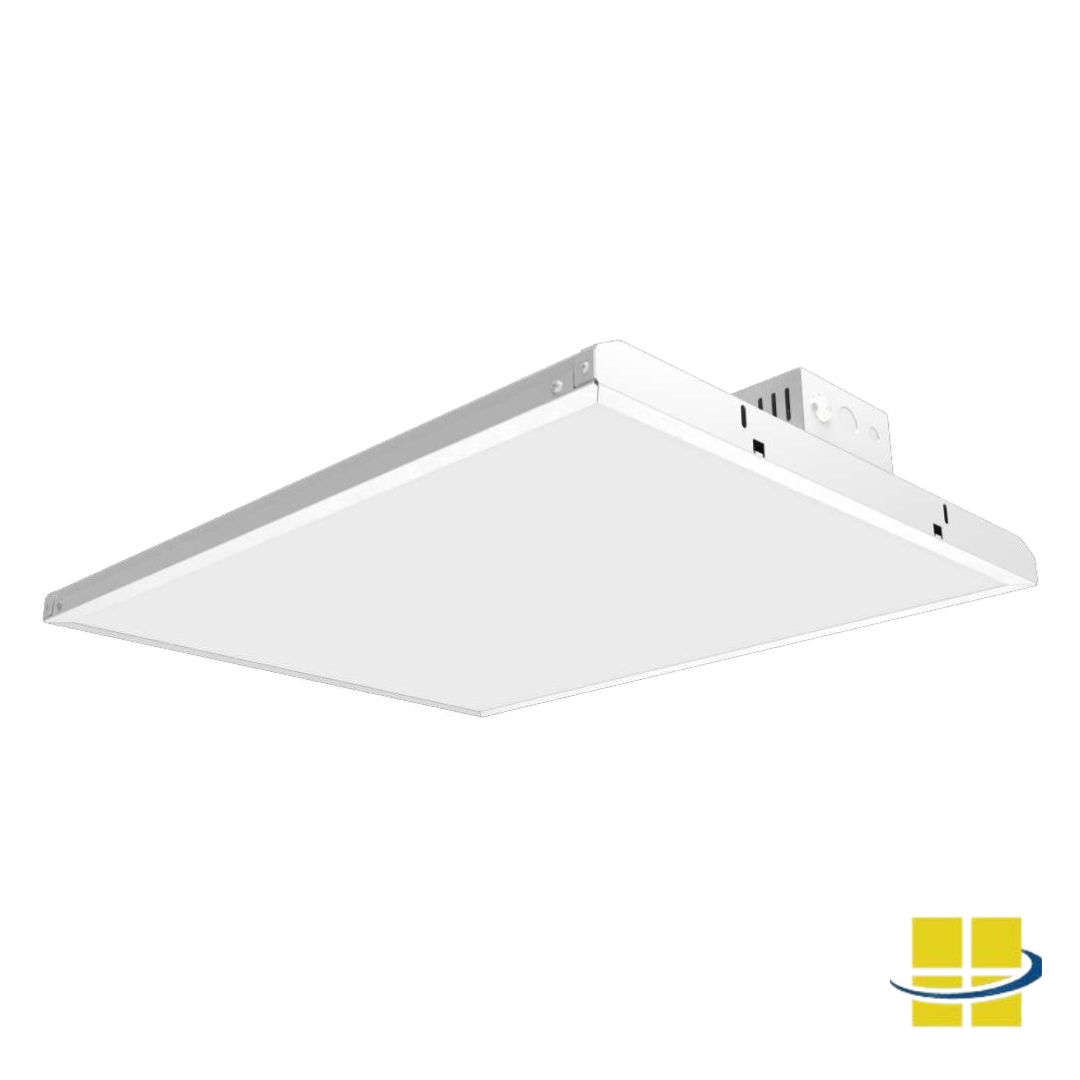

OTAK 80/125/180 LED High Bay with Selectable Kelvin and Selectable Wattage
OTAK dispersed LED design delivers smooth, even illumination with consistently high footcandle levels where it matters most. Its wide, low-profile housing minimizes glare and harsh cutoffs, reducing shadows, dark zones, and contrast fatigue. The result is a cleaner, more comfortable light that improves visibility for detailed tasks, reduces eye strain, and supports productivity and safety.
FIELD SELECTABLE: OTAK offers selectable wattage and Kelvin temperature, giving you the flexibility to tailor light output and ambiance to your desires. Choose from 3000K,4000K or 5000K and adjust between 80w, 125w, or 180w based on your specific needs.
HIGH LUMEN OUTPUT: Delivering up to 23,901 lumens at 180w with efficacy up to 136 lm/W, this fixture provides powerful, uniform illumination for high-mount applications. Its Type V distribution ensures wide, even coverage that enhances visibility and safety while maximizing energy efficiency.
DIFFUSE LENS: OTAK, gently spreads light to control brightness and eliminate harsh glare or concentrated hot spots, while preserving strong, efficient output. The result is a balanced, visually comfortable lighting environment with improved clarity, less visual fatigue, and safer conditions
