Product Description

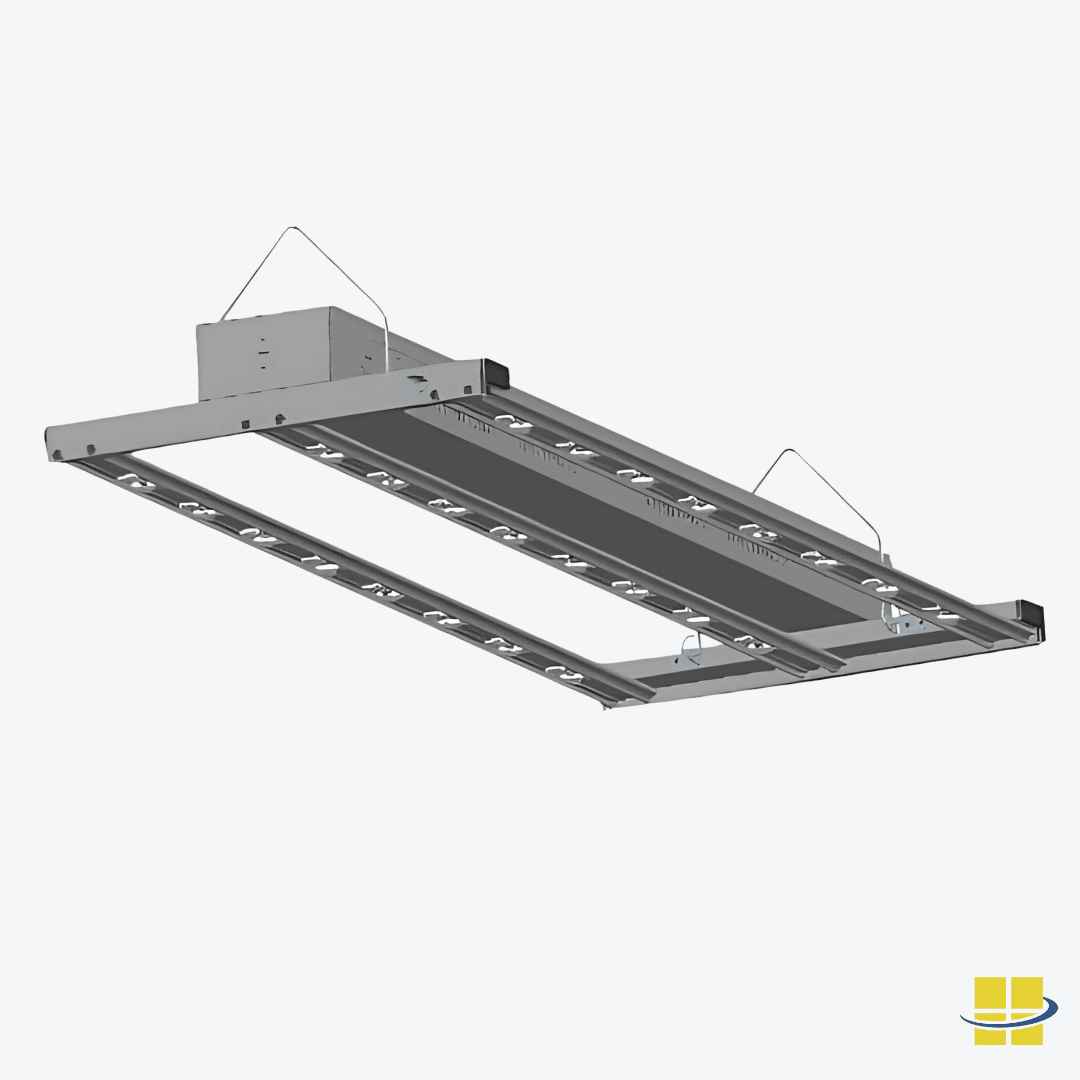

Housing:
- Constructed with extruded aluminum rails for LEDs.
- UV-stabilized polycarbonate lenses.
- Potted with high-temperature silicone epoxy.
- Stamped steel driver housing.
Certification & Listings:
- ETL Listed for dry locations.
- ANSI/UL 1598, 8750 standards.
- IP54 rating.
Finish:
- Platinum powder coat over a chromate conversion coating for durability.
Mounting Options:
- Includes V-hangers for mounting.
- Comes with a 3-foot, 3-wire cord with leads.
Wattage and Equivalents:
Driver:
- Electronic driver supporting 120–277V, 50/60Hz.
- <20% Total Harmonic Distortion (THD), Power Factor >0.90.
- 6kV surge protection included.
- Standard 0–10V dimming from 100% to 10%.
Controls:
- Factory-installed options for photocell or motion sensors.
- Internally wired for switching or 1–10V dimming.
Warranty:
- 5-year warranty.
- Operational range: -40°C to +50°C.

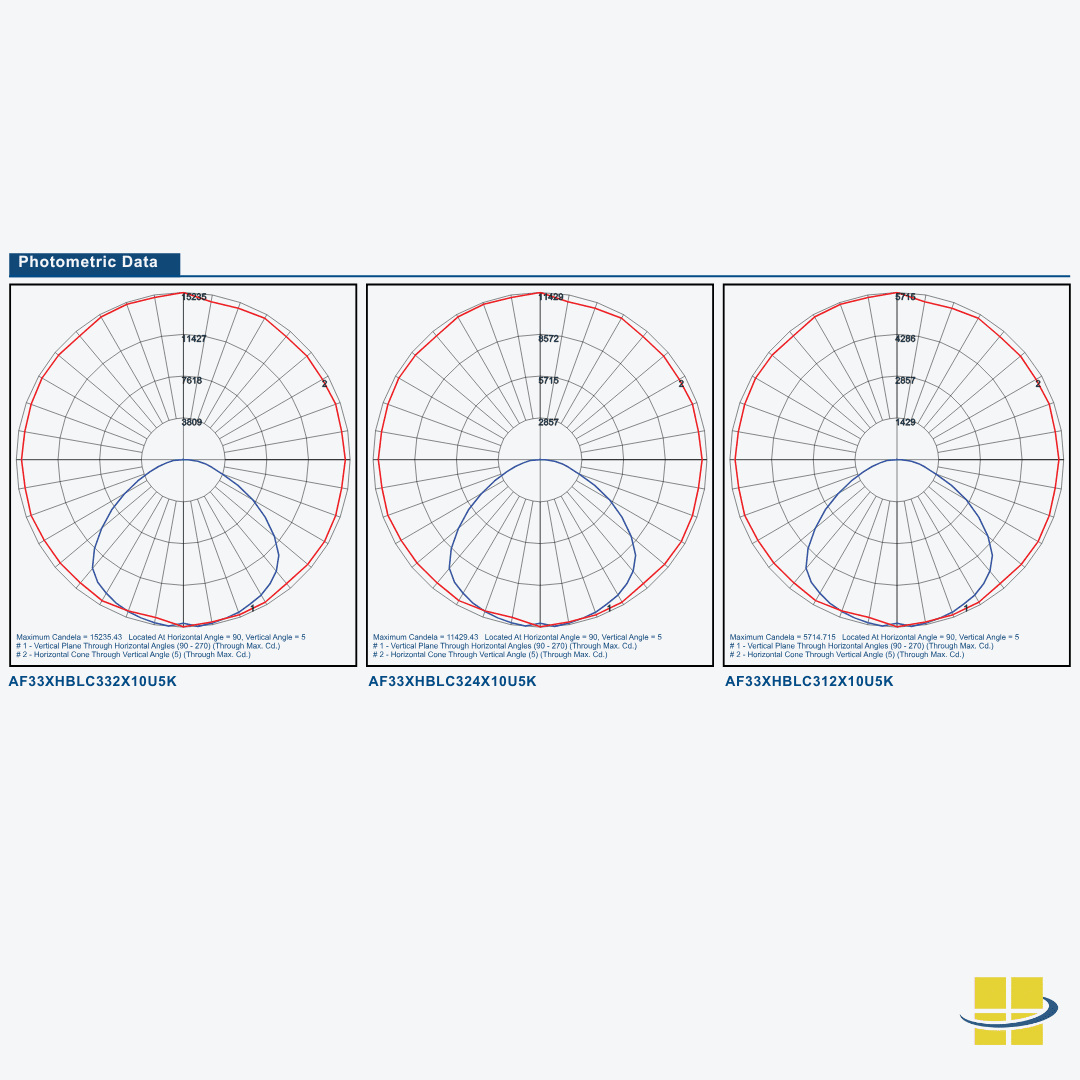

Performance and Photometric Data:
- Lumen output: 16,686 lumens.
- Efficacy: 143 lumens per watt.
- Wide beam optics (100°).
- L70 life expectancy: 71,000 hours at 25°C.
LED Technology:
- Cool Copper COB (Chip-on-Board) LED.
- Available CCT: 5000K with 80 CRI.
Options:
- Surge Protection (SP): Enhanced safety for power surges.
- Microwave Sensor (M3): For mounting heights ≥20 feet.
- Cord Options: Multiple lengths and plug types (e.g., twist-lock plugs).

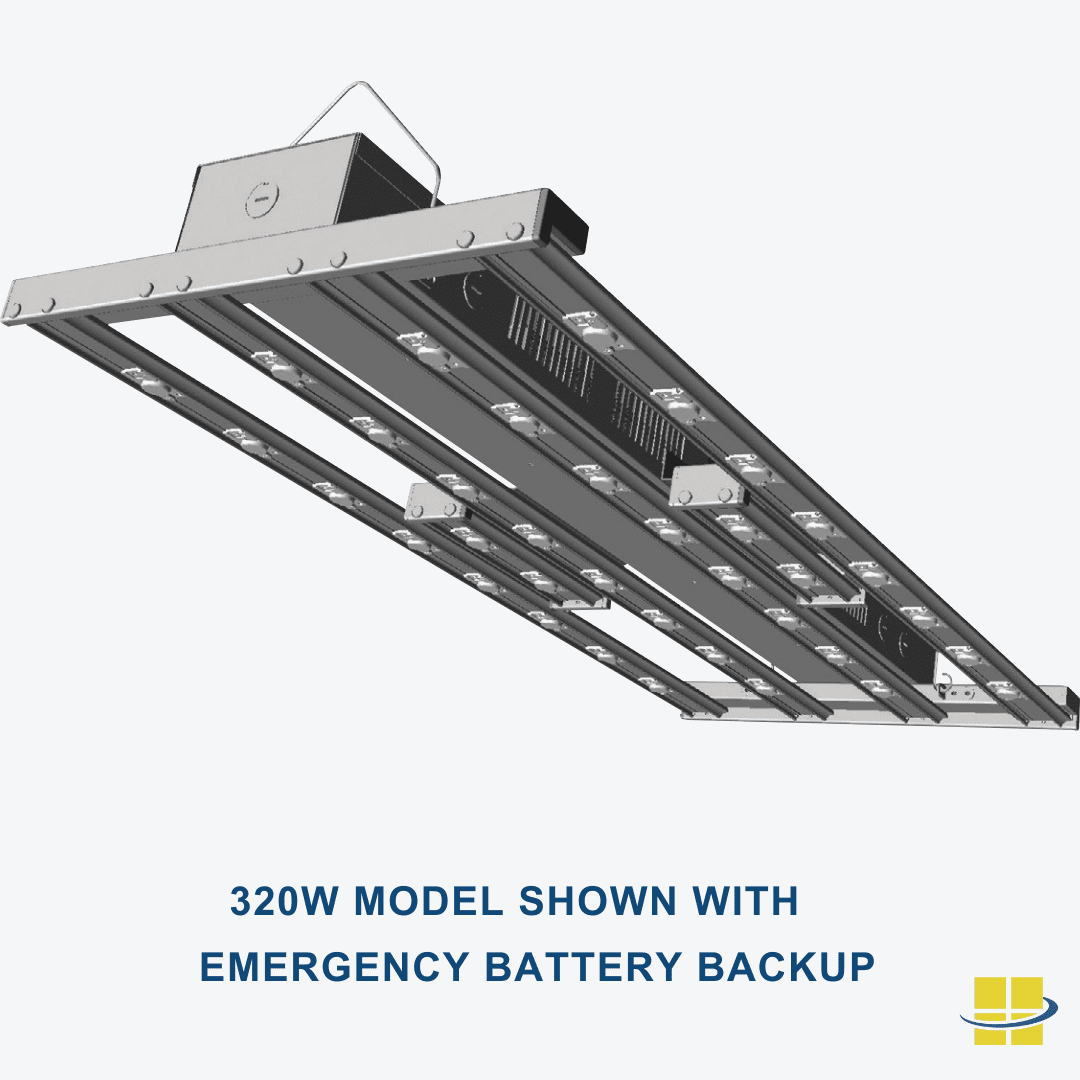

- Battery Backup (BU): 90-minute emergency operation.
- Cold Start Battery Backup (BUC): For -20°C conditions.

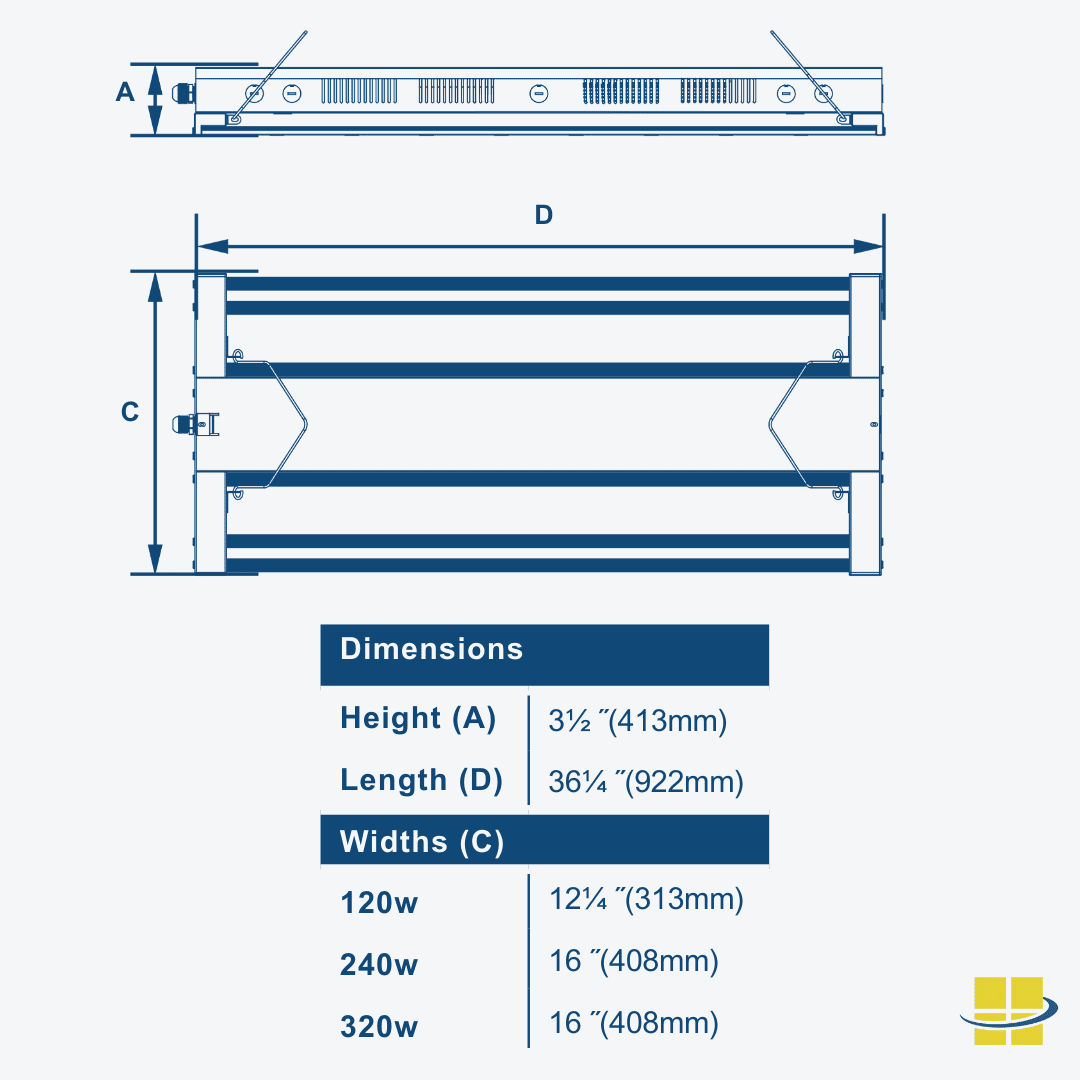

Dimensions:
- Height: 3.5″ (413mm).
- Length: 36.25″ (922mm).
- Widths:
- 120W: 12.25″ (313mm).
- 240W/320W: 16″ (408mm).
Applications:
- Warehouses, manufacturing facilities, gymnasiums, indoor sports arenas, and retail/big-box stores.
- Mounting heights: 10–45 feet based on light level and uniformity needs.
