Product Specifications
| Dimensions | 7.3 × 5.2 × 5.9 in |
|---|---|
| Model Number | AF55XLED1505CL20345P |
| Weight Pounds | TBD |
| Product Family | PAXT |
| EPA | 0.21 ft² |
| Housing Material | Die-Cast Aluminum |
| Finish Specifications | UV Stabilized Powder Coated |
| Finish Color (s) | Bronze |
| Color Rendering Index (CRI) | 80+ |
| Lens Material | High-Impact Polycarbonate Diffuser |
| Optics | Type III |
| Color Temperature (Kelvin) | 3000K, 4000K, 5000K (Selectable) |
| LED Type | LED Module |
| System Watts | 10w, 15w, 20w (Selectable) |
| Light Source Lumens** (5000K) | 2,671 lms |
| Luminaire Lumens** (5000K) | 2,671 lms |
| Luminaire Lumens Per Watts** (5000K) | 136 lm/W |

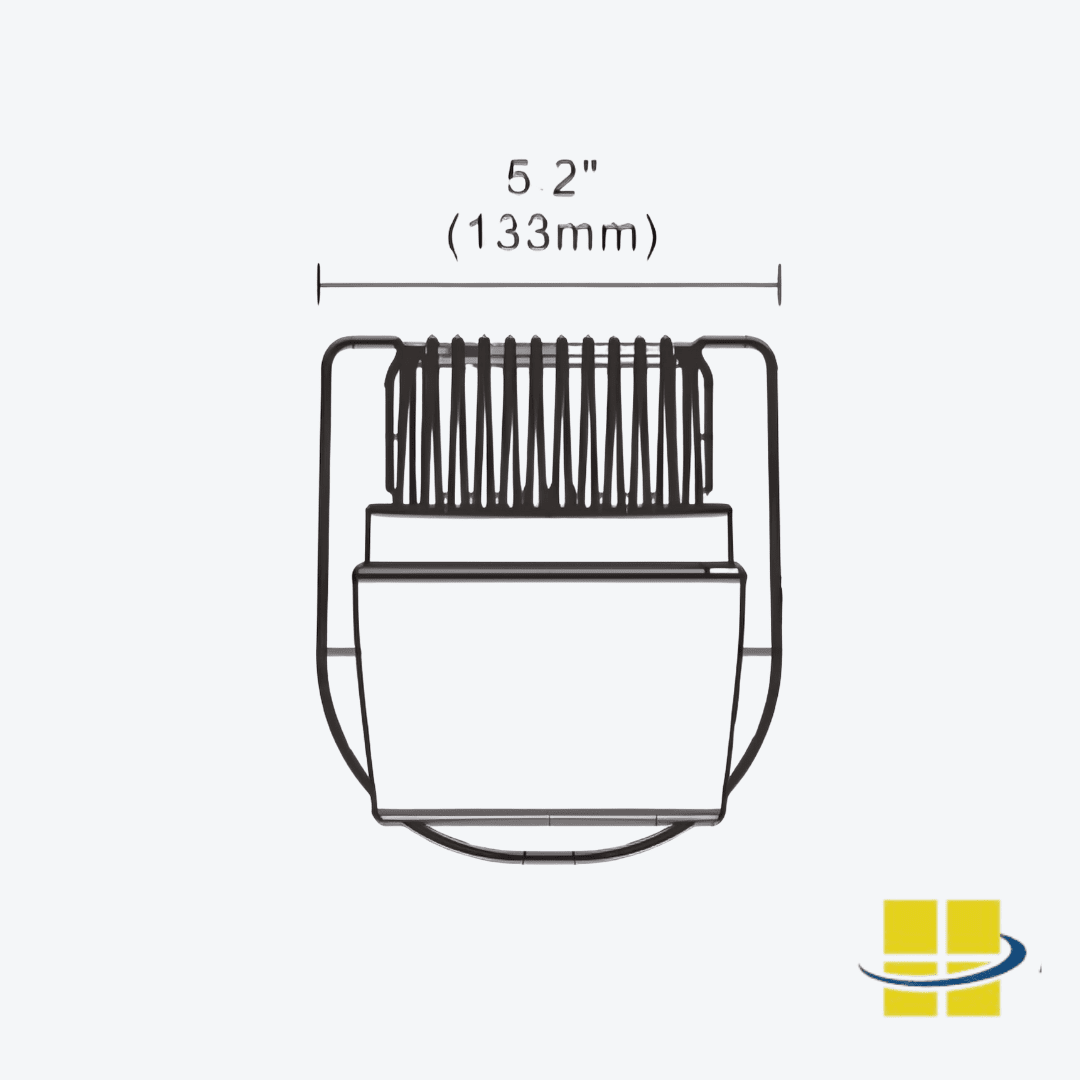

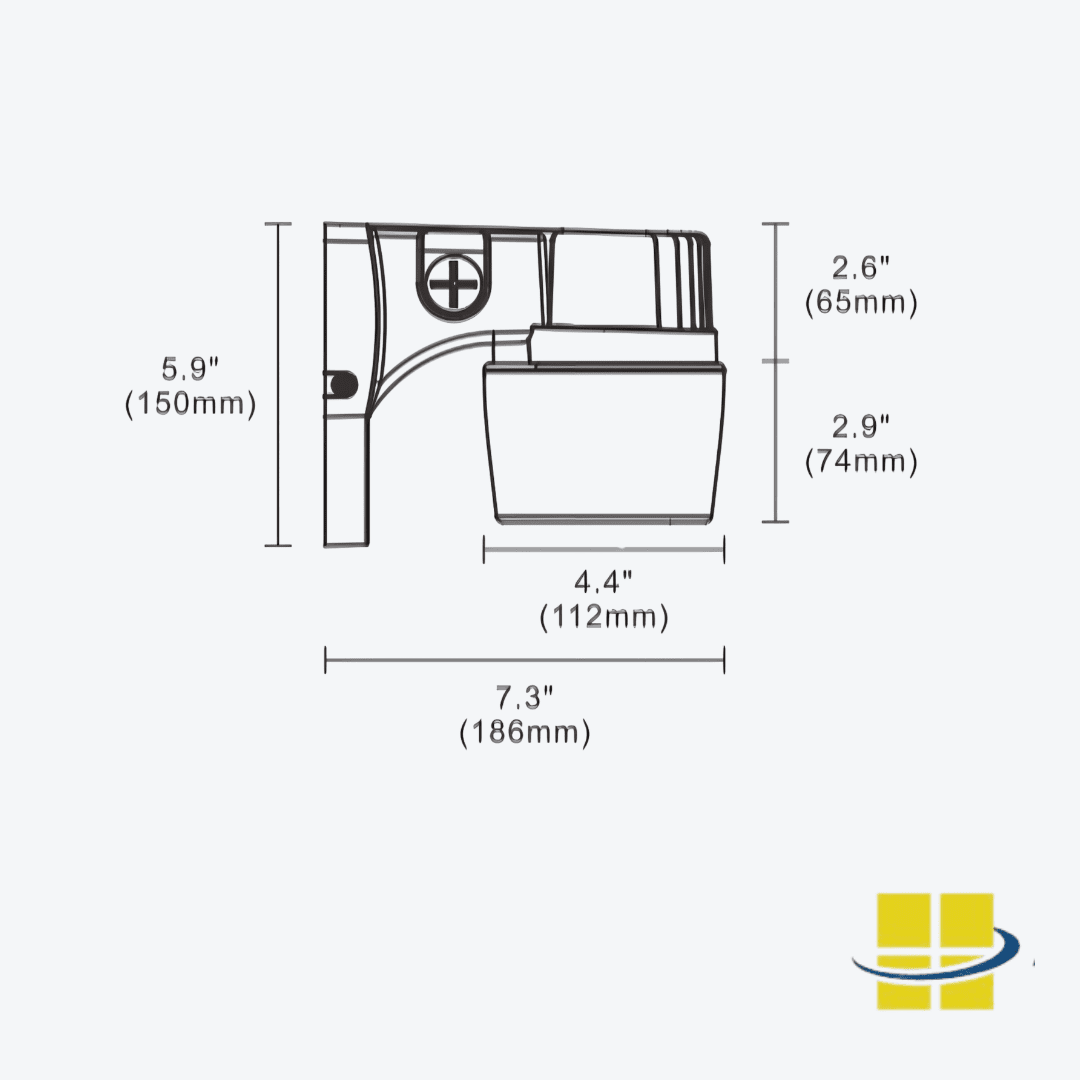

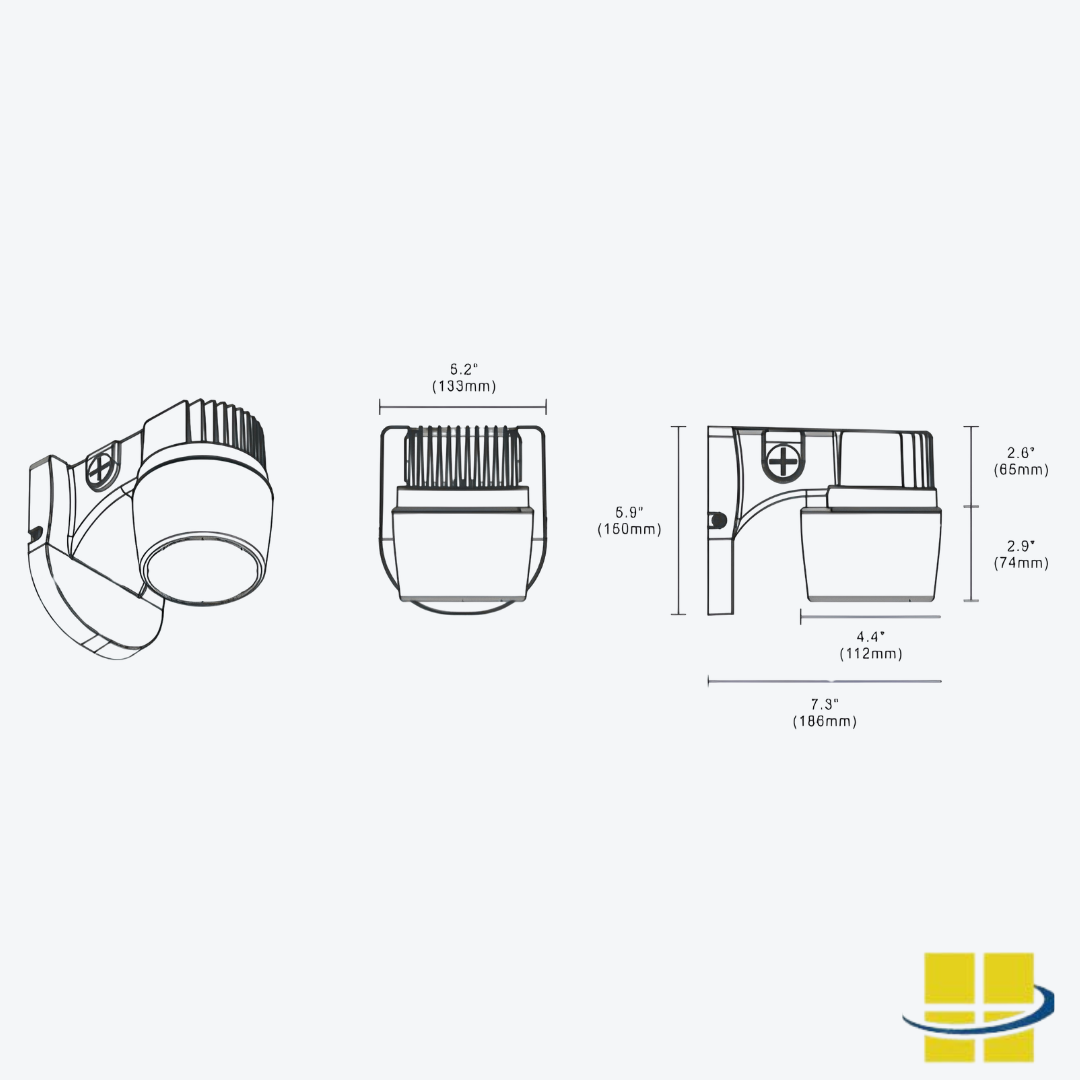

| Dimensions in Inches | 7.3 X 5.2 X 5.9 |
| Dimension in mm | 186 X 133 X 150 |

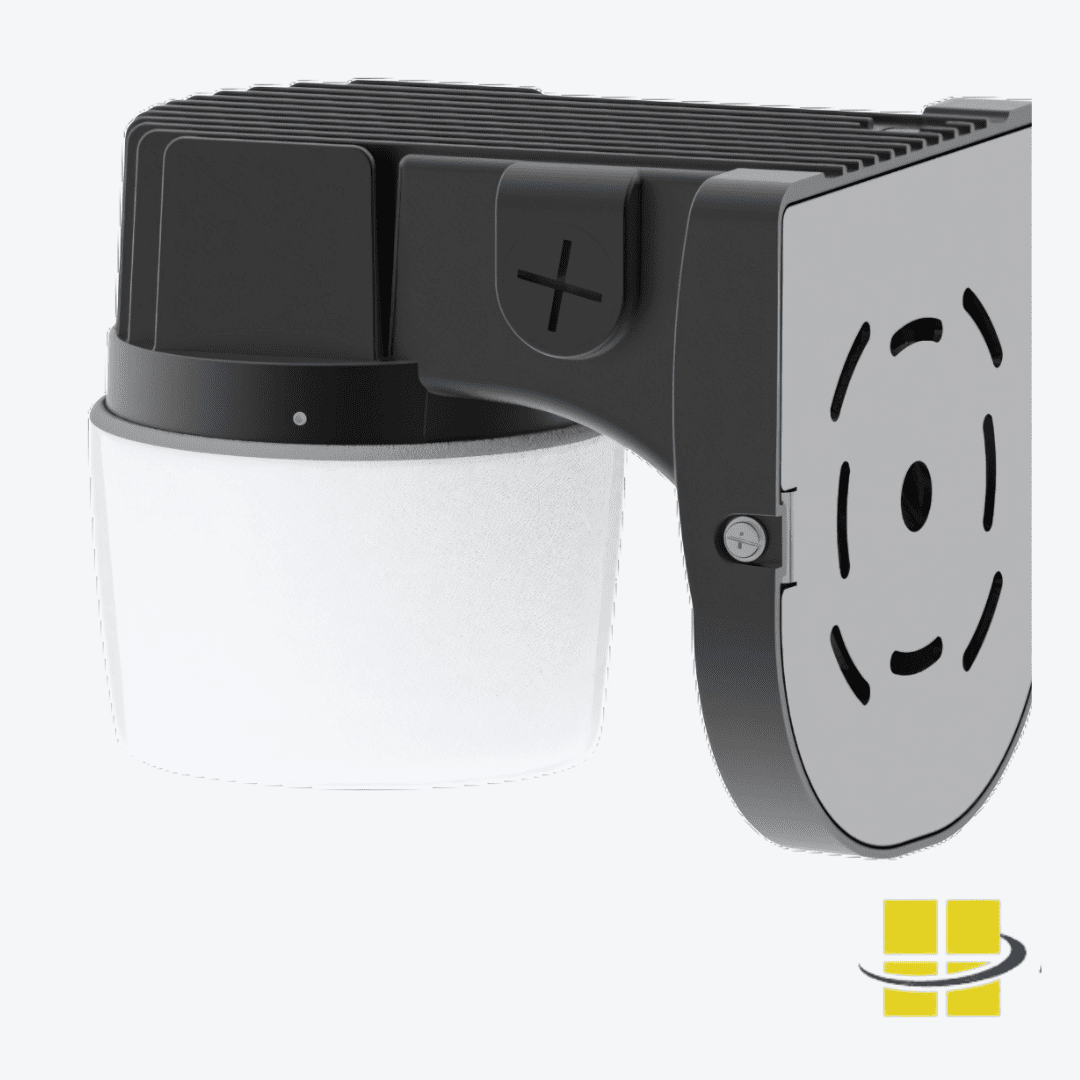

| Mount (s) | Quick Mount |
| Rated Life (L70@ x Hours) | 50,000 Hours |
| Voltage | 120-277v |
| Surge Protection | 4kV |
| Controls | Built-In Photocell |
| Operating Temperature | -40°C – +40°C |
| IP Rating | IP65 |
| lK Rating | IK08 |
| BUG Rating | B1 U3 G1 |
| Listings (ex: UL,CUL,CE) | UL and CUL Listed for wet locations. |
| Warranty | 5 Year Warranty |
| Availability (Lead-Time) | 7-10 Production Days, Plus Shipping |

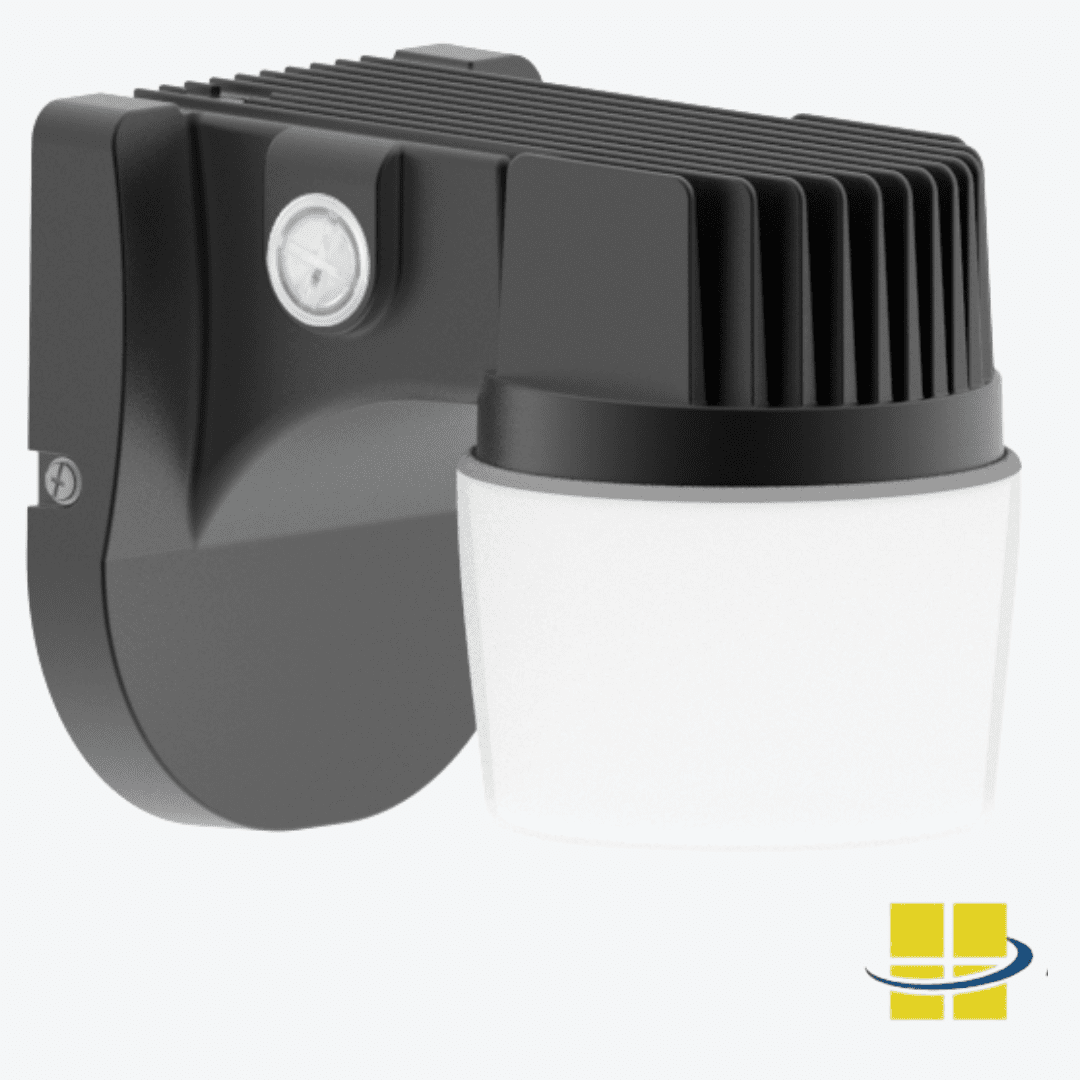

PAXT 10-15-20 LED Wall Pack with Selectable Wattage and Selectable Kelvin

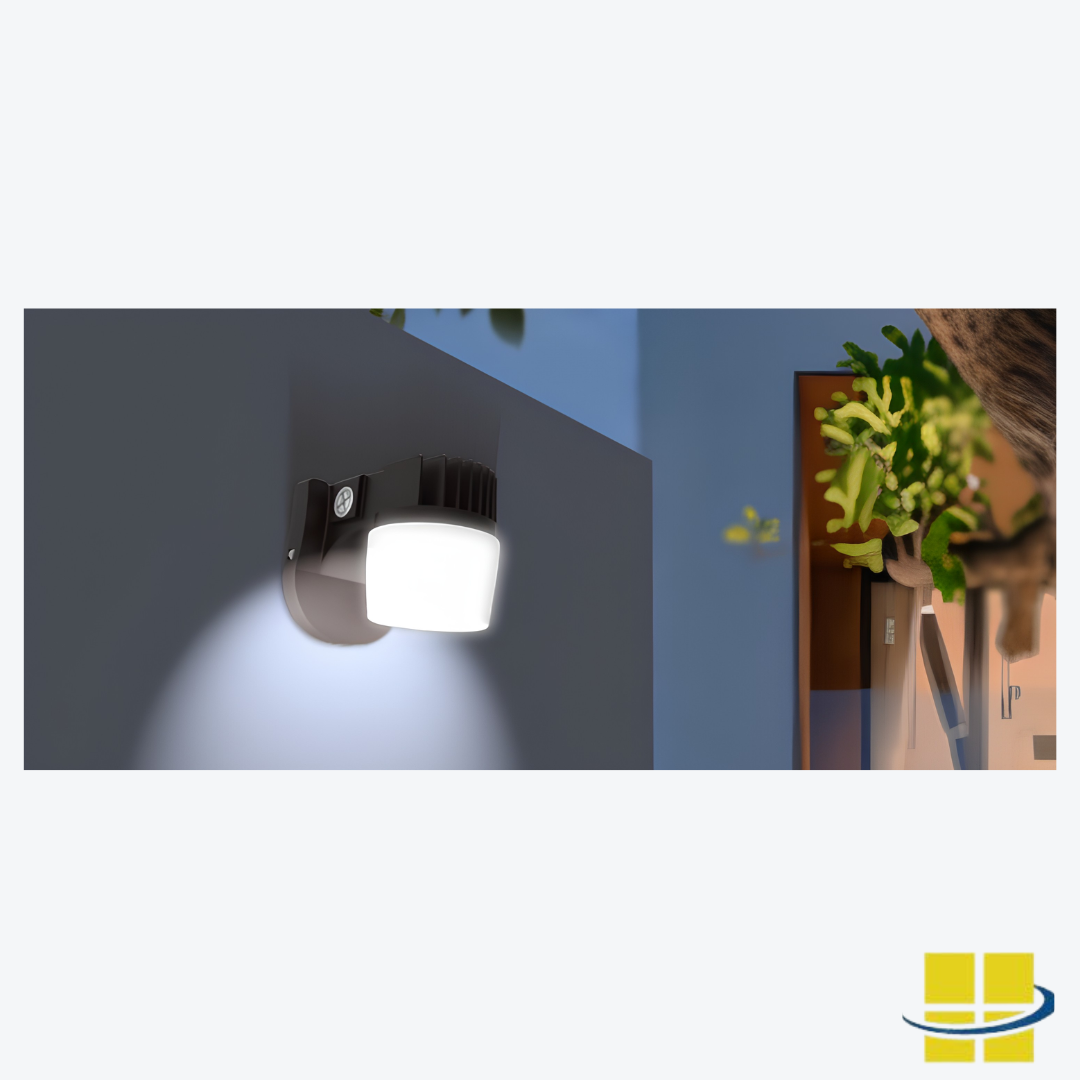

Compact, versatile, and built for everyday reliability, the PAXT LED Wall Pack delivers efficient, glare-free illumination for any outdoor space. Featuring field-selectable wattages and color temperatures, a built-in dusk-to-dawn photocell, and a durable die-cast aluminum housing, PAXT adapts easily to a variety of applications while reducing energy consumption and simplifying installation.
Built-In Photocell: Equipped with an integrated dusk-to-dawn photocell, PAXT automatically turns on at dusk and off at dawn, ensuring reliable illumination only when it’s needed.

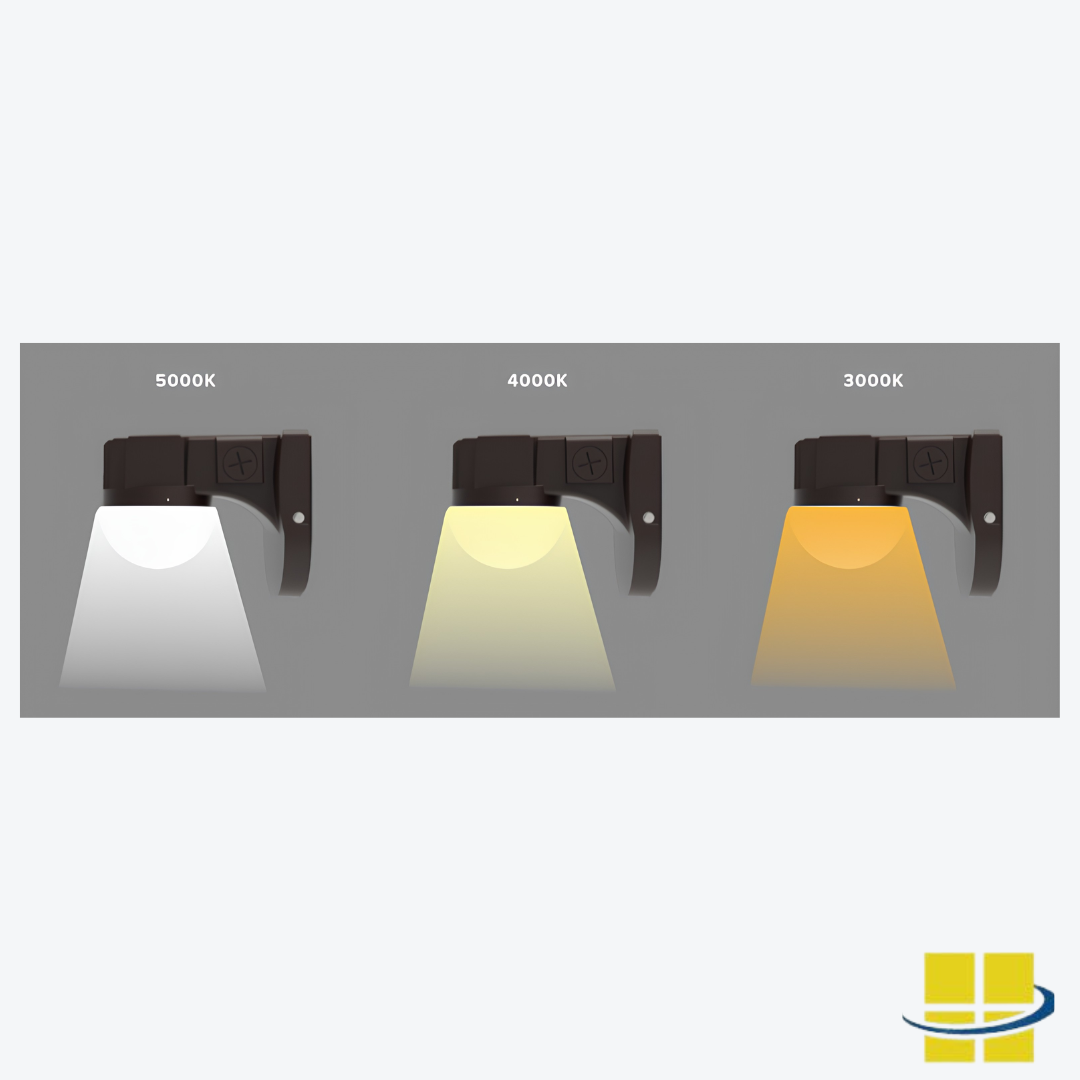

Field Configurable: PAXT Wall Pack offers selectable wattage (10w, 15w, and 20w) and Kelvin temperature (3000K, 4000K, and 5000K), empowering you to tailor light output to any specific need.

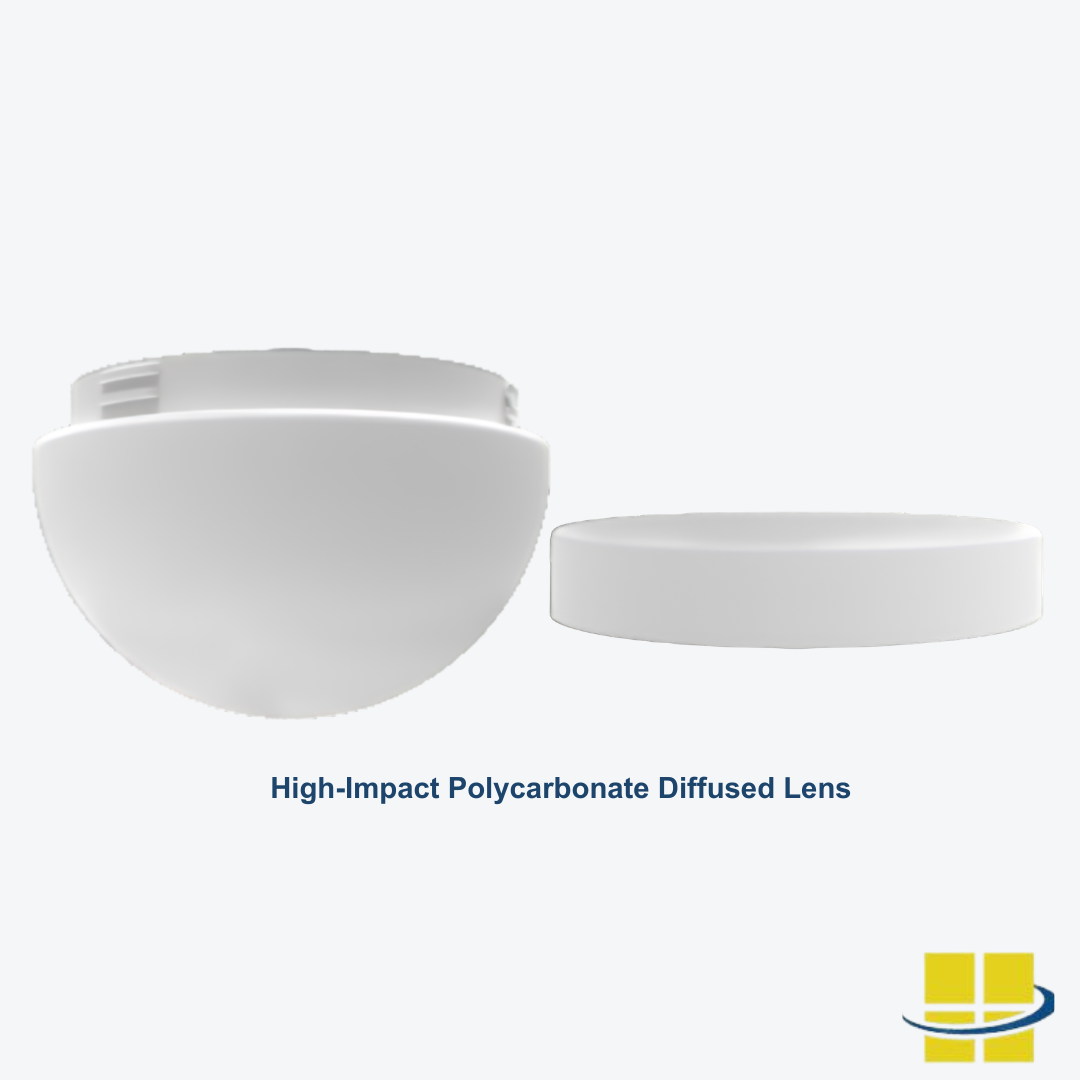

Glare-Free Illumination: The high-impact polycarbonate diffused lens delivers smooth, uniform illumination that enhances visibility while minimizing harsh glare for safer, more inviting outdoor spaces.
$69.87
Product Specifications
| Dimensions | 7.3 × 5.2 × 5.9 in |
|---|---|
| Model Number | AF55XLED1505CL20345P |
| Weight Pounds | TBD |
| Product Family | PAXT |
| EPA | 0.21 ft² |
| Housing Material | Die-Cast Aluminum |
| Finish Specifications | UV Stabilized Powder Coated |
| Finish Color (s) | Bronze |
| Color Rendering Index (CRI) | 80+ |
| Lens Material | High-Impact Polycarbonate Diffuser |
| Optics | Type III |
| Color Temperature (Kelvin) | 3000K, 4000K, 5000K (Selectable) |
| LED Type | LED Module |
| System Watts | 10w, 15w, 20w (Selectable) |
| Light Source Lumens** (5000K) | 2,671 lms |
| Luminaire Lumens** (5000K) | 2,671 lms |
| Luminaire Lumens Per Watts** (5000K) | 136 lm/W |
| Dimensions in Inches | 7.3 X 5.2 X 5.9 |
| Dimension in mm | 186 X 133 X 150 |
| Mount (s) | Quick Mount |
| Rated Life (L70@ x Hours) | 50,000 Hours |
| Voltage | 120-277v |
| Surge Protection | 4kV |
| Controls | Built-In Photocell |
| Operating Temperature | -40°C – +40°C |
| IP Rating | IP65 |
| lK Rating | IK08 |
| BUG Rating | B1 U3 G1 |
| Listings (ex: UL,CUL,CE) | UL and CUL Listed for wet locations. |
| Warranty | 5 Year Warranty |
| Availability (Lead-Time) | 7-10 Production Days, Plus Shipping |
