RAHL 30 Explosion Proof Linear Flood Light, 120-277v

$449.87

The RAHL 30 Explosion Proof Linear Flood Light, 120-277v is a hazardous location and explosion proof light fixture built to last.

Explosion Proof: RAHL is explosion and hazardous location proof. See features for complete listing information.

Versatile Design: This fixture has a rugged, stainless steel linear design that can be surface or pole mounted.

Extremely Efficient: This explosion proof fixture emits a whopping 140 lumens per watt while staying budget-friendly.



Questions? Contact a lighting specialist.



Call 800-468-9925

In Stock

SKU: AF87XEX-30WR2N50D120 Categories: , , , , Tag:


Specifications

Weight 10 lbs
Dimensions 30 × 6 × 10 in
Light Source

Availability

Typically ships in 7-10 business days

Available Finishes

Stainless Steel

Color Rendering Index (CRI)

70+

Housing

Polycarbonate front housing

Lens

Opalescent polycarbonate diffuser lens

Light Source Included

LED Array Included

Light Source Lumens

4200

Listings

IP66, ANSI/UL 1598, 8750, UL 844

Mounting

Round Pole Mount, Surface Mount

Product Family

RAHL

Rated Life

50,000 Hours

System Watts Filter

20w – 49w

Voltage

120-277v

Warranty

5-Year Limited Warranty

Product Description

The RAHL 30 Explosion Proof Linear Flood Light, 120-277v is a hazardous location and explosion proof light fixture built to last.

Explosion Proof: RAHL is explosion and hazardous location proof. See features for complete listing information.

Versatile Design: This fixture has a rugged, stainless steel linear design that can be surface or pole mounted.

Extremely Efficient: This explosion proof fixture emits a whopping 140 lumens per watt while staying budget-friendly.

RAHL Explosion Proof Ratings:

Atex Marking
II 2 G Ex db eb mb IIC T5/T6 Gb
II 2 D Ex tb IIIC T95°C/T85°C Db IP66
IECEX Marking
Ex db eb mb IIC T5/T6 Gb
Ex tb IIIC T95°C/T85°C Db
UL844 Marking
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
Marine Marking
UL 1598
UL 844
Other Ratings
IP 66

RAHL 30 Explosion Proof Linear Flood Light, 120-277v Features:

  • 5000K
  • 30 system watts
  • 140 lumens per watt
  • 4,200 lumens
  • Opalescent shatterproof polycarbonate lens
  • Stainless steel housing
  • 100-277v

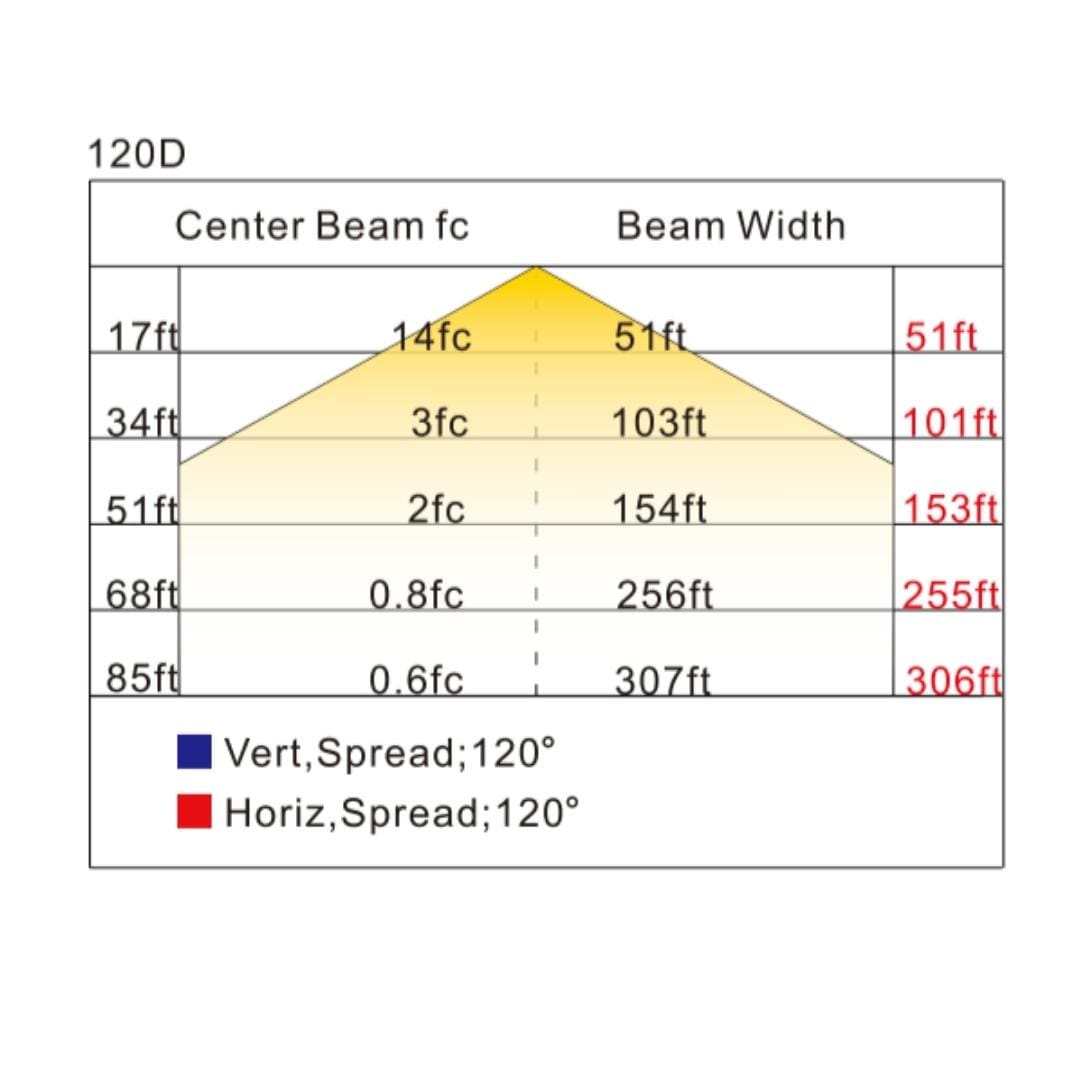

  • 120° beam
  • 70 CRI
  • -40°F to 131°F
  • Stainless steel hardware

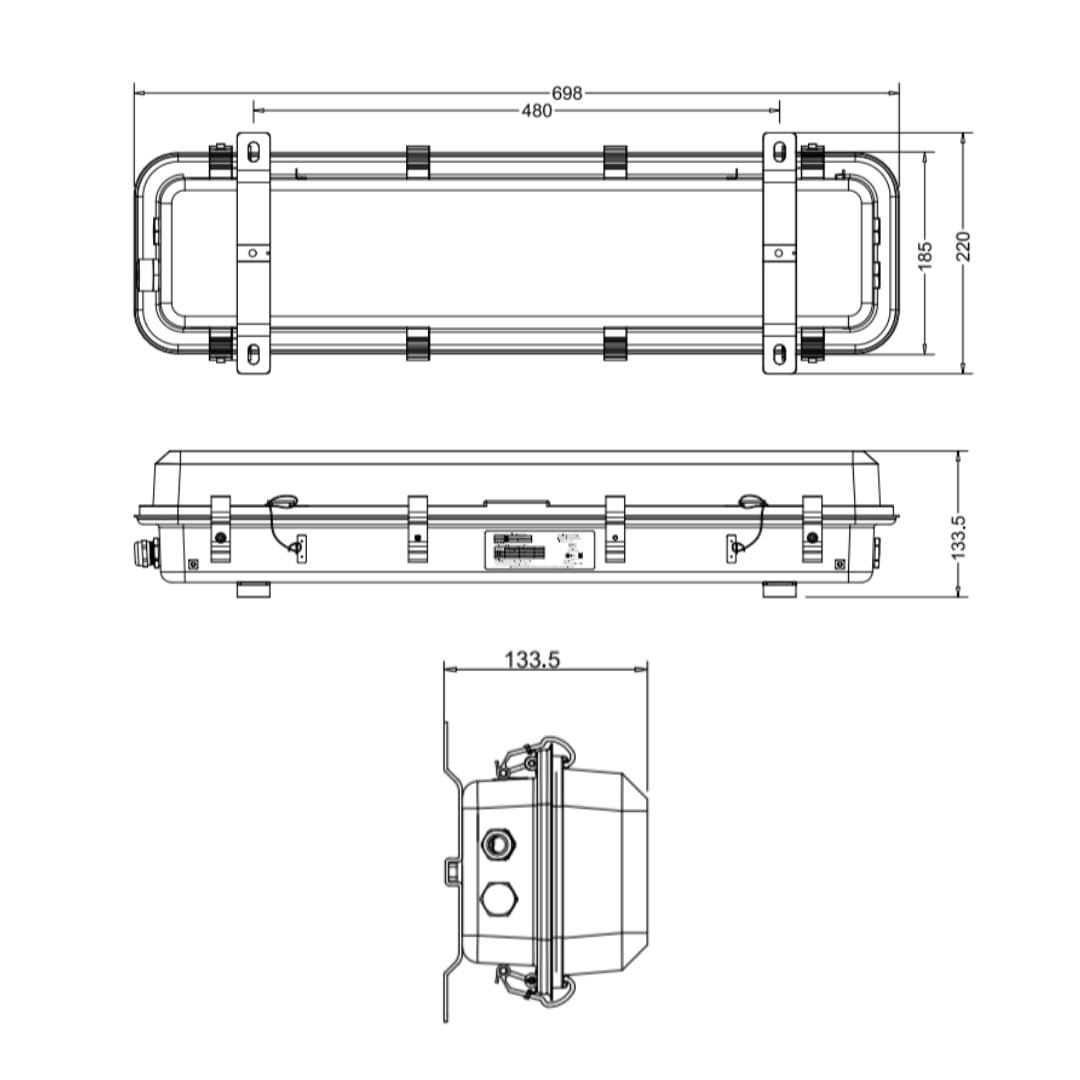

  • 27.5″ x 8.7″ x 5.3″
  • 8.8 lbs

RAHL 30 Explosion Proof Linear Flood Light, 120-277v Options:

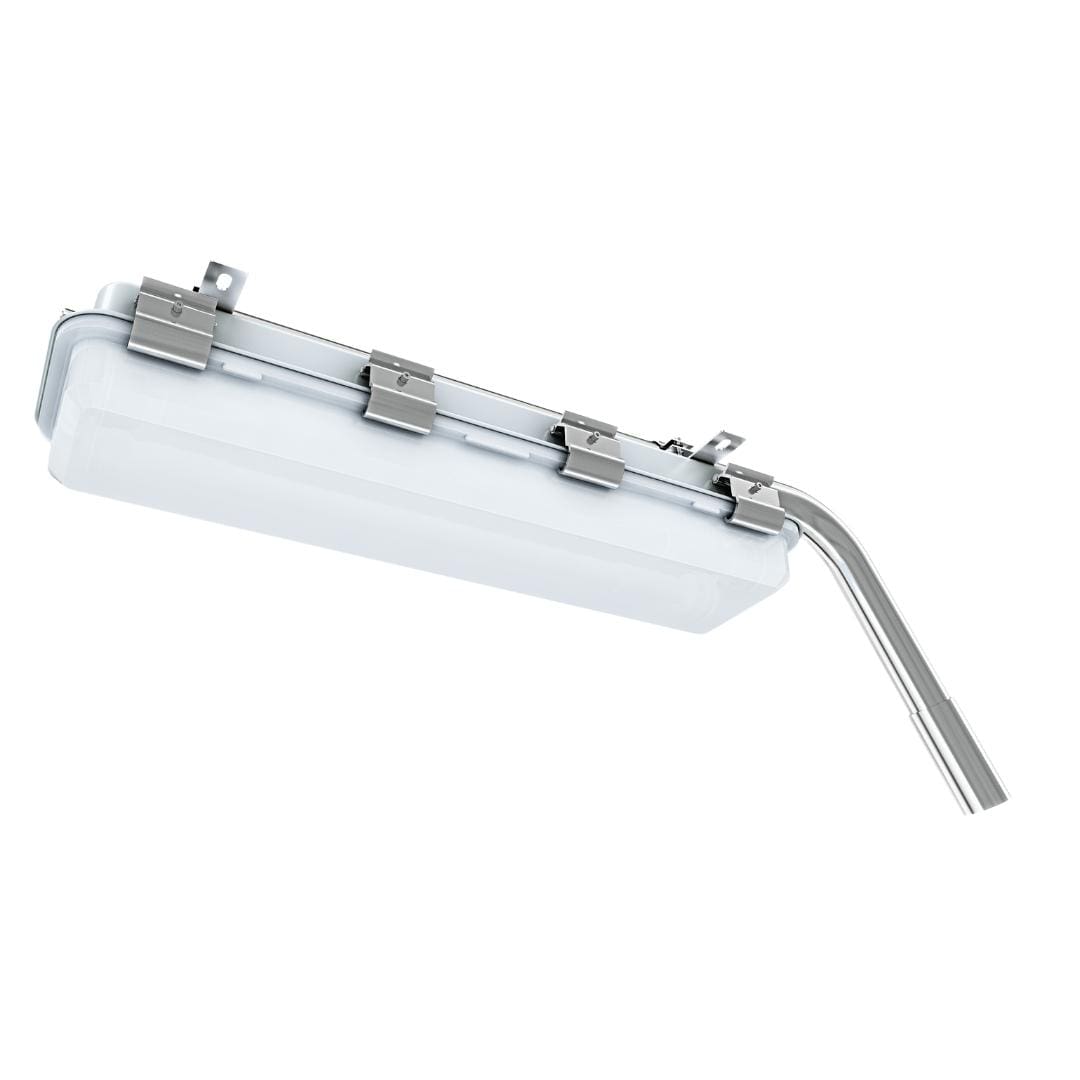

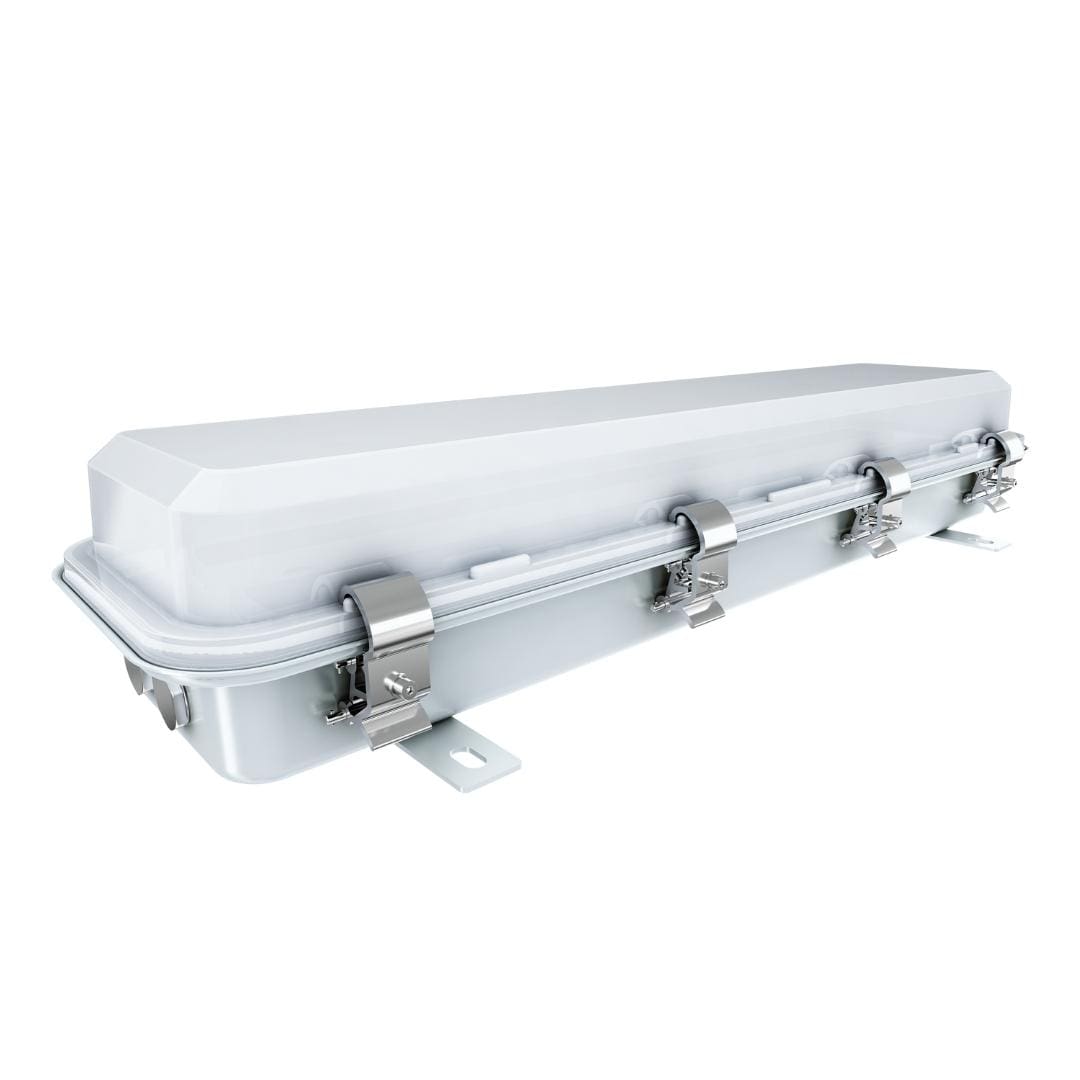

  • Surface mount or pipe mount
