STAD 570w LED Sports Light, Optical & Mounting Options

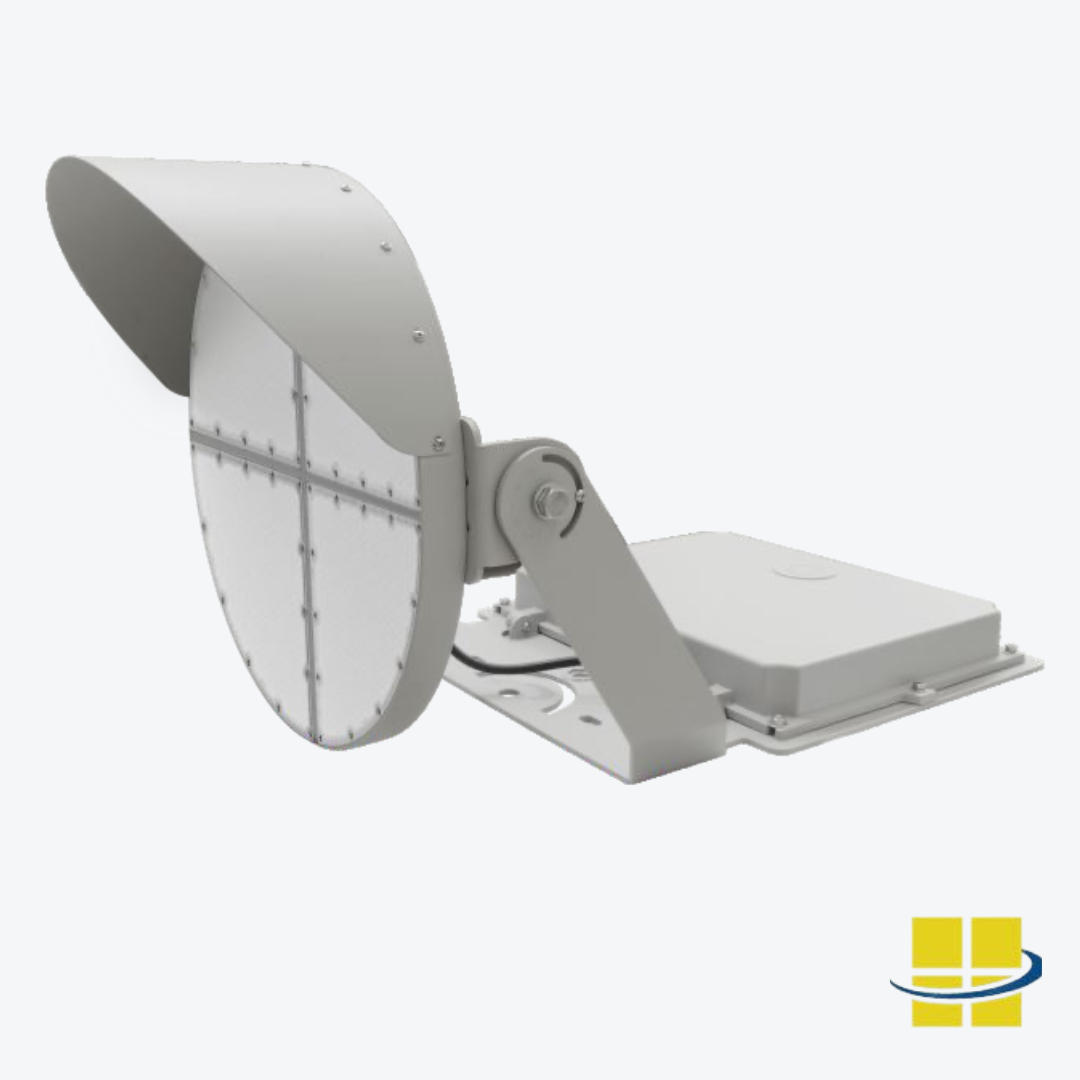

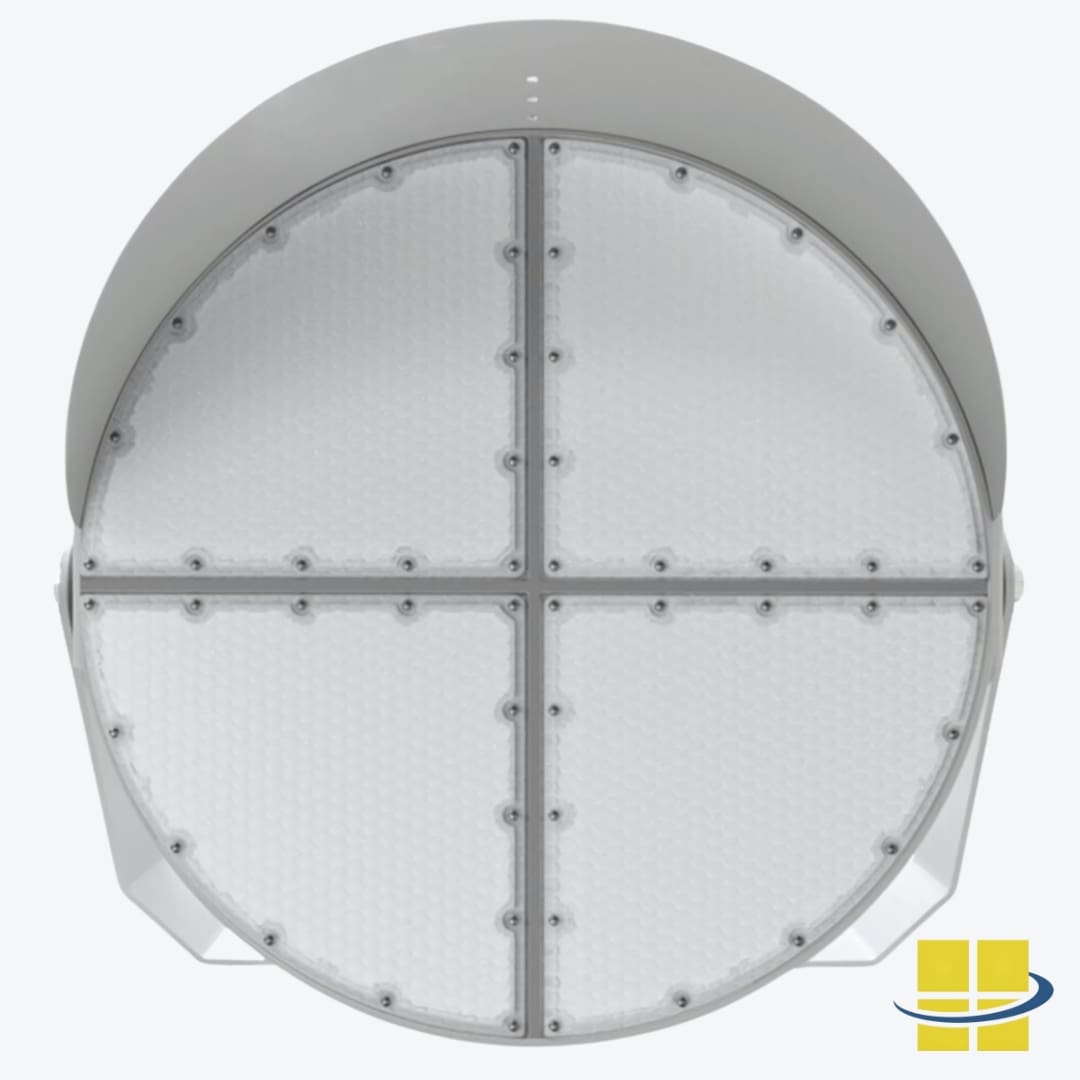

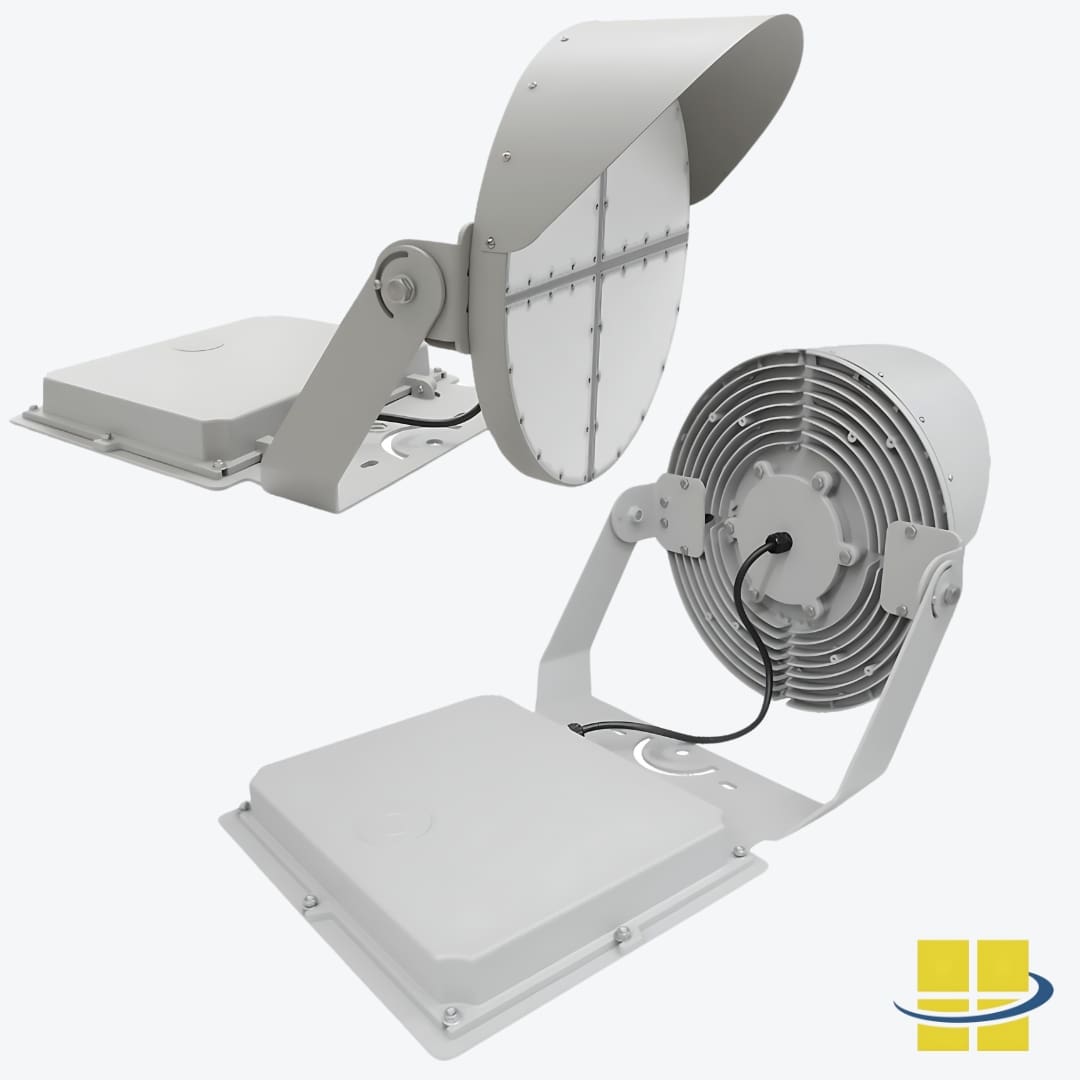

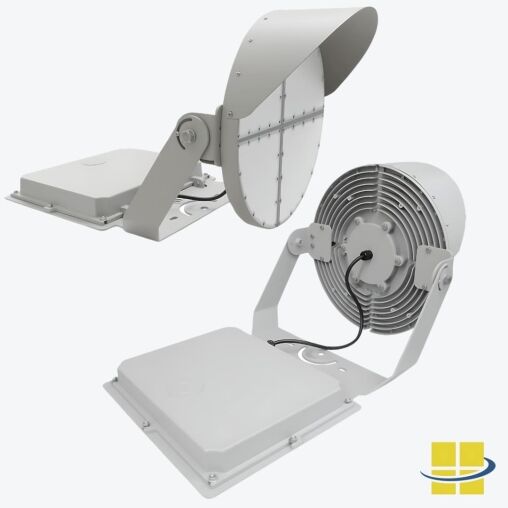

STAD LED sports lights are designed and manufactured to provide powerful & reliable lighting. This state-of-the-art sports flood light is built with high-strength die-cast aluminum with elite thermal dissipation to allow the fixture to be installed in harsh conditions. STAD utilizes four different optical distributions and comes standard with two mounting options to accommodate all mounting applications.

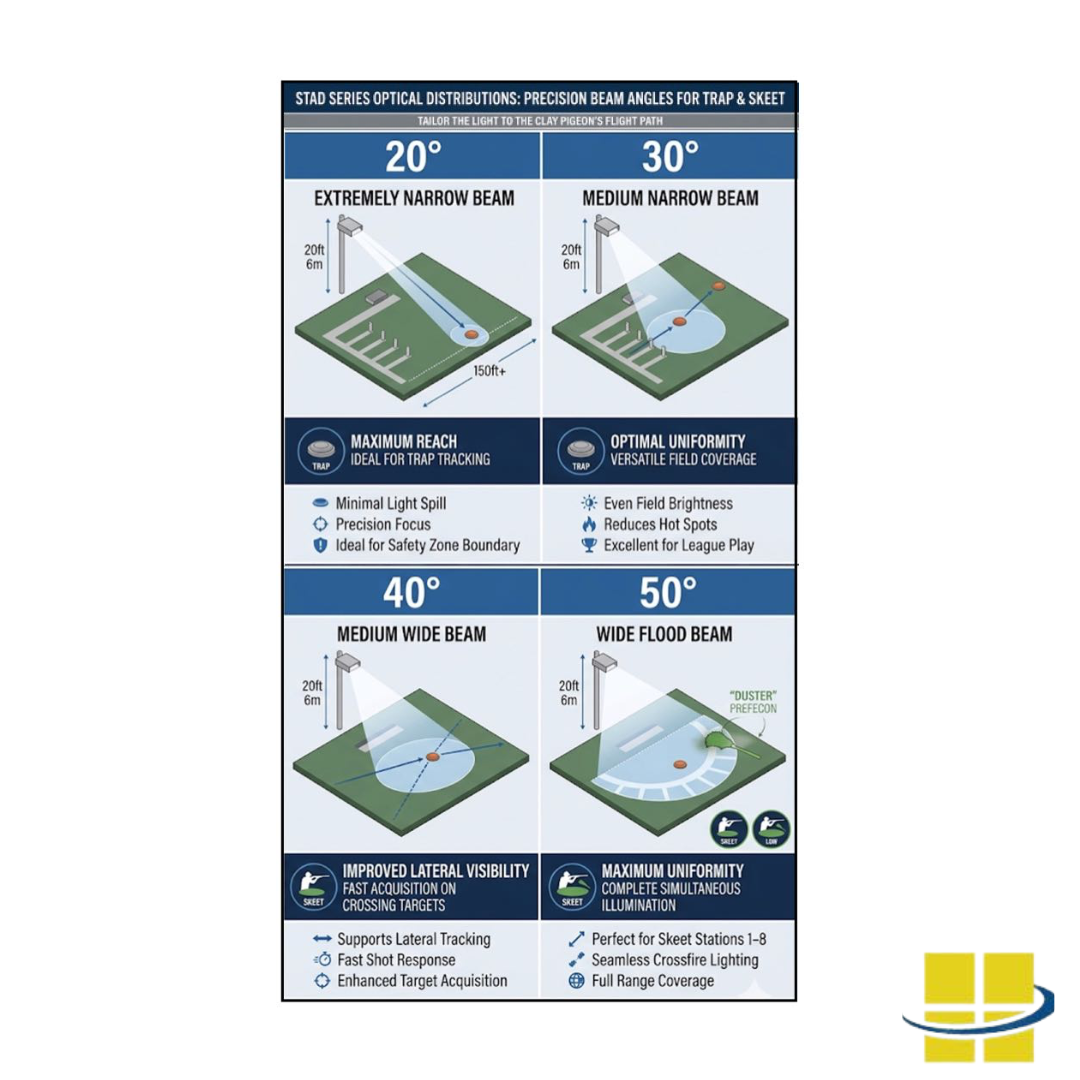

Optics Options: STAD has four different optical distribution options: 20, 30, 40, or 50-degree optics to get the light distributed evenly and where it is needed.

Maximum Wattage & LPW: With up to 570 watts per light fixture and lumens per watt of up to 160, STAD can provide over 90,000 lumens from a single light fixture.

Lasting Durability: A heavy-duty die-cast housing and cooling fins maximize heat dissipation, so STADs can function with an ambient temperature of 122°F.

ARCI LED Bollard Light PDF

In Stock

  • Total


Weight 38.13 lbs
Dimensions 37.80 × 22.05 × 6.30 in


3 to 4 Week Production, plus Shipping

Light Source

Available Finishes



Die cast aluminum housing

Light Source Included

LED Array Included

Light Source Lumens



RoHS Compliant, CuL Listed, DLC Listed, IP65, UL


Bolt Mount, U Bracket

Product Family


System Watts



208v, 240v, 277v, 347v, 480v


5-Year Limited Warranty

Product Description

STAD 570w LED Sports Light Features:

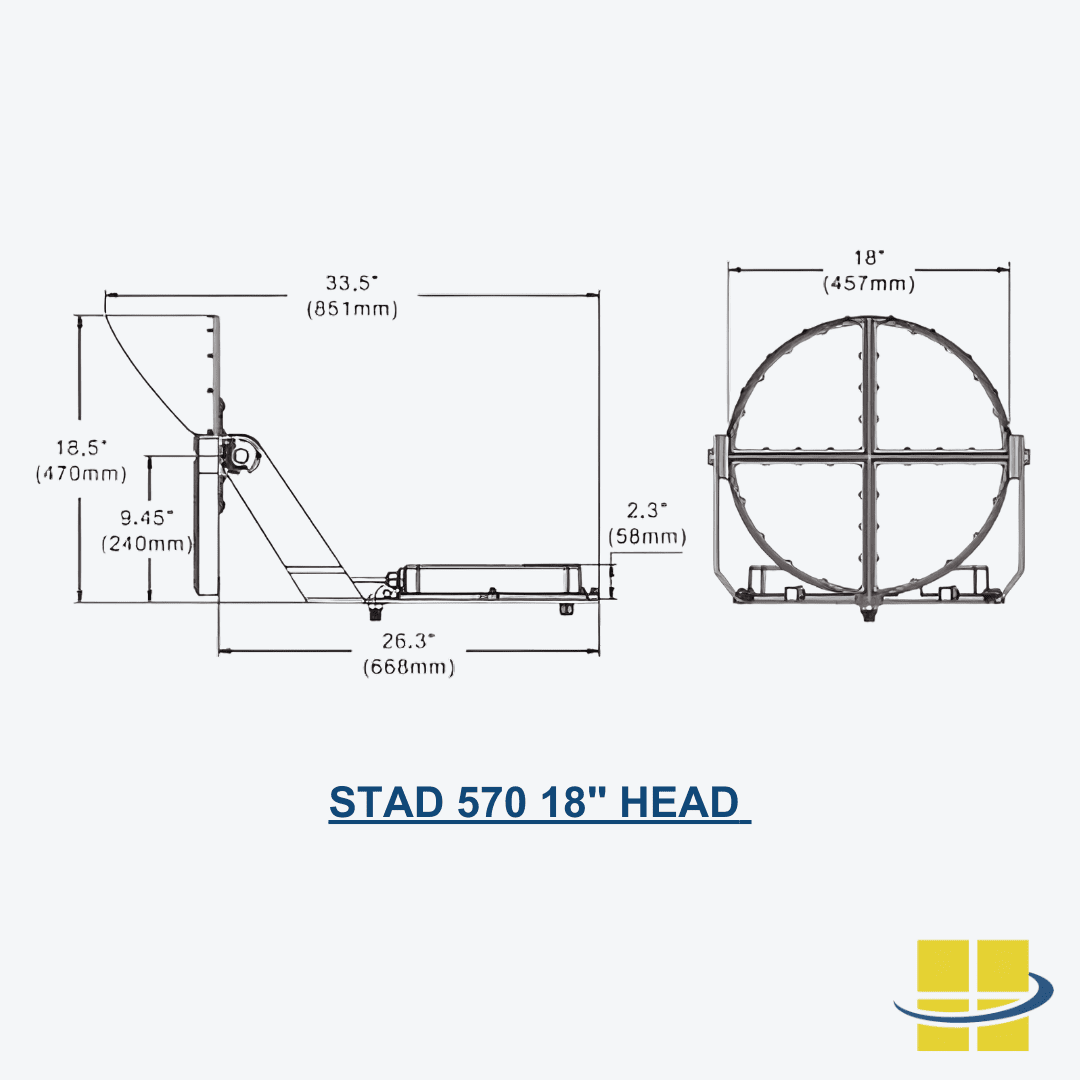

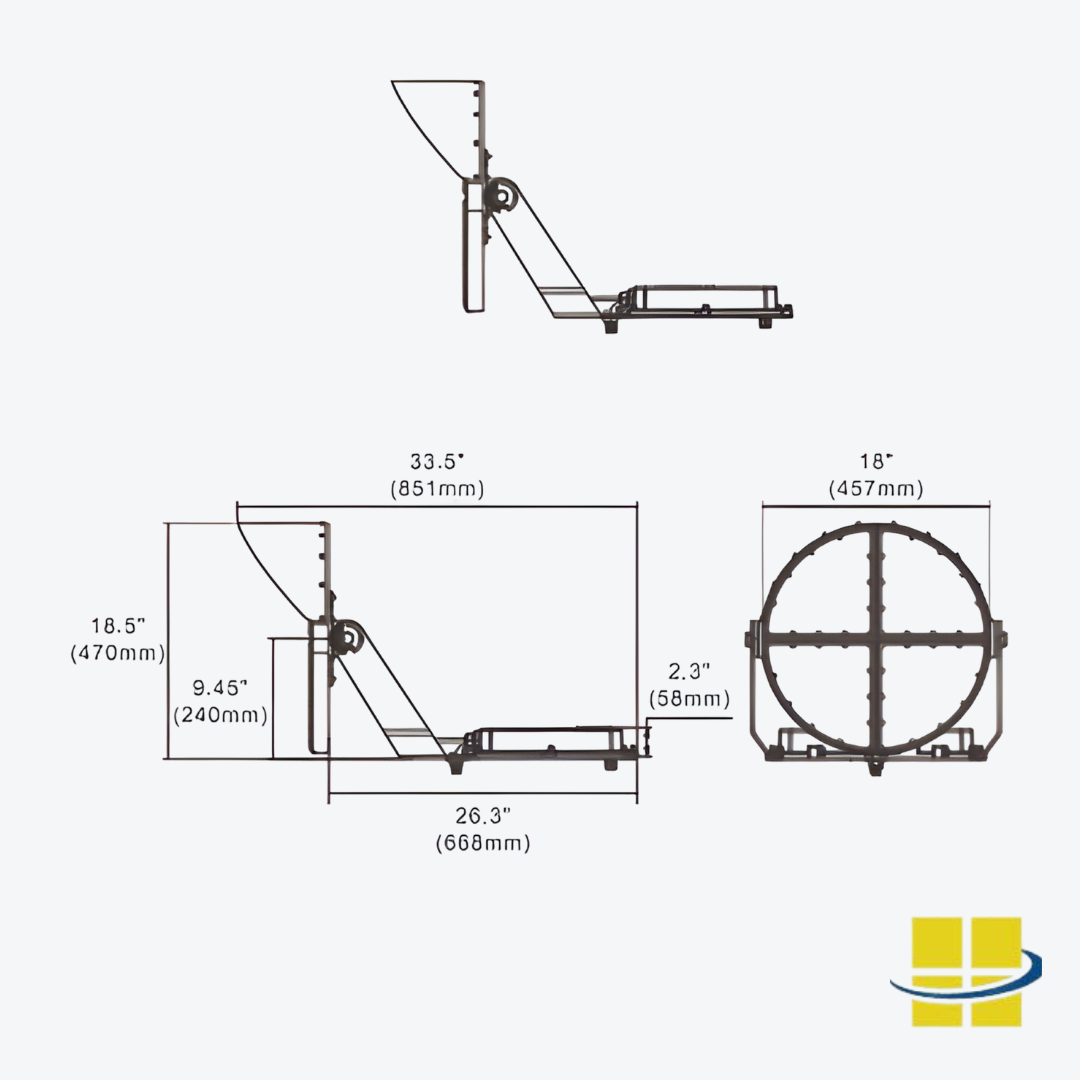

  • 33.5L x 18″D x 18.5″H
  • 200-480V
  • Gray Finish
  • 5000K
  • 20kV Surge Protection
  • 70+ CRI
  • Heavy-duty die-cast

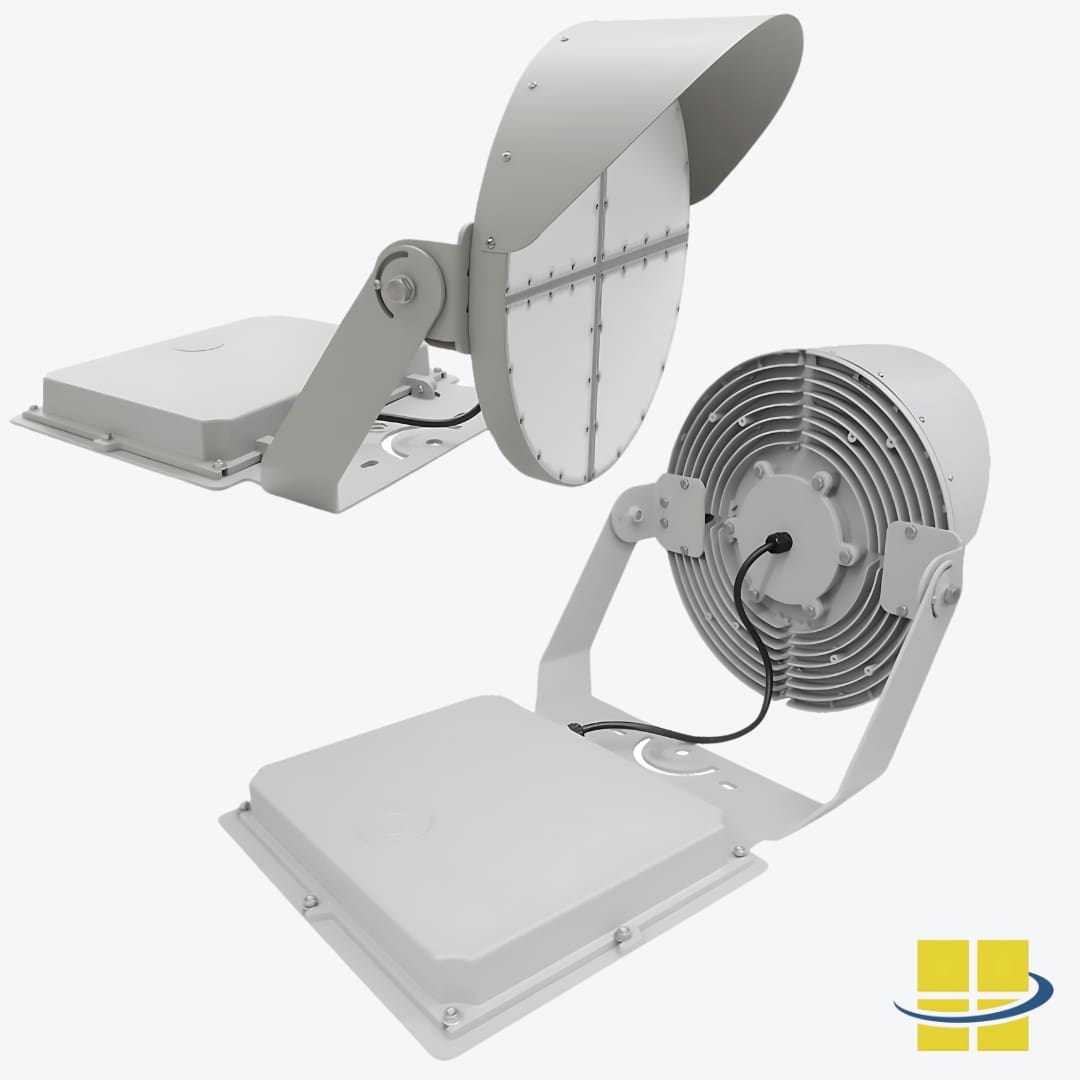

    • Die-cast aluminum head and driver box with a steel frame for support
      • Coated in a gray powder coat
      • One complete piece to maximize heat dissipation to allow the fixture to be installed in harsh conditions

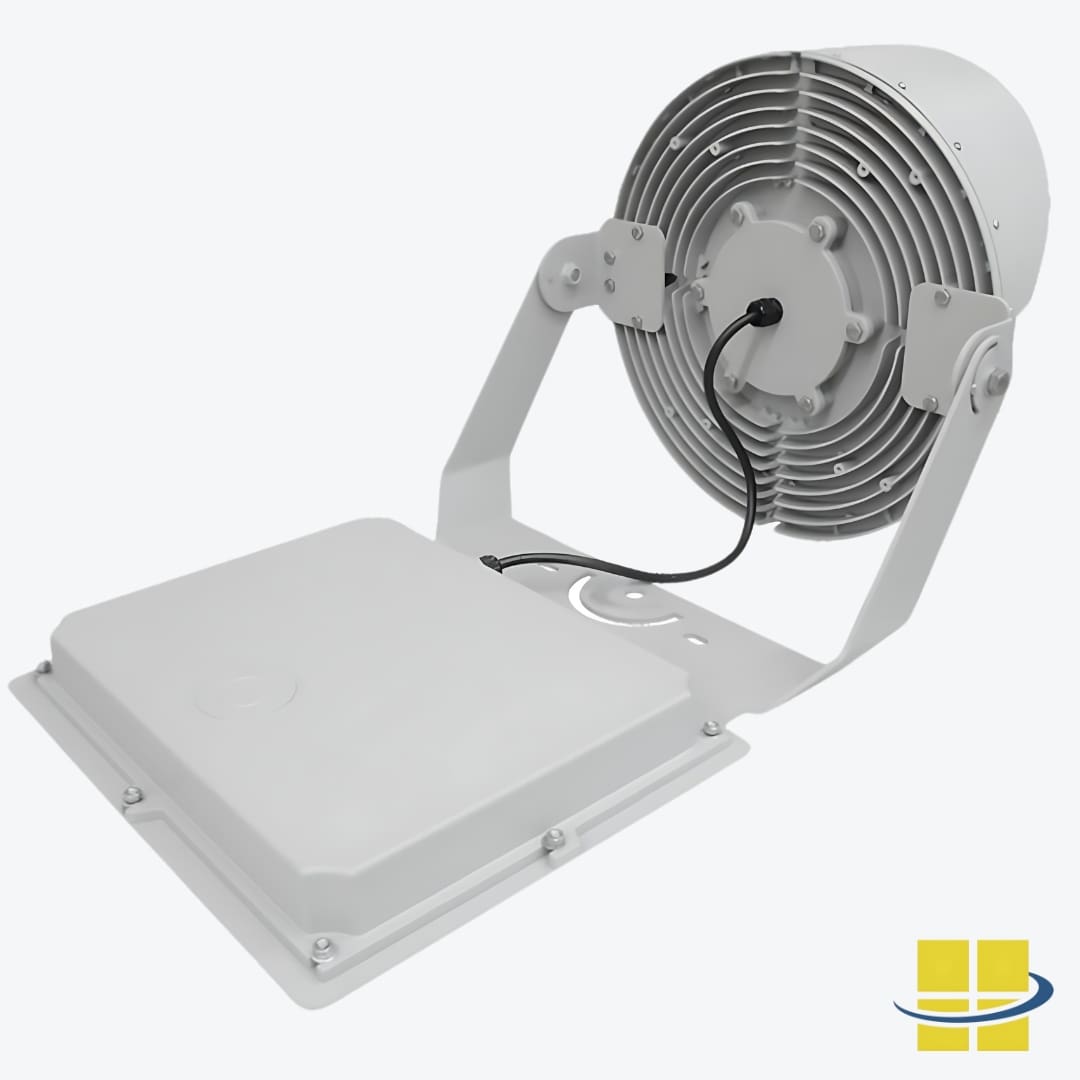

      • Cooling fins added to increase the ambiance temperature to 50°C/122°F
  • 2 mounting options
    • U Bracket
    • Bold Mount
  • Lumen output:
    • 90,000 lumens
    • 156 lumens per watt
  • CUL and UL listed for wet locations, DLC, ROHS, IP65
  • 4 different optical distributions for maximum light output
    • 20 degree
    • 30 degree
    • 40 degree
    • 50 degree
  • 20ft. Cord
  • Starting temperature -40°C
  • STAD comes standard with: Visor, U-Bracket, 3/4″ Bolt, 20KV Surge protection, 30 Degree Optics
  • 5-year warranty

STAD 570w LED Sports Light Options:

  • 20, 30, 40, 50-degree optical distributions

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.

Need a Photometric Analysis for Your STAD LED Sports Light Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometric studies include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order or Speak to a Lighting Specialist?

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
