Product Specifications
| Weight | 83.33 lbs |
|---|---|
| Dimensions | 37.80 × 22.05 × 6.30 in |
| Model Number | AF55XL2822N30855KUVG |
| Weight Pounds | 71.54 lbs |
| Product Family | STAD |
| EPA | 2.4 cu ft |
| Housing Material | Die-cast aluminum head and driver box with a steel support frame. |
| Finish Specifications | Durable UV-Stabilized powder-coated Finish |
| Finish Color (s) | Gray |
| Color Rendering Index (CRI) | 70+ |
| Lens Material | Polycarbonate |

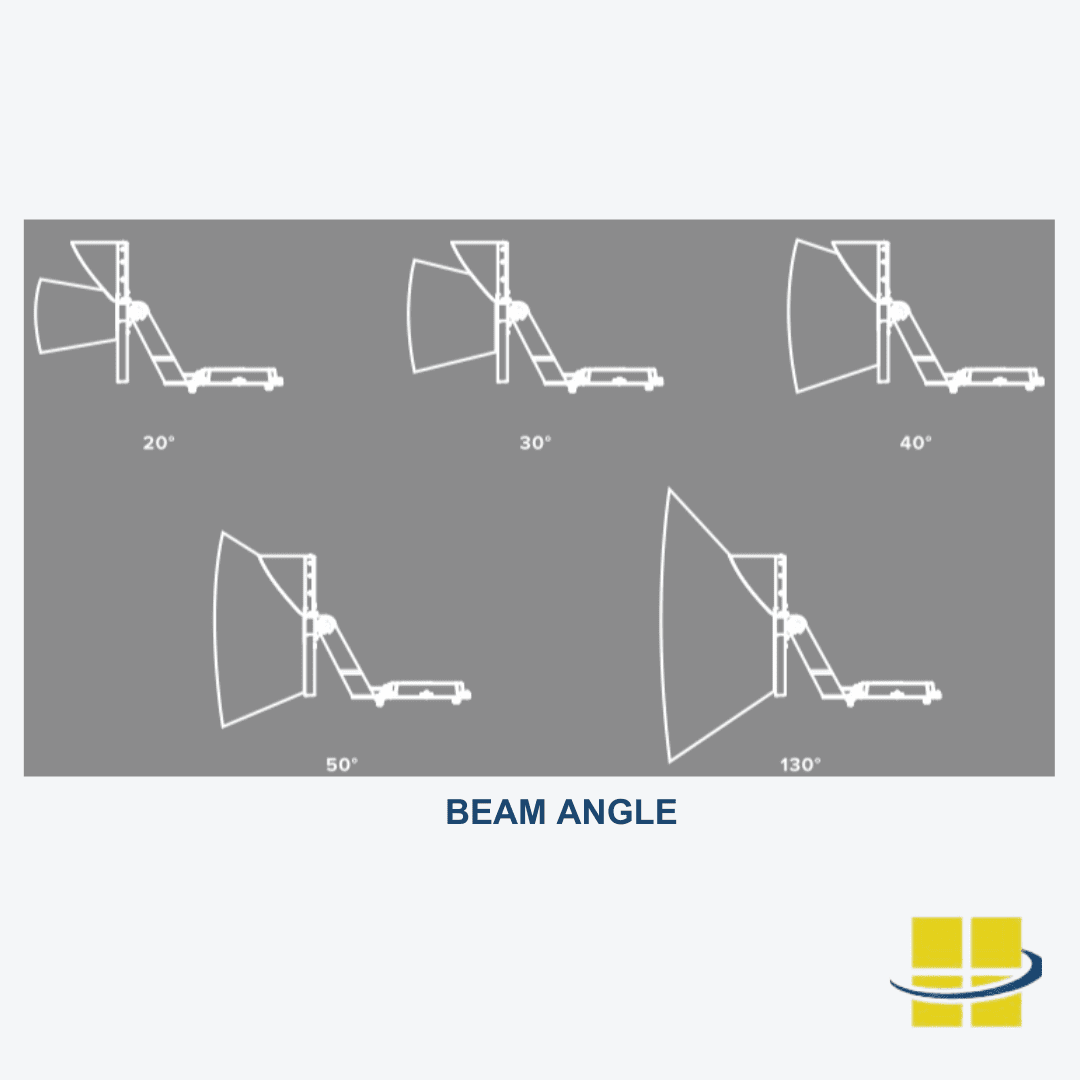

| Optics | 20°, 30°, 40°, 50°, 130° |
| Color Temperature (Kelvin) | 5000K |
| LED Type | New Generation LED Module |
| System Watts | 837w |
| Light Source Lumens | 143,627 lm* |
| Luminaire Lumens | 143,627 lm* |
| Luminaire Lumens Per Watts | 171 lm/W* |

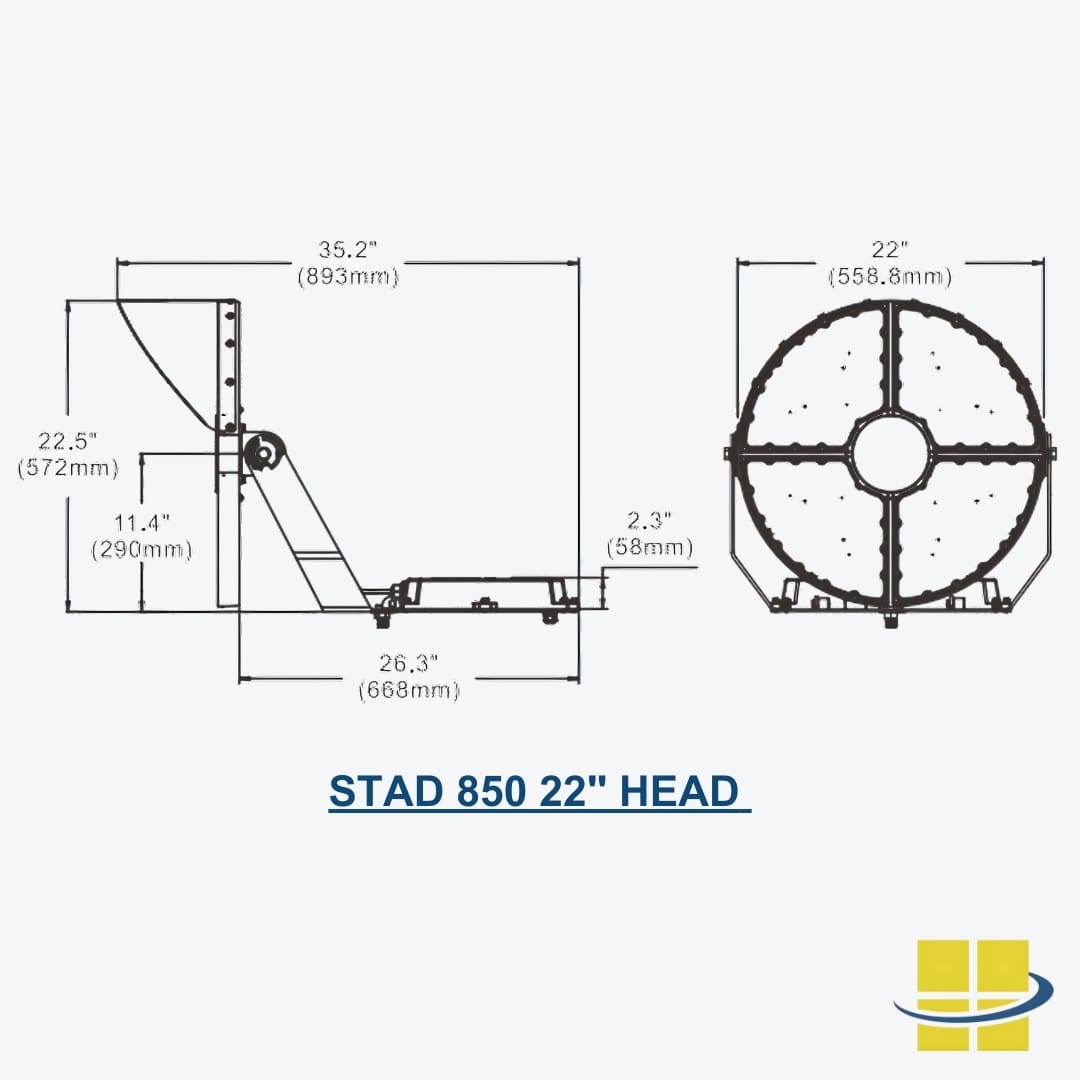

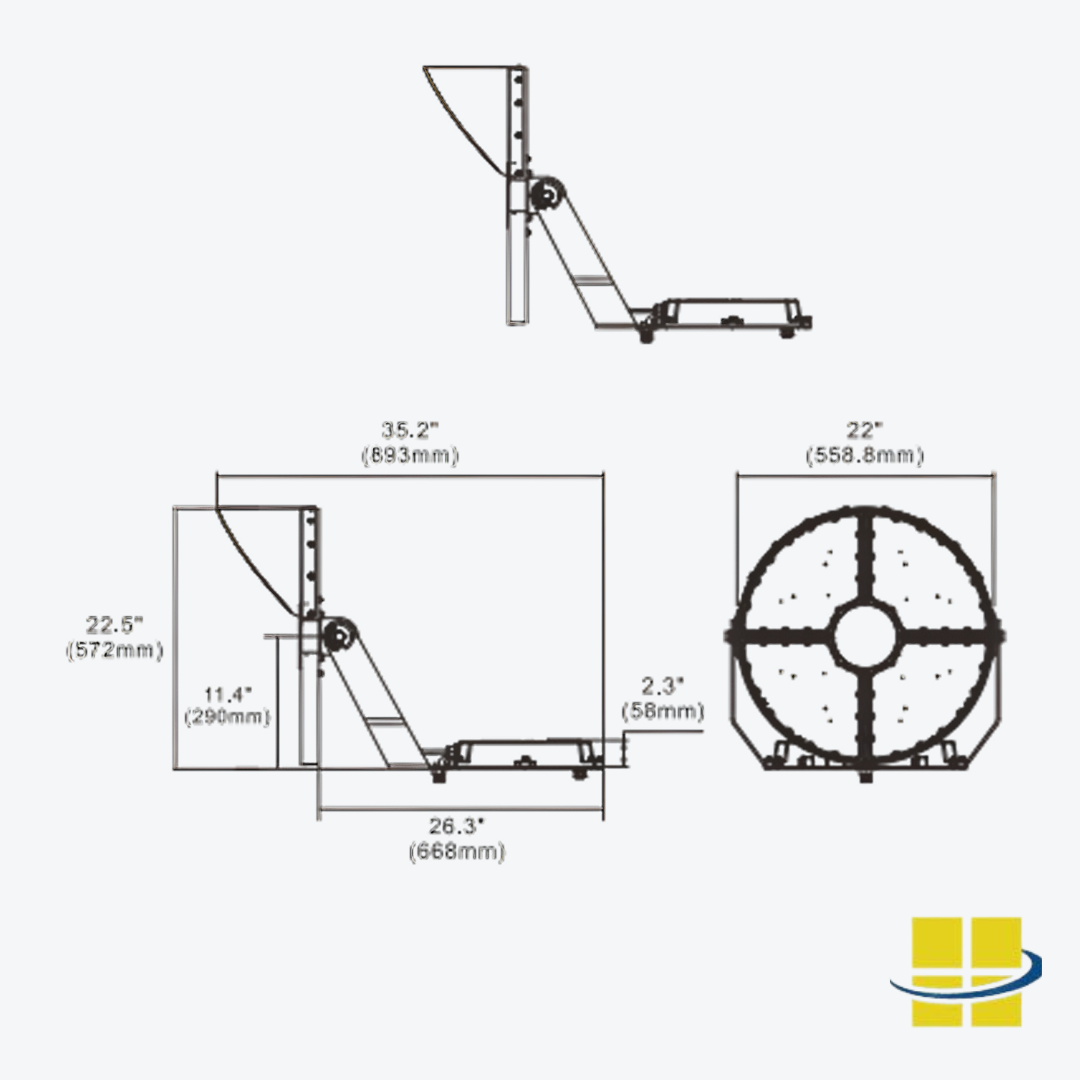

| Dimensions in Inches | 35.2" X 22" X 22.5" |
| Dimension in mm | 894.08mm X 558.8mm X 571.5mm |

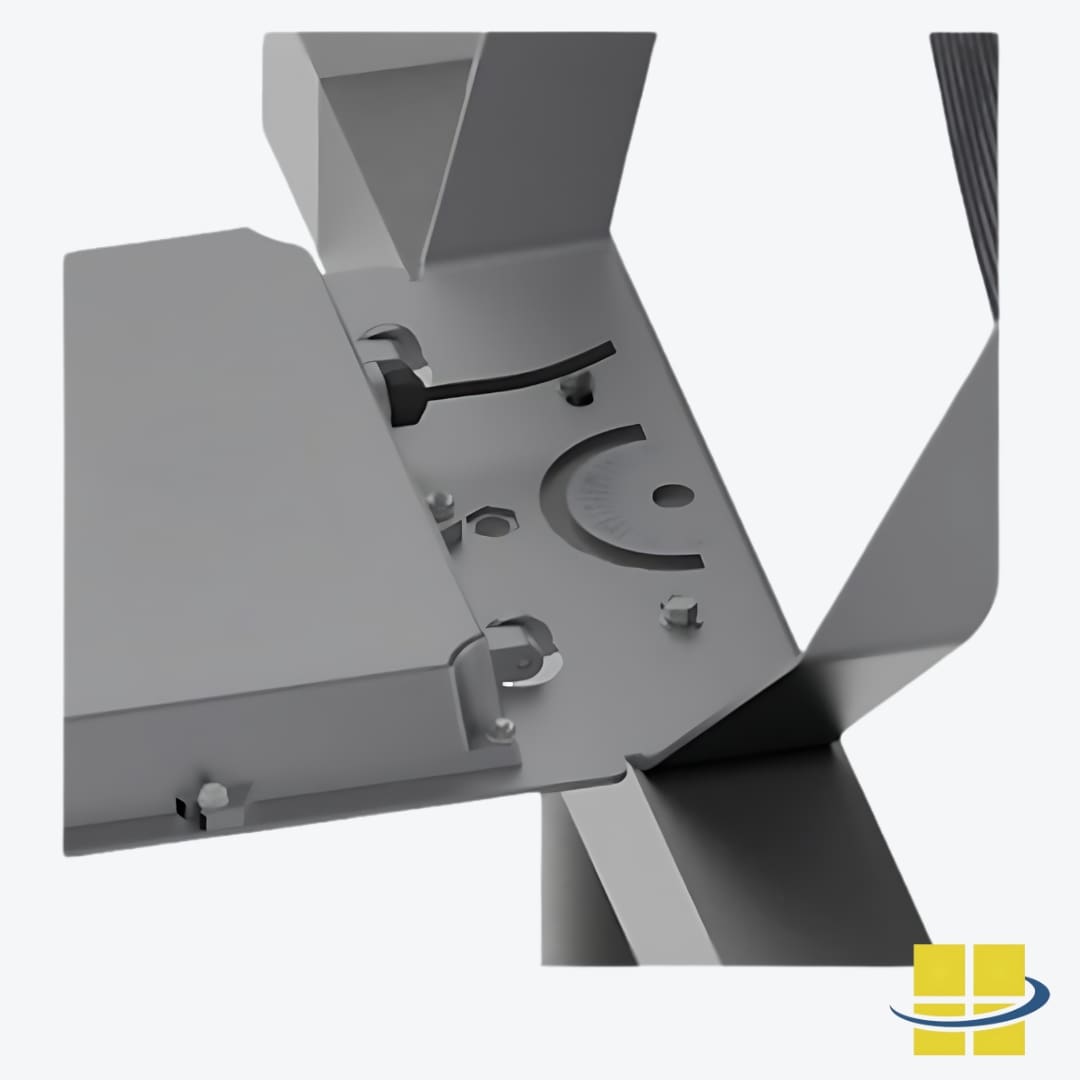

| Mount (s) | U-Bracket, Bolt Mount |
| Rated Life (L70@ x Hours) | 50,000 Hours |
| Voltage | 200v-480v |
| Surge Protection | 20kV |
| Controls | n/a |
| Operating Temperature | -40°C – +40°C |
| IP Rating | IP65 |
| lK Rating | IK08 |
| DLC Number | S-AMFZHS |
| BUG Rating | B5 U4 G3 |
| Listings (ex: UL,CUL,CE) | RoHS Compliant, CuL Listed, DLC Listed, UL |
| Warranty | 5 Year Warranty |
| Availability (Lead-Time) | 3-4 Production Weeks, Plush Shipping |

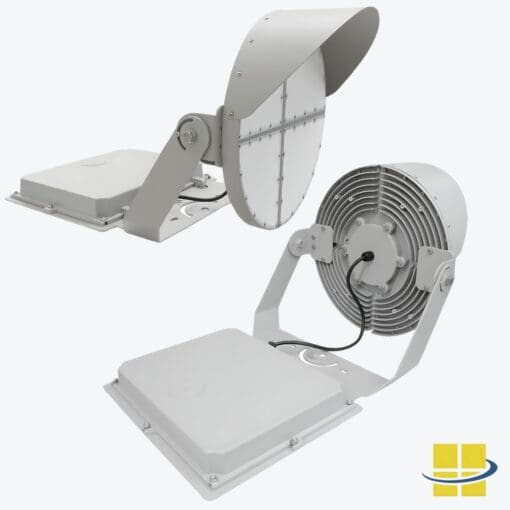

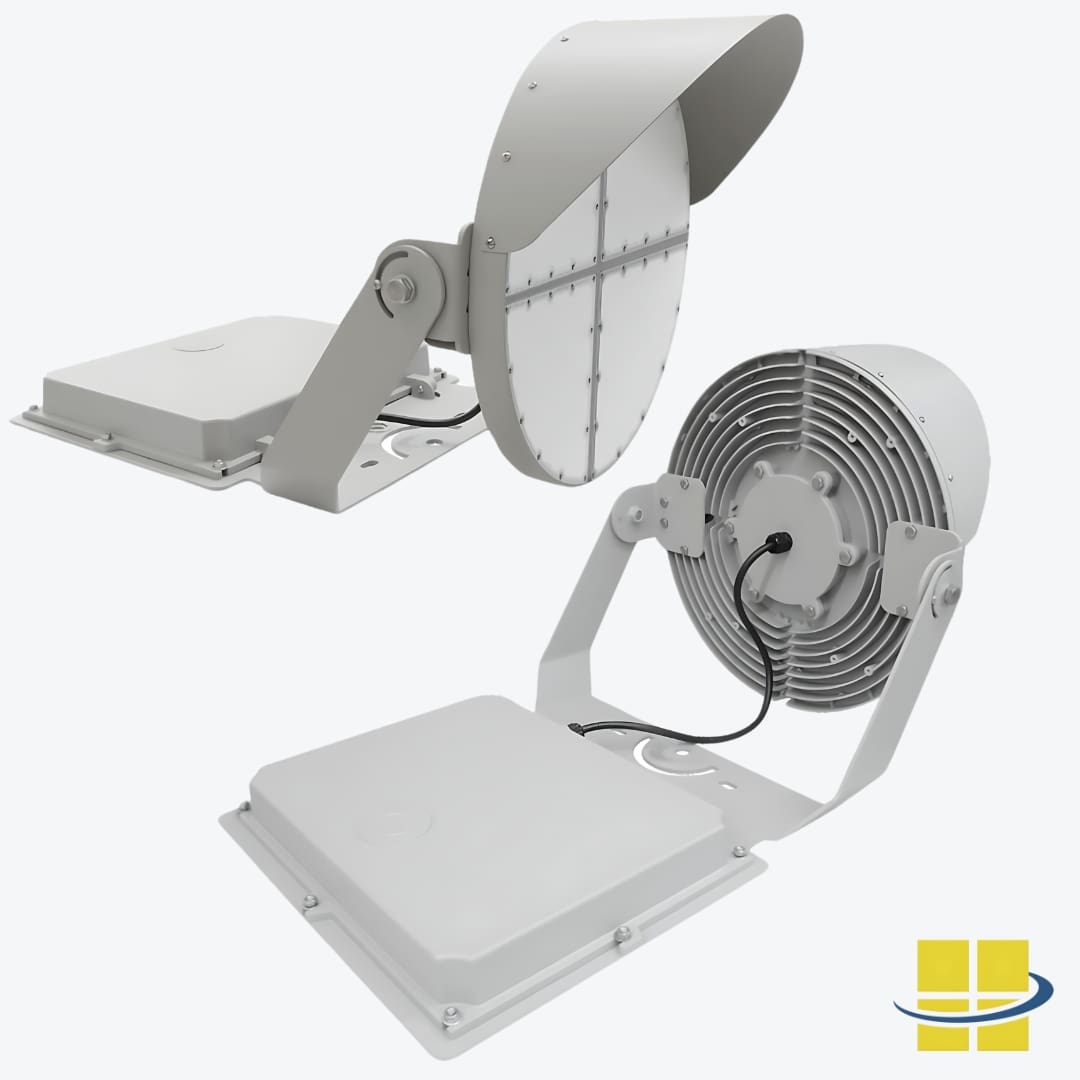

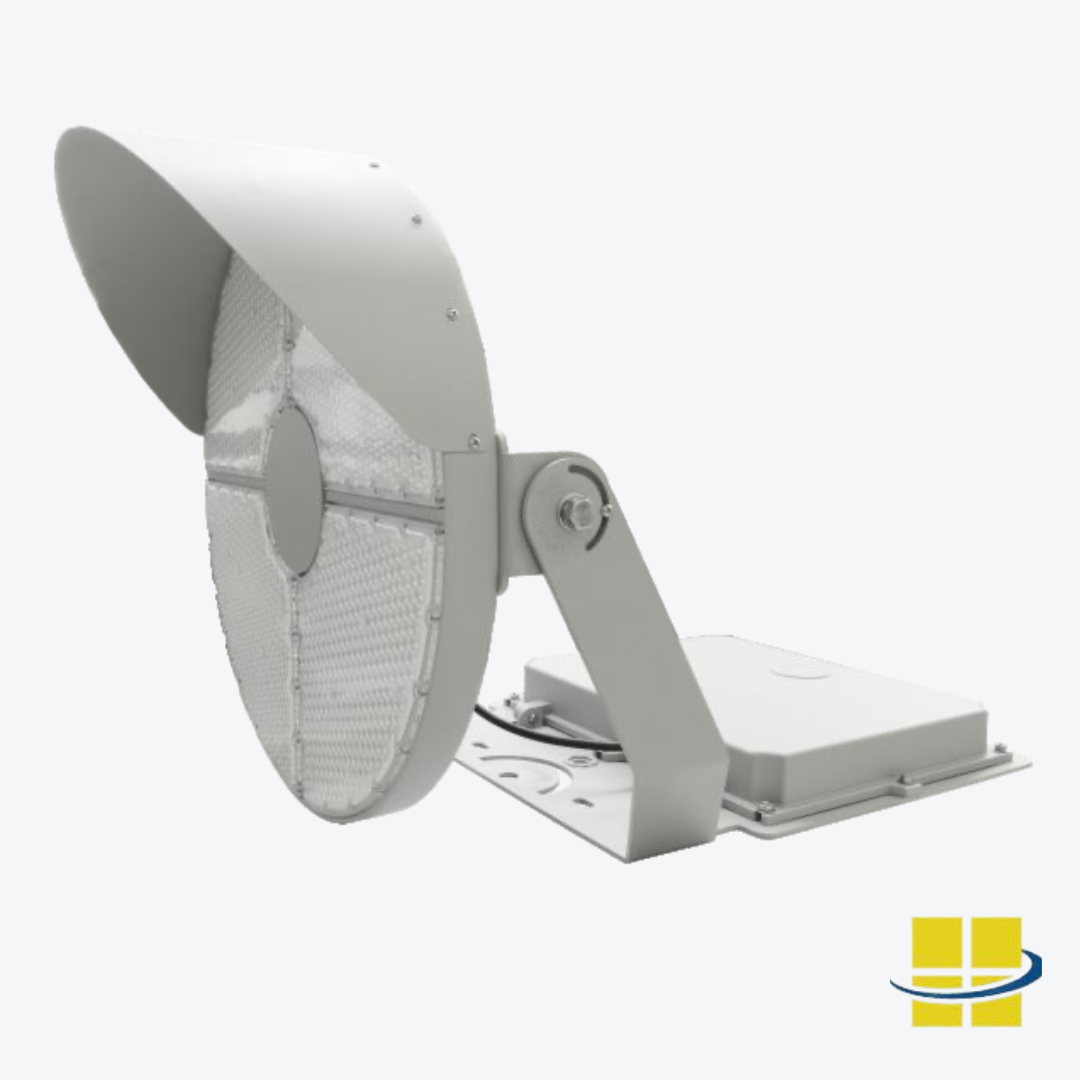

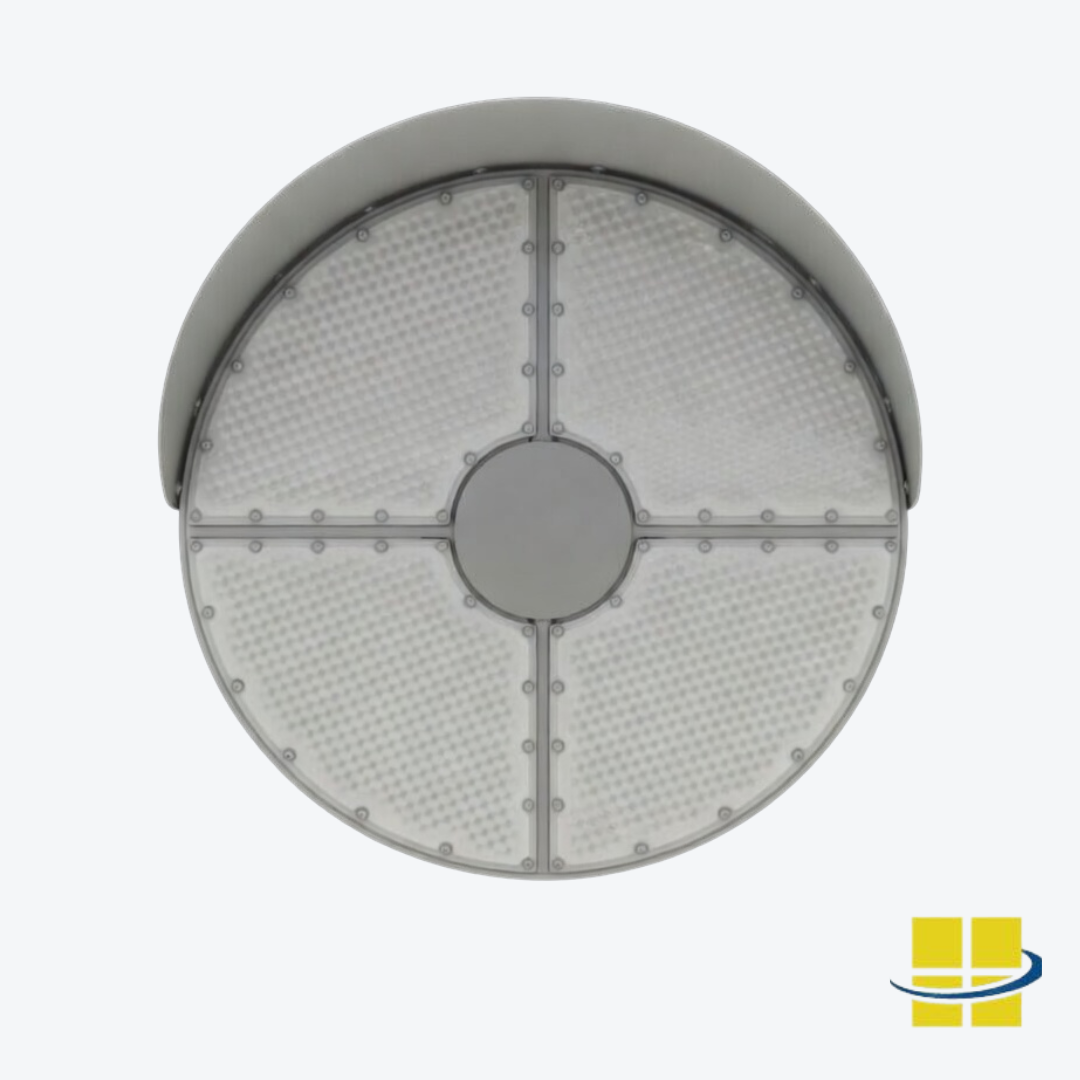

STAD 837 LED Sports Light
Designed to be a direct replacement for 1500w Metal Halide sports lights, STAD LED sports lights are designed and manufactured to provide powerful & reliable lighting. This state-of-the-art LED sports flood light will replace 1500w Metal Halide sports lights on a one-for-one basis. STAD utilizes four different optical distributions that match Metal Halide sports lights and comes standard with two mounting options to accommodate all mounting applications.

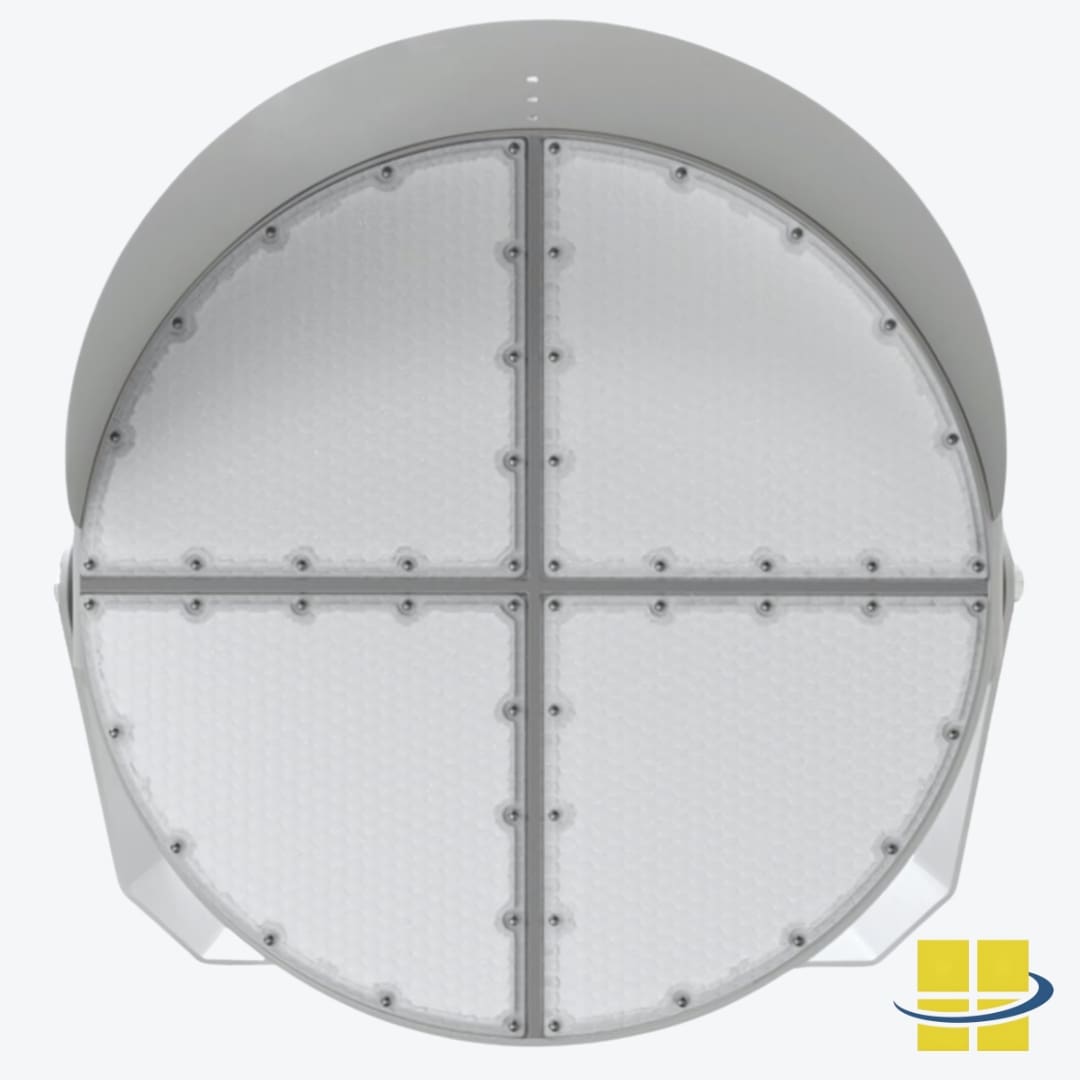

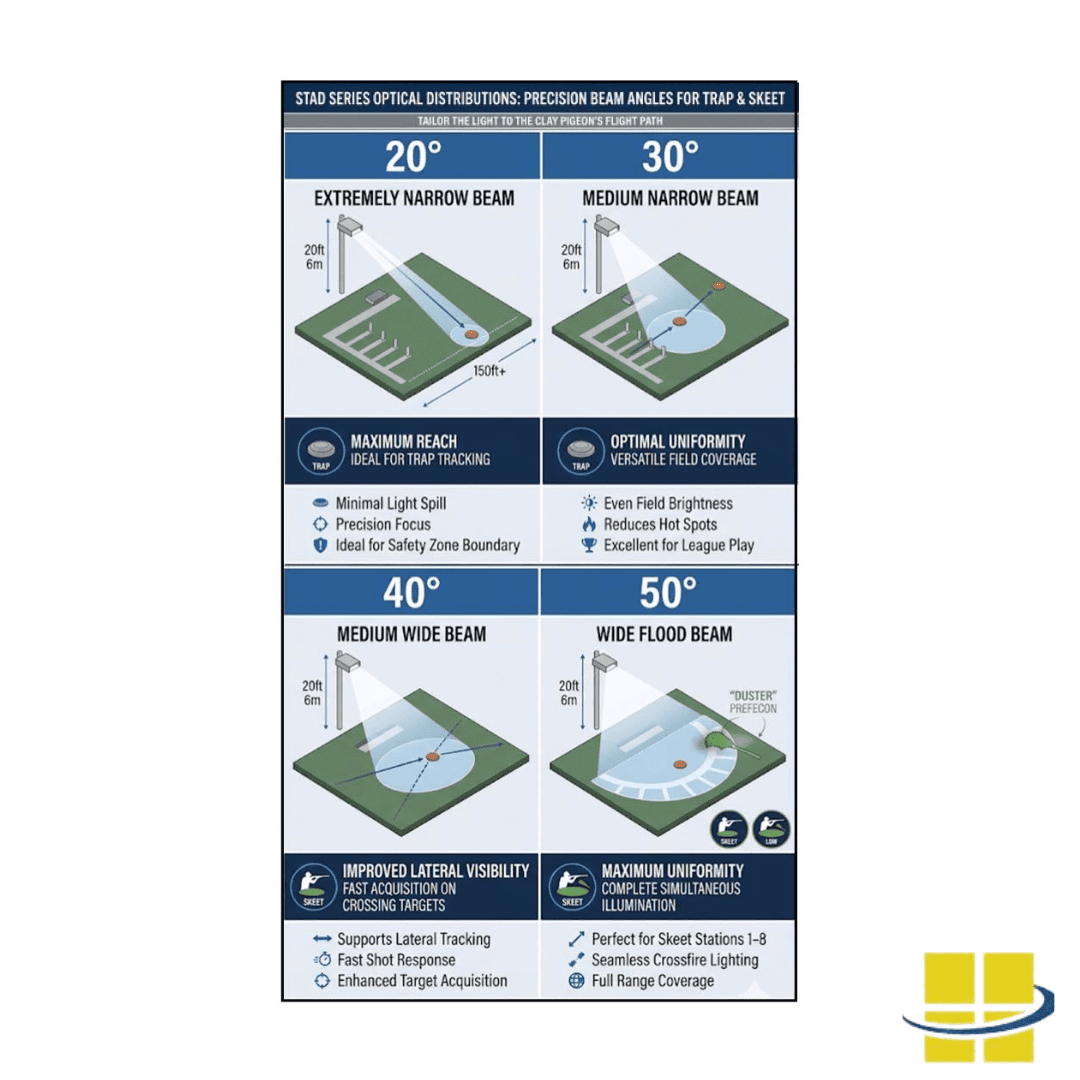

Optics Options: STAD has four different optical distribution options: 20, 30, 40, or 50-degree optics that match Metal Halide sports lights to distribute the light evenly and to where it is needed.
Wattage, LPW, and Volts: With 837 watts per light fixture, 160 lumens per watt, and functional on any voltage between 200v and 528v, STAD provides over 143,627lumens to replace any 1500w Metal Halide sports light.

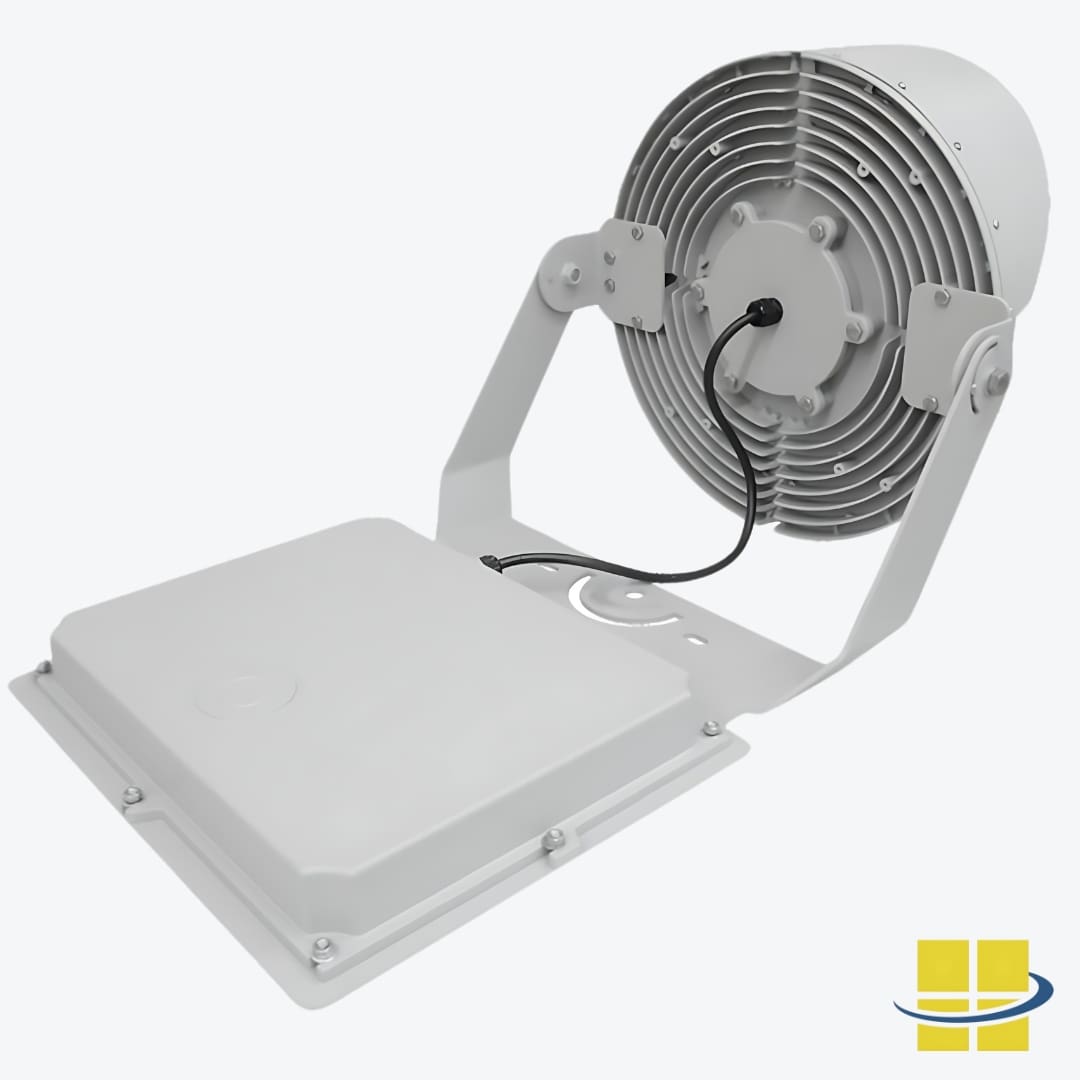

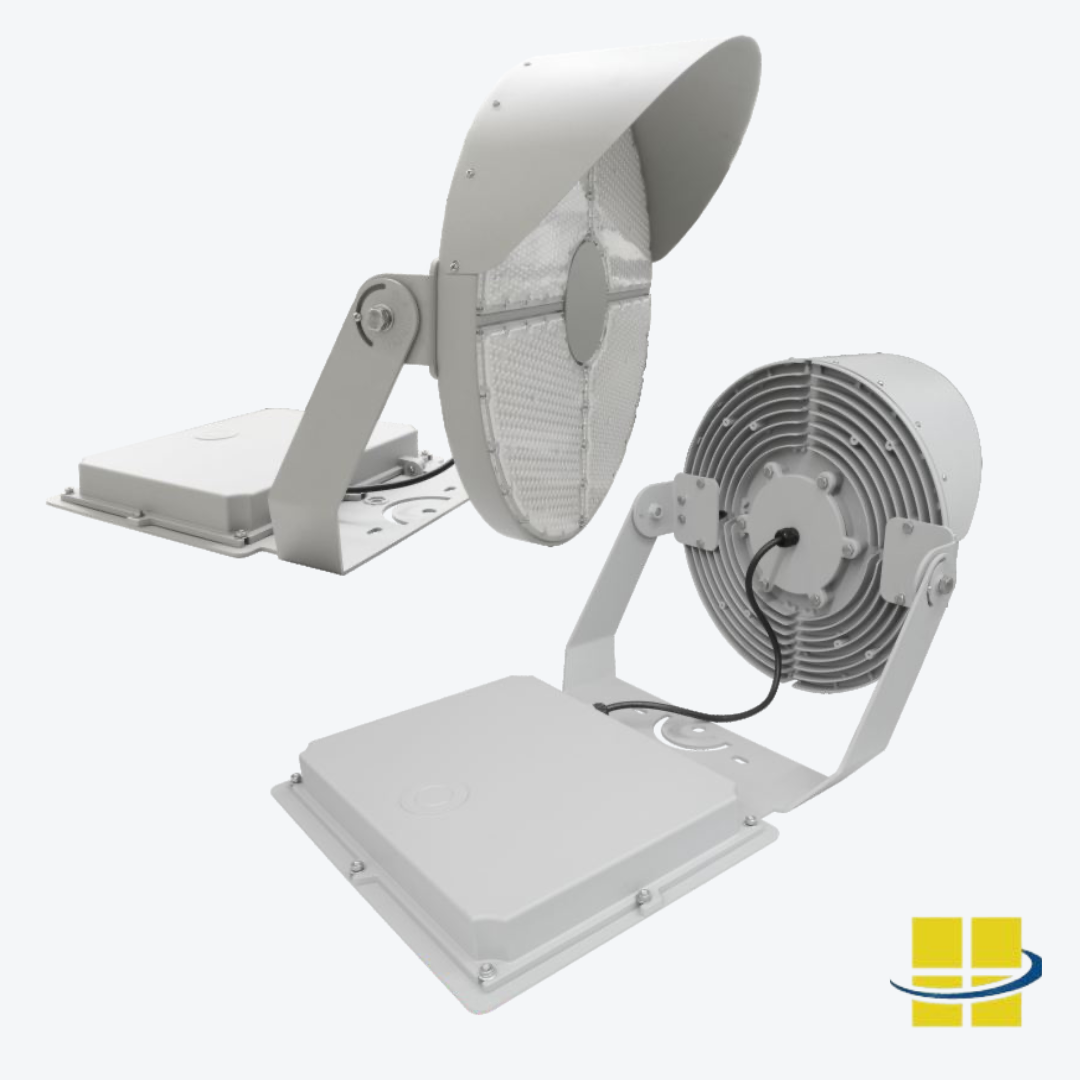

Lasting Durability: LED reliability, heavy-duty die-cast housing, and cooling fins to maximize heat dissipation make STADs the perfect no-maintenance replacement for 1500w Metal Halide sports lights.
No documents available
$999.87
